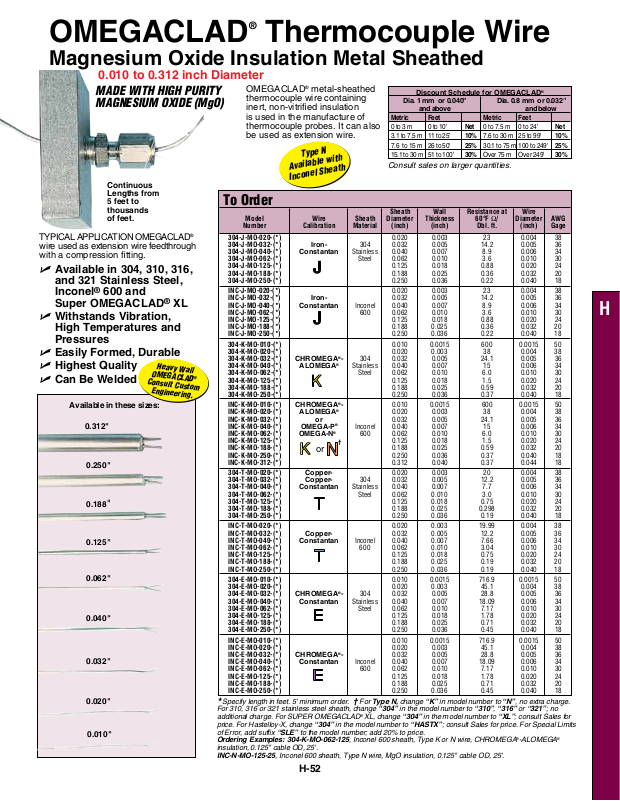

OMEGACLAD® Thermocouple Wire
Magnesium Oxide Insulation Metal Sheathed
0.010 to 0.312 inch Diameter
MADE WITH HIGH PURITY
MAGNESIUM OXIDE (MgO)
Continuous
Lengths from
5 feet to
thousands
of feet.

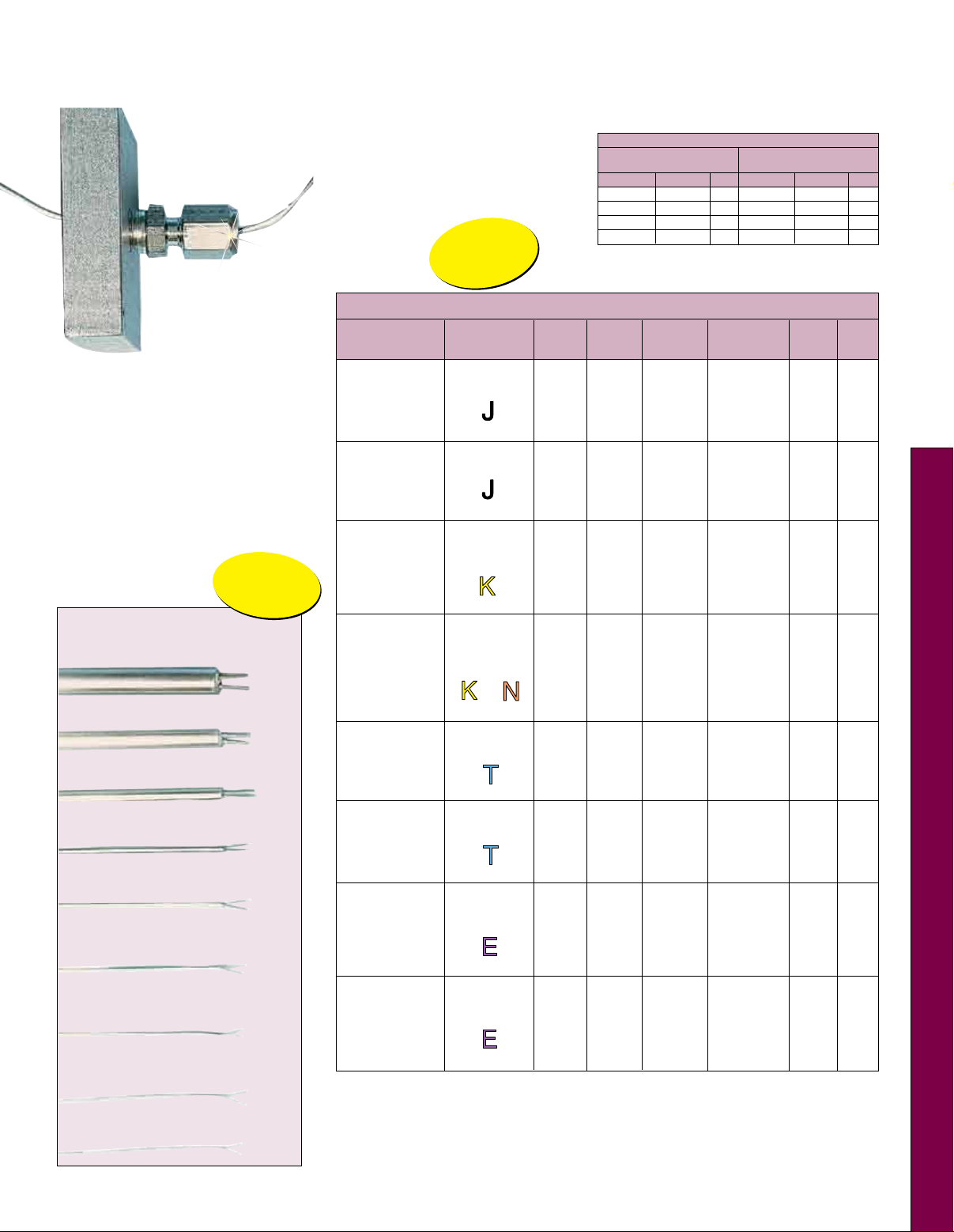

TYPICAL APPLICATION OMEGACLAD®
wire used as extension wire feedthrough
with a compression fitting.
U Available in 304, 310, 316,
and 321 Stainless Steel,
Inconel
Super OMEGACLAD® XL
U Withstands Vibration,
High Temperatures and
Pressures
U Easily Formed, Durable
U Highest Quality
U Can Be Welded
®
600 and
OMEGACLAD
Consult Custom
Engineering.
Available in these sizes:
0.312"
0.250"
"
0.188
0.125"
0.062"
0.040"
0.032"
0.020"
0.010"
Heavy Wall
OMEGACLAD® metal-sheathed
thermocouple wire containing
inert, non-vitrified insulation
is used in the manufacture of
thermocouple probes. It can also
be used as extension wire.
Type N
Available with
Inconel Sheath
To Order
Sheath Wall Resistance at Wire
Model Wire Sheath Diameter Thickness 60°F Ω/ Diameter AWG
Number Calibration Material (inch) (inch) Dbl. ft. (inch) Gage
304-J-MO-020-(*) 0.020 0.003 23 0.004 38
304-J-MO-032-(*) Iron- 304 0.032 0.005 14.2 0.005 36
304-J-MO-040-(*) Constantan Stainless 0.040 0.007 8.9 0.006 34
304-J-MO-062-(*) Steel 0.062 0.010 3.6 0.010 30
304-J-MO-125-(*) 0.125 0.018 0.88 0.020 24
304-J-MO-188-(*) 0.188 0.025 0.36 0.032 20
304-J-MO-250-(*) 0.250 0.036 0.22 0.040 18
INC-J-MO-020-(*) 0.020 0.003 23 0.004 38
INC-J-MO-032-(*) Iron- 0.032 0.005 14.2 0.005 36
INC-J-MO-040-(*) Constantan Inconel 0.040 0.007 8.9 0.006 34
INC-J-MO-062-(*) 600 0.062 0.010 3.6 0.010 30
INC-J-MO-125-(*) 0.125 0.018 0.88 0.020 24
INC-J-MO-188-(*) 0.188 0.025 0.36 0.032 20
INC-J-MO-250-(*) 0.250 0.036 0.22 0.040 18
304-K-MO-010-(*) 0.010 0.0015 600 0.0015 50
304-K-MO-020-(*) 0.020 0.003 38 0.004 38
304-K-MO-032-(*) CHROMEGA
304-K-MO-040-(*) ALOMEGA® Stainless 0.040 0.007 15 0.006 34
304-K-MO-062-(*) Steel 0.062 0.010 6.0 0.010 30
®
304-K-MO-125-(*) 0.125 0.018 1.5 0.020 24
304-K-MO-188-(*) 0.188 0.025 0.59 0.032 20
304-K-MO-250-(*) 0.250 0.036 0.37 0.040 18
INC-K-MO-010-(*) CHROMEGA
INC-K-MO-020-(*) ALOMEGA® 0.020 0.003 38 0.004 38
INC-K-MO-032-(*) or 0.032 0.005 24.1 0.005 36
INC-K-MO-040-(*) OMEGA-P® Inconel 0.040 0.007 15 0.006 34
INC-K-MO-062-(*) OMEGA-N® 600 0.062 0.010 6.0 0.010 30
INC-K-MO-125-(*) 0.125 0.018 1.5 0.020 24
INC-K-MO-188-(*) 0.188 0.025 0.59 0.032 20
INC-K-MO-250-(*) 0.250 0.036 0.37 0.040 18
INC-K-MO-312-(*) 0.312 0.040 0.37 0.044 18
304-T-MO-020-(*) Copper- 0.020 0.003 20 0.004 38
304-T-MO-032-(*) Copper- 304 0.032 0.005 12.2 0.005 36
304-T-MO-040-(*) Constantan Stainless 0.040 0.007 7.7 0.006 34
304-T-MO-062-(*) Steel 0.062 0.010 3.0 0.010 30
304-T-MO-125-(*) 0.125 0.018 0.75 0.020 24
304-T-MO-188-(*) 0.188 0.025 0.298 0.032 20
304-T-MO-250-(*) 0.250 0.036 0.19 0.040 18
INC-T-MO-020-(*) 0.020 0.003 19.99 0.004 38
INC-T-MO-032-(*) Copper- 0.032 0.005 12.2 0.005 36
INC-T-MO-040-(*) Constantan Inconel 0.040 0.007 7.66 0.006 34
INC-T-MO-062-(*) 600 0.062 0.010 3.04 0.010 30
INC-T-MO-125-(*) 0.125 0.018 0.75 0.020 24
INC-T-MO-188-(*) 0.188 0.025 0.19 0.032 20
INC-T-MO-250-(*) 0.250 0.036 0.19 0.040 18
304-E-MO-010-(*) 0.010 0.0015 716.9 0.0015 50
304-E-MO-020-(*) 0.020 0.003 45.1 0.004 38
304-E-MO-032-(*) CHROMEGA
304-E-MO-040-(*) Constantan Stainless 0.040 0.007 18.09 0.006 34
304-E-MO-062-(*) Steel 0.062 0.010 7.17 0.010 30
304-E-MO-125-(*) 0.125 0.018 1.78 0.020 24
304-E-MO-188-(*) 0.188 0.025 0.71 0.032 20
304-E-MO-250-(*) 0.250 0.036 0.45 0.040 18
INC-E-MO-010-(*) 0.010 0.0015 716.9 0.0015 50
INC-E-MO-020-(*) 0.020 0.003 45.1 0.004 38
INC-E-MO-032-(*) CHROMEGA
INC-E-MO-040-(*) Constantan Inconel 0.040 0.007 18.09 0.006 34
INC-E-MO-062-(*) 600 0.062 0.010 7.17 0.010 30
INC-E-MO-125-(*) 0.125 0.018 1.78 0.020 24
INC-E-MO-188-(*) 0.188 0.025 0.71 0.032 20
INC-E-MO-250-(*) 0.250 0.036 0.45 0.040 18
Specify length in feet. 5' minimum order. † For Type N, change “K” in model number to “N”, no extra charge.
*
For 310, 316 or 321 stainless steel sheath, change “304” in the model number to “310”, “316” or “321”; no
additional charge. For SUPER OMEGACLAD
price. For Hastelloy-X, change “304” in the model number to “HASTX”; consult Sales for price. For Special Limits
of Error, add suffix “SLE” to the model number; add 20% to price.
Ordering Examples: 304-K-MO-062-125, Inconel 600 sheath, Type K or N wire, CHROMEGA
insulation, 0.125" cable OD, 25'.
INC-N-MO-125-25, Inconel 600 sheath, Type N wire, MgO insulation, 0.125" cable OD, 25'.
H-52
®
- 304 0.032 0.005 24.1 0.005 36
®
- 0.010 0.0015 600 0.0015 50
†
or
®
- 304 0.032 0.005 28.8 0.005 36
®
- 0.032 0.005 28.8 0.005 36
®
XL, change “304” in the model number to “XL”; consult Sales for
Discount Schedule for OMEGACLAD®
Dia. 1 mm or 0.040" Dia. 0.8 mm or 0.032"
and above and below
Metric Feet Metric Feet
0 to 3 m
3.1 to 7.5 m 11 to 25' 10% 7.6 to 30 m 25 to 99' 10%
7.6 to 15 m 26 to 50' 25% 30.1 to 75 m 100 to 249' 25%
15.1 to 30 m 51 to 100' 30% Over 75 m Over 249' 30%
0 to 10' Net 0 to 7.5 m 0 to 24' Net
Consult sales on larger quantities.
®
