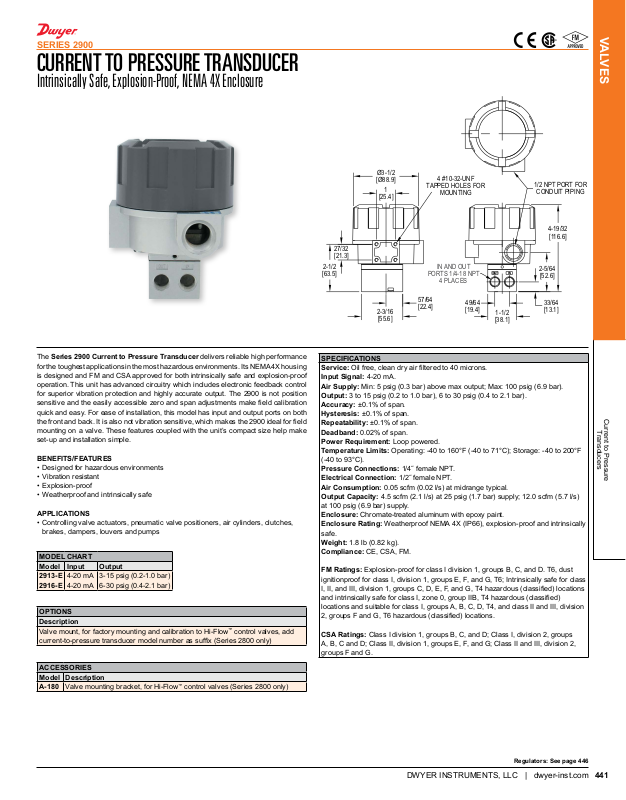

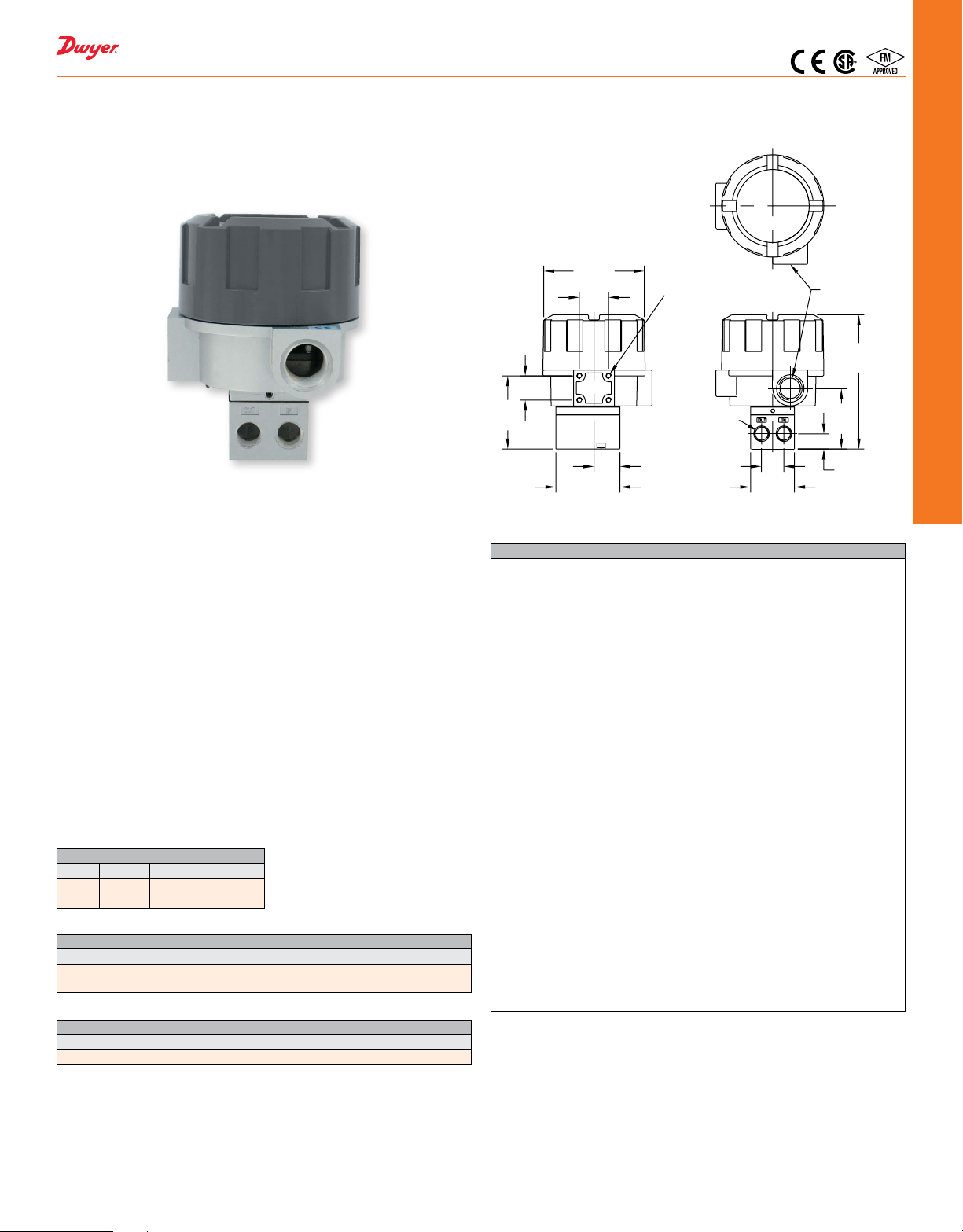

SERIES 2900
CURRENT TO PRESSURE TRANSDUCER
Intrinsically Safe, Explosion-Proof, NEMA 4X Enclosure
VALVES
The Series 2900 Current to Pressure Transducer delivers reliable high performance
for the toughest applications in the most hazardous environments. Its NEMA 4X housing
is designed and FM and CSA approved for both intrinsically safe and explosion-proof
operation. This unit has advanced circuitry which includes electronic feedback control
for superior vibration protection and highly accurate output. The 2900 is not position
sensitive and the easily accessible zero and span adjustments make eld calibration
quick and easy. For ease of installation, this model has input and output ports on both
the front and back. It is also not vibration sensitive, which makes the 2900 ideal for eld
mounting on a valve. These features coupled with the unit’s compact size help make
set-up and installation simple.
BENEFITS/FEATURES
• Designed for hazardous environments
• Vibration resistant
• Explosion-proof
• Weatherproof and intrinsically safe
APPLICATIONS
• Controlling valve actuators, pneumatic valve positioners, air cylinders, clutches,
brakes, dampers, louvers and pumps
MODEL CHART
Model Input Output
2913-E
4-20 mA
2916-E
4-20 mA
OPTIONS
Description
Valve mount, for factory mounting and calibration to Hi-Flow
current-to-pressure transducer model number as sufx (Series 2800 only)
ACCESSORIES
Model Description
A-180 Valve mounting bracket, for Hi-Flow
3-15 psig (0.2-1.0 bar)
6-30 psig (0.4-2.1 bar)
™
control valves, add
™
control valves (Series 2800 only)
Ø3-1/2
[Ø88.9]
1
[25.4]
27/32
[21.3]
2-3/16
[55.6]
SPECIFICATIONS
Service: Oil free, clean dry air ltered to 40 microns.
Input Signal: 4-20 mA.
Air Supply: Min: 5 psig (0.3 bar) above max output; Max: 100 psig (6.9 bar).
Output: 3 to 15 psig (0.2 to 1.0 bar), 6 to 30 psig (0.4 to 2.1 bar).
Accuracy: ±0.1% of span.
Hysteresis: ±0.1% of span.
Repeatability: ±0.1% of span.
Deadband: 0.02% of span.
Power Requirement: Loop powered.
Temperature Limits: Operating: -40 to 160°F (-40 to 71°C); Storage: -40 to 200°F
(-40 to 93°C).
Pressure Connections: 1/4˝ female NPT.
Electrical Connection: 1/2˝ female NPT.
Air Consumption: 0.05 scfm (0.02 l/s) at midrange typical.
Output Capacity: 4.5 scfm (2.1 l/s) at 25 psig (1.7 bar) supply; 12.0 scfm (5.7 l/s)
at 100 psig (6.9 bar) supply.
Enclosure: Chromate-treated aluminum with epoxy paint.
Enclosure Rating: Weatherproof NEMA 4X (IP66), explosion-proof and intrinsically
safe.
Weight: 1.8 lb (0.82 kg).
Compliance: CE, CSA, FM.
FM Ratings: Explosion-proof for class I division 1, groups B, C, and D. T6, dust
ignitionproof for class I, division 1, groups E, F, and G, T6; Intrinsically safe for class
I, II, and III, division 1, groups C, D, E, F, and G, T4 hazardous (classied) locations
and intrinsically safe for class I, zone 0, group IIB, T4 hazardous (classied)
locations and suitable for class I, groups A, B, C, D, T4, and class II and III, division
2, groups F and G, T6 hazardous (classied) locations.
CSA Ratings: Class I division 1, groups B, C, and D; Class I, division 2, groups
A, B, C and D; Class II, division 1, groups E, F, and G; Class II and III, division 2,
groups F and G.
4 #10-32-UNF
TAPPED HOLES FOR
MOUNTING
N AND OU
ORTS 1/4-18 NP
4 PLACE
57/64
[22.4]
49/64
[19.4]
1-1/2
1/2 NPT PORT FO
CONDUIT PIPING
4-19/32
[116.6]
2-5/64
[52.6]
33/64
[13.1]
Current to Pressure
Transducers
Regulators: See page 446
