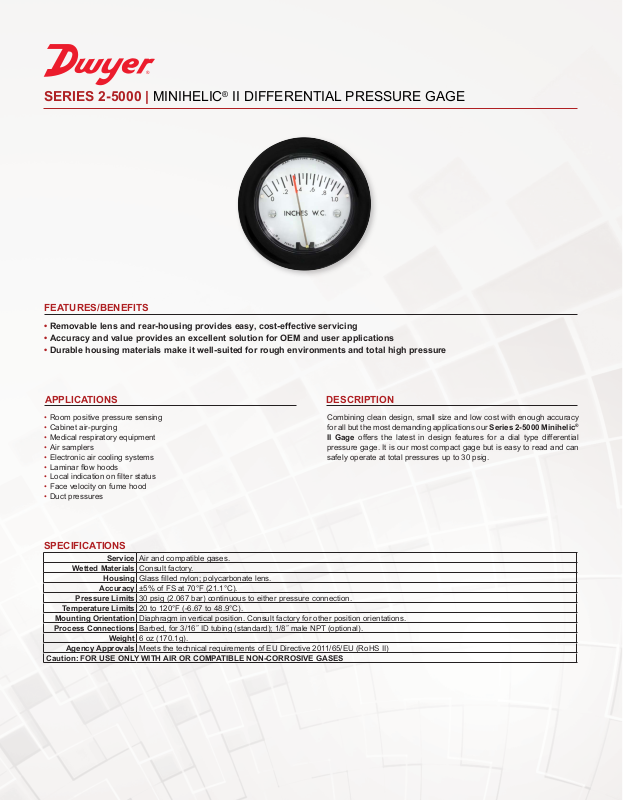

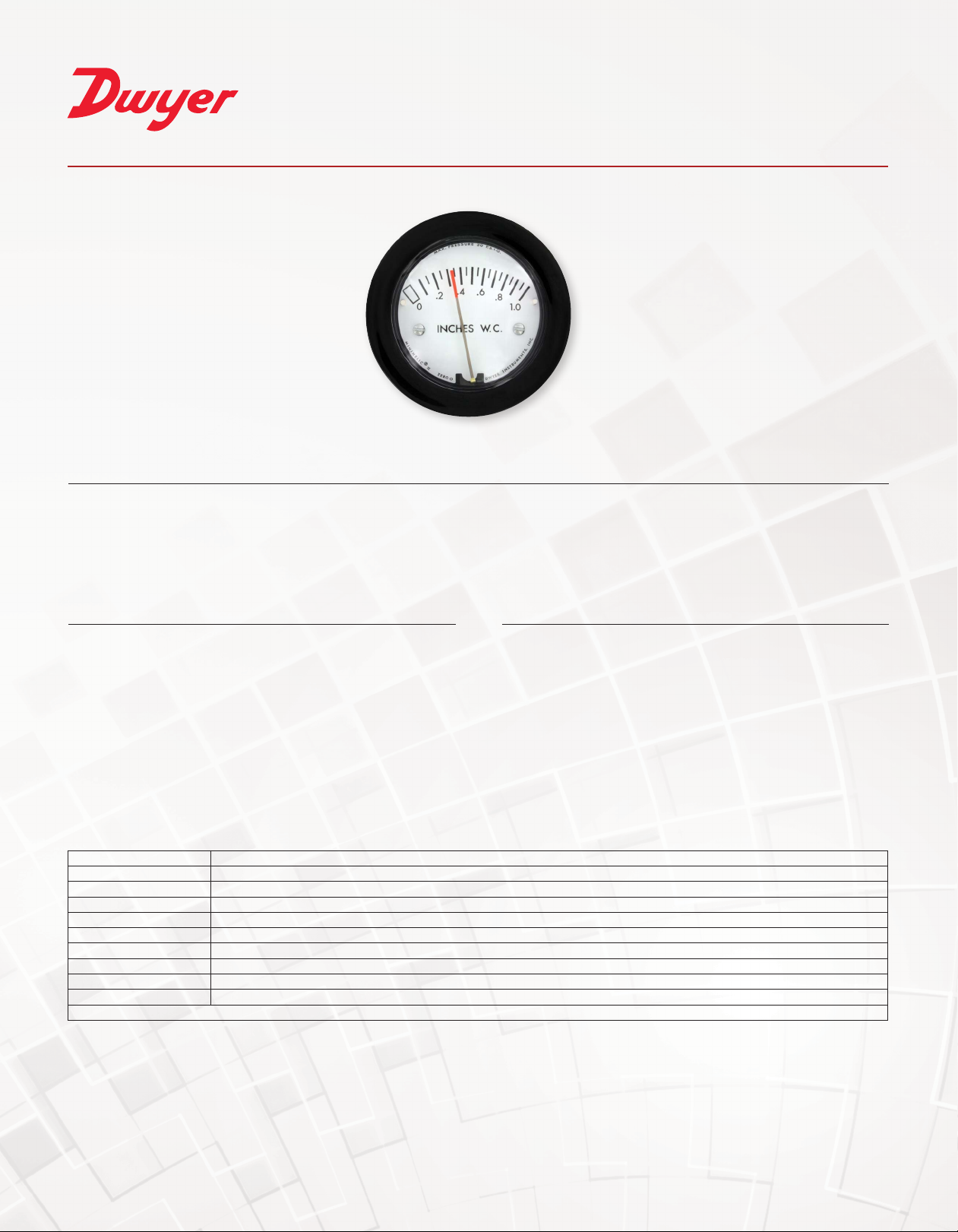

SERIES 2-5000 | MINIHELIC® II DIFFERENTIAL PRESSURE GAGE

®

FEATURES/BENEFITS

• Removable lens and rear-housing provides easy, cost-effective servicing

• Accuracy and value provides an excellent solution for OEM and user applications

• Durable housing materials make it well-suited for rough environments and total high pressure

DESCRIPTIONAPPLICATIONS

• Room positive pressure sensing

• Cabinet air-purging

• Medical respiratory equipment

• Air samplers

• Electronic air cooling systems

•Laminarowhoods

•Localindicationonlterstatus

• Face velocity on fume hood

• Duct pressures

Combining clean design, small size and low cost with enough accuracy
for all but the most demanding applications our Series 2-5000 Minihelic®
II Gage offers the latest in design features for a dial type differential
pressure gage. It is our most compact gage but is easy to read and can
safely operate at total pressures up to 30 psig.

SPECIFICATIONS

Service Air and compatible gases.

Wetted Materials Consult factory.

Housing Glassllednylon;polycarbonatelens.

Accuracy ±5% of FS at 70°F (21.1°C).

Pressure Limits 30 psig (2.067 bar) continuous to either pressure connection.

Temperature Limits 20 to 120°F (-6.67 to 48.9°C).

Mounting Orientation Diaphragm in vertical position. Consult factory for other position orientations.

Process Connections Barbed,for3/16˝IDtubing(standard);1/8˝maleNPT(optional).

Weight 6 oz (170.1g).

Agency Approvals Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)

Caution: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES

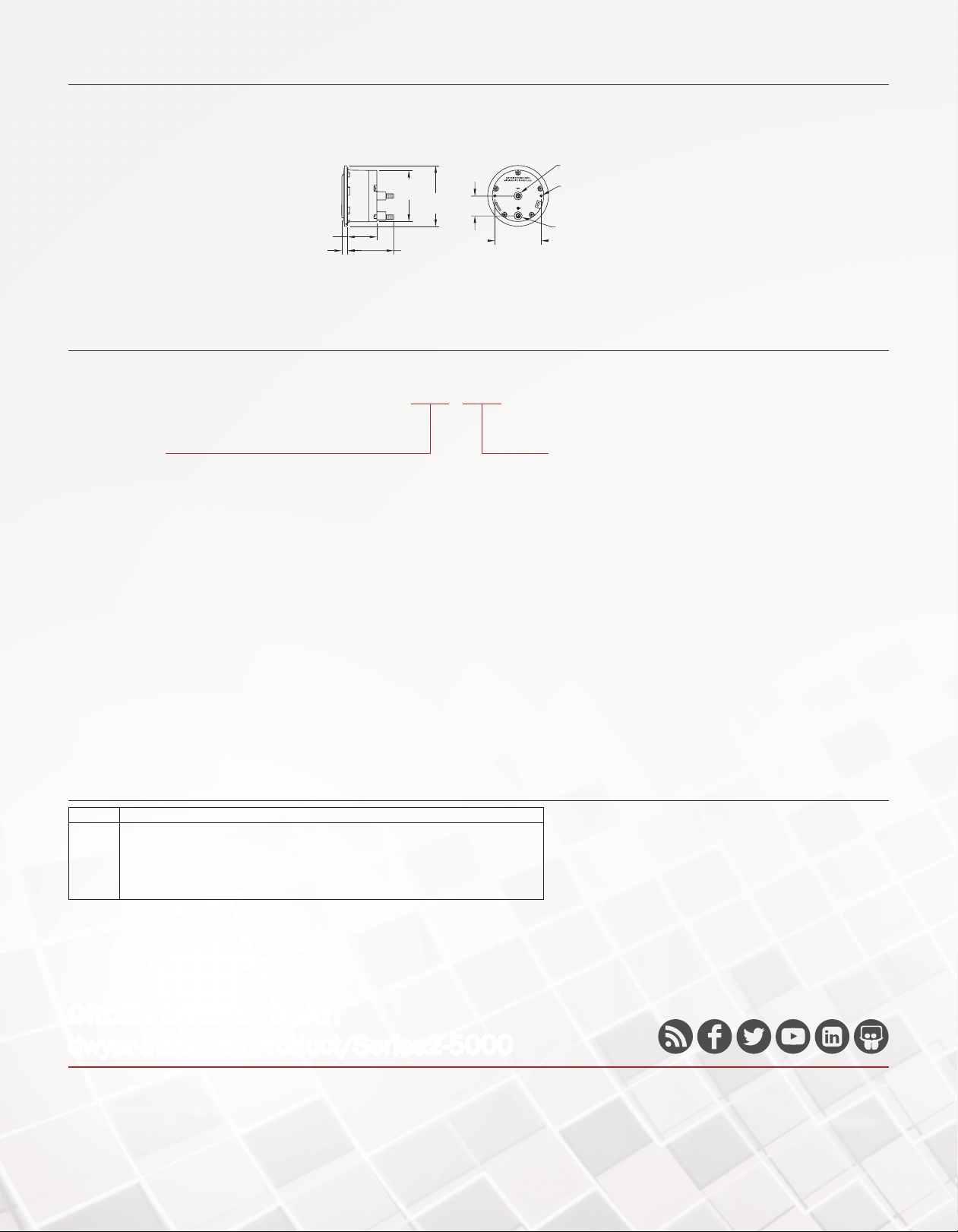

DIMENSIONS

Ø2-19/32

[65.88]

Ø3-1/16

[77.79]

1-7/16
[36.51]

9/32

[7.14]

2-3/8

[60.33]

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

2-5001 -AT

1

[25.40]

MOUNT HOLES

2-21/64

[59.18]

SURFACE

LOW PRESSURE
PORT Ø7/16 [11.11]
HOLE IN PANEL FOR
SURFACE MOUNT

(2) Ø5/32 HOLES
IN PANEL FOR
SURFACE MOUNT

HIGH PRESSURE
PORT Ø7/16 [11.11]
HOLE IN PANEL FOR
SURFACE MOUNT

SERIES/RANGE

2-5000-0: 0 to 0.5 in w.c
2-5001: 0 to 1 in w.c
2-5002: 0 to 2 in w.c
2-5003: 0 to 3 in w.c
2-5005: 0 to 5 in w.c
2-5205: 0 to 5 psid
2-5210: 0 to 10 psid
2-5000-125PA: 0 to 125 Pa
2-5000-250PA: 0 to 250 Pa
2-5000-500PA: 0 to 500 Pa
2-5000-750PA: 0 to 750 Pa

ACCESSORIES

Model Description
A-434
A-609
A-497
A-489
A-362

Portable kit for Series 2-5000 Minihelic® II gage

AirlterkitforSeries2-5000Minihelic® II gage

Mounting bracket for the Series 2-5000 Minihelic® II differential pressure gage

4˝303SSstraightstaticpressuretipwithange

Stand-hang bracket, aluminum, for Minihelic® II gage

OPTIONS

-AT: Aluminum tag

-BB: Bottom barb connection

-FC: Factory calibration

-NIST:NISTtraceablecalibrationcerticate

-NPT: NPT connection
