Omega 22040C User Manual

Operating Instructions & Parts Manual

Long Chassis Hydraulic Service Jacks

Model
22040C, 22041C
22050C, 22051C
22100C, 22101C

Models 22040C, 22050C & 22100C Models 22041C, 22051C & 22101C (Air Options)

U.S. Patent No's. 5,755,099 • 5,946,912 • 5,341,723

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

!

Obey all safety messages that follow this symbol to avoid possible injury or death.

Capacity

4 Ton
5 Ton

10 Ton

! ADVERTENCIA

• Leer, comprender, y seguir las instrucciónes antes

de utilizar el aparato.

• El manual de instrucciónes y la información de

seguridad deben estar comunicado en lengua del
operador antes del uso.

• No seguir estas indicaciónes puede causar daños

personales o materiales.

Read this manual and follow all the Safety Rules and Operating Instructions before using this product.

! WARNING

To avoid crushing and related injuries:

NEVER work on, under or around a

load supported only by a hydraulic
jack. ALWAYS use adequately rated

jack stands.

SFA Companies

http://www.omegalift.com

Printed in China

22040C-M1 rev 06/08

ONE YEAR LIMITED WARRANTY

For a period of one (1) year from date of purchase, SFA Companies will repair or replace, at its option,
without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This

limited warranty is a consumer's exclusive remedy.

Performance of any obligation under this warranty may be obtained by returning the warranted product, freight
prepaid, to SFA Companies Warranty Service Department, 10939 N. Pomona Ave., Kansas City, MO 64153.

Except where such limitations and exclusions are specically prohibited by applicable law, (1) THE
CONSUMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF DEFECTIVE
PRODUCTS AS DESCRIBED ABOVE. (2) SFA Companies SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGE OR LOSS WHATSOEVER. (3) ANY IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO ONE YEAR, OTHERWISE THE REPAIR, REPLACEMENT OR REFUND AS
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER,
AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. (4) ANY MODIFICATION,
ALTERATION, ABUSE, UNAUTHORIZED SERVICE OR ORNAMENTAL DESIGN VOIDS THIS WARRANTY AND
IS NOT COVERED BY THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not

apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This warranty gives you specic legal rights, and you may also

have other rights which vary from state to state.

SAFETY and GENERAL INFORMATION

Save these instructions. For your safety, read, understand, and follow the information provided with and on this jack

before using. The owner and operator of this equipment shall have an understanding of this jack and safe operating
procedures before attempting to use. The owner and operator shall be aware that use and repair of this product

may require special skills and knowledge. Instructions and safety information shall be conveyed in the operator's
native language before use of this jack is authorized. If any doubt exists as to the safe and proper use of this jack,

remove from service immediately.

Inspect before each use. Do not use if broken, bent, cracked or damaged parts are noted. Any jack that appears
damaged in any way, or operates abnormally shall be removed from service immediately. If the jack has been or

suspected to have been subjected to a shock load (a load dropped suddenly, unexpectedly upon it), immediately

discontinue use until jack has been checked by a factory authorized service center (contact distributor or manufacturer

for list of authorized service centers). It is recommended that an annual inspection be done by qualied personnel.
Labels and Operator's Manuals are available from manufacturer.

PRODUCT DESCRIPTION

Omega Long Chassis Hydraulic Service Jacks are designed to lift, but not support, one end of a vehicle. Immediately

after lifting, loads must be supported by a pair of appropriately rated jack stands. Air actuated function available for
Models 22041C, 22051C & 22101C. Air actuated units require at least 7.8 CFM @ 110 - 175 PSI. A minimum of 150
PSI air pressure is required to raise rated capacity load.

NEVER use hydraulic jack as stand-alone device. After lifting, immediately support the lifted vehicle with

!

a pair of appropriately rated jack stands.

SPECIFICATIONS

Model Capacity Jack Size ( L x W x H) Min. Height Max. Height Hyd. Range Saddle Dia.

22040C/ 22041C 4 Ton 50-5/8" x 15-3/8" x 7-1/2" 5" 24" 19" 5-1/2"

22050C/ 22051C 5 Ton 57-3/4" x 17" x 7-5/8" 7" 27" 20" 6-1/2"

22100C/ 22101C 10 Ton 54-3/4" x 20" x 12-3/4" 7" 27" 20" 7-3/8"

2

Lift Control Valve

(for air actuated models only)

Handle Position Lock

Release Valve
(Handle Knob)

Handle

Saddle

Oil Filler Plug/Screw

(on Reservoir)

Handle Sleeve

Foot Pedal

Grease Fitting

Rear Caster

Figure 1 - Typical Long Chassis Jack Nomenclature (22051C shown)

Front Wheel

PREPARATION

Assembly

Always secure the handle into the handle sleeve by means of the bolt lock washer and nut provided. Tighten securely
to prevent accidental removal of handle while in use.

Before Use

1.

Verify that the product and application are compatible, if in doubt call Omega Technical Service [phone].

2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the

product, its components and recognize the hazards associated with its use.

3. To familiarize yourself with basic operation, turn the release valve (handle knob):

a. Clockwise until rm resistance is felt to further turning. This is the ‘CLOSED’ release valve position used to
raise the saddle.
b. Counter-clockwise, but no more than 1/2 turn from the closed position. This is the ‘OPEN’ release valve
position used to lower the saddle.

4. With saddle fully lowered, locate and remove cover plate, then remove the oil ller plug/screw. Pump 6 to 8 full

strokes. This will help release any pressurized air which may be trapped within the reservoir. Check oil level. Proper

oil level will vary from just covering the ram cylinder to 3/16” above it as seen from the oil ller hole. Reinstall the
oil ller plug/screw.

5. For air option models 22041C, 22051C & 22101C, Pour a teaspoon of good quality, air tool lubricant into the air supply

inlet of the lift control valve. Connect to air supply and operate for 3 seconds to evenly distribute lubricant.

Note: These models are equipped with the popular 1/4" NPT air coupler. When installing a different air coupler of

your choice, ensure that thread tape or compound is used when servicing connections. To ensure dependable,
trouble free operation an inline air dryer and oiler is recommended.

6. Ensure that jack rolls freely. Raise and lower the unloaded saddle throughout the lifting range before putting into
service to ensure the pump operates smoothly. Replace worn or damaged parts and assemblies with Omega

authorized replacement parts only.

Bleeding / Venting Trapped Air

With the release valve in the OPEN position (3b.) and with saddle fully lowered, locate and remove the oil ller plug/

screw. Pump 6 to 8 full strokes. This will help release any pressurized air which may be trapped within the reservoir.

Reinstall the oil ller plug/screw.

3

! WARNING

• Study, understand, and follow all printed

materials provided with/on this product before use.

• Do not exceed rated capacity.

• Use only on hard, level surface.

• This is a lifting device only!

• Immediately after lifting, support the load with

a pair of appropriately rated jack stands.

• Lift only on areas of the vehicle as specied by

the vehicle manufacturer.

• Never wire, clamp or otherwise disable the lift
control valve to function by other than operator's

hand.

•

Do not move or dolly the vehicle while on the jack.

• No alterations shall be made to this product.

• Failure to heed these markings may result in

personal injury and/or property damage.

To avoid crushing and related injuries:

•

Never work on, under or around a load supported

only by hydraulic jack.

•

Always use adequately rated jack stands.

• Chock each unlifted tire in both directions.

• Do not use this device to lift, level, lower, support nor

move a house, mobile home, travel trailer, camper or
any building structure.

• Be alert and sober when using this product. Do not
operate under the inuence of drugs or alcohol.

! WARNING

X

OPERATION

Lifting

Only attachments and/or adapters supplied by the manufacturer shall be used. Lift only on area of the

!

 vehicleasspeciedbythevehiclemanufacturer.

Note: The jack is equipped with handle position lock. To adjust the handle, release lock device by pulling the lever
up, then back until lever is locked into place.

1. Follow the vehicle manufacturer’s recommended guidelines for lifting. Engage the emergency brake and chock

each unlifted wheel in both directions to prevent inadvertent vehicle movement.

2.

Locate and close the release valve by turning the release valve knob clockwise until rm resistance is felt.

3. Refer to the vehicle manufacturer owner’s manual to locate approved lifting points on the vehicle. Center jack

saddle under lift point.

4. Verify lift point, then pump handle or foot pedal to contact lift point. To lift, pump handle or squeeze lift control valve
(models 22041C, 22051C & 22101C) until load reaches desired height. Never use foot pedal to raise load.

5. Transfer the load immediately to appropriately rated jack stands.

pair of appropriately rated jack stands. Use one pair of jack stands per vehicle. Rated capacity is per
pair only! Do not exceed rated capacity.

Lowering

you turn the release valve knob counter-clockwise, the faster the load will come down. Maintain control
of the rate of speed at which the load lowers at all times!

1. Raise load high enough to clear the jack stands.

2.

3. Slowly turn the release valve knob counter-clockwise, but no more than 1/2 full turn. If the load fails to lower:

a. Use another jack to raise the vehicle high enough to reinstall jack stands.

b. Remove the malfunctioning jack and then the jack stands.

c.

4. After removing jack from under the vehicle, fully lower the saddle to reduce ram exposure to rust and

NEVER use hydraulic jack as a stand alone

!

Be sure all tools and personnel are clear before

!

Remove jack stands carefully. (always used in pairs).

Use the functioning jack to lower the vehicle.

contamination.

device! ALWAYS transfer the lifted load IMMEDIATELY to a

lowering load. Slowly open the release valve! The more

4

MAINTENANCE

Important: Use ONLY good grade hydraulic jack oil.

Avoid mixing different types of uid and Never use
brake uid, turbine oil, transmission uid, motor oil or
glycerin. Improper uid can cause failure of the jack and
the potential for sudden and immediate loss of load. We
recommend Mobil DTE 13M.

Adding oil

1. With saddle fully lowered set jack in its upright, level

position. Locate and remove oil ller plug/screw.

2. Fill with oil until ~3/16" above the inner cylinder as

seen from the oil ller hole. Reinstall the oil ller

plug/screw.

Changing oil

For best performance, replace the complete uid supply

at least once per year.

Lubrication

A periodic coating of light lubricating oil to pivot points,

axles and hinges will help to prevent rust and assure

that wheels, casters and pump assemblies move freely.
To help ensure trouble free operation, an inline air dryer
and oiler is recommended.

Cleaning

Periodically check the pump piston and ram for signs
of rust or corrosion. Clean as needed and wipe with
an oily cloth.

Note: Never use sandpaper or abrasive material on

these surfaces!

Storage

When not in use, store the jack with saddle fully

lowered.

1. With saddle fully lowered, remove the oil ller plug/

screw.

2. Lay the jack on its side and drain the uid into a

suitable container.

Note: Dispose of hydraulic uid in accordance with

local regulations.

3. Fill with oil until ~3/16" above the inner cylinder as

seen from the oil ller hole. Reinstall the oil ller

plug/screw.

TROUBLESHOOTING

Symptom Possible Causes Corrective Action

Jack will not lift load

Jack will lift, but not maintain
pressure

• Release valve not tightly closed

• Overload condition

• Air pressure inadequate

• Release valve not tightly closed

• Hydraulic unit malfunction

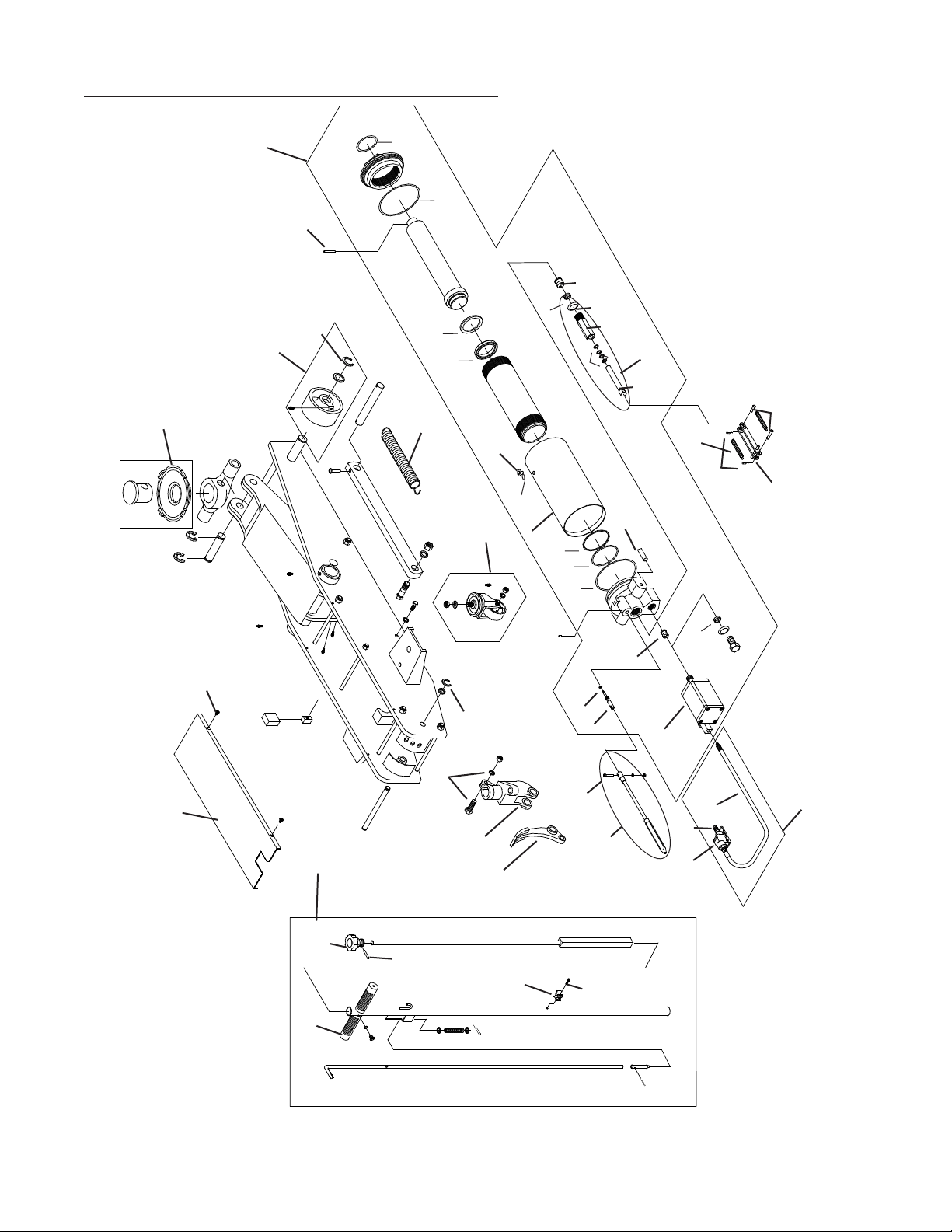

REPLACEMENT PARTS

(refer to page 6 thru12)
Not all components of the jack are replacement

items, but are illustrated as a convenient reference of

location and position in the assembly sequence. When

ordering parts, give Model number, serial number and
parts description. Call or write for current pricing: SFA

Companies, 10939 N. Pomona Ave. Kansas City, MO
64153, U.S.A. Tel:[phone] Fax:[phone]
E-Mail: [e-mail]
Omega Website: http://www.omegalift.com

• Ensure release valve tightly closed

• Remedy overload condition

• Ensure adequate air pressure

• Ensure release valve tightly closed

• Discontinue use, contact Omega

technical service

Jack will not lower after unloading • Reservoir overlled

• Linkages binding

• Fluid level low

Poor lift performance • Fluid level low

• Air trapped in system

Will not lift to full extension • Fluid level low • Ensure proper uid level

5

• Drain uid to proper level

• Clean and lubricate moving parts

• Ensure proper uid level

• Ensure proper uid level

• With ram fully retracted, remove oil
ller plug/screw to let pressurized
air escape. Reinstall oil ller plug/

screw

Replacement parts illustration for Model 22040C

27

37

26

19

25

16

40

24

31

39

17

23

38

44

21

3

F

J

2

12

11

30

45

15

E

D

18

C

B

A

4

1

6

G

7

5

14

H

I

9

8

41

13

43

42

Figure 2 - Replacement Parts Illustration for Model 22040C

6

Replacement parts illustration for Model 22041C

32

34

30

36

28

29

33

27

18

35

10

37

5

26

25

24

23

17

38

44

21

39

3

F

J

2

19

A

16

40

C

B

7

31

E

D

6

G

1

H

8

I

4

9

41

11

43

14

15

13

42

Figure 3 - Replacement Parts Illustration for Model 22041C

7

Replacement Parts List for Models 22040C & 22041C:

Item 22040C Part# 22041C Part# Description Qty

1 G251-20008-000 Filter 1
2 G423-20003-000 Reservoir 1
3 5905-00100-100 Filler Plug 1
4 5901-00071-000 O-ring, D7.1x2.65 1
5 G251-20004-000 G250-20004-000 Release Valve 1
6 G100-43000-000 Hyd. Cartridge 1
7 B300-14002-000 Washer 1
8 G651-31002-000 Pump Cylinder 1
9 G651-31001-000 Pump Piston 1
10 N/A G100-44000-000 Hyd. Cartridge 1
11 G423-30000-000 G423-70000-000 Universal Joint 1
12 G251-00005-000 N/A Spring 1
13 5405-12039-000 Pin 1
14 5405-02028-000 Retaining Pin 2
15 G423-40000-000 Piston Link 1
16 G100-00015-000 Return Spring, Pedal 2
17 5102-06015-000 Screw 1
18 G251-00009-000 Foot Pedal 1
19 G251-00010-000 Handle Fork 1
21 G423-00011-000 Return Spring 1
23 G423-00013-000 Saddle 1
24 5111-55020-000 Screw, Philips 4
25 G423-00010-000 Cover 1
26 G251-40001-000 Knob 1
27 5402-04028-000 Spring Pin 1
28

29 5110-04012-000 Screw, Philips 1
30 5110-05025-000 5107-05016-000 Screw 1
31 G423-20000-000 G423-60000-000 Hyd. Power Unit 1
32
33 A27060-0003 Air Motor 1
34 A20060-0007 Lift Control Valve 1
35 A20060-0015 Hose Assembly 1
36 A20060-0016 Quick coupler, Male 1
37 G251-40000-000 G100-90009-K01 Handle Assembly 1
38 G423-90004-K01 Front Wheel Assembly 2
39 G250-90004-K02 Caster Assembly 2

40 G250-90009-K03 Bolt Assembly 1
41 G651-31000-000 Pump Assembly 1
42 5405-12050-000 Pin 1
43 5307-00012-000 Washer 2
44 5404-04030-000 Retaining Pin 2
45 5205-00005-000 N/A Nut 1

- G4230S-088 (includes 3,4 & A to J) Seal Kit for Hyd. Unit 1

-

- A270-01100-0000 Piston for Air Motor 1

- 22040C-L0 22041C-L0 Label (s) -

- 22040C-M0 Manual -

N/A

N/A

N/A

A070-40009-000 Hose clip 1

A20060-0006 Air Hose 1

A27010-0000 Seal Kit for Air Motor 1

8

Replacement parts illustration for Models 22050C & 22051C

23

38

31

17

22

21

F

6

A

G

7

8

E

D

4

5

I

I

H

H

41

9

13

30

39

3

2

C

B

1

A

14

11

12

15

16

26

37

25

42

27

24

28

29

20

40

10

(for 22051C)

J

(for 22050C)

33

35

32

34

36

19

18

Figure 4 - Replacement Parts Illustration for Model 22050C & 22051C

9

Replacement Parts List for Models 22050C & 22051C:

Item 22050C 22051C Description Qty
1 G251-20008-000 Filter 1
2 G250-20002-000 Reservoir 1
3 5905-00100-200 Filler Plug 1
4 5901-00071-000 O-ring, D7.1x2.65 1
5 G250-20004-000 Release Valve 1
6 G250-24000-000 Hyd. Cartridge 1
7 B300-14002-000 Washer 1
8 G651-31002-000 Pump Cylinder 1
9 G651-31001-000 Pump Piston 1
10 G250-23000-000 Hyd. Cartridge 1
11 G250-30000-000 Universal Joint 1
12 G251-00005-000 Spring 1
13 5405-12036-000 Pin 2
14 5405-02028-000 Retaining Pin 2
15 G250-50000-000 Piston Link 1
16 G251-00004-000 Return Spring, Pedal 1
17 5110-06016-000 Screw 1
18 G251-00009-000 Foot Pedal 1
19 G251-00010-000 Handle Fork 1
20 5304-00018-000 Snap Ring 2
21 G251-00003-000 Return Spring 2
22 5304-00028-000 Snap Ring 2
23 G251-00002-000 Saddle 1
24 5110-06010-000 Screw, Philips 4
25 G250-00002-000 Cover 1
26 G251-40001-000 Knob 1
27 5402-04028-000 Spring Pin 1
28 N/A A070-40009-000 Hose clip 1

29 5110-04012-000 Screw, Philips 1
30 5105-05012-000 Screw 1
31 G250-70000-000 G250-20000-000 Hyd. Power Unit 1
32
33 A27060-0003 Air Motor 1
34 A20060-0007 Lift Control Valve 1
35 A20060-0015 Hose Assembly 1
36 A20060-0016 Quick coupler, Male 1
37 G250-40000-000 Handle Assembly 1
38 G250-90004-K01 Front Wheel Assembly 2
39 G250-90004-K02 Caster Assembly 2

40 G250-90009-K03 Bolt Assembly 1
41 G651-31000-000 Pump Assembly 1
42 G251-00007-000 Handle Grip 2

- G2501S-074 ( includes 3,4 & A to J) Seal Kit for Hyd. Unit 1

-

- A270-01100-0000 Piston for Air Motor 1

- 22050C-L0 22051C-L0 Label (s) -

- 22040C-M0 Manual -

N/A

N/A

A20060-0006 Air Hose 1

A27010-0000 Seal Kit for Air Motor 1

Seal Kit (G2501S-074)Contents:

Item Description Qty

3 Filler Plug 1

4 O-ring, D7.1x2.65 1
A O-ring, D116x4 2

B O-ring, D73.8x3.5 1
C Back-up Washer 1
D U-cup 1

Item Description Qty

E Back-up Washer 1
F O-ring, D53x5 1

G Packing 1
H O-ring, D15x2.65 2

I Back-up Washer 2

J Packing (for 22050C only) 1

10

Replacement parts illustration for Models 22100C & 22101C

23

31

38

17

22

F

A

6

G

E

D

7

8

I

H

41

9

13

21

3

16

14

15

39

K

2

C

B

A

1

25

24

42

37

26

27

40

20

19

18

28

4

30

5

29

J

(for 22100C)

10

(for 22101C)

33

32

35

36

11

34

Figure 5 - Replacement Parts Illustration for Model 22100C & 22101C

11

Replacement Parts List for Models 22100C & 22101C:

Item 22100C 22101C Description Qty
1 G251-20008-000 Filter 1
2 G100-40003-000 Reservoir 1
3 G62S-03301-000 Filler Screw 1
4 5901-00071-000 O-ring, D7.1x2.65 1
5 G251-20004-000 Release Valve 1
6 G100-43000-000 Hyd. Cartridge 1
7 B300-14002-000 Washer 1
8 G651-31002-000 Pump Cylinder 1
9 G651-31001-000 Pump Piston 1
10 G100-44000-000 Hyd. Cartridge 1
11 G100-90009-K04 Universal Joint 1
13 5405-12039-000 Pin 2
14 5404-02028-000 Retaining Pin 2
15 G100-70000-000 Piston Link 1
16 G100-00015-000 Return Spring, Pedal 2
17 5402-05025-000 Pin 1
18 G251-00009-000 Foot Pedal 1
19 G251-00010-000 Handle Fork 1
20 5304-00018-000 Snap Ring 2
21 G100-00014-000 Return Spring 1
22 5305-00024-000 Snap Ring 2
23 G100-90009-K02 Saddle Assy. 1
24 5111-55022-000 Screw, Philips 4
25 G100-00016-000 Cover 1
26 G251-40001-000 Knob 1
27 5402-04028-000 Spring Pin 1
28

29 5110-04012-000 Screw, Philips 1
30 5110-05025-000 Screw 1
31 G100-80000-000 G100-40000-000 Hyd. Power Unit 1
32
33 A27060-0003 Air Motor 1
34 A20060-0007 Lift Control Valve 1
35 A20060-0015 Hose Assembly 1
36 A20060-0016 Quick coupler, Male 1
37 G100-90009-K01 Handle Assembly 1
38 G100-90004-K02 Front Wheel Assembly 2
39 G661-70000-000 Caster Assembly 2

40 G250-90009-K03 Bolt Assembly 1
41 G651-31000-000 Pump Assembly 1
42 G251-00007-000 Handle Grip 2

- G1001S-98 G1000S-98 Seal Kit for Hyd. Unit 1

-

- A270-01100-0000 Piston for Air Motor 1

- 22100C-L0 22101C-L0 Label (s) -

- 22040C-M0 Manual -

N/A

N/A

N/A

A070-40009-000 Hose clip 1

A20060-0006 Air Hose 1

A27010-0000 Seal Kit for Air Motor 1

12
