Page 1

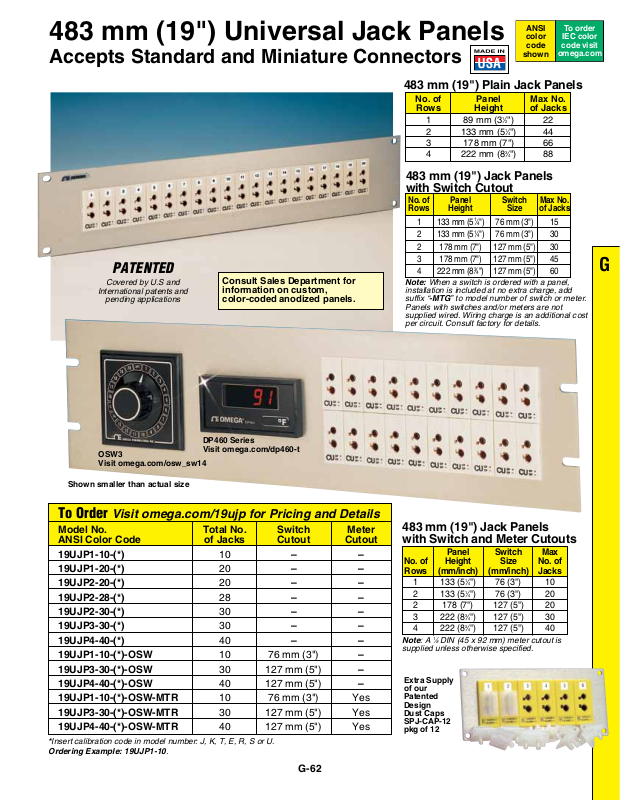

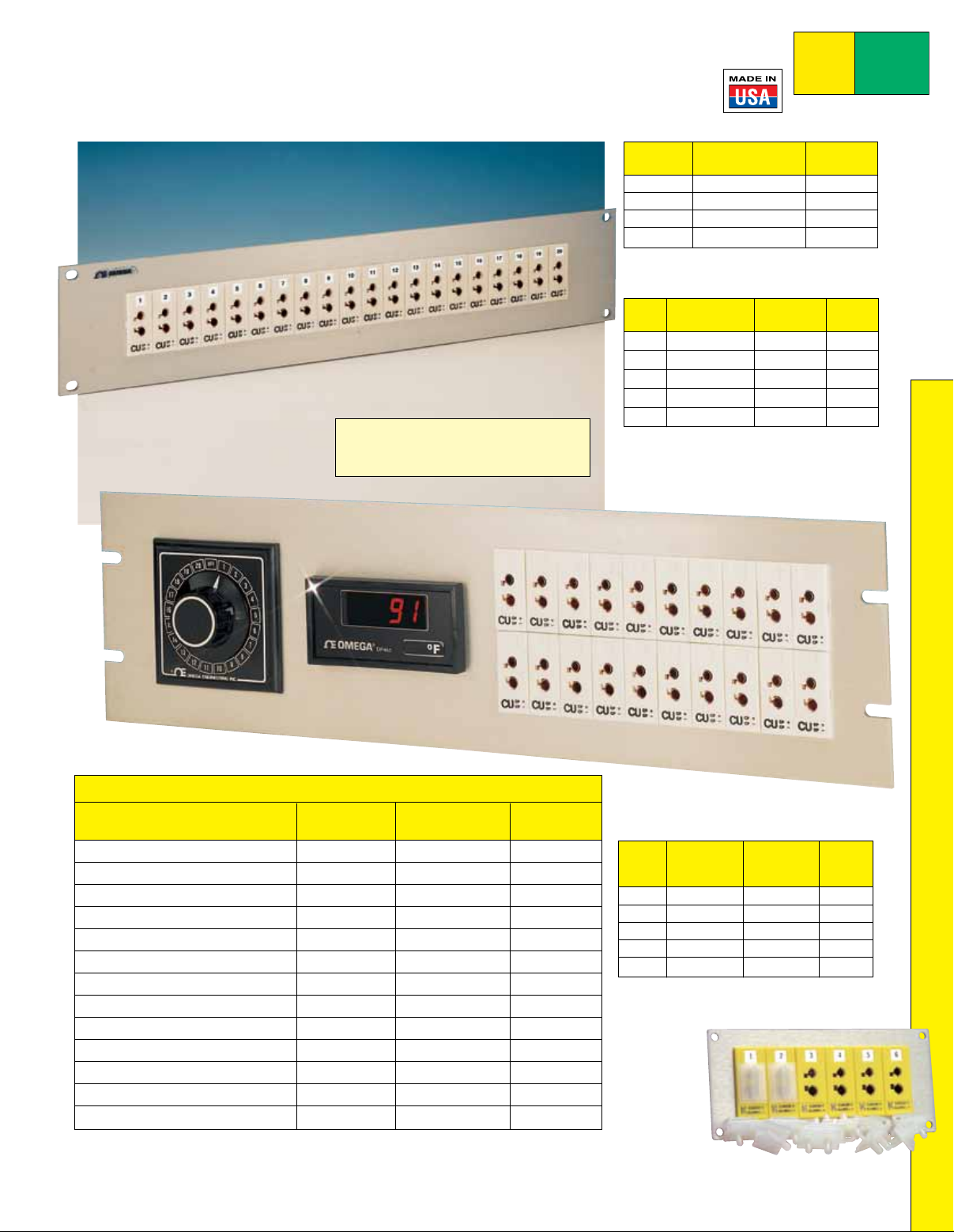

483 mm (19") Universal Jack Panels
Accepts Standard and Miniature Connectors
483 mm (19") Plain Jack Panels
No. of Panel Max No.
Rows Height of Jacks
1 89 mm (3
2 133 mm (5
3 178 mm (7") 66
4 222 mm (8
483 mm (19") Jack Panels
with Switch Cutout
No. of Panel Switch Max No.
PATEnTED
Covered by U.S and
International patents and
pending applications
Consult Sales Department for
information on custom,
color-coded anodized panels.
Rows Height Size of Jacks
1 133 mm (5
2 133 mm (5
2 178 mm (7") 127 mm (5") 30
3 178 mm (7") 127 mm (5") 45
4 222 mm (8
Note: When a switch is ordered with a panel,
installation is included at no extra charge, add
suffix “-MTG” to model number of switch or meter.
Panels with switches and/or meters are not
supplied wired. Wiring charge is an additional cost
per circuit. Consult factory for details.
1
⁄4") 76 mm (3") 15
1
⁄4") 76 mm (3") 30
3
⁄4") 127 mm (5") 60
ANSI
color
code
shown
1
⁄2") 22
1
⁄4") 44
3
⁄4") 88
To order
IEC color
code visit
omega.com
G
DP460 Series
OSW3
Visit omega.com/osw_sw14
Shown smaller than actual size
MOST POPULAR MODELS HIGHLIGHTED!
Visit omega.com/dp460-t
To Order Visit omega.com/19ujp for Pricing and Details
Model No. Total No. Switch Meter
ANSI Color Code of Jacks Cutout Cutout
19UJP1-10-(*) 10 – –
19UJP1-20-(*) 20 – –
19UJP2-20-(*) 20 – –
19UJP2-28-(*) 28 – –
19UJP2-30-(*) 30 – –
19UJP3-30-(*) 30 – –
19UJP4-40-(*) 40 – –
19UJP1-10-(*)-OSW 10 76 mm (3") –
19UJP3-30-(*)-OSW 30 127 mm (5") –
19UJP4-40-(*)-OSW 40 127 mm (5") –
19UJP1-10-(*)-OSW-MTR 10 76 mm (3") Yes
19UJP3-30-(*)-OSW-MTR 30 127 mm (5") Yes
19UJP4-40-(*)-OSW-MTR 40 127 mm (5") Yes
*Insert calibration code in model number: J, K, T, E, R, S or U.
Ordering Example: 19UJP1-10.
483 mm (19") Jack Panels
with Switch and Meter Cutouts
Panel Switch Max
No. of Height Size No. of
Rows (mm/inch) (mm/inch) Jacks
1 133 (51⁄4") 76 (3") 10
2 133 (51⁄4") 76 (3") 20
2 178 (7") 127 (5") 20
3 222 (83⁄4") 127 (5") 30
4 222 (83⁄4") 127 (5") 40
Note: A 1⁄8 DIN (45 x 92 mm) meter cutout is
supplied unless otherwise specified.
Extra Supply
of our
Patented
Design
Dust Caps
SPJ-CAP-12
pkg of 12
G-62
