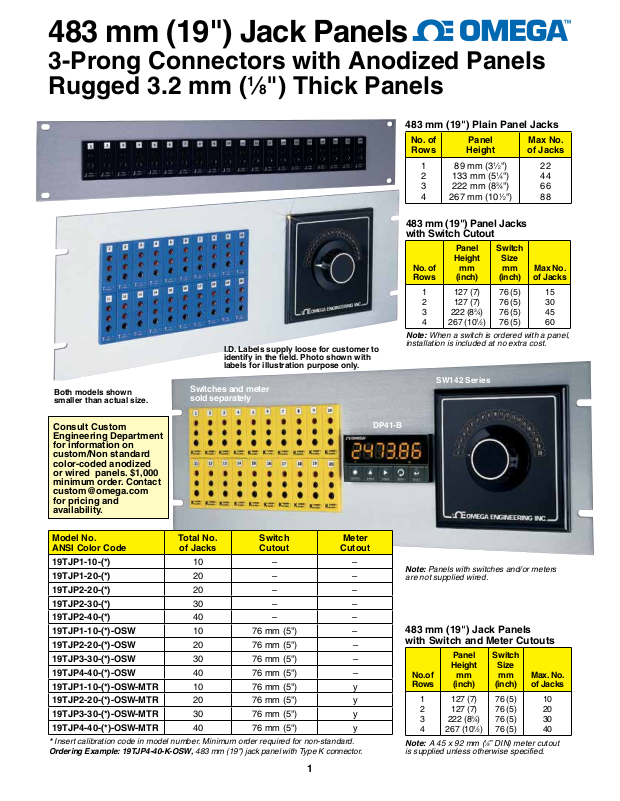

483 mm (19") Jack Panels
3-Prong Connectors with Anodized Panels
Rugged 3.2 mm (1⁄8") Thick Panels
483 mm (19") Plain Panel Jacks
Both models shown
smaller than actual size.
I.D. Labels supply loose for customer to
identify in the field. Photo shown with
labels for illustration purpose only.
Switches and meter
sold separately
No. of
Rows
1
2
3
4
483 mm (19") Panel Jacks
with Switch Cutout
No. of
Rows
1
2
3
4
Note: When a switch is ordered with a panel,
installation is included at no extra cost.
SW142 Series
Panel
Height
89 mm (3
133 mm (5
222 mm (8
267 mm (10
Panel
Height
mm
(inch)
127 (7)
127 (7)
3
⁄4)
222 (8
1
⁄2)
267 (10
1
⁄2")
1
⁄4")
3
⁄4")
1
⁄2")
Switch
Size
mm
(inch)
76 (5)
76 (5)
76 (5)
76 (5)
Max No.
of Jacks
22
44
66
88
Max No.
of Jacks
15
30
45
60
Consult Custom
Engineering Department
for information on
custom/Non standard
color-coded anodized
or wired panels. $1,000
minimum order. Contact
[email protected]
for pricing and
availability.
Model No.
ANSI Color Code
19TJP1-10-(*)
19TJP1-20-(*)
19TJP2-20-(*)
19TJP2-30-(*)
19TJP2-40-(*)
19TJP1-10-(*)-OSW
19TJP2-20-(*)-OSW
19TJP3-30-(*)-OSW
19TJP4-40-(*)-OSW
19TJP1-10-(*)-OSW-MTR
19TJP2-20-(*)-OSW-MTR
19TJP3-30-(*)-OSW-MTR
19TJP4-40-(*)-OSW-MTR
* Insert calibration code in model number. Minimum order required for non-standard.
Ordering Example: 19TJP4-40-K-OSW, 483 mm (19") jack panel with Type K connector.
Total No.
of Jacks
Switch
Cutout
10 – –
20 – –
20 – –
30 – –
40 – –
10 76 mm (5") –
20 76 mm (5") –
30 76 mm (5") –
40 76 mm (5") –
10 76 mm (5") y
20 76 mm (5") y
30 76 mm (5") y
40 76 mm (5") y
Meter
Cutout
DP41-B
Note: Panels with switches and/or meters
are not supplied wired.
483 mm (19") Jack Panels
with Switch and Meter Cutouts
No.of
Rows
1
2
3
4
Note: A 45 x 92 mm (1⁄8” DIN) meter cutout
is supplied unless otherwise specified.
Panel
Height
mm
(inch)
127 (7)
127 (7)
222 (8
267 (10
Switch
Size
mm
(inch)
76 (5)
76 (5)
3
⁄4)
76 (5)
1
⁄2)
76 (5)
Max. No.
of Jacks
10
20
30
40
1
