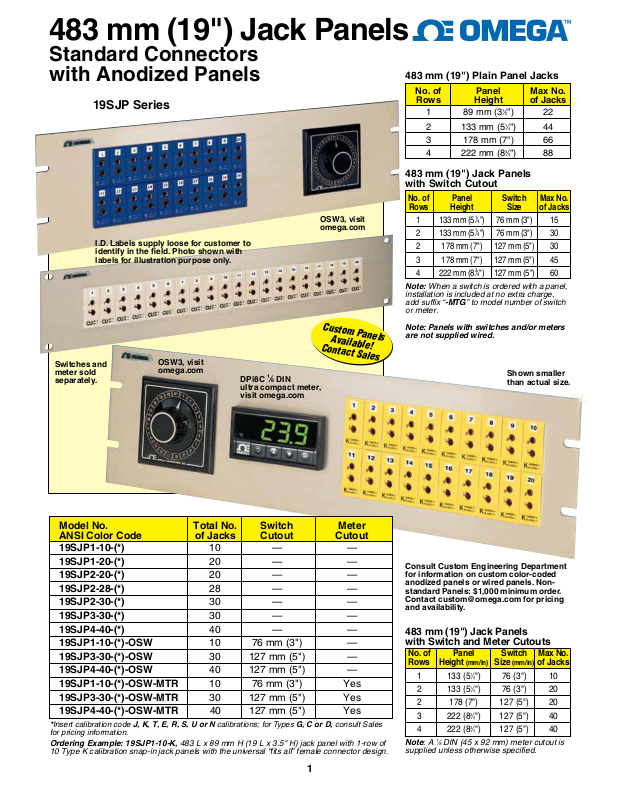

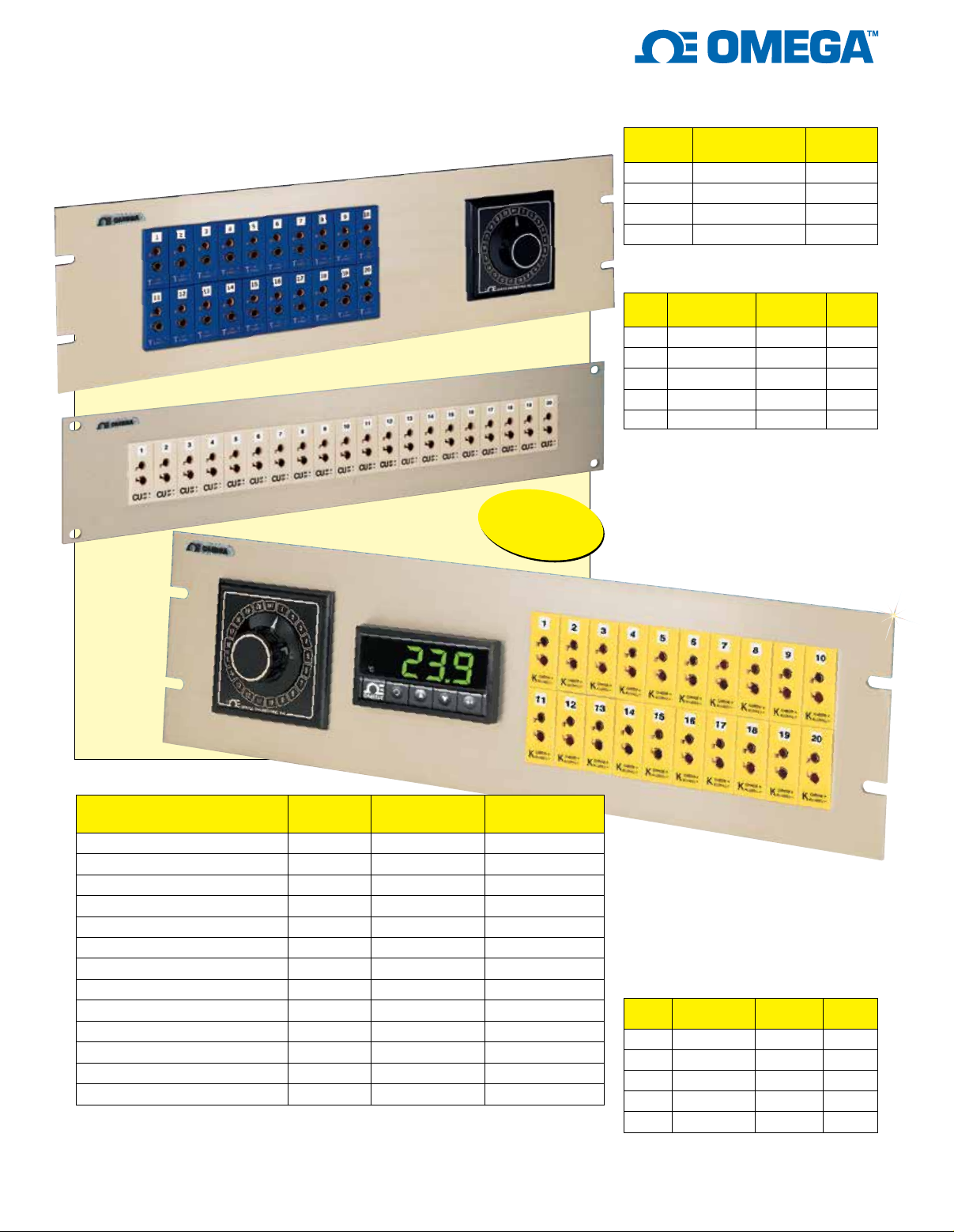

483 mm (19") Jack Panels
Standard Connectors
with Anodized Panels
19SJP Series
I.D. Labels supply loose for customer to
identify in the field. Photo shown with
labels for illustration purpose only.
Switches and
meter sold
separately.
OSW3, visit
omega.com
DPi8C
ultra compact meter,
visit omega.com
1
⁄8 DIN
OSW3, visit
omega.com
Custom Panels
Available!
Contact Sales
483 mm (19") Plain Panel Jacks
No. of Panel Max No.
Rows Height of Jacks
1 89 mm (31⁄2") 22
2 133 mm (5
3 178 mm (7") 66
4 222 mm (83⁄4") 88
1
⁄4") 44
483 mm (19") Jack Panels
with Switch Cutout
No. of Panel Switch Max No.
Rows Height Size of Jacks
1 133 mm (51⁄4") 76 mm (3") 15
2 133 mm (51⁄4") 76 mm (3") 30
2 178 mm (7") 127 mm (5") 30
3 178 mm (7") 127 mm (5") 45
4 222 mm (83⁄4") 127 mm (5") 60
Note: When a switch is ordered with a panel,
installation is included at no extra charge,
add suffix “-MTG” to model number of switch
or meter.
Note: Panels with switches and/or meters
are not supplied wired.
Shown smaller
than actual size.
Model No. Total No. Switch Meter
ANSI Color Code of Jacks Cutout Cutout
19SJP1-10-(*) 10 — —
19SJP1-20-(*) 20 — —
19SJP2-20-(*) 20 — —
19SJP2-28-(*) 28 — —
19SJP2-30-(*) 30 — —
19SJP3-30-(*) 30 — —
19SJP4-40-(*) 40 — —
19SJP1-10-(*)-OSW 10 76 mm (3") —
19SJP3-30-(*)-OSW 30 127 mm (5") —
19SJP4-40-(*)-OSW 40 127 mm (5") —
19SJP1-10-(*)-OSW-MTR 10 76 mm (3") Yes
19SJP3-30-(*)-OSW-MTR 30 127 mm (5") Yes
19SJP4-40-(*)-OSW-MTR 40 127 mm (5") Yes
*Insert calibration code J, K, T, E, R, S, U or N calibrations; for Types G, C or D, consult Sales
for pricing information.
Ordering Example: 19SJP1-10-K, 483 L x 89 mm H (19 L x 3.5" H) jack panel with 1-row of
10 Type K calibration snap-in jack panels with the universal “fits all” female connector design.
1
Consult Custom Engineering Department
for information on custom color-coded
anodized panels or wired panels. Nonstandard Panels: $1,000 minimum order.
Contact [email protected] for pricing
and availability.
483 mm (19") Jack Panels
with Switch and Meter Cutouts
No. of Panel Switch Max No.
Rows Height (mm/in) Size (mm/in) of Jacks
1 133 (51⁄4") 76 (3") 10
2 133 (51⁄4") 76 (3") 20
2 178 (7") 127 (5") 20
3 222 (83⁄4") 127 (5") 40
4 222 (83⁄4") 127 (5") 40
Note: A 1⁄8 DIN (45 x 92 mm) meter cutout is
supplied unless otherwise specified.
