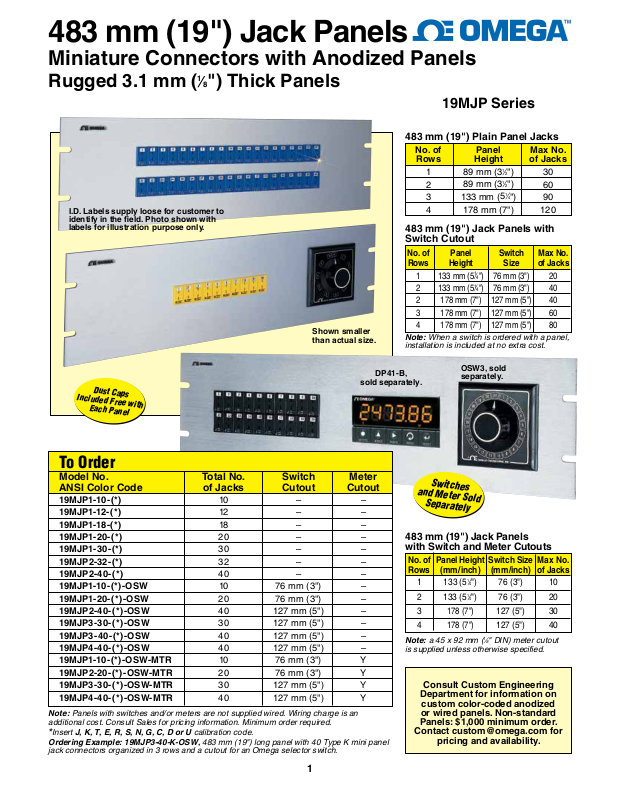

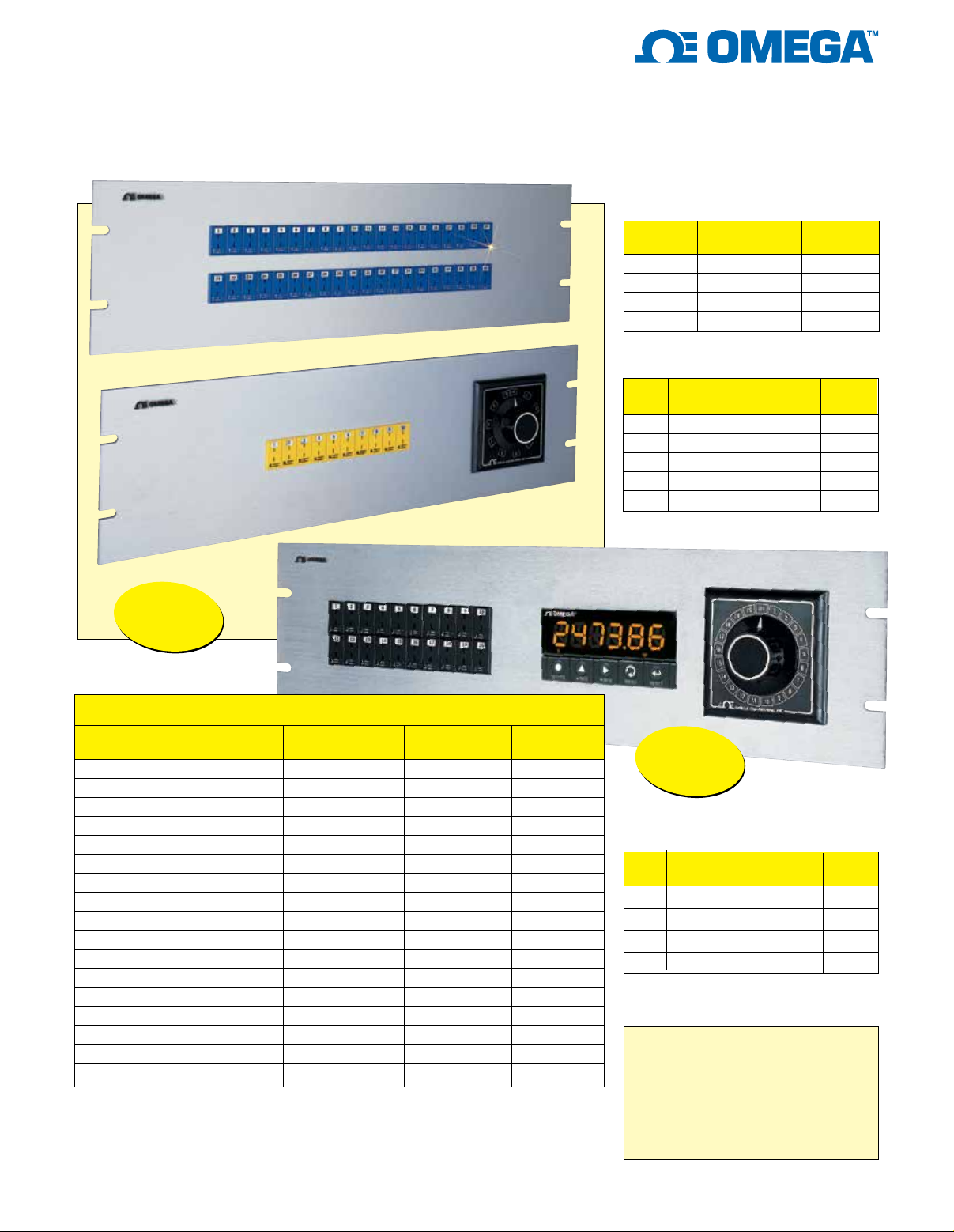

483 mm (19") Jack Panels
Miniature Connectors with Anodized Panels
Rugged 3.1 mm (
I.D. Labels supply loose for customer to
identify in the field. Photo shown with
labels for illustration purpose only.
1
⁄8") Thick Panels
Shown smaller
than actual size.
19MJP Series
483 mm (19") Plain Panel Jacks
No. of Panel Max No.
Rows Height of Jacks
1 89 mm (3
2
3 133 mm (
4 178 mm (7") 120
483 mm (19") Jack Panels with
Switch Cutout
No. of Panel Switch Max No.
Rows Height Size of Jacks
1 133 mm (51⁄4") 76 mm (3") 20
2 133 mm (5
2 178 mm (7") 127 mm (5") 40
3 178 mm (7") 127 mm (5") 60
4 178 mm (7") 127 mm (5") 80
Note: When a switch is ordered with a panel,
installation is included at no extra cost.
89 mm (3
1
⁄2") 30
1
⁄2")
60
1
5
⁄4
") 90
1
⁄4") 76 mm (3") 40
DP41-B,
Dust Caps
Included Free with
Each Panel
sold separately.
To Or de r
Model No. Total No. Switch Meter
ANSI Color Code of Jacks Cutout Cutout
19MJP1-10-(*) 10 – –
19MJP1-12-(*) 12 – –
19MJP1-18-(*) 18 – –
19MJP1-20-(*) 20 – –
19MJP1-30-(*) 30 – –
19MJP2-32-(*) 32 – –
19MJP2-40- (*) 40 – –
19MJP1-10-(*)-OSW 10 76 mm (3") –
19MJP1-20-(*)-OSW 20 76 mm (3") –
19MJP2-40- (*) -OSW 40 127 mm (5") –
19MJP3-30-(*) -OSW 30 127 mm (5") –
19MJP3-40-(*) -OSW 40 127 mm (5") –
19MJP4-40- (*) -OSW 40 127 mm (5") –
19MJP1-10-(*)-OSW-MTR 10 76 mm (3") Y
19MJP2-20-(*)-OSW-MTR 20 76 mm (3") Y
19MJP3-30-(*) -OSW-MTR 30 127 mm (5") Y
19MJP4-40- (*) -OSW-MTR 40 127 mm (5") Y
Note: Panels with switches and/or meters are not supplied wired. Wiring charge is an
additional cost. Consult Sales for pricing information. Minimum order required.
*Insert J, K, T, E, R, S, N, G, C, D or U calibration code.
Ordering Example: 19MJP3-40-K-OSW, 483 mm (19") long panel with 40 Type K mini panel
jack connectors organized in 3 rows and a cutout for an Omega selector switch.
OSW3, sold
separately.
Switches
and Meter Sold
Separately
483 mm (19") Jack Panels
with Switch and Meter Cutouts
No. of Panel Height Switch Size Max No.
Rows (mm/inch) (mm /inch) of Jacks
1 133 (5
2 133 (5
3
4
Note: a 45 x 92 mm (1⁄8" DIN) meter cutout
is supplied unless otherwise specified.
Consult Custom Engineering
Department for information on
custom color-coded anodized
or wired panels. Non-standard
Panels: $1,000 minimum order.
Contact [email protected] for
1
⁄4") 76 (3") 10
1
⁄4") 76 (3") 20
178 (7")
127 (5") 30
178 (7")
127 (5") 40
pricing and availability.
