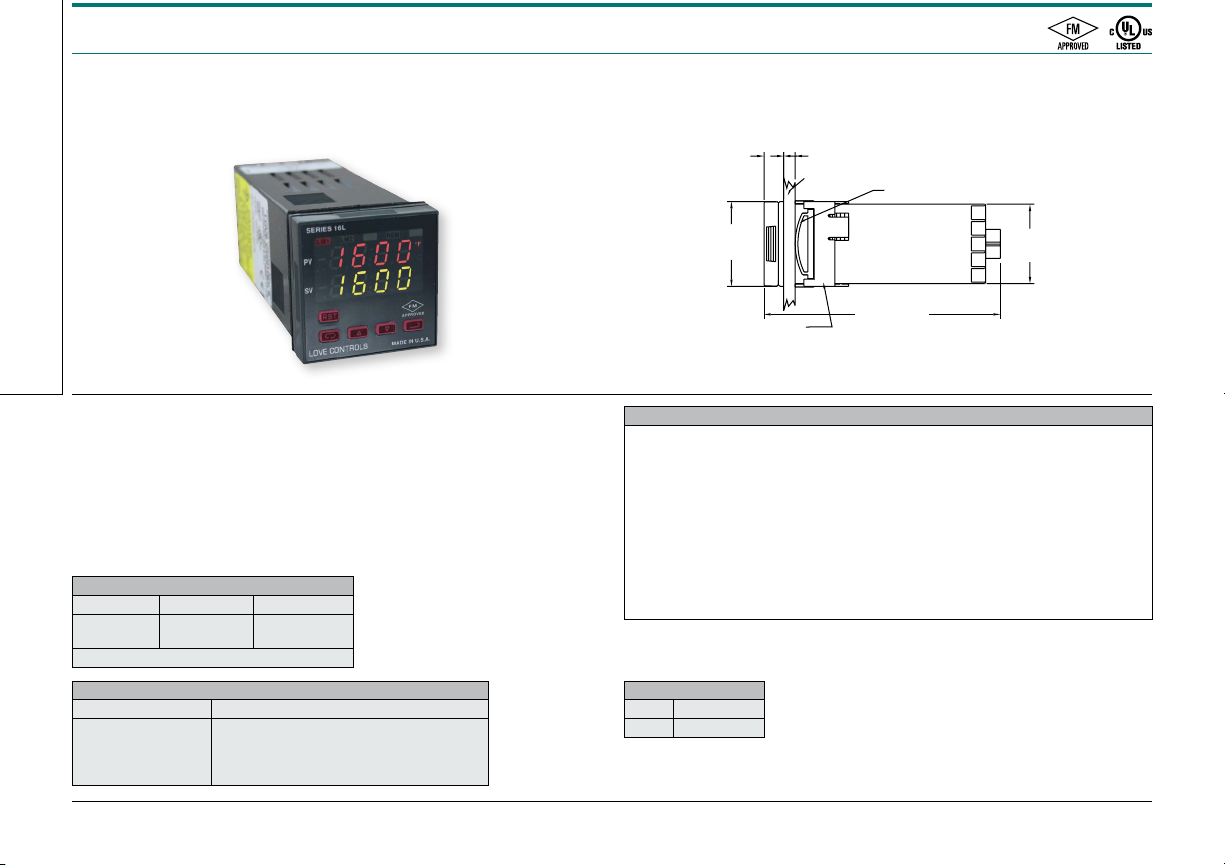

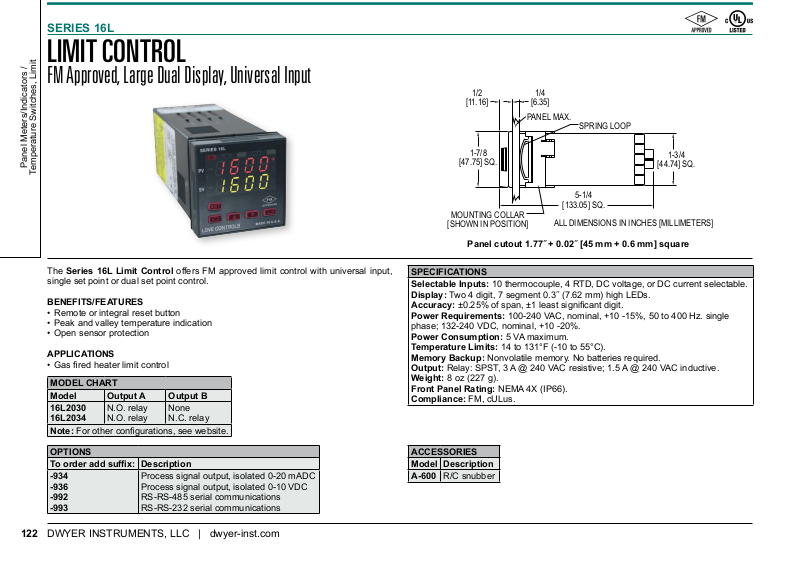

SERIES 16L

LIMIT CONTROL

FM Approved, Large Dual Display, Universal Input

[11.16]

[6.35]

PANEL MAX.

SPRING LOOP

Panel Meters/Indicators /

Temperature Switches, Limit

The Series 16L Limit Control offers FM approved limit control with universal input, single set point or dual set point control.

BENEFITS/FEATURES

• Remote or integral reset button

• Peak and valley temperature indication

• Open sensor protection

APPLICATIONS

• Gasredheaterlimitcontrol

MODEL CHART Model Output A Output B

16L2030 16L2034

Note: Forothercongurations,seewebsite.

OPTIONS

To order add sufx: Description

-934

-936

-992

-993

N.O. relay N.O. relay

None N.C. relay

Process signal output, isolated 0-20 mADC Process signal output, isolated 0-10 VDC RS-RS-485 serial communications RS-RS-232 serial communications

1-7/8

[47.75] SQ.

5-1/4

MOUNTING COLLAR

Panel cutout 1.77˝ + 0.02˝ [45 mm + 0.6 mm] square

SPECIFICATIONS Selectable Inputs: 10 thermocouple, 4 RTD, DC voltage, or DC current selectable.

Display: Two4digit,7segment0.3˝(7.62mm)highLEDs. Accuracy: ±0.25%ofspan,±1leastsignicantdigit. Power Requirements: 100-240 VAC, nominal, +10 -15%, 50 to 400 Hz. single

phase; 132-240 VDC, nominal, +10 -20%.

Power Consumption: 5 VA maximum. Temperature Limits: 14 to 131°F (-10 to 55°C). Memory Backup: Nonvolatile memory. No batteries required. Output: Relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive. Weight: 8 oz (227 g). Front Panel Rating: NEMA 4X (IP66). Compliance: FM, cULus.

ACCESSORIES Model Description

A-600 R/C snubber

[133.05] SQ.

ALL

1-3/4

[44.74] SQ.
