4-9/16
4-41/64

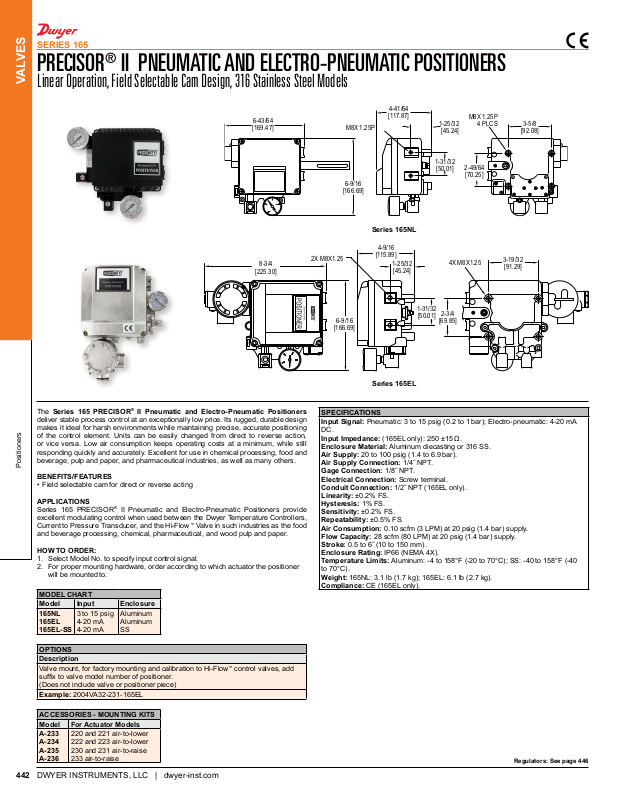

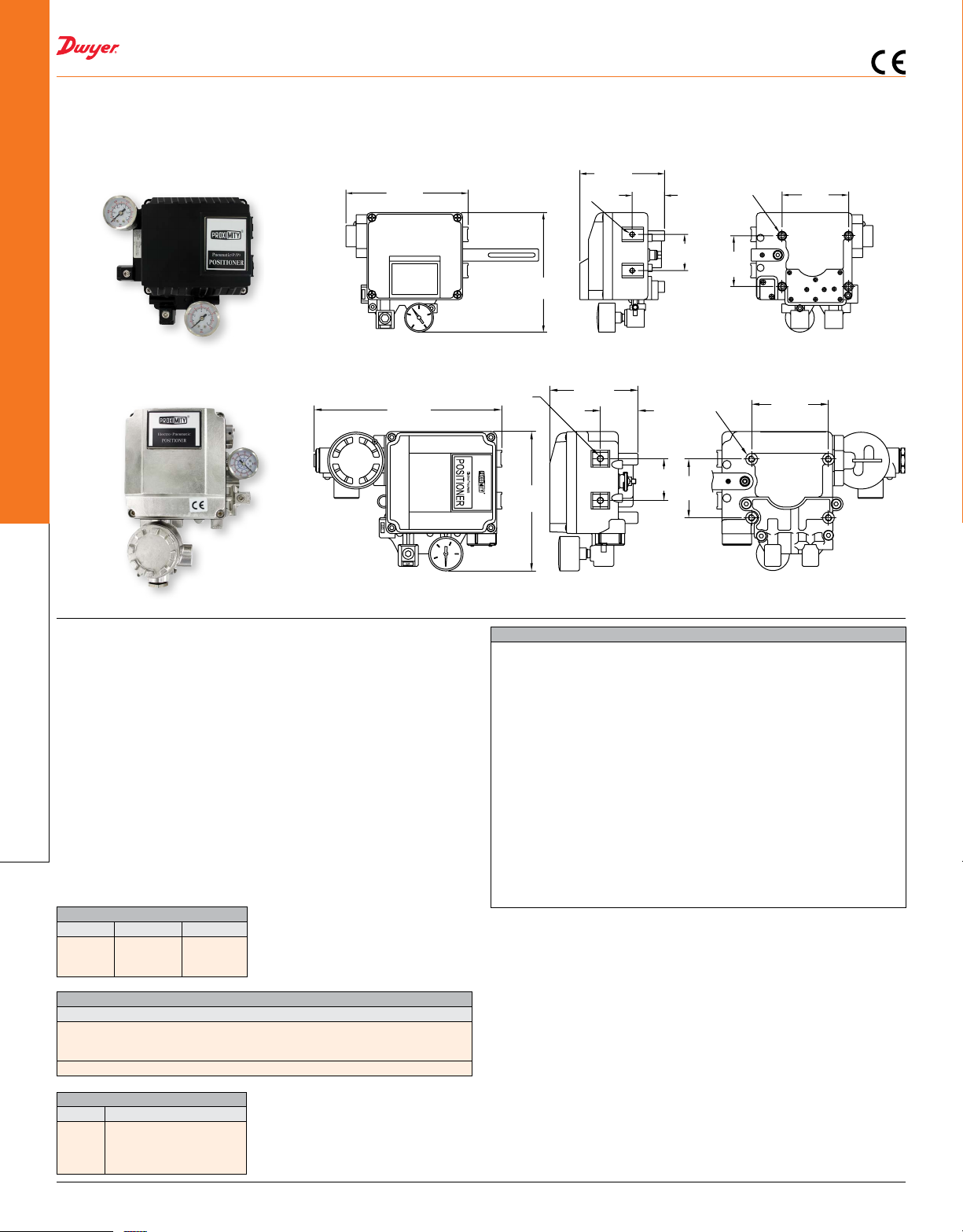

SERIES 165
PRECISOR® II PNEUMATIC AND ELECTRO-PNEUMATIC POSITIONERS
VALVES
Linear Operation, Field Selectable Cam Design, 316 Stainless Steel Models
6-43/64
[169.47]
8-3/4
[225.30]
The Series 165 PRECISOR® II Pneumatic and Electro-Pneumatic Positioners
deliver stable process control at an exceptionally low price. Its rugged, durable design
makes it ideal for harsh environments while maintaining precise, accurate positioning
of the control element. Units can be easily changed from direct to reverse action,
or vice versa. Low air consumption keeps operating costs at a minimum, while still
responding quickly and accurately. Excellent for use in chemical processing, food and
beverage, pulp and paper, and pharmaceutical industries, as well as many others.
Positioners
BENEFITS/FEATURES
• Field selectable cam for direct or reverse acting
APPLICATIONS
Series 165 PRECISOR
excellent modulating control when used between the Dwyer Temperature Controllers,
Current to Pressure Transducer, and the Hi-Flow
and beverage processing, chemical, pharmaceutical, and wood pulp and paper.
HOW TO ORDER:
1. Select Model No. to specify input control signal.
2. For proper mounting hardware, order according to which actuator the positioner
will be mounted to.
MODEL CHART
Model Input Enclosure
165NL
165EL
165EL-SS
3 to 15 psig
4-20 mA
4-20 mA
®
II Pneumatic and Electro-Pneumatic Positioners provide
™
Valve in such industries as the food
Aluminum
Aluminum
SS
[117.87]
M8X 1.25P
1-31/32
[50.01]
6-9/16
[166.69]
Series 165NL
2X M8X1.25
6-9/16
[166.69]
SPECIFICATIONS
Input Signal: Pneumatic: 3 to 15 psig (0.2 to 1 bar); Electro-pneumatic: 4-20 mA
DC.
Input Impedance: (165EL only): 250 ±15 Ω.
Enclosure Material: Aluminum diecasting or 316 SS.
Air Supply: 20 to 100 psig (1.4 to 6.9 bar).
Air Supply Connection: 1/4˝ NPT.
Gage Connection: 1/8˝ NPT.
Electrical Connection: Screw terminal.
Conduit Connection: 1/2˝ NPT (165EL only).
Linearity: ±0.2% FS.
Hysteresis: 1% FS.
Sensitivity: ±0.2% FS.
Repeatability: ±0.5% FS.
Air Consumption: 0.10 scfm (3 LPM) at 20 psig (1.4 bar) supply.
Flow Capacity: 28 scfm (80 LPM) at 20 psig (1.4 bar) supply.
Stroke: 0.5 to 6˝ (10 to 150 mm).
Enclosure Rating: IP66 (NEMA 4X).
Temperature Limits: Aluminum: -4 to 158°F (-20 to 70°C); SS: -40 to 158°F (-40
to 70°C).
Weight: 165NL: 3.1 lb (1.7 kg); 165EL: 6.1 lb (2.7 kg).
Compliance: CE (165EL only).
[115.89]
1-25/32
[45.24]
Series 165EL
1-31/32
[50.01]
1-25/32
[45.24]
4X M8X1.25
2-3/4
[69.85]
M8X 1.25P
4 PLCS
2-49/64
[70.25]
3-19/32
[91.29]
3-5/8
[92.08]
OPTIONS
Description
Valve mount, for factory mounting and calibration to Hi-Flow
sufx to valve model number of positioner.
(Does not include valve or positioner piece)
Example: 2004VA32-231-165EL
ACCESSORIES - MOUNTING KITS
Model For Actuator Models
A-233
A-234
A-235
A-236
220 and 221 air-to-lower
222 and 223 air-to-lower
230 and 231 air-to-raise
233 air-to-raise
DWYER INSTRUMENTS, LLC | dwyer-inst.com442
™
control valves, add
Regulators: See page 446
