1-1/8
2-7/8
TYP 2 PLACES

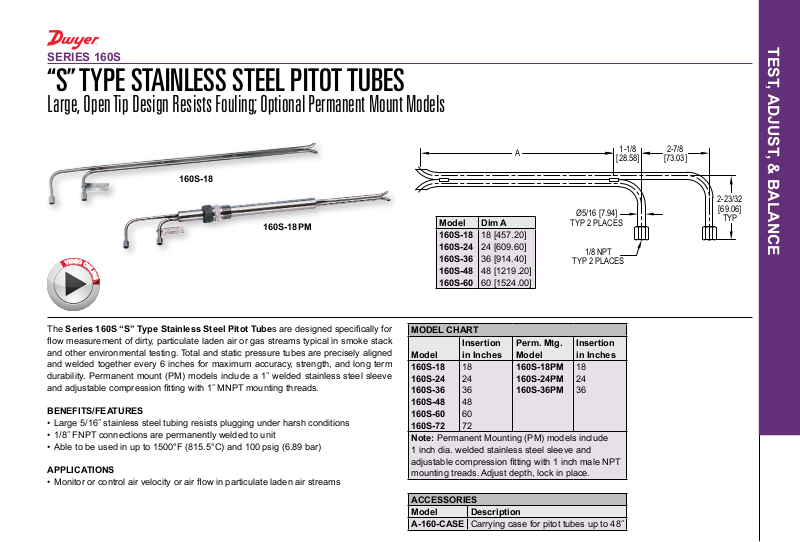

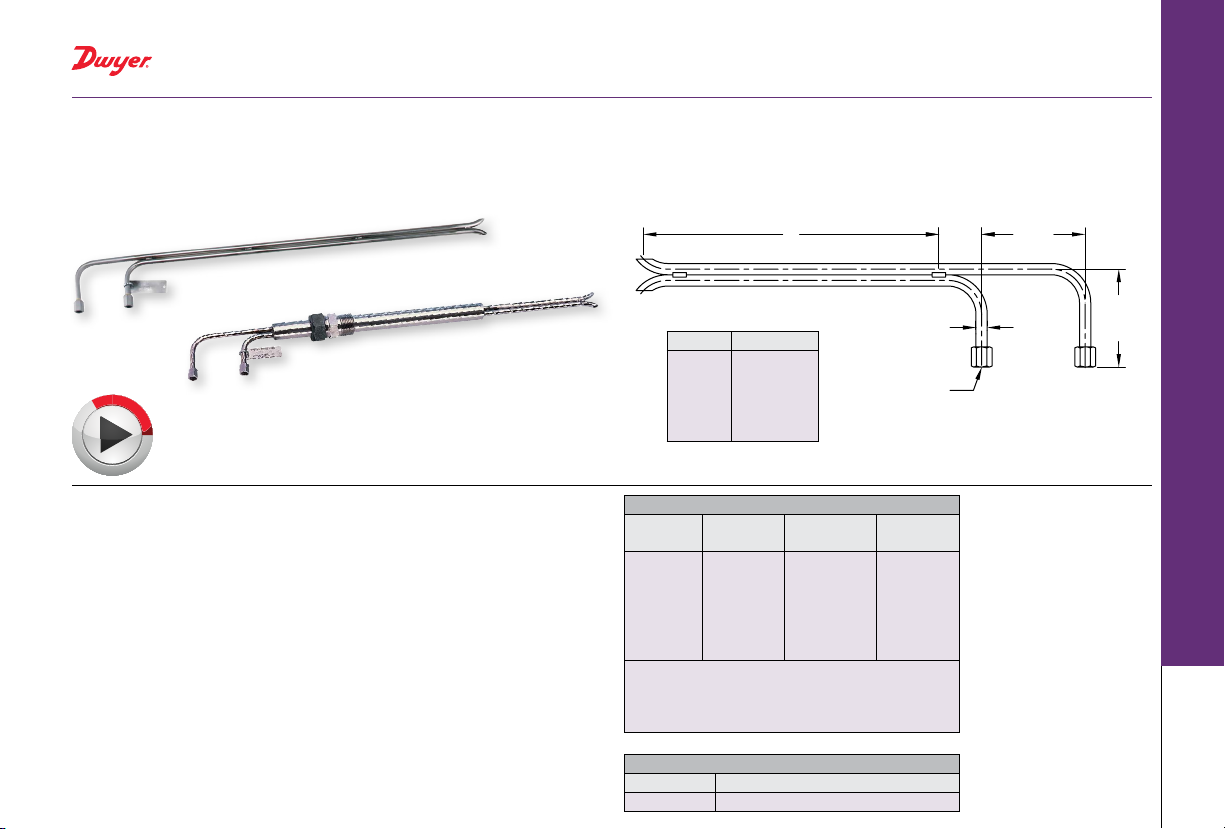

SERIES 160S
E
“S” TYPE STAINLESS STEEL PITOT TUBES
Large, Open Tip Design Resists Fouling; Optional Permanent Mount Models
TEST, ADJUST, & BALANCE
160S-18
160S-18PM
E
O
D
I
V
O
N
L
I
N
The Series 160S “S” Type Stainless Steel Pitot Tubes are designed specically for
ow measurement of dirty, particulate laden air or gas streams typical in smoke stack
and other environmental testing. Total and static pressure tubes are precisely aligned
and welded together every 6 inches for maximum accuracy, strength, and long term
durability. Permanent mount (PM) models include a 1˝ welded stainless steel sleeve
and adjustable compression tting with 1˝ MNPT mounting threads.
BENEFITS/FEATURES
• Large 5/16˝ stainless steel tubing resists plugging under harsh conditions
• 1/8˝ FNPT connections are permanently welded to unit
• Able to be used in up to 1500°F (815.5°C) and 100 psig (6.89 bar)
APPLICATIONS
• Monitor or control air velocity or air ow in particulate laden air streams
A
Ø5/16 [7.94]
Model Dim A
160S-18
160S-24
160S-36
160S-48
160S-60
18 [457.20]
24 [609.60]
36 [914.40]
48 [1219.20]
60 [1524.00]
TYP 2 PLACES
1/8 NPT
MODEL CHART
Model
160S-18
160S-24
160S-36
160S-48
160S-60
160S-72
Insertion
in Inches
18
24
36
48
60
72
Perm. Mtg.
Model
160S-18PM
160S-24PM
160S-36PM
Insertion
in Inches
18
24
36
Note: Permanent Mounting (PM) models include
1 inch dia. welded stainless steel sleeve and
adjustable compression tting with 1 inch male NPT
mounting treads. Adjust depth, lock in place.
ACCESSORIES
Model Description
A-160-CASE Carrying case for pitot tubes up to 48˝
[28.58]
[73.03]
2-23/32
[69.06]
TYP
