[7.92]
5/8

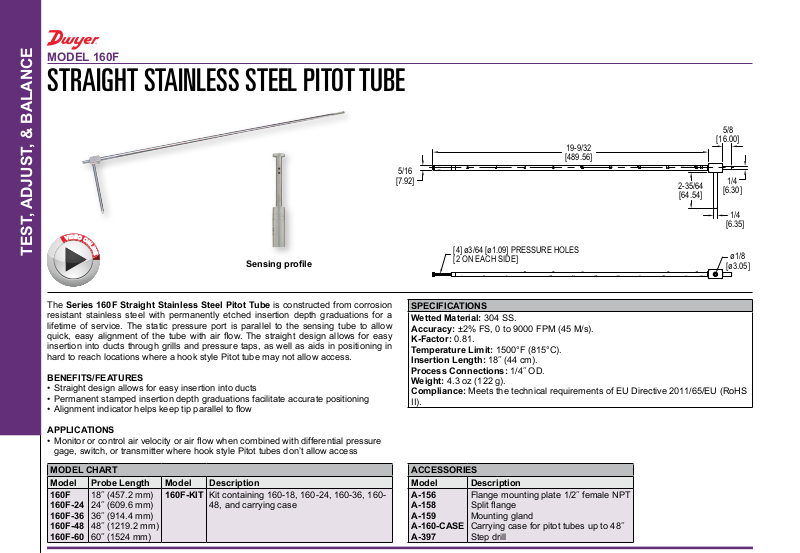

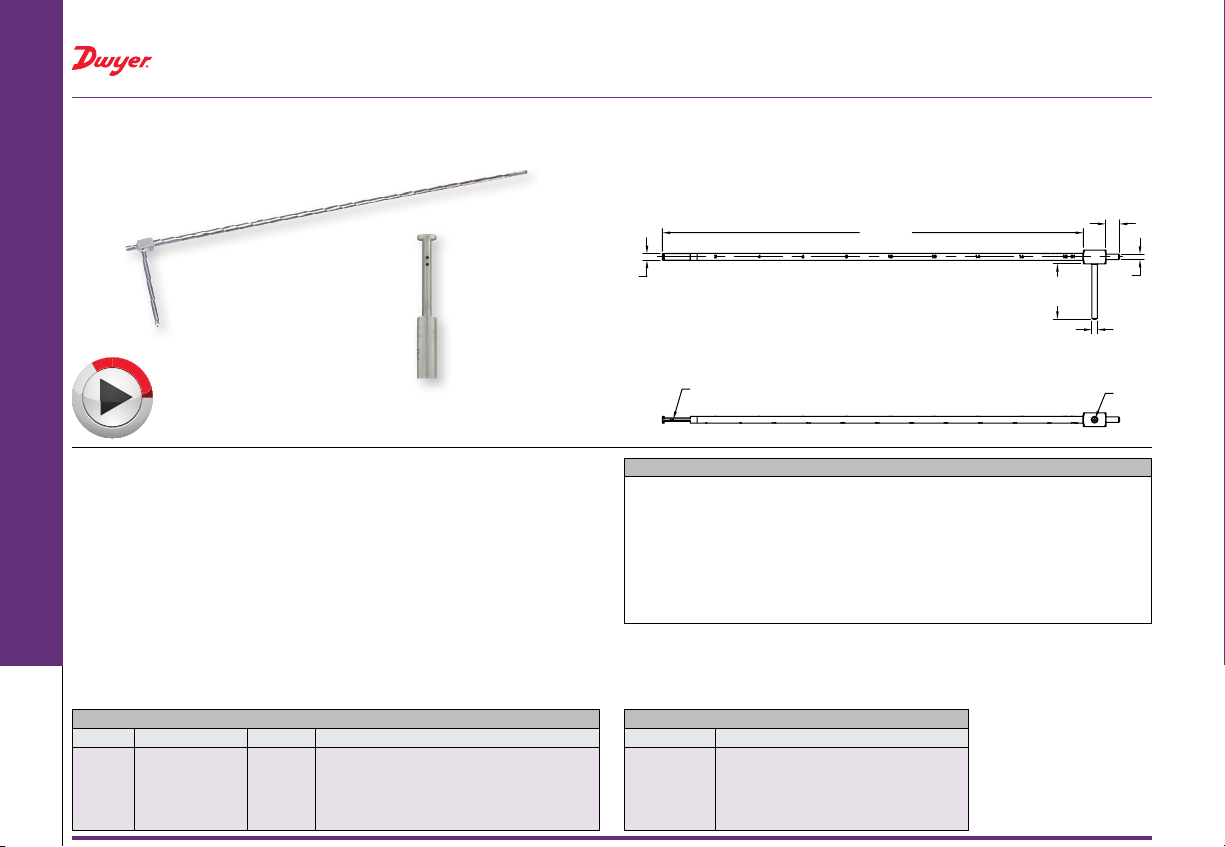

MODEL 160F
E
STRAIGHT STAINLESS STEEL PITOT TUBE
TEST, ADJUST, & BALANCE
The Series 160F Straight Stainless Steel Pitot Tube is constructed from corrosion
resistant stainless steel with permanently etched insertion depth graduations for a
lifetime of service. The static pressure port is parallel to the sensing tube to allow
quick, easy alignment of the tube with air ow. The straight design allows for easy
insertion into ducts through grills and pressure taps, as well as aids in positioning in
hard to reach locations where a hook style Pitot tube may not allow access.
BENEFITS/FEATURES
• Straight design allows for easy insertion into ducts
• Permanent stamped insertion depth graduations facilitate accurate positioning
• Alignment indicator helps keep tip parallel to ow
APPLICATIONS
• Monitor or control air velocity or air ow when combined with differential pressure
gage, switch, or transmitter where hook style Pitot tubes don’t allow access
MODEL CHART
Model Probe Length Model Description
160F
160F-24
160F-36
160F-48
160F-60
E
O
D
I
V
O
N
L
I
N
18˝ (457.2 mm)
24˝ (609.6 mm)
36˝ (914.4 mm)
48˝ (1219.2 mm)
60˝ (1524 mm)
Sensing prole
160F-KIT Kit containing 160-18, 160-24, 160-36, 160-
48, and carrying case
19-9/32
[489.56]
5/16
2-35/64
[64.54]
[4] ø3/64 [ø1.09] PRESSURE HOLES
[2 ON EACH SIDE]
SPECIFICATIONS
Wetted Material: 304 SS.
Accuracy: ±2% FS, 0 to 9000 FPM (45 M/s).
K-Factor: 0.81.
Temperature Limit: 1500°F (815°C).
Insertion Length: 18˝ (44 cm).
Process Connections: 1/4˝ OD.
Weight: 4.3 oz (122 g).
Compliance: Meets the technical requirements of EU Directive 2011/65/EU (RoHS
II).
ACCESSORIES
Model Description
A-156
A-158
A-159
A-160-CASE
A-397
Flange mounting plate 1/2˝ female NPT
Split ange
Mounting gland
Carrying case for pitot tubes up to 48˝
Step drill
[16.00]
1/4
[6.30]
[6.35]
[ø3.05]
1/4
ø1/8
