STATIC PRESSURE
[7.92]
5/8
E
E

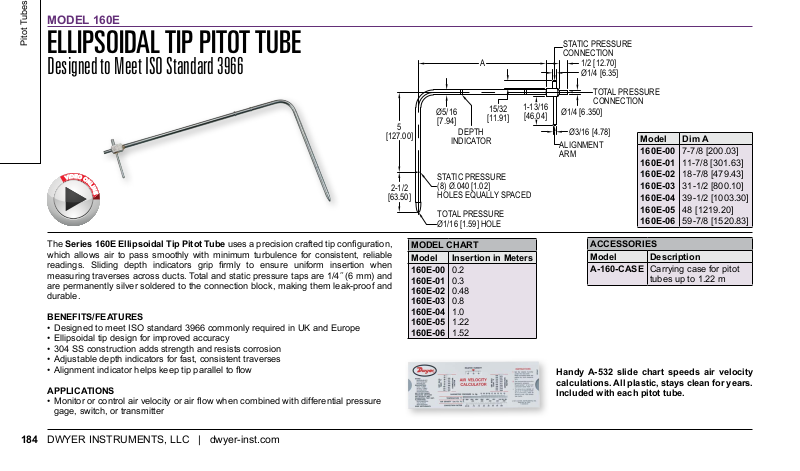

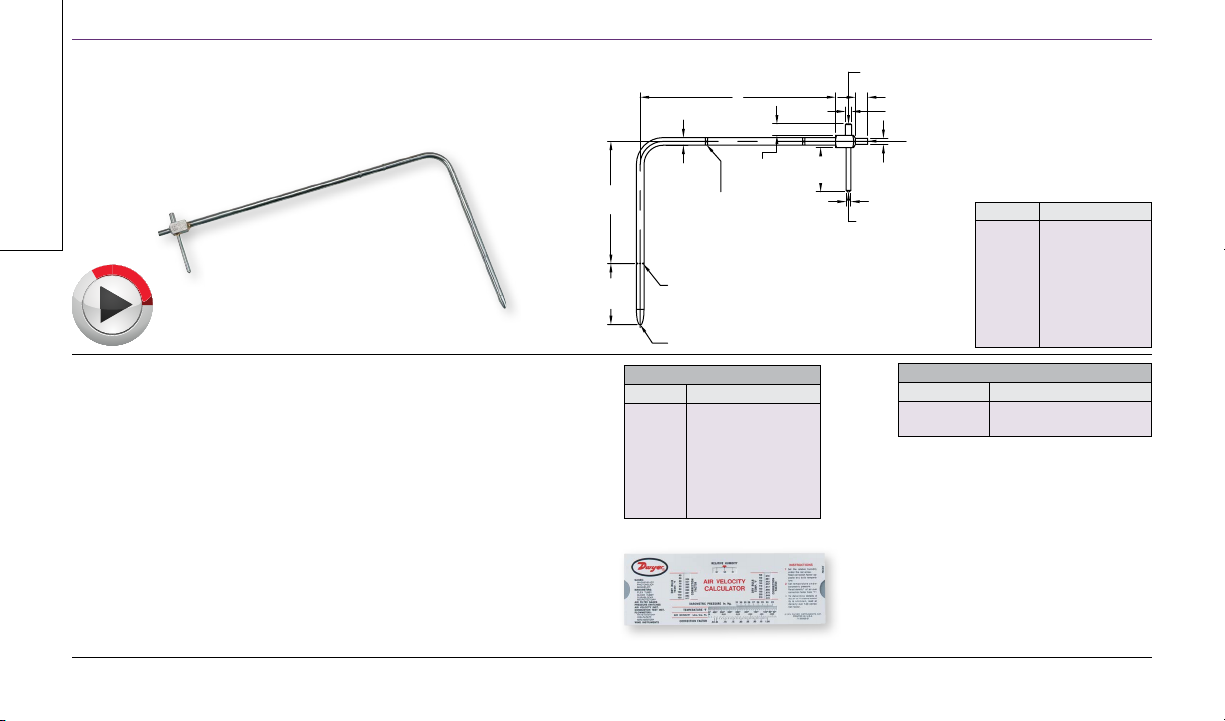

MODEL 160E
Pitot Tubes
ELLIPSOIDAL TIP PITOT TUBE
Designed to Meet ISO Standard 3966
E
O
D
I
V
O
N
L
I
N
The Series 160E Ellipsoidal Tip Pitot Tube uses a precision crafted tip conguration,
which allows air to pass smoothly with minimum turbulence for consistent, reliable
readings. Sliding depth indicators grip rmly to ensure uniform insertion when
measuring traverses across ducts. Total and static pressure taps are 1/4˝ (6 mm) and
are permanently silver soldered to the connection block, making them leak-proof and
durable.
BENEFITS/FEATURES
• Designed to meet ISO standard 3966 commonly required in UK and Europe
• Ellipsoidal tip design for improved accuracy
• 304 SS construction adds strength and resists corrosion
• Adjustable depth indicators for fast, consistent traverses
• Alignment indicator helps keep tip parallel to ow
APPLICATIONS
• Monitor or control air velocity or air ow when combined with differential pressure
gage, switch, or transmitter
DWYER INSTRUMENTS, LLC | dwyer-inst.com184
Ø5/16
5
2-1/2
[63.50]
[7.94]
DEPTH
INDICATOR
STATIC PRESSURE
(8) Ø.040 [1.02]
HOLES EQUALLY SPACED
TOTAL PRESSURE
Ø1/16 [1.59] HOLE
MODEL CHART
Model Insertion in Meters
160E-00
160E-01
160E-02
160E-03
160E-04
160E-05
160E-06
0.2
0.3
0.48
0.8
1.0
1.22
1.52
A
15/32
[11.91]
CONNECTION
1/2 [12.70]
Ø1/4 [6.35]
TOTAL PRESSURE
Ø1/4 [6.350]
Ø3/16 [4.78]
ALIGNMENT
ARM
CONNECTION
Model Dim A
160E-00
160E-01
1-13/16
[46.04]
160E-02
160E-03
160E-04
160E-05
160E-06
ACCESSORIES
Model Description
A-160-CASE Carrying case for pitot
tubes up to 1.22 m
Handy A-532 slide chart speeds air velocity
calculations. All plastic, stays clean for years.
Included with each pitot tube.
7-7/8 [200.03]
11-7/8 [301.63]
18-7/8 [479.43]
31-1/2 [800.10]
39-1/2 [1003.30]
48 [1219.20]
59-7/8 [1520.83]
