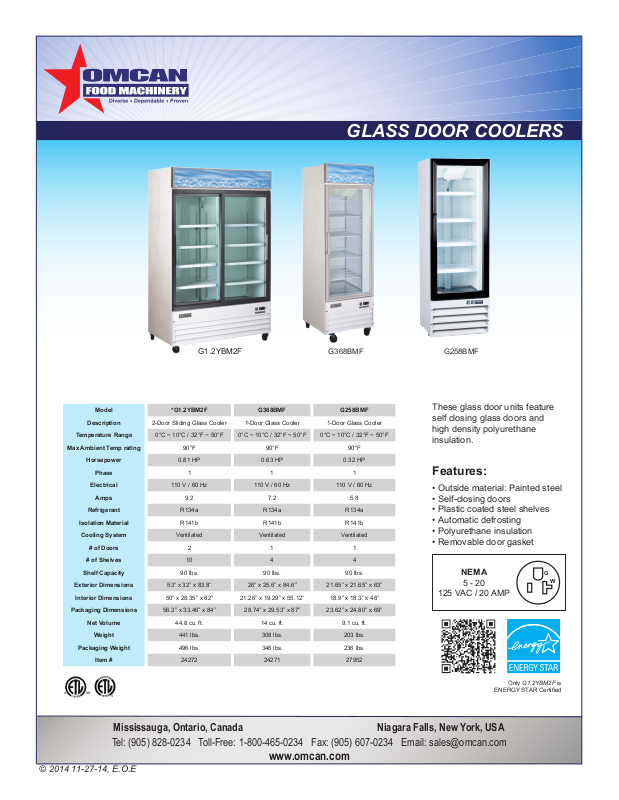

GLASS DOOR COOLERS
G368BMFG1.2YBM2F
Model *G1.2YBM2F G368BMF G258BMF
Description 2-Door Sliding Glass Cooler 1-Door Glass Cooler 1-Door Glass Cooler
Temperature Range 0°C ~ 10°C / 32°F ~ 50°F 0°C ~ 10°C / 32°F ~ 50°F 0°C ~ 10°C / 32°F ~ 50°F
Max Ambient Temp rating 90°F 90°F 90°F
Horsepower 0.81 HP 0.63 HP 0.32 HP
Phase 1 1 1
Electrical 110 V / 60 Hz 110 V / 60 Hz 110 V / 60 Hz
Amps 9.2 7.2 5.8
Refrigerant R134a R134a R134a
Isolation Material R141b R141b R141b
Cooling System Ventilated Ventilated Ventilated
# of Doors 2 1 1
# of Shelves 10 4 4
Shelf Capacity 90 lbs. 90 lbs. 90 lbs.
Exterior Dimensions 53” x 32” x 83.8” 26” x 25.6” x 84.6” 21.65” x 21.65” x 63”
Interior Dimensions 50” x 28.35” x 62” 21.26” x 19.29” x 55.12” 18.9” x 18.3” x 46”
Packaging Dimensions 56.3” x 33.46” x 84” 28.74” x 29.53” x 87” 23.62” x 24.80” x 69”
Net Volume 44.8 cu. ft. 14 cu. ft. 9.1 cu. ft.
Weight 441 lbs. 308 lbs. 203 lbs.
Packaging Weight 496 lbs. 346 lbs. 236 lbs.
Item # 24272 24271 27952
G258BMF
These glass door units feature
self closing glass doors and
high density polyurethane
insulation.
Features:
Self-closing doors
• Plastic coated steel shelves
Automatic defrosting
• Polyurethane insulation
• Removable door gasket
NEMA
5 - 20
125 VAC / 20 AMP
G
W
Mississauga, Ontario, Canada
Tel: (905) 828-0234 Toll-Free: 1-800-465-0234 Fax: (905) 607-0234 Email: sales@omcan.com
© 2014 11-27-14, E.O.E
www.omcan.com
ENERGY STAR Certied
Niagara Falls, New York, USA
Only G1.2YBM2F is
