Omcan Food Machinery WF-A1000 Installation Manual

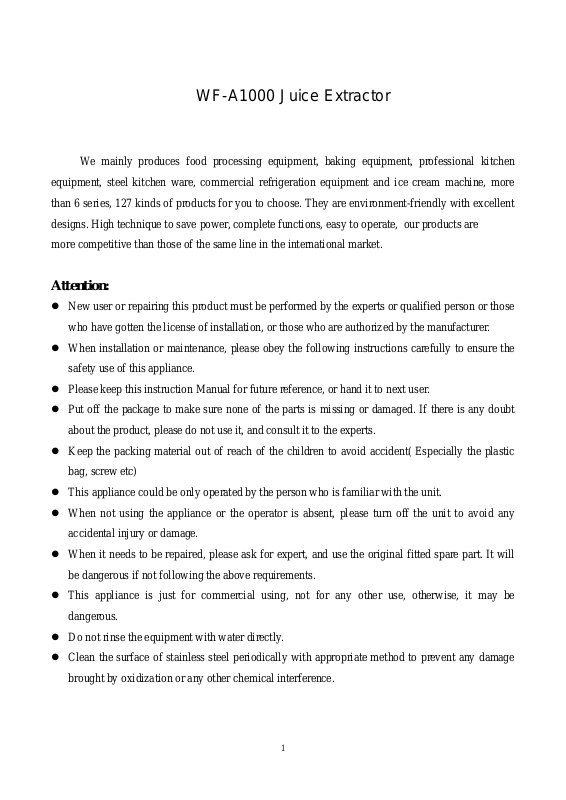

WF-A1000 Juice Extractor

We mainly produces food processing equipment, baking equipment, professional kitchen
equipment, steel kitchen ware, commercial refrigeration equipment and ice cream machine, more
than 6 series, 127 kinds of products for you to choose. They are environment-friendly with excellent
designs. High technique to save power, complete functions, easy to operate, our products are
more competitive than those of the same line in the international market.

Attention:

z New user or repairing this product must be performed by the experts or qualified person or those

who have gotten the license of installation, or those who are authorized by the manufacturer.

z When installation or maintenance, please obey the following instructions carefully to ensure the

safety use of this appliance.

z Please keep this instruction Manual for future reference, or hand it to next user.
z Put off the package to make sure none of the parts is missing or damaged. If there is any doubt

about the product, please do not use it, and consult it to the experts.

z Keep the packing material out of reach of the children to avoid accident( Especially the plastic

bag, screw etc)

z This appliance could be only operated by the person who is familiar with the unit.
z When not using the appliance or the operator is absent, please turn off the unit to avoid any

accidental injury or damage.

z When it needs to be repaired, please ask for expert, and use the original fitted spare part. It will

be dangerous if not following the above requirements.

z This appliance is just for commercial using, not for any other use, otherwise, it may be

dangerous.

z Do not rinse the equipment with water directly.
z Clean the surface of stainless steel periodically with appropriate method to prevent any damage

brought by oxidization or any other chemical interference.

1

Your high output CENTRIFUGAL JUICE EXTRACTOR

·Of use to all professionals who use large quantities of fresh unpeeled fruit and vegetable juice for
direct consumption in bars, shops, health food stores, fitness centers, hospitals etc.

·Of use also to pastry-cooks and ice-cream manufacturers who flavor water ices, ice creams and
cakes with the same juices.

·For restaurants, the juice is used as a base for soups and sauces, and the pulp for vegetable purees
and soufflés.

·Output variable depending on the type of fruit or vegetable: approx. 1/2 liter per minute. Production
may reach 150 kg/hour(50-70% of the weight transformed into juice).

·Sturdily built from cast aluminum and stainless steel. The bowl and the basket are made of stainless
steel and the lid of food-grade plastic. The moor is of the 2-pole single-phase type, protected by a
thermal cut-out system.

ELECTRICAL CONNECTION:

·The juice extractor must always be connected to a single-phase supply (2 wires＋earth).

·There are several types of juice extractors:100-120V-50/60HZ, 220-240V-50 HZ/60 HZ

·WARNING:

·Check the voltage of your juicer before plugging it in.

·For best possible transport conditions, the machine is delivered with the ejection chute dismantled.

·…..To fix the chute to the bowl, use the nuts and washers supplied with the machine and fully
tighten using the key provided.

How to use your HIGH OUTPUT CENTRIFUGAL JUICE EXTRACTOR

BEFORE USE

·After fitting the ejection chute, place the appliance on a horizontal surface and plug it in , using a
plug with an earth pin.

·Place the bowl on the base, with the spout fitting into its housing: the bowl is now centered on the
machine by means of two stainless steel pins.

2

·Fit the centrifugal basket onto the motor axle. Turn by hand to locate the drive pin. Tighten the nut
using the key supplied.

·Fit the lid onto the bowl. Turn the lid by hand until the two tightening pins are right in the slots on
the lid. Tighten the lid-bowl using the locking lever.

USING YOUR JUICE EXTRACTOR

·To use your machine, press the red Start button. The extractor cannot start unless the lid and bowl
are correctly placed and the lever is in locked position.

·place a recipient to catch the pulp under the chute, or use a plastic bag fixed using the bag holder,
allowing air to leave the bag.

·Place a recipient under the spout to catch the juice.

·Insert fruit or vegetables, pushing evenly with the pusher .

·Use only the pusher supplied with the appliance (any other pusher may damage the teeth of the
grater). There is no need to push hard on the pusher: vegetables or fruit going down too quickly give
juice of poorer quality and reduce yield.

SWITCHING OFF

·Press the red Stop button.

·If, during use, the operator releases the locking lever, a braking device stops the basket from rotating
within a very short space of time to ensure total safety.

·To restart, put the lever back to locked position and press the Start button again.

NB: A thermal cut-off device protects the machine in the event of prolonged overloading. If this

device is triggered, the extractor stops. If this happens, let the machine cool down and restart by
pressing the black start button.

TIPS FOR USE

·With certain fruit or vegetables which have either fibrous pulp or very fine skin, the appliance must
be stopped from time to time and the basket cleaned by hand, clearing the chute if necessary.

·With red fruit such as blackberries and raspberries, or fruits such as peaches and apricots, the juice
obtained is thick and sometimes runs with difficulty. A little water should be added from time to time
through the inlet to free the bowl.

3

·If the basket gets off balance, due to inadequate cleaning of the basket or to the use of very fibrous
fruit or vegetables, stop the appliance to prevent excessive vibrations and hand-clean the basket and
the chute.

·As a general rule, choose fresh, ripe fruit and vegetables and wash them under running water. Large
stones should be removed.

·Certain types of juice (eg. apple juice) oxidizes quickly in air. Add a. little lemon juice to help
prevent this. These juices can be kept in this way in the refrigerator in a tightly closed non-metallic
recipient.

A FEW EXAMPLES:

·Carrot juice (rich in vitamins A, B and C) can be mixed with any other juice to improve flavor (do
not peel the carrots).

·Apple juice (rich in vitamins A, B and C) oxidizes very quickly. It can be mixed with any other juice
(do not peel the apples).

·Tomato juice (rich in vitamins A C) added to other juice will enhance the taste.

·Cucumber juice: may be added to apple or carrot juice for example (do not peel the cucumber).

Looking after your HIGH OUTPUT CENTRIFUGAL JUICE
EXTRACTOR

·To remove the lid, the basket and the bowl, turn the locking lever to release the bowl-lid unit.
Turning the lever causes the basket to stop very quickly if it is still revolving. Release the lid by
rotating it clockwise.

·Unscrew the basket using the key provided while holding it by the bowl to prevent it from turning.

·The bowl, lid and basket can be cleaned in plenty of water.

·Clean the body of the appliance with a damp sponge and then dry.

·Polish occasionally with a non-abrasive window cleaning fluid or metal polish.

·

NOTE: Inadequate cleaning of the bowl may cause difficulties in ejecting pulp. The centrifugal

basket must always be cleaned after use. Brush it under running water with a nylon brush so as not to
scratch the polished surface. Check that that the basket holes are not blocked. Inadequate cleaning
will lower the yield of the appliance and may cause it to run off balance, thus endangering running.

4

·Never immerse the base unit containing the motor in water.

WARNING

·Take care to wash the bowl, the lid, the fruit pusher and the basket before using the appliance for the

first time.

·For ease of cleaning, never allows foodstuffs to dry in the machine after use.

·The grater disk can easily be removed and changed. When changing, carefully clean the plate which
supports the grater. Fully tighten the three screws with their locknuts. Before switching on, put the
bowl and lid in place and check that the teeth of the grater do not touch the inlet tube.

Technical characteristics of your HIGH OUTPUT CENTRIFUGAL JUICE
EXTRACTOR

·Circular inlet tube: 68 mm dia.

·Bag holder to catch the pulp.
MAINS SUPPLY SINGLE PHASE
Power supply (V) 220-240
Frequency (HZ) 50
Motor
Power (HP) 1
Absorbed power (W) 750
Speed (rpm) 2800
Weight
Net weight (kg) 24 24
Packaged weight (kg) 28 28
Noise level (2) (dBA) 79 79

(1) The above values are given as a guide only. The exact electrical characteristics of your appliance
are given on the plate underneath it.
(2) Acoustic pressure measured 1meter away from the machine as per standard EN 31 201 with
machine running.
