Omcan TS-IT-0150 Service Manual

Tomato Squeezers

Models TS-IT-0150, 0080

Items 41418, 41420

Instruction Manual

Revised - 03/11/2020

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: service@omcan.com

www.omcan.com

CSA

Approved

Table of Contents

Model TS-IT-0150 / Model TS-IT-0080

Section

General Information

Safety and Warranty

Technical Specications

Operation

Maintenance

Parts Breakdown

--------------------------------------------------------------------------------------------- 6

------------------------------------------------------------------------------------ 6 - 7

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

----------------------------------------------------------------------------- 8 - 10

Page

-------------------------------------------------------------------------- 6

Electrical Schematics

Notes

Warranty Registration

------------------------------------------------------------------------------------------- 12 - 14

---------------------------------------------------------------------------- 11

---------------------------------------------------------------------------- 15

2

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

3

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

Safety and Warranty

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. To protect against risks of electrical shock do not put in water or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4

Safety and Warranty

4. Unplug from outlet when not in use and before putting on or taking off parts and before cleaning.

5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunction, or if it is dropped or damaged in any manner. Call Omcan to arrange the examination, repair or electrical or mechanical adjustment.

7. The use of attachments not recommended or sold by Omcan may cause re, electric shock or injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter.

10. Never feed food or dough by hand. Always use food pusher.

11. Blades are sharp. Handle carefully.

12. Do not use ngers to scrape food away from discharge disc while appliance is operating. Cut type injury may result.

13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

14. Acoustic level less than 60 dBA.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

5

Technical Specications

Model TS-IT-0150 TS-IT-0080 Power 0.4 HP / 0.3 kW 0.57 HP / 0.43 kW

Worm RPM 192 96 Electrical 120V / 60Hz / 1Ph 120V / 60Hz / 1Ph Weight 23.1 lbs. / 10.5 kgs. 36.3 lbs. / 16 kgs.

Packaging Weight 24 lbs. / 10.9 kgs. 38.5 lbs. / 17.5 kgs.

Dimensions

Packaging Dimensions

Item Number 41418 41420

22.5” x 12” x 15.1”

572 x 305 x 384mm

19.3” x 11.3” x 12.3” 489 x 286 x 311mm

26” x 10.5” x 20”

660 x 267 x 508mm

23” x 16.8” x 14.3”

584 x 425 x 362mm

Operation

TOMATO SQUEEZER UNIT

Tomato squeezer propeller made in acetal resin suitable for food contact, body in cast iron tested for foodstuffs

and treated with epoxy paint for foodstuffs. Nylon tow pin inserted on tin-plated steel. Filter cone, funnel and drip pan are entirely made of 18/10 stainless steel.

For space requirements, the machine is partially disassembled in the packing; it is necessary to insert the tow pin with the spring into the hole in the cast iron body. Insert the propeller into the cast iron body tting it onto the square of the tow pin. Then put the lter cone onto the propeller pressing and turning it counterclockwise to t the tabs of the ring nut into the niches in the cast iron body. Screw the funnel onto the threaded neck of the cast iron body and hook the drip pan onto the lter cone and onto the cast iron casing by means of the clips. The machine is then ready for use: the machine must denitely not be run dry (with no tomato).

If the propeller jams, before taking any further action on the machine put the switch onto the “OFF” position

and unplug from the electrical socket. When the work is nished, unscrew the funnel, unhook the drip pan, turn the lter cone clockwise to remove the propeller and the tow pin with the spring. Remove the cast iron casing

from the reduction gear cover, then wash, carefully dry and eventually grease all the parts that have come into contact with the food. Before replacing the appliance it is advisable to put the red cap back on in the place of the cap with bleed.

Maintenance

• Before carrying out assembly, disassembly, die plate replacement and cleaning operations, switch off the

6

Maintenance

motor and unplug the unit from the electrical socket, to avoid risks of electric shock.

• After every use disassemble, wash and dry all press parts carefully.

• In case of blockage of the press, disconnect the plug cable from the socket immediately to avoid risks of

damage the machine.

• Close supervision is required when this product is used near children.

REFERENCE

Item Number Model Number Description Manufacturer Model Number

41418 TS-IT-0150

41420 TS-IT-0080

Tomato Squeezer 192 RPM 300W

120V/60/1 cCSAus

Tomato Squeezer 96 RPM

0.58 HP / 430 W 110V/60/1 cCSAus

17410J/ICSA

07600/CSA

7

Parts Breakdown

Model TS-IT-0150 41418

8

Model TS-IT-0080 41420

Parts Breakdown

9

Parts Breakdown

Model TS-IT-0150 41418

Item No. Description Position Item No. Description Position Item No. Description Position

15241 Plunger for 17410J/ICSA 1 15246 Knob for 17410J/ICSA 14 67463 Capacitor for 17410J/ICSA 24

19162 Inox Hopper for 17410J/ICSA 2 27655 Big Gear for 17410J/ICSA 15 AD001 Splashes Protector for 17410J/ICSA 28

61934 Body for 17410J/ICSA 3 45893

61933 Joint for 17410J/ICSA 4 27662 Motor Reducer Gasket for 17410J/ICSA 18 67465 Base and 4 Feet Set for 17410J/ICSA 125

61932 Worm Spring for 17410J/ICSA 5 64286 Motor Fan Cover for 17410J/ICSA 21 67464 4 Feet Set for 17410J/ICSA 127

19236 Stainless Filter for 17410J/ICSA 7 67462 Switch for 17410J/ICSA 22 64285 Motor Fan for 17410J/ICSA

AC999

Stainless Steel Collector with Hooks for 17410J/ICSA

8 45128 Switch Box for 17410J/ICSA 23 61430 Motor Reductor for 17410J/ICSA

Small Gear 12 Teeth / 60 Teeth for 17410J/ICSA

16 AD000

Model TS-IT-0080 41420

Item No. Description Position Item No. Description Position Item No. Description Position

15241 Plunger for 07600/CSA 1 19151 Large Gear for 07600/CSA 15 15255 Housing for 07600/CSA 113

19162 Inox Hopper for 07600/CSA 2 66043 Small Gear for 07600/CSA 16 67473 Base and 4 Feet Set for 07600/CSA 125

AD002 Body for 07600/CSA 3 27663 Motor Reducer Gasket for 07600/CSA 18 67472 4 Feet Set for 07600/CSA 127

15260 Joint for 07600/CSA 4 15247 Motor Cover for 07600/CSA 21 67479

15256 Worm Spring for 07600/CSA 5 31249 Switch for 07600/CSA 22 40300 Cooling Fan for 07600/CSA

15348

AD003

15246 Knob for 07600/CSA 14 31322 Splashes Protection for 07600/CSA 28

Stainless Steel Filter Screen for 07600/ CSA

Stainless Steel Collector with Hooks for 07600/CSA

7 45128 Switch Box for 07600/CSA 23 23499 Adapter for 07600/CSA

8 67477 Capacitor for 07600/CSA 24 67480 Motoreduction Unit for 07600/CSA

Reduction Unit Case with Sealing Ring for 17410J/ICSA

Spacers Kit and Screws Kit and Gasket for 07600/CSA

113

130

10

Model TS-IT-0150 41418 Model TS-IT-0080 41420

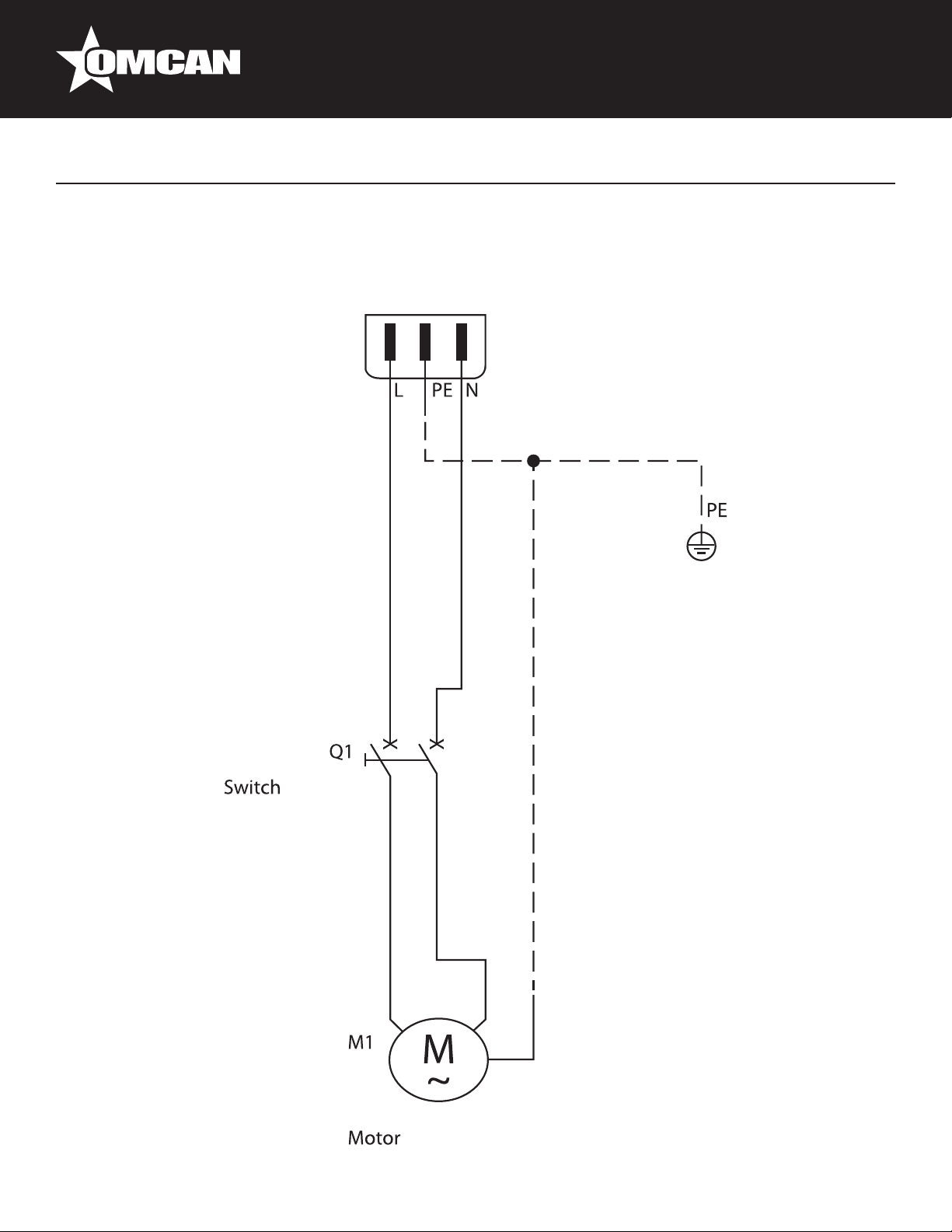

Electrical Schematics

11

Notes

________________________________________________________________________________________

12

Notes

________________________________________________________________________________________

13

Notes

________________________________________________________________________________________

14

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación, cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

https://omcan.com/warranty-registration/

For mailing in Canada

Pour postale au Canada

Por correo en Canadá

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

For mailing in the US

Pour diffusion aux États-Unis

Por correo en los EE.UU.

OMCAN

Niagara Falls, New York

USA, 14305

or email to: service@omcan.com



Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

15
