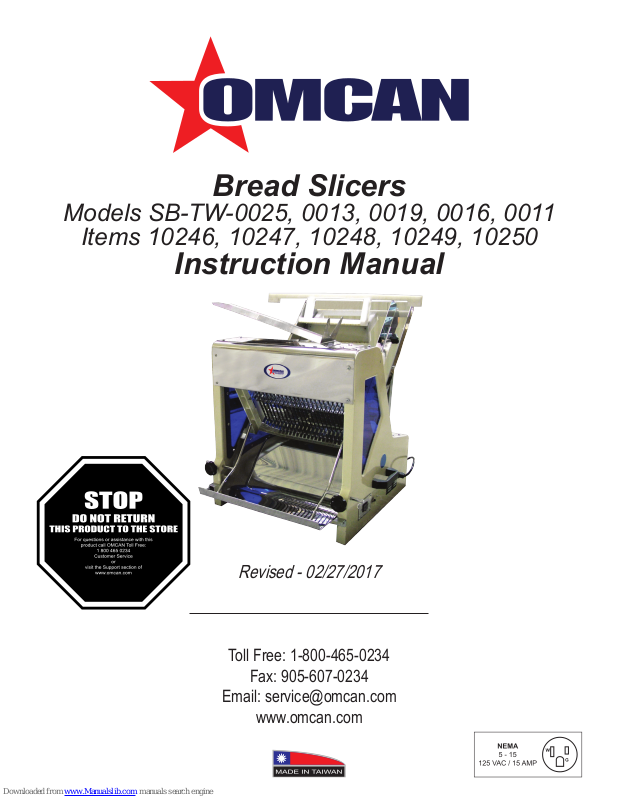

Page 1

Bread Slicers

Models SB-TW-0025, 0013, 0019, 0016, 0011

Items 10246, 10247, 10248, 10249, 10250

Instruction Manual

Revised - 02/27/2017

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Page 2

Table of Contents

Model SB-TW-0025 / Model SB-TW-0013 / Model SB-TW-0019

Model SB-TW-0016 / Model SB-TW-0011

Section

General Information

Safety and Warranty

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

Technical Specications

Installation

Operation

Maintenance

-------------------------------------------------------------------------------------------- 6

--------------------------------------------------------------------------------------------- 6

------------------------------------------------------------------------------------ 6 - 7

Page

-------------------------------------------------------------------------- 5

Troubleshooting

Parts Breakdown

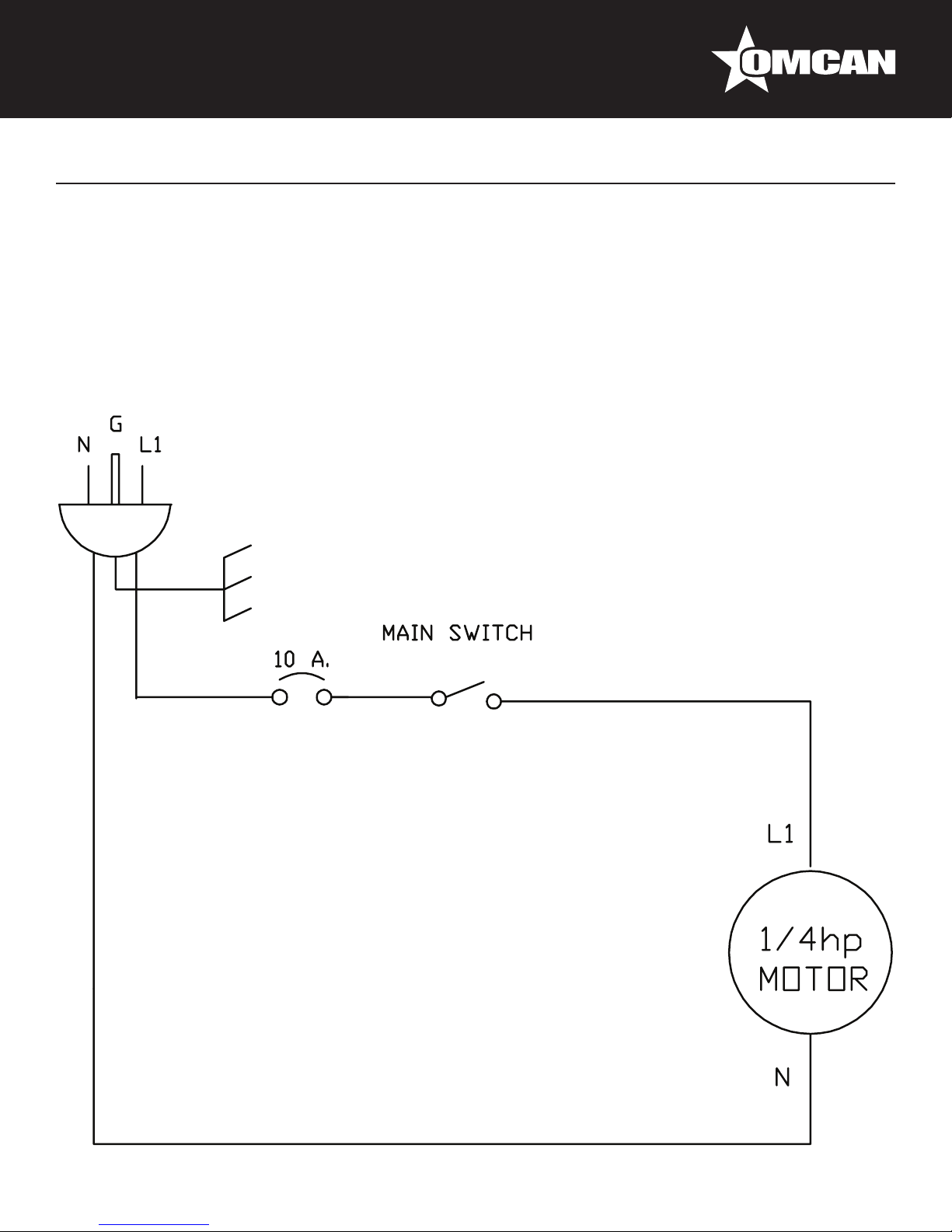

Electrical Schematics

Warranty Registration

------------------------------------------------------------------------------------- 7

----------------------------------------------------------------------------- 8 - 13

---------------------------------------------------------------------------- 14

---------------------------------------------------------------------------- 15

Page 3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

Page 4

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

Safety and Warranty

DANGER

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS

For your safety, this equipment has been veried by qualied technicians and carefully crated before shipment. The freight company takes full responsibility for the delivery of this equipment in good condition, by accepting

to deliver it.

Page 5

Safety and Warranty

• The manufacturer suggests to read this manual carefully.

• The bread slicer is manufactured with rst quality materials by experienced technicians. Normal use and adequate maintenance will guarantee a reliable service for years to come.

• The SM302 bread slicer is available in four different slice thickness (1/2, 5/8, 3/4 and 1 inch).

• A nameplate xed to the left side of the slicer species the serial number, model number, amperage, voltage and frequency.

• Drawings, electrical diagrams and replacement part numbers are included in this manual

BEFORE USING THE BREAD SLICER, VERIFY THAT NOTHING OBSTRUCTS THE CHUTE BLADE AND TIGHTEN THE GUIDE ADJUSTMENT.

1 YEAR PARTS AND LABOR WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

Model SB-TW-0025 SB-TW-0013 SB-TW-0019 SB-TW-0016 SB-TW-0011 HP 0.25

Size 1” / 25mm 1/2” / 13mm 3/4” / 19mm 5/8” / 16mm 7/16” / 11mm

Electrical 110V/60/1 Weight 176 lbs. / 79.8 kgs. Dimensions 26” x 29.5” x 29.5” / 660 x 749 x 749mm Item Number 10246 10247 10248 10249 10250

Page 6

Installation

Open the crate and remove all materials used for packing as well as the accessories. Put the slicer on a stable table or counter and make sure the slicer is level. Each unit is set up to be used with the electrical supply

specied on the nameplate xed on the left side of the slicer.

Operation

1. Make sure there are no obstructions in the chute.

2. Adjust the side and top guide a 1/2 inch from each side of the bread and a 1/2 inch from the top.

3. Use only cold bread in the slicer.

4. Start the slicer with the main switch on the left side.

5. Put the bread in the chute and by using the wood bread pusher exert pressure on the bread. When the bread comes out, remove it and put it on the bread bagger on the top of the slicer. Take a bag and insert over the bagger and the bread; then remove them and close the bag.

WARNING: NEVER TRY TO PUSH OR PULL OUT THE BREAD WITH YOUR HANDS WHEN THE SLICER IS ON. ALWAYS DISCONNECT THE ELECTRIC CORD OR MAIN POWER BREAKER.

Maintenance

We recommend cleaning the slicer every day to prevent accumulation of bread pieces. Use a small vacuum to clean the bread crumbs.

CHANGING BLADES

TO REMOVE THE BLADES

1. Remove the top cover and the guide.

2. Remove the exit chute.

3. Remove the support angle on each side of the chute (10mm key).

4. Unscrew bolt.

5. Unscrew the bottom bolt on the blade frame.

6. Turn the frame cam wheel with the v belt.

7. Use the special tool to remove the blades one by one.

Tool sold separately, Item number 78617.

TO INSTALL THE NEW BLADES

1. Use the special tool to install the blades one by one.

2. Install the blade frame tighten the bottom bolt and make sure the frames are aligned.

3. Install the angle support on each side of the chute (10mm key).

4. Install the exit chute.

5. Install the top cover and the guide.

Page 7

Always cut off the main power before replacing any parts.

Troubleshooting

Problems Solutions

The slicer does not turn on when powered.

The slicer does not slice properly. Make sure the bread is not hot.

Check if the electric cord is connected. Check the breaker of the building. Check the breaker on the side of the slicer. If the slicer is still not working, call a technician or us.

Check if the blade is clean. Check the guide adjustment. If the slicer still does not slice properly, change the blade.

Maintenance

REFERENCE

Item Number Model Number Description Manufacturer Model Number

10246 SB-TW-0025

10247 SB-TW-0013

10248 SB-TW-0019

10249 SB-TW-0016

10250 SB-TW-0011

Bread Slicer 1” / 25mm Thickness

0.25 HP / 186 W 110V/60/1

Bread Slicer 0.5” / 13mm Thickness

0.25 HP / 186 W 110V/60/1

Bread Slicer 0.75” / 19mm Thickness

0.25 HP / 186 W 110V/60/1

Bread Slicer 0.6” / 16mm Thickness

0.25 HP / 186 W 110V/60/1

Bread Slicer 0.4” / 11mm Thickness

0.25 HP / 186 W 110V/60/1

SM3021

SM30212

SM30234

SM30258

SM302716

Page 8

Parts Breakdown

Model SB-TW-0025 10246 Model SB-TW-0013 10247 Model SB-TW-0019 10248 Model SB-TW-0016 10249 Model SB-TW-0011 10250

Page 9

Parts Breakdown

Model SB-TW-0025 10246

Item No. Description Position Item No. Description Position Item No. Description Position

27137 Left Bracket for SM3021 1 20847 Left Guide Bar for SM3021 21 14764 Belt for SM3021 41

27138 Right Bracket for SM3021 2 20867 Right Guide Bar for SM3021 22 14765 Motor for SM3021 42

20840 Screw Nut for SM3021 3 20848 Slide Board Shaft for SM3021 23 20853 Division Plate to Toast (R) for SM3021 43

20859 Handle for SM3021 4 20868 Main Shaft for SM3021 24 20876 Join Pin for SM3021 44

20841 Fixed Lever for SM3021 5 14761 Knife Shaft Left for SM3021 25 20875 Motor Seat (Front) for SM3021 45

20860 Plastic Lock Bolt for SM3021 6 27139 Knife Shaft Right for SM3021 26 20856 Motor Seat (Right) for SM3021 46

20842 Left Division Plate to Toast for SM3021 7 14836 Knife for SM3021 27 20857 Drive Pulley for SM3021 47

20861 L Plate Fix Bolt for SM3021 8 14762 Knife Blade Fixed Block for SM3021 28 20877 Pulley for SM3021 48

23772 Front Cover for SM3021 9 14763 Spring for SM3021 29 20858 Screw Nut for SM3021 49

18995 Plate for Receiving Bread for SM3021 10 20849 Tee Tube for SM3021 30 20878 Plastic Linking Rod for SM3021 50

18996 Pressing Plate to Fixed Base for SM3021 11 20850 Driving Rod Link for SM3021 31 20851 Cable for SM3021 51

20862 Division Plate to Fixed Base for SM3021 12 23770 Driving Rod Link for SM3021 32 20879 Switch plate for SM3021 52

20843 Fixed Block for SM3021 13 20869 Driving Shaft for SM3021 33 18998 Switch for SM3021 53

20880 L Plate for SM3021 14 20863 Fixed Rod for Knife Shelf for SM3021 34 20870 L Plate for SM3021 54

20844 Bearing for SM3021 15 20871 Linking Bar Join Block for SM3021 35 27140 Circular Sticker for SM3021 55

20864 Acrylic Plate for SM3021 16 20852 Linking Bar Seat (L) for SM3021 36 27141 Motor Cable for SM3021 56

20845 Upper Slide Board for SM3021 17 20872 Fixed Rod for Knife Shelf for SM3021 37 20855 Capacitor for SM3021 57

20865 Slide Board Fixed Block for SM3021 18 20873 Bush for SM3021 38 72260 Washer for SM3021 59

20846 Rear Cover for SM3021 19 20854 Linking Bar Seat (R) for SM3021 39 39499 Knife Assembly 1” for SM3021

20866 Lock Bolt for SM3021 20 20874 Drive Pulley for SM3021 40

Page 10

Parts Breakdown

Model SB-TW-0013 10247

Item No. Description Position Item No. Description Position Item No. Description Position

27137 Left Bracket for SM30212 1 20847 Left Guide Bar for SM30212 21 14764 Belt for SM30212 41

27138 Right Bracket for SM30212 2 20867 Right Guide Bar for SM30212 22 14765 Motor for SM30212 42

20840 Screw Nut for SM30212 3 20848 Slide Board Shaft for SM30212 23 20853 Division Plate to Toast (R) for SM30212 43

20859 Handle for SM30212 4 20868 Main Shaft for SM30212 24 20876 Join Pin for SM30212 44

20841 Fixed Lever for SM30212 5 28339 Knife Shaft Left for SM30212 25 20875 Motor Seat (Front) for SM30212 45

20860 Plastic Lock Bolt for SM30212 6 28343 Knife Shaft Right for SM30212 26 20856 Motor Seat (Right) for SM30212 46

20842 Left Division Plate to Toast for SM30212 7 14836 Knife for SM30212 27 20857 Drive Pulley for SM30212 47

20861 L Plate Fix Bolt for SM30212 8 14762 Knife Blade Fixed Block for SM30212 28 20877 Pulley for SM30212 48

23772 Front Cover for SM30212 9 14763 Spring for SM30212 29 20858 Screw Nut for SM30212 49

28331 Plate for Receiving Bread for SM30212 10 20849 Tee Tube for SM30212 30 20878 Plastic Linking Rod for SM30212 50

28335

20862 Division Plate to Fixed Base for SM30212 12 23770 Driving Rod Link for SM30212 32 20879 Switch plate for SM30212 52

20843 Fixed Block for SM30212 13 20869 Driving Shaft for SM30212 33 18998 Switch for SM30212 53

20880 L Plate for SM30212 14 20863 Fixed Rod for Knife Shelf for SM30212 34 20870 L Plate for SM30212 54

20844 Bearing for SM30212 15 20871 Linking Bar Join Block for SM30212 35 27140 Circular Sticker for SM30212 55

20864 Acrylic Plate for SM30212 16 20852 Linking Bar Seat (L) for SM30212 36 27141 Motor Cable for SM30212 56

20845 Upper Slide Board for SM30212 17 20872 Fixed Rod for Knife Shelf for SM30212 37 20855 Capacitor for SM30212 57

20865 Slide Board Fixed Block for SM30212 18 20873 Bush for SM30212 38 72260 Washer for SM30212 59

20846 Rear Cover for SM30212 19 20854 Linking Bar Seat (R) for SM30212 39 27051 Knife Assembly 1/2” for SM30212

20866 Lock Bolt for SM30212 20 20874 Drive Pulley for SM30212 40

Pressing Plate to Fixed Base for SM30212

11 20850 Driving Rod Link for SM30212 31 20851 Cable for SM30212 51

Page 11

Parts Breakdown

Model SB-TW-0019 10248

Item No. Description Position Item No. Description Position Item No. Description Position

27137 Left Bracket for SM30234 1 20847 Left Guide Bar for SM30234 21 14764 Belt for SM30234 41

27138 Right Bracket for SM30234 2 20867 Right Guide Bar for SM30234 22 14765 Motor for SM30234 42

20840 Screw Nut for SM30234 3 20848 Slide Board Shaft for SM30234 23 20853 Division Plate to Toast (R) for SM30234 43

20859 Handle for SM30234 4 20868 Main Shaft for SM30234 24 20876 Join Pin for SM30234 44

20841 Fixed Lever for SM30234 5 28340 Knife Shaft Left for SM30234 25 20875 Motor Seat (Front) for SM30234 45

20860 Plastic Lock Bolt for SM30234 6 28344 Knife Shaft Right for SM30234 26 20856 Motor Seat (Right) for SM30234 46

20842 Left Division Plate to Toast for SM30234 7 14836 Knife for SM30234 27 20857 Drive Pulley for SM30234 47

20861 L Plate Fix Bolt for SM30234 8 14762 Knife Blade Fixed Block for SM30234 28 20877 Pulley for SM30234 48

23772 Front Cover for SM30234 9 14763 Spring for SM30234 29 20858 Screw Nut for SM30234 49

28332 Plate for Receiving Bread for SM30234 10 20849 Tee Tube for SM30234 30 20878 Plastic Linking Rod for SM30234 50

28336

20862 Division Plate to Fixed Base for SM30234 12 23770 Driving Rod Link for SM30234 32 20879 Switch plate for SM30234 52

20843 Fixed Block for SM30234 13 20869 Driving Shaft for SM30234 33 18998 Switch for SM30234 53

20880 L Plate for SM30234 14 20863 Fixed Rod for Knife Shelf for SM30234 34 20870 L Plate for SM30234 54

20844 Bearing for SM30234 15 20871 Linking Bar Join Block for SM30234 35 27140 Circular Sticker for SM30234 55

20864 Acrylic Plate for SM30234 16 20852 Linking Bar Seat (L) for SM30234 36 27141 Motor Cable for SM30234 56

20845 Upper Slide Board for SM30234 17 20872 Fixed Rod for Knife Shelf for SM30234 37 20855 Capacitor for SM30234 57

20865 Slide Board Fixed Block for SM30234 18 20873 Bush for SM30234 38 72260 Washer for SM30234 59

20846 Rear Cover for SM30234 19 20854 Linking Bar Seat (R) for SM30234 39 24575 Knife Assembly 3/4” for SM30234

20866 Lock Bolt for SM30234 20 20874 Drive Pulley for SM30234 40

Pressing Plate to Fixed Base for SM30234

11 20850 Driving Rod Link for SM30234 31 20851 Cable for SM30234 51

Page 12

Parts Breakdown

Model SB-TW-0016 10249

Item No. Description Position Item No. Description Position Item No. Description Position

27137 Left Bracket for SM30258 1 20847 Left Guide Bar for SM30258 21 14764 Belt for SM30258 41

27138 Right Bracket for SM30258 2 20867 Right Guide Bar for SM30258 22 14765 Motor for SM30258 42

20840 Screw Nut for SM30258 3 20848 Slide Board Shaft for SM30258 23 20853 Division Plate to Toast (R) for SM30258 43

20859 Handle for SM30258 4 20868 Main Shaft for SM30258 24 20876 Join Pin for SM30258 44

20841 Fixed Lever for SM30258 5 28341 Knife Shaft Left for SM30258 25 20875 Motor Seat (Front) for SM30258 45

20860 Plastic Lock Bolt for SM30258 6 28345 Knife Shaft Right for SM30258 26 20856 Motor Seat (Right) for SM30258 46

20842 Left Division Plate to Toast for SM30258 7 14836 Knife for SM30258 27 20857 Drive Pulley for SM30258 47

20861 L Plate Fix Bolt for SM30258 8 14762 Knife Blade Fixed Block for SM30258 28 20877 Pulley for SM30258 48

23772 Front Cover for SM30258 9 14763 Spring for SM30258 29 20858 Screw Nut for SM30258 49

28333 Plate for Receiving Bread for SM30258 10 20849 Tee Tube for SM30258 30 20878 Plastic Linking Rod for SM30258 50

28337

20862 Division Plate to Fixed Base for SM30258 12 23770 Driving Rod Link for SM30258 32 20879 Switch plate for SM30258 52

20843 Fixed Block for SM30258 13 20869 Driving Shaft for SM30258 33 18998 Switch for SM30258 53

20880 L Plate for SM30258 14 20863 Fixed Rod for Knife Shelf for SM30258 34 20870 L Plate for SM30258 54

20844 Bearing for SM30258 15 20871 Linking Bar Join Block for SM30258 35 27140 Circular Sticker for SM30258 55

20864 Acrylic Plate for SM30258 16 20852 Linking Bar Seat (L) for SM30258 36 27141 Motor Cable for SM30258 56

20845 Upper Slide Board for SM30258 17 20872 Fixed Rod for Knife Shelf for SM30258 37 20855 Capacitor for SM30258 57

20865 Slide Board Fixed Block for SM30258 18 20873 Bush for SM30258 38 72260 Washer for SM30258 59

20846 Rear Cover for SM30258 19 20854 Linking Bar Seat (R) for SM30258 39 18997 Knife Assembly 5/8” for SM30258

20866 Lock Bolt for SM30258 20 20874 Drive Pulley for SM30258 40

Pressing Plate to Fixed Base for SM30258

11 20850 Driving Rod Link for SM30258 31 20851 Cable for SM30258 51

Page 13

Parts Breakdown

Model SB-TW-0011 10250

Item No. Description Position Item No. Description Position Item No. Description Position

27137 Left Bracket for SM302716 1 20847 Left Guide Bar for SM302716 21 14764 Belt for SM302716 41

27138 Right Bracket for SM302716 2 20867 Right Guide Bar for SM302716 22 14765 Motor for SM302716 42

20840 Screw Nut for SM302716 3 20848 Slide Board Shaft for SM302716 23 20853 Division Plate to Toast (R) for SM302716 43

20859 Handle for SM302716 4 20868 Main Shaft for SM302716 24 20876 Join Pin for SM302716 44

20841 Fixed Lever for SM302716 5 28342 Knife Shaft Left for SM302716 25 20875 Motor Seat (Front) for SM302716 45

20860 Plastic Lock Bolt for SM302716 6 28346 Knife Shaft Right for SM302716 26 20856 Motor Seat (Right) for SM302716 46

20842 Left Division Plate to Toast for SM302716 7 14836 Knife for SM302716 27 20857 Drive Pulley for SM302716 47

20861 L Plate Fix Bolt for SM302716 8 14762 Knife Blade Fixed Block for SM302716 28 20877 Pulley for SM302716 48

23772 Front Cover for SM302716 9 14763 Spring for SM302716 29 20858 Screw Nut for SM302716 49

28334 Plate for Receiving Bread for SM302716 10 20849 Tee Tube for SM302716 30 20878 Plastic Linking Rod for SM302716 50

28338

20862

20843 Fixed Block for SM302716 13 20869 Driving Shaft for SM302716 33 18998 Switch for SM302716 53

20880 L Plate for SM302716 14 20863 Fixed Rod for Knife Shelf for SM302716 34 20870 L Plate for SM302716 54

20844 Bearing for SM302716 15 20871 Linking Bar Join Block for SM302716 35 27140 Circular Sticker for SM302716 55

20864 Acrylic Plate for SM302716 16 20852 Linking Bar Seat (L) for SM302716 36 27141 Motor Cable for SM302716 56

20845 Upper Slide Board for SM302716 17 20872 Fixed Rod for Knife Shelf for SM302716 37 20855 Capacitor for SM302716 57

20865 Slide Board Fixed Block for SM302716 18 20873 Bush for SM302716 38 72260 Washer for SM302716 59

20846 Rear Cover for SM302716 19 20854 Linking Bar Seat (R) for SM302716 39 24560 Knife Assembly 7/16” for SM302716

20866 Lock Bolt for SM302716 20 20874 Drive Pulley for SM302716 40

Pressing Plate to Fixed Base for SM302716

Division Plate to Fixed Base for SM302716

11 20850 Driving Rod Link for SM302716 31 20851 Cable for SM302716 51

12 23770 Driving Rod Link for SM302716 32 20879 Switch plate for SM302716 52

Page 14

Electrical Schematics

Model SB-TW-0025 10246 Model SB-TW-0013 10247 Model SB-TW-0019 10248 Model SB-TW-0016 10249 Model SB-TW-0011 10250

Page 15

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación, cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

www.omcan.com/warrantyregistration.html

For mailing in Canada

Pour postale au Canada

Por correo en Canadá

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

For mailing in the US

Pour diffusion aux États-Unis

Por correo en los EE.UU.

OMCAN

Niagara Falls, New York

USA, 14305

or email to: [email protected]



Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Page 16

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers. Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un fácil acceso a más de 3,500 productos con origen a nivel mundial.
