Spiral Dough Mixers
Models MX-IT-0080, 0091
Items 13175, 13161
Instruction Manual
Revised - 08/11/2017
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com
Table of Contents
Model MX-IT-0080 / Model MX-IT-0091
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Troubleshooting
Parts Breakdown
------------------------------------------------------------------------------------------------------------------ 6 - 7
------------------------------------------------------------------------------------------------------------------- 7 - 8
--------------------------------------------------------------------------------------------------------------- 8 - 9
------------------------------------------------------------------------------------------------------ 3 - 4
----------------------------------------------------------------------------------------------------- 4 - 5
--------------------------------------------------------------------------------------------------------------- 9
------------------------------------------------------------------------------------------------------ 10 - 13
Page
----------------------------------------------------------------------------------------------------- 6

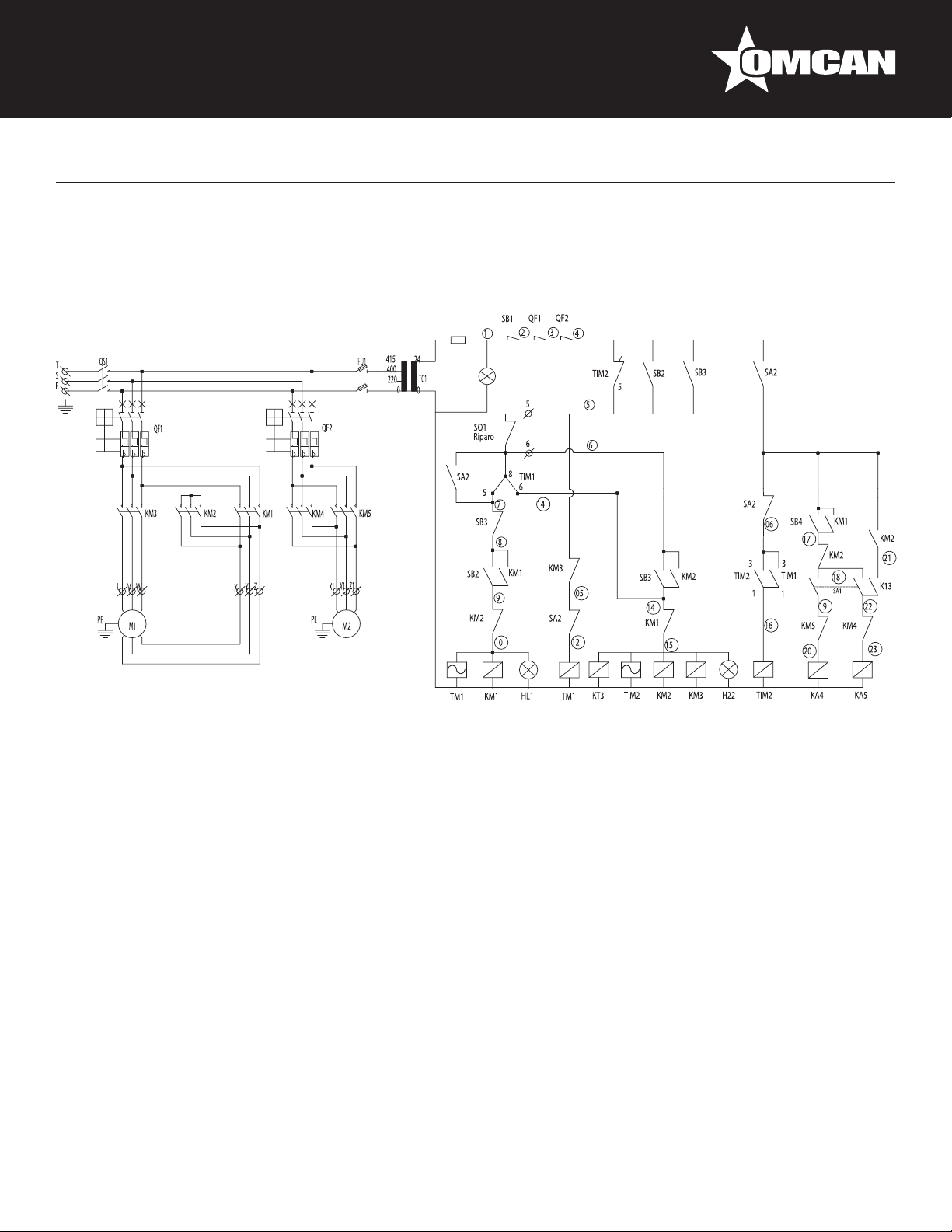

Electrical Schematics
Warranty Registration
------------------------------------------------------------------------------------------------------ 14
------------------------------------------------------------------------------------------------------ 15
2
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
3
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
WEAR ADEQUATE CLOTHING
Be sure to wear tight-tting clothing without any loose parts. Never wear open or unfastened jackets, shirts or
overalls.
4
Safety and Warranty
IMPORTANT
To prevent accidents and ensure best performance the machine must not be modied or altered unless
authorised by Omcan. Nor must it be used in conditions or for purposes other than those for which it has been
expressly designed. Any arbitrary modication implemented in this machine will automatically exempt Omcan
from any liabilities for ensuing damage or injury and warranty claims.
For your own personal safety, before connecting the machine to the electrical main:
• Check that power mains leading to distribution socket is tted with an appropriate multipolar switch
protected against overloads and short circuits.
• Carry out all phase connections, as well as any neutral and ground connections (compulsory) with a
standard plug compatible with the above mentioned socket. The protection lead (ground) is the one
with the yellow/green insulating sheath; make sure that the power supply cable is appropriate to its use,
according to length, mains voltage and machine consumption.
• Unless adequate protections against electrical shock are tted, do not operate the machine in damp or wet
environments.
Do not start up the machine without the protective panelling. This may jeopardise personnel safety and
machine serviceability.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see www.omcan.com/warranty.html for complete info.
WARNING:
The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste
and can therefore be disposed of without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
5
Technical Specications
Model MX-IT-0080 MX-IT-0091
Horsepower
Bowl RPM 14 RPM
Spiral RPM
Bowl Capacity 176 lbs. / 80 kgs. 220 lbs. / 100 kgs.
Current
Power
Electrical 208V/60Hz/3
Weight 924 lbs. / 419 kgs. 1034 lbs. / 469 kgs.
Dimensions 46” x 28.5” x 50” / 1168 x 724 x 1270mm
Item Number 13175 13161
Spiral - 1.4 / 5.5 HP Spiral - 2.8 / 6.4 HP
Bowl - 0.50 HP Bowl - 0.75 HP
117 - 1st speed
234 - 2nd speed
Spiral - 8.3 / 15.26A Spiral - 10.4 / 18A
Bowl - 19.4A
Spiral - 2400 / 4400W Spiral - 3000 / 5200W
Bowl - 5600W
Installation
Install and use the machine in a room that can be efciently ventilated, and where the oor is level,
compact and easy to clean.
If oor is uneven, to prevent instability and machine movements, shim feet with strips of hard rubber. Position
the machine as preferred, leaving a free space of approx. 50 cm/20” around all sides. This will enable
unhindered access for actual operation, as well as for cleaning and maintenance. For machines equipped with
wheels, ensure to apply brakes by pressing the lever down. Also ensure that machine voltage is the same as
that distributed by power mains (see rating plate on machine rear cover).
For connection to electrical system, t a suitable plug to the machine power supply cable.
Warning: have the plug tted to the power supply by qualied electrician. Take the necessary
precautions to prevent the cable from being crimped or damaged.
After mating the plug to the mains socket, the machine is ready for use. First, however, check proper operation
of all moving parts and components of the machine. Thus, check:
• Rotation direction of bowl (compare with arrow on bowl) and spiral.
• Safety device serviceability: device is serviceable when machine stops the moment the guard is lifted by
10-15 mm/0.4”-0.6”.
• Operation of push buttons and pilot lamp.
6
Installation
Important: If the machine or some of its parts fail, call your Omcan for repairs.
Note: for machines with three-phase power supply: in case of counter rotation, invert two phases of
the power supply plug. Check bowl rotation each time you replace the power supply plug or change
power mains socket.
TRANSPORT AND HANDLING
The machine, pallet-mounted at origin, is shipped enclosed in an appropriate packing and strapped to the
wooden pallet itself. When unloading the machine from the transport vehicle, lift from the points marked on the
packing using suitable equipment. Unless you need to check its contents, you are recommended not to open
the packing until the moment of installation. To transport the machine to the installation site, use a trolley of
adequate carrying capacity. Remove straps, packing and polystyrene strips. Dispose of this material according
to the regulations in force. Lift the machine and place on the installation site. Remove the supporting pallet
using straps of suitable carrying capacity (approx. 6 times the weight of the machine). These will have to be
slipped under the spiral holder head. The whole operation is to be controlled by adequate manual or powerdriven lifting equipment.
Operation
PREPARING THE MACHINE
Prepare the machine before every process cycle. BE SURE that the machine, especially parts which come in
contact with food products (spiral, bowl and column) are clean and sanitized; where necessary clean with hot
water and spirit. Clean with machine off.
OPERATING THE MACHINE
After having ensured perfect cleanliness of the machine, proceed with dough-making operations as required.
LOADING AND STARTING
Press the stop push button to make sure the machine is off. Raise the bowl guard until it stops against the
rubber rest. Load the machine with ingredients of the type and quantity required. Lower the bowl guard on its
rest. Press the start push button.
CAUTION: the machine will run only if the safety microswitch is serviceable and in position.
MACHINES EQUIPPED WITH TIMER
For machines equipped with control timer, before pressing the start push button, set the required time. When
set time runs out the machine stops automatically. In the event that you need to use manual controls, eliminate
timer operation by setting to “SER.CONT” or “POS.MAN.”
7
Operation
TWO-SPEED MACHINES
To start the machine set the commutator to the required speed. Depress the start push button. If you want to
change speed with the machine in operation, rst set the selector to “0” then set the new speed. Subsequently
press the start push button.
Caution: if the selector remains in position “0” it is impossible to start the machine.
UNLOADING THE MACHINE
At the end of the time period set for the process, press the stop push button.
Note: machines equipped with timer will stop automatically.
Raise the bowl guard, remove the dough, and thoroughly clean all parts affected by the process immediately.
At the end of the cleaning, close the guard.
VARYING INITIAL MIXTURE DOSES
If you need to vary the initial mixture by adding or changing the amount of the ingredients, use the food slots in
the guard without stopping the machine or raising the guard.
Maintenance
ALWAYS UNPLUG THE MACHINE FROM THE ELECTRICAL SOCKET BEFORE PERFORMING ANY
MAINTENANCE OR CLEANING!
CLEANING
Warning: For healthy and hygienic processing of nutritional products, be sure to keep your machine
and the surrounding environment clean. Always disconnect the power supply before cleaning.
After use, especially since processed material is still soft, always thoroughly clean guard, bowl, spiral and
column. Inspect and if necessary, clean the process tools again before a fresh kneading operation. Use hot
water to remove and rinse off any residual dough. Dry with nutritional absorbent paper and disinfect with a soft
cloth dabbed in alcohol, or food grade disinfectant.
Warning: never use non-food grade, abrasive or corrosive chemicals to clean. Also never use coarse
or abrasive objects such as steel wool, abrasive sponges and so on.
To clean machine internal and external parts:
• Remove power supply plug from power mains socket.
• Clean coated surfaces with soft cloth and disinfect with alcohol.
• To clean internal parts of machine, rst dismantle the rear panel; remove any grease and powder from the
food products processed; then reassemble the panels.
8
Maintenance
MAINTENANCE AND ADJUSTMENT
Warning: Remember that all maintenance operations are hazardous if you do not rst disconnect the
plug from power mains.
To maintain machine safety, serviceability and stated performance, service the following parts:
• Belt tension: once yearly, or in case of irregular machine operation (r.p.m. loss), check belt drive tension. To
do this, disassemble machine rear panel; be sure that the belt is tight enough and, if necessary, turn screw
marked by the appropriate symbol, without exaggerating when tightening the belt. Reassemble the rear
panel.
Never use the machine with any missing, disassembled or open guards and shields.
If servicing operations require repairs to electrical system and/or replacement of bearings or
mechanical components, call Omcan.
Together with the top control panel, remove all the xing screws of the panel except one, which should be
loosened to allow the panel to rotate while still remaining attached to the machine (this allows you not to
detach the electrical cable from the panel). Use MR3 type grease in sufcient quantities that allow lubrication
of all chain links. Do not apply too much grease because during chain motion it will tend to spatter against the
machine walls and gum up with dust and food products (e.g. our) making it harder for you to clean. Finally,
reassemble all panelling taking care not to damage the control electrical cable in machines with the top control
panel.
Troubleshooting
INCONVENIENCES CAUSES REMEDIES
Machine operation failure. Disconnected plug. Connect plug.
Plug leads not correctly connected. Check lead connections.
Trip switch adjusted for insufcient
values.
Unsuitable trip switch. Replace trip switch.
Board fuses blown out. Replace blown fuse.
Timer not set. Set timer to required time.
Whirring noise. The whirring noise emitted by the machine has been measured on an
identical sample machine in compliance with standard DIN 45635. A
constant value not exceeding 70 dB(A) was measured as stated in the
manufacturers test report.
Adjust trip switch accordingly.
9

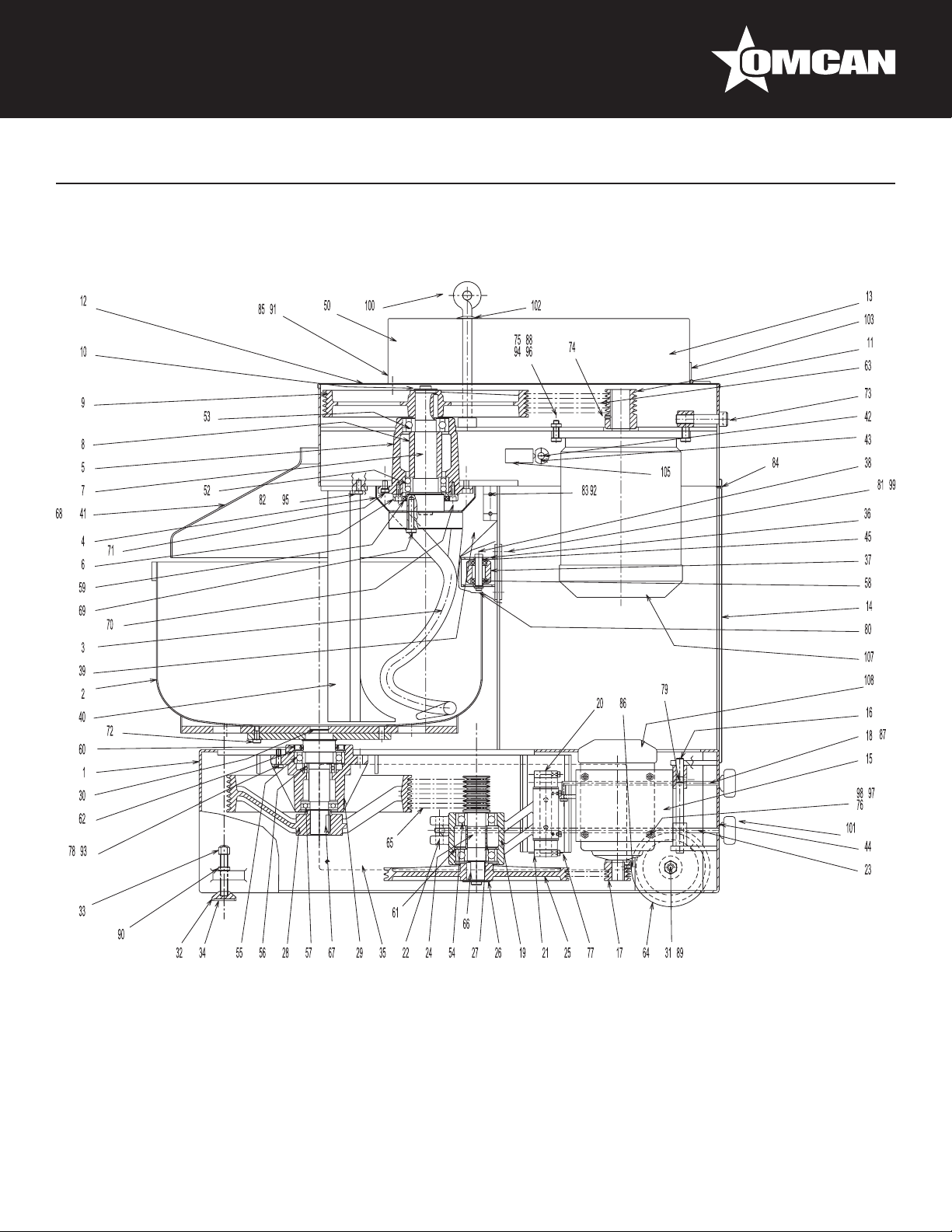

Parts Breakdown
Model MX-IT-0080 13175
10
Parts Breakdown
Model MX-IT-0080 13175
Item No. Description Position Item No. Description Position Item No. Description Position
63007 Base for SP80 1 63038 Vertical Lateral Removal for SP80 35 63124 Screw M8x12 for SP80 74
63008 Tube for SP80 2 63039 Roof Support for SP80 36 63125 Screw M12x40 for SP80 75
63009 Spiral for SP80 3 63040 Roll Leather Support for SP80 37 63126 Screw M8x25 for SP80 76
63010 Spiral Flange Cap Cover for SP80 4 63041 Rubber Stainless Steel Pipe for SP80 38 63127 Screw M10x20 for SP80 77
63011 Spiral Shaft Support for SP80 5 63042 Stainless Steel Base for SP80 39 63080 Screw M10x35 for SP80 78
63012 Spiral Shaft Flange for SP80 6 63043 Vertical Bar for SP80 40 63128 Screw M8x12 for SP80 79
63013 Spiral Shaft for SP80 7 63044 Protection for SP80 41 63129 Screw M10x20 for SP80 80
63014 Spacer for Spiral Shaft for SP80 8 63045 Tree for Protection for SP80 42 63086 Screw M10x25 for SP80 81
63015 Spiral Control Pulley for SP80 9 63046 Micro Control Lever for SP80 43 63130 Screw M6x10 for SP80 82
63016 Washer for SP80 10 63117 Plastic Washer for SP80 44 63131 Screw M6x10 for SP80 83
63017 Spiral Motor Pulley for SP80 11 63118 Washer for Roller Support for SP80 45 63132 Screw M5x15 for SP80 84
63018 Shelter Headed for SP80 12 63051 Electrical System for SP80 50 63133 Screw M5x10 for SP80 85
63019 Electrical System for SP80 13 63119 Bearing 3211 for SP80 52 63134 Screw M6x8 for SP80 86
63020 Rear Vertical Rear for SP80 14 63053 Bearing 63092RS for SP80 53 63090 Nut M10 for SP80 87
63021 Support for Motor Control Panel for SP80 15 63054 Bearing 63082RS for SP80 54 63135 Nut M12 for SP80 88
63022
63023 Pulley Tank Engine for SP80 17 63056 Bearing 51209 for SP80 56 63136 Nut M16 Nickel for SP80 90
63024 Tirante for Vasca Engine for SP80 18 63057 Bearing 62082RS for SP80 57 63137 Rosetta 5.3x10 for SP80 91
63025 Tendicinghia Takes for SP80 19 63058 Bearing 62022RS for SP80 58 63138 Rosetta 6.4x12.5 for SP80 92
63026 Tendicinghia Lever for SP80 20 63060 Sealing Ring for SP80 59 63139 Rosetta 10.5x21 for SP80 93
63027
63028 Tennis for Tendering Handle for SP80 22 63062 Elastic Ring for SP80 61 63141 Rosetta 10.5x5x21 for SP80 95
63029 Tendering Life Tirante for SP80 23 63063 Elastic Ring for SP80 62 63142 Rosetta 15x28 for SP80 96
63030 Tree with Puleggia for SP80 24 63064 Trapezoid Belts for SP80 63 63143 Rosetta 8.4x17 for SP80 98
63031
63113 Washer for SP80 26 63066 Trapezoid Belts for SP80 65 63098 Lifting Hook for SP80 100
63032
63033
63034 Support for Tank Vacuum Door for SP80 29 63069 Elastic Spine for SP80 68 63145 Hinges with Screws for SP80 104
63035 Spindle Tub for SP80 30 63121 Screw M12x50 for SP80 69 63102 Micro for SP80 105
63036 Wheelchair for Wheels for SP80 31 63122 Screw M8x25 for SP80 70 63146 Motor for SP80 107
63114 Support Disk for SP80 32 63086 Screw M10x25 for SP80 71 63147 Motor for SP80 108
63115 Screw for Support Disk for SP80 33 63086 Screw M10x25 for SP80 72
63116 Shock for SP80 34 63123 Screw M12x70 for SP80 73
Cylinder for Mounting Engine Support
for SP80
Tennis Length for Tendicinghia Lever
for SP80
Pulley 1” Reducing Vask Control for
SP80
Length Distance for Lamar Pulley for
SP80
Pulley 2” Reducing Vask Control for
SP80
16 63055 Bearing 6212 for SP80 55 63091 Nut M16 for SP80 89
21 63120 Sealing Ring for SP80 60 63140 Rosetta 13x24 for SP80 94
25 63065 Wheels for SP80 64 63144 Rosetta 8.4x17 for SP80 99
27 63067 Tab for SP80 66 63099 Horizontal Hole M10 for SP80 101
28 63068 Tab for SP80 67 63100 Closing Hole for Golf for SP80 102
11

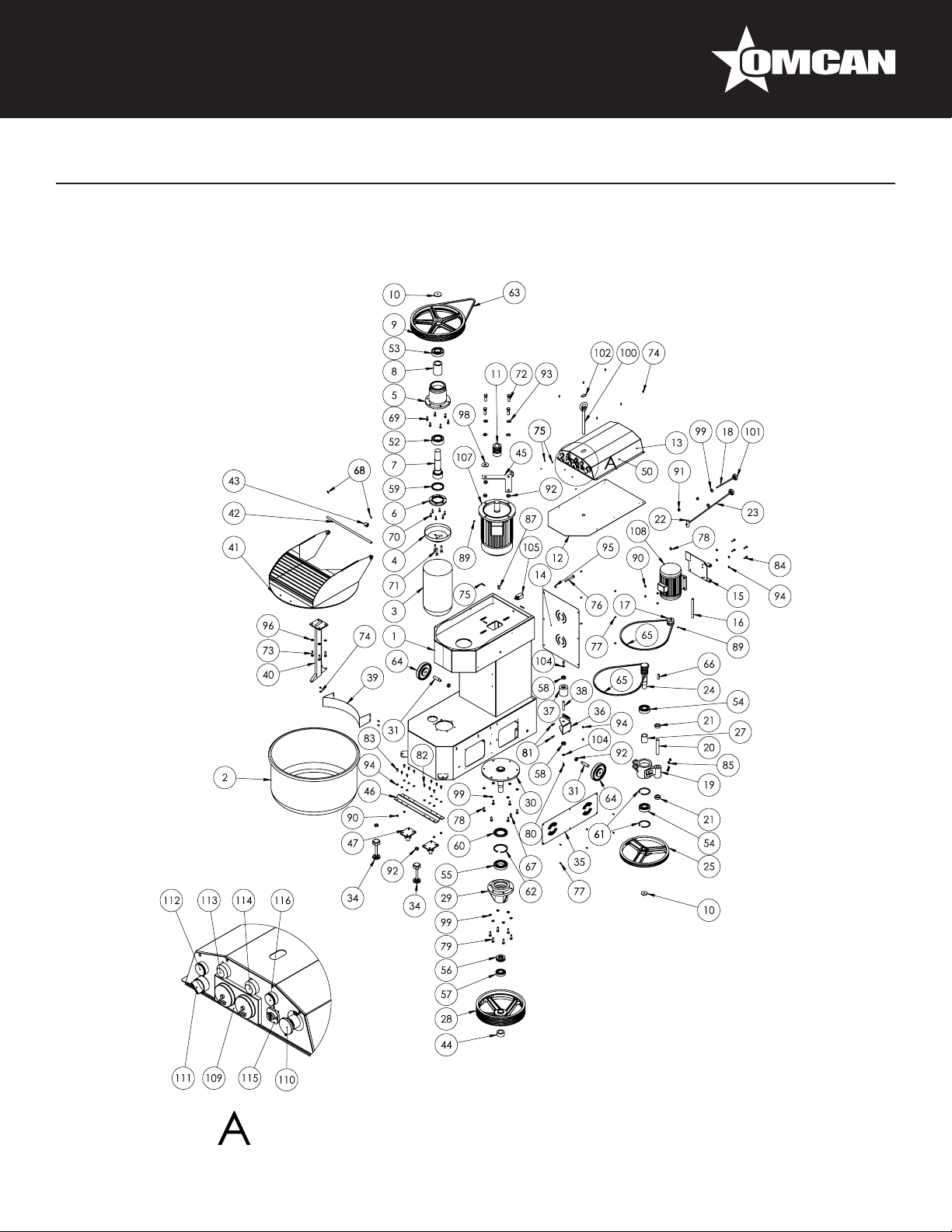

Parts Breakdown
Model MX-IT-0091 13161
12
Parts Breakdown
Model MX-IT-0091 13161
Item No. Description Position Item No. Description Position Item No. Description Position
63007 Base for SP100 1 63043 Vertical Bar for SP100 40 63079 Screw M10x30 Zinc for SP100 78
63008 Tub for SP100 2 63044 Protection for SP100 41 63080 Screw M10x35 Zinc for SP100 79
63009 Spiral for SP100 3 63045 Tree for Protection for SP100 42 63081 Screw M8x16 Inox for SP100 80
63010 Spiral Flange Cap Cover for SP100 4 63046 Micro Control Lever for SP100 43 63082 Screw M8x20 Inox for SP100 81
63011 Spiral Shaft Support for SP100 5 63047 Pulley Water Calculator for SP100 44 63083 Screw M8x16 Zinc for SP100 82
63012 Spiral Shaft Flange for SP100 6 63048 Y for Spiral Engine Tirage for SP100 45 63084 Screw M8x20 Zinc for SP100 83
63013 Spiral Shaft for SP100 7 63049 Wheel Carrier for SP100 46 63085 Screw M8x30 Zinc for SP100 84
63014 Spacer for Spiral Shaft for SP100 8 63050 Front Wheels for SP100 47 63086 Screw M10x25 Zinc for SP100 85
63015 Spiral Control Pulley for SP100 9 63051 Electrical System for SP100 50 63087 Screw M5x20 Zinc for SP100 87
63016 Washer for SP100 10 63052 Bearing 3211 for SP100 51 63088 Wheat M8x10 for SP100 89
63017 Spiral Motor Pulley for SP100 11 63053 Bearing 63092RS for SP100 52 63089 Nut M8 for SP100 90
63018 Shelter Headed for SP100 12 63054 Bearing 63082RS for SP100 53 63090 Nut M10 for SP100 91
63019 Electrical System for SP100 13 63055 Bearing 6212 for SP100 54 63091 Nut M16 Zinc for SP100 92
63020 Rear Vertical Rear for SP100 14 63056 Bearing 51209 for SP100 55 63092 Rosetta 16Dia for SP100 93
63021
63022
63023 Pulley Tank Engine for SP100 17 63059 Sealing Ring for SP100 58 63095 Rosetta 10Dia Zinc for SP100 96
63024 Tirante for Vasca Engine for SP100 18 63060 Sealing Ring for SP100 59 63096 Rosetta 17Dia for SP100 98
63025 Tendicinghia Takes for SP100 19 63061 Elastic Ring for SP100 60 63097 Rosetta 10Dia Zinc for SP100 99
63026 Tendicinghia Lever for SP100 20 63062 Elastic Ring for SP100 61 63098 Lifting Hook for SP100 100
63027
63028 Tennis for Tendering Handle for SP100 22 63064 Trapezoid Belts for SP100 63 63100 Closing Hole for Golf for SP100 102
63029 Tendering Life Tirante for SP100 23 63065 Wheels for SP100 64 63101 Rosetta 9Dia SP2 for SP100 104
63030 Tree with Puleggia for SP100 24 63066 Trapezoid Belts for SP100 65 63102 Micro for SP100 105
63031
63032
63033
63034 Support for Tank Vacuum Door for SP100 29 63070 Screw M10x20 Zinc for SP100 69 63106 Emergency Stop for SP100 110
63035 Spindle Tub for SP100 30 63071 Screw M8x20 Zinc for SP100 70 63107 Reversal for SP100 111
63036 Wheelchair for Wheels for SP100 31 63072 Screw M12x45 Inox for SP100 71 63108 Impulsive for SP100 112
63037 Foot for SP100 34 63073 Screw M16x50 Zinc for SP100 72 63109 1Deg Speed for SP100 113
63038 Vertical Lateral Removal for SP100 35 63074 Screw M10x40 Inox for SP100 73 63110 2Deg Speed for SP100 11 4
63039 Roof Support for SP100 36 63075 Screw M6x12 Inox for SP100 74 6 3111 Switch for SP100 115
63040 Roll Leather Support for SP100 37 63076 Screw M3x8 Inox for SP100 75 63112 Light Speed for SP100 11 6
63041 Rubber Stainless Steel Pipe for SP100 38 63077 Screw M12x90 Zinc for SP100 76
63042 Stainless Steel Base for SP100 39 63078 Screw M6x12 Zinc for SP100 77
Support for Motor Control Panel for
SP100
Cylinder for Mounting Engine Support
for SP100
Tennis Length for Tendicinghia Lever
for SP100
Pulley 1” Reducing Vask Control for
SP100
Length Distance for Lamar Pulley for
SP100
Pulley 2” Reducing Vask Control for
SP100
15 63057 Bearing 62082RS for SP100 56 63093 Rosetta 8Dia Zinc for SP100 94
16 63058 Bearing 62022RS for SP100 57 63094 Rosetta 12Dia Zinc for SP100 95
21 63063 Elastic Ring for SP100 62 63099 Horizontal Hole M10 for SP100 101
25 63067 Tab for SP100 66 63103 Spiral Motor for SP100 107
27 63068 Tab for SP100 67 63104 Vacuum Engine for SP100 108
28 63069 Elastic Spine for SP100 68 63105 Timer for SP100 109
13
Electrical Schematics
Model MX-IT-0080 13175
Model MX-IT-0091 13161
14
Warranty Registration
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
www.omcan.com/warrantyregistration.html
For mailing in Canada
Pour postale au Canada
Por correo en Canadá
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
For mailing in the US
Pour diffusion aux États-Unis
Por correo en los EE.UU.
OMCAN
Niagara Falls, New York
USA, 14305
or email to: service@omcan.com
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan
15
Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 3, 500 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 3, 500 productos con origen a nivel mundial.
Loading...
