Omcan MS-IT-0330-C Operators Manual

Gear-Driven Meat Slicer

Model MS-IT-0330-C

Item 38917

Instruction Manual

Revised - 04/26/2018

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: service@omcan.com

www.omcan.com

Table of Contents

Model MS-IT-0330-C

Section

General Information

Safety and Warranty

Technical Specications

Installation

Operation

Maintenance

-------------------------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 6 - 7

------------------------------------------------------------------------------------- 7 - 9

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

Page

-------------------------------------------------------------------------- 5

Parts Breakdown

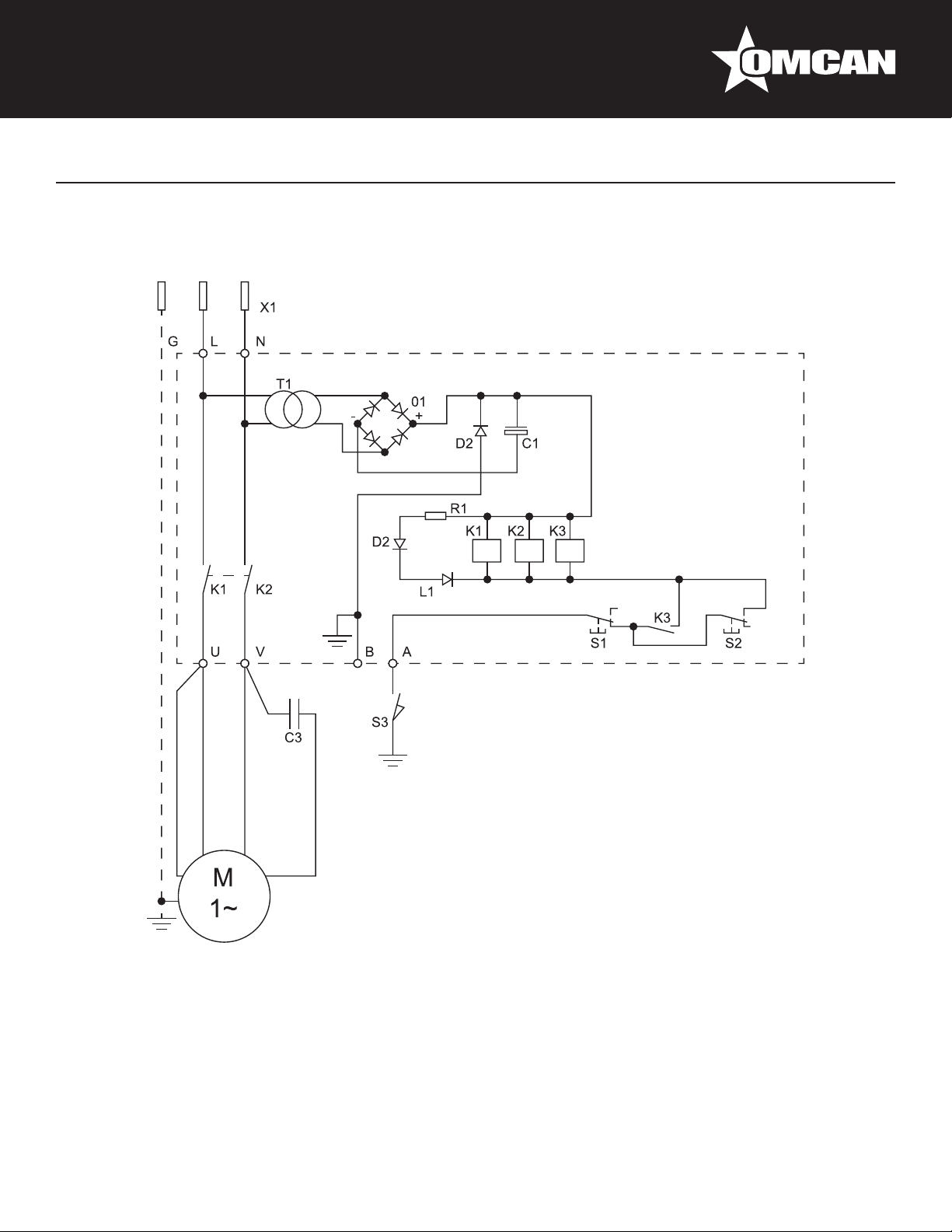

Electrical Schematics

Notes

Warranty Registration

------------------------------------------------------------------------------------------- 21 - 22

---------------------------------------------------------------------------- 10 - 19

---------------------------------------------------------------------------- 20

---------------------------------------------------------------------------- 23

2

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

--------------------------------------------------------------------------------------------------------------------------------------------------Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

3

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

--------------------------------------------------------------------------------------------------------------------------------------------------Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre leer y familiarizarse con todas las instrucciones de operación y seguridad.

Omcan quisiera darles las gracias por la compra de esta máquina. Es de la máxima importancia para guardar estas instrucciones para referencias en el futuro. También guarde la caja original y el embalaje

para envío del equipo si el mantenimiento o la devolución de la máquina es necesaria.

Safety and Warranty

ELECTRICAL SUPPLY

Check that the voltage corresponds to the label data.

1. Connect the machine to the socket.

2. Check that the blade cover fastener handle is tight screwed.

3. Check that the blade sharpener is lowered and the protective cover is closed.

4

Safety and Warranty

4. Press the green pushbutton to start the blade rotation (pilot light on).

5. The blade must rotate in the counterclockwise direction.

1 YEAR PARTS AND LABOR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

Model MS-IT-0330-C Blade 13” / 330mm

Power 350W / 0.47 HP

Slicing Capacity (○ 9.45”) □ 10.6” x 6.7” / (○ 240mm) □ 269 x 170mm

Cut Thickness 0 - 0.55” / 0 -14mm

Drive Gear IP 65 RPM 240 Electrical 120V / 60Hz / 1 Weight 94.8 lbs. / 43 kgs.

Packaging Weight 110 lbs. / 50 kgs. Packaging Dimensions 32.7” x 28” x 26.7” / 831 x 711 x 678mm

Item Number 38917

5

Installation

The slicer must be placed on a plane, horizontal, anti-skid and stable surface, t for carrying its weight. The recommended height of the work top is about 800 mm. Check there are no obstacles for the product holder

stroke.

PRELIMINARY CLEANING

Clean off the protective oil from the slicer.

Operation

WARNING

The following products are not sliceable:

• Inedible products.

• Products with bones.

• Frozen products.

Check that the slicer is off and position the slice thickness control on zero.

HOW TO LOAD THE PRODUCT TO CUT

1. Place the product to cut against the product holder and the thickness plate sides.

2. Lay the last slice device on the product to cut, far from the slice thickness plate. The product is fed to the slice thickness plate by gravity, this makes the cut easier.

3. Rotate the slice thickness control onto the cutting thickness you wish.

4. Press the green pushbutton to start the blade.

5. At constant speed feed the product holder to the blade stroke end then return to the operator and repeat the operation.

6. When the work is over, pull the product holder towards the operator, press the red button to turn the blade off and rotate the slice thickness control on zero.

HOW TO LOAD SHORT PRODUCTS (LAST SLICE)

Check that the slicer is off and position the slice thickness control on zero.

WARNING: Do not use your hands to push the products towards the blade.

1. Place the product to be cut against the wall of the product holder and the slice thickness plate.

2. Push the goods against the slice thickness plate using the last slice device.

3. Rotate the slice thickness control onto the cutting thickness you wish.

4. Press the green pushbutton to start the blade.

5. At constant speed feed the product holder to the blade stroke end then return to the operator and repeat the operation.

6. When the work is over, pull the product holder towards the operator, press the red button to turn the blade

6

Operation

off and rotate the slice thickness control on zero.

Maintenance

BLADE SHARPENING

Whenever the cut is not satisfactory, sharp the blade. The time interval between a sharpening and the following depends on the intensity of use of the slicer and on the kind of food you cut. Replace the blade when the diameter becomes 10 mm less than the nominal diameter. For the replacement, ask the assistant service closest to you.

WARNING

The replacement of the blade is dangerous operation. Should the sharpening quality be not satisfactory,

replace the stones. Contact a customer servicing.

1. Clean the blade removing any greasy residue.

2. Make sure that the machine is off.

3. Rotate the slice thickness control to zero to make sure that the blade is covered by the slice thickness plate.

4. Lift the sharpener cover.

5. Slip off completely the sharpener and spin it 180 degrees.

6. Put the sharpener device.

7. Push the green button to start the machine.

8. Sharpening: Press the sharpening wheel for about 10-15 seconds. Then press simultaneously also the grinding stone for two seconds. Contemporaneously loosen the two grind stones. The sharpening and honing take place then simultaneously.

WARNING: for a suitable effect please execute sharpening for 10-15” approx.

9. Press the red stop pushbutton.

10. Lift and rotate 180 degrees the sharpener and reallocate it into its initial position. Loosen the handle rotating it clockwise to block the sharpener. Lower the sharpener cover.

SHARPENER DEVICE REMOVAL

To facilitate the cleaning of the sharpening grinder, remove the sharpener device pulling it upwards.

WARNING: Do not immerse in water or detergent the sharpening device.

CLEANING OF THE GRINDING WHEELS

To obtain an excellent sharpening the grinding wheel must always be clean. Remove dirt and grease with alcohol and the supplied special brush.

7

Maintenance

MAINTENANCE

Disconnect the plug from the power point and take the slice thickness control on zero. We advise to wear protective gloves during all the cleaning and maintenance operations.

ELECTRIC CABLE CHECK

Periodically check the electric cable wear.

SPARE PARTS

In case of parts replacement, ask only original spare parts.

CLEANING

If you do not use the machine for long time, always carry out a deep cleaning of the machine before using it. For the cleaning of all the open parts use a dampen cloth.

WARNING: Do not use water jet.

COMPONENTS REMOVAL

DANGER: During the cleaning operations be careful: danger of accident.

PRODUCT HOLDER

1. Position on zero the slice thickness control.

2. Loosen up completely the product holder clamping handle rotating it counterclockwise.

3. Pull the product holder towards the operator to block it. The metallic click means that the product holder is clamped.

4. Lift the pusher from the guide bar.

5. Lift the product holder slipping it off from its support.

6. Clean the product holder.

IMPORTANT: The slice thickness control is clamped on zero.

SLICE DEFLECTOR

1. Loosen the xing screws and remove the slice deector.

BLADE COVER

1. Loosen the blade cover fastener handle rotating it counterclockwise.

2. Push the handle in the direction of the blade.

3. Lift the blade cover.

ATTENTION: Once removed the blade cover, an interlocking device stops the rotation of the blade.

8

Maintenance

BLADE CLEANING

DANGER: During the cleaning of the blade, be careful of any accidental contact with the blade.

1. Mop up the front side of the blade with a dampen cloth and move slowly from the centre to the edge of the blade, as shown by the arrow in the picture.

2. Clean in the same way the back side of the blade.

3. Dry with a cloth both sides of the blade.

4. After cleaning, x the blade cover.

5. Insert the fastener and screw to block the blade cover.

Clean all the pieces in warm water and washing-up liquid. Rinse them with hot water and dry them. Assemble

the machine following in reverse the procedure described above.

GUIDES LUBRICATION

This operation must be performed after cleaning the slicer or whenever the sliding is difcult. Use oil SHELL ONDINA 15 or ESSO MARCOL 82.

LUBRICATION OF THE GUIDE BAR OF THE PRODUCT HOLDER:

1. Drop some oil on the bar.

2. Let the last slice device slide on the guide bar.

LUBRICATION OF THE GUIDE BAR OF THE PRODUCT HOLDER CARRIAGE:

1. Push the product holder towards stroke end.

2. Lift the slicer.

3. Drop some oil on the bar.

4. Place the slicer on the work top, push the product holder to and from.

REFERENCE

Item Number Model Number Description

Meat Slicer Gear Driven 13” / 330mm

38917 MS-IT-0330-C

Blade 0.5 HP / 350W 120V/60/1

NSF ETL CSST

Manufacturer Model

Number

C 33F/N

9

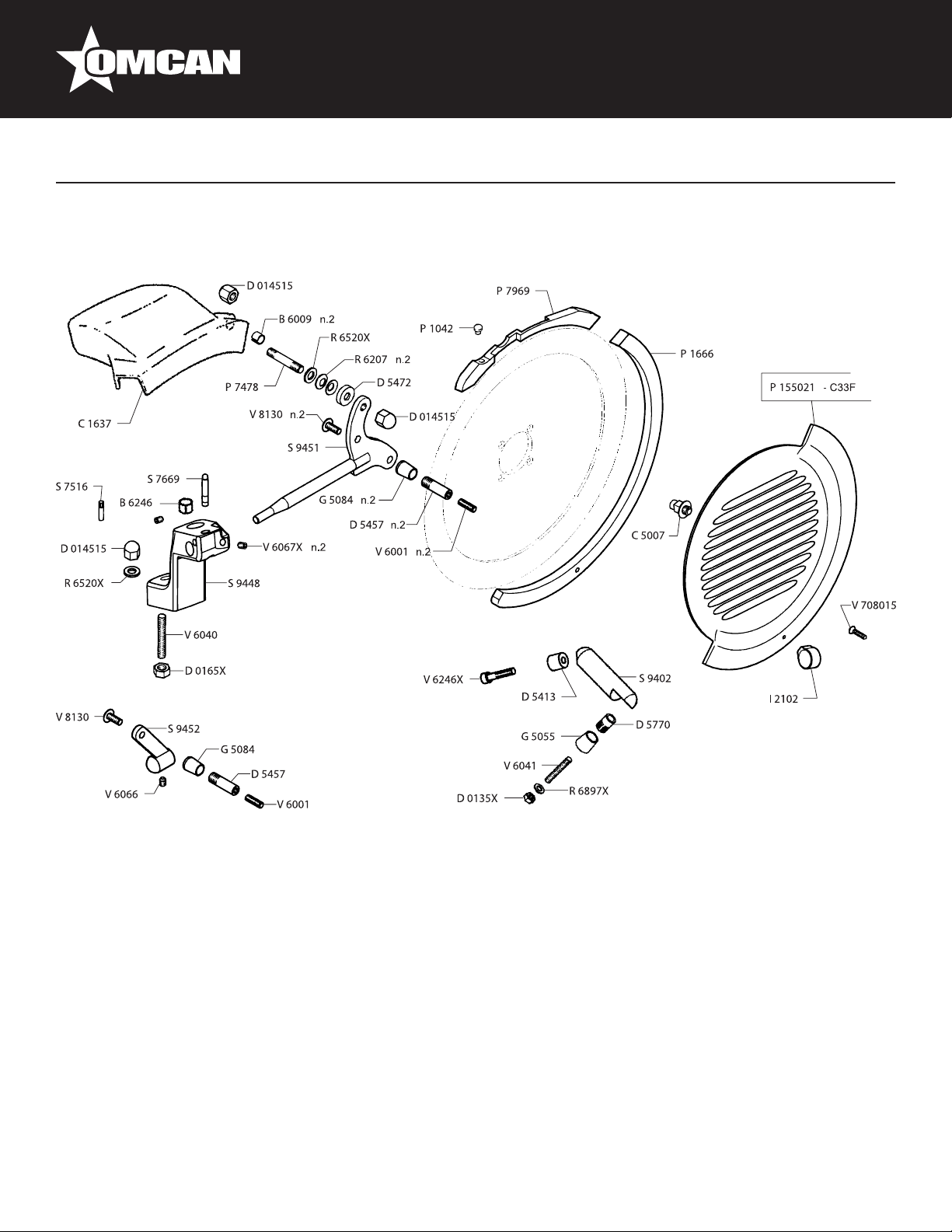

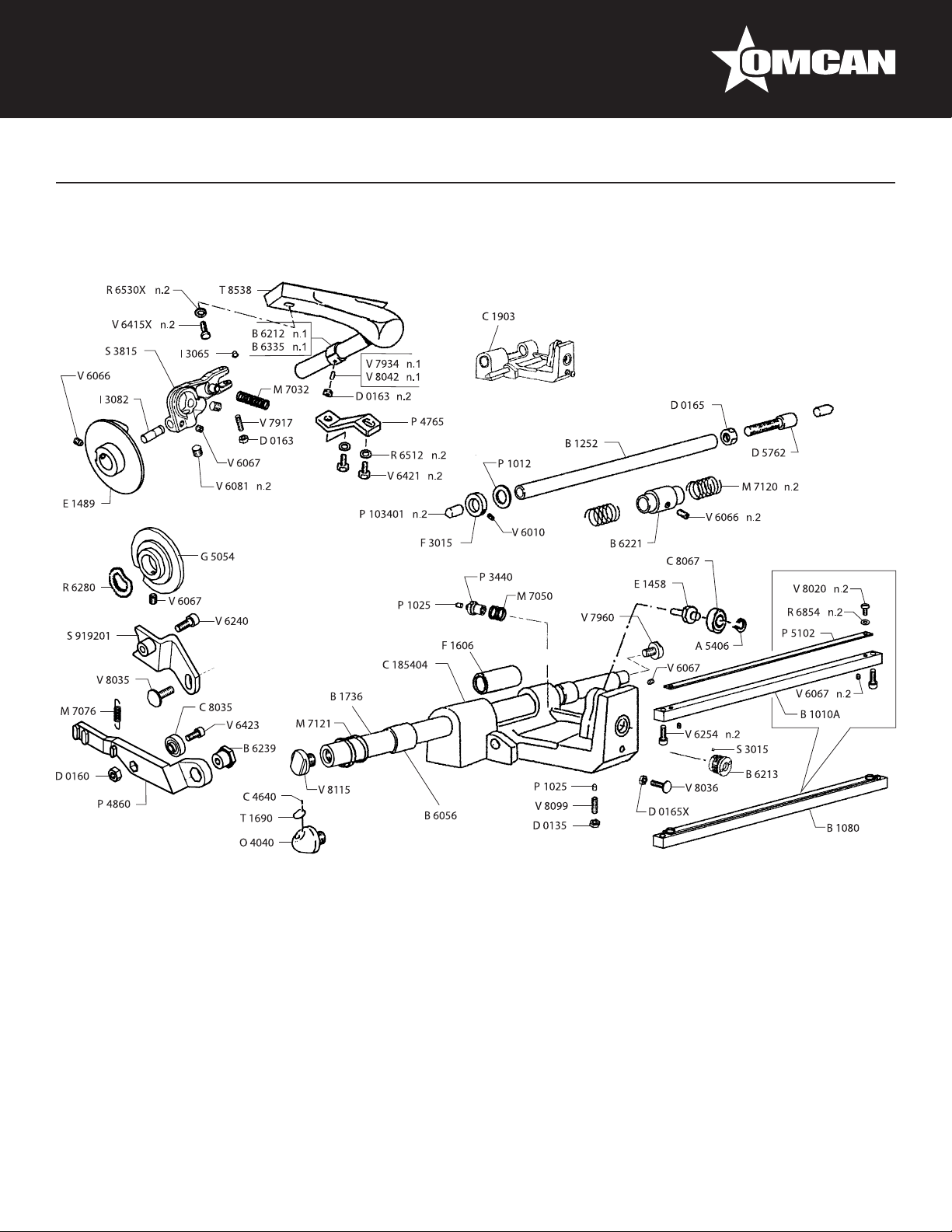

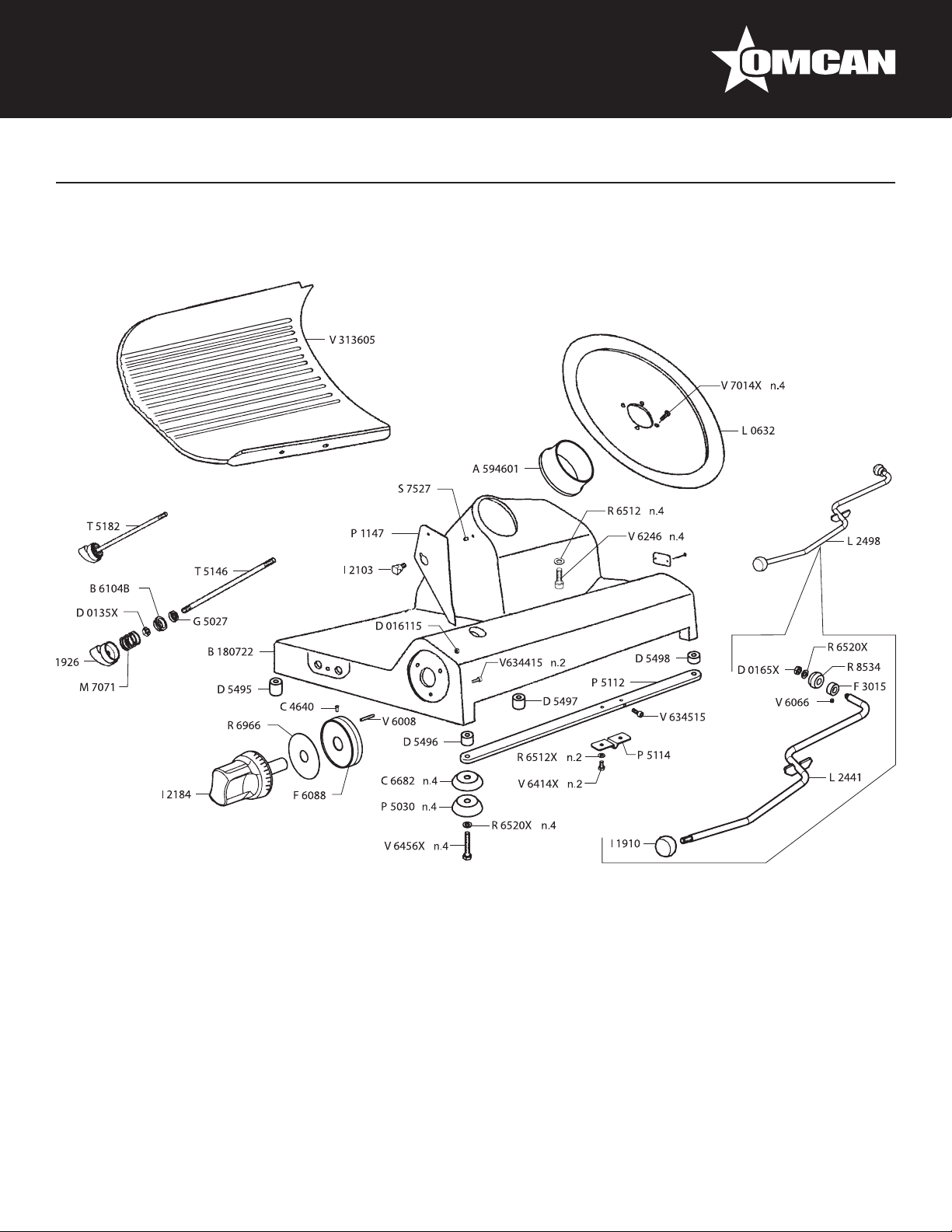

Parts Breakdown

Model MS-IT-0330-C 38917

10

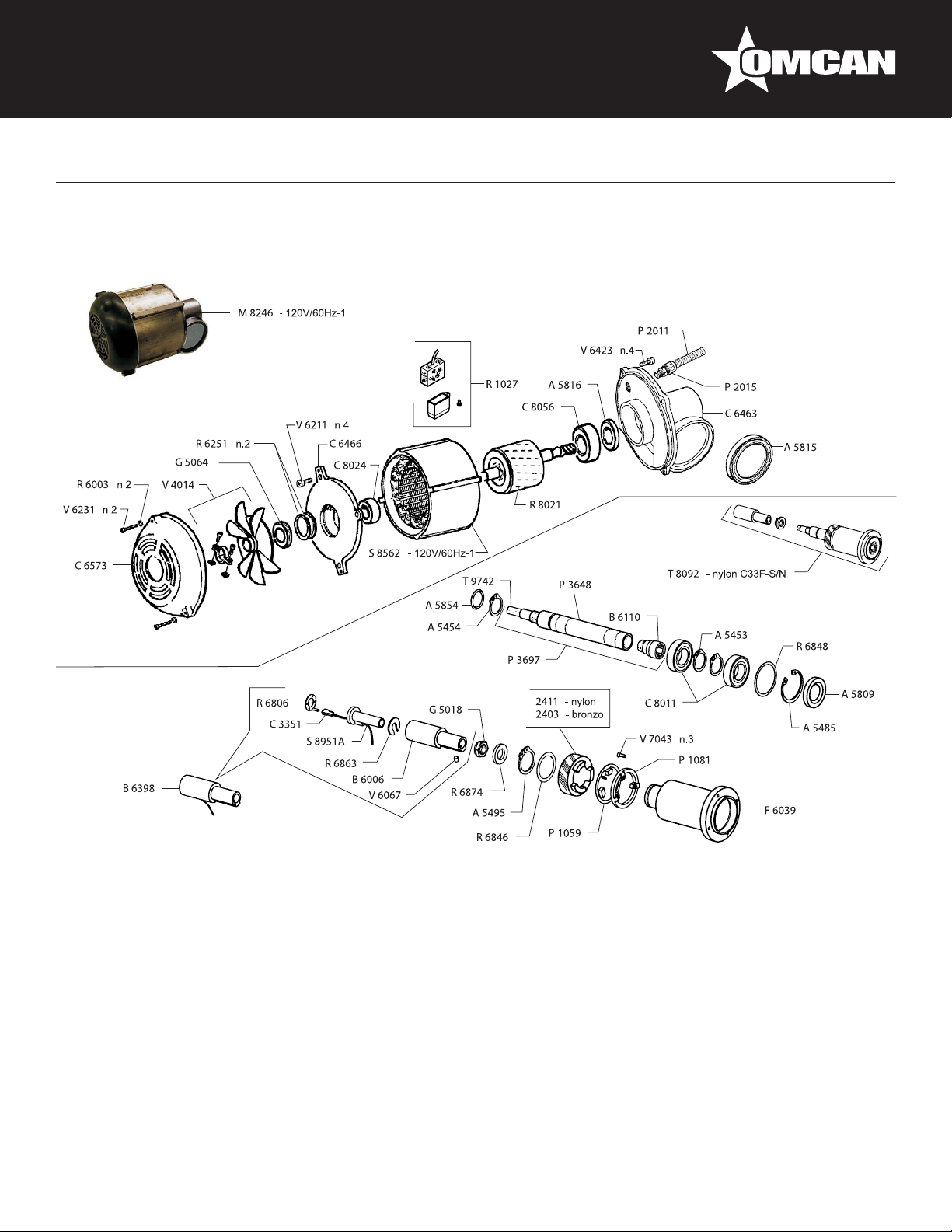

Model MS-IT-0330-C 38917

Parts Breakdown

11

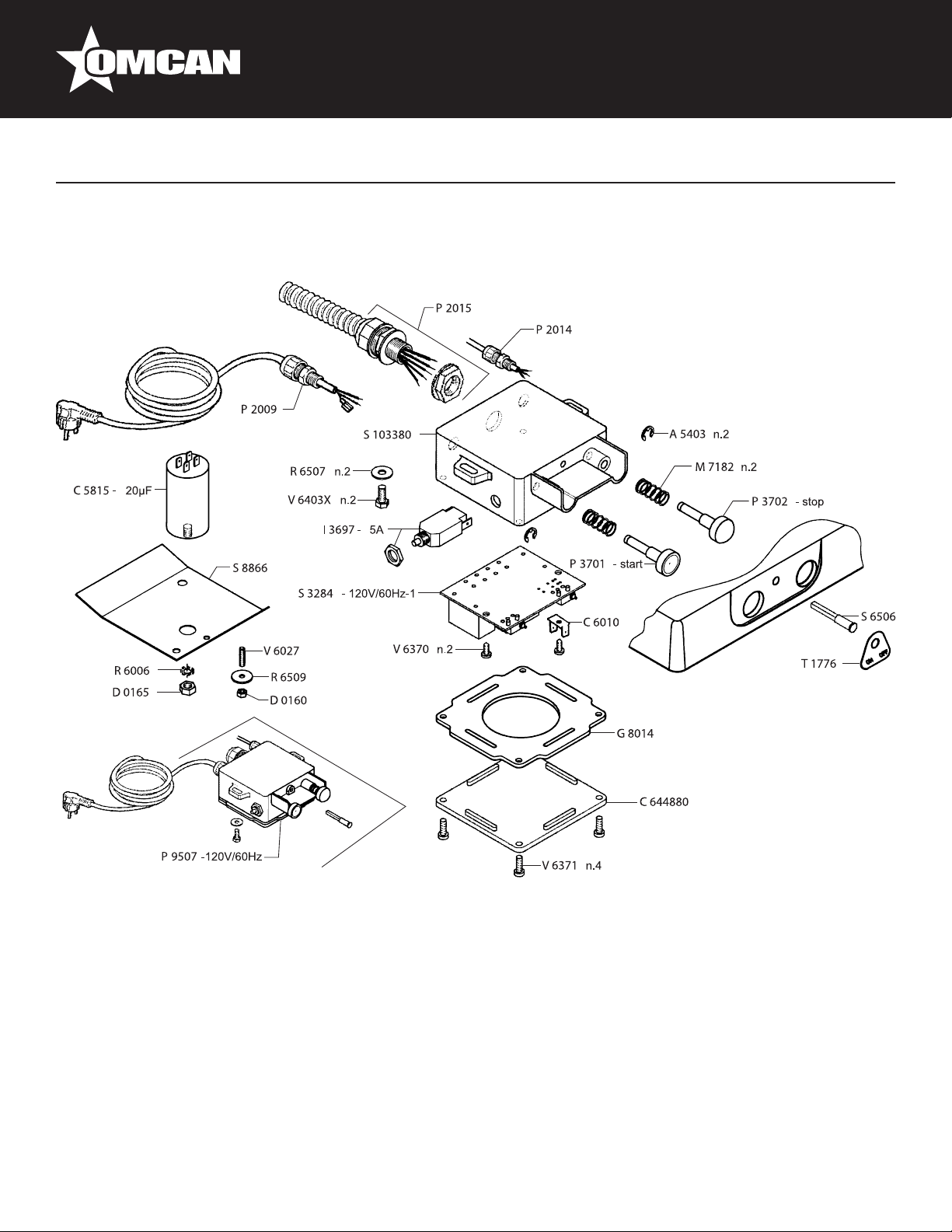

Parts Breakdown

Model MS-IT-0330-C 38917

12

Model MS-IT-0330-C 38917

Parts Breakdown

13

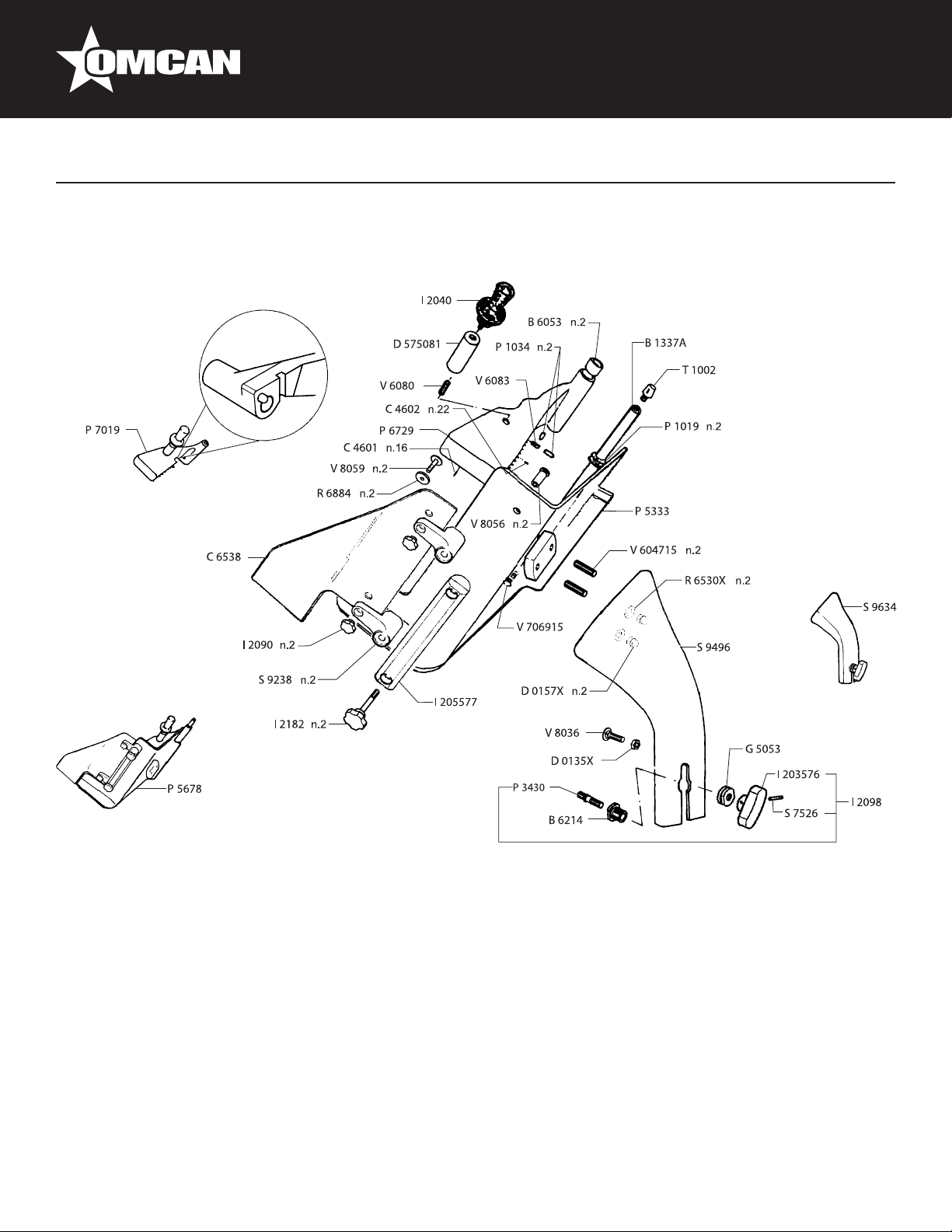

Parts Breakdown

Model MS-IT-0330-C 38917

14

Model MS-IT-0330-C 38917

Parts Breakdown

15

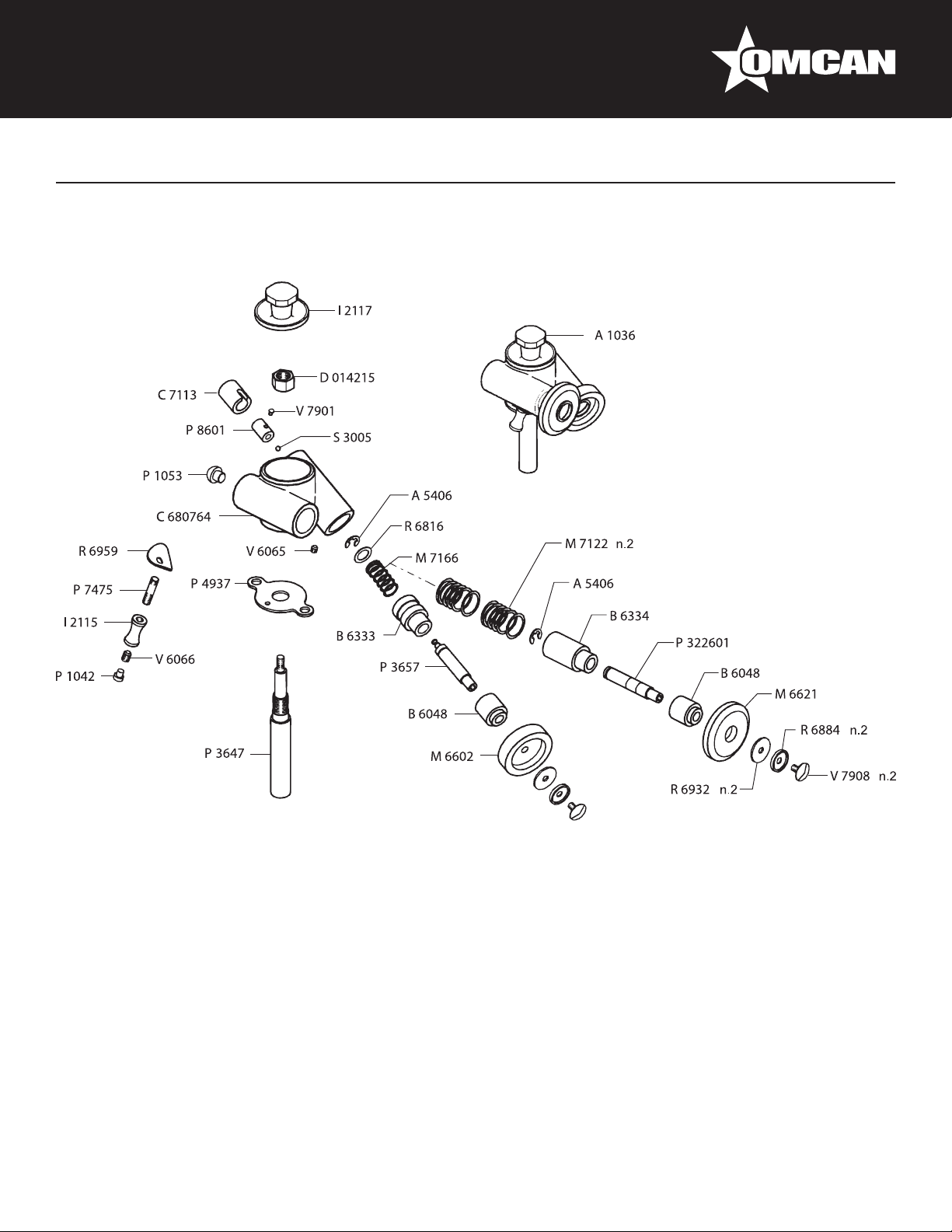

Parts Breakdown

Model MS-IT-0330-C 38917

16

Parts Breakdown

Model MS-IT-0330-C 38917

Item No. Description Position Item No. Description Position Item No. Description Position

36535 Assembly Sharpener for C 33F/N A1036 36576 Bushing DU 28x32x25 for C 33F/N B6335 36647 Nut U5588 M8 for C 33F/N D0165

17279 Ring EL.Benzing 5 for C 33F/N A5403 78677

16902 Ring EL.Benzing 8 for C 33F/N A5406 36584 All Sharpener Cover for C 33F/N C1637 36653 Spacer for C 33F/N D5413

17281 Ring EL.Seeger Ext.25 for C 33F/N A5453 36593 Assembled Carriage for C 33F/N C1903 36654

77585

77586 Ring EL.Seeger Int.52 for C 33F/N A5485 17316 Pin 8.5mm for C 33F/N C4601 65615

19612 Ring 33 for C 33F/N A5495 17317 Pin .11 for C 33F/N C4602 65616

17283 Oil Seal 25x52x10 for C 33F/N A5809 36601 Rivet 1.9x5 for C 33F/N C4640 65617

17285 Oil Seal 60x75x8 for C 33F/N A5815 36607

19493 Oil Seal 25x47x07 for C 33F/N A5816 65148

17288 O-Ring 3081 20.24x2.62 for C 33F/N A5854 74403

65609 Sealing Ring Shaft for C 33F/N A594601 65611 Cover for Box S1033 Latamid for C 33F/N C644880 60786 Locknut Spacer for C 33F/N D5770

36544 Carriage Rod for C 33F/N B1010A 78266

60431

36549 Shock Absorber Rod 12x185 for C 33F/N B1252 36616

19501 Meat Grip Rod A310 & C for C 33F/N B1337A 36617 Motor Fan Cover for C 33F/N C6573 36682

65883 Sliding Bar for C 33F/N B1736 36623 Foot Cover for C 33F/N C6682 77591 Support Blade Flange for C 33F/N F6039

17298 Bushing Fastener C for C 33F/N B6006 65612 Sharpener Body for C 33F/N C680764 65619 Flange x Index Knob I2131 for C 33F/N F6088

19618 Bushing 8x10x8 for C 33F/N B6009 36628 Switch Cover 16x20 for C 33F/N C7113 17351 Locknut for C 33F/N G5018

16904 Bushing Sharpener for C 33F/N B6048 17334 Bearing 2Z-6205 25x52x15 for C 33F/N C8011 36689 Stainless Steel Locknut M8 for C 33F/N G5027

16905 Bushing DU 16x18x15 for C 33F/N B6053 16925 Bearing 2RS-6204 20x47x14 for C 33F/N C8024 36691 Ring for Bushing for C 33F/N G5053

17304 Bushing for C 33F/N B6056 36630 Bearing 5x16x6.5 for C 33F/N C8035 36692 Ring for Cam for C 33F/N G5054

19630 Bushing Fastener HBC for C 33F/N B6104B 36631 Bearing 2RS-6205 25x52x15 for C 33F/N C8056 36695 Ring Support Cap for C 33F/N G5055

78265 Bushing, Funnel for C 33F/N B6110 16926 Bearing 2RS-6000 (10x26x8) for C 33F/N C8067 36697 Logging Lock Nut for C 33F/N G5064

18648 Bushing for C 33F/N B6212 78293 Nut U5589 M8 for C 33F/N D0135 36698 Index Ring M10 p.1 h.17 for C 33F/N G5084

36563 Carriage Bushing for C 33F/N B6213 36637

36564

36566

36569 Fixing Lever Bushing for C 33F/N B6239 19643 Nut M10 for C 33F/N D0157X 18220 Handle Carriage for C 33F/N I203576

36570 Bushing DU 16x18x20 for C 33F/N B6246 36643 Nut U5588 M5 for C 33F/N D0160 17363 End Grip Handle for C 33F/N I2040

36574 Bushing for C 33F/N B6333 65613

36575 Bushing for C 33F/N B6334 19644 Nut M6 for C 33F/N D0163 63463

Ring EL.Seeger Est.25 Ser.Heavy for C 33F/N

Complete Carriage Rail Assembly for C 33F/N

Bushing for Carriage Support lg.23mm for C 33F/N

Bushing to hold Carriage Springs for C 33F/N

A5454 65610

B1080 36615 Back Motor Cover for C 33F/N C6466 79267

B6214 77505

B6221 77555

Bushing Fastener Guard Knife C for C 33F/N

Cord 0.5 lg.750 Cover Blade Microswitch for C 33F/N

Blade Cover Bolt Keeper 14x14 for C 33F/N

Condenser 20 MF 250 VAC-UL for C 33F/N

Connector Faston 2Poles Male for C 33F/N

Motor for C 33F/N C6463 17345 Cam Bearing for C 33F/N E1458

Transparent Cover for Carr. Plate for C 33F/N

Nut U5589 M8 Stainless Steel for C 33F/N

Stainless Steel Nut U5588 M12 for C 33F/N

Domed Nut DIN 917 M8 Stainless Steel for C 33F/N

Stainless Steel Nut U5588 M4 for C 33F/N

B6398 36648 Nut U5588 M8 for C 33F/N D0165X

Spacer for Register M10 p.1x33 for C 33F/N

C3351 65614

C5007 65618

C5815 36659 Hand Grip-Knob Spacer for C 33F/N D575081

C6010 36661

C6538 36680 Carriage Felt for C 33F/N F1606

D0135X 36700 Seal for C 33F/N G8014

D014215 17354 Handle T210 for C 33F/N I1910

D014515 17356 Fastener Handle for C 33F/N I1926

D016115 65620

Spacer Fixing Sharpener Cover for C 33F/N

Foot Spacer Ø8x22x25 Front Left for C 33F/N

Foot Spacer Ø8x22x17 Front Right for C 33F/N

Foot Spacer Ø8x22x20 Back Left for C 33F/N

Foot Spacer Ø8x22x20 Back Right for C 33F/N

Carriage Shock Absorber Spacer for C 33F/N

Cam Eccentric Stroke mm.16 for C 33F/N

Unhook Friction Clasp 12x22x8 for C 33F/N

Handle 28x170 Carriage Tray NSF for C 33F/N

Transparent Cover Knob Screw for C 33F/N

D5457

D5472

D5495

D5496

D5497

D5498

D5762

E1489

F3015

I205577

I2090

17

Parts Breakdown

Model MS-IT-0330-C 38917

Item No. Description Position Item No. Description Position Item No. Description Position

36717 Knob Assembly for C 33F/N I2098 16955 Shock Absorber for C 33F/N P1059 65640 Oil Receiver for C 33F/N R1027

36719 Cover Handle for C 33F/N I2102 17395 Shock Absorber for C 33F/N P1081 19657 Washer 4 for C 33F/N R6003

23632 Screw for C 33F/N I2103 36763 Slice Deector for C 33F/N P1147 19659 Washer 8 for C 33F/N R6006

65621 Knob Ø12x25 M6 for C 33F/N I2115 36767

65622 Sharpener Body Knob for C 33F/N I2117 36773 Ring Guard for C 33F/N P1666 78258 Washer 30.5x46.5x0.6 for C 33F/N R6251

65623

65624 Impugn.Graduata Ass. for C 33F/N I2184 74413

16936

65655 Gear PK z.29 for C 33F/N I2413 36779 Core-Hitch + Nut for C 33F/N P2015 17457

62350 Bushing Glide Dia 8x8 for C 33F/N I3065 17419 Pin Truing for C 33F/N P322601 36884

62351 Bushing Glide Pin Dia 8x38 for C 33F/N I3082 36793 Pin.Handle for C 33F/N P3430 36885

72282 Overload Protector for C 33F/N I3697 36794 Carr. Plate Lock Pivot for C 33F/N P3440 17458 Contact Washer for C 33F/N R6806

65625 Blade mm.330/57/4 Øint.286 for C 33F/N L0632 65628 Pivot Sharpener for C 33F/N P3647 36889 Washer 10.5x16x1 for C 33F/N R6816

65626 Assy Lift Lever for C 33F/N L2498 79272 Knife Shaft for C 33F/N P3648 17460 Washer 34.2x46x0.5 for C 33F/N R6846

14787 Grinding Stone C for C 33F/N M6602 36805

36739 Honing-Finishing Stone for C 33F/N M6621 77594 Assembly Driving Pivot for C 33F/N P3697 77540 Washer 6,2x14x0,6 for C 33F/N R6854

19776 Spring 14x1.5x60 for C 33F/N M7032 65629 Concave Start Button Pin for C 33F/N P3701 19675 Washer C for C 33F/N R6863

19782 Spring 19.5x1.5x16.7 for C 33F/N M7050 65630 Convex Stop Button Pin for C 33F/N P3702 36892 Washer 17x30x4 for C 33F/N R6874

19250 Spring 24.8x1.8x15 for C 33F/N M7071 36830 Flat Bar C for C 33F/N P4765 16972 Washer 5.5x19x2.5 for C 33F/N R6884

36746 Spring 7x0.8x23 Cam for C 33F/N M7076 36834 Index Casting C-H for C 33F/N P4860 36893

19248 Spring 15.6x20x2.2 for C 33F/N M7120 65631

36749

36750

36751 Spring for C 33F/N M7166 65633 Piattina Supp.Cerniera C for C 33F/N P5112 78261 Rotor Stator H.50 for C 33F/N R8021

65627 Button Spring for C 33F/N M7182 65634 Piattina for Cerniera for C 33F/N P5114 65642 P.C.B. Protection Box for C 33F/N S103380

20263 Motor 120V/60Hz-1 for C 33F/N M8246 65635 Carriage Product Tray for C 33F/N P5333 19680 Ball 3 17 for C 33F/N S3005

65205 Oiler Bar Cart H / L-C-M-GF for C 33F/N O4040 65636 Assy Carriage Tray for C 33F/N P5678 17465 Ball 4.76 for C 33F/N S3015

36759

17390

36760 Pin Tray Shock-Absorber for C 33F/N P1025 65637 Special Screw M6x25 x Knob for C 33F/N P7475 36910 LED KL74D250 for C 33F/N S6506

17392 PL.Shock Absorb.8.5x20 for C 33F/N P1034 65638

36761 Shock Absorber for C 33F/N P103401 36857 Upper Blade Protection for C 33F/N P7969 36920 Pin 4x25 for C 33F/N S7526

19797 Nylon Shock 8.5x8 for C 33F/N P1042 17448 Sharpener Pusher for C 33F/N P8601 36921 Stainless Steel 4x7 Pin M.C for C 33F/N S7527

36762 Rubber Plug for C 33F/N P1053 65639 Assy On/Off Switch + PCB for C 33F/N P9507 36931 Pin 8x50 for C 33F/N S7669

Impugnatura Ass.Piatto serie NSF for C 33F/N

Bronze Gear 328 DP56.44 Z29 M1.75 for C 33F/N

Carriage Bar Spring 25-28-1.5 for C 33F/N

18.5x20.9x1.2 Bar Carriage Spring for C 33F/N

Rubber Shock Absorber 12x19x2 for C 33F/N

Rubber Shock Abs. 16x22x2.5 for C 33F/N

I2182 77617 Strain Relief for C 33F/N P2009 19666 Washer for C 33F/N R6280

I2403 36778 Wire-Press for C 33F/N P2014 20422 Washer for C 33F/N R6509

M7121 17438 Foot for C 33F/N P5030 65641

M7122 65632 Sliding Bearing Flat for C 33F/N P5102 61390 Thickness Dial Plate for C 33F/N R6966

P1012 78235 End Grip for C 33F/N P6729 36906

P1019 36850 Assembly End-Grip for C 33F/N P7019 36908 Track C-CD for C 33F/N S3815

Knife Guard with Cover Handle for C 33F/N

Cable Sheath Cavoex CM 60 for C

33F/N

Pivot for Grinding Stone (A1036) for C 33F/N

Piattina Fermo Corpo Aflatoio for C

33F/N

Special Screw Captive M8x44 for C 33F/N

P155021 36877 Washer 8.2x16x0.9 for C 33F/N R6207

P2011 36881

P3657 77595 Washer 44,5x51,5x0,2 for C 33F/N R6848

P4937 36897 Special Washer 5.5x22x1.5 for C 33F/N R6932

P7478 36915 Pin Stainless Steel D.6x28 for C 33F/N S7516

Washer U6593 5 (5.5x15x1.2) for C 33F/N

Washer U6592 6 Stainless Steel for C 33F/N

Washer U6592 8 Stainless Steel for C 33F/N

Washer U6592 10 Stainless Steel for C 33F/N

Stainless Steel Special Washer 8.5x24x2 for C 33F/N

SPECIAL WASHER x SHARPENER 6x25x1

Circuit Board 120V/60 OPT.148 for C 33F/N

R6507

R6512X

R6520X

R6530X

R6897X

R6959

S3284

18

Parts Breakdown

Model MS-IT-0330-C 38917

Item No. Description Position Item No. Description Position Item No. Description Position

19870 Stator 120/60 for C 33F/N S8562 37018 Screw STTC U6113 M6x6 for C 33F/N V6010 65653

65643 Capacitor Holder for C 33F/N S8866 37019 Screw M5x20 U5923 for C 33F/N V6027 37064 Screw TE U5739 M10x35 for C 33F/N V6415X

78236 Bracket Washer C for C 33F/N S8951A 65651

65644 Bracket Support for C 33F/N S919201 60426

36974 Carriage Plexi Support for C 33F/N S9238 65652

36976 Support for C 33F/N S9402 37023 Screw STEI U5929 M5x5 for C 33F/N V6065 17498 Screw TSPEI U5933 M4x10 for C 33F/N V7043

36977 Sharpener Support for C 33F/N S9448 19691 Grub Screw M6x6 for C 33F/N V6066 65654

36978 Support Bracket for C 33F/N S9451 19692 Screw M6x8 for C 33F/N V6067 37088

65645 Holder Blade Guard for C 33F/N S9452 37025 Screw STEI U5929 M6x8 for C 33F/N V6067X 17502 Screw M3x5.5 for C 33F/N V7901

65646 Bracket Tray for C 33F/N S9496 19695 Screw M10x30 for C 33F/N V6080 17503 Screw M5x13 for C 33F/N V7908

65647 Assy Carriage Tray Holder for C 33F/N S9634 37030 Screw M12x16 U5927 for C 33F/N V6081 19717 Screw M6x50 for C 33F/N V7917

19878 Rubber Cap for C 33F/N T1002 37031 Screw STEI U5929 M8x16 for C 33F/N V6083 19720 Screw M6 for C 33F/N V7934

19883 Label Oil for C 33F/N T1690 19697 Screw M5x16 for C 33F/N V6211 19917 Screw BS for C 33F/N V7960

65648

65649

44014

36997 Knife Shaft Assembly for C 33F/N T8092 37039

36999 Riding Pin (Diam.28) for C 33F/N T8538 37042 Screw TCEI U5931 M8x25 for C 33F/N V6254 37108

79283 Shaft Pin for C 33F/N T9742 77630

65650 Aluminum Gauge-Plate for C 33F/N V313605 37056

37013 Motor Fan MEC80 148x16 for C 33F/N V4014 37058 Stainless Steel Screw M4x8 for C 33F/N V6370 65884

37014 STEI Screw 6x20 for C 33F/N V6001 37059 Stainless Steel Screw M4x14 for C 33F/N V6371 37114

37016 Screw STTC U6113 M4x25 for C 33F/N V6008 37060

Slices Counter Label OPT3 for C 33F/N T1776 19699 Screw M4x25 for C 33F/N V6231 16987 Special Screw M6x15 for C 33F/N V8020

Blade Cover Fastener M8x312 for C 33F/N

Knife Cover Tie Rod (Release Knob) for C 33F/N

T5146 19700 Screw M6x16 for C 33F/N V6240 37102 Screw M6x20 for C 33F/N V8035

T5182 19702 Screw M6x25 for C 33F/N V6246 19920 Screw M8x30 for C 33F/N V8036

Vite STEI U5923 M8x40 INOX for C 33F/N

Stainless Steel Screw STEI U5923 M8x60 for C 33F/N

Vite STEI U5923 M10x40 INOX for C 33F/N

Screw TCEI U5931 M6x25 INOX for C 33F/N

Stainless Steel Screw TCEI U5931 M4x12 for C 33F/N

Stainless Steel Screw M6x12 U5931 for C 33F/N

Stainless Steel Screw TE U5737 M5x12 for C 33F/N

V6040 37066 Screw TE U5737 M6x15 for C 33F/N V6421

V6041 37067 Screw TE U5739 M5x20 for C 33F/N V6423

V604715 17497

V6246X 37104 Threaded Stud for C 33F/N V8042

V634415 19726 Screw M5x21 for C 33F/N V8059

V634515 37113 Screw for Carr. Index M8x25 for C 33F/N V8099

V6403X

Stainless Steel Screw TE U5739 M6x12 for C 33F/N

Screw TSP U6109 M5x15 Stainless Steel for C 33F/N

Stainless Steel Screw U6110 M10x30 for C 33F/N

Screw TSP AUT.U6952 4.2x16 INOX for C 33F/N

Special Fixed End Screw M6x17 for C 33F/N

Sliding Bar Screw M14 p.1x13 ch17 for C 33F/N

Stainless Steel Screw M6x25 for C 33F/N

V6414X

V7014X

V706915

V708015

V8056

V8115

V8130

19

Electrical Schematics

Model MS-IT-0330-C 38917

20

Notes

________________________________________________________________________________________

21

Notes

________________________________________________________________________________________

22

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación, cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

www.omcan.com/warrantyregistration.html

For mailing in Canada

Pour postale au Canada

Por correo en Canadá

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

For mailing in the US

Pour diffusion aux États-Unis

Por correo en los EE.UU.

OMCAN

Niagara Falls, New York

USA, 14305

or email to: service@omcan.com



Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

23

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers. Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3, 500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un fácil acceso a más de 3, 500 productos con origen a nivel mundial.

Omcan MS-IT-0330-C Operators Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
