Omcan Food Machinery LS-81A Installation Manual

Electric Fryers

Models LS-81A, LS-82A

Instruction Manual

Version 1

3115 Pepper Mill Court, Mississauga, ON, L5L 4X5
4450 Witmer Industrial Estates, Unit 4, Niagara Falls, NY, 14305

1-800-465-0234

www.omcan.com

Table of Contents

Model LS-81A / Model LS-82A

Section

General Information

Safety and Warranty

Technical Specications

Operation

Maintenance

Parts Breakdowns

--------------------------------------------------------------------------------------------- 4

----------------------------------------------------------------------------------------- 4

-------------------------------------------------------------------------------- 3

------------------------------------------------------------------------------- 3

------------------------------------------------------------------------------ 5 - 8

Page

-------------------------------------------------------------------------- 3

Electrical Schematics

Warranty Registration

------------------------------------------------------------------------------ 9

---------------------------------------------------------------------------- 11

2

General Information

Omcan Manufacturing and Distributing Company Inc. and Food Machinery Of America, Inc. dba Omcan
are not responsible for any harm or injury caused due to any person’s improper or negligent use of
this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and

not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this
machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any
warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while

in operation.

With an original design and stable performance, this machine has a conventional shape, is easy to use and
has a stable temperature controller that quickly heats up and saves energy.

Safety and Warranty

Warning

1. This heater can not be connected to an electric socket without any oil in the tank. Make sure the oil is lled
between the min and max level before starting the machine. Only after the machine has cooled, it can be
used again.

2. This machine can only be used with liquid oil, please dispose the used oil after using the machine.

Safety notice

• Any persons that will be using the machine should be carefully trained before using it.

• Put the fryer on a steady surface or counter top.

• Do not remove any of the part(s) until the machine has cooled down completely, and is unplugged.

• The machine has a micro switch which will turn off the fryer when the temperature reaches the maximum.

• Voltage should be same as required.

Technical Specications

Model Dimension Voltage Frequency Power

LS-81A 285*445*300mm 110V 60Hz 1.6KW
LS-82A 580*445*300mm 110V 60Hz 2 x 1.6KW

3

Operation

1. Check that the electrical socket is in working order.

2. Put oil in the tank, keep the oil level between “min” and “max”.

3. When the power cord is connected, the red power indicator will turn on, the machine can now be used.

4. Turn on the thermostat from the left to right to the required temperature, then the green indicator will
turn on, that means the heater is in operation, the oil will be warming. When the oil reaches the preset
temperature, it will shut off by itself, the green indicator will shut off, and the heater will stop working. When
the temperature of the oil drops lower than the preset, the thermostat will turn on by itself to start the heater
again.

5. Turn off the thermostat after use and remove the plug from it’s socket.

6. Dispose of the old oil after it cools down.

Maintenance

Cleaning

• Remove the basket and heater bottom cover, raise the controller box then remove it, put the controlling box
in a dry place, so you may clean the oil tank.

• To ensure the fryer has a long life of use, you should clean the tank and heater at regular intervals, make
sure the heater and the oil are clean before the next use.

• The heater bottom cover in the oil tank is to protect the heater from possible damage, it must cover the
heater when you are frying food.

Problems and solution

Problems Reason Solution

No heat or the temperature is not
high enough.

Temperature is still high after
turning down the thermostat.

No power. Check power source.
Electrical components are broken. Check and replace the broken

parts.

Thermostat is set at low
temperature.

Temperature sensor is loose. Release the oil and x the sensor.
Thermostat is broken. Replace the thermostat.

Check thermostat and adjust it to
the right temperature.

4

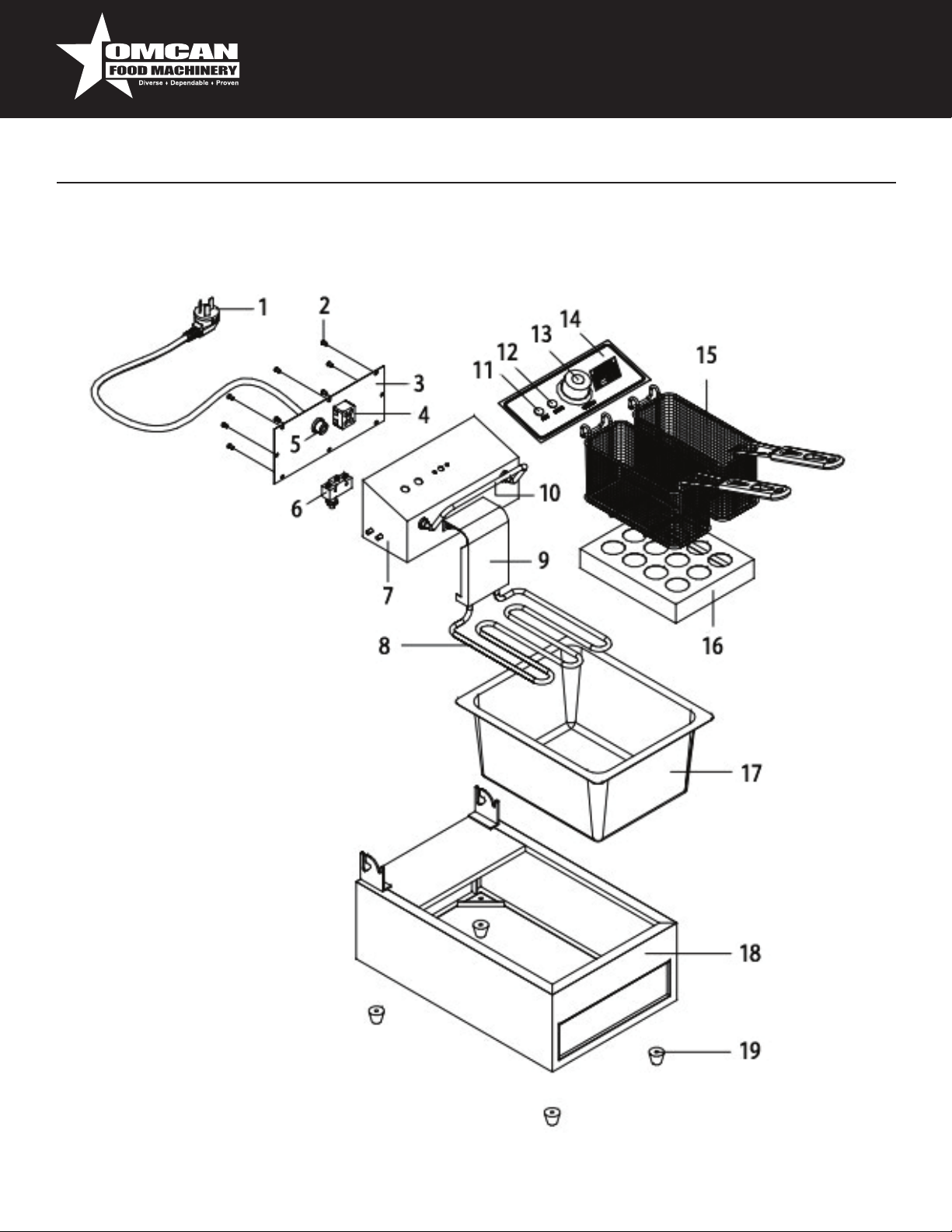

Model LS-81A 34867

Parts Breakdown

5

Parts Breakdown

Model LS-81A 34867

Description Position Description Position Description Position

Power Cord 1 Heater 8 Basket 15

M4*8 Screw 2 Heater Back Cover 9 Heater Bottom Cover 16

Control Box Board 3 Basket Hanging Rod 10 Oil Tank 17

Terminal Block 4 Green Indicator 11 Hard Surface 18

Power Cord Fixtures 5 Yellow Indicator 12 Rubber Feet 19

Micro Switch 6 Thermostat 13

Control Box 7 PVC Board 14

6

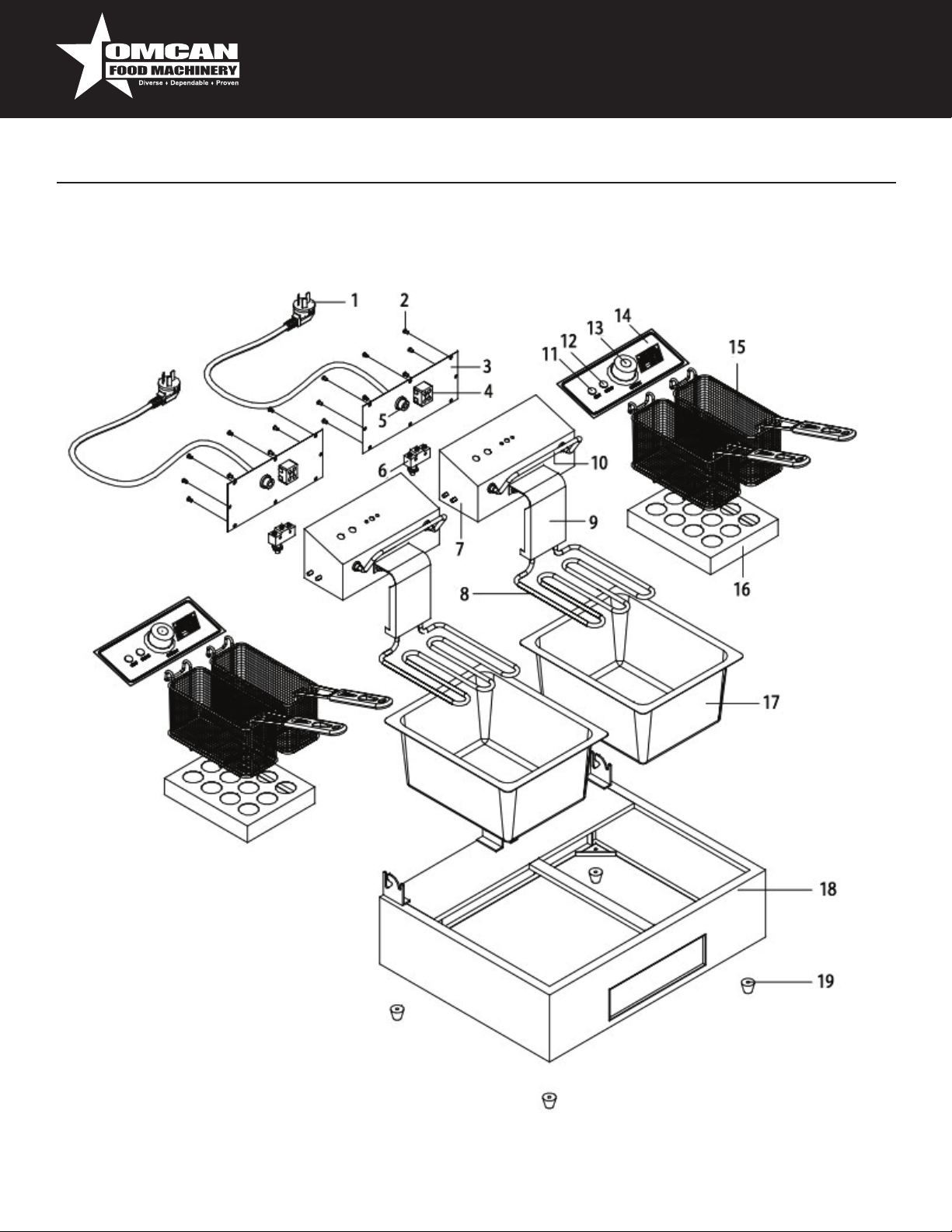

Model LS-82A 34868

Parts Breakdown

7

Parts Breakdown

Model LS-82A 34868

Description Position Description Position Description Position

Power Cord 1 Heater 8 Basket 15

M4*8 Screw 2 Heater Back Cover 9 Heater Bottom Cover 16

Control Box Board 3 Basket Hanging Rod 10 Oil Tank 17

Terminal Block 4 Green Indicator 11 Hard Surface 18

Power Cord Fixtures 5 Yellow Indicator 12 Rubber Feet 19

Micro Switch 6 Thermostat 13

Control Box 7 PVC Board 14

8

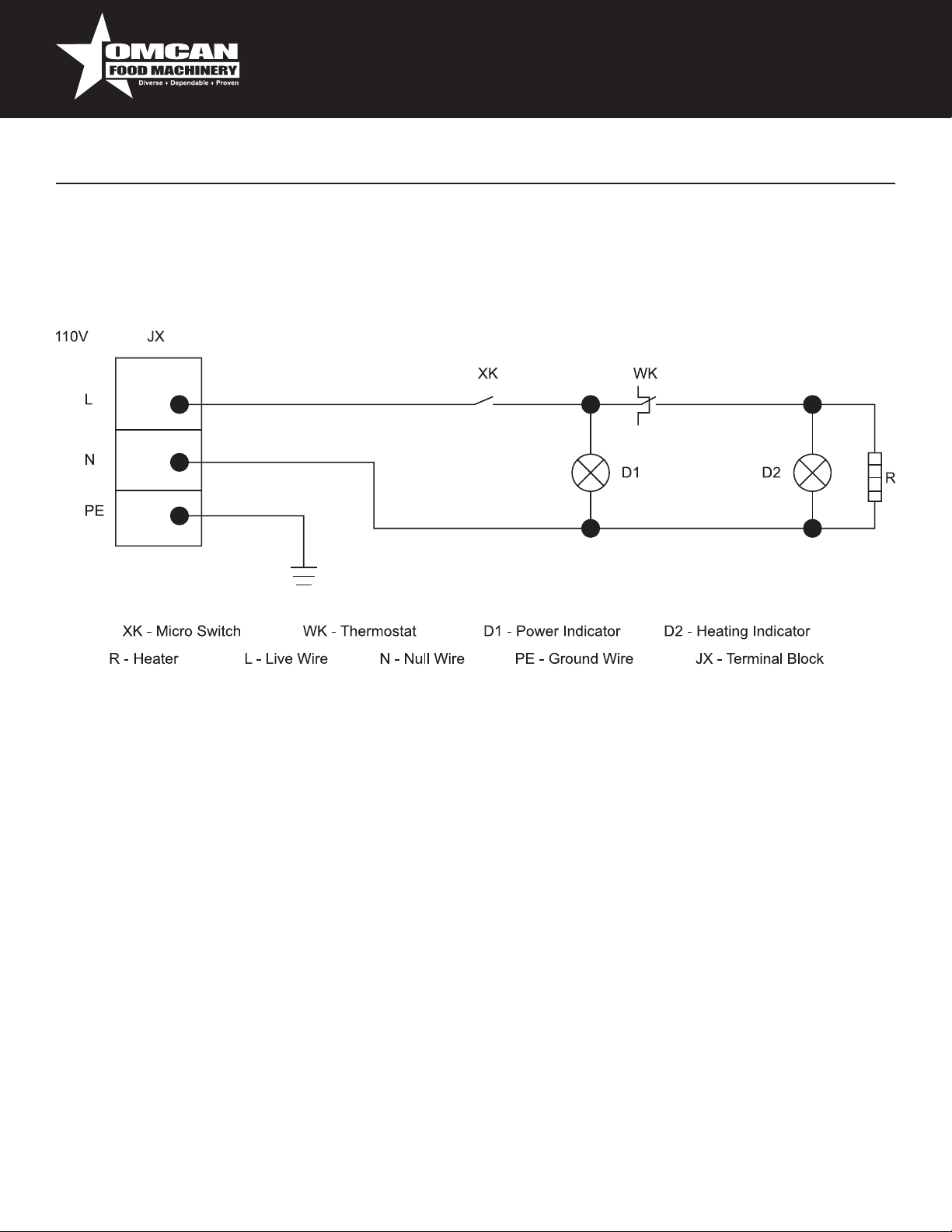

Model LS-81A 34867
Model LS-82A 34868

Electrical Schematics

9

10

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

www.omcan.com/warrantyregistration.html

For mailing in Canada For mailing in the US

OMCAN INC.

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

OMCAN

USA, 14305



Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Thank you for choosing Omcan

11
