Omcan FR-CN-0737-HC User Manual

Reach In Coolers and Freezers

Models RE-CN-0021-HC, 0041-HC, 0067-HC,

FR-CN-0737-HC, 1372-HC, 2057-HC

Items 50024, 50026, 50028, 50023, 50025, 50027

Instruction Manual

Revised - 08/22/2019

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: service@omcan.com

www.omcan.com

Table of Contents

Model RE-CN-0021-HC / Model RE-CN-0041-HC / Model RE-CN-0067-HC

Model FR-CN-0737-HC / Model FR-CN-1372-HC / Model FR-CN-2057-HC

Section

General Information

Safety and Warranty

Technical Specications

Installation

Maintenance

Troubleshooting

--------------------------------------------------------------------------------------- 7 - 8

------------------------------------------------------------------------------------- 8 - 9

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

----------------------------------------------------------------------------- 10 - 11

Page

---------------------------------------------------------------------- 6 - 7

Controller Instructions

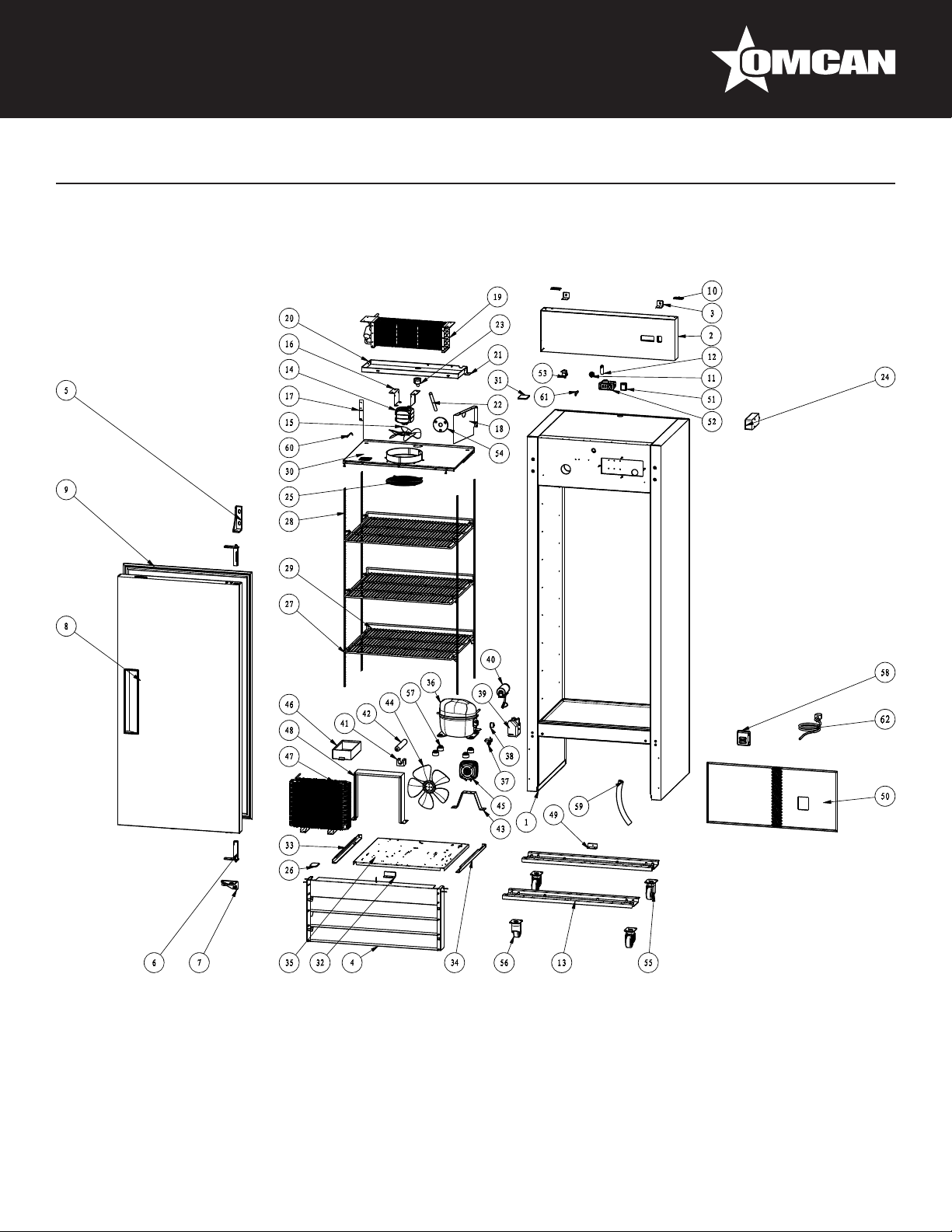

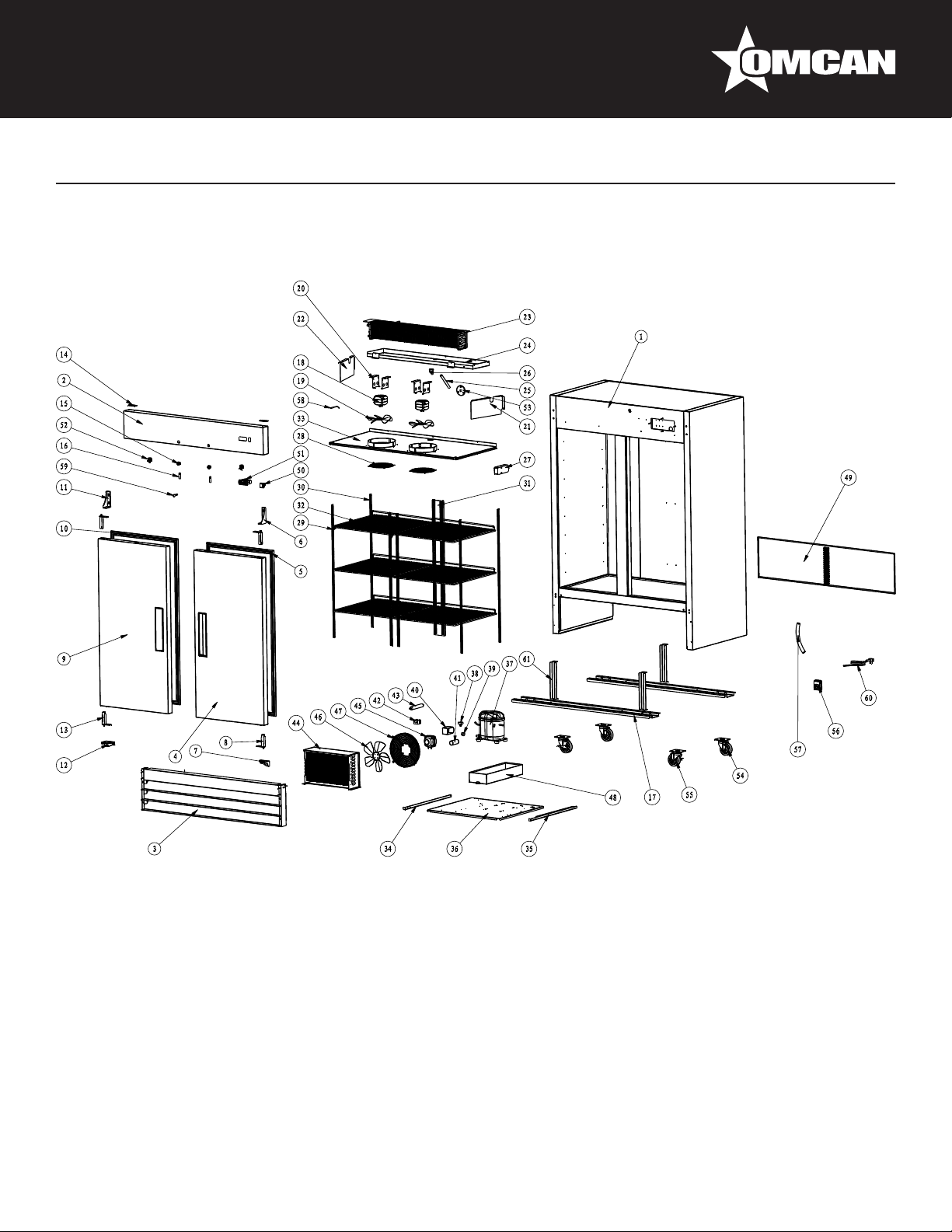

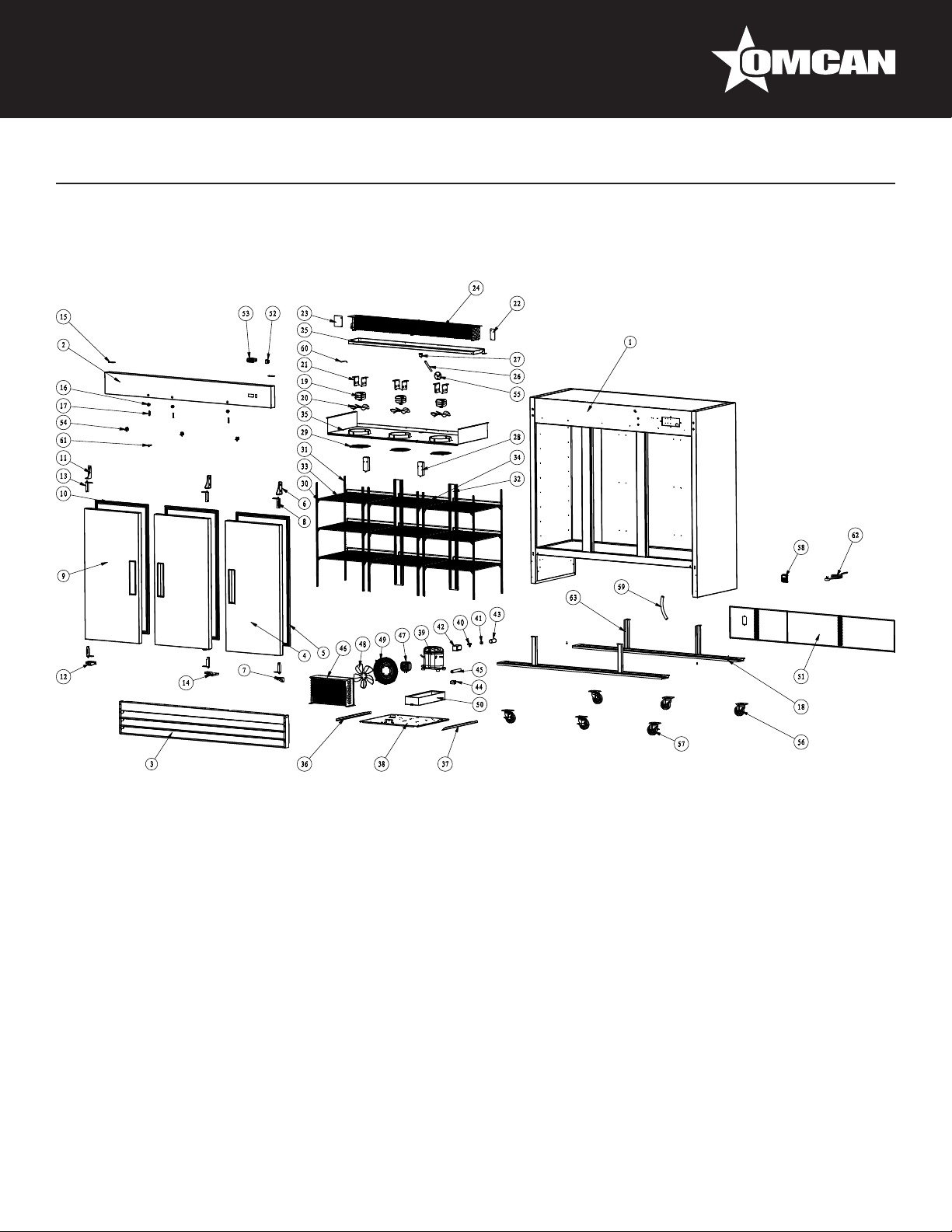

Parts Breakdown

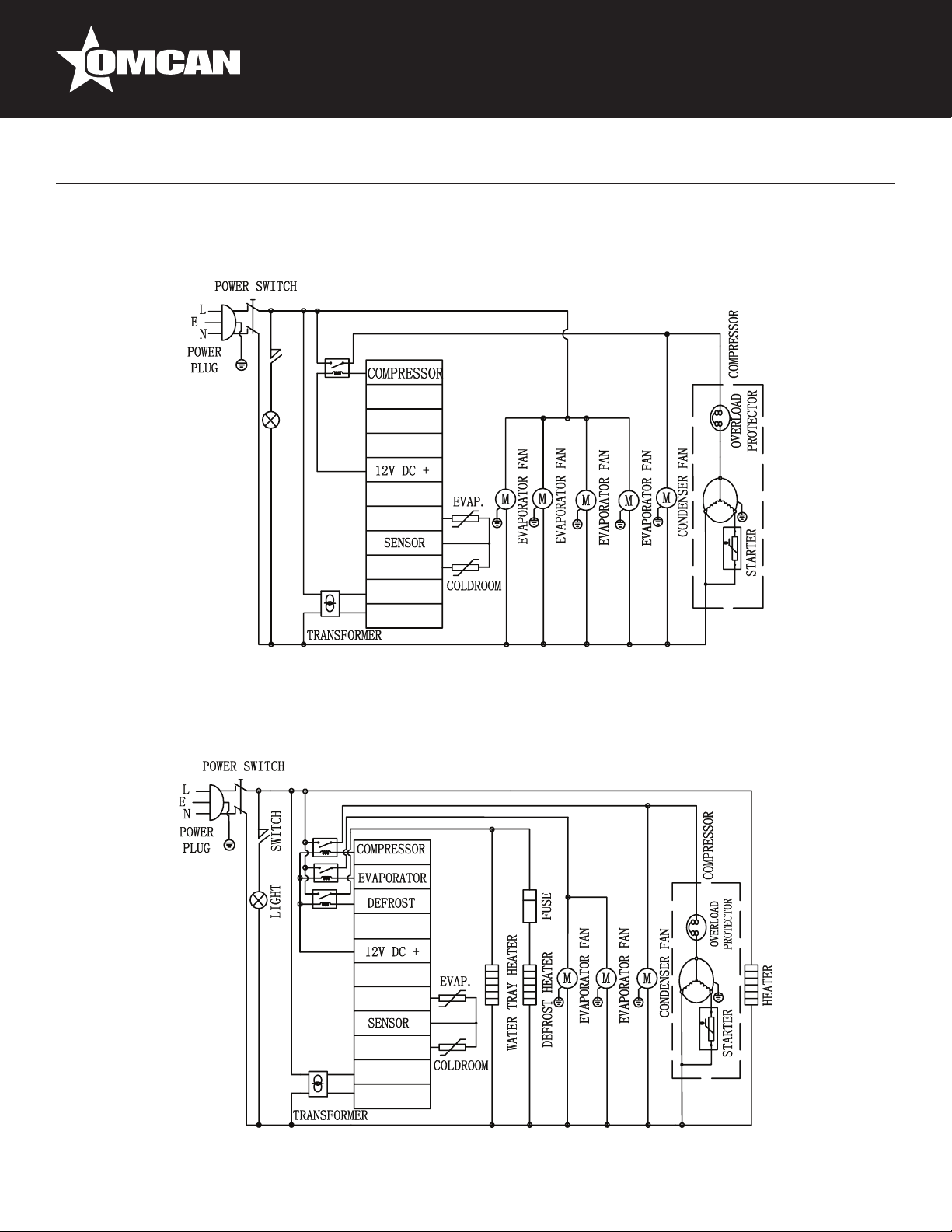

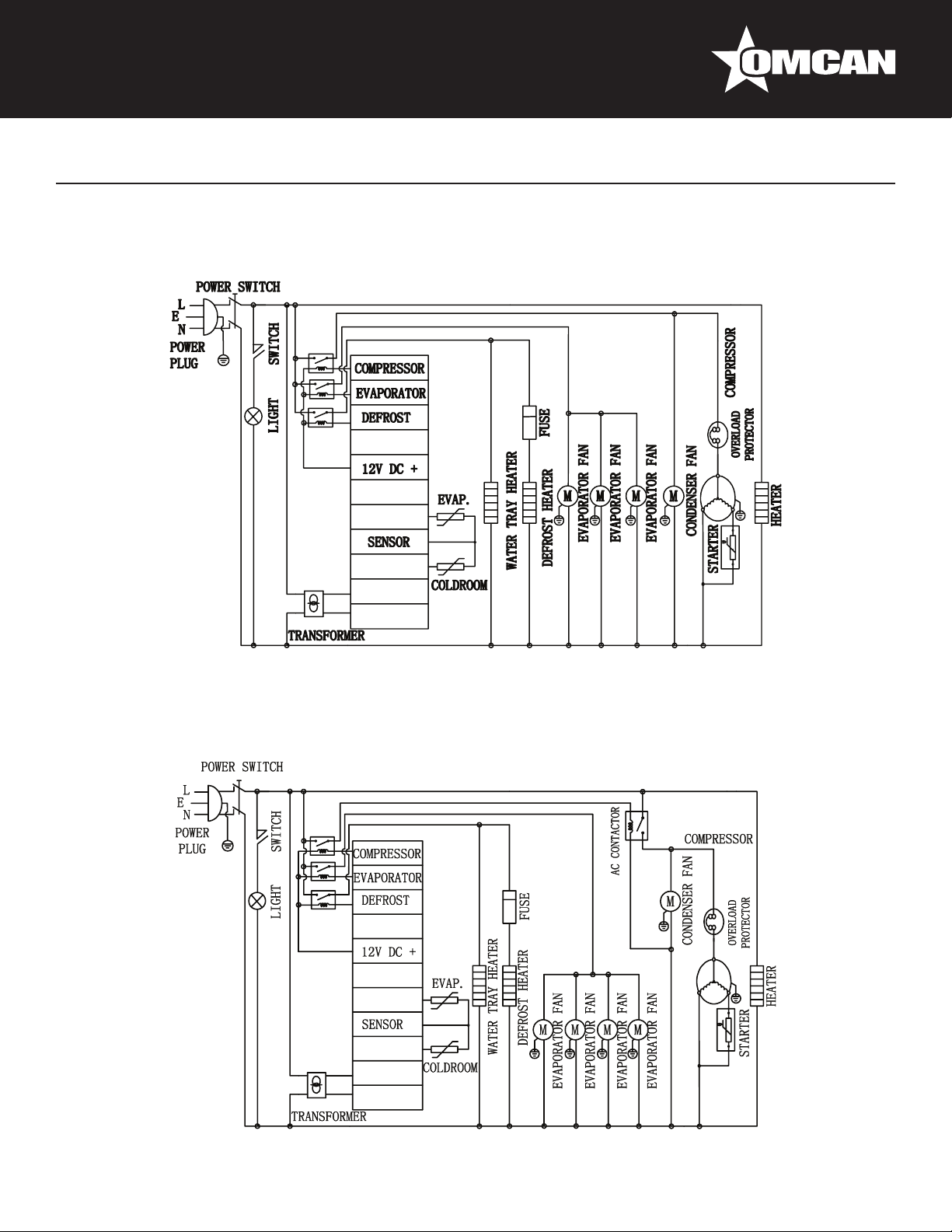

Electrical Schematics

Notes

Warranty Registration

------------------------------------------------------------------------------------------- 33 - 34

---------------------------------------------------------------------------- 18 - 29

--------------------------------------------------------------------- 12 - 17

---------------------------------------------------------------------- 30 - 32

---------------------------------------------------------------------------- 35

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

Safety and Warranty

Please pay close attention to the safety notices in this section. Disregarding these notices may lead to serious injury and/or damage to the unit.

ATTENTION

• To minimize shock and re hazards, be sure not to overload outlet. Please designate one outlet for your

unit.

Safety and Warranty

• Do not use extension cords.

• Do not put your hands under the unit when the units is required to be moved.

• When the unit is not in use for a long period of time, please unplug the unit from the outlet.

• After unplugging the unit, wait at least 10 minutes before re-plugging it. Failure to do so could cause

damage to the compressor.

UNPLUG CORD

• To minimize shock and re hazards, please do not plug or unplug the cord with wet hands.

• During maintenance and cleaning, please unplug the unit.

PROPER GROUNDING REQUIRED

• To minimize shock and re hazards, make sure that the unit is properly grounded.

PROHIBITION

• Do not attempt to remove or repair any component unless instructed by factory.

• Make sure that the unit is not resting on or against the electrical cord and plug.

• To minimize personal injury, do not hang on the doors.

• Do not store any ammable and explosive gas or liquids inside the unit.

• Do not attempt to alter or tamper with the electrical cord.

2 YEARS PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR

WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

REACH IN COOLERS

Model RE-CN-0021 RE-CN-0041 RE-CN-0067 Temperature Range 0.5°C -5°C / 33°F - 41°F Max Ambient Temp

Rating

Horsepower 1/5 HP 1/4 HP 3/4 HP

Electrical 110V / 60Hz / 1Ph Amps 2.6A 3.8A 9A Refrigerant R290 Isolation Material Cyclopentane Cooling System Ventilated Number of Doors 1 2 3 Number of Shelves 3 6 9 Shelf Capacity 59.5 lbs. / 27 kgs. 61.7 lbs. / 28 kgs.

Exterior Dimensions

Interior Dimensions

Net Volume 650 L / 23 cu.ft. 1334 L / 47 cu.ft. 2040 L / 72 cu.ft. Weight 282 lbs. / 128 kgs. 513 lbs. / 232.7 kgs. 616 lbs. / 280 kgs. Item Number 50024 50026 50028

29” x 32.25” x 82.5”

736 x 818 x 2095mm

24.4” x 27” x 60.2”

620 x 688 x 1530mm

32°C / 90°F

54” x 32.25” x 82.5”

1372 x 819 x 2096mm

49.4” x 27” x 60.2”

1255 x 686 x 1529mm

81” x 32” x 82.5”

2054 x 818 x 2095mm

76” x 27” x 60”

1938 x 688 x 1530mm

Technical Specications

REACH IN FREEZERS

Model FR-CN-0737 FR-CN-1372 FR-CN-2057 Temperature Range -22°C ~ -18°C / -8°F ~ 0°F Max Ambient Temp

Rating

Horsepower 1/2 HP 1 HP 1 1/4

Electrical 110V / 60Hz / 1Ph Amps 7.1A 10.7A 12A Refrigerant R290 Isolation Material Cyclopentane Cooling System Ventilated Number of Doors 1 2 3 Number of Shelves 3 6 9 Shelf Capacity 59.5 lbs. / 27 kgs. 61.7 lbs. / 28 kgs.

Exterior Dimensions

Interior Dimensions

Net Volume 650 L / 23 cu.ft. 1334 L / 47 cu.ft. 2040 L / 72 cu.ft. Weight 282 lbs. / 128 kgs. 496 lbs. / 225 kgs. 673 lbs. / 306 kgs. Item Number 50023 50025 50027

29” x 32.25” x 82.5”

736 x 818 x 2095mm

24.4” x 27” x 60.2”

620 x 688 x 1530mm

90°F 100.4°F 90°F

54” x 32.25” x 82.5”

1372 x 819 x 2096mm

49.4” x 27” x 60.2”

1255 x 686 x 1529mm

81” x 32” x 82.5”

2054 x 818 x 2095mm

76” x 27” x 60”

1938 x 688 x 1530mm

Installation

IMPORTANT!!!PLEASE READ BEFORE INSTALLATION

• If the unit has recently been transported. Please let unit stand still for a minimum of 24 hours before

plugging it in.

• Make sure that the unit drops down to desired temperature before loading the unit with product.

• Maker sure that there is proper ventilation around the unit in the area where it will operate.

• Make sure all accessories are installed(i.e. shelves, shelf clips, casters) before plugging the unit in.

• Please read through the Operation / Owners Manual in its entirety.

CABINET LOCATION GUIDELINES

• Install the unit on strong and leveled surfaces

- unit may make unpleasant noises if surface is uneven

- unit may malfunction if surface is uneven

Installation

• Install the unit in an indoor, well-ventilated area

- unit performs more efciently in a well-ventilated area

- for best performance, please maintain clearance of 6” on the back of the unit

- outdoor use may cause decreased efciency and damage to the unit

• Avoid installation in a high humidity and/or dusty area

- humidity could cause unit to rust and decrease efciency of the unit

- dust collected on condenser coil will cause unit to malfunction. Clean the condenser at least once a month with a brush or clean cloth

• Select a location away from heat and moisture-generating equipment

- high ambient temperature will cause the compressor to overwork, leading to higher energy bills and gradual breakdown of the unit.

ELECTRICAL

Please ensure that the required voltage of the compressor is being supplied at all times. Low or high voltage

can detrimentally affect the refrigeration unit. All units should be plugged into a grounded and properly-sized

electrical outlet with appropriate overcurrent protection. Please refer to the electrical requirement on the nameplate. Please make sure that your unit has its own dedicated outlet. Do not use an extension cord.

REVERSING THE DOORS (OPTIONAL)

Note: This only applies to the single door units.

Only perform these steps with another person present to ensure the door does not fall over.

1. Open the door.

2. Remove the screws from the top panel, then open the top panel.

3. Remove the screws of the bottom louver, then remove the louver.

4. Unscrew all of the screws from the upper hinge

5. Unscrew all of the screws from the lower hinge and remove the door and hinges.

6. Place the former upper hinge at the bottom of the unit, parallel to where the lower hinge is, do the same with the former lower hinge except for the top. Screw the hinges into place.

7. Reassemble the door so it is facing the opposite direction.

8. Reassemble the top panel and the lower louver.

9. The door is now reversed.

Maintenance

CLEANING THE CONDENSER COIL

• For efcient operation, it is important that the condenser surface be kept free of dust, dirt, and lint.

• We recommend cleaning the condenser coil and ns at least once per month.

• Clean with a commercial condenser coil cleaner, available from any kitchen equipment retailer. Brush the

Maintenance

condenser ns from top to bottom, not side to side.

• After cleaning, straighten any bent condenser ns with a n comb.

CLEANING THE FAN BLADE AND MOTOR

• If necessary, clean the fan blades and motor with a soft cloth, If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage.

CLEANING THE INTERIOR OF UNIT

• When cleaning the cabinet interior, use a solvent of warm water and mild soap.

• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the stainless steel

surface.

• Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from the frame of the door, soak in warm water and soap for thirty (30) minutes, dry with soft cloth, and replace.

• Check door gaskets for proper seal after they are replaced.

• Periodically remove the shelves and pilasters from the unit and clean them with mild soap and warm water. To remove the pilasters, rst remove the shelves and shelf brackets. Then, simply lift the pilaster up and

out.

WARNING

Disconnect power cord before cleaning any parts of the unit.

ICE ACCUMULATION MAY OCCUR IN FREEZERS

• Try to reduce the amount of time the freezer doors remain open to prevent ice accumulation.

• Keep door seals clean to prevent air leakage.

• Scrape off any ice accumulated or try manual defrost mode.

Troubleshooting

Before requesting any service on your unit, please check the following points. Please note that this guide serve

only as a reference for solutions to common problems.

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

Compressor not running. Fuse blown or circuit breaker

tripped.

Power cord unplugged. Plug in power cord.

Thermostat set too high. Set thermostat to lower

Cabinet in defrost cycle. Wait for defrost cycle to nish.

Cabinet is noisy. Loose part(s). Locate and tighten loose part(s).

Tubing vibration. Ensure tubing is free from contact

Condensing unit runs for long periods of time.

Excessive amount of warm product

Placed in cabinet. Prolonged door opening or door

ajar.

Door gasket(s) not sealing properly.

Dirty condenser coil. Clean the condenser coil. Evaporator coil iced over. Unplug unit and allow coil to

Replace fuse or reset circuit breaker.

Temperature.

with other tubing or components.

Allow adequate time for Product to

cool down. Ensure doors are closed when not

in use. Avoid opening doors for long periods of time.

Ensure gaskets are snapped in Completely. Remove gasket and Wash with soap and water. Check condition of gasket and Replace if necessary.

defrost. Make sure thermostat is not set too cold. Ensure that door gasket(s) are sealing properly.

Troubleshooting

Cabinet Temperature Is too warm. Thermostat set too warm. Set thermostat to lower

Temperature.

Blocking air ow. Re-arrange product to allow for

Proper air ow. Make sure there

Is at least four inches of clearance from evaporator.

Excessive amount of warm product

Placed in cabinet.

Fuse blown or circuit breaker tripped.

Dirty condenser coil. Clean the condenser coil.

Prolonged door opening or door

ajar.

Evaporator coil iced over. Unplug unit and allow coil to

Allow adequate time for product to

cool down. Replace fuse or reset circuit

breaker.

Ensure doors are closed when not in use. Avoid opening doors for long periods of time.

defrost. Make sure thermostat is not set too cold. Ensure that door gasket(s) are sealing properly.

+ 25 hidden pages
