Omcan FR-CN-0412, FR-CN-0198, FR-CN-0155 User Manual
Chest Freezers
Models FR-CN-0155, 0198, 0230, 0412
Items 45294, 45295, 45296, 45297
Instruction Manual
Revised - 07/09/2018
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com
Table of Contents
Model FR-CN-0155 / Model FR-CN-0198
Model FR-CN-0230 / Model FR-CN-0412
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
-------------------------------------------------------------------------------------------- 6
--------------------------------------------------------------------------------------------- 6
----------------------------------------------------------------------------------------- 7
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
Page
-------------------------------------------------------------------------- 5
Troubleshooting

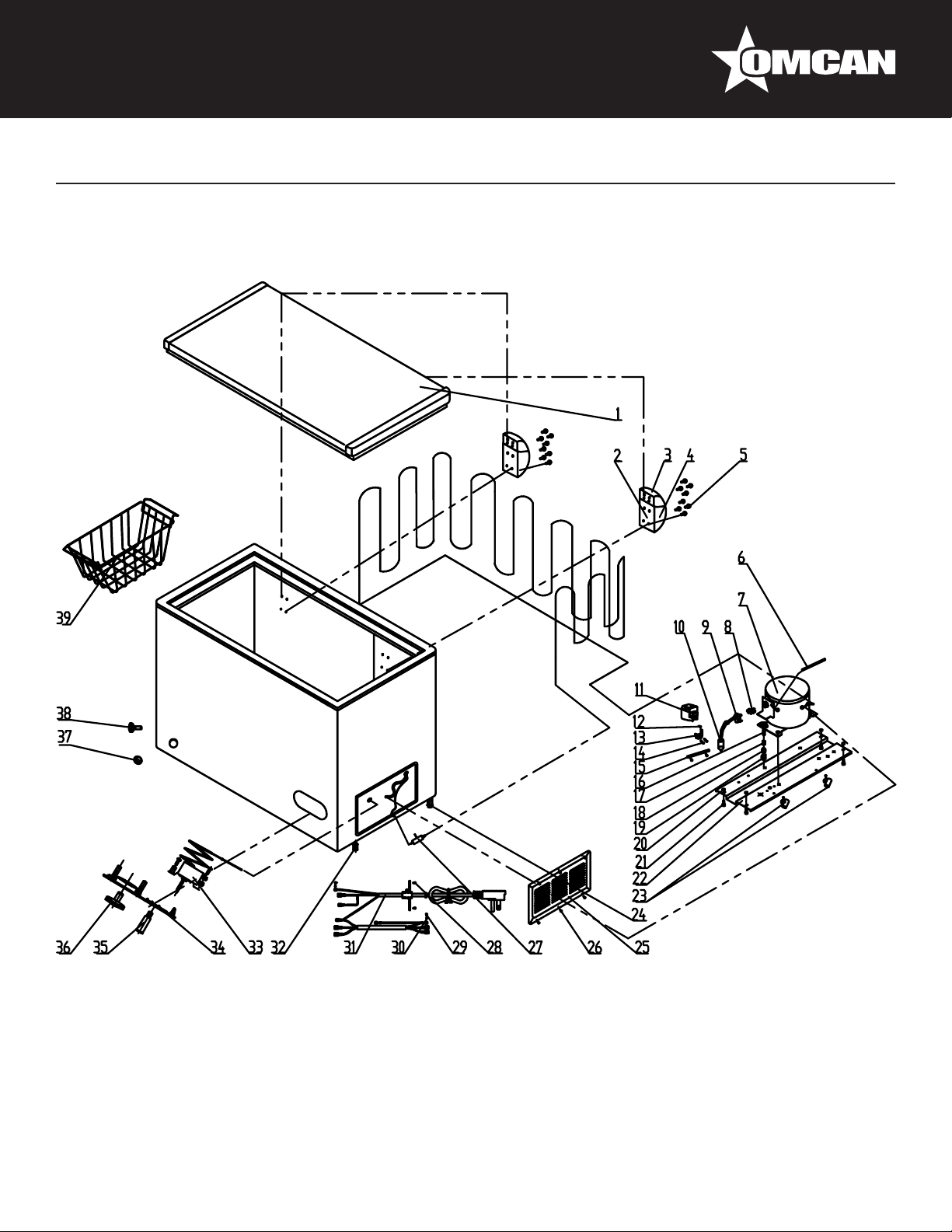

Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
------------------------------------------------------------------------------------------------- 18
-------------------------------------------------------------------------------- 7 - 8
----------------------------------------------------------------------------- 8 - 14
---------------------------------------------------------------------- 15 - 17
--------------------------------------------------------------------------- 19
2
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
3
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
The appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance.
4
Safety and Warranty
Cleaning and user maintenance shall not be made by children without supervision.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see www.omcan.com/warranty.html for complete info.
WARNING:
The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste
and can therefore be disposed of without diculty.
In any case, for suitable recycling, we suggest disposing of the products separately (dierentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Technical Specications
Model FR-CN-0155 FR-CN-0198 FR-CN-0230 FR-CN-0412
Power 64.3 W 67.5 W 63.9 W 106.6 W
Freezer Capacity 156 L / 5.5 cu. ft. 204 L / 7.2 cu. ft. 230 L / 8.1 cu. ft. 412 L / 14.6 cu. ft.
Temperature Range ≤-18°C / ≤-0.4°F
Refrigerant R600a R134a
Electrical 110V / 60Hz
Weight 70.5 lbs. / 32 kg. 79.4 lbs. / 36 kg. 97 lbs. / 44 kg. 141 lbs. / 64 kg.
22” x 32.5” x 33” 22.25” x 40” x 33” 25.5” x 43” x 32.6” 27.6” x 60” x 32.5”
Dimensions
Item Number 45294 45295 45296 45297
559 x 826 x
838mm
565 x 1016 x
838mm
648 x 1092 x
828mm
701 x 1524 x
826mm
5
Installation
TRANSPORTATION AND PLACEMENT
• When transporting the chest freezer from one place to another, the inclination of the cabinet should not
exceed 45 degrees, for prevention against compressor or system damage.
• Before use, remove all the packing material. The back side of the cabinet should be more than 20cm away
from the wall, both ank sides more than 20cm.
• The freezer should be put in well-ventilated, dry place. Don’t use it under direct sunshine. The freezer
should be kept away from water sink, heat source and any volatile, corrosive material.
POWER SOURCE AND TEST-RUNNING
• Specied capacity of the wire is 7A. Section squares of the wire is 0.82mm2. Single line or compound
lines are all allowed. The fuse of 2.5A specied electric current should be installed. (Power cord should be
replaced with the same of 7A and 0.82mm2, when it is damaged).
• Single-phase power supply, 60Hz, voltage range 98~132V. If the voltage is unstable, please install a
voltage stabilizer with capacity above 1000W.
• Avoid turning on and o the power too frequently. If the power is turned o, wait an interval of 5 minutes
before turning it on again.
• When the freezer will be out of use for a long time, disconnect the power rst, then clean it. Please
examine the circuit whether it is excellent before reuse.
Operation
OPERATION OF THE TEMPERATURE CONTROL KNOB
• The temperature in the cabinet can be controlled with the temperature control knob.
• The knob should be kept upright normally to adjust the temperature. FREEZING MAX is the strongest
cooling position and is suitable for fast freezing. Do not keep the knob at this point for long.
FOOD STORAGE
• There must be space between the foods stored in the cabinet, between the foods and the inner surface
of the cabinet, so as to keep good ventilation of cold air and freeze evenly. Do not put in any bottled or
canned beverage with freezing point above the temperature in the cabinet when it is below zero.
• For foods that should be moisture-free or lose water easily, wrap them up with hermetical food bags or
fresh lms before putting in the cabinet for the sake of avoiding smell-mixing and reducing frosting.
• Storage of volatile and combustible gases, liquids such as strong alkalies, strong acids, petrol, etc. is
forbidden.
6
