Omcan FP-IT-0004 User Manual

Page 1
Bowl Cutter
Model FP-IT-0004
Item 10832
Instruction Manual
Revised - 09/12/2019
Toll Free: 1-800-465-0234
Email: service@omcan.com
www.omcan.com
Locally QPS
approved
Page 2
Table of Contents
Model FP-IT-0004
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
-------------------------------------------------------------------------------------------- 6
--------------------------------------------------------------------------------------------- 6
------------------------------------------------------------------------------------- 6 - 7
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
Page
---------------------------------------------------------------------- 5 - 6
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
------------------------------------------------------------------------------------------- 12 - 14
----------------------------------------------------------------------------- 8 - 10
---------------------------------------------------------------------------- 11
---------------------------------------------------------------------------- 15
2
Page 3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
3
Page 4
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
The following mechanical safety devices have been applied:
Protection of transparent plastic material.
The following electrical safety devices have been applied:
Start up with start/stop button that must be pressed again to restart the machine after an outage.
Magnetic cutout on the transparent lid preventing machine startup when the lid is open.
Cutout switch below the vessel preventing machine from starting without positioning the vessel.
4
Page 5
Safety and Warranty
Correct functioning and full compliance to the intended service depends on the correct application of the instructions contained in this manual. The manufacturer waives any liability, either direct or indirect; deriving from:
Failure to observe the instructions contained herein.
Entrusting the machine to non-trained personnel.
Failure to use this machine in according to the norms currently in force in the country of installation.
Unauthorized alterations or repair.
Use of non original accessories and spare parts.
NOTE: THESE BOWL CUTTERS ARE NOT IDEAL FOR MAKING LARGE BATCHES OF HUMMUS.
1 YEAR PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Technical Specications
This machine is composed by a base supporting a vessel containing two rotary blades secured to a spindle. The products are minced or mashed according to the length of time the blades are allowed to rotate.
All the components of this machine are made from polished and anodized aluminum, from stainless steel and from food-compatible plastic material.
The blades are driven by an electric motor which is ventilated, while movement transmission is entrusted to a
5
Page 6
Technical Specications
longitudinally grooved belt.
The cutter is started and stopped by means of a button connected to an auxiliary control circuit preventing accidental startup after an outage.
Model FP-IT-0004 Power 0.5 HP / 0.37 kW
Capacity 3.3 L / 3.5 QT RPM 2800 Electrical 110V / 60Hz / 1 Dimensions 14.4” x 12” x 10” / 365 x 305 x 255mm
Weight 19.8 lbs. / 9 kgs.
Item Number 10832
Installation
Place the machine on a suitably plane, smooth and dry surface sufciently strong to support the machine
weight. Install near an outlet complying to local regulations.
Before completing the connections, check that the mains correspond to the data shown on the plate.
Operation
To start the machine, press the green button.
Insert the food to mince through the special opening on the lid.
Take into account that prolonged use will mash the products.
After completion, open the lid by turning the knob on the horizontal bar by ¼ turn to the left, and pull up the
bar.
Take the blade holding pin away then remove the vessel from its seat.
Maintenance
For good mincing performances, the blades must be sharp. If necessary, have them sharpened by a
specialized person. This machine does not require any further lubrication. Should the machine make any
6
Page 7
Maintenance
unusual noise after a certain period of time, this may be due to a loosening of the belt. Screw the belt-tightener on the side of the motor under the base.
CLEANING THE CUTTER
The cutter must be carefully cleaned at least once a day or more often as necessary. Always wear scratch proof protection gloves. To clean the machine use only a cloth soaked in water and non-lathery detergent for
dishes with pH at 7-8 and at least at + 30° C.
REASSEMBLING THE CUTTER
Insert the vessel by inserting its small pin in the relevant seat. Insert the blade holder pin in its seat. Pull down the lever by turning the knob by ¼ turn to the right to secure the lid to the vessel.
REFERENCE
Item Number Model Number Description Manufacturer Model Number
10832 FP-IT-0004
Bowl Cutter 3.3 L / 3.5 QT 2800 RPM
0.5 HP / 373 W 110V/60/1 NSF cQPS
C4
7
Page 8

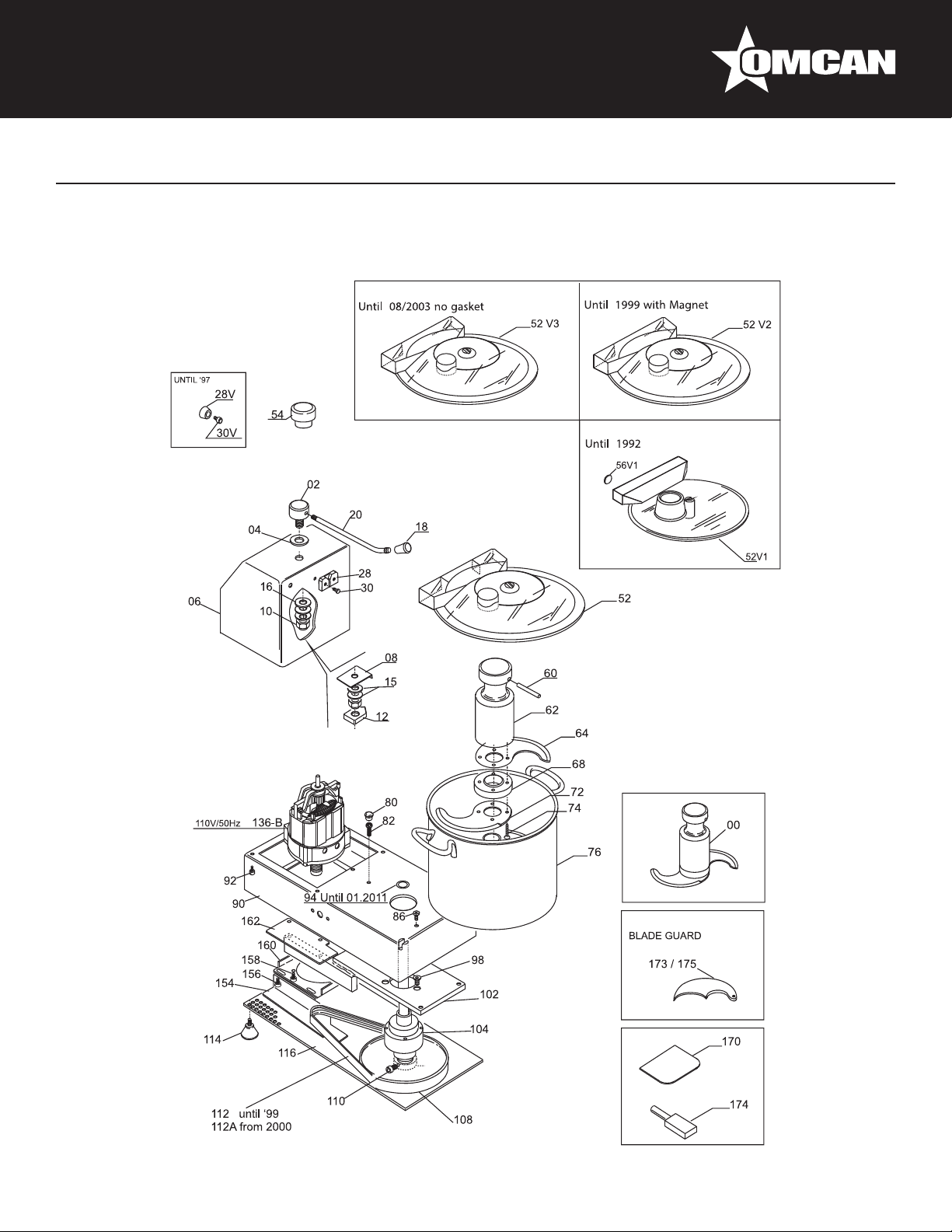

Parts Breakdown
Model FP-IT-0004 10832
8
Page 9
Model FP-IT-0004 10832

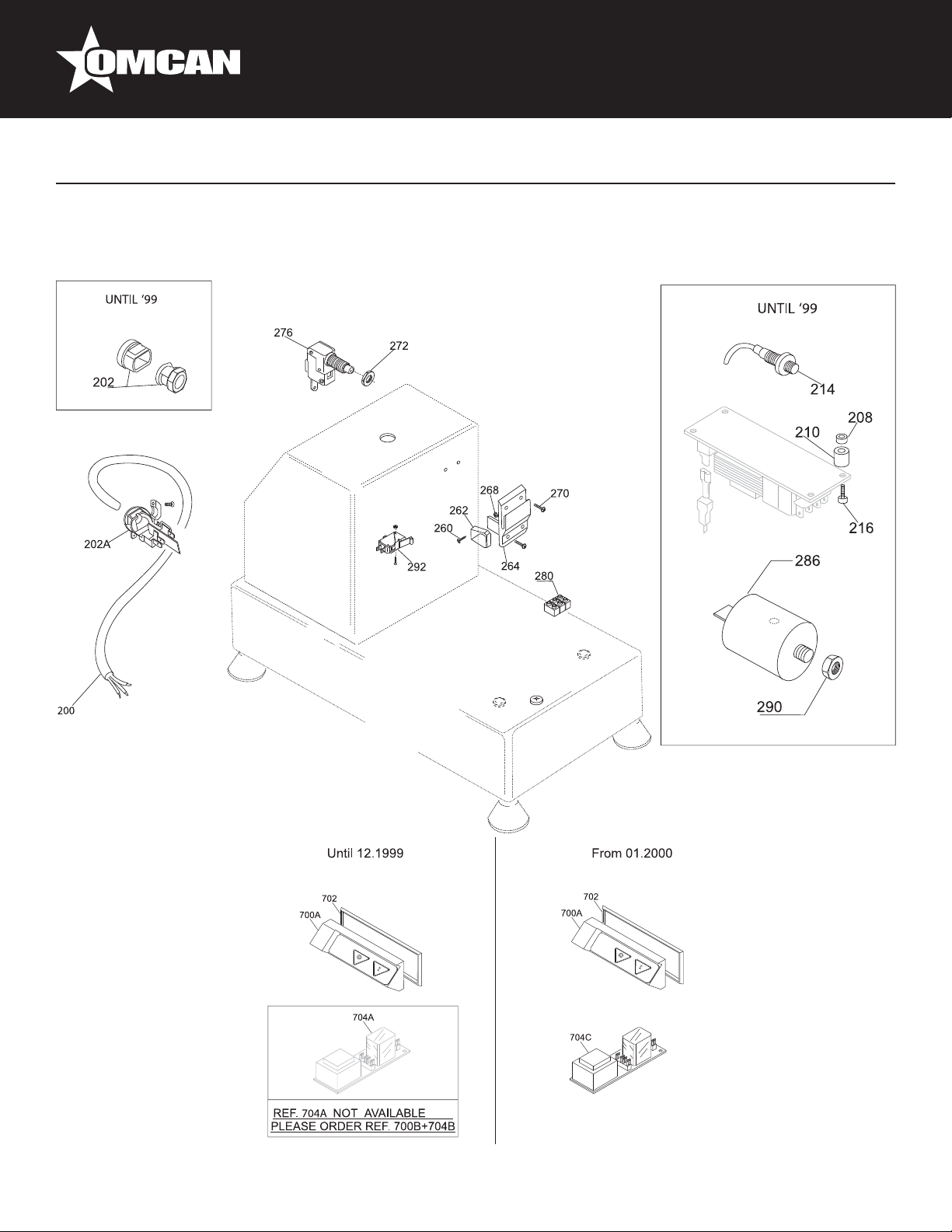

Parts Breakdown
9
Page 10
Parts Breakdown
Model FP-IT-0004 10832
Item No. Description Position Item No. Description Position Item No. Description Position
61572 Shaft with Regular Knives for C4 00 19348 Upper Knife for C4 64 37165 Motor Holder for C4 160
37146 Pin and Rod and Knob for C4 01 60289 Punched Upper Knife for C4 64F 60296 Bowl Scraper, Red Color for C4 170
37147 Rod Holder Pin for C4 02 60290 Upper Knife for Kneading for C4 64P 31308 Upper Blade Guard Red for C4 173
37148 Clutch Washer for C4 04 60288 Upper Knife for Pesto for C4 64V 60297 Sharpening Stone for C4 174
37149 Head Casing for C4 06 60291 Serrated Upper Knife for C4 64Z 31309 Bottom Blade Guard Red for C4 175
37150 Clutch Base for C4 08 37157 Knives Spacer for C4 68 37339 US Power Cord 110V TM for C4 200B
37151 Clutch Nut for C4 10 61574 Knives Spacer-Pesto for C4 68P AB997 Strain Relief for C4 202
37152 Microswitch Cam for C4 12 19349 Lower Knife for C4 72 37180 Strain Relief from 1999 for C4 202A
61573 Cup Spring 12.2x25x0.7 for C4 15 61575 Blade Holder Screw for C4 74 AB998 Screw TC + DIN 7985 M3x16 for C4 260
37153 Arm Knob for C4 18 37158 Bowl for C4 76 19352 Mechanical Microswitch for C4 262
37154 Arm for C4 20 19350 Gum until 1999 for C4 80 19353 Microswitch Holder for C4 264
19347 Bowl Slideway for C4 28 37160 Frame Body for C4 90 AB999 Nut ES. DIN 439 M3 Lower for C4 268
60298 Bowl Slideway until 1997 for C4 28V 37167 Aluminum Plate from 1999 for C4 102A AC000 Screw TSP + DIN 965 M3x8 for C4 270
60286 Screw TSP + DIN 965 M 4x16 for C4 30 17198 Aluminum Shaft for C4 104 37205 Mechanical Microswitch for C4 276+272
16459 Lid with Gasket from ‘03 for C4 52 17199 Shaft Pulley for C4 108 37176 Terminal Board for C4 280
18829 Lid until 1999 for C4 52V2 61576 Grub Screw Din 916 M 6x10 NE for C4 110 37177 Noise Filter for C4 286
18826 Lid until 08/2003 for C4 52V3 17763 Belt 630x6 until ‘99 for C4 112 37178 Lever Microswitch for C4 292
24619 Lid Plug for C4 54 17764 Belt from ‘99 for C4 112A 16454 Push-Button Panel Small for C4 700A
37168 Magnet until 1992 for C4 56V1 19355 Foot M5 for C4 114 AC001 Switch Panel Small Y18 for C4 700B
37155 Shaft Rod for C4 60 37163 Bottom Safety Grate for C4 116 25200 Gasket for Small Control Panel for C4 702
37156 Knives Shaft for C4 62 16494 Motor 110/60 for C4 136B AC002 PCB 220MN Y18 for C4 704B
37169 Knives Holder Pesto for C4 62P 37164 Bottom Plate for C4 154 16453 Circuit Board 110/60 from 99 for C4 704C
10
Page 11
Model FP-IT-0004 10832

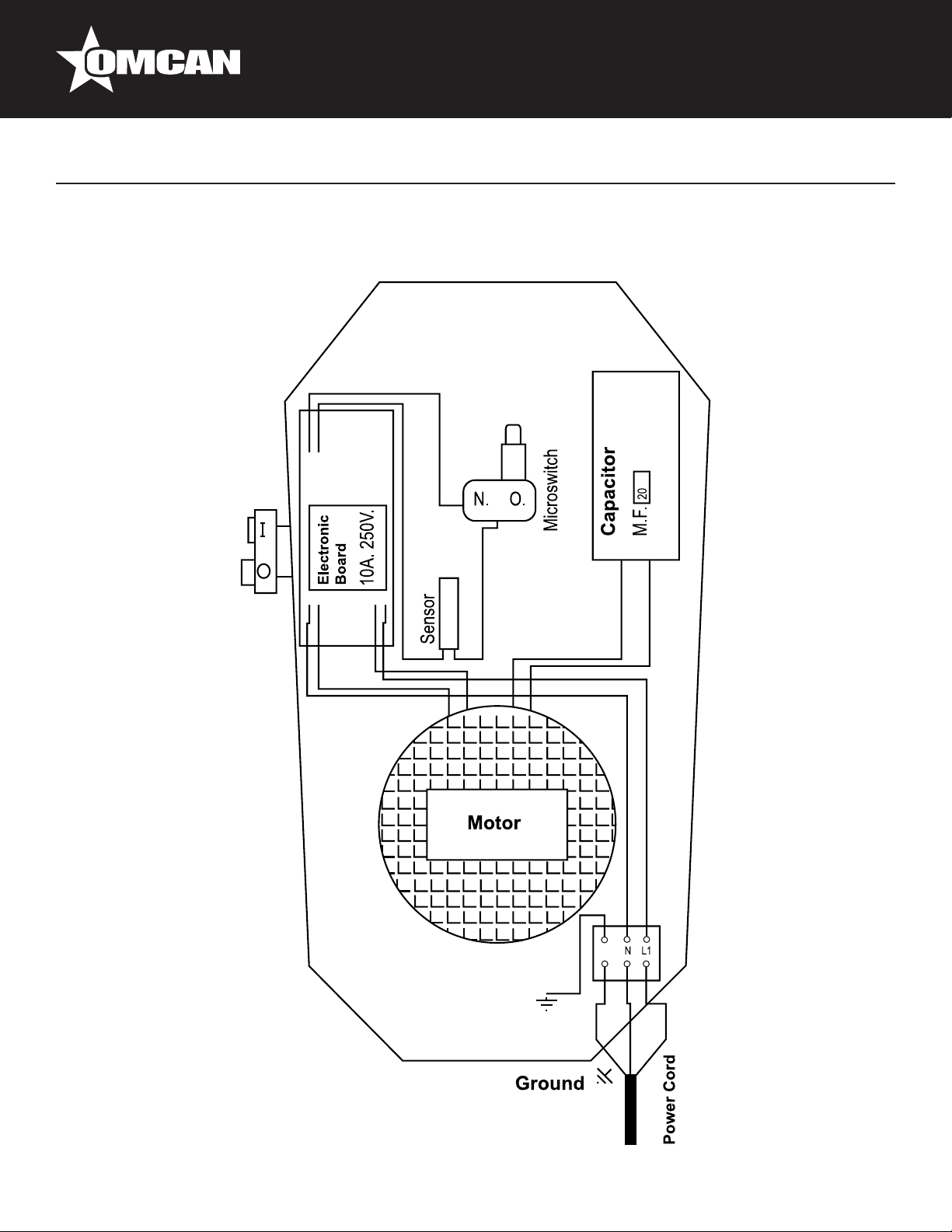

Electrical Schematics
11
Page 12
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
12
Page 13
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
13
Page 14
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
14
Page 15
Warranty Registration
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación, cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
https://omcan.com/warranty-registration/
For mailing in Canada
Pour postale au Canada
Por correo en Canadá
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
For mailing in the US
Pour diffusion aux États-Unis
Por correo en los EE.UU.
OMCAN
Niagara Falls, New York
USA, 14305
or email to: service@omcan.com
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan
15
Page 16
Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers. Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un fácil acceso a más de 5,000 productos con origen a nivel mundial.
Loading...
