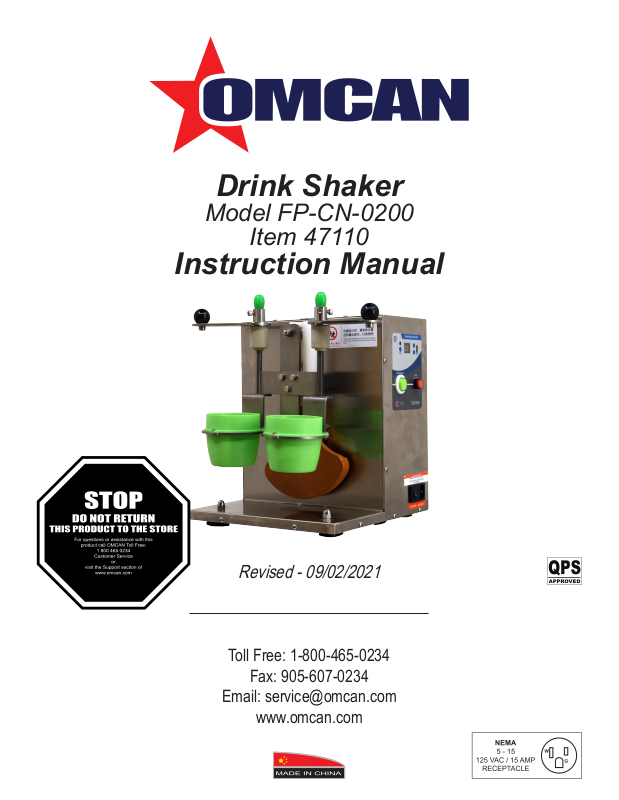

Drink Shaker
Model FP-CN-0200
Item 47110
Instruction Manual
Revised - 09/02/2021
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: [email protected]
www.omcan.com
Page 2
Table of Contents
Model FP-CN-0200
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Parts Breakdown
----------------------------------------------------------------------------------------- 6 - 7
----------------------------------------------------------------------------------------- 7
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
------------------------------------------------------------------------------- 8 - 9
Page
-------------------------------------------------------------------------- 5
Electrical Schematics
Warranty Registration
---------------------------------------------------------------------------- 10
---------------------------------------------------------------------------- 11
2
Page 3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
3
Page 4
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PART AND LABOUR BENCH WARRANTY
4
Page 5
Safety and Warranty
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop o to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste
and can therefore be disposed of without diculty.
In any case, for suitable recycling, we suggest disposing of the products separately (dierentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Technical Specications
Model FP-CN-0200
Material Stainless Steel
Electrical 110V / 60Hz / 1
Power 60W
Number of Cups 2
Cup Capacity 500 - 700cc
Dimensions 11.8” x 14.2” x 16.5” / 300 x 360 x 420mm
Weight 41.9 lbs. / 19 kgs.
Packaging Weight 46.3 lbs. / 21 kgs.
Item Number 47110
5
Page 6
Operation
PANEL
The operation panel includes:
• 1 on/o button.
• 1 emergency stop button.
• 1 set button.
• A 2 digit digital tube display.
• A set of up and down arrow buttons to adjust the time.
The screen displays “--” in standby mode.
OPERATION
After the shaking machine is powered on, it enters the standby state. The shaking machine has 4 operating
states; standby, running, setting, emergency stop.
In the standby mode:
• Press the “on/o” button to enter the running mode.
• Press the “set” button to enter the setting mode.
• Press the arrow buttons to enter the direct view mode.
• Press the emergency stop button to enter the emergency stop mode.
DEVICE OPERATION
Press the on/o button in the standby state, the device will start according to the currently set time parameters
and the digital tube will display the current operations countdown. When running, pressing the on/o button will
stop the running state and return the machine to the standby state.
TIME SETTING
Press the set button to enter the running time setting state. The digital tube displays the current setting value.
Press the arrow buttons to adjust the time and it will be displayed on the digital tube. By pressing the arrow
keys once, you can change the time values by 1 second. By holding the arrow buttons you can adjust the time
values quickly (between 1-99 seconds). Press the set button to save the current settings, press the set button
again to exit back to the standby state.
Note: If no action is taken for more than 5 seconds in the setting state, it will automatically return to the
standby state without saving.
EMERGENCY STOP FUNCTION
Once the emergency stop button is pressed, the device will enter the emergency stop state instantly. In this
state, the following happens:
1. The device stops running.
2. The display screen ashes “PS”.
3. After the emergency stop button is released, you can press the on/o button to return to the standby state.
6
Page 7
Operation
VIEWING TIME
Press the arrow buttons in the standby state to view the set time value. If there is no operation for more than 5
seconds, it will return to the standby state.
Maintenance
SHAKER BAFFLE ADJUSTMENT
By loosening the limited screws you are able to adjust the height of the shaker in order to t dierent size cups.
Firmly lock the limited screws when the required height has been achieved.
7
Page 8

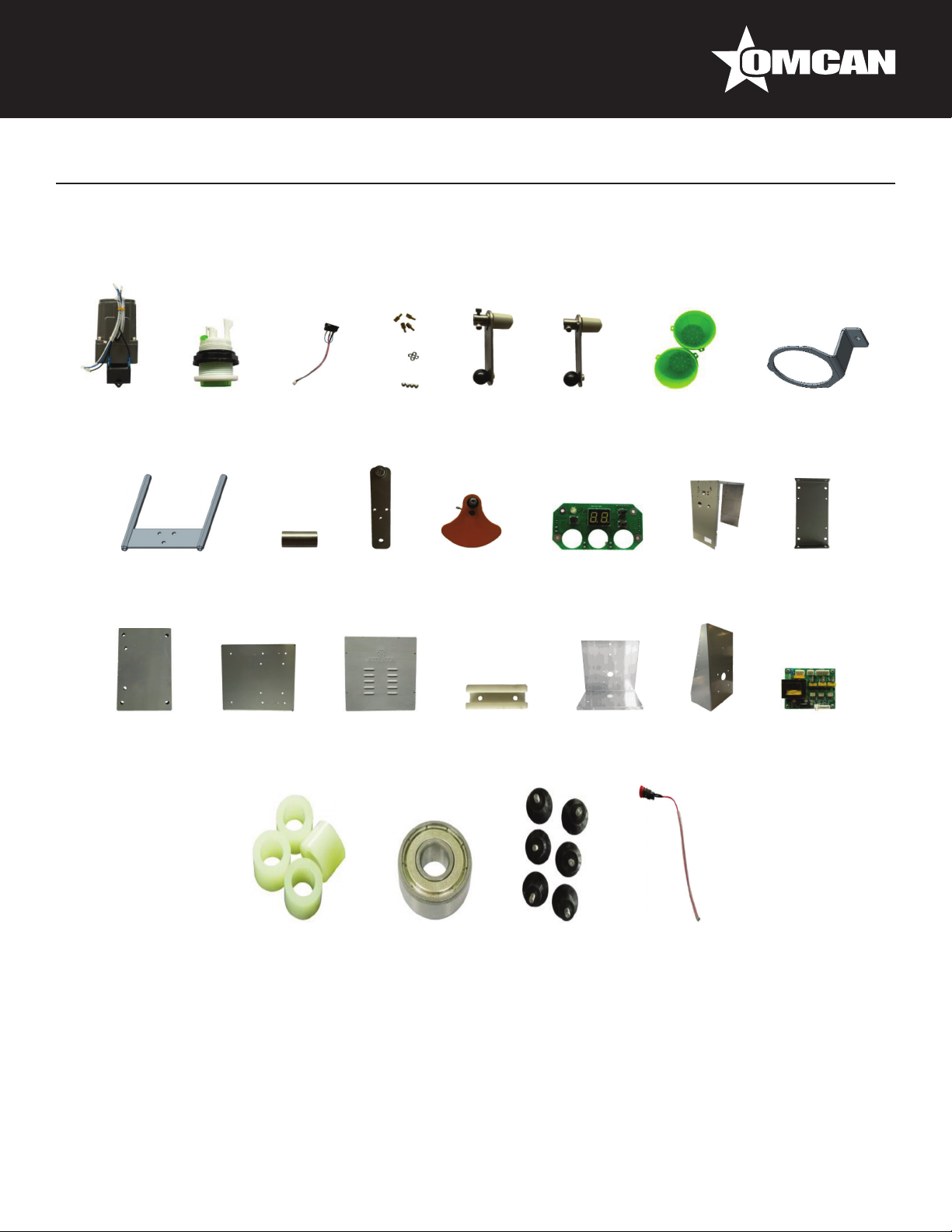

Parts Breakdown
Model FP-CN-0200 47110
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
16 17
18 19 20 21 22
23 24 25 26
8
Page 9
Parts Breakdown
Model FP-CN-0200 47110
Item No. Description Position Item No. Description Position Item No. Description Position
AG676 Motor for 47110 1 AG685 Column for 47110 10 AG694 Slide for 47110 19
AG677 Big Circle Button Switch for 47110 2 AG686 Connecting Plate for 47110 11 AG695 Front Cover for 47110 20
AG678 Three in One Socket Assembly for 47110 3 AG687 Eccentric Weight Assembly for 47110 12 AG696 Motor Bracket for 47110 21
AG679 Panel Fixing Studs for 47110 4 AG688 Control Panel for 47110 13 AG697 Driver Board for 47110 22
AG680 Right Pressure Plate Assembly for 47110 5 AG689 Side Cover for 47110 14 AG698 4x5 Insulating Column for 47110 23
AG681 Left Pressure Plate Assembly for 47110 6 AG690 Drive Board Bracket for 47110 15 AG699 Deep Groove Ball Bearing for 47110 24
AG682 Holder for 47110 7 AG691 Stiffener for 47110 16 AG700 Short Suction Feet for 47110 25
AG683 Bracket for 47110 8 AG692 Bottom Plate for 47110 17 AG701 Small Emergency Stop Button for 47110 26
AG684 Shelf for 47110 9 AG693 Back Cover for 47110 18
9
Page 10

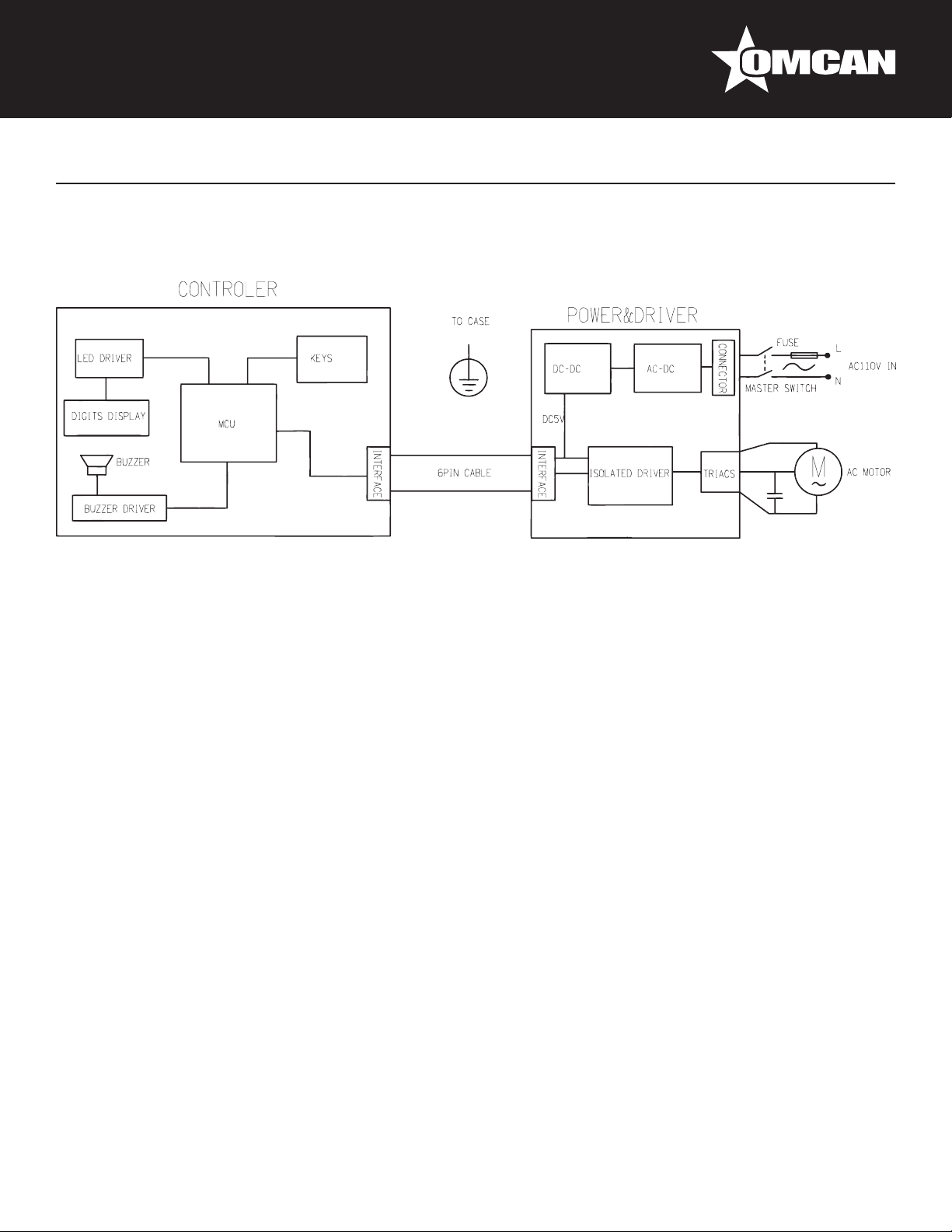

Electrical Schematics
Model FP-CN-0200 47110
10
Page 11
Warranty Registration
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o the card at
the perforation and then send to the address specied below. You can also register online by visiting:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
https://omcan.com/warranty-registration/
For mailing in Canada
Pour postale au Canada
Por correo en Canadá
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
For mailing in the US
Pour diusion aux États-Unis
Por correo en los EE.UU.
OMCAN
Niagara Falls, New York
USA, 14305
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan
11
Page 12
Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
Loading...
