Griddles
Models CE-CN-0405, 0613, 0766
Items 43212◊, 43213*, 43214
◊
Instruction Manual
Revised - 03/11/2020
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com
◊
*
Table of Contents
Model CE-CN-0405 / Model CE-CN-0613 / Model CE-CN-0766
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Parts Breakdown
--------------------------------------------------------------------------------------------- 6
----------------------------------------------------------------------------------------- 7
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
----------------------------------------------------------------------------- 8 - 11
Page
-------------------------------------------------------------------------- 6
Electrical Schematics
Notes
Warranty Registration
------------------------------------------------------------------------------------------------- 14
---------------------------------------------------------------------- 12 - 13
---------------------------------------------------------------------------- 15
2
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
3
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
1. Ensure that the power supply you are using is adequate for continual griddle use and the voltage is correct.
2. Allow at least 8” of clearance around all sides.
3. Unplug the unit when not in use and before cleaning.
4. Do not immerse unit, cord or plug in liquid at any time.
5. Do not operate unattended.
6. Do not use this unit for anything other than its intended use.
7. Do not use outdoors.
4
Safety and Warranty
8. Always use on a rm, dry and level surface.
9. Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has been
damaged in any manner.
10. Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to property loss
and injury. All repairs should be done by authorized professionals.
1 YEAR PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste
and can therefore be disposed of without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
5
Technical Specications
Model CE-CN-0405 CE-CN-0613 CE-CN-0766
Power 1750 W 3560 W 4500 W
Temperature Range 65° - 300°C / 150° - 570°F
Cooking Area
Electrical 120V / 60Hz / 1 220V / 60Hz / 1
Weight 53.6 lbs. / 21.3 kgs. 79.4 lbs. / 36 kgs. 97 lbs. / 44 kgs.
Packaging Weight 63.7 lbs. / 28.9 kgs. 91.3 lbs. / 41.4 kgs. 110.2 lbs. / 50 kgs.
Dimensions
Packaging Dimensions
Item Number 43212 43213 43214
16” x 15.5”
406 x 394mm
16.1” x 19.8” x 9.4”
410 x 502 x 239mm
24” x 14” x 18”
610 x 356 x 457mm
24” x 15.5”
610 x 394mm
19.7” x 24.1” x 9.4”
502 x 612 x 234mm
22.9” x 28.5” x 13”
724 x 582 x 330mm
30” x 15.5”
762 x 394mm
19.8” x 30.2” x 9.4”
502 x 767 x 239mm
22.9” x 34.1” x 13”
582 x 866 x 330mm
Operation
INSTRUCTIONS FOR FIRST TIME USE
In order to protect the plates of your new grill during transportation, a layer of food-safe oil was coated on
the surface prior to shipment. This oil is harmless, but must be removed before you begin to use. To remove,
preheat the grill until the oil liquees. Next, carefully wipe away the melted oil with a clean, soft cloth. Once all
of the oil is removed you can begin to use your grill.
OPERATION
1. Plug the power cord into the appropriate outlet. The red “Power” light will illuminate.
2. Set the desired temperature by turning the rotary temperature knob clockwise. The heating element will
begin to heat up and the green “Heating” light will illuminate.
3. When the temperature reaches the desired setting, the green “Heating” light will cycle on and off with the
heating element to maintain the set temperature.
4. For best results, allow the unit to preheat for 15 minutes before placing food on cooking surface.
5. Turn temperature knob to the “Off” position to turn the green “Heating” light and heating element off. You
must unplug the unit for the red “Power light” to turn off.
6
Maintenance
CLEANING
Unplug the unit and allow it to cool before cleaning. Do not use abrasive cleaners or scouring pads. If soap
or chemical cleaners are used, be sure they are completely rinsed away with clear water immediately after
cleaning. Chemical residue could damage or corrode the surfaces of the unit.
REFERENCE
Item Number Model Number Description Manufacturer Model Number
Griddle 16” x 15.6” / 405mm x 395mm
43212 CE-CN-0405
43213 CE-CN-0613
43214 CE-CN-0766
Griddle 24.5” x 20” / 613mm x 502mm
3560 W 220V/60/1 with 2 Controls
Griddle 30” x 20” / 766mm x 502mm
4500 W 220V/60/1 with 3 Controls
1750 W 120V/60/1
ETL Sanitation cQPSus
ETL Sanitation cETLus
ETL Sanitation cQPSus
FN-01
FN-02
FN-03
7
Parts Breakdown
Model CE-CN-0405 43212
8
Model CE-CN-0613 43213
Parts Breakdown
9
Parts Breakdown
Model CE-CN-0766 43214
10
Parts Breakdown
Model CE-CN-0405 43212
Item No. Description Position Item No. Description Position Item No. Description Position
62290 Power Cord for FN-01 1 65473 Heating Element Holder for FN-01 7 65479 Thermostat Screws for FN-01 13
65468 Power Cord Clip for FN-01 2 65474 Insulation Board for FN-01 8 65480 Thermostat Knob for FN-01 14
65469 Body for FN-01 3 65475 Bottom Plate for FN-01 9 65481 Working/Power Light for FN-01 15
65470 Terminal for FN-01 4 65476 Foot for FN-01 10 65482 Grease Tray for FN-01 16
65471 Heating Element for FN-01 5 65477 Bottom Plate Screws for FN-01 11
65472 Insulation for FN-01 6 65478 Thermostat for FN-01 12
Model CE-CN-0613 43213
Item No. Description Position Item No. Description Position Item No. Description Position
63905 Power Cord for FN-02 1 65487 Heating Element Holder for FN-02 7 65479 Thermostat Screws for FN-02 13
65468 Power Cord Clip for FN-02 2 65488 Insulation Board for FN-02 8 65480 Thermostat Knob for FN-02 14
65484 Body for FN-02 3 65489 Bottom Plate for FN-02 9 65492 Working/Power Light for FN-02 15
65470 Terminal for FN-02 4 65476 Foot for FN-02 10 65482 Grease Tray for FN-02 16
65485 Heating Element for FN-02 5 65477 Bottom Plate Screws for FN-02 11
65486 Insulation for FN-02 6 65490 Thermostat for FN-02 12
Model CE-CN-0766 43214
Item No. Description Position Item No. Description Position Item No. Description Position
63905 Power Cord for FN-03 1 65496 Heating Element Holder for FN-03 7 65500 Thermostat Screws for FN-03 13
65468 Power Cord Clip for FN-03 2 65497 Insulation Board for FN-03 8 65480 Thermostat Knob for FN-03 14
65493 Body for FN-03 3 65498 Bottom Plate for FN-03 9 65502 Working/Power Light for FN-03 15
65470 Terminal for FN-03 4 65476 Foot for FN-03 10 65482 Grease Tray for FN-03 16
65494 Heating Element for FN-03 5 65477 Bottom Plate Screws for FN-03 11
65495 Insulation for FN-03 6 65499 Thermostat for FN-03 12
11
Electrical Schematics
Model CE-CN-0405 43212
Model CE-CN-0613 43213
12

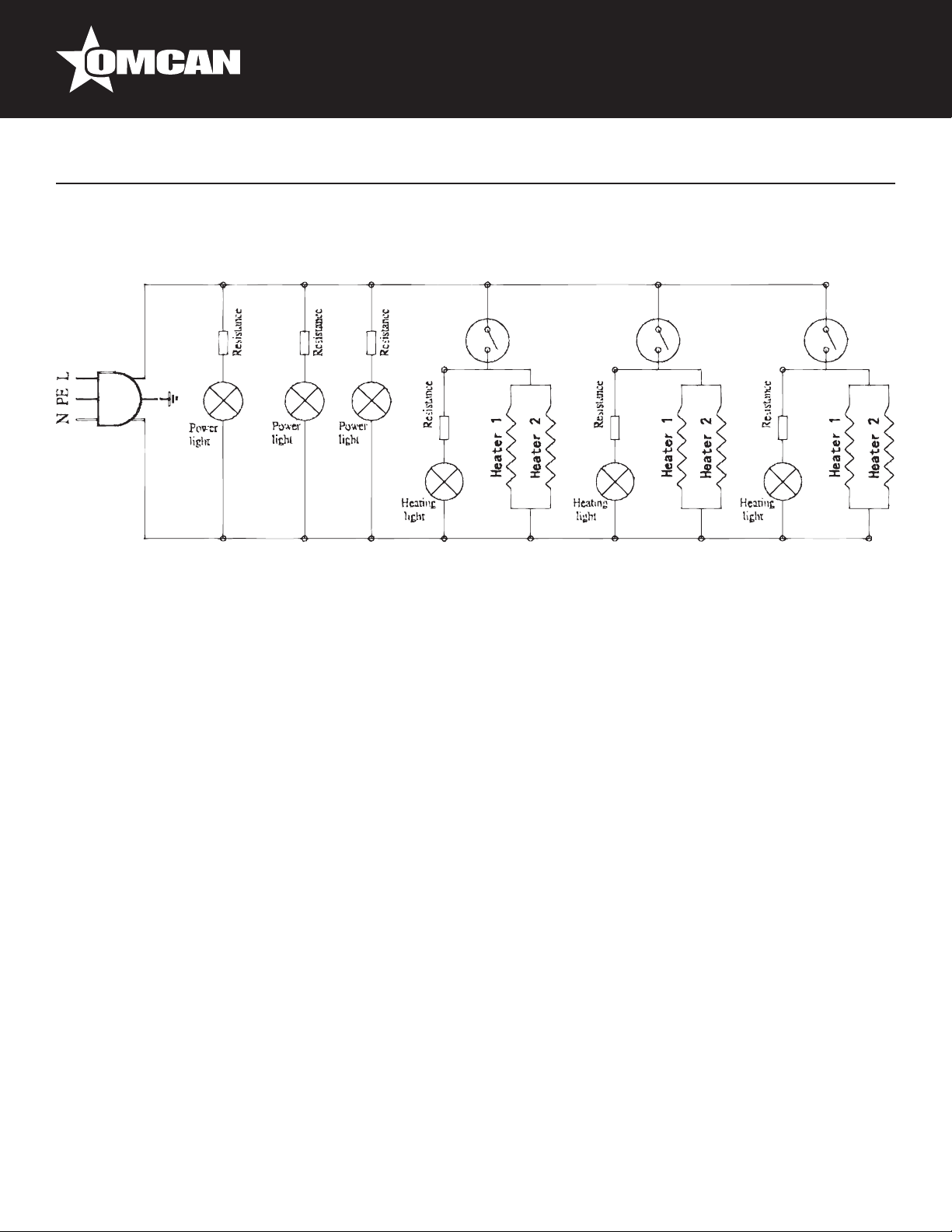

Model CE-CN-0766 43214
Electrical Schematics
13
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
14
Warranty Registration
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
https://omcan.com/warranty-registration/
For mailing in Canada
Pour postale au Canada
Por correo en Canadá
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
For mailing in the US
Pour diffusion aux États-Unis
Por correo en los EE.UU.
OMCAN
Niagara Falls, New York
USA, 14305
or email to: service@omcan.com
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan
15
Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
Loading...
