Omcan RS-CN-0270, RS-CN-0370, RS-CN-0370-S, RS-CN-0470, 39539 Manual

Refrigerated Showcases

Models RS-CN-0270, 0370, 0370-S, 0470

Items 39539, 40519, 39540, 47105

Instruction Manual

Revised - 06/17/2021

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Table of Contents

Model RS-CN-0270 / Model RS-CN-0370

Model RS-CN-0370-S / Model RS-CN-0470

Section

Disclaimer

General Information

Safety and Warranty

Technical Specications

Operation

Maintenance

-------------------------------------------------------------------------------------------- 3

--------------------------------------------------------------------------- 4 - 5

--------------------------------------------------------------------------- 5 - 7

--------------------------------------------------------------------------------------------- 8

----------------------------------------------------------------------------------------- 9

Page

-------------------------------------------------------------------------- 7

Troubleshooting

Parts Breakdown

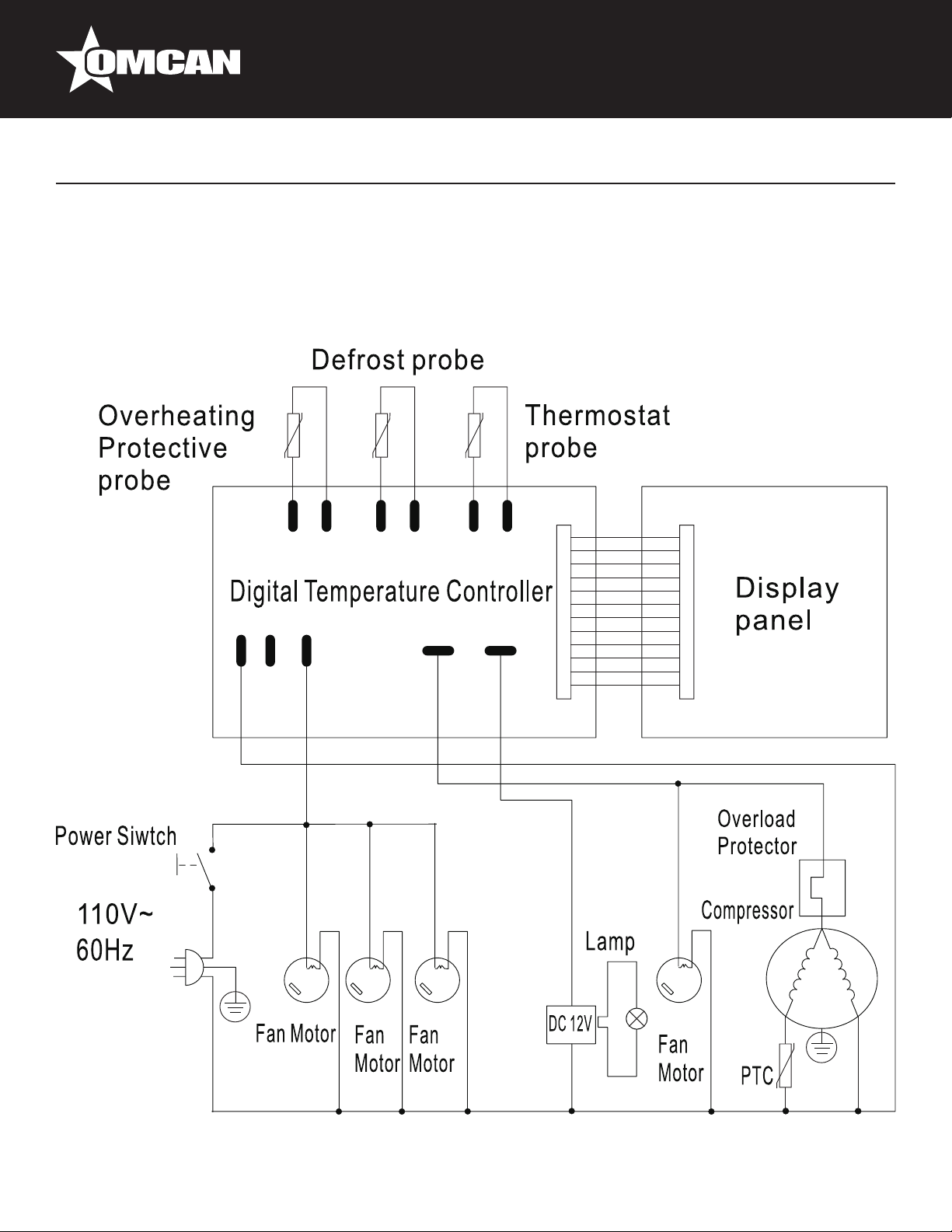

Electrical Schematics

Notes

Warranty Registration

------------------------------------------------------------------------------------------- 21 - 22

----------------------------------------------------------------------------------- 10

---------------------------------------------------------------------------- 11 - 18

---------------------------------------------------------------------- 19 - 20

---------------------------------------------------------------------------- 23

2

Disclaimer

OMCAN IS NOT RESPONSIBLE FOR

ANY DAMAGES DUE TO WATER LEAKS.

WARRANTY FOR WATER LEAKS IS VOID

IF THE AMBIENT ROOM TEMPERATURE

EXCEEDS 75°F AND 55% RELATIVE

HUMIDITY, AND THE APPLIANCE DRAIN IS

NOT CONNECTED DIRECTLY TO A FLOOR

DRAIN.

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

Safety and Warranty

HANDLING AND INSTALLATION

Handle with care

Unplug from the wall socket before moving. Never tilt the refrigerator over 45 degrees during handling.

Storage

Always store the refrigerator in a dry place.

5

Safety and Warranty

Su󰀩cient space

To allow for proper air circulation and increased refrigeration capabilities, the refrigerator must have at least 4”/10cm of space between wall/ceiling and the machine.

Away from heat source

Never place the refrigerator near any type of heat source or in direct sunlight, as it reduces refrigeration capabilities.

No altercations/tampering

Never tamper with or make changes to the refrigerator. Changes and add-ons should not be installed to the inside or outside of the refrigerator.

PREPARATION AND POWER SUPPLY

Exclusive power outlet

Power supply should be 110V, single phase AC with

exclusive single phase three pin outlet (125V/15A).

The power outlet must be in close proximity to the ground.

Protect cables

Extra caution should be used when handling cables, as broken or damaged cables can cause sparking

and may result in a re.

Never store ammables and explosives

No explosives or ammables should be stored in,

or in proximity to, the refrigerator, such as gasoline, alcohol, and adhesives.

After power outage

After a power outage or the unplugging of the refrigerator, wait at least 5 minutes before plugging it back in.

Proper ventilation

Always place the refrigerator in an area with good

ventilation. For rst time use, set in location and wait

at least 2 hours before plugging into wall socket.

No heavy load

Never put heavy items on top of the refrigerator.

Stable location

Unpack and place the refrigerator on at, solid

ground.

No shared power outlets

Refrigerator cable should never share the power outlet with any other appliance, as cable will overheat

and may result in a re.

No water ushing

Never ush the refrigerator surface. This can cause leakage, which may result in electrical damage or re.

No spray

Never spray ammables such as paint or coating near the refrigerator. This may cause re or

malfunction.

No medicine

Medicine should not be stored inside of the refrigerator.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right

is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as

possible.

1 YEAR PARTS AND LABOUR WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

6

Safety and Warranty

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of without di󰀩culty.

In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

Model RS-CN-0270 RS-CN-0370 RS-CN-0370-S RS-CN-0470 Capacity 270 L / 9.5 cu.ft. 370 L / 13 cu.ft. 500 L / 17.7 cu.ft. Temperature Range 2° - 8°C / 35.6° - 46.4°F Max Ambient Temp

Rating Refrigerant R290 Electrical 110V / 60Hz / 1

Top Rack Size

Bottom Rack Size

Dimensions

Packaging

Dimensions Weight 360.5 lbs. / 163.5 kgs. 401.2 lbs. / 182 kgs.

Packaging Weight 379.2 lbs. / 172 kgs. 507.1 lbs. / 230 kgs.

Item Number 39539 40519 39540 47105

31.7” x 13.7”

805 x 348mm

31.7” x 16”

805 x 406mm

36” x 26.6” x 50.2”

914 x 676 x 1276mm

38” x 28.5” x 51.6”

965 x 724 x 1311mm

32°C / 90°F

43.5” x 14”

1105 x 356mm

43.5” x 16”

1105 x 406mm

47.8” x 26.6” x 50”

1214 x 676 x 1270mm

49.8” x 31.3” x 51.6”

1265 x 795 x 1311mm

55.2” x 12.2”

1401 x 311mm

55.2” x 14.6”

1401 x 371mm

59.6” x 26.6” x 48”

1515 x 675 x 1220mm

63” x 29.3” x 50”

1600 x 743 x 1270mm

7

Operation

BEFORE USE

• Plug refrigerator into the 110V exclusive socket.

• After the refrigerator is running, conrm that air suction/ltration is in working order and that it is su󰀩ciently

cold. After checking to make sure the refrigerator is working properly, it may be used.

DIGITAL TEMPERATURE CONTROLLER

FEATURES OF FUNCTION

• Small, integrated digital controller, which is applicable to the compressor of 1 Hp. Located behind the front

grill.

• Main functions are: Temperature Display/Temperature Control/Manual-Automatic /Light Control/Value Storing/Self-Testing/Parameter Locking.

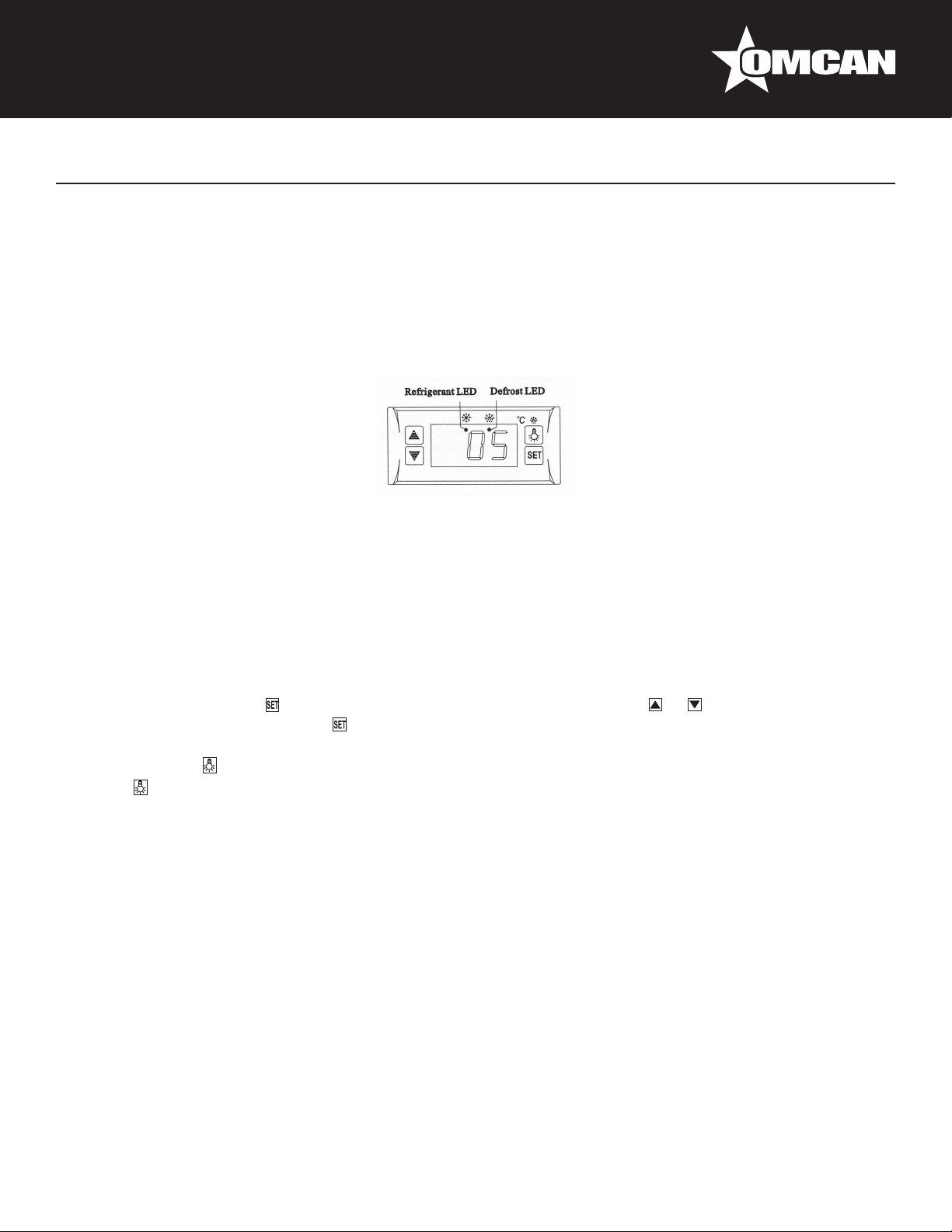

FRONT PANEL OPERATION

1. Set temperature: Press button; set temperature will be displayed. Press or button to modify and store the displayed value. Press button to exit the adjustment and display the cold-room temperature.

2. If no button is pressed within 10 seconds, the cold-room temperature will be displayed.

3. Lighting: Press button to activate light in refrigerator; press again to turn o󰀨. Manual start/stop defrost: Press button and hold for 6 seconds to either defrost or to stop defrost.

4. Refrigeration LED: During refrigeration, the LED is on. When the cold room temperature is constant, the

LED is o󰀨. During delay start, the LED ashes.

5. Defrost LED: During defrosting, the LED is on. When it stops defrosting, the LED is o󰀨. During the delay of defrost, the LED ashed.

8

Maintenance

1. Cabinet Cleaning: a. The product should be maintained and cleaned periodically with power supply disconnected. In cleaning, please use mild-rinsing water or non-corrosive products. Do not wash directly with water faucet. b. Clean outside of unit using a soft cloth with neutral detergent, and dry with a separate soft cloth. c. Clean inside racks by removing them from the unit and clean with water.

2. When shutting down unit for a long period of time, take out all food and unplug wall socket. Clean inside

and outside thoroughly, and keep door open to su󰀩ciently dry.

3. As glass breaks easily, keep far away from children.

4. Replacement of Lamp in Light Box: If the LED lamp is damaged, it must be replaced by Omcan or its service agent.

5. Frequently observe the operation of the product. In case of any abnormal noise or smell, cut o󰀨 the power supply immediately and call professionals. Do not restart the product before source of trouble is found.

6. We will not be responsible for any accidents acquired through failure to follow previous notices.

CAUTIONS

• Minimizing time the time and frequency that the door is open will maintain temperature.

• Never block the air outlet and suction to keep the air circulation and refrigeration capability constant.

• Do not overll refrigerator with food, as it will inuence the cooling e󰀨ect. If needed, adjust the rack height

for proper food storage.

• Cool down hot food to room temperature before placing inside the refrigerator.

• During power interruptions, reduce opening times and maintain cool temperature in refrigerator.

• To avoid scalding, never touch the compressor.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualied persons in order to avoid hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

WARNING: Keep ventilation openings clear of obstructions. WARNING: Do not use mechanical devices of other means to accelerate the defrosting process, other than

those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless

they are of the type recommended by the manufacturer.

9

Troubleshooting

Trouble Cause and Remedy

No Refrigeration. Is the plug tting in the socket?

Is the fuse broken? Is there no power?

Unsatisfactory Refrigeration. Is it under sunshine? Is there any heat source nearby?

Is the surrounding ventilation poor? Is the door closed? Is the door open for a long period of time? Is the door seal strip deformed or damaged? Is there too much food? Does food block the air suction or outlet?

Regulate the temperature controller.

Noisy. The refrigerator is not level.

The refrigerator contacts the wall or other matter. There is loose part in refrigerator.

Contact Omcan for help if simple troubleshooting does not solve the problems.

NOTE

Following occurrences are not problems:

• The murmur of water is heard when the refrigerator is working. It is a normal occurrence as the coolant is circulating in the system.

• When the weather is damp, condensation might be found on the outside of the refrigerator. It is caused by high humidity. Simply use cloth to wipe it o󰀨.

10

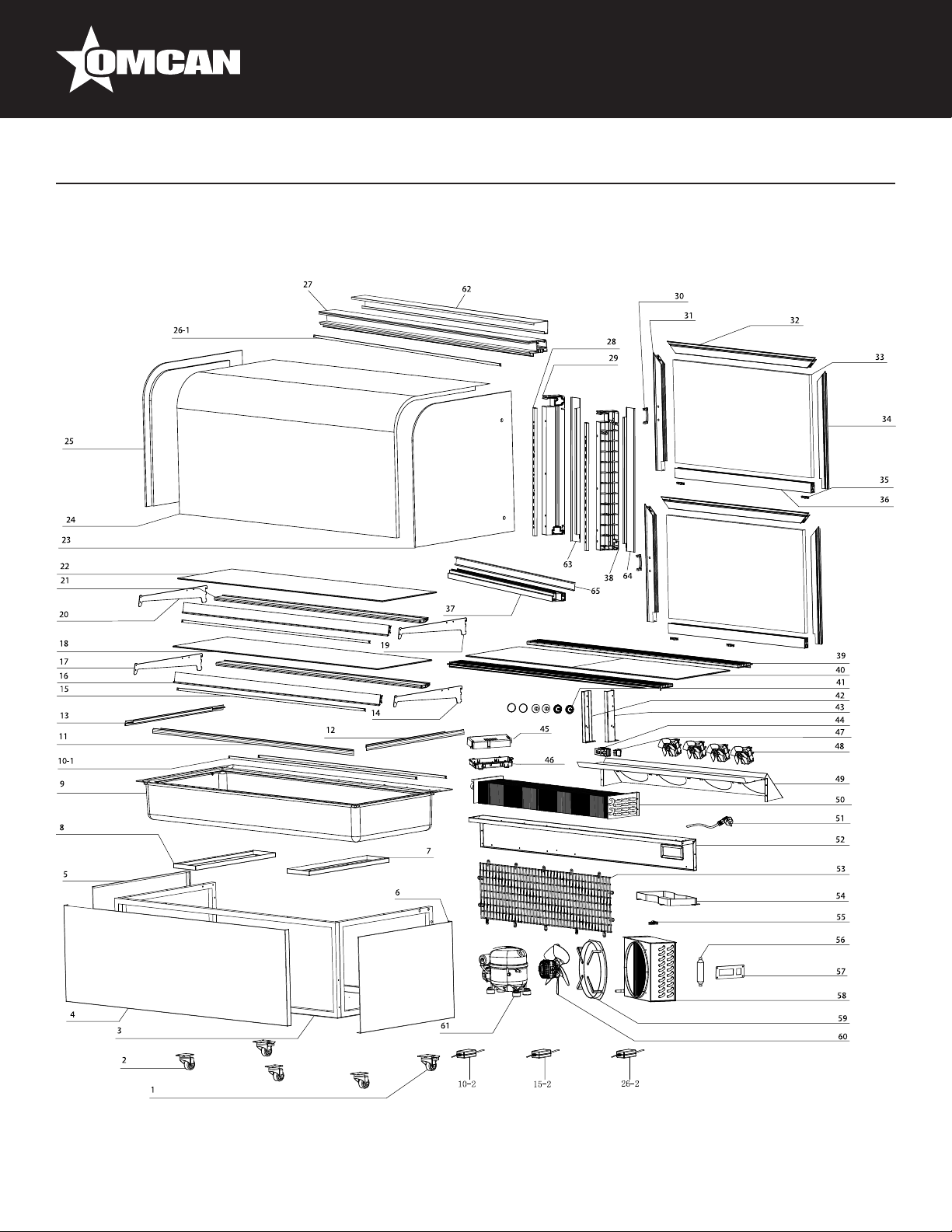

Model RS-CN-0270 39539

Parts Breakdown

11

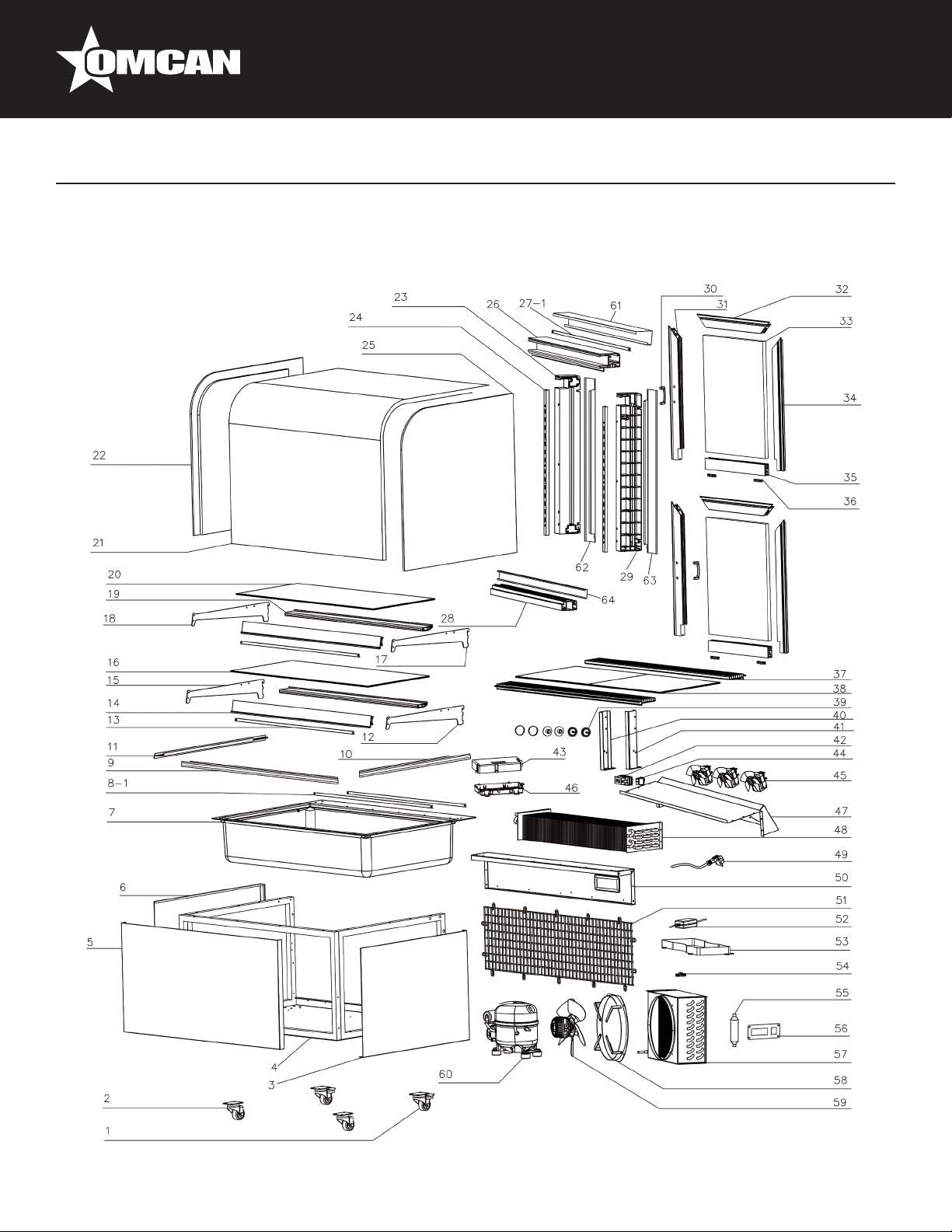

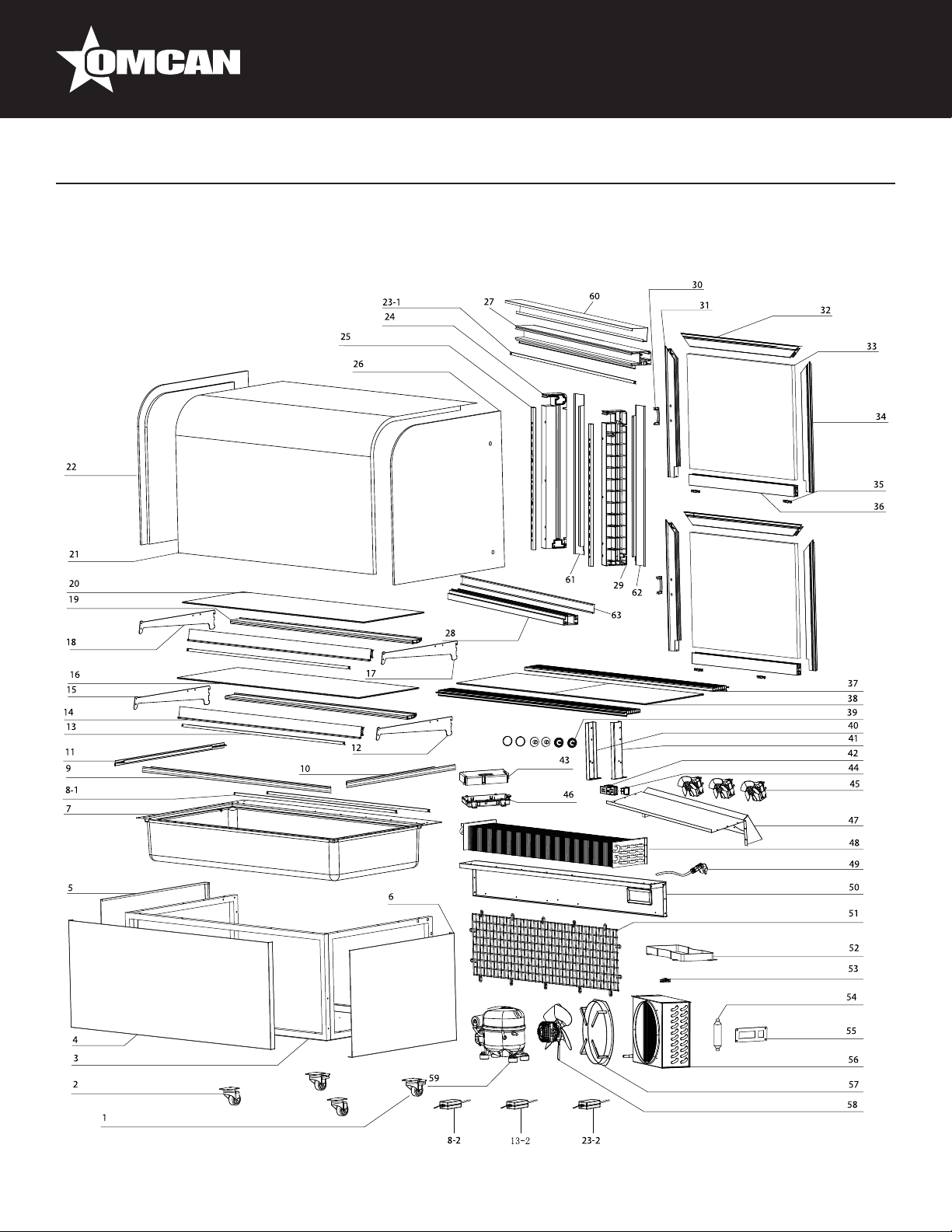

Parts Breakdown

Model RS-CN-0270 39539

Item No. Description Position Item No. Description Position Item No. Description Position

71042 Rear Swivel Caster with Brake for 39539 1 71164 Left Pole Cover for 39539 23 71081 Evaporator Motor for 39539 45

79763

68165 Base for 39539 3 71062 Right Side Glass for 39539 25 68197 Evaporator Cover for 39539 47

68225 Right Cover for 39539 4 64746 Top Frame for 39539 26 71084 Evaporator for 39539 48

AG707 Front Cover for 39539 5 68204 Top LED for 39539 27-1 68198 Power Cord for 39539 49

68226 Left Cover for 39539 6 71064 Bottom Frame for 39539 28 71086 Rear Frame for 39539 50

71046 Evaporator Insulation for 39539 7 71065 Right Pole for 39539 29 71087 Back Grill for 39539 51

68168 Bottom LED for 39539 8-1 71110 Door Handle for 39539 30 AG710 4 LED Driver for 39539 52

71047 Front Glass Fixer for 39539 9 AF488 Left Doorframe for 39539 31 71089 Water Tray for 39539 53

71048 Right Glass Fixer for 39539 10 71068 Top Upper Door Frame for 39539 32 71133 Power Cord Fixer for 39539 54

71049 Left Glass Fixer for 39539 11 71069 Door Glass for 39539 33 71083 Dryer Filter for 39539 55

41966 Shelf Bracket-Bottom Right for 39539 12 71113 Right Door Frame for 39539 34 77434 Control Panel for 39539 56

68176 Middle LED for 39539 13-1 71071 Bottom Door Frame for 39539 35 71135 Condenser for 39539 57

AF486 Metal Price Tags for 39539 14 71114 Door Glide Wheel for 39539 36 71136 Fan Bracket for 39539 58

71152 Bottom Shelf Left Bracket for 39539 15 71073 Air In/Outlet for 39539 37 71137 Condenser Motor for 39539 59

AG708 Bottom Glass Shelf for 39539 16 71074 Bottom Black Glass Frame for 39539 38 68199 Compressor for 39539 60

71051 Right Top Shelf Holder for 39539 17 71121 Screw Cover for 39539 39 AF490 Top Back Frame for 39539 61

41612 Shelf Bracket-Top Left for 39539 18 71171 Left Pole Fixer for 39539 40 AF491 Left Back Frame for 39539 62

AF487 Metal Shelf Support for 39539 19 71077 Right Pole Fixer for 39539 41 AF492 Right Back Frame for 39539 63

AG709 Top Glass Shelf for 39539 20 71123 Digital Control for 39539 42 AF493 Bottom Back Frame for 39539 64

64745 Arc Glass for 39539 21 71079 Thermostat Lid for 39539 43

71103 Left Side Glass for 39539 22 71080 Switch for 39539 44

Swivel Front Castor without Brake for 39539

2 71153 Shelf Holder for 39539 24 71082 Thermostat Base for 39539 46

12

Model RS-CN-0370 40519

Parts Breakdown

13

Parts Breakdown

Model RS-CN-0370 40519

Item No. Description Position Item No. Description Position Item No. Description Position

71042 Rear Swivel Caster with Brake for 40519 1 71103 Left Side Glass for 40519 22 71079 Thermostat Lid for 40519 43

79763

68206 Base for 40519 3 64751 #2 LED Transformer for 40519 23-2 71081 Evaporator Motor for 40519 45

68225 Right Cover for 40519 4 71164 Left Pole Cover for 40519 24 71082 Thermostat Base for 40519 46

AF494 Front Cover for 40519 5 71153 Shelf Holder for 40519 25 71126 Evaporator Cover for 40519 47

68226 Left Cover for 40519 6 71062 Right Side Glass for 40519 26 71127 Evaporator for 40519 48

71094 Evaporator Insulation for 40519 7 71104 Upper Front Frame for 40519 27 68198 Power Cord for 40519 49

68208 Bottom LED for 40519 8-1 71165 Bottom Frame for 40519 28 71129 Rear Frame for 40519 50

64750 #4 LED Transformer for 40519 8-2, 13-2 71065 Right Pole for 40519 29 71130 Back Grill for 40519 51

AF495 Front Glass Fixer for 40519 9 7 1110 Door Handle for 40519 30 71089 Water Tray for 40519 52

68272 Left Glass Fixer for 40519 10 AF488 Left Doorframe for 40519 31 71133 Power Cord Fixer for 40519 53

68271 Right Glass Fixer for 40519 11 71111 Upper Door Frame for 40519 32 71083 Dryer Filter for 40519 54

68172 Bottom Shelf Holder for 40519 12 64880 Right Side Glass for 40519 33 77434 Control Panel for 40519 55

71149 LED Lighter for 40519 13-1 7 1113 Right Door Frame for 40519 34 71135 Condenser for 40519 56

71150 Price Tags for 40519 14 7 1114 Door Glide Wheel for 40519 35 71136 Fan Bracket for 40519 57

68211 Left Bottom Shelf Holder for 40519 15 71167 Bottom Door Frame for 40519 36 71137 Condenser Motor for 40519 58

71100 Bottom Glass Shelf for 40519 16 7111 9 Inlet and Outlet for 40519 37 68199 Compressor for 40519 59

68175 Right Top Shelf Holder for 40519 17 AD842 Bottom Glass for 40519 38 AF497 Top Back Frame for 40519 60

68177 Left Top Shelf Holder for 40519 18 71121 Screw Cover for 40519 39 AF491 Left Back Frame for 40519 61

64749 Metal Shelf Support for 40519 19 71171 Left Pole Fixer for 40519 40 AF492 Right Back Frame for 40519 62

71105 Top Glass Shelf for 40519 20 71077 Right Pole Fixer for 40519 41 AF498 Bottom Back Frame for 40519 63

71102 Arc Front Glass for 40519 21 71123 Digital Control for 40519 42

Swivel Front Caster without Brake for 40519

2 AF496 Top LED for 40519 23-1 71080 Switch for 40519 44

14

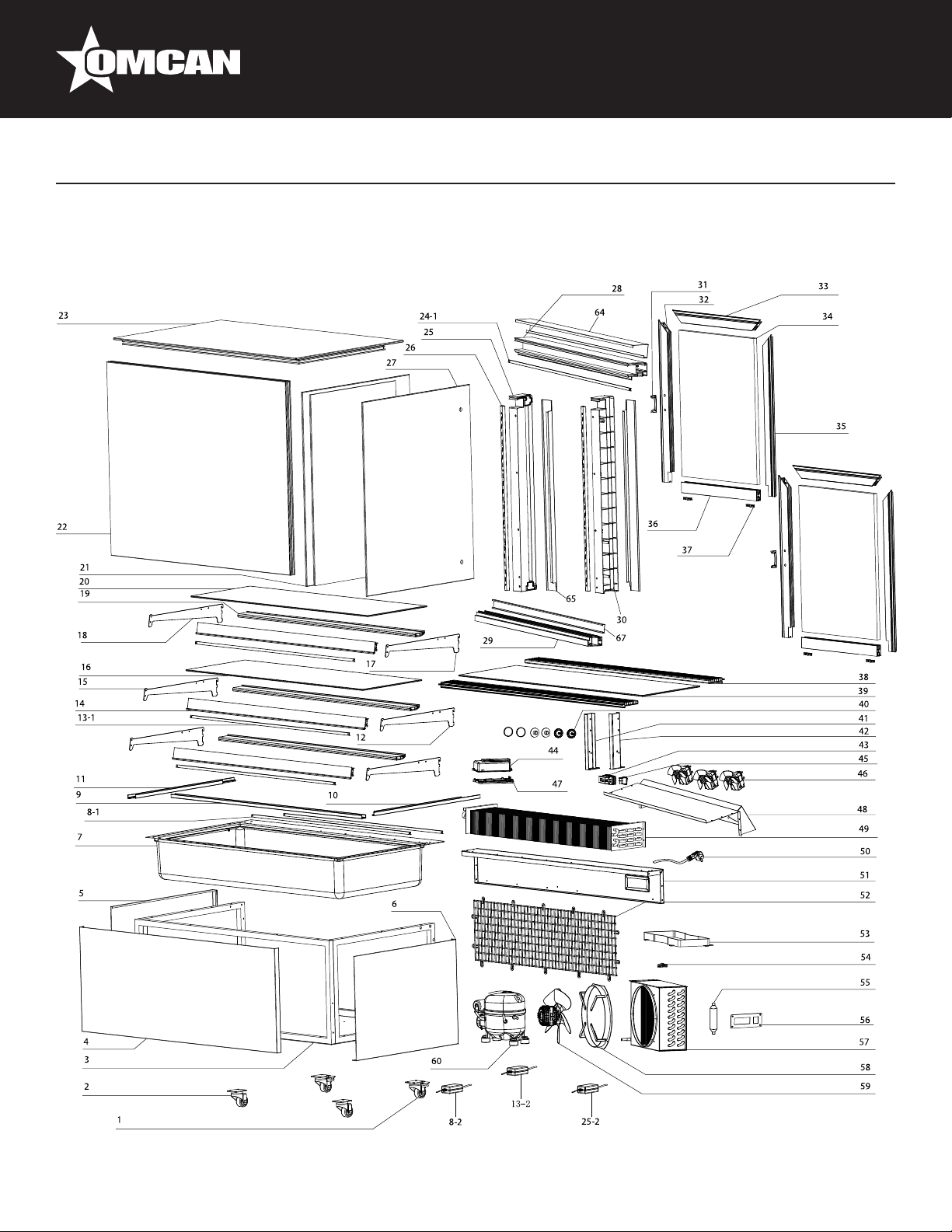

Model RS-CN-0370-S 39540

Parts Breakdown

15

Parts Breakdown

Model RS-CN-0370-S 39540

Item No. Description Position Item No. Description Position Item No. Description Position

71042 Rear Swivel Caster with Brake for 39540 1 79762 Front Upper Beam for 39540 23 71079 Thermostat Lid for 39540 45

79763

68206 Base for 39540 3 AF496 Top LED for 39540 25-1 71081 Evaporator Motor for 39540 47

68207 Front Cover for 39540 4 64751 #2 LED Transformer for 39540 25-2 71082 Thermostat Base for 39540 48

68167 Left Cover for 39540 5 68184 Left Pole for 39540 26 68227 Evaporator Cover for 39540 49

68164 Right Cover for 39540 6 68185 Shelf Holder for 39540 27 71127 Evaporator for 39540 50

71094 Evaporator Insulation for 39540 7 68205 Right Glass for 39540 28 71085 Power Cord for 39540 51

68208 Bottom LED for 39540 8-1 68217 Top Frame for 39540 29 71129 Rear Frame for 39540 52

64750 #4 LED Transformer for 39540 8-2, 13-2 68218 Bottom Frame for 39540 30 71130 Back Grill for 39540 53

68209 Front Glass Fixer for 39540 9 68189 Right Pole for 39540 31 71089 Water Tray for 39540 54

68171 Left Glass Fixer for 39540 10 71110 Door Handle for 39540 32 71133 Power Cord Fixer for 39540 55

68170 Right Glass Fixer for 39540 11 68190 Left Door Frame for 39540 33 71083 Dryer Filter for 39540 56

68172 Bottom Shelf Holder for 39540 12 71111 Upper Door Frame for 39540 34 77434 Control Panel for 39540 57

71149 LED Lighter for 39540 13-1 AF500 Door Glass for 39540 35 71135 Condenser for 39540 58

68210 Metal Price Tags for 39540 14 68192 Right Door Frame for 39540 36 71136 Fan Bracket for 39540 59

68211 Left Bottom Shelf Holder for 39540 15 71167 Bottom Door Frame for 39540 37 71137 Condenser Motor for 39540 60

68212 Bottom Glass Shelf for 39540 16 7111 4 Door Glide Wheel for 39540 38 68199 Compressor for 39540 61

68175 Right Top Shelf Holder for 39540 17 68219 Air In/Outlet for 39540 39 AF501 Top Back Frame for 39540 62

68177 Left Top Shelf Holder for 39540 18 AD842 Bottom Glass for 39540 40 AF502 Left Back Frame for 39540 63

68213 Metal Shelf Support for 39540 19 71121 Screw Cover for 39540 41 AF503 Right Back Frame for 39540 64

68214 Top Glass Shelf for 39540 20 68194 Pole Fixer Left for 39540 42 AF504 Bottom Back Frame for 39540 65

68200 Left Glass for 39540 21 68195 Pole Fixer Right for 39540 43

68223 Front Glass for 39540 22 71123 Digital Control for 39540 44

Swivel Front Caster without Brake for 39540

2 AF499 Top Glass for 39540 24 71080 Switch for 39540 46

16

Model RS-CN-0470 47105

Parts Breakdown

17

Parts Breakdown

Model RS-CN-0470 47105

Item No. Description Position Item No. Description Position Item No. Description Position

71042 Rear Swivel Caster with Brake for 47105 1 AG490 Top Glass Shelf for 47105 22 71123 Digital Control for 47105 44

79763

68228 Base for 47105 3 AG491 Arc Glass for 47105 24 71082 Thermostat Base for 47105 46

AG485 Front Cover for 47105 4 68242 Top LED for 47105 26-1 68196 Switch for 47105 47

68225 Right Cover for 47105 5 AG588 #6 LED Driver for 47105 26-2 71081 Evaporator Motor for 47105 48

68226 Left Cover for 47105 6 AG492 Top Frame for 47105 27 68255 Evaporator Cover for 47105 49

68230 Left Blister Barrel Fixing Plate for 47105 7, 8 71153 Shelf Holder for 47105 28 71127 Evaporator for 47105 50

68232 Evaporator Insulation for 47105 9 71164 Left Pole Cover for 47105 29 AF489 Power Cord for 47105 51

68208 Bottom LED for 47105 10-1 71110 Door Handle for 47105 30 68249 Rear Frame for 47105 52

68222 #4 LED Driver for 47105 10-2 AF488 Left Doorframe for 47105 31 68250 Back Grill for 47105 53

AG486 Front Glass Fixer for 47105 11 AF514 Top Door Frame for 47105 32 71089 Water Tray for 47105 54

68272 Left Glass Fixer for 47105 12 68244 Door Glass for 47105 33 71133 Power Cord Fixer for 47105 55

68271 Right Glass Fixer for 47105 13 7111 3 Right Door Frame for 47105 34 71083 Dryer Filter for 47105 56

68172 Right Bottom Shelf Holder for 47105 14 7111 4 Door Glide Wheel for 47105 35 77434 Control Panel for 47105 57

68234 Middle LED for 47105 15-1 68245 Bottom Door Frame for 47105 36 71135 Condenser for 47105 58

68235 #2 LED Driver for 47105 15-2 AG494 Bottom Frame for 47105 37 71136 Fan Bracket for 47105 59

AG487 Metal Price Tags for 47105 16 71065 Right Pole for 47105 38 71137 Condenser Motor for 47105 60

68211 Left Bottom Shelf Holder for 47105 17 68247 Air In/Outlet for 47105 39 68199 Compressor for 47105 61

AG488 Bottom Glass Shelf for 47105 18 AF516 Bottom Black Glass Frame for 47105 40 AG495 Top Back Frame for 47105 62

68175 Right Top Shelf Holder for 47105 19 71121 Screw Cover for 47105 41 AF491 Left Back Frame for 47105 63

68177 Left Top Shelf Holder for 47105 20 71171 Left Pole Fixer for 47105 42 AF492 Right Back Frame for 47105 64

AG489 Metal Shelf Support for 47105 21 71077 Right Pole Fixer for 47105 43 AG496 Bottom Back Frame for 47105 65

Swivel Front Castor without Brake for 47105

2 71103 Left Side Glass for 47105 23, 25 71079 Thermostat Lid for 47105 45

18

Model RS-CN-0270 39539 Model RS-CN-0370 40519 Model RS-CN-0370-S 39540

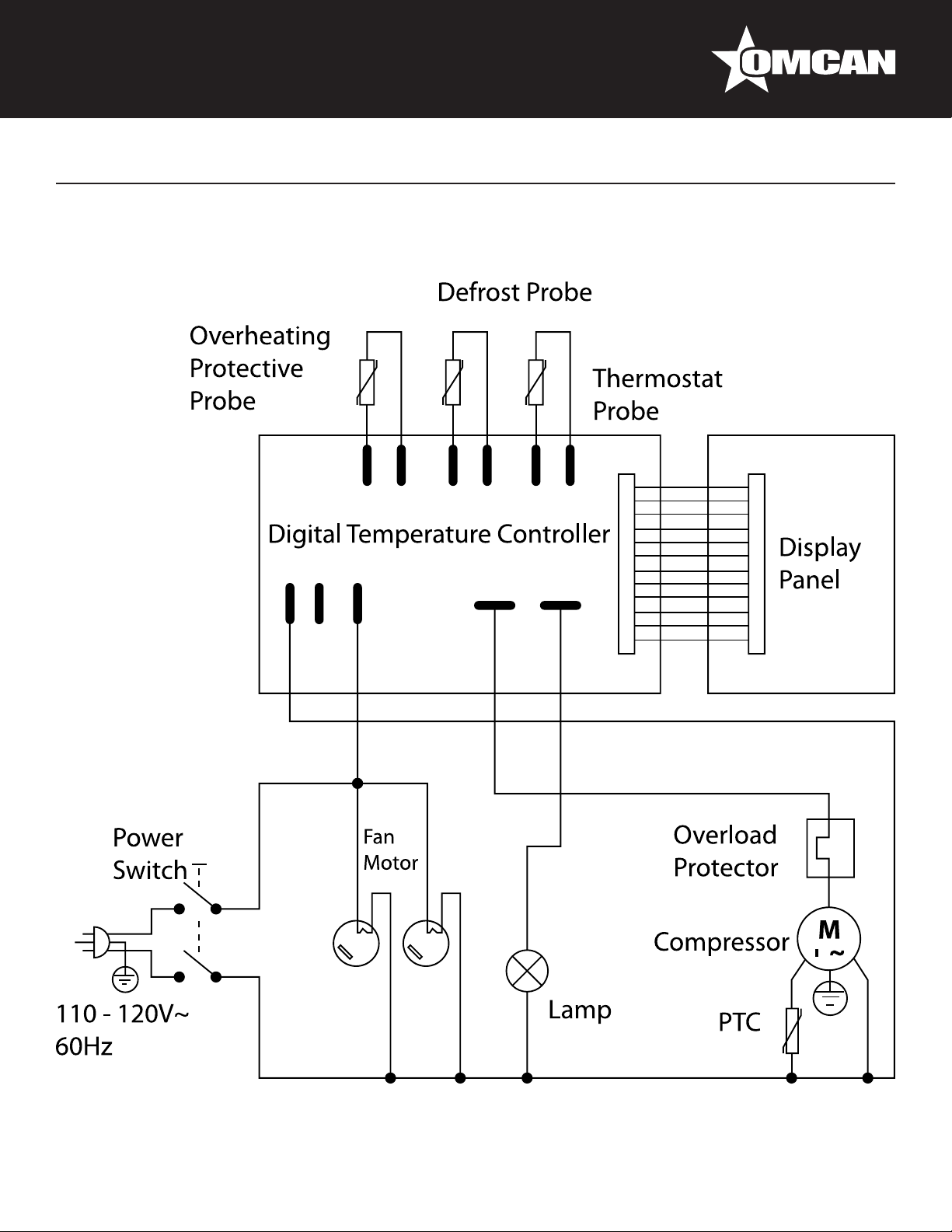

Electrical Schematics

19

Electrical Schematics

Model RS-CN-0470 47105

20

Notes

________________________________________________________________________________________

21

Notes

________________________________________________________________________________________

22

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at the perforation and then send to the address specied below. You can also register online by visiting:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación, cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

https://omcan.com/warranty-registration/

For mailing in Canada

Pour postale au Canada

Por correo en Canadá

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

For mailing in the US

Pour di󰀨usion aux États-Unis

Por correo en los EE.UU.

OMCAN

Niagara Falls, New York

USA, 14305

or email to: [email protected]



Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

23

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers. Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 5,000 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un fácil acceso a más de 5,000 productos con origen a nivel mundial.
