Omcan 13654 Instruction Manual

Belt-Driven Slicer

Model MS-IT-0300-A

Item 13654

Instruction Manual

Revised - 06/26/2017

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: service@omcan.com

www.omcan.com

Table of Contents

Model MS-IT-0300-A

Section

General Information

Safety and Warranty

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

Technical Specications

Installation

Operation

Maintenance

--------------------------------------------------------------------------------------- 6 - 7

----------------------------------------------------------------------------------------- 7 - 8

----------------------------------------------------------------------------------- 8 - 11

Page

-------------------------------------------------------------------------- 6

Troubleshooting

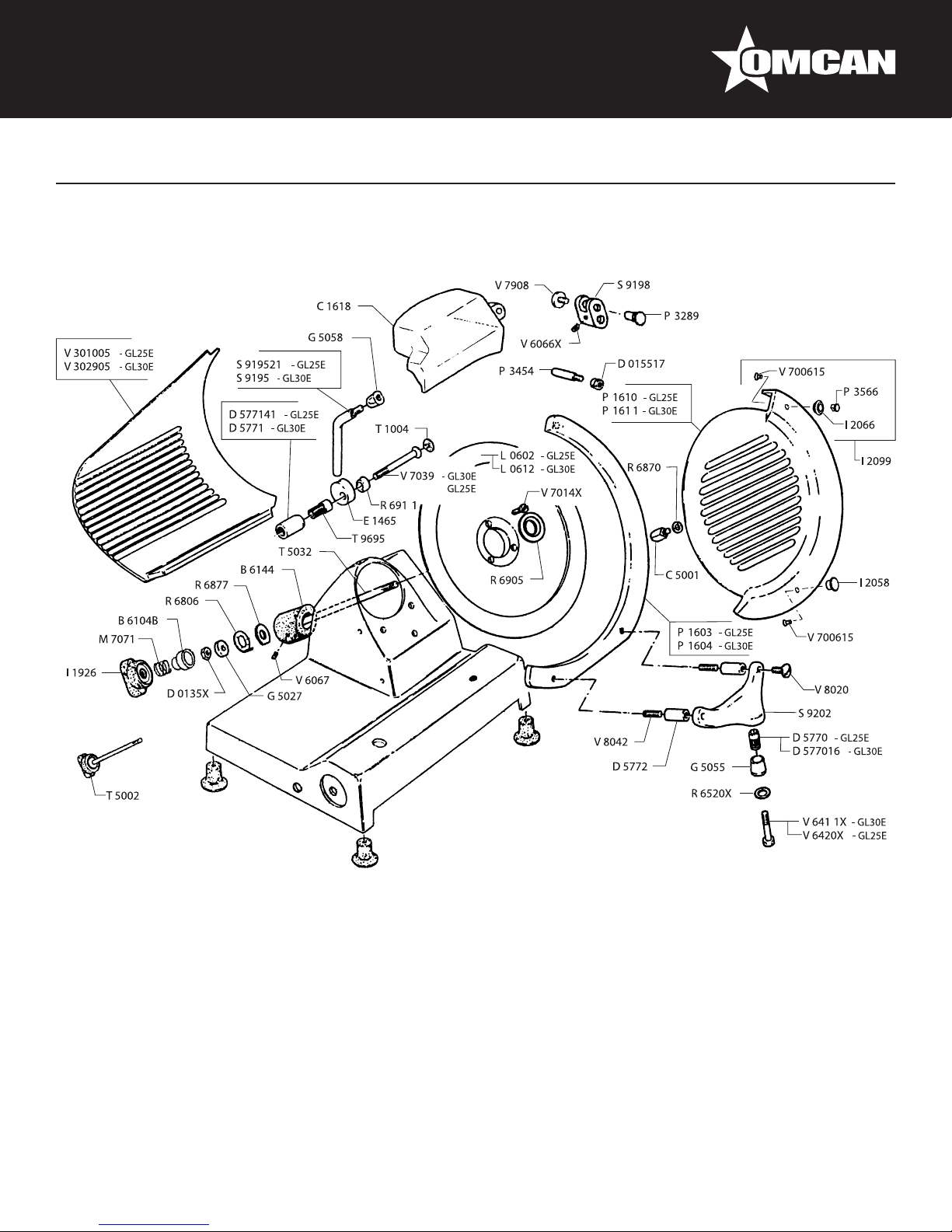

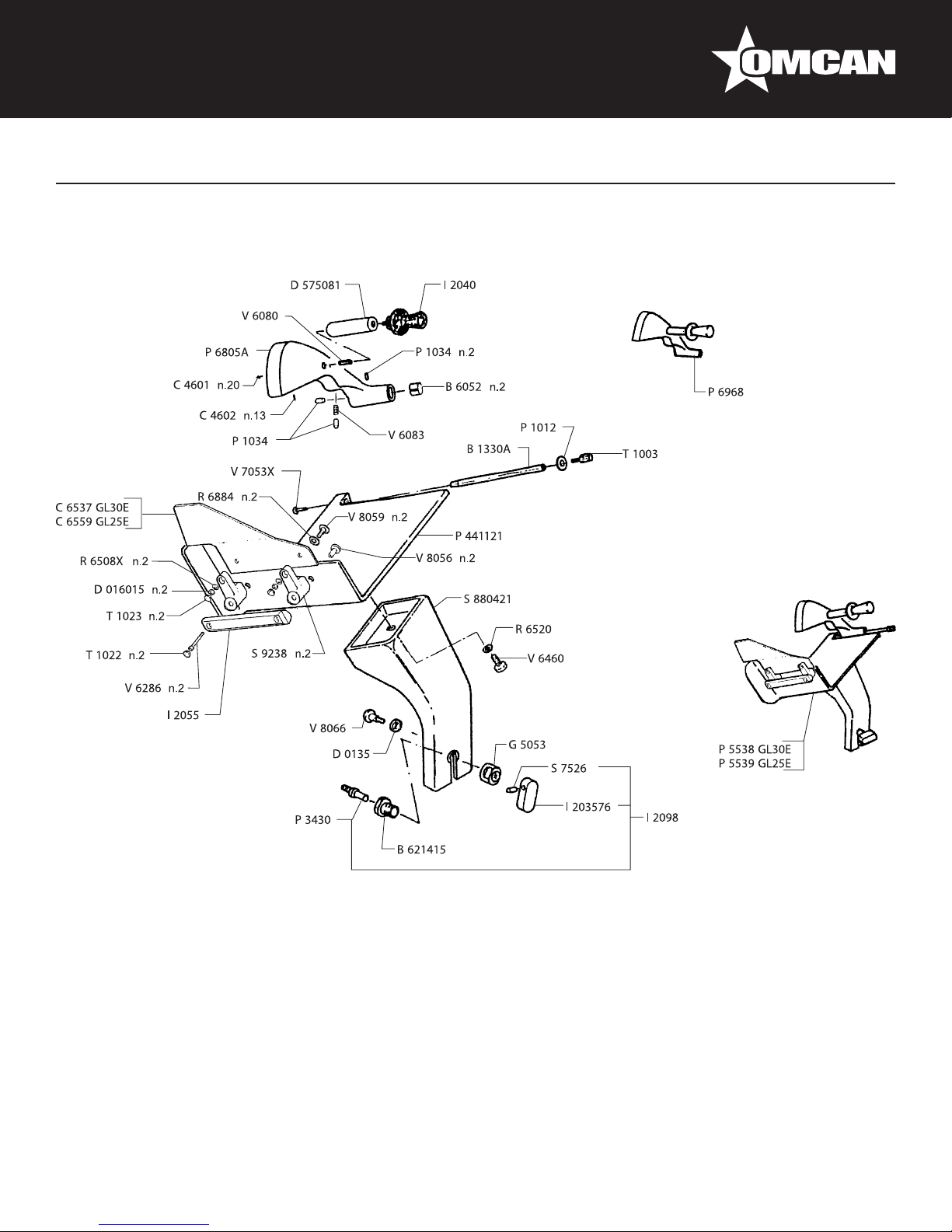

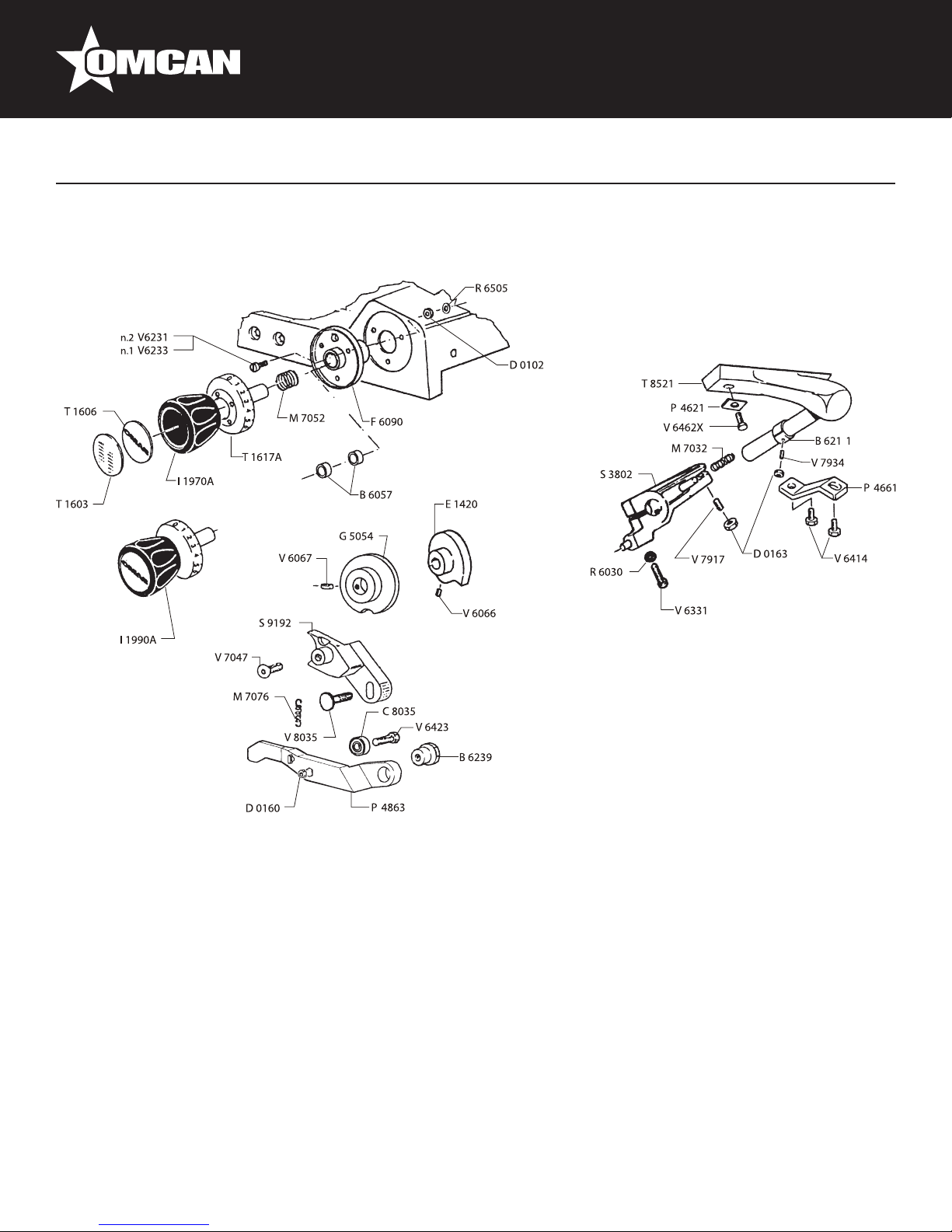

Parts Breakdown

Electrical Schematics

Notes

------------------------------------------------------------------------------------------- 25 - 26

Warranty Registration

----------------------------------------------------------------------------- 11 - 12

---------------------------------------------------------------------------- 12 - 23

---------------------------------------------------------------------------- 24

---------------------------------------------------------------------------- 27

2

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

--------------------------------------------------------------------------------------------------------------------------------------------------Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

3

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

--------------------------------------------------------------------------------------------------------------------------------------------------Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre leer y familiarizarse con todas las instrucciones de operación y seguridad.

Omcan quisiera darles las gracias por la compra de esta máquina. Es de la máxima importancia para guardar estas instrucciones para referencias en el futuro. También guarde la caja original y el embalaje

para envío del equipo si el mantenimiento o la devolución de la máquina es necesaria.

Safety and Warranty

MECHANICAL SAFETY DEVICES

The slicer is manufactured according to the EEC 2006/42 Machinery Directive.

The mechanical safety devices are the following:

• Product holder removable only with the slice thickness control on zero (slice thickness plate positioned to protect the blade). After removing the product holder the slice thickness plate is mechanically clamped.

4

Safety and Warranty

• Protection devices mounted on the product holder to prevent the operator from any accidental contact with the blade.

• Blade guard. This xed ring protects that part of the blade which is not used for the cutting operation.

• A special mechanical safety device to sharpen the blade keeping the ngers of the operator away from the

cutting edge of the blade.

ELECTRICAL SAFETY DEVICES

The electrical safety devices in accordance with the EN 60204 standards are the following:

• Start and stop push buttons.

• Control circuit provided with electric servo-control; in any case of blade clamping the machine must be

restarted manually.

• Safety device to stop the rotation of the blade if the clamping handle of the blade guard is released.

WARNING

When the machine is not used:

• Make sure that it is off.

• Re-position the slice thickness control to zero.

Do not remove the labels placed on the machine and replace them if damaged.

1 YEAR PARTS AND LABOUR WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

5

Technical Specications

Model MS-IT-0300-A Blade Size 12” / 300mm Power 0.5 HP / 0.37kW (x2)

Cheese Slicing Slicing Volume* 8 hours or more RPM 200

Cutting Size 8.85” x 8.66” / 225 x 220mm Cut Thickness 0” - 0.6” / 0 - 14mm

Electrical 120V / 60 / 1 Weight 90.2 lbs. / 41 kgs. Dimensions 25.2” x 21.7” x 20.9” / 640 x 550 x 530mm Item Number 13654

*Results may vary due to product consistency and temperature

Installation

The slicer must be mounted horizontally on a stable, robust and antiskid base adequate to support its weight.

The suggested height of the working table is of about 800mm. It must be checked that the product holder is not clamped and the product to be cut can be easily loaded.

WARNING: To prevent the risk of crushing hazard, locate the machine in a manner that allows a clear space between the moving table and any permanent structure.

PRELIMINARY CLEANING

Before connecting the plug clean off the protective oil from the machine.

WARNING

The working table must always be cleaned.

ELECTRICAL SUPPLY

The machine must be installed in the proximity of a mains socket. Check that the power supply voltage

corresponds to that described on the information label and that it is connected to an adequate earth.

1. Connect the plug.

2. Check that the blade cover fastener handle is tight screwed.

3. Check that the blade sharpener is lowered and the protective cover is closed.

MANUAL FUNCTIONING

1. Press push button blade start.

6

Installation

AUTOMATIC FUNCTIONING

1. See manual functioning.

2. Press push button carriage start.

SLICER FUNCTIONING AND USE

The following products can be sliced: sausages, ham, cheese, bread. If large quantities of bread or cheese are usually cut it is advisable to mount a teon coating.

WARNING

The following cannot be sliced:

• Not-eatable products.

• Foodstuffs with bones.

• Frozen products.

AUTOMATIC FUNCTIONING

Rotate the carriage release handle in a counterclockwise direction by 180°. With the automatic functioning it is possible to change the cut stroke length to adapt it to the dimensions of the product to be cut. Rotate the product holder stroke adjustment knob respectively in a clockwise or counterclockwise direction to lengthen or shorten the product holder stroke. Irrespective of the selected stroke, the product holder always stops in product load position (operator’s side) by pressing the product holder stop push button. The machine is supplied with two self-contained motors: one for the blade and another for the product holder to better adjust its stroke. By separating the two functions a more precise cut can be obtained.

MANUAL FUNCTIONING

Rotate the product holder release handle in a clockwise direction by 180°.

Operation

HOW TO LOAD THE PRODUCT TO BE CUT

1. Check that the slicer is off and position the slice thickness control to zero.

2. Push the product holder towards the operator.

3. Lift and rotate the product pusher: the pusher can fall back, this is normal.

4. Place the product to be cut against the wall of the product holder and the slice thickness plate.

5. Position the product pusher on the product to be cut far from the slice thickness plate. The product is fed to the slice thickness plate by gravity making the cut easier.

6. Rotate the slice thickness control to the thickness desired.

AUTOMATIC FUNCTIONING

1. Rotate the carriage release handle in a counterclockwise direction by 180°.

2. Press push button start blade.

7

Operation

3. Press push button start the product holder.

4. To select the most suitable carriage stroke according to the dimensions of the product to be cut, rotate the carriage stroke adjustment knob respectively in a clockwise or counterclockwise direction to lengthen or shorten the stroke.

DANGER

Do not touch the carriage or the product holder when the machine is working.

After completing the cutting operation, press push button stop the product holder. The blade remains in operation whereas the product holder is fed to the stroke end where it stops towards the operator ready to start a new cutting cycle.

By pressing push button stop the blade, the product holder stops in its working position.

MANUAL FUNCTIONING

1. Rotate the carriage release handle in a clockwise direction by 180°.

2. Press push button to start the blade.

3. With constant speed, according to the product to be sliced features, you can push the product holder tray to its end stroke in blade direction. You can then return in the operator position and repeat this operation.

After cutting the product, reposition the product holder towards the operator. By pressing push button stop blade the rotation of the blade stops. Re-position the slice thickness control to zero and unload the product.

Maintenance

BLADE SHARPENING

Whenever the cut is not satisfactory, sharpen the blade. The time interval between a sharpening and the following depends on the intensity of use of the slicer and on the kind of food you cut. Replace the blade when the diameter becomes 10mm less than the nominal diameter. For the replacement, ask the assistant service closest to you.

WARNING The replacement of the blade is dangerous operation. Should the sharpening quality be not satisfactory, replace the stones by contacting Omcan.

SHARPENING OPERATION

DANGER The sharpening operation must be performed during the manual functioning.

8

Maintenance

For a correct sharpening of the blade follow these instructions:

1. Clean the blade removing any greasy residue.

2. Make sure that the machine is off.

3. Rotate the slice thickness control to zero to make sure that the blade is covered by the slice thickness plate.

IMPORTANT

During the following operations the blade must always be covered by the removable protection.

4. Lift the sharpener cover.

5. Slip off completely the sharpener and spin it 180 degrees.

6. Replace the sharpener device.

7. Push the push button blade start to start the machine.

8. Sharpening: Press the sharpening wheel for about 10-15 seconds. Then press simultaneously also the grinding stone for two seconds. Contemporaneously loosen the two grind stones. The sharpening and honing take place then simultaneously.

ATTENTION: for a suitable effect please execute sharpening for 10-15 seconds approx.

9. After sharpening press the blade stop push button.

10. Lift and rotate 180 degrees the sharpener and reallocate it into its initial position. Loosen the handle rotating it clockwise to block the sharpener. Lower the sharpener cover.

CLEANING OF THE GRINDING WHEELS

To obtain an excellent sharpening the grinding wheel must always be clean. Remove dirt and grease with alcohol and the supplied special brush. Be sure to clean and sanitize the blade after sharpening.

MAINTENANCE

All cleaning and maintenance operations must only be carried out with the machine disconnected and isolated from the mains supply and the slice thickness control on zero.

CONTROL OF THE AIR GRATING

An air grating for the motors ventilation is placed in the lower side of the machine. Keep the section-holes free and clean them with a brush at regular intervals.

CHECK OF THE ELECTRIC CABLE

It is recommended to check the wear of the electric cable at regular intervals.

9

Maintenance

SPARE PARTS

In the event that replacement parts need to be tted, request only original spare parts.

CLEANING

The machine must be cleaned once a day or more frequently if necessary. Clean all the parts using a cloth sprinkled with water and washing up liquid (do not use strong detergents) and a brush.

WARNING

Do not use water jet

DANGER

During the cleaning operations take great care: danger of accident.

COMPONENTS REMOVAL

PRODUCT HOLDER

1. Loose the product holder by rotating the product holder clamping handle in a counterclockwise direction.

2. Position to zero the slice thickness control to remove the product holder.

3. Push the product holder towards the operator until it clicks. The click will inform the operator that the product holder is clamped.

4. Lift the last slice device from the guide bar.

5. Lift the product holder from the carriage.

IMPORTANT

The slice thickness control is clamped on zero.

BLADE COVER

1. Rotate the slice deector and keep it away from the blade.

2. Loose the blade cover fastener handle by rotating it in a counterclockwise direction.

3. Push on the handle in the direction indicated by the arrow to lift the blade cover from the blade.

4. Lift the blade cover.

ATTENTION

Once removed the blade cover, an interlocking device stops the rotation of the blade.

DANGER

During the cleaning operations of the blade, pay attention to an accidental contact with it.

5. Press a damp cloth on the front side of the blade and move slowly from the center towards the edge in the direction of the arrow.

6. Follow these instructions to clean the back side of the blade.

7. With a cloth dry both sides of the blade following this procedure.

8. Insert a damp cloth between the blade and the protection ring. Pull it outwards and rotate it to clean the

10

Maintenance

internal side of the protection ring.

9. After cleaning re-position the blade cover, insert the fastener and screw in a clockwise direction to clamp the blade cover. Lower the sharpener protective cover.

IMPORTANT

Leave all the parts to soak in warm water and washing-up liquid (do not use strong detergents) and clean them

by using a brush or a cloth. Rinse them in warm water and dry them.

To assemble the machine follow the reverse procedure as described for disassembly.

GUIDES LUBRICATION

This operation must be performed after cleaning the slicer or whenever the sliding is difcult. Use food safe oil

only.

LUBRICATION OF THE GUIDE BAR OF THE LAST SLICE DEVICE

1. Drop a small amount of food grade oil on the bar.

2. Let the last slice device slide on the guide bar.

LUBRICATION OF THE GUIDE BAR OF THE PRODUCT HOLDER CARRIAGE

1. Push the product holder towards the operator.

2. Pour the food grade lubricating oil into the special carriage bar lubricator.

3. Push the product holder to and from and repeat the operation. Re-position it towards the operator.

Troubleshooting

PROBLEM CORRECTIVE ACTION

The machine vibrates, overheats and emits a foul smell.

The blade cannot be sharpened any longer. The sharpening is no regular.

On pushing the start push button the machine does not start.

The carriage and the last slice

device run with difculty.

Stop it immediately and check that the voltage corresponds to that described on the rating label.

Clean the grinding wheels of the sharpener and check the wear of the blade.

Check if power missing. Check the safety devices.

Lubricate the guide bars.

11

Troubleshooting

REFERENCE

Item Number Model Number Description Manufacturer Model Number

Meat Slicer Belt Driven Automatic

13654 MS-IT-0300-A

12” / 300mm Blade 2 x 0.5 HP / 2 x 373W

110V/60/1 NSF cETLus

GLMATIC30F

Parts Breakdown

Model MS-IT-0300-A 13654 Motor Assembly

12

Parts Breakdown

Model MS-IT-0300-A 13654 Body

13

Parts Breakdown

Model MS-IT-0300-A 13654 Track Assembly

14

Parts Breakdown

Model MS-IT-0300-A 13654 Electrical Components

15

Parts Breakdown

Model MS-IT-0300-A 13654 Blade Assembly

16

Parts Breakdown

Model MS-IT-0300-A 13654 Thickness Controls

17

Parts Breakdown

Model MS-IT-0300-A 13654 Product Slider Assembly

18

Parts Breakdown

Model MS-IT-0300-A 13654 Sharpening Assembly

19

Parts Breakdown

Model MS-IT-0300-A 13654

Item No. Description Position Item No. Description Position Item No. Description Position

36533 Sharpener Assembly for GLMATIC30F A1027 17317 Pin 11 for GLMATIC30F C4602 36667

36534

17280 Ring EL Benzing 5 for GLMATIC30F A5404 36602 Driving Belt 330x10 for GLMATIC30F C4813 36671 Unhook Spring Spacer for GLMATIC30F D5806

36536

19606 Ring 17 for GLMATIC30F A5446 17320 Bolt VS for GLMATIC30F C5001 36674 Spacer Basamento for GLMATIC30F D5851

36541 Ring EL Seeger INT.35 for GLMATIC30F A5470 36608 Capacitor 8 MF 400V for GLMATIC30F C5806A 36641

19174 Ring for GLMATIC30F A5475 16913 Capacitor 14 MF 400V for GLMATIC30F C5812 36644

17289 Pulley Ring VS220/250 for GLMATIC30F A5905 19530 Safety Guard for GLMATIC30F C6537 36659

36543 Pulley Cover Ring for GLMATIC30F A5910 36619 Belt Cover for GLMATIC30F C6583 36663 Locknut Pacer for GLMATIC30F D577016

36551 Shock Absorber Rod for GLMATIC30F B1270 36625 Cover Lato Carriage for GLMATIC30F C6784 77519 Spacer Eccentrico for GLMATIC30F D577141

36553 Rod Carriage for GLMATIC30F B1317 17329 Pusher Cover Red for GLMATIC30F C6792 36675 Cam Carriage for GLMATIC30F E1409A

17294 Rod for GLMATIC30F B1330A 36629

19506 Carriage Rod for GLMATIC30F B1360 16920

36555 Belt Bracket for GLMATIC30F B5032 19540 Bearing 12x32x10 for GLMATIC30F C8015 36678

19510 Hangover Bracket for GLMATIC30F B5033 17335

16923

17303 Bushing DU 12x14x15 for GLMATIC30F B6052 16926

17305 Bushing DU 18x20x15 for GLMATIC30F B6057 36626 Green Switch Cap for GLMATIC30F C679201 36691 Ring for Bushing for GLMATIC30F G5053

19630 Bushing Fastener HBC for GLMATIC30F B6104B 19638 Nut M4 for GLMATIC30F D0102 36692 Ring for Cam for GLMATIC30F G5054

36558 Ext. Bushing for GLMATIC30F B6144 16928 Nut U5589 M6 for GLMATIC30F D0133 36695 Ring Support Cap for GLMATIC30F G5055

36559 Bushing Support Switch for GLMATIC30F B6155 36636

36562 Knife Fastener Bushing for GLMATIC30F B6192 77536 Nut U5589 M8 for GLMATIC30F D0135 17356 Fastener Handle H-L-C for GLMATIC30F I1926

17312 Bushing 22x25x20 for GLMATIC30F B6211 36637

36568 DU Bushing 6x8x6 for GLMATIC30F B6224 36643 Nut U5588 M5 for GLMATIC30F D0160 36705 Adjustment Knob for GLMATIC30F I1970A

36569 Fixing Lever Bushing for GLMATIC30F B6239 19644 Nut M6 for GLMATIC30F D0163 36708 Assembly Index Knob for GLMATIC30F I1990A

36561 Fastener Nut 18x62 for GLMATIC30F B617701 36647 Nut U5588 M8 for GLMATIC30F D0165 17363 End Grip Handle for GLMATIC30F I2040

36565

36583 Sharpener Cover for GLMATIC30F C1614 36658 EL Box Spacer for GLMATIC30F D5715 36714 Blade Cover Handling for GLMATIC30F I2058

36594 Cord Assembly for GLMATIC30F C3229 36660

36596

19633 Hinge Motor VS for GLMATIC30F C3633 36662 Spacer Supp. Capottina for GLMATIC30F D5769 36718

17316 Pin 8.5mm for GLMATIC30F C4601 36666 Spacer Eccentrico for GLMATIC30F D5771 17368 Hall Effect Switch 2P for GLMATIC30F I3646

Sharpener Body Assembly for GLMATIC30F

Ring EL Benzing 6 Stainless Steel for GLMATIC30F

Bushing 8x10x8 and Wheel Tray for GLMATIC30F

Bushing Support Plate lg.21mm for GLMATIC30F

Cavo Ass. Motor Lama (Fast) for GLMATIC30F

A1028 36601 Rivet 1.9x5 for GLMATIC30F C4640 36670

A5404X 36603 V Belt for GLMATIC30F C4814 36672

Bearing 2Z-6003 17x35x10 for GLMATIC30F

Bearing 2Z-6203 17x40x12 for GLMATIC30F

Bearing 2RS-6203 17x40x12 for GLMATIC30F

B6009 36630 Bearing 5x16x6.5 for GLMATIC30F C8035 17349 Handle Flange for GLMATIC30F F6090

Bearing 2RS-6000 (10x26x8) for GLMATIC30F

Nut U5589 M6 Stainless Steel for GLMATIC30F

Nut U5589 M8 Stainless Steel for GLMATIC30F

B621415 19645 Nut M10 for GLMATIC30F D0167 36713 Handle for Carriage for GLMATIC30F I2055

Spacer Supp. Resistenza LG.28mm for GLMATIC30F

C3261 36661

Carriage Shock Absorber Spacer for GLMATIC30F

C8006 17342 Cam 15mm for GLMATIC30F E1420

C8007 17344 Cam Motor for GLMATIC30F E1457

C8022 36684

C8067 36689

D0133X 36696 Blade Guard Nut for GLMATIC30F G5058

D0135X 17357 Deector Screw for GLMATIC30F I1942

D5760 36715 Blade Cover Knob for GLMATIC30F I2066

D5762 36717 Knob Assembly H-L for GLMATIC30F I2098

Spacer Ant. Anello Paralama GL2 for GLMATIC30F

Sharpener Support Spacer for GLMATIC30F

Spacer of Carriage Springs for GLMATIC30F

Nut for Grinder Cover Pivot for GLMATIC30F

U5588 M5 Stainless Steel Nut for GLMATIC30F

Hand Grip-Knob Spacer for GLMATIC30F

Excentric Supp. Knife Ring Prot. for GLMATIC30F

Clasp for Carriage 18x30x8 for GLMATIC30F

Stainless Steel Locknut M8 for GLMATIC30F

Knife Cover Assembly Knob for GLMATIC30F

D5772

D5777

D5819

D015517

D016015

D575081

E1465

F3019

G5027

I2099

20

Parts Breakdown

Model MS-IT-0300-A 13654

Item No. Description Position Item No. Description Position Item No. Description Position

17368 Hall Effect Switch 2P for GLMATIC30F I3646 17392

17369 Switch 4x20 for GLMATIC30F I3647 17403 Deector for GLMATIC30F P1134 36861 Pulley for GLMATIC30F P8053

17372 Switch On/Off for GLMATIC30F I3670 36771 Paralama Esterno for GLMATIC30F P1604 23485

31213 Sasety Switch for GLMATIC30F I3686 36772 Blade Cover for GLMATIC30F P1611 23486

19602 Switch for GLMATIC30F I3705 17415 Strain Relief for GLMATIC30F P2008 36864 Switch Pusher INT90 for GLMATIC30F P8605

19178

18220 Knob - Handling H-L-C for GLMATIC30F I203576 19820 Pin Coated Bearing for GLMATIC30F P3253A 36807 Carriage Product Table for GLMATIC30F P441121

36727 Knife 300mm for GLMATIC30F L0612 17423

36731 Lamp 220V for GLMATIC30F L1010 36786 Front Pulley Pin for GLMATIC30F P3302A 19656 Potentiometer for GLMATIC30F R4031

36732 Magnet 6x20 for GLMATIC30F M0802 36787 Pin Rear Pulley for GLMATIC30F P3303A 19661 Washer 8 for GLMATIC30F R6030

36735 Magnet 10x12x48 for GLMATIC30F M0810 36789 Pin Support Motor for GLMATIC30F P3353 36880 Washer U6592 3 for GLMATIC30F R6504

36736 Grinding Stone for GLMATIC30F M6601 36791 Pulley Pin for Knife for GLMATIC30F P3382 17455 Washer U6592 4 for GLMATIC30F R6505

36738 Grinding Stone 45x11x6 for GLMATIC30F M6615 36792 Pin Knife Pulley for GLMATIC30F P3391 17456 Washer U6592 5 for GLMATIC30F R6508

36740

36741

36743

36744

17380

19776 Spring 14x1.5x60 for GLMATIC30F M7032 19834 Guide Index Arm C for GLMATIC30F P4661 19672 Washer 17x23x5 for GLMATIC30F R6833

19782 Spring 19.5x1.5x16.7 for GLMATIC30F M7050 19835 Carriage Guide for GLMATIC30F P4675 16969 Washer 18.2x25x0.5 for GLMATIC30F R6840

17381 Spring 22 5x1 8x18 for GLMATIC30F M7052 36831 Flat for GLMATIC30F P4776 77540 Washer 6,2x14x0,6 for GLMATIC30F R6854

19250 Spring 24.8x1.8x15 for GLMATIC30F M7071 36832

36746 Spring 7x0.8x23 Cam for GLMATIC30F M7076 36833 Slide Rail 10x325x3 for GLMATIC30F P4817 16972 Washer 5.5x19x2.5 for GLMATIC30F R6884

36750

36753 Terminal Block AL17/2 for GLMATIC30F M8050 36836

36755

78271 Motor 220/50/1 for GLMATIC30F M8357 36840 Assembly Plate for GLMATIC30F P5538 17465 Ball 4.76 for GLMATIC30F S3015

19791 Oiler H-L-C for GLMATIC30F O4040 36851 Stud Handle for GLMATIC30F P7404 77541 Index Arm H-L-C for GLMATIC30F S3802

17386 Rubber Shock Absorber for GLMATIC30F P1001 36853 Cord Protection for GLMATIC30F P7851 36914

36759

36760

Printed Circuit Board (120V) for GLMATIC30F

Honing / Finishing Stone for GLMATIC30F

Spring 2.9x4x12 Stainless Steel for GLMATIC30F

Spring 9.9x0.7x7 Stainless Steel for GLMATIC30F

Spring 10.5x1x19 Stainless Steel for GLMATIC30F

Spring 13.4x1.3x30 Stainless Steel for GLMATIC30F

18.5x20.9x1.2 Bar Carriage Spring for GLMATIC30F

Terminal Block AL17-1/2 for GLMATIC30F

Rubber Shock Absorber 12x19x2 for GLMATIC30F

Pin Tray Shock-Absorber for GLMATIC30F

I166309 36777

M6622 36793 Pin Handle for GLMATIC30F P3430 36882

M7001 36797 Pivot Capottina LG.55 for GLMATIC30F P3454 36883

M7016 36802 Knob Blade Cover Shaft for GLMATIC30F P3566 16968 Washer U65928 for GLMATIC30F R6520

M7023 36804

M7030 19831 Gauge Plate Flat Bar for GLMATIC30F P4621 17458 Contact Washer for GLMATIC30F R6806

M7122 36835 Indexing Casting for GLMATIC30F P4863 36894

M8052 17437 Foot for GLMATIC30F P5017 36900 El. Box Sarel 356 for GLMATIC30F S1018

P1012 36855

P1025 36858 Reduction Pulley for GLMATIC30F P8006 36920 Pin 4x25 for GLMATIC30F S7526

Pl. Shock Absorber 8.5x20 for GLMATIC30F

Strain Relief Motor Cover for GLMATIC30F

Pivot Hinged Support O10x22 for GLMATIC30F

Pivot Ass. Mola Aflatrice for GLMATIC30F

Flat Support Terminal Block for GLMATIC30F

Flat Spacer Supp. Resisten for GLMATIC30F

PBC Insulating Protection for GLMATIC30F

P1034 36859 Motor Pulley for GLMATIC30F P8008

Switch Pusher Red Color for GLMATIC30F

Switch Pusher Green Color for GLMATIC30F

P2013 36761 Shock Absorber for GLMATIC30F P103401

P3289 36873 Resistor 50W 22 OHM for GLMATIC30F R4002

Washer U6592 5 Stainless Steel for GLMATIC30F

Washer U6592 6 Stainless Steel for GLMATIC30F

P3599 36884

P4787 19676 Washer for GLMATIC30F R6870

P4873 36895

P7925 19682 Pin 8x70 for GLMATIC30F S7523

Washer U6592 8 Stainless Steel for GLMATIC30F

Special Washer 17.2x40x2.2 for GLMATIC30F

Eccentric Washer Special for GLMATIC30F

Stainless Steel Pin 3x12 for GLMATIC30F

P8602

P8603

R6508X

R6512X

R6520X

R6905

R6911

S7512

21

Parts Breakdown

Model MS-IT-0300-A 13654

Item No. Description Position Item No. Description Position Item No. Description Position

36921

36922 Pin M.E.U6875 5x36 for GLMATIC30F S7539 36985 Label Plate for GLMATIC30F T1617A 37052

19686 Pin 3x8 for GLMATIC30F S7542 19883 Label Oil for GLMATIC30F T1690 77599

36927 Pin M.I.S1 D1471 6x20 for GLMATIC30F S7568 36988

36930 Pin M.E.U6873 3X22 for GLMATIC30F S7612 36990 Blade Cover Fastener for GLMATIC30F T5002 37054

36945 Carriage Pulley Bracket for GLMATIC30F S8907 36992 Belt Fastener 9" for GLMATIC30F T5022 19913 Screw M8x45 for GLMATIC30F V6331

36946 Bracket for GLMATIC30F S8910 19886 Blade Cover Fastener for GLMATIC30F T5032 37061

36953 Support Switch INT90 for GLMATIC30F S9049 36996 Knife Shaft Assembly for GLMATIC30F T8044 37063

36954 Support Switch INT90 for GLMATIC30F S9050 19902 Bracket for GLMATIC30F T8521 37065

36959 Bracket Magnet for GLMATIC30F S9112 37000 Plastic Bar L=25 for GLMATIC30F T9671 37067

36960 Switch Bracket for GLMATIC30F S9113 37001 Plastic L=147 for GLMATIC30F T9673 37071

36961 Bracket for GLMATIC30F S9134 37002 Tube for Electrics for GLMATIC30F T9695 16986

17482 Pusher Bracket for GLMATIC30F S9135 37012

36962 Support Terminal Block for GLMATIC30F S9148 37020 Screw M5x8 U5923 for GLMATIC30F V6028 37073

19181 Bracket Support for GLMATIC30F S9192 37023

36966

36969

36970

36972

36973

36974 Carriage Plexi Support for GLMATIC30F S9238 37035

78285 Fan Support for GLMATIC30F S9315 19699 Screw M4x25 for GLMATIC30F V6231 19717 Screw M6x50 for GLMATIC30F V7917

36935 Support Plate for GLMATIC30F S880421 37040

19877 Rubber Cap for GLMATIC30F T1001 37046

17483 Rubber Cap for GLMATIC30F T1003 19706 Screw for GLMATIC30F V6278 16987 Special Screw M6x15 for GLMATIC30F V8020

36981 Rubber Cap for GLMATIC30F T1004 37049

36982

Stainless Steel 4x7 Pin M.C for GLMATIC30F

Support Laterale Anello Paralama for GLMATIC30F

Sharpener Cover Support H-C for GLMATIC30F

Knife Cover Ring Support for GLMATIC30F

Sharpener Cover Support for GLMATIC30F

Support Micro Magnetico Eff.Hall for GLMATIC30F

Heyco Cap SP-468 Diam.12 for GLMATIC30F

S7527 36983 Rubber Cap Diam. 13.5 for GLMATIC30F T1023 37051

Targhetta Autoadesiva Comandi for GLMATIC30F

Fan 120x120x38 230V/50Hz for GLMATIC30F

Screw STEI U5929 M5x5 for GLMATIC30F

S9195 19691 Grub Screw M6x6 for GLMATIC30F V6066 17497

S9198 37024

S9202 19692 Screw M6x8 for GLMATIC30F V6067 17500

S9204 19695 Screw M10x30 for GLMATIC30F V6080 37082

S9230 37031

T1022 37050

Screw STEI U5929 M6x6 for GLMATIC30F

Screw STEI U5929 M8x16 for GLMATIC30F

Screw TC U6107 M5x10 for GLMATIC30F

Screw TCEI U5931 M8x20 for GLMATIC30F

Screw TC AUT.D7971 2.9x6.5 for GLMATIC30F

Screw TC AUT.D7971 4.2x22 for GLMATIC30F

Screw TC AUT.D7971 4.2x9 for GLMATIC30F

T1753 37053

V4012 37072

V6065 37074

V6066X 37081

V6083 17503 Screw M5x13 for GLMATIC30F V7908

V6210 17504 Screw H/L-C for GLMATIC30F V7915

V6253 19720 Screw M6 for GLMATIC30F V7934

V6274 37100 Carriage Screw for GLMATIC30F V8017

V6284 37102 Screw M6x20 for GLMATIC30F V8035

V6285 19920 Screw M8x30 for GLMATIC30F V8036

TCEI Screw 6x45 U5931 for GLMATIC30F

Screw TC AUT.U6951 4.2x16 for GLMATIC30F

Screw TC TC AUT.D7981 4,2x16 for GLMATIC30F

Screw AUT. U6954 3.9x25 for GLMATIC30F

Screw TBTC AUT.U6954 2.9x9.5 for GLMATIC30F

Screw TE U5739 M8x35 INOX for GLMATIC30F

Screw TE U5739 M6x12 for GLMATIC30F

Screw TE U5737 M8x50 for GLMATIC30F

Screw TE U5739 M5x20 for GLMATIC30F

Screw TE U5739 M6x10 Stainless Steel for GLMATIC30F

Screw TE U5739 M8x20 for GLMATIC30F

Screw TE U5739 M8x20 Stainless Steel for GLMATIC30F

Screw TE U5739 M8x25 Stainless Steel for GLMATIC30F

Screw TE U5739 M8x30 Stainless Steel for GLMATIC30F

Screw TSP U6109 M5x15 Stainless Steel for GLMATIC30F

Screw TSPEI U5933 M8x80 INOX for GLMATIC30F

Stainless Steel Screw TSPEI U5933 M8x30 for GLMATIC30F

Screw TSPEI U5933 M6x15 for GLMATIC30F

V6286

V6291

V6292

V6293

V6301

V6411X

V6414

V6420X

V6423

V6450X

V6460

V6460X

V6461X

V6462X

V7014X

V7039

V7053X

V7047

22

Parts Breakdown

Model MS-IT-0300-A 13654

Item No. Description Position Item No. Description Position Item No. Description Position

37103 Screw M5x15 for GLMATIC30F V8038 37108

37104 Threaded Stud for GLMATIC30F V8042 19726 Screw M5x21 for GLMATIC30F V8059 37041

37105

37106

37107

Screw TTQST M5x25 U5732 INOX for GLMATIC30F

Stainless Steel Switch Screw M5x10 for GLMATIC30F

Stainless Steel Screw M 6x30 for GLMATIC30F

V8047 37109

V8048 37112

V8052 37003 Aluminum Gauge-Plate for GLMATIC30F V302905 37085 Screw 8x25 for GLMATIC30F V705616

Special Fixed End Screw M6x17 for GLMATIC30F

Screw TTQST M8x25 U5732 INOX for GLMATIC30F

Stainless Steel Screw M8x4 for GLMATIC30F

V8056 37034

V8066 37056

V8085 37077

Stainless Steel Screw M8x4 U5931 for GLMATIC30F

Stainless Steel SREW M8x20 for GLMATIC30F

Stainless Steel Screw M6x12 U5931 for GLMATIC30F

Screw TSP U6109 M4x6 INOX for GLMATIC30F

V620615

V625315

V634515

V700615

23

Electrical Schematics

Model MS-IT-0300-A 13654

Position Description Position Description Position Description

18 Printed Circuit Board 25 Carriage Motor 32 Blade Cover Contact

19 Power Cord 26 Hall Effect Switch 34 Carriage Stroke Adjustment

20 Blade Motor 27 Blade Stop Push Button 39 LED Power Supply

21 Capacitor 14uF 28 Blade Start Push Button 48 LED Blade Start

22 Fan 29 Carriage Stop Push Button 49 LED Product Holder Start

23 Resistance 50W 30 Carriage Start Push Button

24 Capacitor 35uF 31 Carriage Microswitch

24

Notes

________________________________________________________________________________________

25

Notes

________________________________________________________________________________________

26

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación, cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

www.omcan.com/warrantyregistration.html

For mailing in Canada

Pour postale au Canada

Por correo en Canadá

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

For mailing in the US

Pour diffusion aux États-Unis

Por correo en los EE.UU.

OMCAN

Niagara Falls, New York

USA, 14305

or email to: service@omcan.com



Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

27

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers. Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un fácil acceso a más de 3,500 productos con origen a nivel mundial.

Omcan 13654 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
