Omcan PC-CN-0009, 10921 Instruction Manual

Smokehouse

Model PC-CN-0009

Item 10921

Instruction Manual

Revised - 8/27/2015

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: sales@omcan.com

www.omcan.com

Table of Contents

Model PC-CN-0009

Section

General Information

Safety and Warranty

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

Technical Specications

Operation

Maintenance

Troubleshooting

----------------------------------------------------------------------------------------- 6 - 7

------------------------------------------------------------------------------------- 7 - 8

------------------------------------------------------------------------------------- 8

Page

---------------------------------------------------------------------- 5 - 6

Parts Breakdown

Electrical Schematics

Notes

------------------------------------------------------------------------------------------- 12 - 14

Warranty Registration

----------------------------------------------------------------------------- 9 - 10

---------------------------------------------------------------------------- 11

---------------------------------------------------------------------------- 15

2

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

3

General Information

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Safety and Warranty

ATTENTION

The following is to be included in the instruction manual for outdoor use appliances:

1. Grounding instructions: This appliance shall be grounded while in use to protect the operator from electrical shock. The appliance

is equipped with a 3-conductor cord and a 3-prong grounding–type plug to t the proper grounding-type

receptacle. It is recommended that you plug it into a GFCI-protected outdoor receptacle.

2. Extension Cords:

Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole cord connectors that accept the plug from the appliance. Only extension cords identied by the marking “Suitable for use with

outdoor appliances” shall be used outdoors. Use only extension cords having an electrical rating not less than the rating of the appliance. Do not use damaged extension cords. Examine the extension cord before using and replace if damaged. Do not abuse the extension cord and do not tug on any cord to disconnect. Keep cord away from heat and sharp edges.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electrical shock do not immerse cord, plugs, or heating element in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.

7. The use of accessory attachments are not recommended by the appliance manufacturer as they may

4

Safety and Warranty

cause injuries.

8. Extreme caution must be used when moving appliances.

9. To disconnect, turn any control to “off”, then remove plug from wall outlet.

10. Use only on a properly grounded outlet.

11. Save these instructions.

1 YEAR PARTS AND LABOUR WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures not

improper use.

Please see http://www.omcan.com/warranty.html for complete information.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

Model PG-CN-0009 Power 1000W Capacity 20 lbs./ 9.1 kg. Inner Dimensions 15” × 16.25” × 9.75”/ 381 x 412.8 x 247.7 mm Electrical 110V/60/1 Weight 28 lbs./ 12.7 kg.

Dimensions (DWH) 18” × 19” × 32.5”/ 457.2 x 482.6 x 825.5 mm

Item 10921

Capacity: The country smoker will handle 20 lbs. of sausage using 35-38mm casings. It also has the capacity

of smoking 2 hams and 2 pork shoulders at one time (as long as its within the capacity of 20 lbs.).

5

Technical Specications

Note: The Smoker temperature should not be higher than 190F at any time when smoking meats. You should not leave the smoker unattended during a long periods of time.

Operation

Before you smoke your meat, curing and brining the meat is essential to preserve the product. It can also be

used to ﬂavour individual taste with sugars, wines, herbs and spices. Flavour injectors will allow the ﬂavour to be absorbed directly into the meat. Brines help prevent spoilage, moisturize the meat and insert ﬂavour which adds to the smoke ﬂavor. Marinades can be used to ﬂavour and tenderize the product. Add the marinade and

soak the meat in a bag overnight in the refrigerator prior to smoking the meat.

Additional Flavour: After the bringing or marinating you can add rub for extra ﬂavour on the surface of the food.

Use vegetable oil, or a basting spray so the rub can stick onto the product.

While you are waiting for the smokehouse to preheat, dampen the sawdust. Do not soak it or get it too wet as it will create extra moisture that will condense on the inside of the smokehouse. On the other hand, if it is too

dry, it may create an open ﬂame which may scorch the meat and/or damage the smokehouse. There are three

ways to check if your sawdust has reached the proper dampness:

1. There should be no visible water collecting in the bottom of the sawdust pan,

2. All of the sawdust should be a darker color,

3. When you pick up a little more than a pinch of sawdust and squeeze it in your ngers, water should not drip

out. The amount of sawdust used greatly depends upon individual taste. Using one full pan is a good place to start.

1. Preheating:

• To pre-heat smokehouse close the vent and wait until it reaches about 190°F.

2. Load the meat into the smokehouse.

3. Be advised when the smoker is at 190°F it will drop to 120°F-130°F when it is fully loaded and the door is

closed.

4. Drying:

• Keep the door closed and dry the meat for 30-45 minutes.

5. Sawdust pan:

• Open the smoker door and carefully place the sawdust pan with sawdust in it.

6. Smokestack:

• When there is smoke coming from the smokestack, it’s time to lower the temperature to 140-145°F and hold at this temperature. Leave a gap in the vent while in use.

7. Raise the temperature every 1 - 1.5 hours until the smoker temperature is at 160-165°F. Hold at this temperature and keep the internal temperature of your smoking product at 152°F until meat is fully cooked.

8. Power off the smoker:

• Carefully remove the meat and wash it with water that is approximately 120°F

• Serve or refrigerate.

6

Operation

TYPES OF SMOKING

Dry Smoking: uses heat on the product to slowly cook food.

Wet Smoking: Wet smoking or water smoking is when a pan of water, fruit juices, wine, or other liquids are used to keep moisture and add ﬂavour.

Cold Smoking: This consists of smoking food at temperatures below 38-100°F. This will not burn the fat off. Foods for cold smoking would usually be cured rst.

Hot Smoking: Hot Smoking is the process of smoking food at the same time as it cooks. Hot smoked foods

may be cured (brined) or marinated, or basted or rubbed.

BARBECUE: THE BASICS

Heat, smoke, and time all affect the smoking process. By smoking in low heat for a long period of time, this will produced the best results which adds ﬂavour to the meat.

MEAT SMOKING

The process of meat smoking is done at a lower temperature than grilling. The goal is still to cook the meat, but over a longer period of time, and at a lower temperature. There is less chance of burning the meat.

WOOD PELLETS

Hickory: Can be used for poultry, ham, beef and pork. Will give sweet bacon ﬂavor. Apple: Can be used for poultry, sh and pork. Gives a sweet taste. Oak: Can be used for poultry, ham, beef and pork. Gives smoke ﬂavour. Mesquite: Can be used for poultry, beef and lamb. Gives a unique, slightly sweet but hearty ﬂavour. Pecan: Can be used for poultry, sh and pork. A more subtle smoke ﬂavour.

ADDING WOOD PELLETS DURING SMOKING PROCESS

• Add wood pellets or chips to the smoker to add ﬂavour.

• Temperature may spike brieﬂy after wood is added. It will stabilize after a short time. Do not adjust.

Maintenance

This smoker is very easy to clean and store.

1. Switch the smoker off and unplug it from the power source.

2. Allow unit to cool down before cleaning.

7

Maintenance

3. Remove the racks and sawdust pan. Scrub with warm soapy water. Rinse and dry.

4. Use soapy water and sponge to clean the inside of the smoker. Rinse with clean water and allow to air dry. Do not use high pressure water against this unit.

Troubleshooting

Should your Smokehouse not be performing to your expectations after proper assembly and “seasoning”,

review the checklist below.

1. A full pan of ﬂavor fuel should start to smoke in less than 20 minutes and should be consumed in approximately 45 to 60 minutes. If this does not happen, check items 2 through 7 below.

2. Is there power to the Smokehouse? Are the fuses or breakers in working condition? Is the cord connected to 110-120V AC outlet properly? The temperature inside the smoking chamber should reach a minimum of 150ºF when operating properly (when outside temperature is 70º).

3. Do not use a lightweight or long extension cord. Try plugging the Smokehouse directly in 110-120V AC outlet. Lightweight or long extension cords cause a drop in voltage.

4. Is the Smokehouse protected from wind or cold temperatures? Air temperature below 45ºF prohibits proper function. Try a different location.

5. Is the ﬂavor pan lled ﬂavor fuel and in the proper position on the heating element?

6. The drip pan should be in its proper location on the rack.

7. Do not use coarsely processed or chunk-style wood. Avoid moist or dampened wood or those with bitter bark attached.

8. The time to begin to smoke is 20 minutes and 45 to 60 minutes to consume a pan full of ﬂavor fuel.

9. To remove the heating element, unplug your Smokehouse and allow it to cool before proceeding. Carefully unplug cord from the socket, lift the front of the element until it snaps out of the bottom clips, then pull it

toward the front until it clears the junction box. It may be necessary to squeeze the element legs together

slightly to reduce friction. To mount a new element, reverse this procedure.

8

Model PC-CN-0009 10921

70286

70285

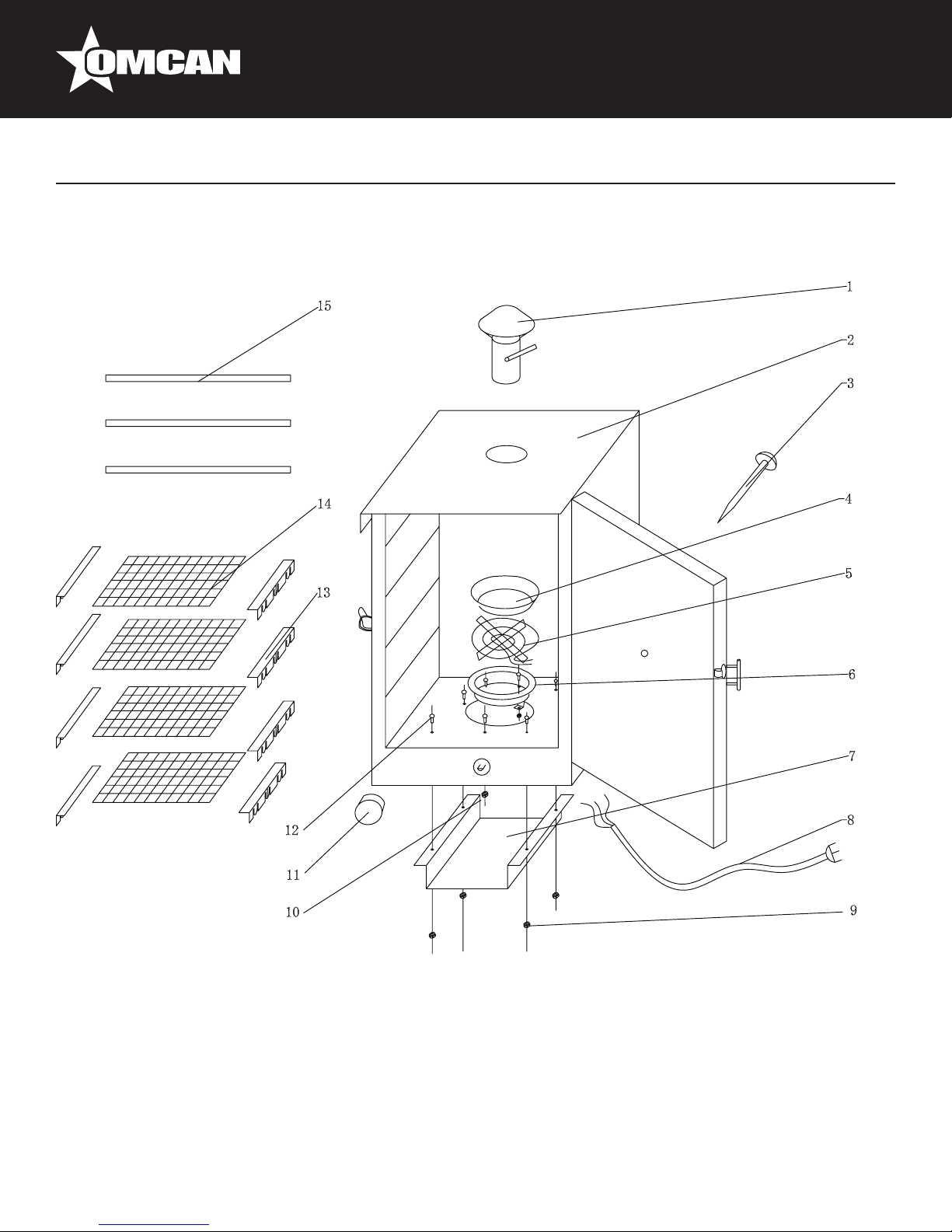

Parts Breakdown

70277

70278

17752

22046

70283

17755

70282

70284

17753

70279

26132

70280

70281

9

Parts Breakdown

Model PC-CN-0009 10921

Item No. OMCD ID Description Position

70277 SH00101 Chimney for SH001 1

70278 SH00102 Body for SH001 2

17752 SH00103 Thermometer for SH001 3

22046 SH00104 S/S Pan for SH001 4

17753 SH00105 Heating for SH001 5

70279 SH00106 Heating Plate for SH001 6

26132 SH00107 Base Board for SH001 7

70280 SH00108 Power Line for SH001 8

70281 SH00109 Nut for SH001 9

70282 SH00110 Power Line Button for SH001 10

17755 SH00111 Temperature Controller Knob for SH001 11

70283 SH00112 Screw for SH001 12

70284 SH00113 Grill Support for SH001 13

70285 SH00114 Grill for SH001 14

70286 SH00115 Hanging Rack for SH001 15

10

Model PC-CN-0009 10921

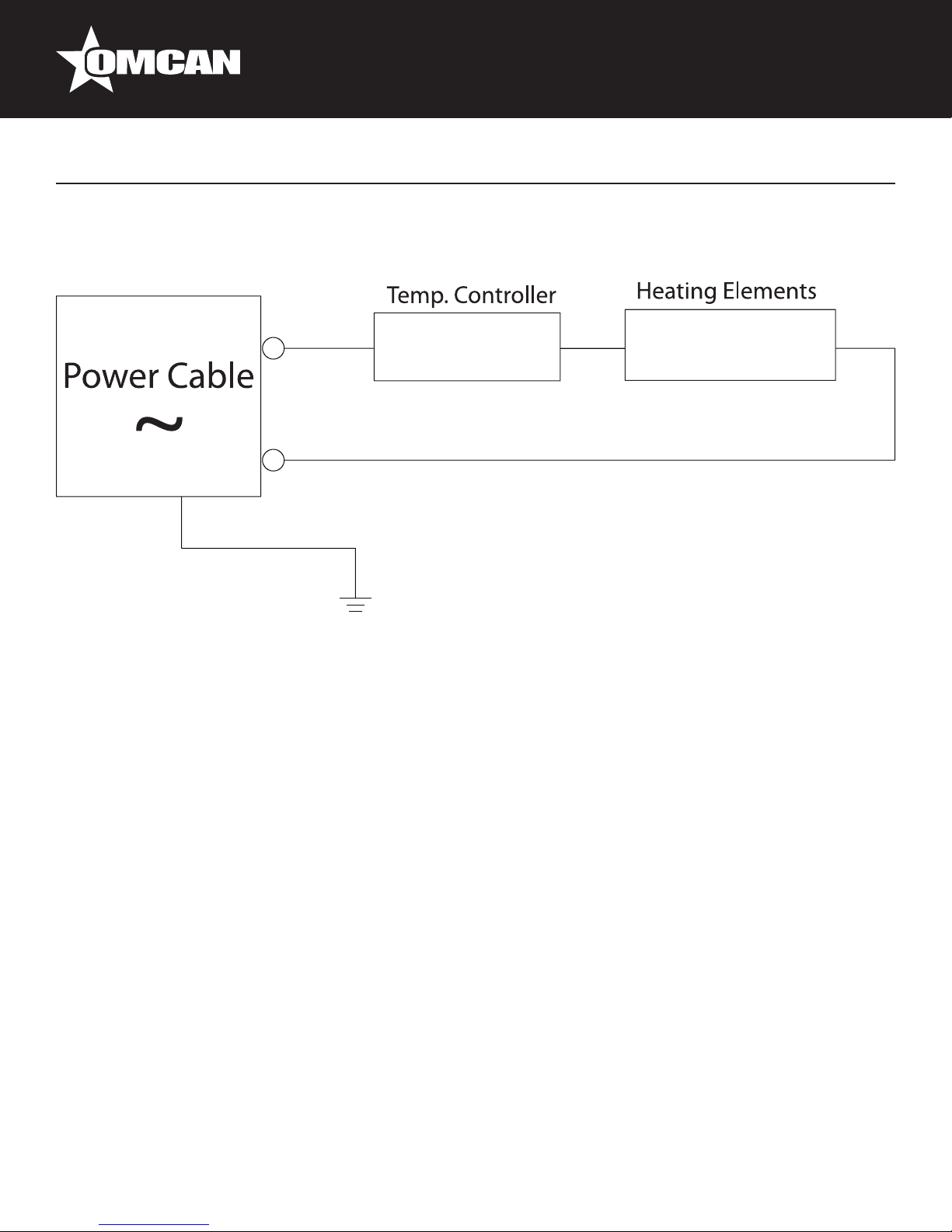

Electrical Schematics

11

Notes

________________________________________________________________________________________

12

Notes

________________________________________________________________________________________

13

Notes

________________________________________________________________________________________

14

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación, cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

www.omcan.com/warrantyregistration.html

For mailing in Canada

Pour postale au Canada

Por correo en Canadá

OMCAN INC.

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

For mailing in the US

Pour diffusion aux États-Unis

Por correo en los EE.UU.

OMCAN

Niagara Falls, New York

USA, 14305



Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

15

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers. Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un fácil acceso a más de 3,500 productos con origen a nivel mundial.

Omcan PC-CN-0009, 10921 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
