Omcan 10865 Instruction Manual

Citrus Juicer

Model JE-BR-1750

Item 10865

Instruction Manual

Revised - 12/05/2017

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: service@omcan.com

www.omcan.com

Table of Contents

Model JE-BR-1750

Section

General Information

Safety and Warranty

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

Technical Specications

Installation

Operation

Maintenance

-------------------------------------------------------------------------------------------- 6

--------------------------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 7

Page

-------------------------------------------------------------------------- 6

Parts Breakdown

Electrical Schematics

Notes

------------------------------------------------------------------------------------------------ 10

Warranty Registration

------------------------------------------------------------------------------- 8 - 9

------------------------------------------------------------------------------ 9

---------------------------------------------------------------------------- 11

2

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

3

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

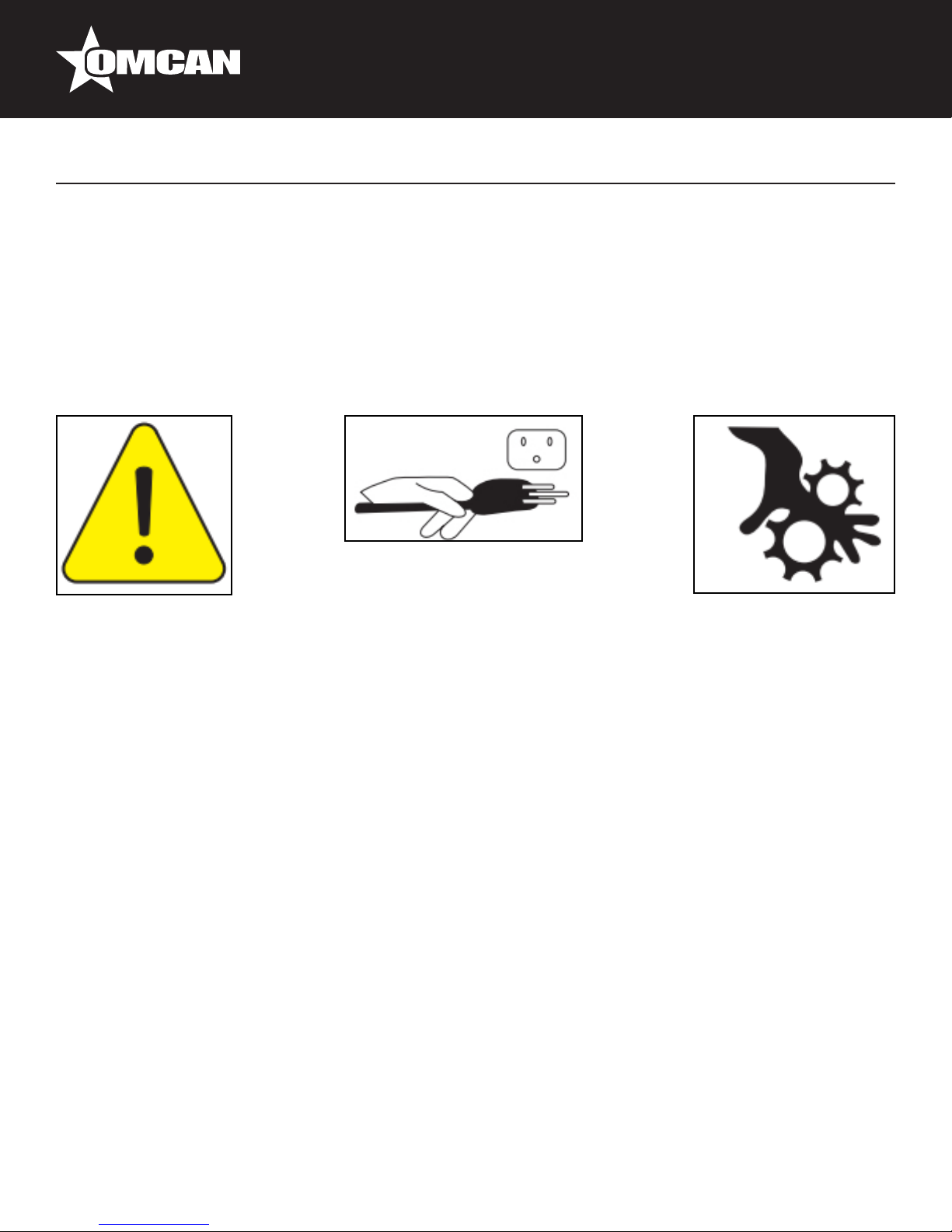

Safety and Warranty

The juice extractor model EX is simple to use and to operate, however read the following precautions to avoid injury or damage to the unit:

• BEFORE cleaning always disconnect the machine from the power supply.

• NEVER use tools not intended to assist the unit in operation.

• BEFORE turning the unit ON, make sure the crown is rmly tted in its position.

• NEVER wear loose clothes during operation. Make sure hair is tied up at all times.

• REMOVE all jewelry and bracelets and roll up loose sleeves prior to use.

4

Safety and Warranty

• NEVER turn the unit ON with wet clothes or feet.

• NEVER spray water or other liquid substances directly at motor, power switch or any other electrical

components. Do not use pressurized jets to clean the machine.

• ALWAYS install the unit in working area with adequate light and space away from children and other

objects.

• NEVER operate without all warning labels attached and owner/operator manual available to operator.

• NEVER leave unattended while operating.

• ALWAYS ground the unit properly.

• ALWAYS turn machine off before cleaning and maintenance.

• PROVIDE enough space around unit for safe operation.

• ALWAYS keep the oor dry. Wet oors may cause injury.

• ALWAYS turn the unit OFF in the case of a electrical problem.

• NEVER let dust or water to get into the electrical and mechanical components of the machine.

• DO NOT modify original features of the machine.

• DO NOT take out or tear off any safety or identication labels.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

5

Technical Specications

Model JE-BR-1750

Horsepower 0.25

RPM 1750

Output/Minute 3 L / 3.25 QT

Electrical 110V/60/1 Weight 14.77 lbs. / 6.7 kgs.

Dimensions (DWH) 8.26” x 8.26” x 13.38” / 210 x 210 x 340mm

Item Number 10865

Installation

The juice extractor must be installed on a at, non-skid work surface with a maximum recommended height of 85 cm. This equipment is equipped with a three pin electric cable. All pins must be connected before

the machine is turned on. This ensures the machine is properly grounded. Check if the machine voltage corresponds with the power source.

Operation

PRE-OPERATION

Check if the machine is stable and that there is no movement s on the supporting surface. Wash all food

contact parts with hot water and neutral soap. Check if crown is properly tted. Place sieve (Pic. 1, #7) inside the juice vessel (Pic. 1, #8) and put it below output opening (Pic. 1, #2). The extractor is now ready to operate.

IMPORTANT

Always disconnect the unit from power source before changing the crown. Place the crown on motor shaft and

make sure it is properly tted. To start operating, press the black push-button switch to the ON position. How to

feed the machine:

1. The juice extractors work very quickly, therefore they should be equally fed.

2. First of all cut fruit in two halves. With one hand, hold the cut fruit and press it down rmly against the

crown #9 or #10 (Pic. 1).

3. The juice will ow to the vessel through the chamber and the sieve.

6

Maintenance

IMPORTANT

Before cleaning disconnect the unit from power source. Before taking out the crown, be sure motor is completely stopped. To remove the parts for cleaning, do as follows:

1. Turn the machine OFF, and disconnect it from power source.

2. Take out the lid, juice chamber, crown and juice vessel.

3. Wash all the above parts with warm water and neutral soap. Wipe dry.

4. With a damp cloth wipe the motor housing. To reassemble the parts reverse the procedure.

ATTENTION

Always unplug the machine before cleaning or maintenance.

7

Parts Breakdown

Model JE-BR-1750 10865

8

Parts Breakdown

Model JE-BR-1750 10865

Item No. Description Position Item No. Description Position Item No. Description Position

78211 Pressure Rivet AD-423-2 for EX 00045.0 30044 On/Off Label for EX 10491.4 30382 Complete Motor.025CV 60HZ for EX 29067.0

30030 Pession Rivet AD-440-S for EX 00220.8 79025 Clamp for EX 12469.9 78995 Rubber Buffer for EX 29538.8

30031 Rubber Seal MOL 085375 for EX 00293.3 30046 Sticker Clip for EX 13757.0 30064 Complete Motor.025CV 60HZ G for EX 31633.4

18666 Cup Lid LSP-04 for EX 00308.5 30047 Nut M4 DIN 934 for EX 14175.5 30065 Screw B.35x19 DIN 7981 ZB for EX 33185.6

30225 Liquid Chamber for EX 00386.7 30048 Washer L.A4,3 for EX 16798.3 64147 Screw B.35x25 DIN 7981 ZB for EX 34915.1

30210 Sieve for EX 00391.3 18663 Base for EX 17434.3 30066 Screw B.3.5x10 ZB Plast.C/P for EX 36366.9

18667 Cup for EX 00392.1 18664 Liquid Chamber for EX 17436.0 30067 Select Switch Support for EX 38193.4

30302 Chamber Base for EX 00396.4 79037 Positive Terminal Lock for EX 17581.1 30068 Chapa de Fechamento for EX 38267.1

30350 Nylon Cover CN-4472 for EX 02031.1 30050 Terminal Cover for EX 17582.0 30069 Base Ring for EX 38361.9

30037 PFS M4x8 DIN 7985 ZB for EX 03130.5 30305 Cable 3x1.0mm with Plug for EX 17898.5 30070 Capacitor Support 60Hz for EX 38415.1

27699 Cramp T 18R Small for EX 04203.0 30052 Complete Motor.025CV 60HZ W for EX 18860.3 30071 Switch 16123 M5FT5FE3B 10A for EX 38416.0

79019 Screw for EX 04208.0 30054 Motor Support for EX 18874.3 30072 Motor Bearer Flange for EX 38877.7

30039 External Pont. 3/4” for EX 04859.3 38148 Nut M4 DIN 1587 for EX 19091.8 30073 Complete Motor.025CV 6OHZ G for EX 38949.8

16407 Large Crown (for Orange) for EX 08162.0 30056 Cabinet for EX 20080.8 30074 Housing Set for EX 39268.5

16408 Small Crown (for Lemon) for EX 08163.9 30057 Complete Select Switch for EX 24373.6 64146 Motor 025CV 60HZ for EX 44841.9

78231 Cable 3x0.75mm for EX 09103.0 30058 CB.3x0.75mm2 2PC1PR for EX 24592.5 78551 Cleaning Maintenance Label for EX 50665.6

30041 Cable Holder Black FC PG 7 for EX 09192.8 27720 Omcan Logo (Machines) for EX 27154.3 64148 Small Chestnut Semi Circular for EX 52415.8

30042 Tubo Termo Encol.1/8x20mm for EX 09533.8 30059 Logotipo Omcan Emblem for EX 27155.1 64149 Large Chestnut Semi Circular for EX 52416.6

30043 Switch 16123 M2FTFE3B 10A for EX 10116.8 30060 Motor 025CV 60HZ W for EX 28767.9

Model JE-BR-1750 10865

Electrical Schematics

9

Notes

________________________________________________________________________________________

10

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación, cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

www.omcan.com/warrantyregistration.html

For mailing in Canada

Pour postale au Canada

Por correo en Canadá

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

For mailing in the US

Pour diffusion aux États-Unis

Por correo en los EE.UU.

OMCAN

Niagara Falls, New York

USA, 14305

or email to: service@omcan.com



Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

11
