Bandsaws

Model BS-VE-3200-S, 3200-T

Item 10272, 18943

Instruction Manual

Revised - 09/01/2017

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: service@omcan.com

www.omcan.com

Table of Contents

Model BS-VE-3200-S / Model BS-VE-3200-T

Section

General Information

Safety and Warranty

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

Technical Specications

Installation

Operation

Maintenance

-------------------------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 6 - 7

------------------------------------------------------------------------------------ 7 - 8

Page

-------------------------------------------------------------------------- 6

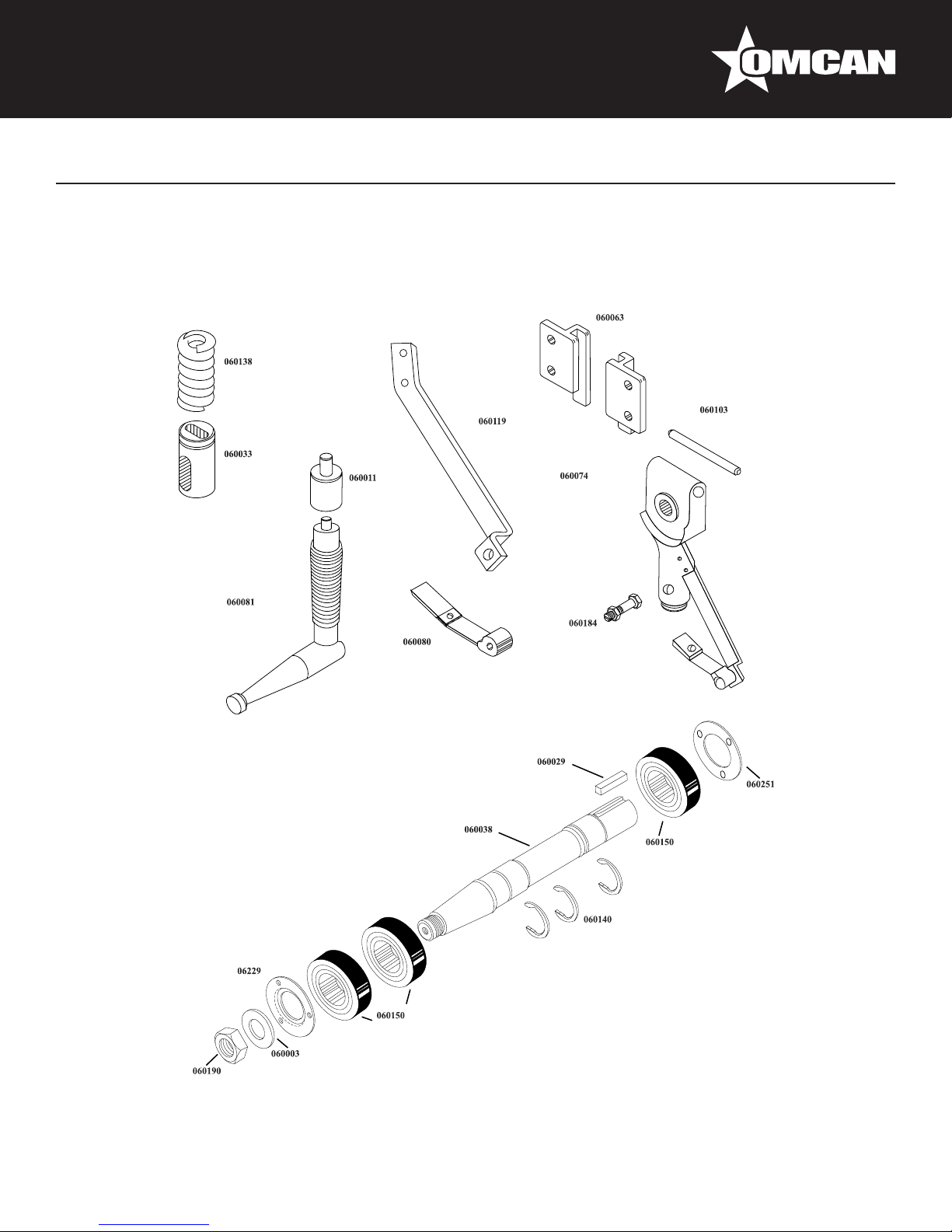

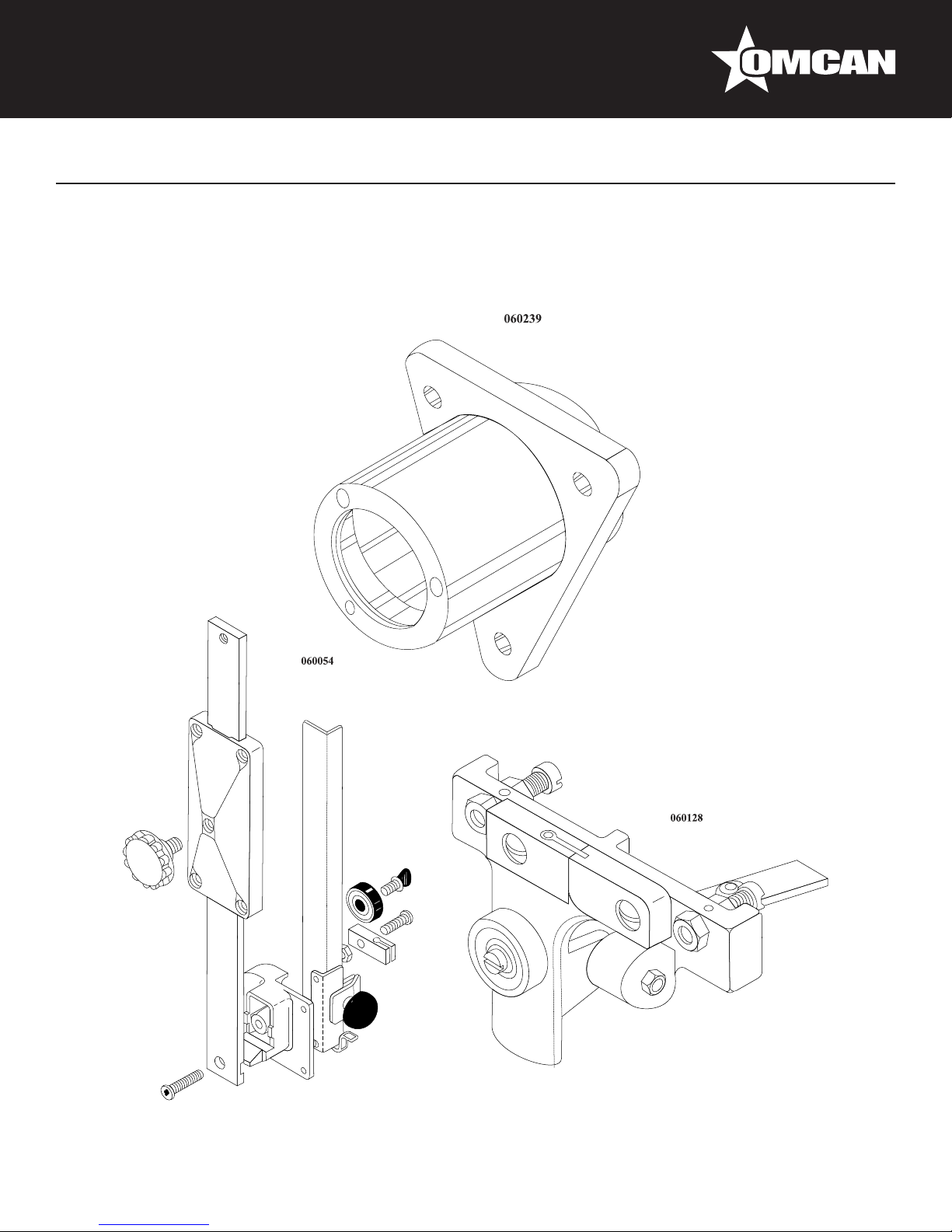

Parts Breakdown

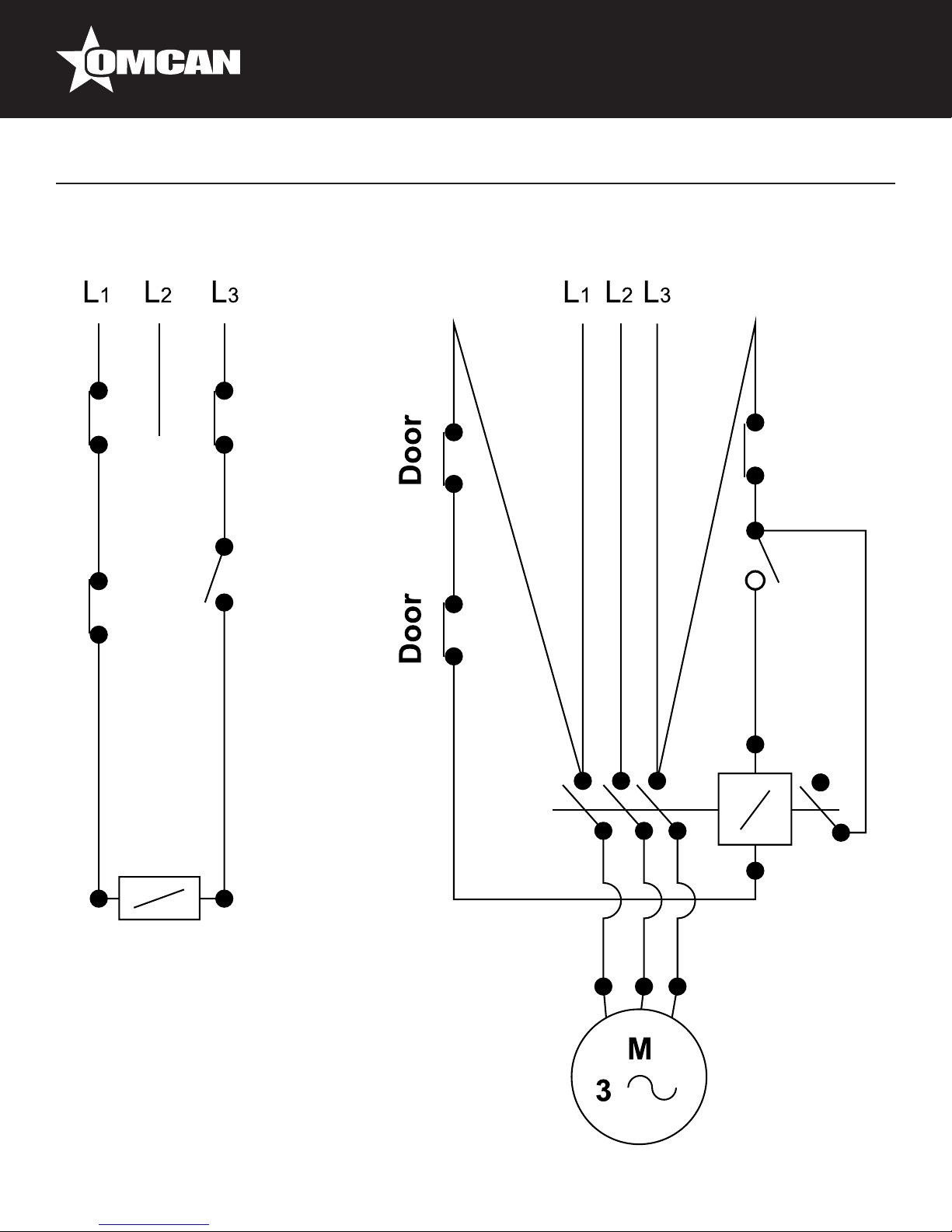

Electrical Schematics

Notes

------------------------------------------------------------------------------------------- 20 - 22

Warranty Registration

----------------------------------------------------------------------------- 9 - 17

---------------------------------------------------------------------- 18 - 19

---------------------------------------------------------------------------- 23

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

Safety and Warranty

MAIN PRECAUTIONS

When incorrectly used, a bandsaw can be a potentially dangerous machine. Cleaning, maintenance or service must always be done by experienced operators, and with the machine disconnected from the electricity supply.

• NEVER use tools not belonging to the machine to help operation.

• KEEP hands off the moving parts of the machine.

Safety and Warranty

• NEVER connect the power source with wet hands or wet clothes.

• ALWAYS ground the machine properly.

• NEVER touch the blade even when it is not in use because its edge is very sharp, it can cause serious

cuttings.

• NEVER adjust the cutting regulator (optional) with the blade in motion.

• NEVER use clothes with loosen sleeves specially near the wrist during the cutting operation.

• USE steel gloves during the cutting operation.

• NEVER switch on the machine with one of its doors opened.

• NEVER spray water or other liquid substances directly at motor, power switch or any other electrical

components.

• KEEP your working area clean and dry to prevent it from becoming slippery.

• ALWAYS install equipment in working area with adequate light and space away from CHILDREN and

visitors.

• NEVER operate without all warning labels attached and owner/operator manual available to operator.

• NEVER leave unattended while operating.

• STOP the machine immediately if you hear abnormal noises, of fear that injuries may occur.

• CONTACT your Distributor if you have any problems with the installation and operation of this machine.

1 YEAR PARTS AND LABOUR WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

Model BS-VE-3200-S BS-VE-3200-T Power 3 HP / 2.24 kW

Blade Length 126” / 3200mm

Blade Saw Dimensions 0.8” x 12.6” / 20 x 320mm

Cutting Capacity 15” x 18” / 381 x 457mm Electrical 220V / 60 Hz / 1 Ph 220V / 60 Hz / 3 Ph Amps 11A 9A Weight 374 lbs. / 170 kgs.

Packaging Weight 415 lbs. / 188 kgs. Packaging Dimensions 40” x 54” x 96” / 1016 x 1372 x 2438mm

Item Number 10272 18943

Installation

Be sure to install the bandsaw in an easily accessible area with plenty of space.

Grounding wire must always be connected.

IMPORTANT: Check the tension of the blade by turning the handle clockwise before operating it.

Operation

BEFORE OPERATION

Check and make sure the machine is in a stable location. Wash with warm water and soap all the food-contact parts, and wipe dry. To do it proceed as follows:

1. Switch the machine off and disconnect it from the power source.

2. Open the upper door and lower door by pulling the handle.

3. Loosen the blade turning the handle or calibrator (optional) clockwise and take it out from the upper and lower wheels.

4. Take out the staples which are in front of the upper and lower wheels to be able to pull them out.

5. Assemble the components following the inverse steps.

IMPORTANT: The blade must be well calibrated. Use the handle turning it clockwise to get the right

tension of the blade. Keep the machine off to adjust the cutting regulator.

Operation

OPERATION

Switch on the machine pressing the on/off switch.

Put the product to be processed onto the table, pushing it to the direction of the blade lined up by the cutting regulator (optional), maintaining the thickness of the slice desired.

When pulling back the product do not touch the blade avoiding disconnecting it from the wheels.

Drop a little bit of water onto the xed table to facilitate the slipping of the product.

Maintenance

COMPONENTS ADJUSTMENT

PULLEY BELT

• The belt must be rmly xed to prevent it from skidding. Do not tighten it too much because it can wear out quickly.

• To have access to the belt remove the screws with a screwdriver from the inferior back lid and take it out.

• With a screw-wrench loosen the screws turning it counter-clockwise. To stretch out the belt you have to

push the motor with the wood lever tightening the screws.

IMPORTANT: The pulleys must be lined up.

UPPER BEARING ADJUSTMENTS

• The purpose of this adjustment is to centralize the blade on the gear and avoid it falling down.

• First of all disconnect the machine from the electricity supply. Then loosen blade turning handle counter-

clockwise.

• Take out upper back lid by removing screws using the screwdriver. Loosen the three screw-nuts using a 10mm screw-wrench.

• Using the screwdriver turn the screw-nut ¼ counter-clockwise if the wheel is inclined towards the front or turn it ¼ clockwise if it is inclined backwards. Tighten the three screw-nut previously loosen. Calibrate the blade according to pre-operation.

• Turn the wheels manually to check if the blade is centralized, if it is not keep turning the wheels until the blade is centralized.

CUTTING REGULATOR

• The cutting regulator (optional) was designed to provide cuts with the same thickness and also to protect the operator from getting injured.

• To adjust the cutting regulator proceed as follows: Turn locking knob counter-clockwise to be able to move the cutting regulator to the left and right according to the distance you want to leave from it to the blade.

• Then turn the locking knob clockwise to x the cutting regulator in the desired position.

Maintenance

CLEANING

First of all disconnect the machine from power source.

• Remove the upper door by unscrewing the screws of the hinges.

• Remove the lower door doing as above.

• Remove the blade by turning blade calibrator knob counter-clockwise, then loosen the blade and pull it out.

• Take out upper and lower wheels by pulling staples out, which are located in front of the wheels.

• Never use hard tools such as: knives, forks, hooks, or others to remove stuck pieces of cut meat from the

upper and lower doors. To do that use a plastic brush.

• Assemble the components following the inverse steps.

NOTE: The sharp edge of the blade must be facing the front of the machine.

All removable components must be washed with warm water and neutral soap. Be careful when washing the blade. It has a sharp edge that could cause serious irreparable injuries to the hands.

CAUTION: The machine is not protected against water jets. Do not clean it with steam jets, or high pressure blasts or similar methods. Under no circumstances should the bandsaw be hose rinsed as

this may result in short circuit or serious damage to the machine.

Clean the body of the machine with a damp clean cloth and wipe dry.

REFERENCE

Item Number Model Number Description Manufacturer Model Number

10272 BS-VE-3200-S

18943 BS-VE-3200-T

Band Saw 126” / 3200mm Blade

3 HP / 2237W 220V/60/1 ETL

Band Saw 126” / 3200mm Blade

3 HP / 2237W 220V/60/3 ETL

B40

B40-3PH
