Two new emitter options for OMC’s long-established range of edge-lit LED
backlights. Using our 3mm thick white reflector lightguide, these highly versatile,
white and RGB full colour backlights offer design engineers a brand new string to
the bow for the illumination of liquid crystal displays as well as other applications
such as transparency illumination and photographic equipment.
White backlights offer a crisp, fresh look to a modern display, while the full colour
RGB version grants design engineers the ability to choose any desired colour or
pastel shade simply by changing the drive software, or to convey information
such as the level of a measured quantity by changing the backlight hue rather
than modifying the LCD image.
Key Features:
Low cost
High brightness
Even illumination - diffused light source
Vast range of standard sizes
Easy to interface
Low current - emitters can be run from as low as 2mA
High reliability and very long life expectancy
RGB option allows millions of colours to be produced
Low electrical noise - no inverters required
RoHS Compliant
Typical Applications:
Control equipment
Instrumentation
General LCD backlighting
Transparency illumination
Illuminated keypads
Lit static signs
Photography or CCD component imaging
Light boxes for signage and point of sale
Automotive dash displays
All specifications correct at time of publishing.
In the interests of continual improvement, OMC reserve the right to alter specifications without notice.
The Optoelectronic Manufacturing Corporation
Typical Electrical and Mechanical Specifications

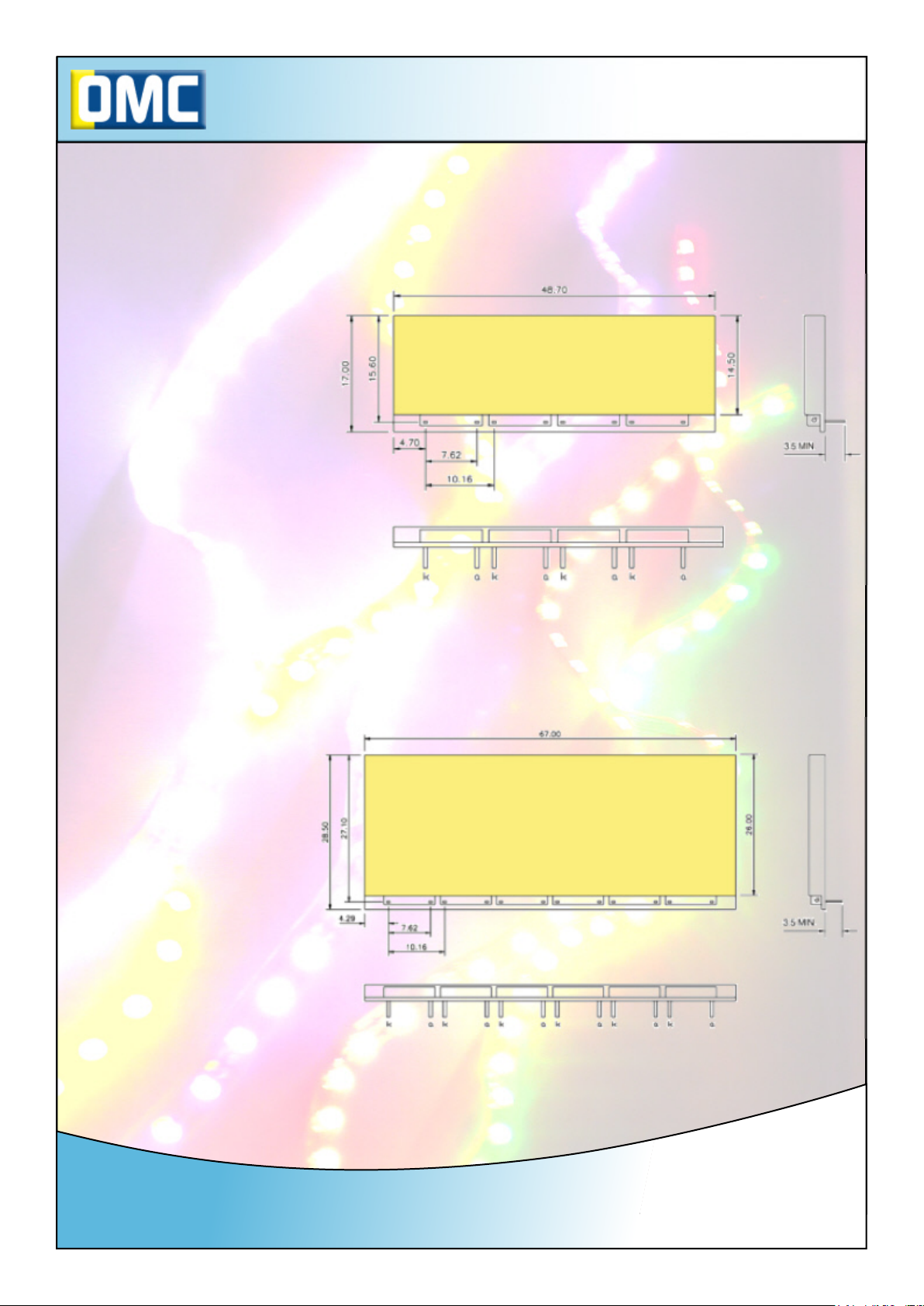

S036 Type White Backlight
Number of Emitters: 4
LED Forward Voltage per Emitter:
7V
Max. DC Forward Current
per Emitter: 30mA
Overall Size:
48.7mm x 17mm x 3mm
Illuminated area:
48.7mm x 14.5mm
All dimensions given in millimetres.
Tolerance: ±0.3 (unless otherwise stated)
a Denotes anode lead
k Denotes cathode lead
Recommended P.C.B. Hole size: 1.0mm
S037 Type White Backlight
Number of Emitters: 6
LED Forward Voltage per Emitter:
7V
Max. DC Forward Current
per Emitter: 30mA
Overall Size:
67mm x 28.5mm x 3mm
Illuminated area:
67mm x 26mm
All dimensions given in millimetres.
Tolerance: ±0.3 (unless otherwise stated)
a Denotes anode lead
k Denotes cathode lead
Recommended P.C.B. Hole size: 1.0mm
All specifications correct at time of publishing.
In the interests of continual improvement, OMC reserve the right to alter specifications without notice.
The Optoelectronic Manufacturing Corporation

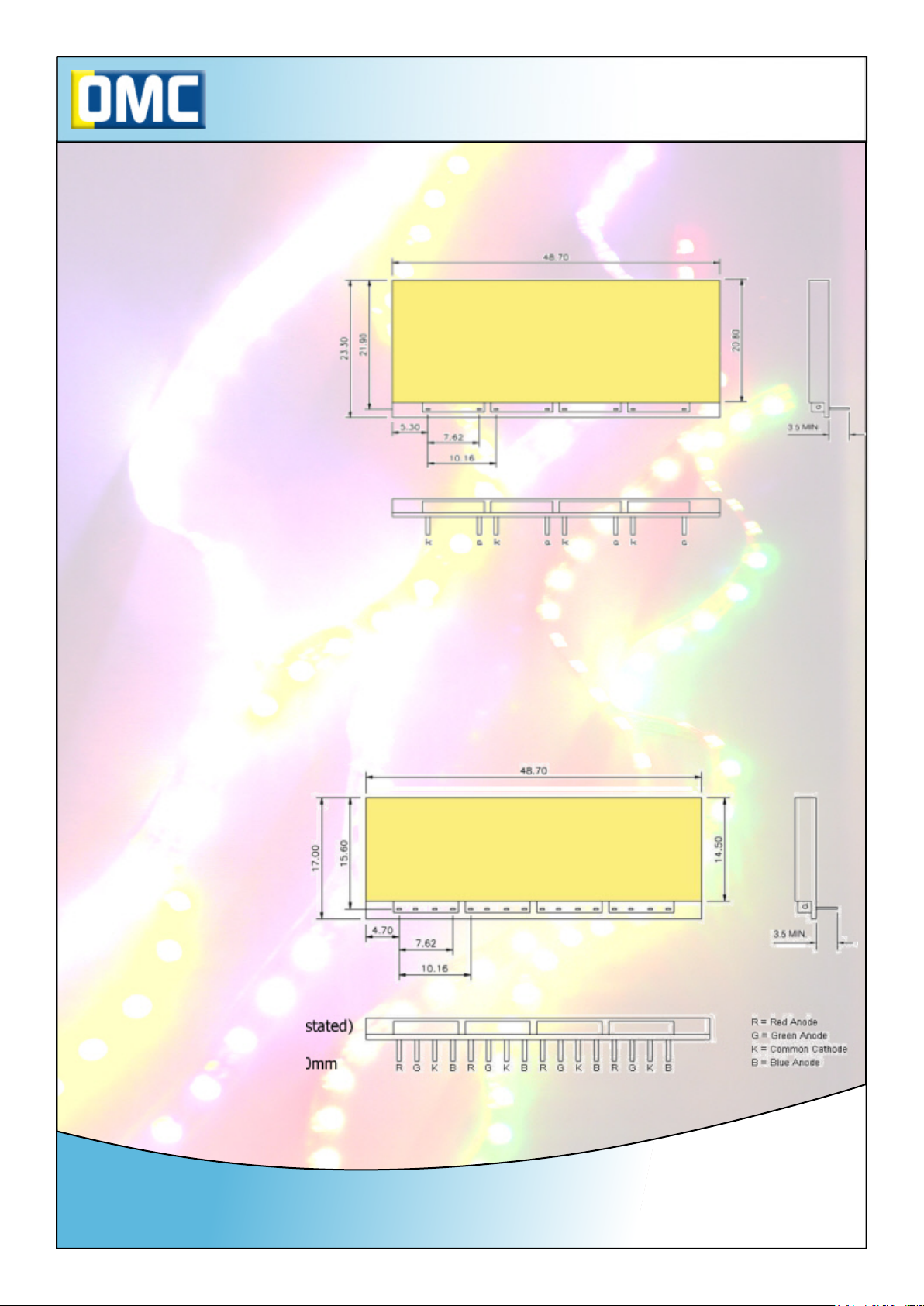

S038 Type White Backlight
Number of Emitters: 4
LED Forward Voltage per Emitter:
7V
Max. DC Forward Current
per Emitter: 30mA
Overall Size:
48.7mm x 23.3mm x 3mm
Illuminated area:
48.7mm x 20.8mm
All dimensions given in millimetres.
Tolerance: ±0.3 (unless otherwise stated)
a Denotes anode lead
k Denotes cathode lead
Recommended P.C.B. Hole size: 1.0mm
Number of Emitters: 4
LED Forward Voltage per Emitter:
Red 2.1V, Green & Blue 3.5V
Max. DC Forward Current
per Emitter: 30mA
Overall Size:
48.7mm x 17mm x 3mm
Illuminated area:
48.7mm x 14.5mm
S036 Type RGB Backlight
All dimensions given in millimetres.
Tolerance: ±0.3 (unless otherwise stated)
Recommended P.C.B. Hole size: 1.0mm
Emitter pin pitch 0.1inches
All specifications correct at time of publishing.
In the interests of continual improvement, OMC reserve the right to alter specifications without notice.
The Optoelectronic Manufacturing Corporation

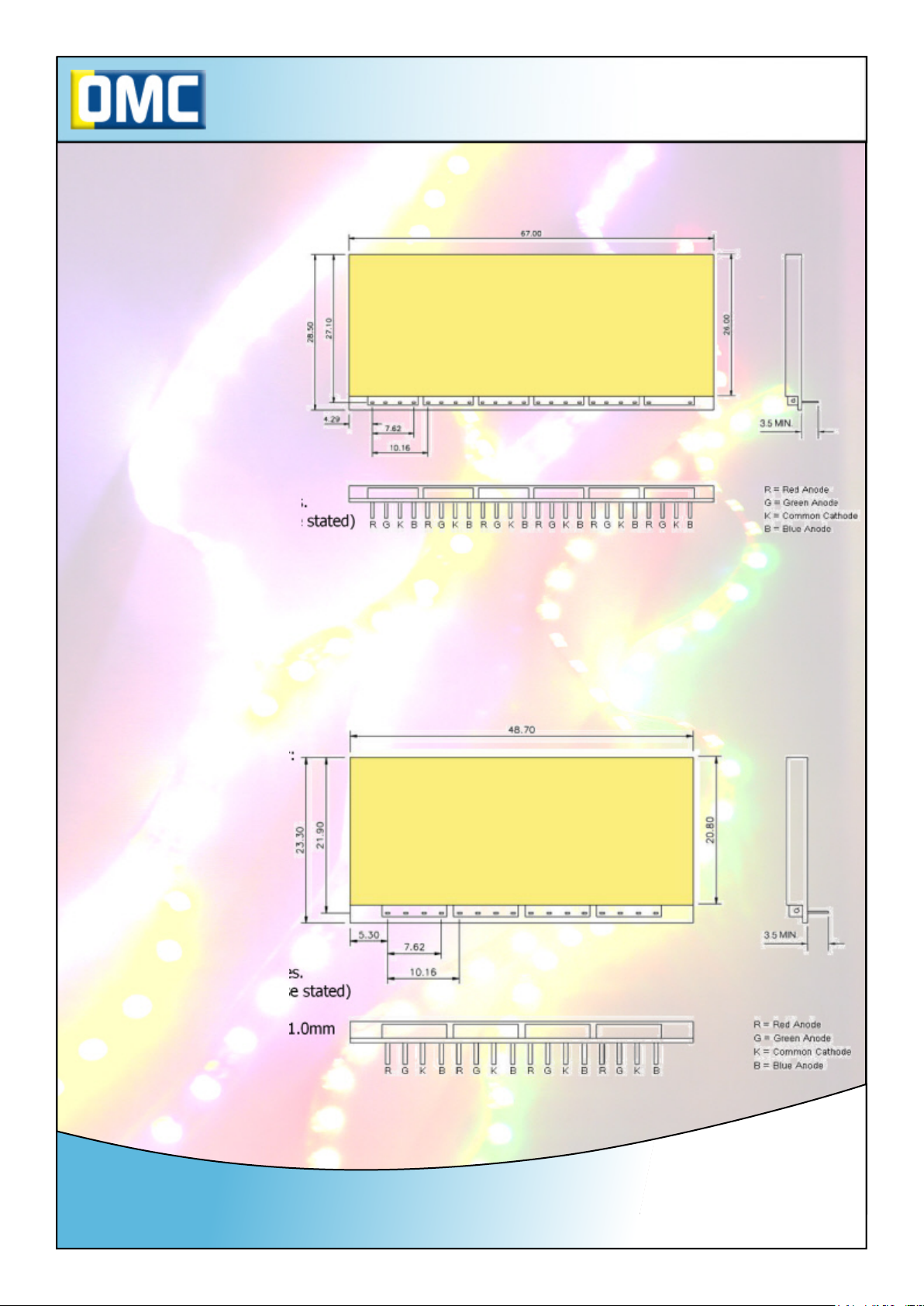

S037 Type RGB Backlight
Number of Emitters: 6
LED Forward Voltage per Emitter:
Red 2.1V, Green & Blue 3.5V
Max. DC Forward Current
per Emitter: 30mA
Overall Size:
67mm x 28.5mm x 3mm
Illuminated area:
67mm x 26mm
All dimensions given in millimetres.
Tolerance: ±0.3 (unless otherwise stated)
Recommended P.C.B. Hole size: 1.0mm
Emitter pin pitch 0.1inches
S038 Type RGB Backlight
Number of Emitters: 4
LED Forward Voltage per Emitter:
Red 2.1V, Green & Blue 3.5V
Max. DC Forward Current
per Emitter: 30mA
Overall Size:
48.7mm x 23.3mm x 3mm
Illuminated area:
48.7mm x 20.8mm
All dimensions given in millimetres.
Tolerance: ±0.3 (unless otherwise stated)
Recommended P.C.B. Hole size: 1.0mm
Emitter pin pitch 0.1inches
All specifications correct at time of publishing.
In the interests of continual improvement, OMC reserve the right to alter specifications without notice.
