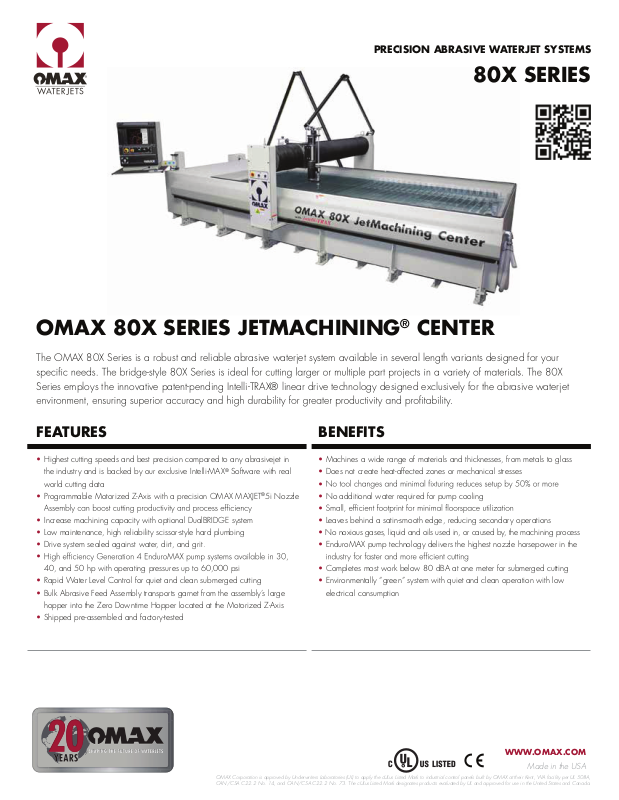

OMAX 80X User Manual

PRECISION ABRASIVE WATERJET SYSTEMS

80X SERIES

OMAX 80X SERIES JETMACHINING® CENTER

The OMAX 80X Series is a robust and reliable abrasive waterjet system available in several length variants designed for your

Series employs the innovative patent-pending Intelli-TRAX® linear drive technology designed exclusively for the abrasive waterjet

FEATURES BENEFITS

• Highest cutting speeds and best precision compared to any abrasivejet in

the industry and is backed by our exclusive Intelli-MAX® Software with real
world cutting data

• Programmable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle

• Increase machining capacity with optional DualBRIDGE system

• Low maintenance, high reliability scissor-style hard plumbing

• Drive system sealed against water, dirt, and grit.

•

40, and 50 hp with operating pressures up to 60,000 psi

• Rapid Water Level Control for quiet and clean submerged cutting

• Bulk Abrasive Feed Assembly transports garnet from the assembly’s large

hopper into the Zero Downtime Hopper located at the Motorized Z-Axis

• Shipped pre-assembled and factory-tested

• Machines a wide range of materials and thicknesses, from metals to glass

• Does not create heat-affected zones or mechanical stresses

•

• No additional water required for pump cooling

•

• Leaves behind a satin-smooth edge, reducing secondary operations

• No noxious gases, liquid and oils used in, or caused by, the machining process

• EnduroMAX pump technology delivers the highest nozzle horsepower in the

• Completes most work below 80 dBA at one meter for submerged cutting

• Environmentally “green” system with quiet and clean operation with low

electrical consumption

WWW.OMAX.COM

OMAX Corporation is approved by Underwriters Laboratories (UL) to apply the cULus Listed Mark to industrial control panels built by OMAX at their Kent, WA facility per UL 508A,
CAN/CSA C22.2 No. 14, and CAN/CSA C22.2 No. 73. The cULus Listed Mark designates products evaluated by UL and approved for use in the United States and Canada.

Made in the USA

80X SERIES

2

MACHINE DIMENSIONS

Footprint (with controller)

Weight (tank empty)

Height (with scissor plumbing) 12’0” (3,658 mm)

Operating Weight (with water in tank)

22’1” x 12’8” to 35’0” x 15’0”
(6,731 mm x 3,861 mm to
10,668 mm x 4,572 mm)

9,000 lbs to 13,000 lbs
(4,082 kg to 5,897 kg)

34,000 lbs to 54,000 lbs
(15,422 kg to 24,494 kg)

WORK ENVELOPE

X-Y Cutting Travel*

Z-Axis Travel* 8” (203mm)

Table Size

13’4” x 6’8” to 26’8” x 6’8”
(4,064 mm x 2,032 mm to
8,128 mm x 2,032 mm)

15’0” x 7’5” to 28’3” x 7’5”
(4,572 mm x 2,261 mm to
14,783 mm x 2,261 mm)

DRIVE DESCRIPTION

• Closed loop, digital drives

• Brushless servo motors

• Intelli-TRAX® drive technology with

linear encoders in X-Axis

• Precise Motorized Z-Axis

80X

X-Y Cutting Travel: 13’ 4” x 6’ 8”

(4,064 mm x 2,032 mm)

STANDARD MODEL SPECIFICATIONS

Material Support Slats 4" x 1/8" Galvanized Steel

Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter)

Electrical Requirements

Noise Level

Speed

Accuracy of Motion at 70˚ F

3-Phase, 380-480 VAC ±10%,
50-60 Hz

Below 80 dBA at one meter for
submerged cutting

180 in/min to 350 in/min
(4,572 mm/min to 8,890 mm/min)

Ballbar Circularity
(Over 12")

Repeatability

±0.003”
(±0.076mm)

±0.002"
(±0.051 mm)

OPTIONAL ACCESSORIES

• EnduroMAX Pump P3060V,

P4060V, or P5060V

• DualPUMP Package (redundant dual

EnduroMAX option up to 100 hp)

• Tilt-A-Jet® Cutting Head

• Variable Speed SRS (VS-SRS)

• Collision Sensing Terrain Follower

(with Tilt-A-Jet only)

• Z-Axis Drill

• Precision Optical Locator (POL)

• Water-only MAXJET® 5 for cutting

soft materials

• OMAX Mini MAXJET® 5i Nozzle

Assembly

• Second MAXJET 5i with Motorized

Z-Axis and all necessary hard
plumbing (requires second Y-Axis
carriage)

• Manual Tilt Z

• DualBRIDGE second bridge option

• Laminar Filter

• Waterjet Brick Kit

• Rotary Axis

• Air and Water Conditioning Kit

®

• A-Jet

• Terrain Follower/A-Jet

• Material Holding Kit

• Laser Feature Finder

®

80X-1

X-Y Cutting Travel: 20’ 0” x 6’ 8”

80X-2

X-Y Cutting Travel: 26’ 8” x 6’ 8”

l i mited

YEAR

w arranty

Specications subject to change without notice.
600045A June 2013

The OMAX Technology Guarantee
entitles you, as the original owner, to
free OMAX software upgrades for the
life of the machine.

(6,096 mm x 2,032 mm)

(8,128 mm x 2,032 mm)

WWW.OMAX.COM

Made in the USA

*Photos may show optional accessories. Optional accessories may reduce
travel. For a complete list of accessories, contact an OMAX sales representative.
Pumps are built to meet UL and CE specications. Contact OMAX for detailed
utility requirements.
