PRECISION ABRASIVE WATERJET SYSTEMS

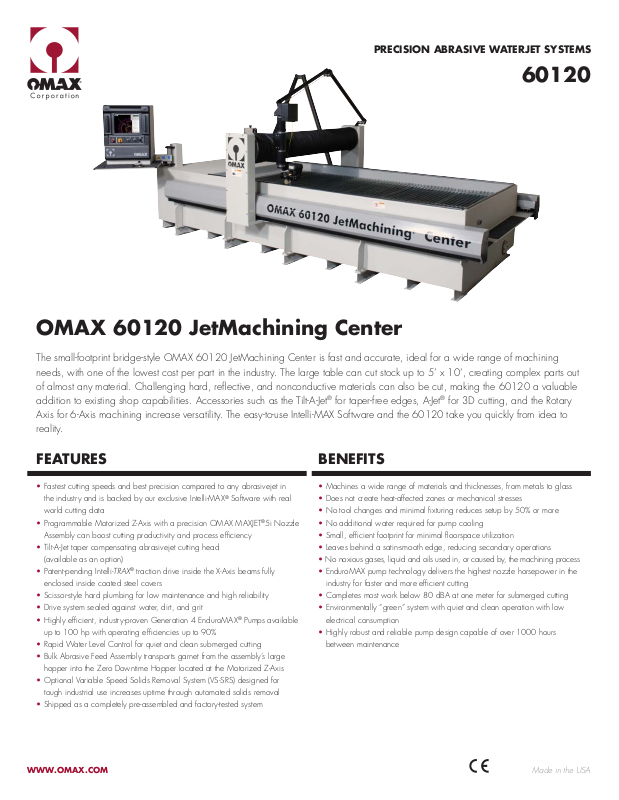

OMAX 60120 JetMachining Center

60120

The small-footprint bridge-style OMAX 60120 JetMachining Center is fast and accurate, ideal for a wide range of machining
needs, with one of the lowest cost per part in the industry. The large table can cut stock up to 5’ x 10’, creating complex parts out
of almost any material. Challenging hard, reective, and nonconductive materials can also be cut, making the 60120 a valuable
addition to existing shop capabilities. Accessories such as the Tilt-A-Jet® for taper-free edges, A-Jet® for 3D cutting, and the Rotary
Axis for 6-Axis machining increase versatility. The easy-to-use Intelli-MAX Software and the 60120 take you quickly from idea to
reality.

FEATURES BENEFITS

• Fastest cutting speeds and best precision compared to any abrasivejet in

the industry and is backed by our exclusive Intelli-MAX® Software with real
world cutting data

• Programmable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle

Assembly can boost cutting productivity and process efciency

• Tilt-A-Jet taper compensating abrasivejet cutting head

(available as an option)

• Patent-pending Intelli-TRAX® traction drive inside the X-Axis beams fully

enclosed inside coated steel covers

• Scissor-style hard plumbing for low maintenance and high reliability

• Drive system sealed against water, dirt, and grit

• Highly efcient, industry-proven Generation 4 EnduroMAX® Pumps available

up to 100 hp with operating efciencies up to 90%

• Rapid Water Level Control for quiet and clean submerged cutting

• Bulk Abrasive Feed Assembly transports garnet from the assembly’s large

hopper into the Zero Downtime Hopper located at the Motorized Z-Axis

• Optional Variable Speed Solids Removal System (VS-SRS) designed for

tough industrial use increases uptime through automated solids removal

• Shipped as a completely pre-assembled and factory-tested system

• Machines a wide range of materials and thicknesses, from metals to glass

• Does not create heat-affected zones or mechanical stresses

• No tool changes and minimal xturing reduces setup by 50% or more

• No additional water required for pump cooling

• Small, efcient footprint for minimal oorspace utilization

• Leaves behind a satin-smooth edge, reducing secondary operations

• No noxious gases, liquid and oils used in, or caused by, the machining process

• EnduroMAX pump technology delivers the highest nozzle horsepower in the

industry for faster and more efcient cutting

• Completes most work below 80 dBA at one meter for submerged cutting

• Environmentally “green” system with quiet and clean operation with low

electrical consumption

• Highly robust and reliable pump design capable of over 1000 hours

between maintenance

Made in the USAWWW.OMAX.COM

60120

MACHINE DIMENSIONS

Footprint (with controller)

Weight (tank empty) 6,200 lb (2,818 kg)

Height (with scissor plumbing) 9’7” (2921 mm)

Operating Weight (with water in tank) 23,200 lb ( 10,545 kg)

18’9” x 9’2”
(5,715 mm x 2,794 mm)

WORK ENVELOPE

X-Y Cutting Travel*

Z-Axis Travel* 8” (203mm)

Table Size

10’6” x 5’2”
(3,200 mm x 1,575 mm)

12’0” x 6’5”
(3,656 mm x 1,956 mm)

DRIVE DESCRIPTION

• Brushless servo motors

• Pre-loaded ball screw with

recirculating ball bearings and
hardened precision ground ways in
Y-Axis

• Closed loop, digital drives

• Bridge-style Y-Axis

• Intelli-TRAX drive technology with

precision linear encoders in X-Axis

• Precise Motorized Z-Axis

STANDARD MODEL SPECIFICATIONS

Material Support Slats 4" x 1/8" Galvanized Steel

Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter)

Electrical Requirements

Noise Level

Speed 180 in/min (4,572 mm/min)

Accuracy of Motion at 70˚ F

3-Phase, 380-480 VAC ±10%,
50-60 Hz

Below 80 dBA at one meter for
submerged cutting

Ballbar Circularity
(Over 12")

Repeatability

±0.003”
(±0.076mm)

±0.002"
(±0.051 mm)

OPTIONAL ACCESSORIES

• Tilt-A-Jet Cutting Head for taper

compensation

• DualPUMP Package (redundant dual

EnduroMAX option up to 100 hp)

• Variable Speed SRS (VS-SRS)

• Collision Sensing Terrain Follower

• Z-Axis Drill

• Precision Optical Locator (POL)

• Water-only MAXJET 5 for cutting soft

materials

• OMAX Mini MAXJET 5i Nozzle

Assembly

• A-Jet Angle Cutting Head

• Terrain Follower/A-Jet

• Rotary Axis

• Bridge Touch Screen

• Second MAXJET 5i with Motorized

Z-Axis and all necessary hard
plumbing (requires second Y-Axis
carriage)

• Manual Tilt Z

• Laminar Filter

• Waterjet Brick Kit

• Catcher Tank Armor Plating

• Air and Water Conditioning Kit

• Collision Sensing Terrain Follower

• Material Holding Kit

• Laser Feature Finder

The OMAX Technology Guarantee
entitles you, as the original owner, to
free OMAX software upgrades for the
life of the machine.

Specications subject to change without notice.
600039C January 2014

*Optional accessories may reduce travel. Photos may show optional
accessories. For a complete list of accessories, contact an OMAX sales
representative. Pumps are built to meet UL and CE specications. Contact
OMAX for detailed utility requirements.
