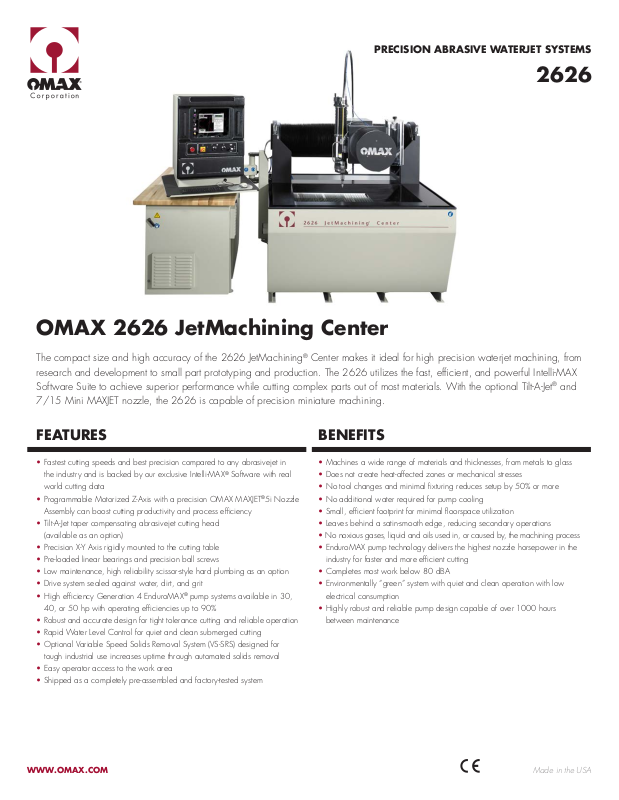

OMAX 2626 User Manual

PRECISION ABRASIVE WATERJET SYSTEMS

OMAX 2626 JetMachining Center

2626

The compact size and high accuracy of the 2626 JetMachining® Center makes it ideal for high precision waterjet machining, from
research and development to small part prototyping and production. The 2626 utilizes the fast, efcient, and powerful Intelli-MAX
Software Suite to achieve superior performance while cutting complex parts out of most materials. With the optional Tilt-A-Jet® and
7/15 Mini MAXJET nozzle, the 2626 is capable of precision miniature machining.

FEATURES BENEFITS

• Fastest cutting speeds and best precision compared to any abrasivejet in

the industry and is backed by our exclusive Intelli-MAX® Software with real
world cutting data

• Programmable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle

Assembly can boost cutting productivity and process efciency

• Tilt-A-Jet taper compensating abrasivejet cutting head

(available as an option)

• Precision X-Y Axis rigidly mounted to the cutting table

• Pre-loaded linear bearings and precision ball screws

• Low maintenance, high reliability scissor-style hard plumbing as an option

• Drive system sealed against water, dirt, and grit

• High efciency Generation 4 EnduroMAX® pump systems available in 30,

40, or 50 hp with operating efciencies up to 90%

• Robust and accurate design for tight tolerance cutting and reliable operation

• Rapid Water Level Control for quiet and clean submerged cutting

• Optional Variable Speed Solids Removal System (VS-SRS) designed for

tough industrial use increases uptime through automated solids removal

• Easy operator access to the work area

• Shipped as a completely pre-assembled and factory-tested system

• Machines a wide range of materials and thicknesses, from metals to glass

• Does not create heat-affected zones or mechanical stresses

• No tool changes and minimal xturing reduces setup by 50% or more

• No additional water required for pump cooling

• Small, efcient footprint for minimal oorspace utilization

• Leaves behind a satin-smooth edge, reducing secondary operations

• No noxious gases, liquid and oils used in, or caused by, the machining process

• EnduroMAX pump technology delivers the highest nozzle horsepower in the

industry for faster and more efcient cutting

• Completes most work below 80 dBA

• Environmentally “green” system with quiet and clean operation with low

electrical consumption

• Highly robust and reliable pump design capable of over 1000 hours

between maintenance

Made in the USAWWW.OMAX.COM

2626

MACHINE DIMENSIONS

Footprint (with controller)

Weight (tank empty) 3,000 lb (1,364 kg)

Height (with scissor plumbing) 7’ 8” (2,340 mm)

Operating Weight 6,517 lb (2,962 kg)

6’ 0” x 9’ 8”
(1,829 mm x 2,946 mm)

WORK ENVELOPE

X-Y Cutting Travel*

Z-Axis Travel (with Motorized Z Axis)* 8” (203 mm)

Table Size

2’ 5” x 2’ 2”
(737 mm x 660 mm)

3’ 10” x 2’ 7”
(1,168 mm x 787 mm)

DRIVE DESCRIPTION

• Closed loop, digital drives

• Brushless servo motors

• Pre-loaded ball screws, recirculating

ball bearings

• Linear bearings with

hardened,precision ground ways

• Cantilever Y-axis on bridge

X-axis

STANDARD MODEL SPECIFICATIONS

Material Support Slats 4" x 1/8" Galvanized Steel

Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter)

Electrical Requirements

Noise Level

Speed 180 in/min (4,572 mm/min)

Accuracy of Motion at 70˚ F

3-Phase, 380-480 VAC ±10%,
50-60 Hz

Below 80 dBA at one meter for
submerged cutting

Ballbar Circularity
(Over 12”)

Repeatability

±0.003”
(±0.076 mm)

±0.0013”
(±0.033 mm)

OPTIONAL ACCESSORIES

• Tilt-A-Jet Cutting Head for taper

compensation

• Variable Speed SRS (VS-SRS)

• Collision Sensing Terrain Follower

• OMAX Drill Head

• Precision Optical Locator (POL)

• Rotary Axis

• Laser Feature Finder

• Water-only MAXJET 5 for cutting soft

materials

• OMAX Mini MAXJET 5i Nozzle

Assembly

• Manual Tilt Z

• Laminar Filter

• Waterjet Brick Kit

• Catcher Tank Armor Plating

• Stainless Steel Tank Cover Kit

• Material Holding Kit

The OMAX Technology Guarantee
entitles you, as the original owner, to
free OMAX software upgrades for the
life of the machine.

Specications subject to change without notice.
600035B January 2014

*Optional accessories may reduce travel. Photos may show optional
accessories. For a complete list of accessories, contact an OMAX sales
representative. Pumps are built to meet UL and CE specications. Contact
OMAX for detailed utility requirements.
