PRECISION ABRASIVE WATERJET SYSTEMS

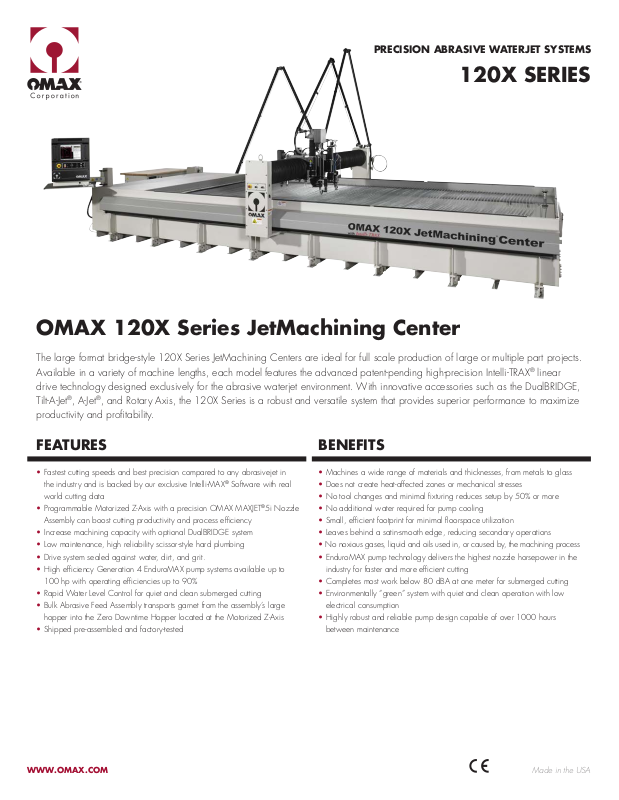

OMAX 120X Series JetMachining Center

120X SERIES

The large format bridge-style 120X Series JetMachining Centers are ideal for full scale production of large or multiple part projects.
Available in a variety of machine lengths, each model features the advanced patent-pending high-precision Intelli-TRAX® linear
drive technology designed exclusively for the abrasive waterjet environment. With innovative accessories such as the DualBRIDGE,
Tilt-A-Jet®, A-Jet®, and Rotary Axis, the 120X Series is a robust and versatile system that provides superior performance to maximize
productivity and protability.

FEATURES BENEFITS

• Fastest cutting speeds and best precision compared to any abrasivejet in

the industry and is backed by our exclusive Intelli-MAX® Software with real
world cutting data

• Programmable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle

Assembly can boost cutting productivity and process efciency

• Increase machining capacity with optional DualBRIDGE system

• Low maintenance, high reliability scissor-style hard plumbing

• Drive system sealed against water, dirt, and grit.

• High efciency Generation 4 EnduroMAX pump systems available up to

100 hp with operating efciencies up to 90%

• Rapid Water Level Control for quiet and clean submerged cutting

• Bulk Abrasive Feed Assembly transports garnet from the assembly’s large

hopper into the Zero Downtime Hopper located at the Motorized Z-Axis

• Shipped pre-assembled and factory-tested

• Machines a wide range of materials and thicknesses, from metals to glass

• Does not create heat-affected zones or mechanical stresses

• No tool changes and minimal xturing reduces setup by 50% or more

• No additional water required for pump cooling

• Small, efcient footprint for minimal oorspace utilization

• Leaves behind a satin-smooth edge, reducing secondary operations

• No noxious gases, liquid and oils used in, or caused by, the machining process

• EnduroMAX pump technology delivers the highest nozzle horsepower in the

industry for faster and more efcient cutting

• Completes most work below 80 dBA at one meter for submerged cutting

• Environmentally “green” system with quiet and clean operation with low

electrical consumption

• Highly robust and reliable pump design capable of over 1000 hours

between maintenance

Made in the USAWWW.OMAX.COM

120X SERIES

MACHINE DIMENSIONS

Footprint (with controller)

Weight (tank empty)

Height (with scissor plumbing) 14’0” (4,267 mm)

Operating Weight

21’8” x 17’3” to 48’9” x 19’2”
(6,604 mm x 5,258 mm to
14,859 mm x 5,842 mm)

12,000 lbs to 30,000 lbs
(5,443 kg to 13,607 kg)

48,630 lbs to 117,160 lbs
(22,060 kg to 53,142 kg)

WORK ENVELOPE

X-Y Cutting Travel*

Z-Axis Travel* 8” (203mm)

Table Size

13’4” x 10’0” to 40’0” x 10’0”
(4,064 mm x 3,048 mm to
12,192 mm x 3,048 mm)

14’11” x 11’5” to 41’10” x 11’5”
(4,547 mm x 3,480 mm to
12,751 mm x 3,480 mm)

DRIVE DESCRIPTION

• Closed loop, digital drives

• Brushless servo motors

• Intelli-TRAX drive technology with

linear encoders in X-Axis

• Precise Motorized Z-Axis

120X/S

X-Y Cutting Travel:

13’4” x 10’0”

STANDARD MODEL SPECIFICATIONS

Material Support Slats 4" x 1/8" Galvanized Steel

Maximum Supported Material Load 400 lbs/sq ft (1,950 kg/sq meter)

Electrical Requirements

Noise Level

Speed

Accuracy of Motion at 70˚ F

3-Phase, 380-480 VAC ±10%,
50-60 Hz

Below 80 dBA at one meter for
submerged cutting

180 in/min to 350 in/min
(4,572 mm/min to 8,890 mm/min)

Ballbar Circularity
(Over 12")

Repeatability

±0.005”
(±0.127mm)

±0.002"
(±0.051 mm)

OPTIONAL ACCESSORIES

• DualPUMP Package (redundant dual

EnduroMAX option up to 100 hp)

• Tilt-A-Jet Cutting Head

• Variable Speed SRS (VS-SRS)

• Collision Sensing Terrain Follower

(with Tilt-A-Jet only)

• Z-Axis Drill

• Precision Optical Locator (POL)

• Water-only MAXJET 5 for cutting soft

materials

• OMAX Mini MAXJET 5i Nozzle

Assembly

• Manual Tilt Z

• DualBRIDGE second bridge option

• Second MAXJET 5i with Motorized

Z-Axis and all necessary hard
plumbing (requires second Y-Axis
carriage)

• Laminar Filter

• Waterjet Brick Kit

• Rotary Axis

• Air and Water Conditioning Kit

• A-Jet

• Terrain Follower/A-Jet

• Material Holding Kit

• Laser Feature Finder

The OMAX Technology Guarantee
entitles you, as the original owner, to
free OMAX software upgrades for the
life of the machine.

Specications subject to change without notice.
600041B January 2014

120X

X-Y Cutting Travel:

20’0” x 10’0”

120X-1

X-Y Cutting Travel:

26’8” x 10’0”

120X-2

X-Y Cutting Travel:

33’4” x 10’0”

120X-3

X-Y Cutting Travel:

40’0” x 10’0”

WWW.OMAX.COM

Made in the USA

*Optional accessories may reduce travel. Photos may show optional
accessories. For a complete list of accessories, contact an OMAX sales
representative. Pumps are built to meet UL and CE specications. Contact
OMAX for detailed utility requirements.

ABOUT OMAX

OMAX is the global total solutions provider in advanced abrasive waterjet
systems. Our intuitive Intelli-MAX Software Suite simplies programming and
reduces setup times, increasing your productivity. OMAX engineers continue
to innovate technology for waterjet machining, from proven 4th generation
pump designs to cutting edge drive systems with micron-level accuracy. With
the largest abrasive waterjet support network in the world, OMAX continues to
shape the future of waterjets.

To see how an OMAX JetMachining Center can save you time and money, call
or visit our website and request a free part analysis today.
