OMATA One User Guide

BOOKLET
90gsm Art Paper

FRONT

RIGHT

Your OMATA One.

TOP

RIDE Mode

Bezel

Speed Scale

0–110 kph / 0–65mph

Speed Hand

Ascent Hand

(Batt.Level)

Ascent Scale

0–4k meters / 0-10k feet

KPH version shown in illustrations

STOP Mode

Distance Scale

0–100 kilometers / 0–100 miles

CONNECT Mode

Distance Hand

Time Hand

(GPS Fix)

Ride Time Scale

0–12 hours

Thank you for your support and
enthusiasm for OMATA. We're excited
that you’re one of the first to
ride with an OMATA One.

For further instructions, FAQ’s,
tutorial videos and information on
downloading the OMATA Utility App,
please go to OMATA.com

RIDE

Hands shown Acquiring GPS

Acquire GPS—Go outside and rotate
bezel to RIDE Mode. The Speed hand
will align with the GPS mark and
the Time hand will animate while
GPS is acquired. Once your OMATA
has a GPS fix, all hands will
return to their zero positions.

Go Ride—Leave Bezel in RIDE mode
and enjoy your ride.

Auto Pause—If you stop during the
ride, your OMATA will Auto Pause.
Again, leave the Bezel in RIDE
mode. OMATA will establish a GPS
fix, and continue to record your
ride once you start riding.

STOP

Hands shown in STOP Mode

When you’ve finished your ride,
rotate the Bezel back to the STOP
Mode. This will end the recording
of that ride.

Charging—While in the STOP mode,
the Ascent Hand will show you the
battery level. It’s a bit like a
fuel gauge in a car. You can charge
your OMATA by plugging into a power
source with the USB-C cable.

CONNECT

Hands shown as Connected

Accessing Data—If you want to access
and review all your ride data, you
will need to connect your OMATA to
our OMATA Utility App. Make sure
you’ve downloaded the App first,
and then follow the instructions.

If you want to access your ride
date via your computer, rotate the
bezel to connect, then plug your
OMATA into your computer through
the USB-C cable and download the
.FIT files. These can be uploaded
to STRAVA via their website.

242

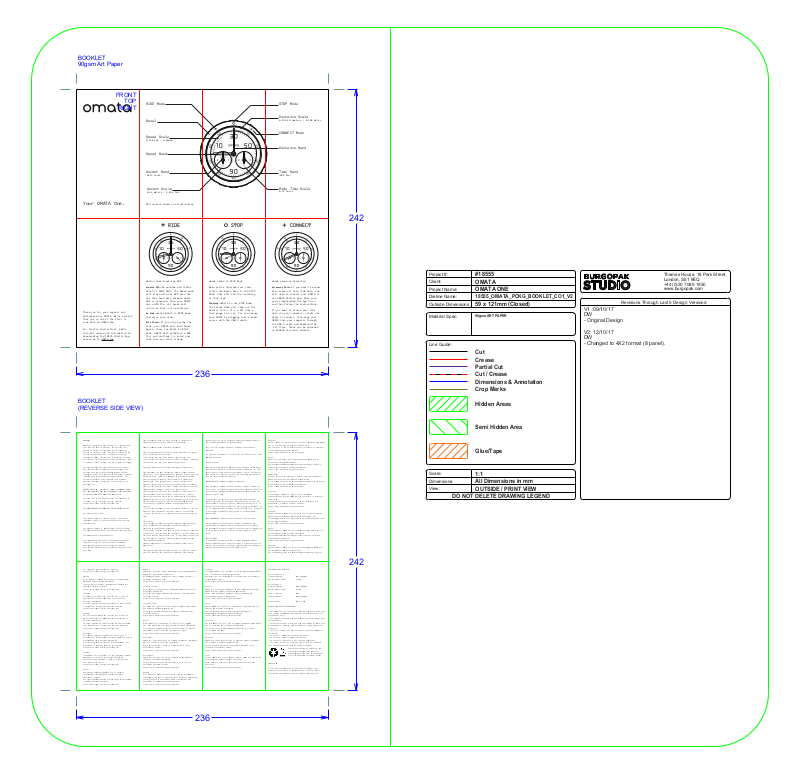

Project #:
