Olympus Mju Touch 8000, Stylus Touch 8000 Instruction Manual

Page 1

DIGITAL CAMERA

STYLUS TOUGH-8000 /

TOUGH-8000

● Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.

● We recommend that you take test shots to get accustomed to your camera before taking important photographs.

● In the interest of continually improving products, Olympus reserves the right to update or modify information contained in this manual.

● The screen and camera illustrations shown in this manual were produced during the development stages and may differ from the actual product.

Instruction Manual

Step

How to Use the Camera

“Four Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 51) “Print Reservations (DPOF)” (p. 54)

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 16)

Preparing the Camera

“Preparing the Camera” (p. 10)

Step

Checking the contents of the box

Digital camera

Strap LI-50B Lithium Ion

Battery

AC adaptor (F-1AC)

USB cable AV cable OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: Instruction Manual (this manual), warranty card Contents may vary depending on purchase location.

ContentsContents

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Viewing, and Erasing .........16

Using Shooting Modes ........................19

Using Shooting Functions ..................22

Using Playback Features ....................27

Menus for Shooting Functions ...........29

Menus for Playback, Editing, and

Printing Functions ...............................37

Menus for Other Camera Settings .....42

Printing .................................................51

Using OLYMPUS Master 2...................57

Usage Tips ...........................................59

Appendix ..............................................64

Index .....................................................82

Page 2

Step

How to Use the Camera

“Four Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 51) “Print Reservations (DPOF)” (p. 54)

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 16)

Preparing the Camera

“Preparing the Camera” (p. 10)

Step

Checking the contents of the box

Digital camera

Strap LI-50B Lithium Ion

Battery

AC adaptor (F-1AC)

USB cable AV cable OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: Instruction Manual (this manual), warranty card Contents may vary depending on purchase location.

ContentsContents

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Viewing, and Erasing .........16

Using Shooting Modes ........................19

Using Shooting Functions ..................22

Using Playback Features ....................27

Menus for Shooting Functions ...........29

Menus for Playback, Editing, and

Printing Functions ...............................37

Menus for Other Camera Settings .....42

Printing .................................................51

Using OLYMPUS Master 2...................57

Usage Tips ...........................................59

Appendix ..............................................64

Index .....................................................82

Page 3

MEMO

Set the mode dial to a position other

than A.

The symbol in “Menu

Settings” (p. 29 to 50) indicates available shooting modes.

Press the  button.

This example describes how to set the [DIGITAL ZOOM].

EXIT SET

CAMERA MENU

Shooting mode top menu

Use EFGH to select the desired

menu, and press the  button.

Pressing and

holding the E button displays an explanation (menu guide) of the selected option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITALZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 29 to 50) while referring to this page.

 button

Arrow pad

 button

Buttons in use

Use EF to select the desired

Submenu 1, and press the  button.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITALZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press G to highlight the page tab, and then use EF to move the page tab. Press H to return to the Submenu 1.

Some menus include submenus that appear

by pressing the  button.

Use EF to select the Submenu 2,

and press the  button.

Once a setting is adjusted, the display returns to the previous screen.

There may be

additional operations. “Menu Settings” (p. 29 to 50)

Press the  button to complete the

setting.

●

Four Types of Setting Operations

E button

Using the MenuUsing the Menu

Various camera settings can be accessed through the menus, including functions used during shooting and playback and the date/time and screen display.

There may be unavailable menus depending on the

other related settings or the selected  mode (p. 33).

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITALZOOM

DRIVE

AUTOWB

EXIT SET

Using the FUNC Menu (p. 25)Using the FUNC Menu (p. 25)

Frequently used shooting menu functions can be set with less steps using the FUNC menu.

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the direct buttons.

Shutter button (p. 15)

Zoom button (p. 22, p. 27)

F button (exposure compensation) (p. 23)

& button (macro) (p. 23) # button ( ash) (p. 22) Y button (self-timer) (p. 24)

q button (playback) (p. 17)

g/E/Y button (information display change/menu guide/date and time check/LED illuminator) (p. 3, p. 14, p. 24)

o/ button (panorama/tap control/ Shadow Adjustment Technology/multi window/ erase) (p. 18, p. 26)

 button (p. 3, p. 25)

Arrow pad

 button

Buttons in use

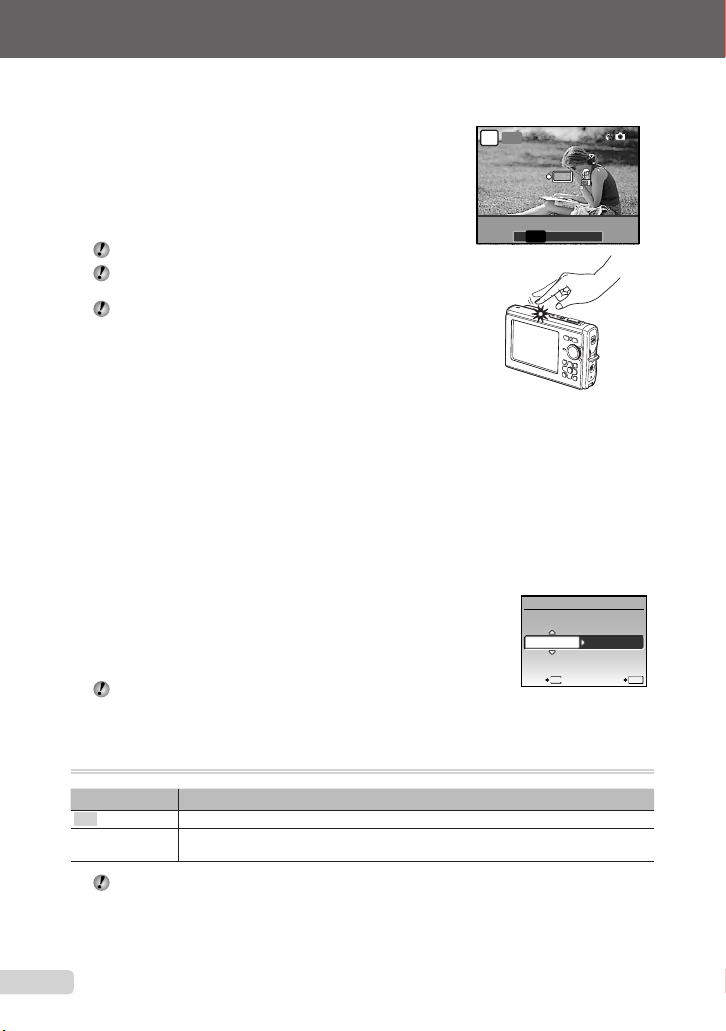

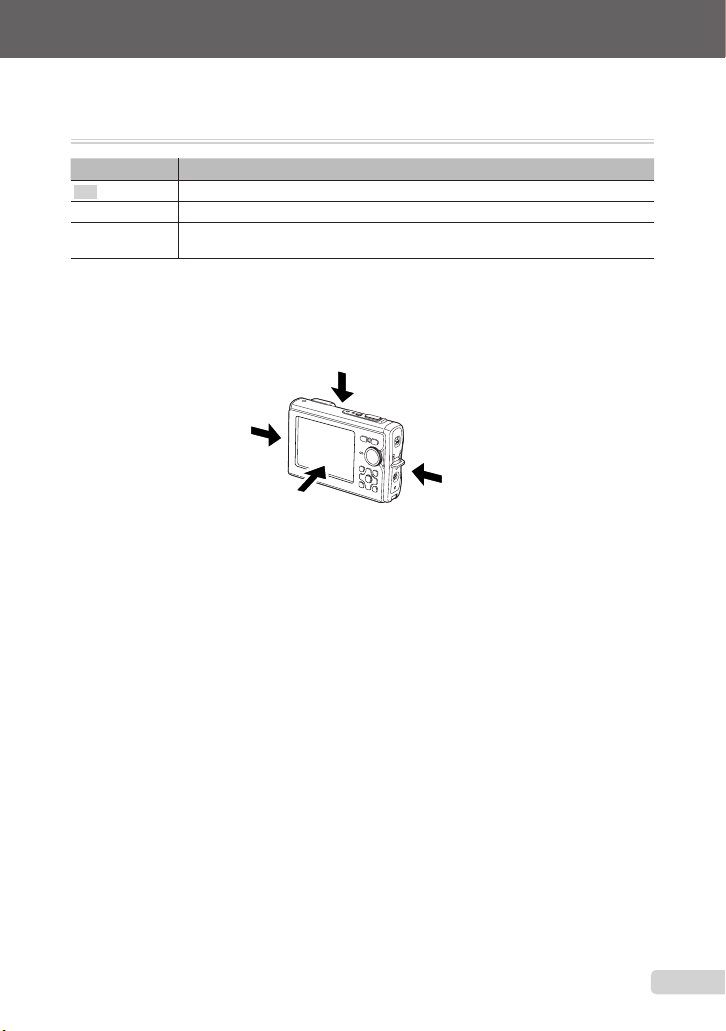

Operating the camera by tapping theOperating the camera by tapping the bodybody (p. 49) (p. 49)

You can operate the camera by tapping the body when [TAP CONTROL] is [ON].

To set [TAP CONTROL] to [ON]

Tap the top surface of the camera twice.

The [TAP CONTROL] settings screen displays.

Tap the top surface of the camera twice.

The setting is con rmed.

●

ONOFF

TAP CONTROL

Tap the camera body to operate the camera.

Page 4

MEMO

Using the FUNC Menu (p. 25)Using the FUNC Menu (p. 25)

Frequently used shooting menu functions can be set with less steps using the FUNC menu.

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the direct buttons.

Shutter button (p. 15)

Zoom button (p. 22, p. 27)

F button (exposure compensation) (p. 23)

& button (macro) (p. 23) # button ( ash) (p. 22) Y button (self-timer) (p. 24)

q button (playback) (p. 17)

g/E/Y button (information display change/menu guide/date and time check/LED illuminator) (p. 3, p. 14, p. 24)

o/ button (panorama/tap control/ Shadow Adjustment Technology/multi window/ erase) (p. 18, p. 26)

 button (p. 3, p. 25)

Arrow pad

 button

Buttons in use

Operating the camera by tapping theOperating the camera by tapping the bodybody (p. 49) (p. 49)

You can operate the camera by tapping the body when [TAP CONTROL] is [ON].

To set [TAP CONTROL] to [ON]

Tap the top surface of the camera twice.

The [TAP CONTROL] settings screen displays.

Tap the top surface of the camera twice.

The setting is con rmed.

●

ONOFF

TAP CONTROL

Tap the camera body to operate the camera.

Page 5

Menu Index

Menus for Shooting Functions

When the mode dial is set to a shooting mode position (A K s b n), settings can be adjusted.

1 A IMAGE QUALITY ......... p.29

2 B CAMERA MENU

WB ............................... p.30

ISO .............................. p.30

DRIVE.......................... p.31

FINE ZOOM................. p.31

DIGITAL ZOOM ........... p.31

ESP/n....................... p.32

AF MODE .................... p.32

R (Sound recording) .... p.32

IMAGE STABILIZER

(Still images)/ DIS MOVIE MODE

(Movies) ................... p.32

Only for P mode

SHADOW ADJ ............. p.33

3 O SCENE MODE ............. p.33

4 N PANORAMA ................. p.34

4 P MOVIE ......................... p.36

5 D RESET ......................... p.36

6 E SETUP

MEMORY FORMAT/

FORMAT .................. p.42

BACKUP ...................... p.42

W (Language) ........ p.42

PW ON SETUP ........... p.43

MENU COLOR ............ p.43

SOUND SETTINGS..... p.44

Menus for Playback, Editing, and Printing Functions

When the mode dial is set to the q position, settings can be adjusted.

1 G SLIDESHOW ............... p.37

2 H PERFECT FIX ............. p.37

3 M BEAUTY FIX ................p.37

4 I EDIT

Q (Resize) ................ p.38

P (Crop) .................... p.38

COLOR EDIT ............... p.38

CALENDAR ................. p.39

INDEX.......................... p.39

5 J PLAYBACK MENU

0 (Protect) ............... p.39

y (Rotate)................... p.40

R (Add sound to still

images) .................... p.40

CAMERA MENU

3 7

EXIT SET

Shooting mode top menu

REC VIEW ................... p.44

FILE NAME.................. p.45

PIXEL MAPPING ......... p.45

s (Monitor) ...............p.46

X (Date/time) ............ p.46

DUALTIME ................... p.46

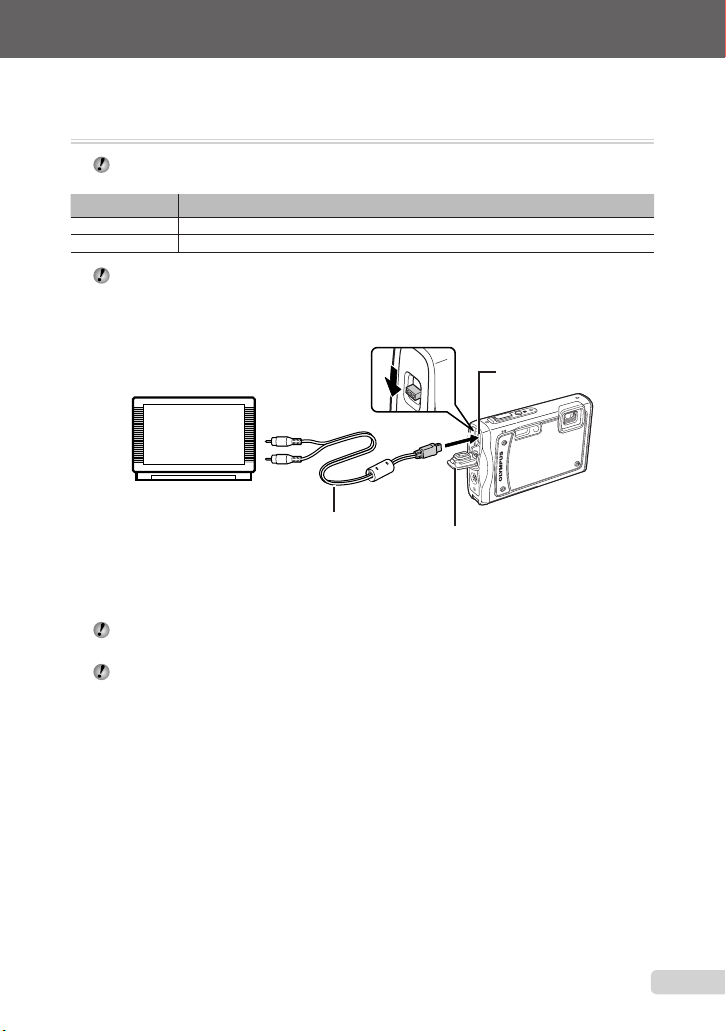

VIDEO OUT ................. p.47

POWER SAVE ............. p.48

LED ILLUMINATOR ..... p.48

MANOMETER ............. p.48

m/ft............................... p.48

TAP CONTROL ........... p.49

7 F SILENT MODE ............ p.50

PLAYBACK MENU

EXIT SET

Playback mode top menu

6 K ERASE......................... p.40

7 L PRINT ORDER ............ p.41

8 E SETUP

9 F SILENT MODE ............ p.50

Same as “Menus for

Shooting Functions”

5EN5

Page 6

Names of Parts

Camera unit

Microphone ............................p.32, 40

Multi-connector ................p.47, 51, 57

Connector cover ........p.47, 51, 57, 70

Speaker .......................................... —

Strap eyelet ..................................p.10

Battery/card compartment cover

......................................... p.10, 60, 70

7 8

Flash ............................................ p.22

Self-timer lamp/LED illuminator

............................................... p.24, 48

Lens .............................................p.64

Tripod socket .................................. —

Page 7

18 2

n button .............................p.14

Underwater sensor ..........p.19, 26, 30

Zoom button ...........................p.22, 27

Monitor ......................... p.8, 16, 46, 59

Card access lamp/

charging indicator ................p.66/p.12

m button .............................. p.3, 5

DISP./E/Y button

(information display change/ menu guide/date and time check/

LED illuminator) ................. p.3, 14, 24

Shutter button ........................p.16, 59

10 11

12 13

Mode dial .................p.3, 5, 16, 17, 19

q button (playback) ...................p.17

o button (OK/FUNC) .............. p.3, 25

o/D button (panorama/tap control/

Shadow Adjustment Technology/

multi window/erase) ...............p.18, 26

Arrow pad ............................p.3, 4, 13

F button

(exposure compensation) ........ p.23

& button (macro) ....................p.23

Y button (self-timer) ...............p.24

# button (ﬂ ash) ....................... p.22

Page 8

Monitor

Shooting mode display

2 5 98763

ISO

1600

25 24

ORM

+2.0 1/30 F3.5

Still image Movie

AFL

960hPa

17192021 1618

2 544 983 6

12 13 14 15

24 23 22

00:34

14 15

VGA

+2.0

17 161821

Shooting mode .......................p.19, 21

Flash mode .................................. p.22

Silent mode ..................................p.50

Image stabilization (still images)/

Digital image stabilization (movies)

..................................................... p.32

Macro/super macro/

S-macro LED mode ..................... p.23

Shadow Adjustment Technology

AF lock .........................................p.19

Tap control .........................p.4, 34, 49

Battery check ......................... p.12, 60

Flash standby/camera shake warning/

ﬂ ash charge .................................p.59

AF target mark ............................. p.16

Atmospheric/

hydraulic pressure .......................p.48

... p.33

Altitude/water depth .....................p.48

Sound record ......................... p.21, 32

Dual time ......................................p.46

Number of storable still pictures/

remaining recording time

......................................... p.16, 21, 67

Current memory ........................... p.66

Self-timer .....................................p.24

Aperture value .............................p.16

Shutter speed ..............................p.16

Exposure compensation .............. p.23

Compression/Frame rate .............p.29

Image size ...................................p.29

Metering ....................................... p.32

Drive ............................................p.31

ISO ...............................................p.30

White balance ..............................p.30

Page 9

Playback mode display

19 18

2009.08.26 12:30 4

Still image Movie

5 5

4 61

ORM

F3.5 +2.0

7 8 9 10

11 12 13

960hPa 0m

1/1000

ISO 1

600

100-0004

141516

4 61

VGA

2009.08.26 12:30 100-0004

00:14/00:34

1415

10 11 17 12 13

Silent mode ..................................p.50

Print reservation/

number of prints ................... p.54/p.53

Sound record .............p.21, 32, 40, 63

Protect .........................................p.39

Tap control .........................p.4, 34, 49

Battery check ......................... p.12, 59

Altitude/water depth .....................p.48

Aperture value .............................p.16

Exposure compensation .............. p.23

White balance ..............................p.30

Image size ................................... p.29

File number .................................. p.45

Frame number

Elapsed time/total recording time

..................................................... p.18

Current memory ........................... p.66

Compression/Frame rate .............p.29

ISO ...............................................p.30

Date and time ........................p.14, 46

Shutter speed ..............................p.16

Atmospheric/

hydraulic pressure .......................p.48

Page 10

Preparing the Camera

Attaching the camera strap

Pull the strap tight so that it does not come

loose.

Loading the battery and the xD-Picture Card™ (sold separately) into the camera

Do not insert anything other than an

xD-Picture Card or the microSD Attachment into the camera.

Battery lock knob

The battery has front side and back side.

Insert the battery in the correct direction as illustrated. If the battery is not inserted correctly, the camera does not operate.

Insert the battery while sliding the battery

lock knob in the direction of the arrow.

Sliding the battery lock knob in the direction

of the arrow to unlock, and then remove the battery.

Be sure to turn off the camera when you

open or close the battery/card compartment cover.

Battery/card compartment cover

Page 11

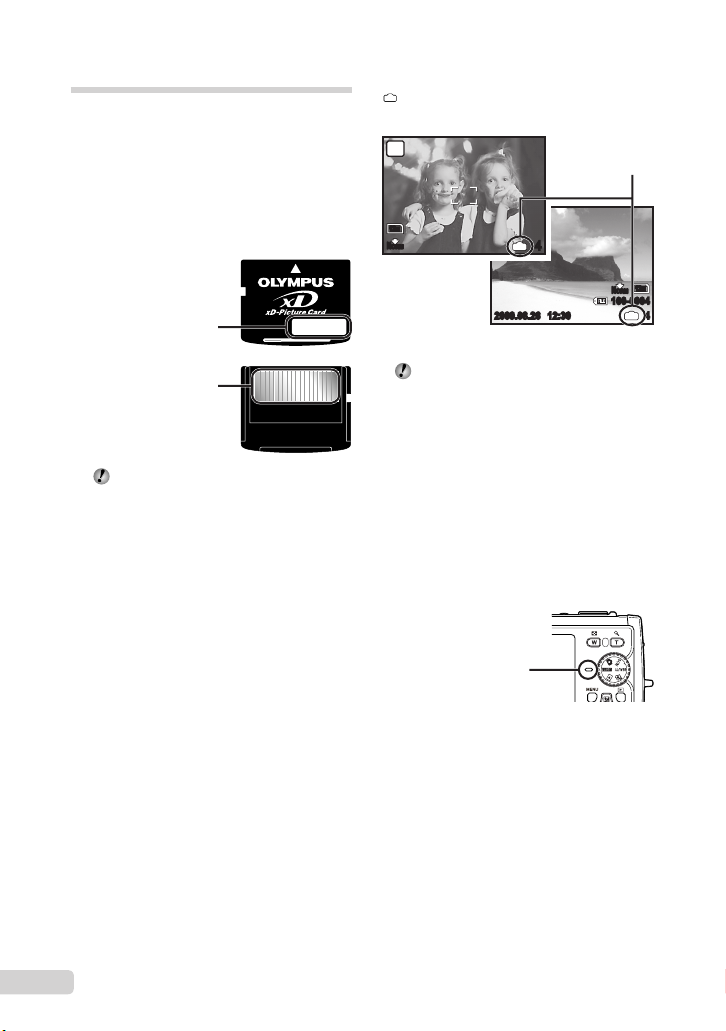

Insert the card straight in until it clicks into

place.

Do not touch the contact area on the card.

NotchIndex area

This camera allows the user to take pictures

using the internal memory even when no xD-Picture Card (sold separately) is inserted. “Using an xD-Picture Card” (p. 66)

“Number of storable pictures (still pictures)/

continuous recording length (movies) in the internal memory and xD-Picture card” (p. 67)

To remove the xD-Picture Card

Press in the card until it clicks and comes

out slightly, and then grasp the card to pull it out.

Charging the battery

The included AC adaptor (F-1AC/with an

AC cable or plug-in type) differs depending on the region where you purchased the camera. If you received a plug-in type AC adaptor, plug it directly into an AC outlet.

The included AC adaptor (F-1AC) has been

designed to be used only for charging. Make sure that operations such as shooting, viewing images and so on are not being used while the AC adaptor is connected to the camera.

Example: AC adaptor with an AC cable

AC adaptor

AC outlet

AC cable

Page 12

Multi-connector

When to charge the battery

Charge the battery when the error message shown below appears.

Flashes in red

BATTERY EMPTY

Connector cover

Charging indicator Lights (orange) : Charging Lights (blue) : Charged

Battery comes partially charged. Before

use, be sure to charge the battery until the charging indicator goes off (for approx.

2.5 hours).

If the charging indicator does not light

or it blinks, there may be cases in which the connections are not correct, or the battery, camera, and/or AC adaptor may be damaged.

For details on the battery and the AC

adaptor, see “Battery, AC adaptor (included), Charger (sold separately)” (p. 64).

Monitor top right Error message

Page 13

Using a microSD card/

2009.08.26

12:30

100-0004

00:14/00:34

YYMMD

0.0

+0.3

+0.7

+1.0

42536

microSDHC card (sold separately)

microSD card/microSDHC card (hereinafter referred to as “microSD card”) is also compatible with this camera by using the microSD Attachment.

“Using a microSD Attachment” (p. 68)

Insert the microSD card into the

Attachment.

Insert the card to the end.

Arrow pad and operation guide

The symbols 1243, displayed on various setting and movie playback screens indicate that arrow pad are used.

EXPOSURE COMP.

0.0

+0.3

TIME

+0.7

+1.0

2008 08 26 12 30

CANCEL SET

YMD

2009.08.26

00:14/00:34

12:30

100-0004

Insert the microSD Attachment into

the camera.

Notch

To remove the microSD card

Pull the microSD card straight out.

Do not touch the contact area on the

microSD Attachment and microSD card.

Arrow pad

Operation guides displayed at the bottom of the screen indicate that the m button, o button, zoom button, or D button is used.

CAMERA MENU

EXIT SET

SEL. IMAGE

BACK GO

SET

Operation guide

Page 14

Setting the date and time

The date and time set here are saved to image ﬁ le names, date prints, and other data.

Press the n button to turn on

the camera.

The date and time setting screen is displayed

●

when the date and time are not set.

DTIME

---- -- -- -- --

CANCEL

Date and time setting screen

Use EF to select the year for [Y].

DTIME

-- -- -- --

2009

CANCEL

YMD

As in steps 2 and 3, use EFGH

and the o button to set [M] (month), [D] (day), and [TIME] (hours and minutes), and [Y/M/D] (date order).

For precise time setting, press the o button

as the time signal strikes 00 seconds.

To change the date and time, adjust the

setting from the menu. [X] (Date/time) (p. 46)

To check the date and time

Press the g button while the camera is turned off. The current time is displayed for approx. 3 seconds.

Changing the display language

The language for the menu and error messages displayed on the monitor is selectable.

Press the m button, and press

EFGH to select [E] (SETUP).

SETUP

Press H to save the setting for [Y].

D TIME

-- -- -- --

2009

CANCEL

YMD

Press the o button.

SETUP

EXIT SET

MEMORY FORMAT

BACKUP

PW ON SETUP

MENU COLOR

EXIT SET

ENGLISH

NORMAL

Page 15

Use EF to select [W] and

press the o button.

ENGLISH

FRANCAIS DEUTSCH ESPAÑOL ITALIANO

Use EFGH to select your

඾ུࢊ

language and press the o button.

Press the m button.

SETBACK

Page 16

Shooting, Viewing, and Erasing

1/400

F3.5

Shooting with optimum aperture value and shutter speed (K mode)

In this mode, automatic camera shooting can be used while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, and so on when needed.

Set the mode dial to K.

Press the n button to turn on

the camera.

Number of storable

still pictures (p. 67)

ORM

Monitor

(standby mode screen)

Press the n button again to turn off

the camera.

Hold the camera, and compose the

shot.

Monitor

Horizontal grip

Vertical grip

When holding the camera, take care not to

cover the flash with your fingers, etc.

Press the shutter button halfway

down to focus on the subject.

When the camera focuses on the subject, the

●

exposure is locked (shutter speed and aperture value are displayed), and the AF target mark

changes to green.

The camera was unable to focus if the AF target

●

mark ﬂ ashes red. Try focusing again.

1/400 F3.5

Press halfway

“Focusing” (p. 61)

1/400

AF target mark

Shutter speed

F3.5

Aperture value

Page 17

1/400

F3.5

To take the picture, gently press

the shutter button all the way down while being careful not to shake the camera.

Viewing images

Set the mode dial to q.

Frame number

Press fully

1/400

F3.5

Image review screen

To view images during shooting

Pressing the q button enables playback of images. To return to shooting, either press the q button again or press the shutter button halfway down.

You can operate the camera by tapping the

body when [TAP CONTROL] is [ON]. [TAP CONTROL] (p. 49)

To shoot movies

“Shooting movies (A mode)” (p. 21)

2009.08.26 12:30

Playback image

Use EFGH to select an image.

Displays

10 frames before

the current image

Displays previous


The display size of the images can be

changed. “Index view, calendar view, and close-up view” (p. 27)

Displays next image

Displays 10 frames after the current image

To play back movies

Select a movie, and press the o button.

2009.08.26 12:30

MOVIE PLAY

Movie

ORM

100-0001

100-0004

Page 18

Operations during movie playback

2009.08.26

12:30

100-0004

00:12/00:34

2009.08.26

12:30

100-0004

00:14/00:34

ERASE

Volume: During playback, press EF. Fast-forward/rewind: Select with GH.

Each time a button is pressed, the playback speed cycles through 2x, 20x, and standard (1x) speed in the direction of the pressed button.

Pause: Press the o button.

Erasing images during playback (Single image erase)

Press the D button when the

playback image to be erased is displayed.

ERASE

2009.08.26

During pause

00:12/00:34

00:14/00:34

Elapsed time/

Total recording time

During playback

First (last) frame/frame advance: During pause, press E to display the ﬁ rst frame, and press F to display the last frame. Playback is reversed while G is pressed, playback occurs normally while H is pressed. Press the o button to resume playback.

To stop movie playback

Press the m button.

12:30

100-0004

12:30

100-0004

YES

CANCEL

Press E to select [YES], and press

SET

the o button.

[K ERASE] (p. 40)

Page 19

Using Shooting Modes

This section describes the available shooting modes. Depending on the mode, some settings can be changed. For details on the functions that can be adjusted, see “Menus for Shooting Functions” on page 29.

Using the best mode for the shooting scene (s mode)

Set the mode dial to s.

PORTRAIT

EXIT

An explanation of the selected mode is displayed

●

while the E button is pressed and held.

Use EF to select the best

shooting mode for the scene, and press the o button.

Icon indicating

the scene mode

that is set

ORM

To change to another scene mode, use the

menu. [O SCENE MODE] (p. 33)

SET

To take underwater photos

Select [T UNDERWATER SNAPSHOT], [k UNDERWATER WIDE1], [l UNDERWATER WIDE2] [H UNDERWATER MACRO]. When the mode dial is set to s during underwater shooting (i.e., while the underwater sensor is responding), the above mentioned 4 modes appear before other modes.

When set to [l UNDERWATER WIDE2], the focus distance is automatically ﬁ xed to approx. 5.0 m (16.4 ft.).

Be sure to use an underwater case when

using the camera at depths exceeding 10 m (32.8 ft.).

When [MANOMETER] (p. 48) is set to

[ON], the altitude/water depth (atmospheric/

hydraulic pressure) appears on the shooting standby mode screen as a rough guide. “Shooting mode display” (p. 8)

“Important information about water and

shock resistant features” (p. 68)

To lock the focus distance for underwater shoots (AF lock)

When [T UNDERWATER SNAPSHOT], [k UNDERWATER WIDE1], or, [H UNDERWATER MACRO] is selected, press F.

^ mark

AFL

ORM

To cancel, press F again to clear the

^ mark.

Page 20

Enhancing skin tone and

ORM

texture (b mode)

The camera ﬁ nds a person’s face and gives the skin a smooth, translucent look for taking the picture.

Set the mode dial to b.

b mode indicator

ORM

Point the camera toward the

subject. Check the frame appearing around the face detected by the camera, and then press the shutter button to take the picture.

The unedited image and edited image are both

●

saved.

If the image cannot be retouched, only the

●

unedited image is saved.

For some subjects, the frame may not

appear, may take some time to appear, or the editing may not be effective.

The [IMAGE SIZE] of the retouched image

is limited to [J] or lower.

Shooting with automatic settings (A mode)

The camera will automatically select the optimal shooting mode for the scene. This is a fully automatic mode that allows you to take a picture suited to the scene by simply pressing the shutter button. Settings in the shooting function menu are not available in A mode.

Set the mode dial to A.

The indicator changes to the icon for the scene mode selected by the camera.

AUTO

ORM

Press the shutter button halfway down or press the

●

g button to check which shooting mode the camera has automatically selected.

In some cases, the camera may not select

the desired shooting mode.

When the camera cannot identify which is

the optimal mode, P mode will be selected.

Page 21

Shooting movies (n mode)

00:35

QVGA

00:34

REC

Audio is recorded with the movie.

Set the mode dial to n.

A mode indicator

QVGA

To zoom while shooting a movie

The optical zoom is not available while shooting a movie. Use [DIGITAL ZOOM] (p. 31).

To shoot a movie with digital image stabilization

[DIS MOVIE MODE] (p. 32)

Press the shutter button halfway

down to focus on the subject, and gently press the button all the way down to start recording.

Lights red during shooting

REC

Press halfway

00:35

Press fully

Remaining recording time (p. 67)

Gently press the shutter button all

00:34

the way down to stop recording.

Page 22

Using Shooting Functions

SET

FLASH AUTO

In addition to the wide variety of shooting modes, the camera has functions that broaden the expressive range and shooting options available to the photographer.

Using the optical zoom

Pressing the zoom button adjusts the shooting range.

Pressing the wide (W)

ORM

button

W T

Zoom bar

Optical zoom: 3.6×, Digital zoom: 5.0×.

Use of [IMAGE STABILIZER] (Still image)/

[DIS MOVIE MODE] (Movie) (p. 32) is recommended when shooting with the telephoto zoom.

To take larger images without reducing image quality

[FINE ZOOM] (p. 31)

To take larger images

[DIGITAL ZOOM] (p. 31)

Pressing the telephoto (T) button

W T

ORM

The zoom bar appearance identiﬁ es the

status of the ﬁ ne zoom/digital zoom.

When using optical zoom

Optical zoom range

When using ﬁ ne zoom

When using digital zoom

Using the ﬂ ash

The ﬂ ash functions can be selected to best match the shooting conditions and render the desired image.

Press the # button.

You can operate the camera by tapping the

body when [TAP CONTROL] is [ON]. [TAP CONTROL] (p. 49)

AUTO

SET

Fine zoom range

Digital zoom range

FLASH AUTO

! # $

AUTO

Page 23

0.0

+0.3

+0.7

+1.0

SET

OFF

Use GH to select the setting option,

and press the o button to set.

Item Description

FLASH AUTO

REDEYE

FILL IN

FLASH OFF The ﬂ ash does not ﬁ re.

The ﬂ ash ﬁ res automatically in low-light or backlight conditions.

This emits pre-ﬂ ashes to reduce the occurrence of red eye in your photos.

The ﬂ ash ﬁ res regardless of the available light.

Adjusting the brightness (Exposure compensation)

The standard brightness (appropriate exposure) set by the camera based on the shooting mode (except for A) can be adjusted brighter or darker to obtain a desired shot.

Press the F button.

EXPOSURE COMP.

0.0

+0.7

Exposure compensation value

Use EFGH to select the desired

brightness image, and press the o button.

+0.3

+1.0

Shooting closeups (Macro shooting)

This function enables the camera to focus and shoot subjects at close distances.

Press the & button.

You can operate the camera by tapping the

body when [TAP CONTROL] is [ON]. [TAP CONTROL] (p. 49)

Use GH to select the setting option,

and press the o button to set.

Item Description

OFF Macro mode is deactivated.

MACRO

SUPER MACRO

S-MACRO

*3*4

LED

When the zoom is at the widest (W) position.

When the zoom is at the most telephoto (T) position.

The zoom is automatically ﬁ xed.

[ISO] (p. 30) is automatically ﬁ xed to [AUTO].

The ﬂ ash (p. 22) and zoom (p. 22) cannot

This enables shooting as close as 10 cm/3.9 in. the subject.

This enables shooting as close as 2 cm/0.8 in. to the subject. Subjects at 50 cm/19.7 in. or

farther cannot be brought into focus.

The LED illuminator lights the area 7 to 20 cm (2.8 to 7.9 in.) from the lens, while the shutter button is pressed halfway down.

be set when [%] or [O] is selected.

OFFOFF

SET

OFF

% &

OFF

(30 cm/11.8 in.*2) to

Page 24

Using the self-timer

After the shutter button is pressed all the way down, the picture is taken after a time delay.

Press the Y button.

OKOK

SET

SELFTIMER

ORM

Use EF to select the setting

option, and press the o button to set.

Item Description

OFF This cancels the self-timer.

The self-timer lamp turns on for

Self-timer shooting is automatically canceled

approx. 10 seconds, and then blinks for approx. 2 seconds, and then the picture is taken.

after one shot.

To cancel the self-timer after it starts

Press the Y button again.

OFF

Using the LED illuminator

In a dark location, the LED illuminator can be used as an auxiliary light to see things or compose shots.

Set [LED ILLUMINATOR] (p. 48) to

[ON].

Press and hold the Y button down

until the LED illuminator lights up.

If you perform an operation when the LED

●

illuminator is on, it will illuminate up to approx. 90 seconds.

LED

illuminator

The LED illuminator turns off if no operation

is performed for approx. 30 seconds.

Even when the camera’s power is turned

off, if the Y button is pressed until the LED illuminator lights up, it lights for 30 seconds.

To turn the LED illuminator off

Press and hold the Y button down, until the LED illuminator turns off.

OFF

YYY

Page 25

Changing the shooting information display

The display of the screen information can be changed to best match the situation, such as for the need of clear view of the screen or for making a precise composition by using the grid display.

Press the g button.

The displayed shooting information changes in

●

the order shown below each time the button is pressed. “Shooting mode display” (p. 8)

Normal

ISO 1600

ORM

+2.0

No information

Reading a histogram

If the peak ﬁ lls too much of the frame, the image will appear mostly white.

If the peak ﬁ lls too much of the frame, the image will appear mostly black.

The green section shows the luminance distribution in the center area of the monitor.

Histogram

ISO 1600

ORM

+2.0

Grid

ISO

1600

ORM

+2.0

Using the FUNC menu

The FUNC menu provides the following menu functions that can be quickly called and set.

[WB] (p. 30)• [ISO] (p. 30)• [DRIVE] (p. 31)•

Press the o button.

Use EF to select the menu

function and GH to select the setting option, and then press the o button to set.

[ESP/n] (p. 32)• [A IMAGE QUALITY] (p. 29)•

AUTO

ISO

AUTO

ESP

ORM

ESP

Page 26

Quickly calling and using shooting functions

The following menu functions can be quickly called and used.

[PANORAMA] (p. 34)• [SHADOW ADJ] (p. 33)• [TAP CONTROL] (p. 49)• [MULTI WINDOW] (p. 26)•

Press the o/D button.

PANORAMA

Use GH to select the menu

function, and press the o button to set.

To use the effects preview screen (Multi window)

Selecting an option from [ZOOM], [EXPOSURE COMP.], [WB] or [ESP/n] shows 4 preview images that reﬂ ect the adjusted values of the selected shooting function. Use EFGH to select the desired image, and press the o button.

Brightening the monitor (Backlight boost)

Pressing and holding the o/D button brightens the monitor. The monitor returns to the original brightness if no operation is performed for 10 seconds.

During underwater shooting (i.e., while

the underwater sensor is responding), the backlight boost operates automatically.

Page 27

Using Playback Features

2626272728282929303031311

SUN

MON

TUE

WED

THU

FRI

SAT

2009

2233445566778

991010111112121313141415

16161717181819192020212122

23232424252526262727282829

30301122334

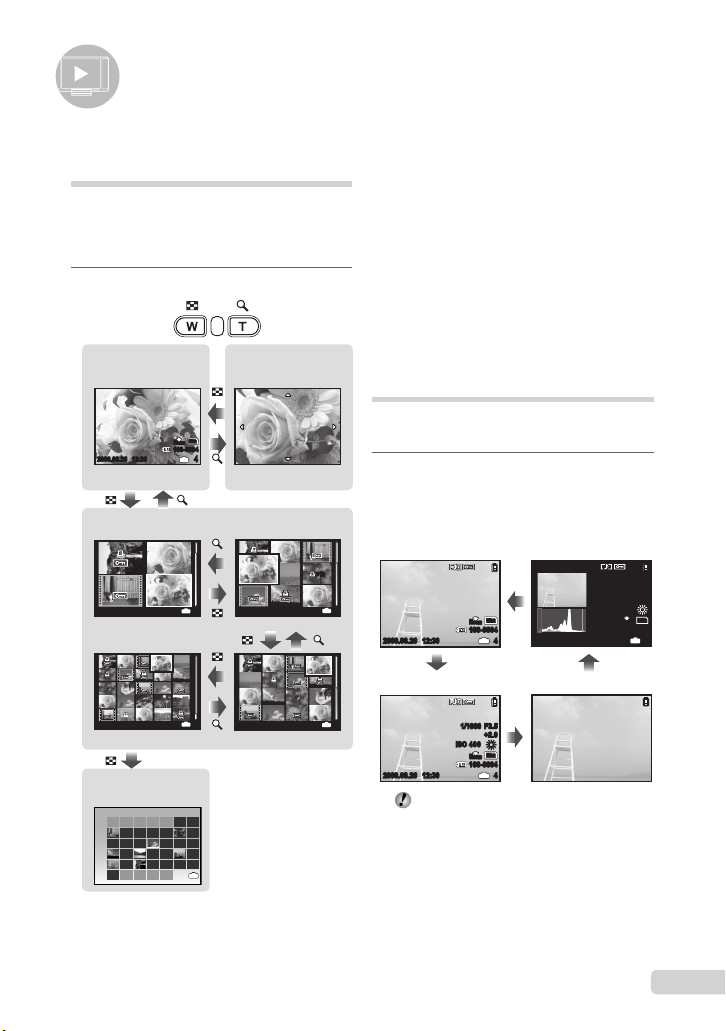

Index view, calendar view, and close-up view

Index view and calendar view enable quick selection of a target image. Close-up view (up to 10x magniﬁ cation) allows checking of image details.

Press the zoom button.

Single-image view Close-up view

ORM

Index view

12:30

MON

TUE

WED

THU

100-0004

FRI

SAT

2009.08.26 12:30

2009.08.26 12:30 4

2009.08.26 12:30

2009.08.26 4

2009.08.26 12:30 4

Calendar view

SUN

2009

To select an image in index view

Use EFGH to select an image, and press the o button to display the selected image in single-image view.

To select images in calendar view

Use EFGH to select a date and press the o button or T on the zoom button to view the images taken on the selected date.

To scroll an image in close-up view

Use EFGH to move the viewing area.

Changing the image information display

Shooting information displayed on the screen can be changed.

Press the g button.

The displayed image information changes in

●

the order shown below each time the button is pressed.

Normal

2009.08.26 12:30 4

Detailed

2009.08.26 12:30 4

ORM

100-0004

ISO

400

ORM

100-0004

“Reading a histogram” (p. 25)

F3.51/1000 +2.0

Histogram

2009.08.26 12:30

No information

ISO

1/1000

F3.5 +2.0

400

ORM

Page 28

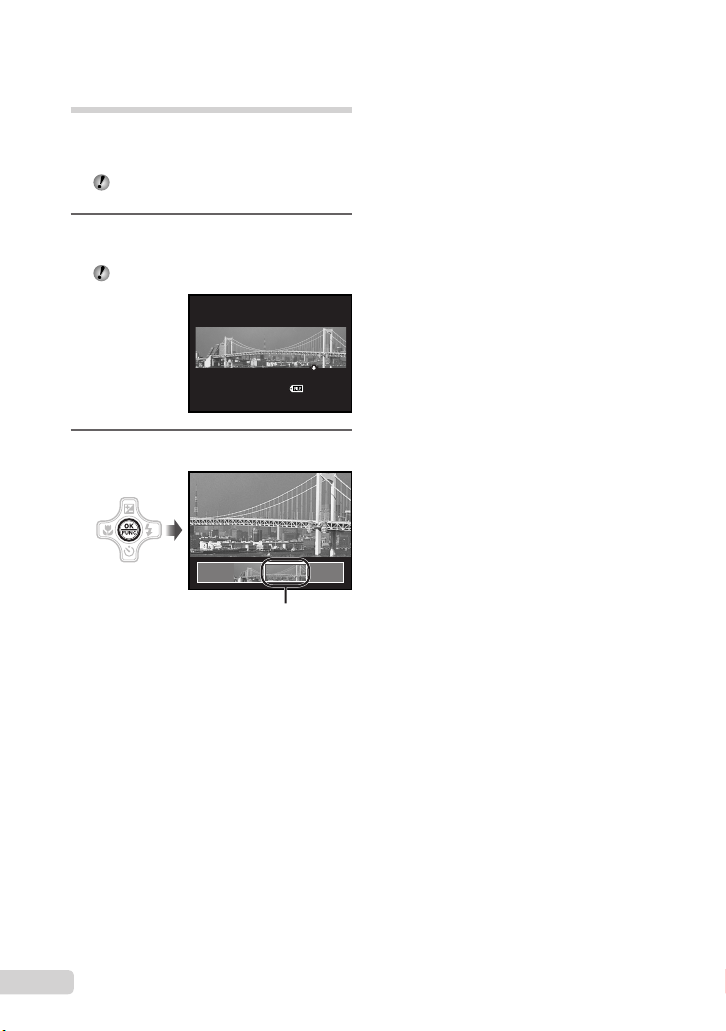

Playing back panorama

ORM

2009.08.26 12:30

100-0003

images

Panorama images that were combined together using [COMBINE IN CAMERA 1] or [COMBINE IN CAMERA 2] can be scrolled for viewing.

“Creating panoramic images

[N PANORAMA]” (p. 34)

Select a panorama image during

playback.

“Viewing images” (p. 17)

ORM

2009.08.26 12:30

Press the o button.

Current viewing area

To control panorama image playback

Zoom in/Zoom out: Press the zoom button. Playback direction: Press EFGH to

scroll in the direction of the pressed button.

Pause: Press the o button. Restart scrolling: Press the o button. Stop playback: Press the m button.

100-0003

Page 29

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

Menus for Shooting Functions

When the mode dial is set to a shooting mode position (A K s b A), settings can be adjusted.

indicates positions of the mode dial at which the function can be set.

The default settings of the function are highlighted in .

Selecting the appropriate image quality for your application [A IMAGE QUALITY]

A IMAGE QUALITY

: A K s b A

Still images

Submenu 1 Submenu 2 Application

IMAGE SIZE

COMPRESSION

12M (3968×2976)

5M (2560×1920)

3M (2048×1536)

2M (1600×1200)

1M (1280×960)

VGA (640×480)

16:9 (1920×1080)

FINE Shooting at high quality.

NORMAL Shooting at normal quality.

Suitable for printing pictures over A3 (11×17 in.).

Suitable for printing pictures at A4 (8.5×11 in.).

Suitable for printing pictures up to A4 (8.5×11 in.).

Suitable for printing pictures at A5 (5×7 in.).

Suitable for printing pictures at postcard size.

Suitable for viewing pictures on a TV or using pictures on emails and web sites.

Suitable for playing pictures on wide screen TV.

Movies

Submenu 1 Submenu 2 Application

IMAGE SIZE

FRAME RATE

frames per second

“Number of storable pictures (still pictures)/continuous recording length (movies) in the internal

VGA (640×480) / QVGA (320×240)

N 30fps*1/

O 15fps

memory and xD-Picture Card” (p. 67)

Select the image quality based on the image size and frame rate. Higher frame rates provide smoother movies.

Page 30

Adjusting to a natural color scheme [WB]

B CAMERA MENU X WB

: K s b A

Still images/ Movies (During non-water shooting)

Submenu 2 Application

AUTO

Movies (During underwater shooting)

Submenu 2 Application

Q/ R/ S

The camera automatically adjusts the white balance according to the shooting scene.

For shooting outdoors under a clear sky

For shooting outdoors under a cloudy sky

For shooting under tungsten lighting

For shooting under daylight ﬂ uorescent lighting (household lighting, etc.)

For shooting under neutral ﬂ uorescent lighting (desk lamps, etc.)

For shooting under white ﬂ uorescent lighting (ofﬁ ces, etc.)

For shooting underwater.

Selecting the ISO sensitivity [ISO]

B CAMERA MENU X ISO

: K

Abbreviation for the International

Organization for Standardization. ISO standards specify the sensitivity for digital cameras and ﬁ lm, thus codes such as “ISO 100” are used to represent sensitivity.

In the ISO setting, although smaller values

result in less sensitivity, sharp images can be taken under fully lit conditions. Larger values result in higher sensitivity, and images can be taken at fast shutter speeds even under dimly lit conditions. However, high sensitivity introduces electrostatic noise into the resulting picture, which may give it a grainy appearance.

Submenu 2 Application

AUTO

HIGH ISO AUTO

64/100/200/400/ 800/1600

The camera automatically adjusts the sensitivity according to the shooting scene.

The camera uses a higher sensitivity compared to [AUTO] to minimize blur caused by a moving subject or by camera shake.

The ISO (sensitivity) setting is ﬁ xed by manually selecting it.

Page 31

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

Shooting pictures sequentially while the shutter button is held down [DRIVE]

B CAMERA MENU X DRIVE

: K s

Submenu 2 Application

The shooting speed varies depending on the settings for [A IMAGE QUALITY] (p. 29).

When set to [j], [R] (Sound recording)

When set to [W], ﬂ ash is set ﬁ xed [$]

When set to [W], [IMAGE SIZE] is limited

One frame is shot each time the shutter button is pressed.

Sequential shooting at the focus, brightness (exposure), and white balance that is locked in the ﬁ rst frame.

Sequential shooting at a higher speed than [j].

(p. 32) is not available.

(FLASH OFF) and [ISO] is ﬁ xed to [AUTO].

to [I] or lower. Moreover, [FINE ZOOM] (p. 31), [DIGITAL ZOOM] (p. 31), and [R] (Sound recording) (p. 32) are not available.

Shooting at higher magniﬁ cations than optical zoom without reducing the image quality [FINE ZOOM]

B CAMERA MENU X FINE ZOOM

: K s b

Submenu 2 Application

OFF

This function will not reduce the image

When set to [ON], [IMAGE SIZE] is limited

This function is not available when

Only optical zoom is used to zoom in for shooting.

Optical zoom and image cropping are combined to zoom in for shooting (Approx. 21x (max.)).

quality since it dose not convert the data with fewer pixels into the data with larger pixels.

to [H] or lower.

[DIGITAL ZOOM] is [ON].

[% SUPER MACRO] (p. 23) or [O S-MACRO LED] (p. 23) is selected.

Shooting at higher magniﬁ cations than optical zoom [DIGITAL ZOOM]

B CAMERA MENU X DIGITAL ZOOM

: K s b A

Submenu 2 Application

OFF

This function is not available when

Only optical zoom is used to zoom in for shooting.

Optical zoom and digital zoom are combined to zoom in for shooting (Approx. 18x (max.)).

[FINE ZOOM] is [ON].

[% SUPER MACRO] (p. 23) or [O S-MACRO LED] (p. 23) is selected.

Page 32

Selecting the range for measuring the brightness [ESP/n]

B CAMERA MENU X ESP/n

: K s A

Submenu 2 Application

ESP

n (spot)

When set to [ESP], the center may

Shoots to obtain a balanced brightness over the entire screen. (Meters the brightness at the center and surrounding areas of the screen separately.)

Shoots the subject at the center during backlighting.

appear dark when shooting against strong backlighting.

Recording sound when shooting still images [R]

B CAMERA MENU X R

: K s

Submenu 2 Application

OFF No sound is recorded.

The camera automatically starts

When recording, aim the microphone (p. 6)

recording for approx. 4 seconds after taking the picture. This is useful for recording notes or comments about the picture.

at the source of the sound you want to record.

Selecting the focusing area [AF MODE]

B CAMERA MENU X AF MODE

: K s

Submenu 2 Application

FACE DETECT

iESP

SPOT

For some subjects, the frame may not appear or

may take some time to appear.

This is used for taking pictures of people. (The camera automatically detects a face and displays a frame on the monitor). Press the shutter button halfway, when the

camera focuses on a face the AF target mark lights green. When the AF target mark lights orange, this indicates the camera has focused on something other than a face.

This enables you to compose the shot without worrying about the focusing position. The camera ﬁ nds the subject to focus on and automatically adjusts the focus.

The camera focuses on the subject within the AF target mark.

Reducing the blur caused by the camera shake when shooting [IMAGE STABILIZER] (still images) / [DIS MOVIE MODE] (movies)

B CAMERA MENU X IMAGE STABILIZER / DIS MOVIE MODE

: K s b A

Submenu 2 Application

The image stabilizer is deactivated.

OFF

The camera’s default settings are [IMAGE

While [IMAGE STABILIZER] (still images)

Images may not be stabilized if camera

When the shutter speed is extremely slow,

When shooting while the [DIS MOVIE

This is recommended for shooting when the camera is ﬁ xed in place on a tripod or other stable surface.

The image stabilizer is activated.

STABILIZER] (still images) to [ON] and [DIS MOVIE MODE] (movies) to [OFF].

is set to [ON], noises may occur from the inside of the camera if the shutter button is pressed.

shake is too severe.

such as when taking still shots or taking pictures at night, the stabilizer may not be as effective.

MODE] (movies) is set to [ON], the image will be enlarged somewhat before saving.

Page 33

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

Brightening the subject against backlight [SHADOW ADJ]

B CAMERA MENU X SHADOW ADJ

: K s b A

Submenu 2 Application

OFF

For some subjects, the frame may not

When set to [ON], [ESP/n] (p. 32)

Shoots without using [SHADOW ADJ].

The camera ﬁ nds a person’s face that has been darkened by backlight and makes it appear brighter for taking the picture. (Point the camera toward the subject. Check the frame that appears around the face detected by the camera, and then press the shutter button to take the picture.)

appear or may take some time to appear.

is automatically ﬁ xed to [ESP], and [AF MODE] (p. 32) is automatically ﬁ xed to [FACE DETECT].

Selecting a scene mode according to the shooting situation [O SCENE MODE]

O SCENE MODE

: s

In s mode, the optimum shooting

settings are pre-programmed for speciﬁ c shooting scenes. For this reason, settings may not be changed in some modes.

Submenu 1 Application

B PORTRAIT/ F LANDSCAPE/ G NIGHT SCENE M NIGHT+PORTRAIT C SPORT/ N INDOOR/ W CANDLE R SELF PORTAIT/ S SUNSET X FIREWORKS V CUISINE/d DOCUMENTS/

q BEACH & SNOW/

T UNDERWATER SNAPSHOT/

k UNDERWATER WIDE1/ l UNDERWATER WIDE2/ H UNDERWATER MACRO/

Y PRE-CAPTURE MOVIE/

aSNOW

When the subject is dark, noise reduction is

automatically activated. This approximately doubles the shooting time, during which no other pictures can be taken.

To shoot with the selected mode

“Using the best mode for the shooting scene (s mode)” (p. 19)

The camera takes a picture in the mode for the shooting scene.

Page 34

Capturing the perfect moment when shooting ([YPRE-CAPTURE MOVIE] mode)

1 Use EF to select [YPRE-CAPTURE

MOVIE], and then press the o button to set.

This function is ready for shooting

●

immediately after setting this option.

2 Press the shutter button to start movie

shooting.

●

A 7-second movie, including 2-second movie immediately before pressing the shutter button, is taken.

The optical zoom and auto focus function are

●

available during movie recording.

Sound is not recorded.

AF target mark does not appear on the

monitor.

Select [IMAGE SIZE] from [VGA] or [QVGA],

and select [FRAME RATE] from [N 30fps] or [O 15fps].

Tapping the camera to shoot a picture ([aSNOW] mode)

1 Select [aSNOW], and then press the o

button.

●

[TAP CONTROL] (p. 49) automatically becomes active and the camera can be operated by tapping.

2 Tap the back of the camera body twice.

●

[SELFTIMER] becomes active and the picture is automatically taken after 2 seconds.

Creating panoramic images [N PANORAMA]

N PANORAMA

: K s

Submenu 1 Application

COMBINE IN CAMERA 1

COMBINE IN CAMERA 2

COMBINE IN PC

Not available in s mode (p. 19).

The [A IMAGE QUALITY] (p. 29) setting cannot be

changed.

The focus, exposure (p. 23), zoom position

The ﬂ ash (p. 22) is ﬁ xed to $ (FLASH OFF)

Panorama images can be edited using

“Playing back panorama images” (p. 28)

Three frames are taken and combined by the camera. The user only composes the shots so that the target marks and pointers overlap, and the camera

*1*2

automatically releases the shutter. The shooting functions are already preset to the optimum settings for panoramic shooting.

Three frames are taken and combined by the camera. The user composes the shots using

*1*2

the guide frame and manually releases the shutter.

The frames that were taken are combined into a panorama image using the OLYMPUS Master 2 software from the provided CDROM. Pictures are taken in the last [ISO] or [O SCENE MODE] settings (except for some scene modes).

(p. 22), and [WB] (p. 30) are locked at the ﬁ rst frame.

mode.

[SHADOW ADJ] (p. 33), [COLOR EDIT] (p. 38) only.

Page 35

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

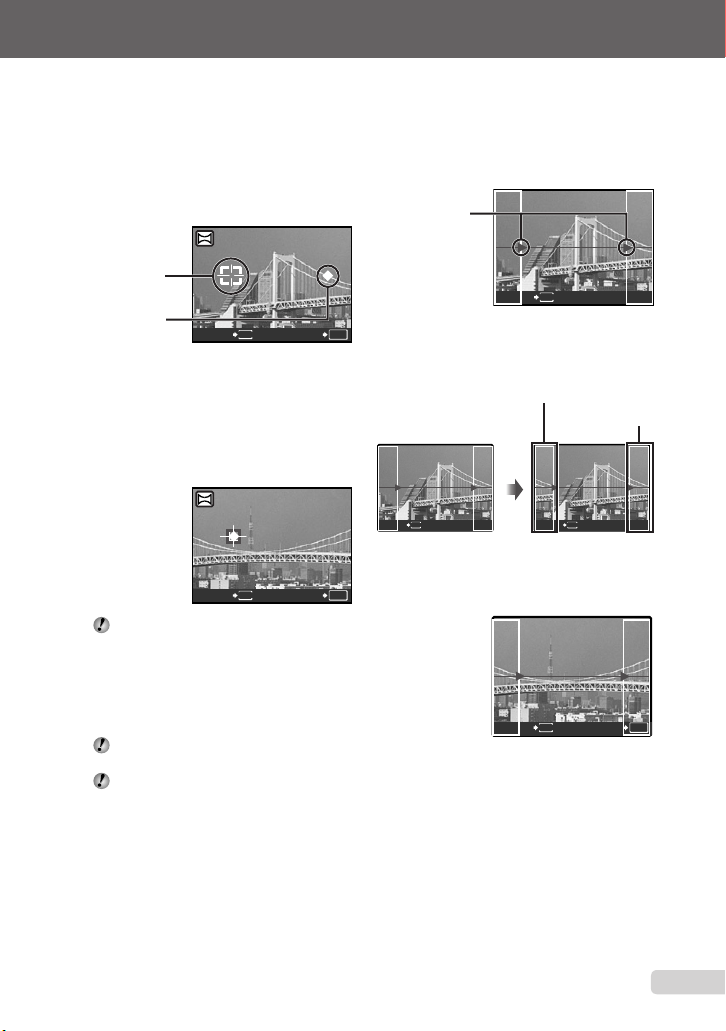

Taking pictures with [COMBINE IN CAMERA 1]

1 Press the shutter button to take the ﬁ rst

frame.

2 Move the camera slightly in the direction

of the second frame.

Target mark

Pointer

3 Move the camera slowly while keeping it

straight, and stop the camera where the pointer and target mark overlap.

The camera releases the shutter

●

automatically.

To combine only two pictures, press the

o button before taking the third frame.

4 Take the third frame in the same way as

Step 3.

After the third frame is taken, the camera

●

automatically processes the frames and the combined panorama image is displayed.

To cancel making panoramic picture during

shooting, press the m button.

When the shutter does not automatically

release, try [COMBINE IN CAMERA 2] or [COMBINE IN PC].

CANCEL

Screen when combining images from left to right

CANCEL

SAVE

Taking pictures with [COMBINE IN CAMERA 2]

1 Use GH to select the direction that the

frames are combined.

Direction for

combining the

next frame

CANCEL

2 Press the shutter button to take the ﬁ rst

frame.

A guide frame appears as a reference.

●

Guide frame

Joint area

CANCEL

1st frame

3 Compose the second shot so that the

joint area overlaps the guide frame.

CANCEL

Composition of the 2nd frame

SAVE

Page 36

4 Press the shutter button to take the

second frame.

To combine only two pictures, press the

o button before taking the third frame.

5 Take the third frame in the same way as

Steps 3 to 4.

After the third frame is taken, the camera

●

automatically processes the frames and the combined panorama image is displayed.

To cancel making panoramic picture during

shooting, press the m button.

Taking pictures with [COMBINE IN PC]

1 Use EFGH to select the direction that

the frames are combined.

2 Press the shutter button to take the ﬁ rst

frame, and then compose the second shot.

●

Compose the shot using the guide frame so that the two adjacent frames overlap.

3 Repeat Step 2 until the number of

required frames are taken, and then press the o button when ﬁ nished.

When the g mark is displayed, you cannot

continue shooting any further. Panorama shooting is possible for up to 10 frames.

Refer to the OLYMPUS Master 2 help

guide for details on how to make panorama images.

Selecting movie shooting mode [P MOVIE]

P MOVIE

Restoring the shooting functions to the default settings [D RESET]

D RESET

: A K s b A

Submenu 1 Application

YES

: A

Restores the following menu functions to the default settings.

Flash (p. 22)

• Exposure compensation (p. 23)

• Macro (p. 23)

• Self-timer (p. 24)

• [A IMAGE QUALITY] (p. 29)

• Menu functions in

• [B CAMERA MENU] (p. 30 to 33)

The current settings are not changed.

Submenu 1 Application

NON-WATER MOVIE

UNDERWATER MOVIE

First the [MOVIE] setting screen appears

The optical zoom is not available during movie recording but the sound can be recorded.

The optical zoom is available during movie recording but the sound cannot be recorded.

when you set the mode dial to A during underwater shooting (i.e., while the underwater sensor is responding).

Page 37

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

Menus for Playback, Editing, and Printing Functions

The default settings of the function are highlighted in .

When the mode dial is set to the q position, settings can be adjusted.

Playing back automatically [G SLIDESHOW]

G SLIDESHOW

Submenu 1 Submenu 2 Submenu 3 Application

ALL/ STILL PICTURE/ MOVIE/CALENDAR

Only when [STILL PICTURE] is selected in Submenu 1.

Only when [CALENDAR] is selected in Submenu 1.

NORMAL*1/

FADER

/date

ZOOM

/SLIDE*1/

OFF/1/2

Selects the range of images for the slideshow, the type of transition effect ([TYPE]) used between images, and the background music ([BGM]).

To start a slideshow

After pressing the o button to make the [BGM] settings, the slideshow starts. To stop the slideshow, press the o button or the m button.

[BGM] is not available when [F SILENT MODE] (p. 50) is set to [ON].

Retouching images [H PERFECT FIX]

H PERFECT FIX

Depending on the picture, the editing may

not be effective.

The retouching process may lower the

image resolution.

Submenu 1 Application

ALL

SHADOW ADJ

REDEYE FIX

1 Use EF to select a correction method

and press the o button.

2 Use GH to select an image for

retouching, and press the o button.

[SHADOW ADJ] and [REDEYE FIX] are applied together.

Only sections darkened by backlighting and dim lighting are brightened.

Eyes that are reddened by the ﬂ ash are corrected.

The retouched image is saved as a separate

●

image.

Retouching the skin and eyes [M BEAUTY FIX]

M BEAUTY FIX

Depending on the picture, the editing may

not be effective.

Submenu 1 Submenu 2 Application

ALL ―

CLEAR SKIN

SPARKLE EYE ―

DRAMATIC EYE

1 Use EF to select a correction method,

2 Use GH to select an image for

SOFT/AVG/ HARD

and press the o button.

retouching, and press the o button.

The retouched image is saved as a separate

●

image.

[CLEAR SKIN], [SPARKLE EYE] and [DRAMATIC EYE] are applied together.

Makes skin look smooth and translucent. Select the desired effect from among 3 levels.

Enhances the contrast of the eyes.

Enlarges the subject’s

―

eyes.

Page 38

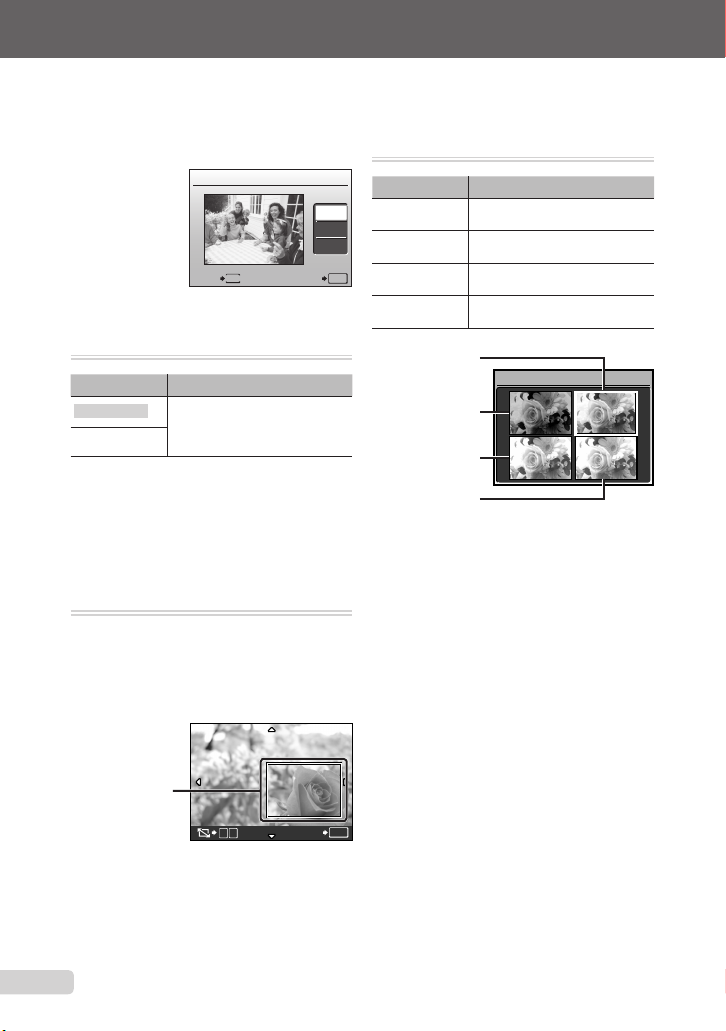

When [CLEAR SKIN] is selected

Use EF to select the retouching level, and press the o button.

CLEAR SKIN

BACK SET

Changing the image size [Q]

I EDIT X Q

Submenu 2 Application

C 640 × 480

E 320 × 240

This saves a high-resolution image as a separate image with a smaller size for use in e-mail attachments and other applications.

1 Use GH to select an image. 2 Use EF to select an image size and

press the o button.

The image with the selected size is saved as a

●

separate image.

Cropping a picture [P]

I EDIT X P

1 Use GH to select an image, and press

the o button.

2 Use the zoom button to select the size of

the cropping frame, and use EFGH to move the frame.

Changing the color tone of image [COLOR EDIT]

I EDIT X COLOR EDIT

SOFT

AVG

HARD

Submenu 2 Application

Black & white

Sepia

Saturation (hard)

Saturation (soft)

Black & white

Saturation (hard)

Saturation (soft)

1 Use GH to select an image, and press

the o button.

2 Use EFGH to select the desired

color, and press the o button.

This changes the image to black and white.

This changes the image to a sepia tone.

This increases the color saturation of the image.

This slightly increases the color saturation of the image.

Sepia

The image with the selected color is saved as

●

a separate image.

COLOR EDIT

Cropping frame

3 Press the o button.

The edited image is saved as a separate image.

●

SET

Page 39

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

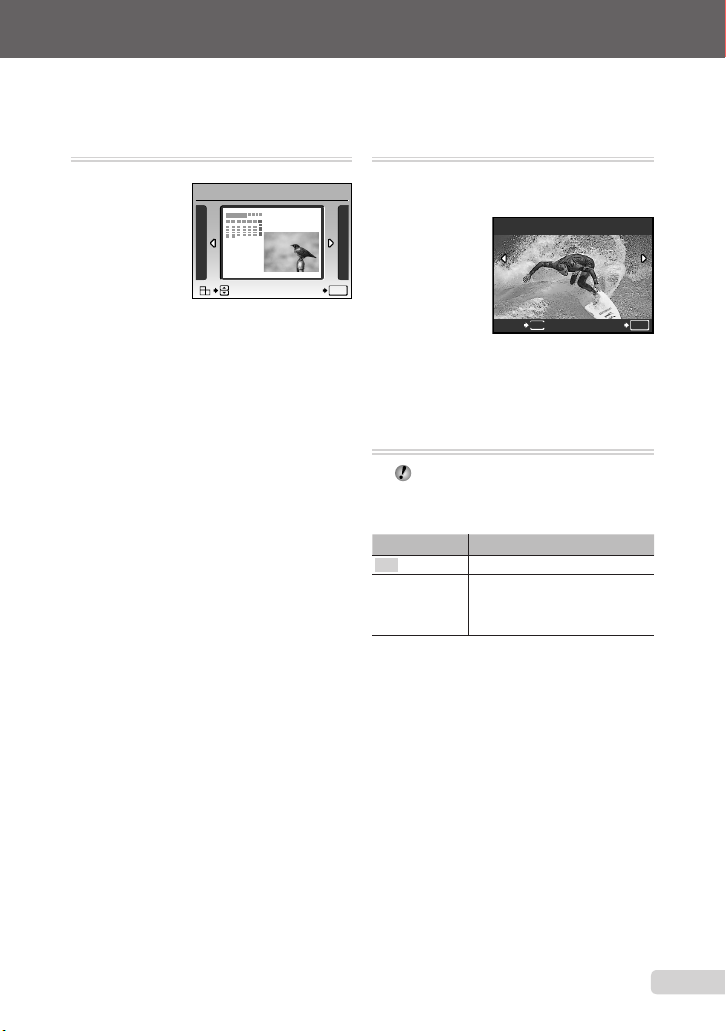

Adding a calendar to an image [CALENDAR]

I EDIT X CALENDAR

CALENDAR

1 Use GH to select an image, and then

press the o button.

2 Use GH to select a calendar, and use

EF to select the image orientation,

and press the o button.

3 Use EF to select the Year of the

calendar, and then press H.

4 Use EF to select the Month of the

calendar, and then press the o button.

The edited image is saved as a separate image.●

SET

Creating an index of 9 frames from a movie [INDEX]

I EDIT X INDEX

1 Use GH to select a movie, and press the

o button.

INDEX

BACK

This function extracts 9 frames from a movie

●

and saves them as a new picture (INDEX) containing thumbnails of each frame.

Protecting images [0]

J PLAYBACK MENU X 0

Protected images cannot be erased by

[ERASE] (p. 18), [SEL. IMAGE], or [ALL ERASE] (p. 40), but all images are erased by [MEMORY FORMAT]/[FORMAT] (p. 42).

Submenu 2 Application

OFF Images can be erased.

1 Use GH to select an image. 2 Use EF to select [ON]. 3 If necessary, repeat Steps 1 and 2

to protect other images, and press the o button.

Images are protected so that they cannot be erased except by formatting of the internal memory/card.

SET

Page 40

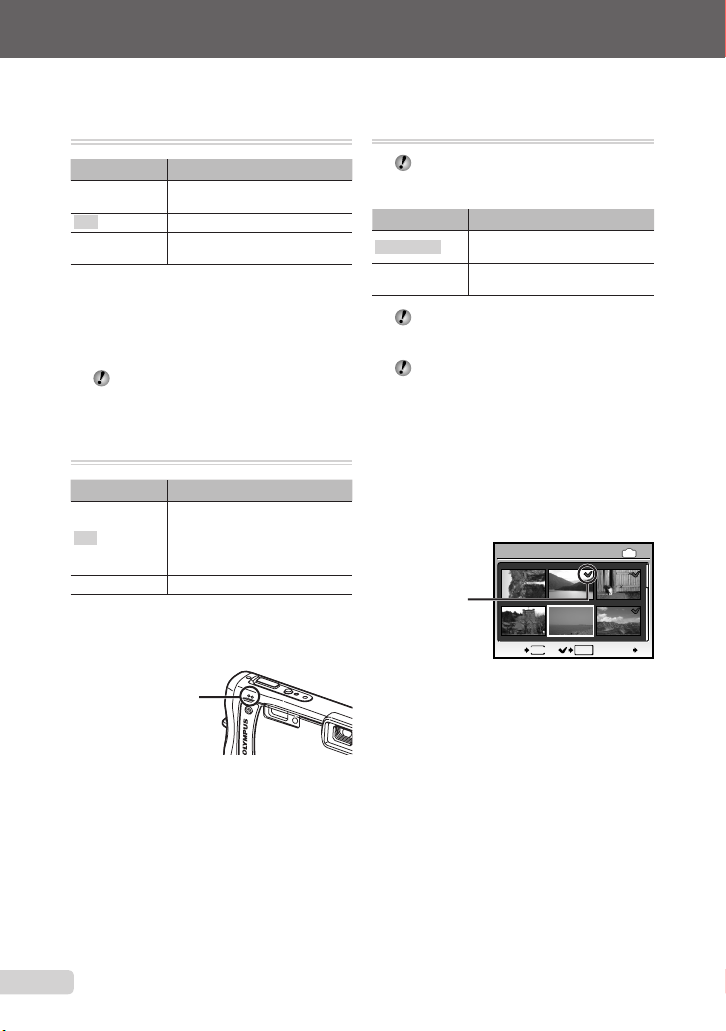

Rotating images [y]

J PLAYBACK MENU X y

Submenu 2 Application

U +90°

V 0°

t –90°

The image is rotated 90° clockwise.

The image is not rotated.

The image is rotated 90° counter-clockwise.

1 Use GH to select an image. 2 Use EF to select the rotation direction. 3 If necessary, repeat Steps 1 and 2

to adjust settings for other images, and press the o button.

The new picture orientation will be saved

even after the power is turned off.

Adding sound to still images [R]

J PLAYBACK MENU X R

Submenu 2 Application

YES

NO No sound is recorded.

1 Use GH to select an image. 2 Aim the microphone towards the sound

source.

3 Use EF to select [YES], and press the

o button.

The camera adds (records) sound for approx. 4 seconds while playing back the image. This is useful for recording notes or comments about the image.

Microphone

Recording starts.●

Erasing images [K ERASE]

K ERASE

Check each picture before erasing to avoid

erasing any important pictures you may want to keep.

Submenu 1 Application

SEL. IMAGE

ALL ERASE

When erasing pictures in the internal

When erasing pictures from the card, insert

To individually select and erase images [SEL. IMAGE]

1 Use EF to select [SEL. IMAGE], and

press the o button.

2 Use EFGH to select the image to be

erased, and press the o button to add a R mark to the image.

3 Repeat Step 2 to select the images to be

erased, and then press the D button to erase the selected images.

4 Use EF to select [YES], and press the

o button.

To erase all images [ALL ERASE]

1 Use EF to select [ALL ERASE], and

press the o button.

2 Use EF to select [YES], and press the

o button.

Images are individually selected and erased.

All images in the internal memory or card are erased.

memory, do not insert the card into the camera.

a card into the camera in advance.

SEL. IMAGE

R mark

BACK

The images with a R mark are erased.

●

Page 41

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

Saving print settings to the image data [L PRINT ORDER]

L PRINT ORDER

“Print Reservations (DPOF)” (p. 54)

Print reservation can only be set for still

images that are recorded to the card.

Page 42

Menus for Other Camera Settings

The default settings of the function are highlighted in .

Erasing data completely [MEMORY FORMAT]/[FORMAT]

E SETUP X MEMORY FORMAT/FORMAT

Before formatting, check that no important

data is left in the internal memory or card.

Non-Olympus cards and cards that have

been formatted by a computer must be formatted with this camera before use.

Submenu 2 Application

YES

NO Cancels formatting.

Be sure to remove the card before formatting the internal memory.

Completely erases the image data in the internal memory*1 or card (including protected images).

Copying images in the internal memory to the card [BACKUP]

E SETUP X BACKUP

Submenu 2 Application

YES

NO Cancels the backup.

It takes some time to back up data. Check

Backs up image data in the internal memory to the card.

that the battery has sufﬁ cient power before starting the backup, or use a separately sold AC adapter. “Using a separately sold AC adapter” (p. 65)

Changing the display language [W]

E SETUP X W

“Changing the display language” (p. 14)

Submenu 2 Application

The language for the menus and

Languages

The available languages vary depending on the

country and/or region where the camera was purchased.

error messages displayed on the monitor is selected.

Page 43

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

Setting the startup display screen and sound when the camera is turned on [PW ON SETUP]

E SETUP X PW ON SETUP

Submenu 2 Submenu 3 Application

OFF No image is displayed.

SCREEN

*2 *3

VOLUME

This image cannot be changed.

When [SCREEN] is set to [OFF], this setting is not available.

When [F SILENT MODE] (p. 50) is set to [ON], this setting is not available.

1 A preset image*1 is displayed.

OFF (No sound)/ LOW/HIGH

A still image stored in the internal memory or card is registered for display. (This option leads to the setup screen.)

The volume of the startup sound is selected.

To register a startup image

1 Select [2] in Submenu 3 for [SCREEN], and press the o button. 2 Use GH to select the image to be registered, and press the o button.

Selecting the menu screen color and background [MENU COLOR]

E SETUP X MENU COLOR

Submenu 2 Application

NORMAL/COLOR 1/ COLOR 2/COLOR 3

Selects the menu screen color or background image according to your preference.

Page 44

Selecting the camera sound and its volume [SOUND SETTINGS]

E SETUP X SOUND SETTINGS

Submenu 2 Submenu 3 Submenu 4 Application

BEEP

SHUTTER SOUND

q VOLUME

To turn off all sounds at once, adjust the setting from [F SILENT MODE] (p. 50).

SOUND TYPE

VOLUME

SOUND TYPE

VOLUME

OFF (No sound)/ LOW/HIGH

1/2

OFF (No sound)/ LOW/HIGH

1/2/3

OFF (No sound)/ LOW/HIGH

— Adjusts the warning sound volume.

— Adjusts the image playback volume.

Selects the operating sound and volume of the camera buttons (except the shutter button).

Selects the type and volume of the shutter sound.

Viewing the image immediately after shooting [REC VIEW]

E SETUP X REC VIEW

Submenu 2 Application

OFF

Even when set to [ON], you can resume shooting while the image is being displayed.

The image being recorded is not displayed. This allows the user to prepare for the next shot while following the subject in the monitor after shooting.

The image being recorded is displayed. This allows the user to brieﬂ y check the image that was just taken.

Page 45

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

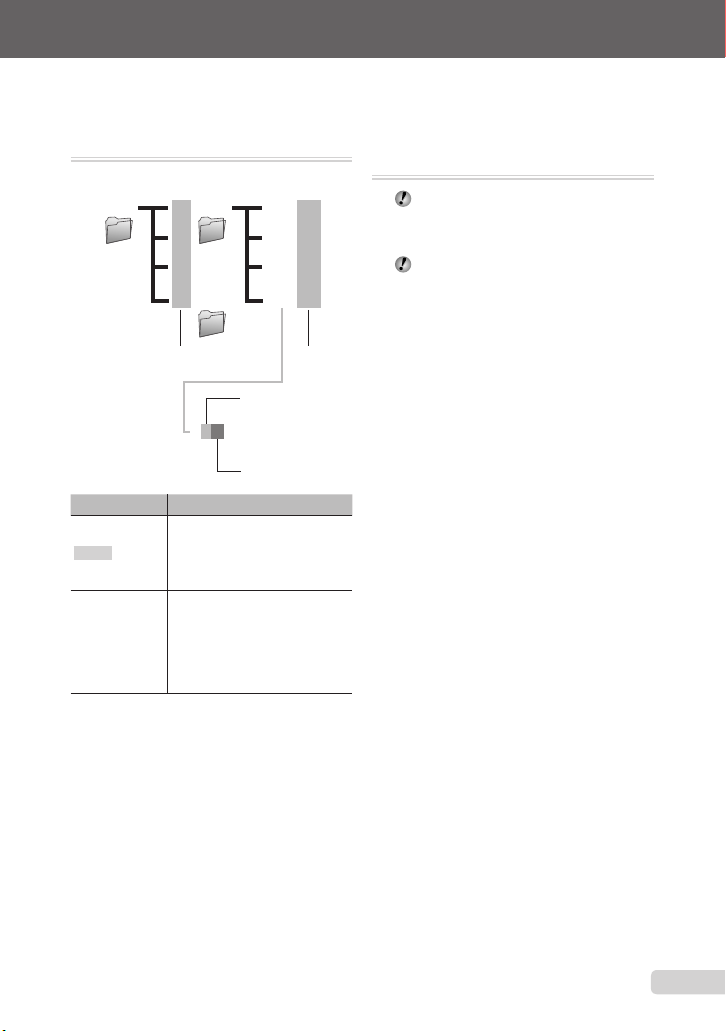

Resetting the ﬁ le name numbers of pictures [FILE NAME]

E SETUP X FILE NAME

Folder name Folder name File name

DCIM

Submenu 2 Application

RESET

AUTO

The number for the folder name is reset to 100, and

the one for the ﬁ le name is reset to 0001.

100OLYMP

999OLYMP

Automatic numbering

Pmdd

This resets the sequential number for the folder name and ﬁ le name whenever a new card is inserted.*1 This is useful when grouping images on separate cards.

Even when a new card is inserted, this continues the numbering for the folder name and ﬁ le name from the previous card. This is useful for managing all image folder names and ﬁ les names with sequential numbers.



Automatic numbering

Month: 1 to C (A=October, B=November, C=December)

Day: 01 to 31

Adjusting the CCD and adjusting the image processing function [PIXEL MAPPING]

E SETUP X PIXEL MAPPING

This function has already been adjusted

at factory shipping, and no adjustment is needed right after purchase. Approximately once a year is recommended.

For best results, wait at least one minute

after taking or viewing pictures before performing pixel mapping. If the camera is turned off during pixel mapping, be sure to perform it again.

To adjust the CCD and the image processing function

Press the o button when [START] (Submenu 2) is displayed.

The camera checks and adjusts the CCD and the

●

image processing function at the same time.

Page 46

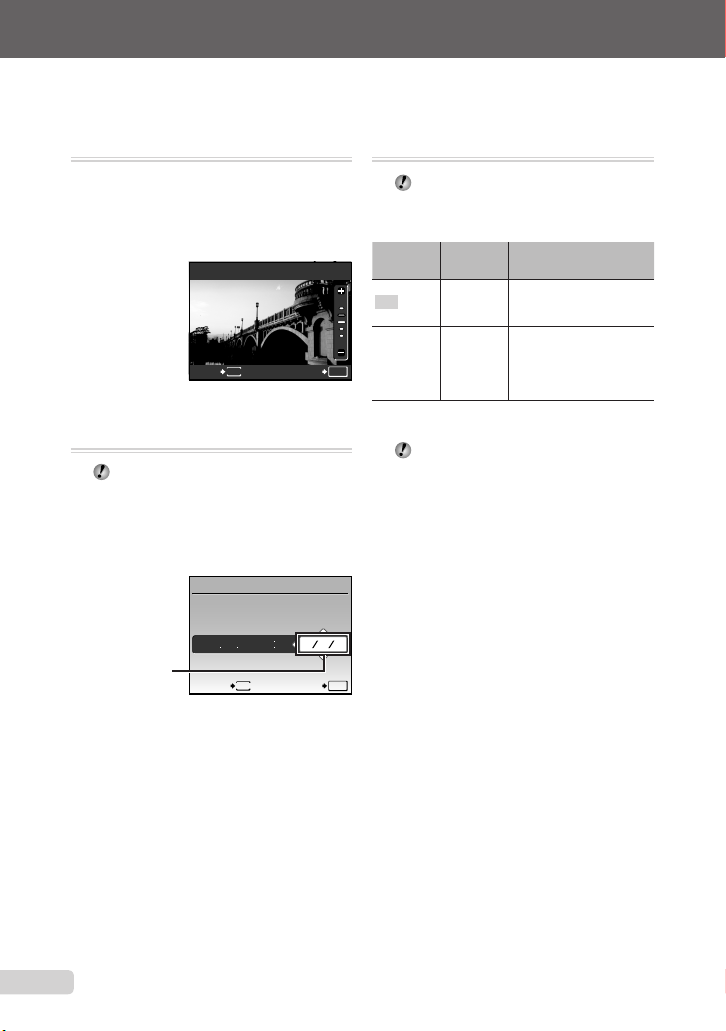

Adjusting the brightness of the monitor

YYMMD

[s]

E SETUP X s

To adjust the monitor brightness

1 Use EF to adjust the brightness while

viewing the screen, and then press the o button.

BACK

SET

Setting the date and time [X]

E SETUP X X

“Setting the date and time” (p. 14)

To select the date and time display order

1 Press H after setting “Minute”, and use

EF to select the date display order.

TIME

Date order

2009 08 26 12 30

CANCEL SET

YMD

Setting the date and time for another time zone [DUALTIME]

E SETUP X DUALTIME

By setting [DUALTIME] to [ON] and setting

the date and time, the set date and time is reﬂ ected in the image ﬁ le names, date prints and so on.

Submenu 2Submenu

OFF —

The setting procedure is identical to that in “Setting

the date and time” (p. 14).

(Proceeds to the setting

screen

The date display order is the same as that

set with [X].

Application

Switches to the date and time set in [X] (Date/ time).

Switches to the date and time that were set in [DUALTIME] when using the camera in another time zone.

Page 47

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

Selecting the video signal system to match your TV [VIDEO OUT]

E SETUP X VIDEO OUT

The TV video signal system varies depending on the countries and regions. Before viewing camera

images on your TV, select the video output according to your TV’s video signal type.

Submenu 2 Application

NTSC Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on

PAL Connecting the camera to a TV in European countries, China, and so on

The factory default settings differ according to the region where the camera is sold.

To play back camera images on a TV

1 Connect the TV and camera.

Connect to the TV video input jack (yellow) and audio input jack (white).

Multi-connector

AV cable (supplied)

2 Use the camera to select the same video signal system as the one of connected TV ([NTSC]/

[PAL]).

Connector cover

3 Turn on the TV, and change “INPUT” to “VIDEO (an input jack connected to the camera).”

For details on changing the input source of the TV, refer to the TV’s instruction manual.

4 Set the mode dial to q, and use EFGH to select the image for playback.

Depending on the TV’s settings, the displayed images and information may become cropped.

Page 48

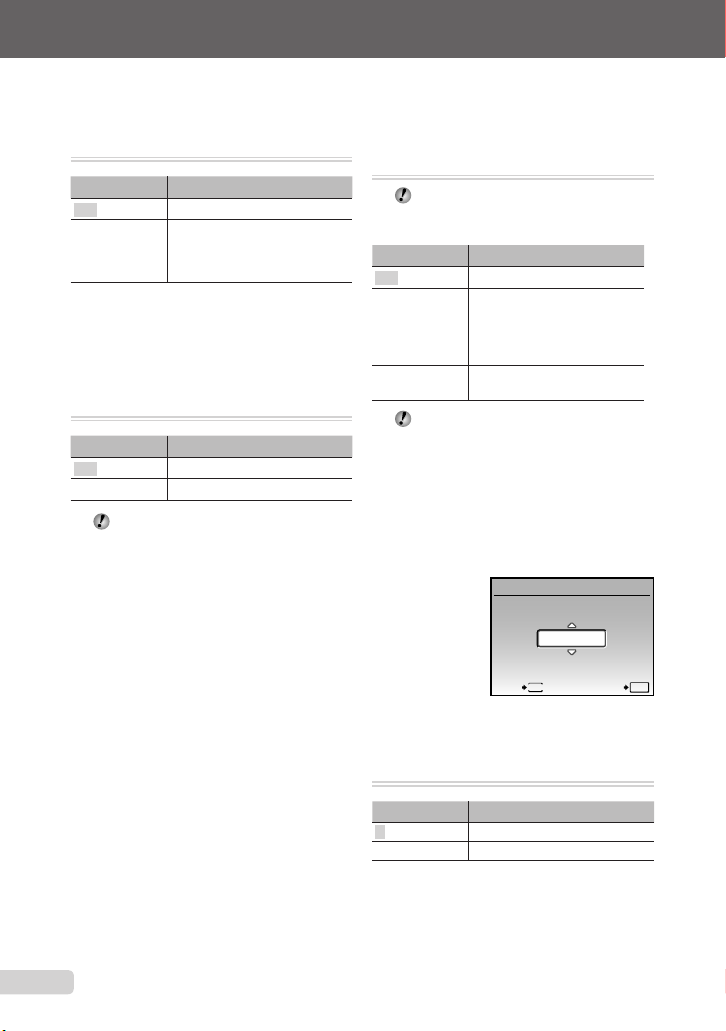

Saving battery power between shots [POWER SAVE]

E SETUP X POWER SAVE

Submenu 2 Application

OFF Cancels [POWER SAVE].

When the camera is not being

used for approx. 10 seconds, the monitor automatically turns off to save battery power.

To resume standby mode

Press any button or turn the mode dial.

Using the LED illuminator as an auxiliary light [LED ILLUMINATOR]

E SETUP X LED ILLUMINATOR

Submenu 2 Application

OFF Disables the LED illuminator.

ON Enables the LED illuminator.

“Using the LED illuminator” (p. 24)

Displaying the current altitude/ water depth (atmospheric/hydraulic pressure) [MANOMETER]

E SETUP X MANOMETER

The readings may have a margin of error

depending on meteorological conditions. Use the readings only for your reference.

Submenu 2 Application

OFF Cancels the manometer display.

Displays the current altitude/

CALIBRATE

When set to [ON], a warning message

To adjust the altitude/water depth display

1 Use 12 to select the current altitude/

water depth, and press the o button to set.

water depth (atmospheric/ hydraulic pressure) in the shooting standby mode screen. (–10 m to 5,000 m)

Proceed to the setting screen. See below.

appears in the monitor as a water depth close to 10 m (32.8 ft) is reached.

CALIBRATE

1200m

BACK

SET

Selecting the display units for the manometer [m/ft]

E SETUP X m/ft

Submenu 2 Application

m This displays in meters.

ft This displays in feet.

Page 49

Adjust the settings for the functions while referring to “Using the Menu” (p. 3).

Operating the camera by tapping the body [TAP CONTROL]

E SETUP X TAP CONTROL

Submenu 2 Application

OFF Cancels [TAP CONTROL].

ON [TAP CONTROL] is activated.

CALIBRATE

Functions available when [TAP CONTROL] is set to [ON]

Adjusts the tap strength and intervals between multiple taps on each side of the camera body. (top, left, right, & back)

Camera’s top [TOP]: Tap twice

Conﬁ rms the selected menu.

●

Switches [TAP CONTROL] to [ON] or [OFF]. (p. 4)

●

Camera’s left side [LEFT]:

Sets the macro mode.

Tap once

Camera’s back [BACK]: Tap once Switches to playback mode.

(p. 23)

(p. 50)

Camera’s right side [RIGHT]: Tap once Sets the ﬂ ash mode.

(p. 22)

Page 50

Operating during shooting mode (Example: Flash mode)

SET

FLASH AUTO

Tap the right side of the camera body once.

The ﬂ ash mode selection screen is displayed.

●

Tap the right or left side of the camera body to select a

function.

Tap the top of the camera body twice to conﬁ rm your

selection.

Tap the camera ﬁ rmly using the pad of your ﬁ nger.

When the camera is stabilized on a tripod for example, tap control

may not work properly.

To prevent dropping the camera when using tap control, strap the

camera to your wrist.

AUTO

SET

FLASH AUTO

! # $

AUTO

Operating during playback mode

When switched to playback mode by tapping the back of the camera body once, the operations below can be used.

Display next image: Tap the right side of the camera once. Display previous image: Tap the left side of the camera

once. Start slideshow: Tap the top surface of the camera twice. (The slideshow will automatically start for all images stored in internal memory or on the card, with [BGM] set to [OFF].) Display next image during a slideshow: Tilt the camera right or tap the right side of the camera once.

Display previous image during a slideshow: Tap the left side of the camera once. Stop slideshow: Tap the top surface of the camera twice. Return to the shooting mode: Tap the back side of the camera once.

When tapping the camera’s top

To adjust the tap control

Select [CALIBRATE] in Submenu 2 and press the o button.

Select the part to adjust with EF and press the o button.

Select the [STR] setting with EF and press the H button.

Select the [INTVL] setting with EF and press the o button.

Check the operation of the camera by tapping on the camera after making

the settings.

TOP

STR INTVL

BACK

NORMAVG

SET

Turning off the camera sounds [F SILENT MODE]

F SILENT MODE

Submenu 1 Application

OFF Activates the [SOUND SETTINGS] setting.

[SOUND SETTINGS] (p. 44)

The electronic sounds (operating sound, shutter sound, warning sound) and playback sounds are muted.

Page 51

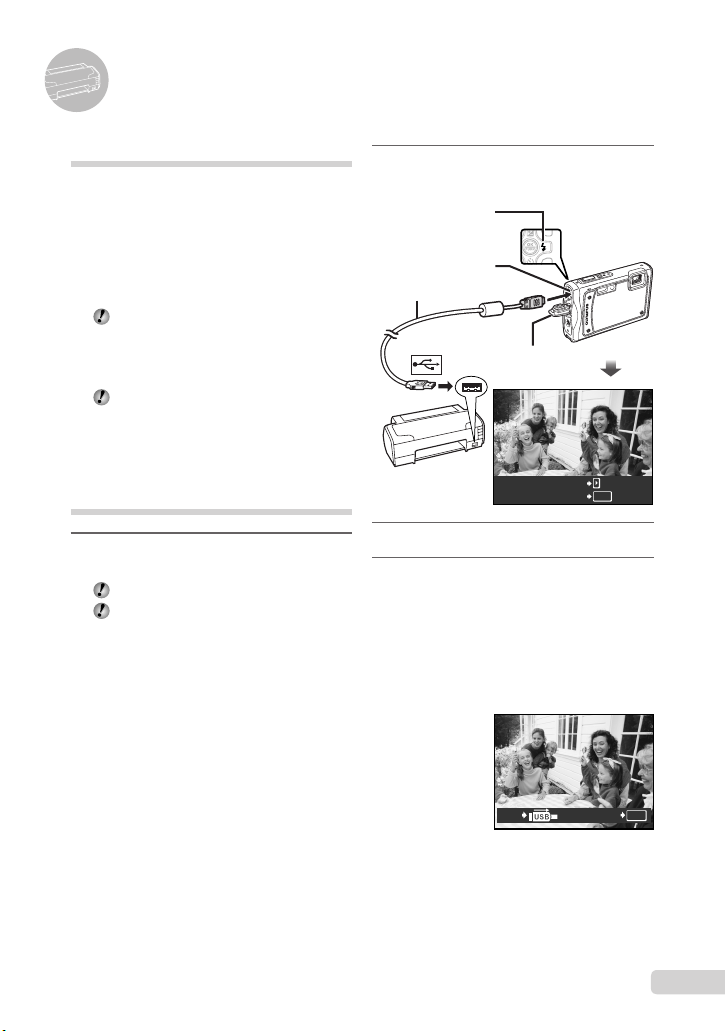

Printing

Direct printing (PictBridge*1)

By connecting the camera to a PictBridgecompatible printer, you can print images directly without using a computer. To ﬁ nd out if your printer supports PictBridge, refer to the printer’s instruction manual.

PictBridge is a standard for connecting digital

cameras and printers of different makers and printing out pictures directly.

The printing modes, paper sizes, and other

parameters that can be set with the camera vary depending on the printer that is used. For details, refer to the printer’s instruction manual.

For details on the available paper types,

loading paper, and installing ink cassettes, refer to the printer’s instruction manual.

Printing images at the printer’s standard settings [EASY PRINT]

Display the image to be printed on

the monitor.

“Viewing images” (p. 17)

Printing can also be started when the

camera is turned off. After performing Step 2, use EF to select [EASY PRINT], press the o button. Use GH to select an image, and press the o button.

Turn on the printer, and then

connect the printer and camera.

H button

Multi-connector

USB cable (supplied)

Connector cover

EASY PRINT START PC /CUSTOM PRINT

Press H to start printing.

To print another image, use GH

to select an image, and press the o button.

To exit printing

After a selected image is displayed on the screen, disconnect the USB cable from the camera and printer.

PRINTEXIT

Page 52

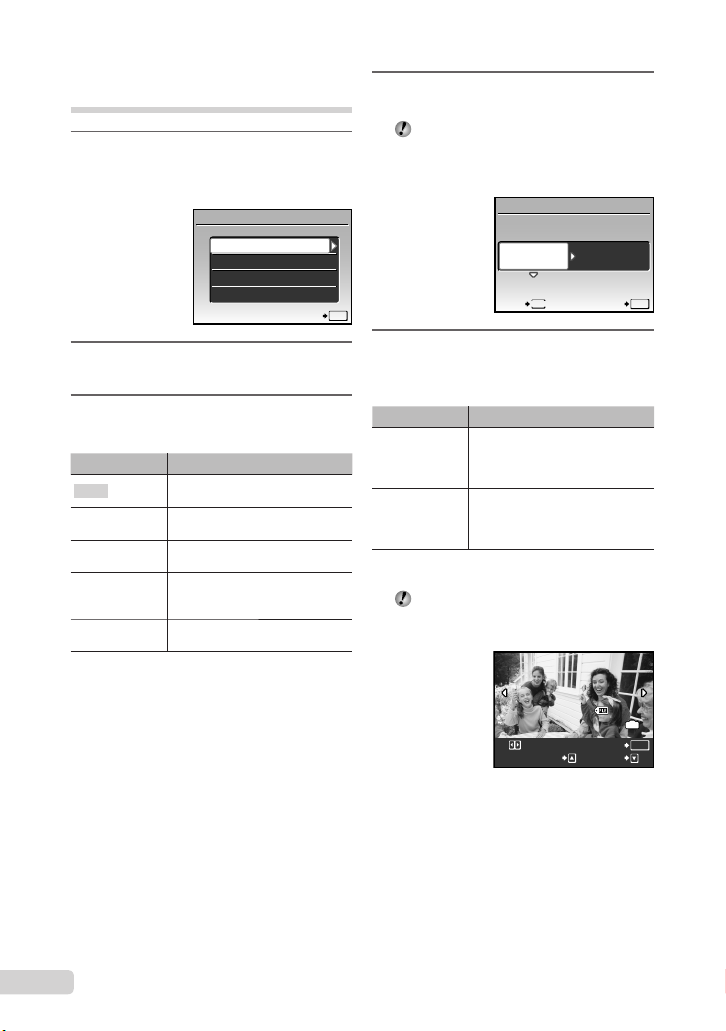

Changing the printer’s settings

100-0004

for printing [CUSTOM PRINT]

Follow Steps 1 and 2 for [EASY

PRINT] (p. 51), then press the o button.

USB

EASY PRINT

CUSTOM PRINT

EXIT

SET

Use EF to select [CUSTOM

PRINT], and press the o button.

Use EF to select the print mode,

and press the o button.

Submenu 2 Application

ALL PRINT

MULTI PRINT

ALL INDEX

PRINT ORDER

[PRINT ORDER] is available only when print

reservations have been made. “Print Reservations (DPOF)” (p. 54)

This prints the image selected in Step 6.

This prints all images stored in the internal memory or card.

This prints one image in a multiple layout format.

This prints an index of all images stored in the internal memory or card.

This prints images based on the

print reservation data on the card.

Use EF to select [SIZE]

(Submenu 3), and press H.

If the [PRINTPAPER] screen is not

displayed, the [SIZE], [BORDERLESS], and [PICS/SHEET] are set to the printer’s standard.

PRINTPAPER

Use EF to select the

BACK

[BORDERLESS] or [PICS/SHEET] settings, and press the o button.

Submenu 4 Application

OFF/ON

(The number of images per sheet varies depending on the printer.)

The available settings for [BORDERLESS] vary depending on the printer.

If [STANDARD] is selected in Steps 4 and 5,

The image is printed with a border around it ([OFF]).

The image is printed to ﬁ ll the entire paper ([ON]).

The number of images per sheet ([PICS/SHEET]) is selectable only when [MULTI PRINT] is selected in Step 3.

the image is printed at the printer’s standard settings.

SINGLEPRINT MORE

SIZE BORDERLESS

STANDARDSTANDARD

SET

100-0004

Page 53

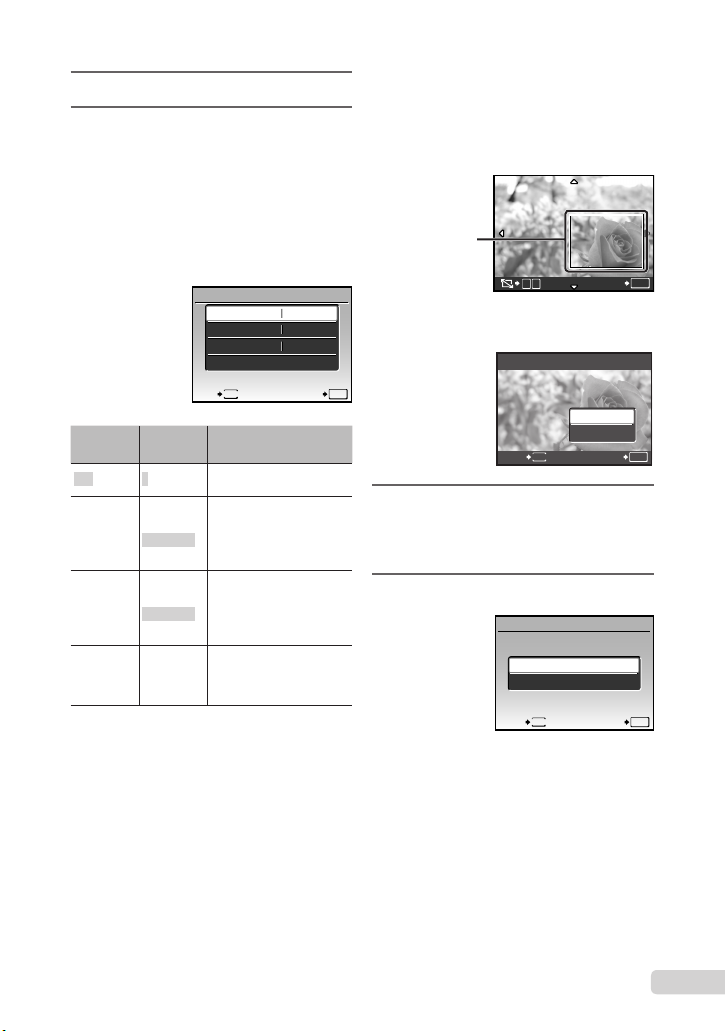

Use GH to select an image.

Press E to make a [SINGLE PRINT]

reservation for the current image. Press F if you wish to adjust detailed printer settings for the current image.

To adjust detailed printer settings

1 Use EFGH to adjust the detailed

printer settings, and press the o button.

PRINT INFO

Submenu 5Submenu

<×

DATE

FILE NAME

0 to 10

WITH/ WITHOUT

(Proceeds to the setting screen.)

DATE

FILE NAME

EXIT

This selects the number of prints.

Selecting [WITH] prints the images with the date. Selecting [WITHOUT] prints the images without the date.

Selecting [WITH] prints the ﬁ le name on the image. Selecting [WITHOUT] does not print any ﬁ le name on the image.

This selects a portion of the image for printing.

WITHOUT

SET

Application

To crop an image [P]

1 Use the zoom button to select the size

of the cropping frame, use EFGH to move the frame, and then press the o button.

Cropping

frame

2 Use EF to select [OK], and press the

o button.

BACK

If necessary, repeat Steps 6 and 7

to select the image to be printed, make the detailed settings, and set [SINGLEPRINT].

Press the o button.

BACK

CANCEL

SET

Page 54

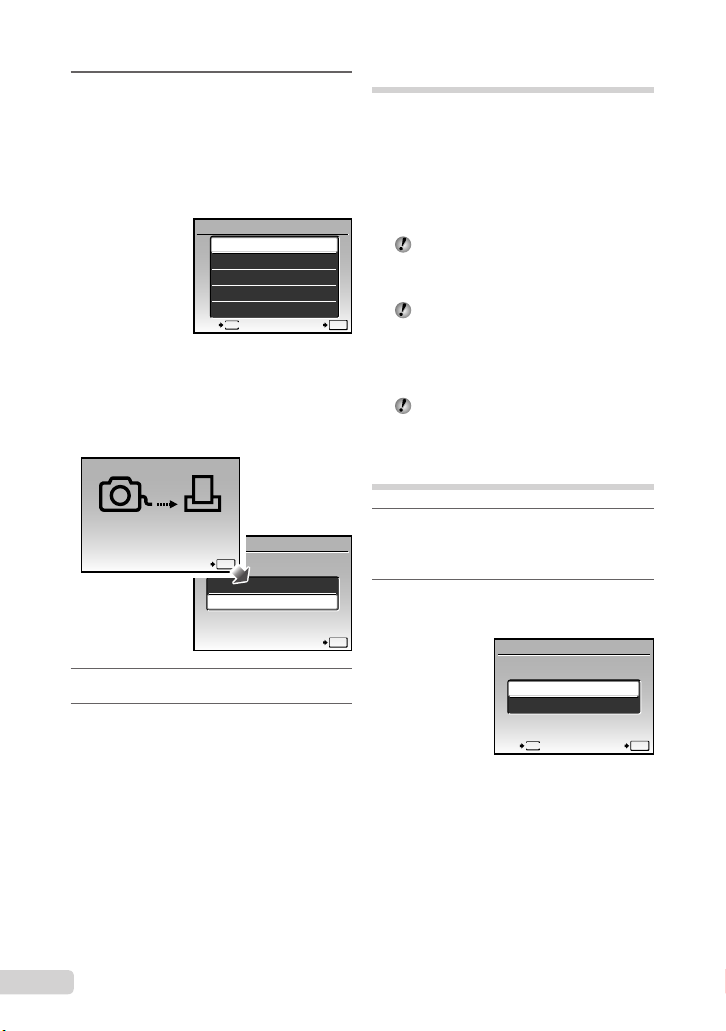

Use EF to select [PRINT], and

press the o button.

Printing starts.

●

When [OPTION SET] is selected in [ALL PRINT] mode, [PRINT INFO] screen is displayed.

When printing is ﬁ nished, the [PRINT MODE

●

SELECT] screen is displayed.

PRINT MODE SELECT

ALL PRINT

MULTI PRINT

ALL INDEX

PRINT ORDER

EXIT

To cancel printing

1 Press the o button while

[TRANSFERRING] is displayed.

2 Use EF to select [CANCEL], then

press the o button.

TRANSFERRING

CANCEL

CONTINUE

CANCEL

SET

Print Reservations (DPOF*1)

In print reservations, the number of prints and date imprint option are saved in the image on the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer or a camera.

DPOF is a standard for storing automatic printout

information from digital cameras.

Print reservations can be set only for the

images stored on the card. Insert a card with recorded images before making print reservations.

DPOF reservations set by another DPOF

device cannot be changed by this camera. Make changes using the original device. Making new DPOF reservations with this camera will erase the reservations made by the other device.

DPOF print reservations can be made for up

to 999 images per card.

Single-frame print reservations [<]

Set the mode dial to q, and then

press the m button to display the top menu.

Use EFGH to select [L PRINT

ORDER], and press the o button.

PRINT ORDER

Press the m button.

When the message [REMOVE USB

CABLE] is displayed, disconnect the USB cable from the camera and printer.

EXIT

SET

Page 55

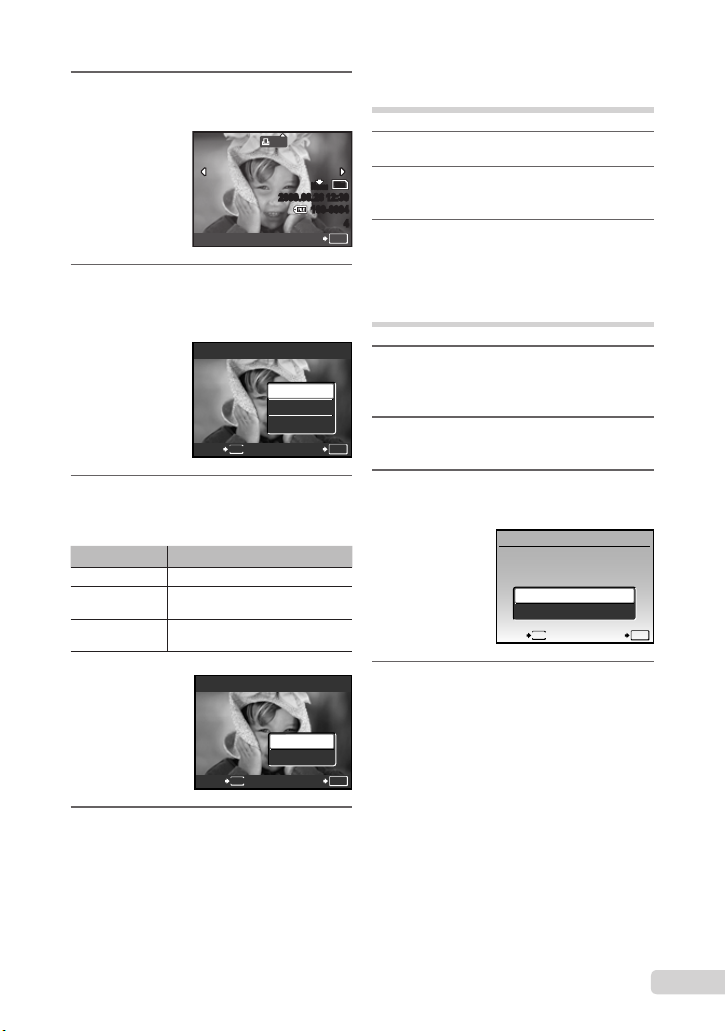

1(1

)

Use EF to select [<], and press

the o button.

2009.08.26 12:30

SET

Use GH to select the image for print

reservation. Use EF to select the quantity. Press the o button.

DATE

TIME

BACK

Use EF to select the [X] (date

SET

print) screen option, and press the o button.

Submenu 2 Application

NO This prints the image only.

DATE

TIME

This prints the image with the shooting date.

This prints the image with the shooting time.

ORM

100-0004

Reserving one print each of all images on the card [U]

Follow Steps 1 and 2 in [<] (p. 54).

Use EF to select [U], and press

the o button.

Follow Steps 5 to 6 in [<].

Resetting all print reservation data

Set the mode dial to q, and then

press the m button to display the top menu.

Use EFGH to select [L PRINT

ORDER], and press the o button.

Select either [<] or [U], and press

the o button.

PRINT ORDER SETTING

PRINT ORDERED

RESET

KEEP

SETBACK

PRINT ORDER

1(1

Use EF to select [SET], and

press the o button.

)

SET

CANCEL

Use EF to select [RESET], and

press the o button.

SETBACK

Page 56

Resetting the print reservation data for selected images

Follow Steps 1 and 2 of “Resetting

all print reservation data” (p. 55).

Use EF to select [<], and press

the o button.

Use EF to select [KEEP] and

press the o button.

Use GH to select the image with

the print reservation you want to cancel. Use EF to set the print quantity to “0”.

If necessary, repeat Step 4, and then

press the o button when ﬁ nished.

Use EF to select the [X] (date

print) screen option, and press the o button.

The settings are applied to the remaining images

●

with the print reservation data.

Use EF to select [SET], and

press the o button.

Page 57

Using OLYMPUS Master 2

System requirements and installation of OLYMPUS Master 2

Install the OLYMPUS Master 2 software by referring to the included installation guide.

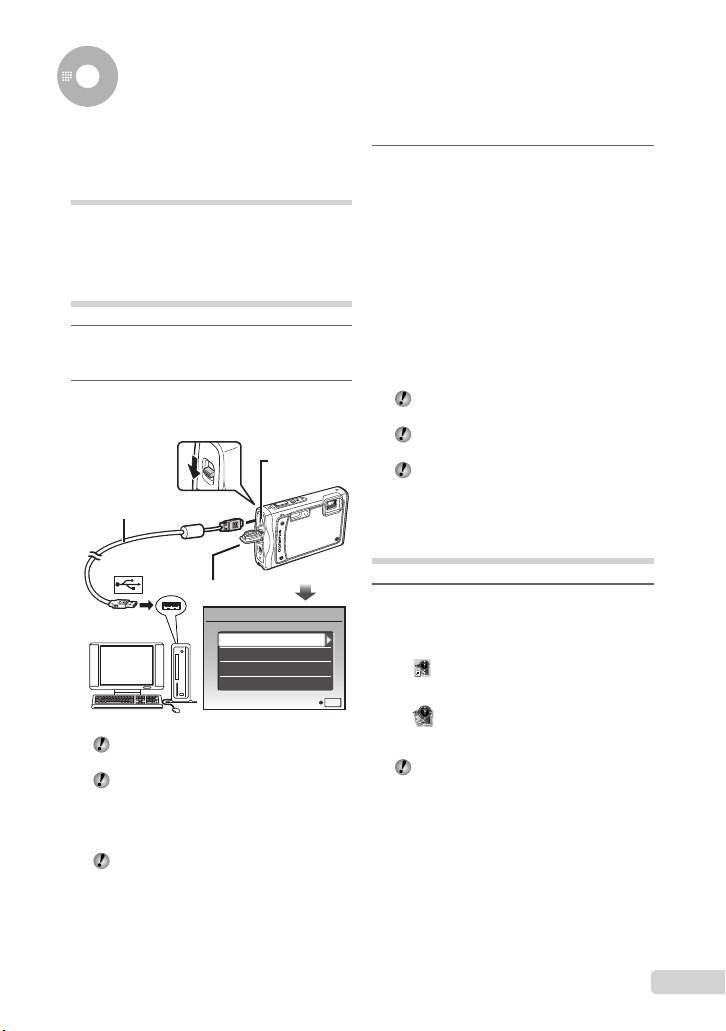

Connecting the camera to a computer

Make sure the camera is turned off.

The monitor is off.

●

Connect the camera to a computer.

The camera automatically turns on.

●

Multi-connector

USB cable (supplied)

Connector cover

USB

EASY PRINT

CUSTOM PRINT

EXIT

You can charge the battery by selecting

[EXIT] and pressing the o button.

The [USB] screen above does not appear

and charging may automatically start in cases where there is an insufﬁ cient charge or the camera is connected to a computer via a USB hub.

Locate the position of the USB port by

referring to your computer’s instructions manual.

SET

Use EF to select [PC], and press

the o button.

The computer automatically detects the camera as

●

a new device on the ﬁ rst connection.

Windows

After the computer detects the camera, a message indicating the completion of the setting appears. Conﬁ rm the message and click “OK”. The camera is recognized as a removable disk.

Macintosh

When iPhoto started, exit iPhoto and start OLYMPUS Master 2.

While the camera is connected to the

computer, shooting functions are disabled.

Connecting the camera to a computer via a

USB hub may cause unstable operation.

When [MTP] is set for the submenu that

appears by pressing H after selecting [PC] in Step 3, images cannot be transferred to a computer using OLYMPUS Master 2.

Starting OLYMPUS Master 2

Double-click the OLYMPUS Master 2

icon.

Windows

appears on the desktop.

Macintosh

appears in the OLYMPUS Master 2 folder.

Browse window appears after starting the

●

software.

When you start OLYMPUS Master 2 for the

ﬁ rst time after installation, “Default Settings” and “Registration” screens appear. Follow the instructions on the screen.

Page 58

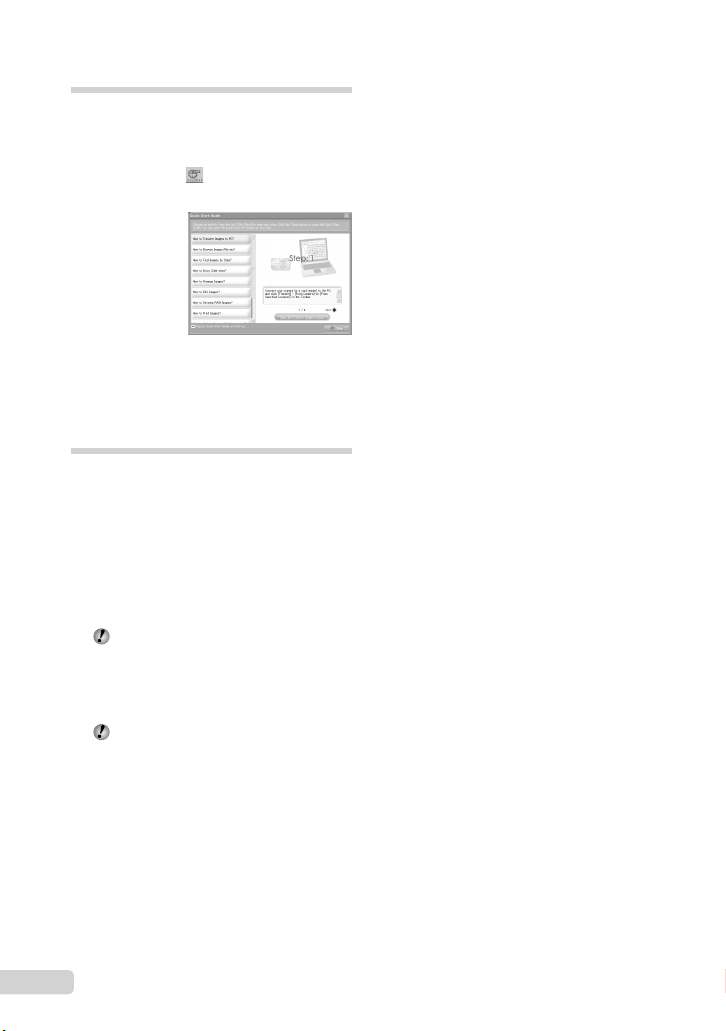

Operating OLYMPUS Master 2

When OLYMPUS Master 2 is started, Quick Start Guide appears on the screen that helps you to handle the camera without any question. When the Quick Start Guide is not displayed, click in the toolbar to show the Guide.

For details on the operation, refer to the help guide of the software.

Transferring and saving images without using OLYMPUS Master 2

This camera is compatible with the USB Mass Storage Class. You can transfer and save the image data on your computer while the camera and the computer are connected.

System requirements

Windows : Windows 2000 Professional/

Macintosh : Mac OS X v10.3 or later

On a computer running Windows Vista, if

Even if a computer has USB ports, proper

XP Home Edition/ XP Professional/Vista

[MTP] is set for the submenu that appears by pressing H after selecting [PC] in Step 3 of “Connecting the camera to a computer” (p. 57), Windows Photo Gallery will become available.

operation is not guaranteed in the following cases.

Computers with USB ports installed using an

●

expansion card, etc.

Computers without a factory-installed OS and

●

home-built computers

Page 59

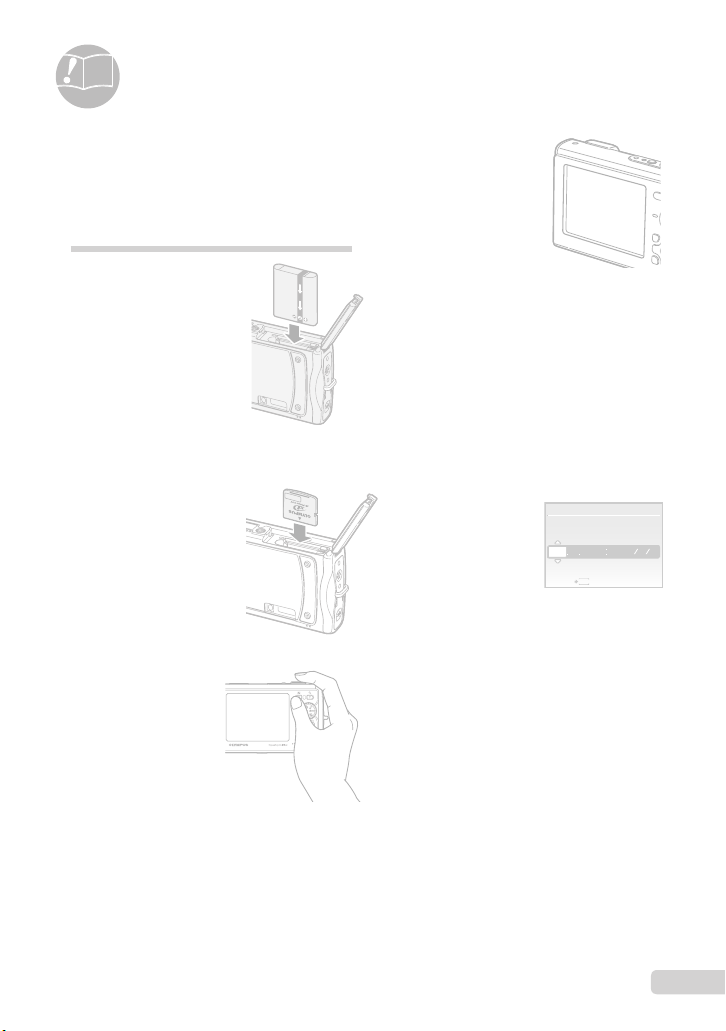

Usage Tips

If the camera does not work as intended, or if an error message is displayed on the screen, and you are unsure of what to do, refer to the information below to ﬁ x the problem(s).

Troubleshooting

Battery

“The camera does not work even when battery is installed”

Insert recharged battery in the correct direction.

●

“Charging the battery” (p. 11), “Loading the battery and the xD-Picture Card™ (sold separately) into the camera” (p. 10)

Battery performance may have been reduced

●

temporarily due to low temperature. Take the battery out of the camera, and warm it by putting it in your pocket for a while.

Card/Internal memory

“An error message is displayed”

“Error message” (p. 60)

Shutter button

“No picture is taken when the shutter button is pressed”

Cancel sleep mode.

●

To save battery power, the camera automatically goes into sleep mode and the monitor turns off if there is no operation after 3 minutes when the camera is turned on. No picture is taken even if the shutter button is fully pressed in this mode. Operate the zoom button or other buttons to restore the camera from sleep mode before taking a picture. If the camera is left for 15 minutes, it automatically turns off. Press the n button to turn on the camera.

Set the mode dial to a position other than q.

●

Wait until #(ﬂ ash charge) stops blinking before

●

taking pictures.

Monitor

“Difﬁ cult to see”

Condensation*1 may have formed. Turn off the

●

power and wait for the camera body to become acclimated to the surrounding temperature and dry out before taking pictures.

Dew drops can form in the camera when it is

suddenly taken from a cold location into a warm, humid room.

“Vertical lines appear on the screen”

Vertical lines may appear on the screen at

●

times such as when the camera is pointed at an extremely bright subject under a clear sky. The lines do not appear, however, in the ﬁ nal image.

“The light is caught in the picture”

Shooting with ﬂ ash in dark situations results in

●

an image with many ﬂ ash reﬂ ections on dust in the air.

Date and time function

“Date and time settings return to the default setting”

If the battery is removed and left out of the camera

●

for about 1 day* to the default setting and must be reset.

The time until the date and time settings return

to the default setting varies depending on how long the battery have been loaded.

“Setting the date and time” (p. 14)

Others

“Noises occur from the inside of the camera in shooting standby mode”

Auto focusing operation may cause lens

●

movement noises even if you do not make any camera operation.

, the date and time settings return

---- -- -- -- --

CANCEL

DTIME

YMD

Page 60

Error message

When one of the messages below is

displayed on the monitor, check the corrective action.

Error message Corrective action

CARD ERROR

WRITE

PROTECT

MEMORY FULL

CARD FULL

CARD SETUP

CLEAN CARD

FORMAT

MEMORY SETUP

POWER OFF

MEMORY FORMAT

NO PICTURE


ERROR

Card problem

Insert a new card.

Card problem

Use a computer to cancel the read-only setting.

Internal memory problem

Insert a card.

• Erase unwanted images.

•

Card problem

Replace the card.

• Erase unwanted images.

•

Card problem

•

Use EF to select [CLEAN CARD], and press the o button. Take out the card, wipe the contact area (p. 66) with a soft, dry cloth, and then load the card again.

•

Use EF to select

SET

[FORMAT], and press the o button. Next, use EF to select [YES], and press the

o button.

Internal memory problem

Use EF to select [MEMORY FORMAT], and press the o button. Next, use EF to select [YES], and press the

SET

o button.

Internal memory/Card problem

Take pictures before viewing them.

Problem with selected image

Use photo retouch software, etc. to view the image on a computer. If the image still cannot be viewed, the image ﬁ le is corrupted.

Error message Corrective action

THE IMAGE

CANNOT

BE EDITED

CARD-COVER

OPEN

BATTERY

EMPTY

CONNECTION

NO PAPER

NO INK

JAMMED

SETTINGS

CHANGED

PRINT ERROR

CANNOT PRINT

Before erasing important images, download them to

a computer.

All data will be erased.

This is displayed, for instance, when the printer’s

paper tray has been removed. Do not operate the printer while making the print settings on the camera.

This camera may be unable to print images taken by

other cameras.

Problem with selected image

Use photo retouch software, etc. to edit the image on a computer.

Operation problem

Close the battery/card compartment cover.

Battery problem

Charge the battery.

Connection problem

Connect the camera and computer or printer correctly.

Printer problem

Load paper into the printer.

Printer problem

Reﬁ ll the ink in the printer.

Printer problem

Remove the jammed paper.

Printer problem

Return to the status where the

printer can be used.

Printer problem

Turn off the camera and printer, check the printer for any problems, and then turn the power on again.

Problem with selected image

Use a computer to print.

Page 61

Shooting tips

When you are unsure of how to take a picture that you envision, refer to the information below.

Focusing

When objects are at different

distances

“Focusing on the subject”

Taking a picture of a subject not in the center

●

of the screen

After focusing on an object at the same distance as the subject, compose the shot, and take the picture.

Pressing the shutter button halfway (p. 16)

AF lock (p. 19)

Set [AF MODE] (p. 32) to [iESP]

●

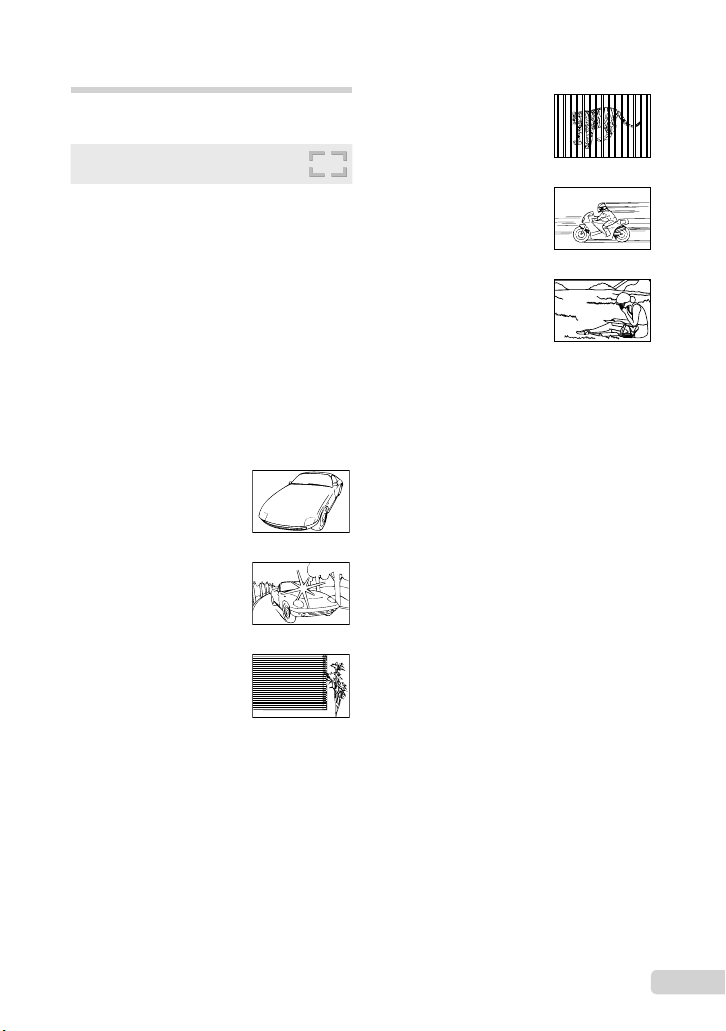

Taking a picture of subjects where autofocus

●

is difﬁ cult

In the following cases, after focusing on an object (by pressing the shutter button halfway down) with high contrast at the same distance as the subject, compose the shot, and take the picture.

Subjects with low contrast

When extremely bright objects

appear in the center of the

Object with no vertical lines

It is also effective to compose the shot by holding

the camera vertically to focus, and then returning to the horizontal position to take the picture.

screen

Fast-moving object

The subject is not in the

center of the frame

Page 62

Camera shake

“Taking pictures (or movies) without camera shake”

Taking pictures using [IMAGE STABILIZER]

●

(p. 32)

When a picture is taken of a shadowy subject, the

CCD

shifts to correct for camera shake even if the ISO speed is not increased. This function is also effective when taking pictures at a high zoom magniﬁ cation.

A device that takes light received through the

lens and converts it into electric signals.

Shooting movies using [DIS MOVIE MODE]

●

(p. 32) Taking picture with [j SPORT] (p. 33)

●

Since you can take pictures with a high shutter speed by setting [j SPORT], it’s also effective for blurry subjects.

Taking pictures at a high ISO sensitivity

●

If a high ISO sensitivity is selected, pictures can be taken at a high shutter speed even at locations where a ﬂ ash cannot be used.

[ISO] (p. 30)

Exposure (brightness)

“Taking pictures with the right brightness”

Taking pictures of a subject against a backlight

●

A face against the backlight is brightened.

[SHADOW ADJ] (p. 33)

Taking pictures using [FACE DETECT] for

●

[AF MODE] (p. 32)

Appropriate exposure is obtained for a face against the backlight, and the face is brightened.

Taking pictures using [n] for [ESP/n] (p. 32)

●

The picture can be taken based on the brightness at the center of the monitor, so it’s not affected by the light in the background.

Taking pictures using [FILL IN] (p. 23) ﬂ ash

●

A subject against a backlight is brightened.

Taking pictures of a white beach or snow

●

scene

Set the mode to [q BEACH & SNOW], [a SNOW] (p. 33)

Taking pictures using exposure compensation

●

(p. 23)

Adjust the brightness while viewing the screen for taking the picture. Normally, taking pictures of white subjects (such as snow) results in images that are darker than the actual subject. Use the F button to adjust in the positive (+) direction to express whites as they appear. When taking pictures of black subjects, on the other hand, it is effective to adjust in the negative (–) direction.

Color hue

“Taking pictures with colors at the same shade as they appear”

●

Taking pictures by selecting [WB] (p. 30)

Best results in most environments can normally be obtained with the AUTO setting, but for some subjects, you should try experimenting with different settings. (This is especially true for sunshade under a clear sky, mixed natural and artiﬁ cial light settings, and so on.)

Image quality

“Taking sharper pictures”

Taking pictures with the optical zoom

●

Avoid using [DIGITAL ZOOM] (p. 31) to take pictures.

Taking pictures at a low ISO sensitivity

●

If the picture is taken with a high ISO sensitivity, noise (small colored spots and color unevenness that were not in the original image) can occur, and the image can appear grainy.

[ISO] (p. 30)

Panorama

“Taking pictures so that the frames are stitched smoothly”

A tip for panoramic shooting

●

Taking pictures by pivoting with the camera at the center prevents shifting of the image. When taking pictures of close objects in particular, pivoting with the lens end at the center produces favorable results.

[N PANORAMA] (p. 34)

Page 63

Battery

“Making battery last longer”

Avoid performing the following operations as

●

much as possible as they use up battery power even if no pictures are actually taken

Repeatedly pressing the shutter button

●

halfway.

Repeatedly using the zoom.

●

Set [POWER SAVE] (p. 48) to [ON]

●

Playback/Editing tips

Playback

“Viewing images in the internal memory and card”

Remove the card when viewing pictures in the

●

internal memory.

“Loading the battery and the xD-Picture

●

Card™ (sold separately) into the camera” (p. 10)

“Using the microSD card/microSDHC card

●

(sold separately)” (p. 13)

Editing

“Erasing the sound recorded to a still image”

Record over the sound with silence when

●

playing back the image

[R] (Add sound to still images) (p. 40)

Page 64

Appendix

Camera care

Exterior

Wipe gently with a soft cloth. If the camera is

•

very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and wrung well. If any dirt, dust, sand, or other foreign material

•

adheres to the periphery of the lens cover after use, or the lens cover does not move smoothly, wash the camera using the method described on P. 69.

Monitor

Wipe gently with a soft cloth.

•

Lens

Blow dust off the lens with a commercial

•

blower, then wipe gently with a lens cleaner.

Battery/AC adaptor

Wipe gently with a soft, dry cloth.

•

Do not use strong solvents such as benzene

or alcohol, or chemically treated cloth.

Mold may form on the lens surface if the

lens is left dirty.

Storage

When storing the camera for extended

•

periods, remove the battery, AC adapter and card, and keep in a cool, dry place that is well ventilated. Periodically insert the battery and test the

•

camera functions.

Avoid leaving the camera in places where

chemical products are handled since this may result in corrosion.

Battery, AC adaptor (included), Charger (sold separately)

This camera uses one Olympus lithium ion

•

battery (LI-50B). No other type of batteries can be used.

Caution:

There is a risk of explosion if the battery is replaced with the incorrect battery type. Dispose of the used battery following the instructions in “Battery Handling Precautions” (p. 73).

Power consumption by the camera varies

•

depending on which functions are used. During the conditions described below, power

•

is consumed continuously and the battery becomes exhausted quickly.

The zoom is used repeatedly.

•

The shutter button is pressed halfway

•

repeatedly in shooting mode, activating the auto focus. A picture is displayed on the monitor for an

•

extended period of time. The camera is connected to a computer or

•

printer.

Using an exhausted battery may cause the

•

camera to turn off without displaying the battery level warning. The rechargeable battery is not fully charged

•

at the time of purchase. Charge the battery fully with the included AC adapter (F-1AC) or the separately sold AC adaptor (D-7AC)/ charger (LI-50C) before use. When the included AC adaptor (F-1AC) is

•

used, charging usually takes approximately

2.5 hours (varies on usage). The included AC adaptor (F-1AC) has been

•

designed to be used only for charging. Make sure that operations such as shooting, viewing images and so on are not being used while the AC adaptor is connected to the camera. The included AC adaptor (F-1AC) is designed

•

to be used only with this camera. Other cameras cannot be charged with this AC adaptor. For plug-in type AC adaptor:

•

The included AC adaptor (F-1AC) is intended to be correctly orientated in a vertical or ﬂ oor mount position.

Page 65

Charging the battery by connecting the camera to a computer

To charge the battery, connect the camera to a computer via USB cable, select [EXIT] in the [USB] screen below, and press the o button.

USB

EASY PRINT

CUSTOM PRINT

EXIT

If the camera is connected to a printer or

an old computer, the operation may be unstable, or charging may take longer than that with the included AC adaptor. Charging time varies depending on the performance of a computer or printer. (There may be cases in which it takes approx. 10 hours.)

Even if [REMOVE USB CABLE] is

displayed, the battery is charging while the charging indicator is lit in orange. Be sure to remove the USB cable after the battery is charged (the charging indicator turns to blue).

If the camera without a battery is connected

to a computer, by inserting a battery into the camera, the camera will start charging without showing the [USB] screen above.

SET

Using a separately sold AC adapter

An AC adapter (D-7AC/separately sold) is useful for time-consuming tasks such as image downloads to a computer or when running a slideshow for a long period of time. To use a separately sold AC adapter for this camera, the multi-adapter (CB-MA1/separately sold) is required. The battery can also be charged by connecting the camera with its power turned off to the AC adaptor. Do not use any other AC adapter with this camera.

Using a separately sold charger

A charger (LI-50C/separately sold) can be used to charge the battery. In this case, remove the battery from the camera and set the battery to the charger.

Using your charger and AC adapter abroad

The charger and AC adapter can be used in

•

most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the charger and AC adapter may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent. Do not use travel voltage converters as they

•

could damage your charger and AC adapter.

Page 66

Using an xD-Picture Card

A card (and internal memory) also corresponds to the ﬁ lm that records images in a ﬁ lm camera. Otherwise, the recorded images (data) can be erased, and retouching is also available with the use of a computer. Cards can be removed from the camera and exchanged, but this is not possible with the internal memory. Use of larger capacity cards enables you to take more pictures.

(Notes can be ﬁ lled in

(Contact section of the

Cards compatible with this camera

xD-Picture Card (16MB to 2GB) (TypeH/M/M+, Standard)

Using a new card

Before using a non-Olympus card or a card that was used for another purpose in a computer or other device, use [MEMORY FORMAT]/[FORMAT] (p. 42) to format the card.

Checking the image saving location

The memory indicator shows whether the internal memory or card is being used during shooting and playback.

Index area

here)

Contact area

card with the internal

camera terminal)

Do not touch the contact area directly.

Current memory indicator

: Internal memory is being used

None: Card is being used

ORM

Shooting mode

2009.08.26 12:30 4

Even if [MEMORY FORMAT]/[FORMAT],

[ERASE], [SEL. IMAGE], or [ALL ERASE] is performed, the data in the card is not completely erased. When disposing of the card, damage the card to prevent the disclosure of personal data.

Readout/recording process of the card

Never open the battery/card compartment cover or unplug the USB cable while the camera is reading or writing data, which is indicated by blinking of the card access lamp. This can not only damage the image data but also render the internal memory or card unusable.

Card access lamp

Playback mode

Current memory

indicator

100-0004

ORM

Page 67

Number of storable pictures (still pictures)/continuous recording length (movies) in the internal memory and xD-Picture Card

Still pictures

IMAGE SIZE

3968×2976

2560×1920

2048×1536

1600×1200

1280×960

640×480

1920×1080

COMPRES-

SION

L M L M L M L M L M L M L M

Number of storable still pictures

Internal memory

With sound Without sound

7 7 173 174 15 15 340 343 18 18 404 410 36 37 820 841 27 28 615 627 55 58 1254 1305 46 47 1031 1066 87 93 1938 2063 70 74 1560 1640

131 144 2907 3198 228 271 4920 5815 368 496 7996 10661

42 44 954 984 82 87 1827 1938

Using a 1GB card (xD-Picture Card)

With sound Without sound

Movies

Continuous recording length

IMAGE SIZE

FRAME RATE

Internal memory

With sound Without sound

640×480

320×240

When [MOVIE] (p. 36) is set to [NON-WATER MOVIE], see “With sound”, and for [UNDERWATER

MOVIE], see “Without sound.”

N O N O

25 sec. 25 sec. 9 min. 21 sec.* 9 min. 23 sec.* 49 sec. 50 sec. 18 min. 37 sec. 18 min. 47 sec. 59 sec. 59 sec. 22 min. 3 sec. 22 min. 17 sec.

1 min. 56 sec. 1 min. 59 sec. 43 min. 37 sec. 44 min. 32 sec.

The maximum ﬁ le size of a single movie is 2 GB, regardless of the capacity of the card.

* The maximum length is 10 seconds when using a TypeM or Standard xD-Picture Card.

Using a 1 GB card

(xD-Picture Card)

With sound Without sound

Page 68

Increasing the number of pictures that can be taken

Either erase unwanted images, or connect the camera to a computer or other device to save the images, and then erase the images in the internal memory or card. [ERASE] (p. 18), [SEL. IMAGE] (p. 40), [ALL ERASE] (p. 40), [MEMORY FORMAT]/ [FORMAT] (p. 42)

Using a microSD Attachment

Do not use the attachment with Olympus

digital cameras that do not support this microSD Attachment, as well as with other brands of digital cameras, computers, printers, and other devices that support xD-Picture Card. Doing so not only may damage the pictures taken, but may also result in the malfunction of the device.

If the microSD card cannot be removed,

do not use force. Contact authorized distributors/service centers.

Cards compatible with this camera

microSD card/microSDHC card

For a list of tested microSD cards, please

visit our website (http://www.olympus.com/).

Sending images

You can send images to a computer or printer by using the USB cable provided with the camera. To send data to other devices, remove the attachment from the camera and use a commercially available microSD card adapter.

Handling precautions

Do not touch the contact area of the attachment or microSD card. Doing so may cause failure in reading the images. When ﬁ ngerprints or stains are found on the contact area, wipe the area with a soft dry cloth.

Important information about water and shock resistant features

Water resistance: The waterproof feature is warranted*1 to operate at depths up to 10 m (32.8 feet) for up to one hour. The waterproof feature may be compromised if the camera is subject to substantial or excessive impact. Shock resistance: The anti-shock feature

the operation of the camera against

warrants accidental impact incurred from everyday use of your digital compact camera. The anti-shock feature does not unconditionally warrant all defective operation or cosmetic damage. Cosmetic damage, such as scratches and dents, are not covered under the warranty. As with any electronic device, proper care and maintenance are required to preserve the integrity and operation of your camera. To maintain camera performance, please take your camera to the nearest Olympus Authorized Service Center to have it inspected after any major impact. In the event the camera is damaged as a result of negligence or misuse, the warranty will not cover costs associated with the service or repair of your camera. For additional information on our warranty, please visit to the Olympus website for your local area. Please observe the following care instructions for your camera.

*1 As determined by Olympus pressure testing

equipment in accordance with IEC Standard Publication 529 IPX8 - This means that the camera can be used normally under water at a speciﬁ ed water pressure.

*2 This anti-shock performance is conﬁ rmed by

Olympus’ testing conditions in accordance with MIL-STD-810F, Method 516.5, Procedure IV (Transit Drop Test). For more details of Olympus’ testing conditions, please refer to the Olympus website for your local area.

Page 69

Before Use:

Check the camera for foreign material

•

including dirt, dust or sand. Be sure to close the battery/card compartment

•

cover and connector cover ﬁ rmly so that each lock makes clicking sound. Do not open the battery/card compartment

•

cover and connector cover with wet hands, while under water, or in a damp or dusty environment (e.g. beach).

After Use:

Be sure to wipe off any excess water or debris

•

after using the camera under water.

After the camera is used under seawater,

• immerse the camera in a bucket containing fresh water for about 10 minutes (with the battery/card compartment cover and connector cover ﬁ rmly closed). After that, dry the camera in a shade with good ventilation. Water drops may be observed on the inner

• surface of the battery/card compartment cover or connector cover after you open each cover. If any water drops are found, be sure to wipe them off before using the camera.

Notes after use

Foreign materials may be attached to the

•

periphery of the lens cover from using the camera in conditions with foreign materials such as dirt, dust or sand, or when the lens cover is not moving smoothly. If you continue to use the camera in such conditions, the lens could become damaged or the lens cover could stick causing additional damage to the camera. To avoid such damage, wash the camera using the following method.

1 Insert the battery and close the battery/

card compartment cover and connector cover ﬁ rmly so that each lock makes the clicking sound.

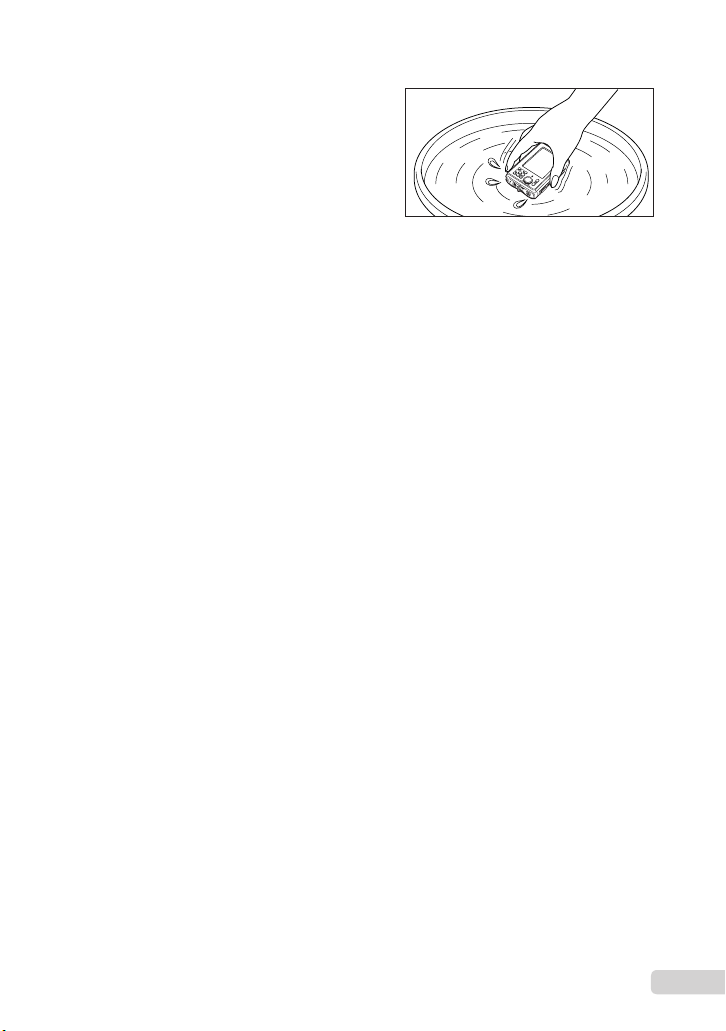

2 Fill a bucket with fresh water, immerse

the camera in the bucket with the lens surface downward and shake the camera thoroughly.

3 Press the n button several times in

the water and close/open the lens cover repeatedly.

4 Furthermore, shake the camera further

with the cover opened.

Follow the Steps 1 to 4, then check if the lens cover moves smoothly. If the lens cover does not move smoothly, rinse the lens face by placing it directly under a strong stream of tap water and pressing the n button repeatedly.

Storage and Maintenance

Do not leave the camera in an environment at

•

high temperature (40°C (104°F) or more) or at low temperature (-10°C (14°F) or less). Failure to do so may break down water resistance. Do not use chemicals for cleaning, rust

•

prevention, anti-fogging, repairing, etc. Failure to do so may break down water resistance.

Do not leave the camera in water for a long

• time. Failure to do so will cause damage to the camera’s appearance and/or deteriorate water resistance. In order to preserve the water resistant

• feature, as with any underwater housing, it is recommended that the waterproof packing (and seals) are replaced annually. For the Olympus distributors or service stations where the waterproof packing can be replaced, visit Olympus website for your local area.

Page 70

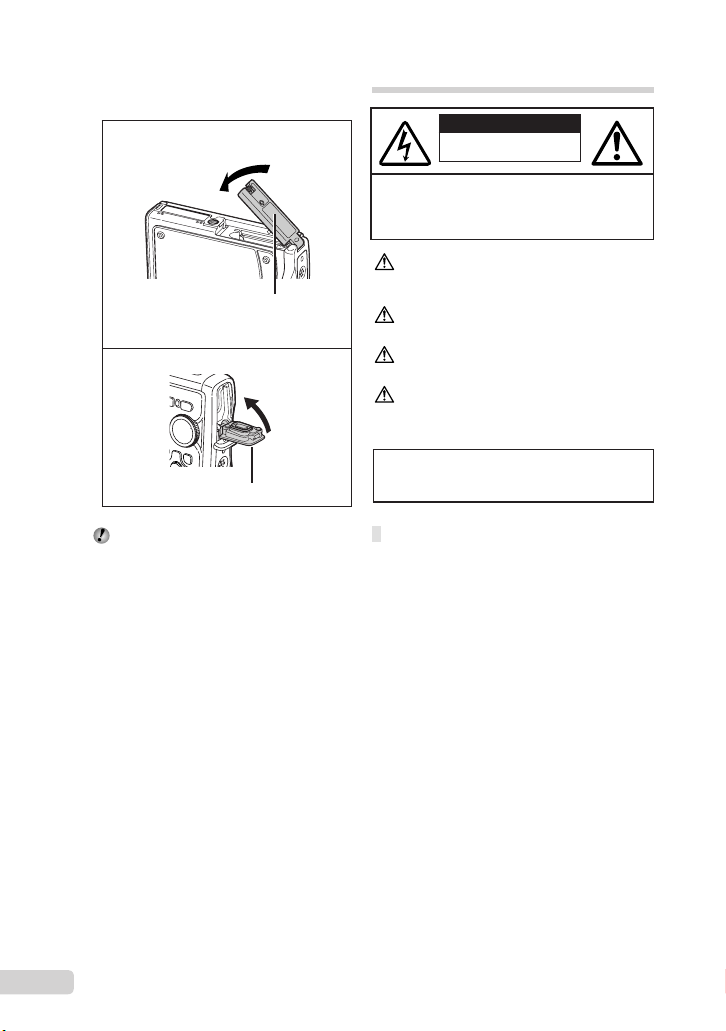

Closing Battery/card compartment cover and Connector cover

Battery/card compartment cover

Connector cover

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED OLYMPUS

SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.

DANGER If the product is used without observing

the information given under this symbol, serious injury or death may result.

WARNING If the product is used without observing the

information given under this symbol, injury or death may result.

CAUTION If the product is used without observing the

information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

The included accessories (e.g. AC adaptor)

do not offer shock or water resistance.

General Precautions

Read All Instructions — Before you use the

product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the

wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid

damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on

products with weatherproof designs, read the weatherprooﬁ ng sections.

Location — To avoid damage to the product, mount

the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the

power source described on the product label.

Lightning — If a lightning storm occurs while using

an AC adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never

insert a metal object into the product.

Heat — Never use or store this product near any

heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo ampliﬁ ers.

Page 71

Handling the Camera

WARNING

Do not use the camera near ﬂ ammable or

• explosive gases. Do not use the ﬂ ash and LED on people

• (infants, small children, etc.) at close range.

You must be at least 1 m (3 ft.) away from the

•

faces of your subjects. Firing the ﬂ ash too close to the subject’s eyes could cause a momentary loss of vision.

Keep young children and infants away from

• the camera.

Always use and store the camera out of the

•

reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

Becoming entangled in the camera strap,

•

causing strangulation. Accidentally swallowing the battery, cards or

•

other small parts. Accidentally ﬁ ring the ﬂ ash into their own eyes

•

or those of another child. Accidentally being injured by the moving parts

•

of the camera.

Do not look at the sun or strong lights with the

• camera. Do not use or store the camera in dusty or

• humid places. Do not cover the ﬂ ash with a hand while ﬁ ring.

• Do not insert anything into the microSD

• Attachment other than the microSD card.

This attachment is exclusive for use of microSD cards only. Other types of cards cannot be installed.

Do not insert anything other than an xD-Picture

• Card or the microSD Attachment into the camera

If you insert a card by mistake, such as a microSD card, do not use force. Contact authorized distributors/service centers.

CAUTION

Stop using the camera immediately if you

• notice any unusual odors, noise, or smoke around it.

Never remove the batteries with bare hands,

•

which may cause a ﬁ re or burn your hands.

Do not leave the camera in places where it may

• be subject to extremely high temperatures.

Doing so may cause parts to deteriorate and, in

•

some circumstances, cause the camera to catch ﬁ re. Do not use the charger or AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in ﬁ re.

Handle the camera with care to avoid getting a

• low-temperature burn.

When the camera contains metal parts,

•

overheating can result in a low-temperature burn. Pay attention to the following:

When used for a long period, the camera will

•

get hot. If you hold on to the camera in this state, a low-temperature burn may be caused. In places subject to extremely cold

•

temperatures, the temperature of the camera’s body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

Be careful with the strap.

•

Be careful with the strap when you carry the

•

camera. It could easily catch on stray objects and cause serious damage.

Do not touch the metallic parts of the camera

• for a long period of time at low temperatures.

This may damage your skin. At low

•

temperatures, handle the camera while wearing gloves.

Page 72

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

The camera uses a lithium ion battery speciﬁ ed

•

by Olympus. Charge the battery with the speciﬁ ed AC adaptor or charger. Do not use any other AC adaptors or chargers. Never heat or incinerate batteries.

•

Take precautions when carrying or storing

•

batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc. Never store batteries where they will be

•

exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc. To prevent causing battery leaks or damaging their

•

terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc. If battery ﬂ uid gets into your eyes, ﬂ ush your eyes

•

immediately with clear, cold running water and seek medical attention immediately. Always store batteries out of the reach of small

•

children. If a child accidentally swallows a battery, seek medical attention immediately.

WARNING

Keep batteries dry at all times.

•

To prevent batteries from leaking, overheating,

•

or causing a ﬁ re or explosion, use only batteries recommended for use with this product. Insert the battery carefully as described in the

•

operating instructions. If rechargeable batteries have not been recharged

•

within the speciﬁ ed time, stop charging them and do not use them. Do not use a battery if it is cracked or broken.

•

If a battery leaks, becomes discolored or

•

deformed, or becomes abnormal in any other way during operation, stop using the camera. If a battery leaks ﬂ uid onto your clothing or skin,

•

remove the clothing and ﬂ ush the affected area with clean, running cold water immediately. If the ﬂ uid burns your skin, seek medical attention immediately. Never subject batteries to strong shocks or

•

continuous vibration.

•

CAUTION

Before loading, always inspect the battery carefully

•

for leaks, discoloration, warping, or any other abnormality. The battery may become hot during prolonged

•

use. To avoid minor burns, do not remove it immediately after using the camera. Always unload the battery from the camera before

•

storing the camera for a long period.

Caution for Usage Environment

To protect the high-precision technology contained

•

in this product, never leave the camera in the places listed below, no matter if in use or storage:

Places where temperatures and/or humidity

•

are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidiﬁ ers. In sandy or dusty environments.

•

Near ﬂ ammable items or explosives.

•

In wet places, such as bathrooms or in the rain.

•

When using products with weatherproof designs, read their manuals as well. In places prone to strong vibrations.

•

Never drop the camera or subject it to severe

•

shocks or vibrations. When mounted on a tripod, adjust the position of

•

the camera with the tripod head. Do not twist the camera. Do not touch electric contacts on cameras.

•

Do not leave the camera pointed directly at the

•

sun. This may cause lens or shutter curtain damage, color failure, ghosting on the CCD, or may possibly cause ﬁ res. Do not push or pull severely on the lens.

•

Before storing the camera for a long period,

•

remove the batteries. Select a cool, dry location for storage to prevent condensation or mold from forming inside the camera. After storage, test the camera by turning it on and pressing the shutter button to make sure that it is operating normally. Always observe the operating environment

•

restrictions described in the camera’s manual. The altitude/depth measurement function is

•

not approved by an ofﬁ cial institution. Use the readings only for your reference.

Page 73

Battery Handling Precautions

This camera uses a lithium ion battery speciﬁ ed by

•

Olympus. Do not use any other type of battery. If the battery’s terminals get wet or greasy, camera

•

contact failure may result. Wipe the battery well with a dry cloth before use. Always charge a battery when using it for the ﬁ rst

•

time, or if it has not been used for a long period. When operating the camera with battery power

•

at low temperatures, try to keep the camera and spare battery as warm as possible. A battery that has run down at low temperatures may be restored after it is warmed at room temperature. The number of pictures you can take may vary

•

depending on the shooting conditions or battery. Before going on a long trip, and especially before

•

traveling abroad, purchase extra batteries. A recommended battery may be difﬁ cult to obtain while traveling. Please recycle batteries to help save our planet’s

•

resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

LCD Monitor

Do not push the monitor forcibly; otherwise the

•

image may become vague, resulting in a playback mode failure or damage to the monitor. A strip of light may appear on the top/bottom of the

•

monitor, but this is not a malfunction. When a subject is viewed diagonally in the

•

camera, the edges may appear zigzagged on the monitor. This is not a malfunction; it will be less noticeable in playback mode. In places subject to low temperatures, the LCD

•

monitor may take a long time to turn on or its color may change temporarily. When using the camera in extremely cold places, it is a good idea to occasionally place it in a warm place. An LCD monitor exhibiting poor performance due to low temperatures will recover in normal temperatures. The LCD used for the monitor is made with

•

high-precision technology. However, black spots or bright spots of light may appear constantly on the LCD monitor. Due to its characteristics or the angle at which you are viewing the monitor, the spot may not be uniform in color and brightness. This is not a malfunction.

Legal and Other Notices

Olympus makes no representations or warranties

•

regarding any damages, or beneﬁ t expected by using this unit lawfully, or any request from a third person, which are caused by the inappropriate use of this product. Olympus makes no representations or warranties

•

regarding any damages or any beneﬁ t expected by using this unit lawfully which are caused by erasing picture data.

Page 74

Disclaimer of Warranty

Olympus makes no representations or warranties,

•

either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or ﬁ tness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business proﬁ ts, business interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment. Some countries do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you. Olympus reserves all rights to this manual.

•

Warning

Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners.

All rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice.

FCC Notice

Radio and Television Interference

•

Changes or modiﬁ cations not expressly approved

•

by the manufacturer may void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate

•

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference

•

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Adjust or relocate the receiving antenna.

•

Increase the distance between the camera and

•

receiver. Connect the equipment to an outlet on a circuit

•

different from that to which the receiver is connected. Consult your dealer or an experienced radio/TV

•

technician for help. Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers (PC).

Any unauthorized changes or modiﬁ cations to this equipment would void the user’s authority to operate it.

Page 75

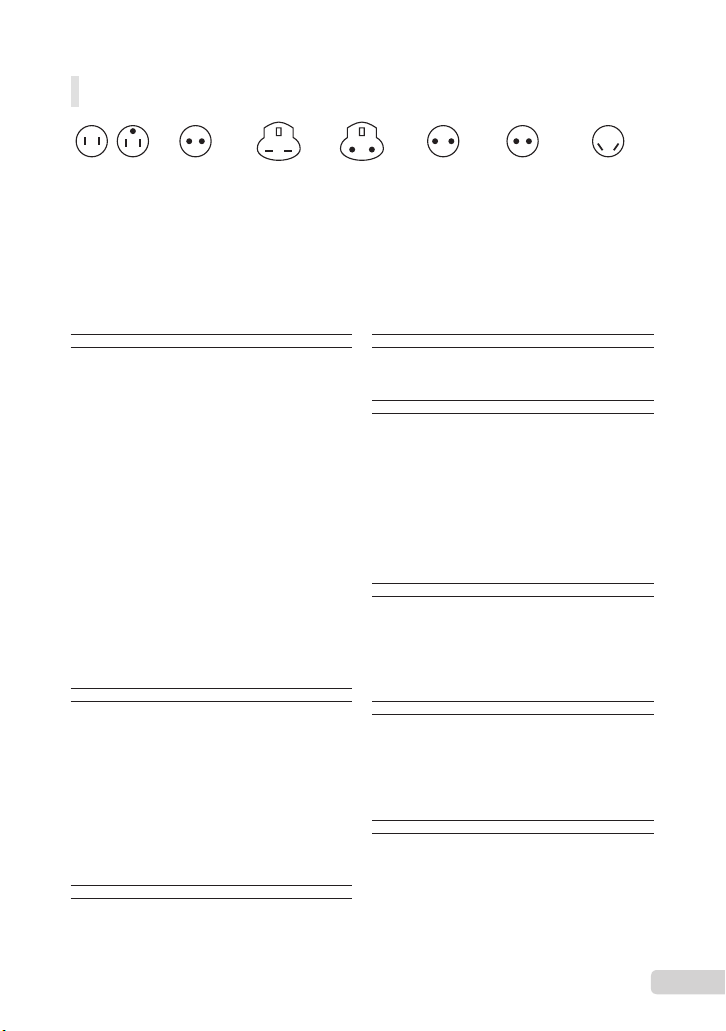

Representative plug of power supply cord of countries/regions around the world

A Type

(American Type)

The representative supply voltage and plug type are described in this chart. Depending on the area, different types of plugs and supply voltages are used.

Attention: Power cord meeting demands from each country shall be used.

- For only the United States Use a UL Listed, 1.5 - 4.5 m (5 - 15 ft), Type SPT-2 or NISPT-2, AWG no. 18 power supply cord, rated for 125 V 7 A, with a non-polarized NEMA 1-15P plug rated for 125 V 15 A”.

Europe Countries/Regions Voltage Austria 230 50 C Belgium 230 50 C Czech Denmark 230 50 C Finland 230 50 C France 230 50 C Germany 230 50 C Greece 220 50 C Hungary 220 50 C Iceland 230 50 C Ireland 230 50 C/BF Italy 220 50 C Luxemburg 230 50 C Netherlands 230 50 C Norway 230 50 C Poland 220 50 C Portugal 230 50 C Romania 220 50 C Russia 220 50 C Slovak 220 50 C Spain 127/230 50 C Sweden 230 50 C Switzerland 230 50 C UK 240 50 BF

Asia Countries/Regions Voltage China 220 50 A Hong Kong 200/220 50 BF India 230/240 50 C Indonesia 127/230 50 C Japan 100 50/60 A Korea (rep) 220 60 C Malaysia 240 50 BF Philippines 220/230 60 A/C Singapore 230 50 BF Taiwan 110 60 A Thailand 220 50 C/BF Vietnam 220 50 A/C

Oceania Countries/Regions Voltage Australia 240 50 O New Zealand 230/240 50 O

B Type

(British Type)

Frequency (Hz)

220 50 C

Frequency (Hz)

BF Type

(British Type)

Plug type

B3 Type

C Type

(CEE Type)

North America Countries/Regions Voltage Canada 120 60 A USA 120 60 A

Central America Countries/Regions Voltage Bahamas 120/240 60 A Costa Rica 110 60 A Cuba 110/220 60 A/C Dominican (rep) 110 60 A El Salvador 110 60 A Guatemala 120 60 A Honduras 110 60 A Jamaica 110 50 A Mexico 120/127 60 A Nicaragua 120/240 60 A Panama 110/220 60 A

South America Countries/Regions Voltage Argentina 220 50 C/BF/O Brazil 127/220 60 A/C Chile 220 50 C Colombia 120 60 A Peru 220 60 A/C Venezuela 120 60 A

Middle East Countries/Regions Voltage Iran 220 50 C/BF Iraq 220 50 C/BF Israel 230 50 C Saudi Arabia 127/220 50 A/C/BF Turkey 220 50 C UAE 240 50 C/BF

Africa Countries/Regions Voltage Algeria 127/220 50 C Congo (dem) 220 50 C Egypt 220 50 C Ethiopia 220 50 C Kenya 240 50 C/BF Nigeria 230 50 C/BF South Africa 220/230 50 C/BF Tanzania 230 50 C/BF Tunisia 220 50 C

SE Type

(CEE Type)

Frequency (Hz)

O Type

(Oceania Type)

Plug type

Page 76

For customers in North and South America

For customers in USA

Declaration of Conformity Model Number : STYLUS TOUGH-8000/

Trade Name : OLYMPUS Responsible Party :

Address : 3500 Corporate

Telephone Number : 484-896-5000

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference. (2) This device must accept any interference

received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

μ TOUGH-8000

Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A.

Use Only Dedicated Rechargeable Battery and Battery Charger

We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery and battery charger with this camera. Using a non-genuine rechargeable battery and/or battery charger may result in ﬁ re or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability for accidents or damage that may result from the use of a battery and/or battery charger that are not genuine Olympus accessories.

OLYMPUS WORLDWIDE LIMITED WARRANTY - IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus® imaging product(s) and related Olympus® accessories (individually a “Product” and collectively the “Products”) will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase. If any Product proves to be defective within the one-year warranty period, the customer must return the defective Product to any of Olympus Service Centers, following the procedure set forth below (See “WHAT TO DO WHEN SERVICE IS NEEDED”). Olympus, at its sole discretion, will repair, replace, or adjust the defective Product, provided that Olympus investigation and factory inspection disclose that (a) such defect developed under normal and proper use and (b) the Product is covered under this limited warranty. Repair, replacement, or adjustment of defective Products shall be Olympus’s sole obligation and the customer’s sole remedy hereunder. The customer is liable and shall pay for shipment of the Products to the Olympus Service Center. Olympus shall not be obligated to perform preventive maintenance, installation, deinstallation, or maintenance. Olympus reserves the right to (i) use reconditioned, refurbished, and/or serviceable used parts (that meet Olympus’s quality assurance standards) for warranty or any other repairs and (ii) make any internal or external design and/or feature changes on or to its products without any liability to incorporate such changes on or to the Products.

Page 77

WHAT IS NOT COVERED BY THIS LIMITED WARRANTY

Excluded from this limited warranty and not warranted by Olympus in any fashion, either express, implied, or by statute, are:

(a) products and accessories not manufactured by

Olympus and/or not bearing the “OLYMPUS” brand label (the warranty coverage for products and accessories of other manufacturers, which may be distributed by Olympus, is the responsibility of the manufacturers of such products and accessories in accordance with the terms and duration of such manufacturers’ warranties);

(b) any Product which has been disassembled,

repaired, tampered with, altered, changed, or modiﬁ ed by persons other than Olympus’s own authorized service personnel unless repair by others is made with the written consent of Olympus;

from wear, tear, misuse, abuse, negligence, sand, liquids, impact, improper storage, nonperformance of scheduled operator and maintenance items, battery leakage, use of non“OLYMPUS” brand accessories, consumables, or supplies, or use of the Products in combination

with non-compatible devices; (d) software programs; (e) supplies and consumables (including but not

limited to lamps, ink, paper, ﬁ lm, prints, negatives,

cables and batteries); and/or (f) Products which do not contain a validly placed

and recorded Olympus serial number, unless they

are a model on which Olympus does not place

and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY SET FORTH ABOVE, OLYMPUS MAKES NO AND DISCLAIMS ALL OTHER REPRESENTATIONS, GUARANTIES, CONDITIONS, AND WARRANTIES CONCERNING THE PRODUCTS, WHETHER DIRECT OR INDIRECT, EXPRESS OR IMPLIED, OR ARISING UNDER ANY STATUTE, ORDINANCE, COMMERCIAL USAGE OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OR REPRESENTATION AS TO THE SUITABILITY, DURABILITY, DESIGN, OPERATION, OR CONDITON OF THE PRODUCTS (OR ANY PART THEREOF) OR THE MERCHANTABILITY OF THE PRODUCTS OR THEIR FITNESS FOR A PARTICULAR PURPOSE, OR RELATING TO THE INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER PROPRIETARY RIGHT USED OR INCLUDED THEREIN.

IF ANY IMPLIED WARRANTIES APPLY AS A MATTER OF LAW, THEY ARE LIMITED IN DURATION TO THE LENGTH OF THIS LIMITED WARRANTY. SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR LIMITATION OF WARRANTIES AND/OR LIMITATION OF LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY. THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/OR ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM STATE TO STATE. THE CUSTOMER ACKNOWLEDGES AND AGREES THAT OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES THAT THE CUSTOMER MAY INCUR FROM DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE, WHETHER LIABILITY IS ASSERTED IN CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY) OR OTHERWISE. IN NO EVENT SHALL OLYMPUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND (INCLUDING WITHOUT LIMITATION LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any person, including but not limited to dealers, representatives, salespersons, or agents of Olympus, which are inconsistent or in conﬂ ict with or in addition to the terms of this limited warranty, shall not be binding upon Olympus unless reduced to writing and approved by an expressly authorized ofﬁ cer of Olympus. This limited warranty is the complete and exclusive statement of warranty which Olympus agrees to provide with respect to the Products and it shall supersede all prior and contemporaneous oral or written agreements, understandings, proposals, and communications pertaining to the subject matter hereof. This limited warranty is exclusively for the beneﬁ t of the original customer and cannot be transferred or assigned.

Page 78

WHAT TO DO WHEN SERVICE IS NEEDED

The customer must transfer any image or other data saved on a Product to another image or data storage medium and/or remove any ﬁ lm from the Product prior to sending the Product to Olympus for service.

IN NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA SAVED ON A PRODUCT RECEIVED BY IT FOR SERVICE, OR ON ANY FILM CONTAINED WITHIN A PRODUCT RECEIVED BY IT FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE FOR ANY DAMAGES IN THE EVENT ANY IMAGE OR DATA IS LOST OR IMPAIRED WHILE SERVICE IS BEING PERFORMED (INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.

Package the Product carefully using ample padding material to prevent damage in transit and either deliver it to the Authorized Olympus Dealer that sold you the Product or ship it postage prepaid and insured to any of our Olympus Service Centers. When returning Products for service, your package should include the following:

1 Sales receipt showing date and place of

purchase.

2 Copy of this limited warranty bearing the

Product serial number corresponding to the

serial number on the Product (unless it is a

model on which Olympus does not place and

record serial numbers).

3 A detailed description of the problem. 4 Sample prints, negatives, digital prints (or ﬁ les on

disk) if available and related to the problem.

When service is completed, the Product will be returned to you postage prepaid.

WHERE TO SEND PRODUCT FOR SERVICE

See “WORLDWIDE WARRANTY” for the nearest service center.

INTERNATIONAL WARRANTY SERVICE

International warranty service is available under this warranty.

Trademarks

IBM is a registered trademark of International

•

Business Machines Corporation. Microsoft and Windows are registered trademarks

•

of Microsoft Corporation. Macintosh is a trademark of Apple Inc.

•

xD-Picture Card™ is a trademark.

•

microSD is a trademark of the SD Association.

•

All other company and product names are

•

registered trademarks and/or trademarks of their respective owners. The standards for camera ﬁ le systems referred to

•

in this manual are the “Design rule for Camera File system/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

Page 79

SPECIFICATIONS

Camera

Product type : Digital camera (for shooting and displaying)

Recording system

Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File

Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III,

Sound with still pictures : Wave format

Movie : AVI Motion JPEG

Memory : Internal memory

No. of effective pixels : 12,000,000 pixels

Image pickup device : 1/2.33” CCD (primary color ﬁ lter), 12,700,000 pixels (gross)

Lens : Olympus lens 5.0 to 18.2 mm, f3.5 to 5.1

Photometric system : Digital ESP metering, spot metering system

Shutter speed : 4 to 1/2000 sec.

Shooting range : 0.5 m (1.6 ft.) to ∞ (W/T) (normal)

Monitor : 2.7” TFT color LCD display, 230,000 dots

Flash charge time : Approx. 3.5 sec. (for full ﬂ ash discharge at room temperature using a

Connector : Multi-connector (DC-IN jack USB connector, A/V OUT jack)

Automatic calendar system : 2000 up to 2099

Water resistance

Type : Equivalent to IEC Standard publication 529 IPX8 (under OLYMPUS test

Meaning : Camera can normally be used under water at a speciﬁ ed water

Dust resistance : IEC Standard publication 529 IP6X (under OLYMPUS test conditions)

Operating environment

Temperature : -10 °C to 40 °C (14 °F to 104 °F) (operation)/

Humidity : 30 % to 90 % (operation)/10 % to 90 % (storage)

Power supply : One Olympus lithium ion battery (LI-50B) or Olympus AC adapter

Dimensions : 95.0 mm (W) × 61.7 mm (H) × 21.5 mm (D) (3.7 × 2.4 × 0.8 in.)

Weight : 182 g (5.9 oz) (excluding battery and card)

system (DCF))

PictBridge

xD-Picture Card (16 MB to 2 GB) (TypeH/M/M+, Standard) microSD card/microSDHC card (with the supplied microSD Attachment)

(equivalent to 28 to 102 mm on a 35mm camera)

0.1 m (0.3 ft.) to ∞ (W), 0.3 m (1.0 ft.) to ∞ (T) (macro mode)

0.02 m (0.8 in.) to 0.5 m (1.6 ft.) (W only) (super macro mode)

0.07 m (2.8 in.) to 0.2 m (0.7 ft.) (W only) (S-macro LED mode)

new fully charged battery)

conditions), available in 10 m (32.8 feet) deep water

pressure.

-20 °C to 60 °C (-4 °F to 140 °F) (storage)

(D-7AC/separately sold)

(excluding protrusions)

“Shadow Adjustment Technology” function contains patented technologies from Apical Limited.

Page 80

Lithium ion battery (LI-50B)

Product type : Lithium ion rechargeable battery

Model No. : LI-50BA/LI-50BB

Standard voltage : DC 3.7 V

Standard capacity : 925 mAh

Battery life : Approx. 300 full charges (varies on usage)

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (charging)/

Dimensions : 34.4 mm (W) × 40.0 mm (H) × 7.0 mm (D) (1.4 × 1.6 × 0.3 in.)

Weight : Approx. 20 g (0.7 oz)

-10°C to 60°C (14°F to 140°F) (operation)/

-10°C to 35°C (14°F to 95°F) (storage)

AC adaptor (F-1AC)

Model No. : F-1AC-1/F-1AC-2/F-1AC-3

Power requirements : AC 100 to 240 V (50/60 Hz)

Output : DC 5 V, 700 mA

Charging time : Approx. 2.5 hours

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation)/

Dimensions : 48.0 mm (W) × 60.0 mm (H) × 21.0 mm (D) (1.9 × 2.4 × 0.8 in.) (F-1AC-1)/

Weight : Approx. 80.0 g (2.8 oz) (F-1AC-1)/

Connecting cord length

Using in low temperatures

Low temperature operation of the optional Olympus xD-Picture Card and lithium ion battery are guaranteed to 0°C (32°F). However, the following have been tested for use with this product in temperatures up to -10°C (14°F).

-20°C to 60°C (-4°F to 140°F) (storage)

39.0 mm (W) × 67.0 mm (H) × 21.0 mm (D) (1.5 × 2.6 × 0.8 in.) (F-1AC-2)/

50.0 mm (W) × 70.0 mm (H) × 21.0 mm (D) (2.0 × 2.8 × 0.8 in.) (F-1AC-3)

Approx. 70.0 g (2.5 oz) (F-1AC-2)/ Approx. 90.0 g (3.2 oz) (F-1AC-3)

: Approx. 1.5 m (4.9 ft.)

Olympus xD-Picture Card

Standard

TypeM/M+

TypeH

Olympus lithium ion battery

LI-50B

The number of storable still pictures is reduced in low temperatures.●

16MB 32MB 64MB 128MB 256MB 512MB 1GB 2GB

999999

9999 9999

9 Operation conﬁ rmed

Page 81

microSD Attachment

Product type : Attachment for microSD card

Operating Environment

Temperature : -10°C to 40°C (14 to 104°F) (operation)/

Humidity : 95% and below (operation)/85% and below (storage)

Dimensions : 25.0 mm (W) x 20.3 mm (H) x 1.7 mm (D) (1.0 × 0.8 × 0.07 in.)

Weight : Approx. 0.9 g (0.03 oz)

Design and speciﬁ cations subject to change without notice.

-20°C to 65°C (-4 to 149°F) (storage)

(Handle:2.2 mm (0.09 in.))

Page 82

Index

AC adapter........................................2, 65

AF lock .................................................. 19

AF MODE .............................................32

ALL (PERFECT FIX) ............................. 37

ALL (SLIDESHOW) ..............................37

ALL INDEX ...........................................52

ALL PRINT ............................................ 52

All-image print reservation U .............. 55

AUTO (FILE NAME) .............................45

AUTO (ISO) .......................................... 30

AUTO (WB) ........................................... 30

AV cable ............................................ 2, 47

BACKUP ............................................... 42

Battery ............................2, 10, 59, 63, 64

b mode ......................................... 20

BEAUTY FIX M ...................................37

BEEP .................................................... 44

BGM......................................................37

Black & White .......................................38

CALENDAR .......................................... 39

CALENDAR (SLIDESHOW) ................. 37

CALIBRATE ..........................................49

Calendar view ....................................... 27

CAMERA MENU B ..............................30

Card .......................................... 10, 13, 66

CLEAR SKIN ........................................37

Close-up view U .................................. 27

Cloudy day 3 ..................................... 30

COLOR 1/2/3 ........................................ 43

COLOR EDIT ........................................ 38

COMBINE IN CAMERA1 ...................... 34

COMBINE IN CAMERA2 ..................... 34

COMBINE IN PC ..................................34

COMPRESSION ................................... 29

Connection

To Computer ...................................57

To Printer ........................................51

To Television ...................................47

Cropping a picture P .................... 38, 53

CUSTOM PRINT ..................................52

DATE (X) ...........................................55

DATE (PRINT INFO) ............................. 53

Date and time X .......................... 14, 46

DIGITAL ZOOM ....................................31

Direct printing........................................51

Display language W .................. 14, 42

DIS MOVIE MODE (Movies).................32

DPOF .................................................... 54

DRAMATIC EYE ................................... 37

DRIVE ................................................... 31

DUALTIME ............................................46

EASY PRINT ........................................51

EDIT I ............................................ 38, 39

Erase

ALL ERASE ....................................40

ERASE K ........................................ 40

SEL.IMAGE .................................... 40

Single image erase .........................18

ESP ....................................................... 32

ESP/n ................................................ 32

Exposure...............................................16

Exposure compensation F .................. 23

FACE DETECT ..................................... 32

FADER (SLIDESHOW) ......................... 37

FILE NAME ........................................... 45

File name .............................................. 45

FILE NAME (PRINT INFO) ................... 53

FILL IN # .............................................23

FINE......................................................29

FINE ZOOM .......................................... 31

FLASH AUTO .......................................23

Flash charge ......................................... 59

Flash mode # ...................................... 22

FLASH OFF $ ..................................... 23

Page 83

Fluorescent lamp1/2/3 wxy .......... 30

FORMAT ...............................................42

Format .................................................. 42

FRAME RATE ....................................... 29

FUNC menu .......................................... 25

High speed sequential shooting W ..... 31

Histogram display ........................... 25, 27

A mode ........................................... 20

iESP ...................................................... 32

IMAGE QUALITY A ............................. 29

IMAGE SIZE ......................................... 29

IMAGE STABILIZER (Still images) ....... 32

INDEX ................................................... 39

Index view G ....................................... 27

Information displays ........................ 25, 27

Internal memory .............................. 11, 67

ISO........................................................30

LED ILLUMINATOR ........................ 24, 48

Lithium ion battery ..................................2

MACRO & ........................................... 23

Macro mode & ..................................... 23

MEMORY FORMAT .............................. 42

Menu ....................................................... 3

MENU COLOR .....................................43

Menu guide ............................................. 3

microSD Attachment ................... 2, 13, 68

microSD card .................................. 13, 68

microSDHC card ............................. 13, 68

Monitor brightness adjustment s ....... 46

MOVIE P ............................................. 36

MOVIE (SLIDESHOW) ......................... 37

MULTI PRINT ....................................... 52

MULTI WINDOW .................................. 26

NO (X) ............................................... 55

NORMAL ..............................................29

NORMAL (MENU COLOR) ................... 43

NORMAL (SLIDESHOW) .....................37

NTSC .................................................... 47

Number of prints (<x) .......................... 53

OLYMPUS Master 2 ......................... 2, 57

Optical zoom ......................................... 22

PAL ....................................................... 47

PANORAMA N ..................................... 34

Panorama playback .............................. 28

PC ......................................................... 57

PERFECT FIX H .................................. 37

PictBridge ............................................. 51

Picture rotation y ................................. 40

PIXEL MAPPING .................................. 45

PLAYBACK MENU J .....................39, 40

Playback mode q ............................... 17

Playback on a TV .................................. 47

POWER SAVE ...................................... 48

PRINT ORDER ..................................... 52

PRINT ORDER L ................................ 41

Print reservations .................................. 54

Printing pictures .................................... 51

Protect 0 ........................................... 39

PW ON SETUP ..................................... 43

REC VIEW ............................................ 44

REDEYE ! ....................................... 23

REDEYE FIX ........................................37

RESET D .............................................. 36

RESET (FILE NAME) ...........................45

Resizing Q ......................................... 38

Page 84

Saturation (Hard) .................................. 38

Saturation (Soft)....................................38

s (SCENE MODE) O ............... 19, 33

SCREEN ............................................... 43

SELFTIMER Y .....................................24

Sepia.....................................................38

Sequential shooting j ....................... 31

SETUP E ............................................. 42

SHADOW ADJ ................................ 26, 33

Shooting mode......................................19

Shooting movies n ..............................21

Shooting still pictures

(Full auto mode) A .................... 20

Shooting still pictures K ..................... 16

SHUTTER SOUND ............................... 44

SILENT MODE F ................................. 50

Single-image print reservation < ......... 54

Single-frame shooting o .................... 31

SLIDE (SLIDESHOW) ..........................37

SLIDESHOW G ................................... 37

S-MACRO LED O .............................. 23

Sound recording

Adding sound to still pictures R ...... 40

Recording sound with still pictures R

........................................................ 32

SOUND SETTINGS .............................. 44

SPARKLE EYE ..................................... 37

SPOT (AF MODE) ................................ 32

Spot metering n................................. 32

STILL PICTURE (SLIDESHOW) ..........37

Strap ....................................................... 2

Sunny day 5 ....................................... 30

SUPER MACRO % ............................. 23

USB cable ................................... 2, 51, 57

VIDEO OUT .......................................... 47

VOLUME...............................................43

VOLUME q ........................................ 44

Warning sound 8 ................................44

White balance WB ................................ 30

xD-Picture Card .............................. 10, 66

Zoom.....................................................22

ZOOM (SLIDESHOW) .......................... 37

TAP CONTROL ..................................... 49

TIME (X) ............................................ 55

Top menu ................................................ 5

Tungsten light 1 ..................................30

Turn the camera on ........................14, 16

TYPE .................................................... 37

Page 85

MEMO

Page 86

DIGITAL CAMERA

STYLUS TOUGH-8000 /

TOUGH-8000

● We recommend that you take test shots to get accustomed to your camera before taking important photographs.

● In the interest of continually improving products, Olympus reserves the right to update or modify information contained in this manual.

● The screen and camera illustrations shown in this manual were produced during the development stages and may differ from the actual product.

Instruction Manual

Step

How to Use the Camera

“Four Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 51) “Print Reservations (DPOF)” (p. 54)

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 16)

Preparing the Camera

“Preparing the Camera” (p. 10)

Step

Checking the contents of the box

Digital camera

Strap LI-50B Lithium Ion

Battery

AC adaptor (F-1AC)

USB cable AV cable OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: Instruction Manual (this manual), warranty card Contents may vary depending on purchase location.

ContentsContents

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Viewing, and Erasing .........16

Using Shooting Modes ........................19

Using Shooting Functions ..................22

Using Playback Features ....................27

Menus for Shooting Functions ...........29

Menus for Playback, Editing, and

Printing Functions ...............................37

Menus for Other Camera Settings .....42

Printing .................................................51

Using OLYMPUS Master 2...................57

Usage Tips ...........................................59

Appendix ..............................................64

Index .....................................................82

Printed in China VN049601
