Olympus Stylus 1040 User Manual

DIGITAL CAMERA

Basic Manual

ENGLISH 2

FRANÇAIS 26

ESPAÑOL 50

DEUTSCH 74

РУССКИЙ 98

ContentsContents

Preparing the Camera ...........................3

Checking the contents of the box ............3

Attaching the camera strap ......................3

Charging the battery ................................3

Loading the battery and the xD-Picture Card™ (sold separately)

into the camera ........................................4

Using a microSD card/microSDHC card

(sold separately) ......................................5

Setting the date and time .........................5

Changing the display language ...............6

Shooting, Playback, and Erasing .........7

Shooting with optimum aperture value

and shutter speed (P mode) ...................7

Viewing images .......................................8

Erasing images during playback

(Single image erase) ...............................9

Using Shooting Modes ........................10

Using the best mode for the shooting

scene (s mode) ...............................10

Shooting with automatic settings

(G mode) ..........................................10

Using the digital image stabilization

mode (h mode) ..................................11

Shooting movies (A mode) ..................11

Using Shooting Functions ..................12

Using the optical zoom ..........................12

Brightening the subject against

backlight (SHADOW ADJ) .....................12

Using the ﬂ ash .......................................13

Adjusting the brightness

(Exposure compensation) ......................13

Shooting closeups (Macro shooting) .....14

Using the self-timer ................................14

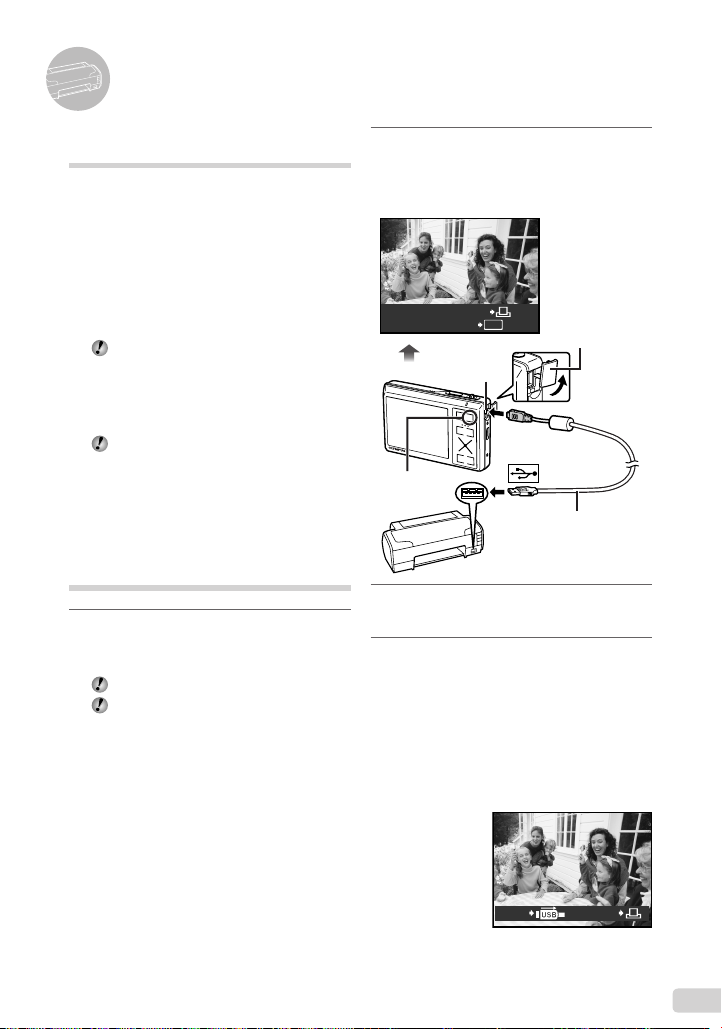

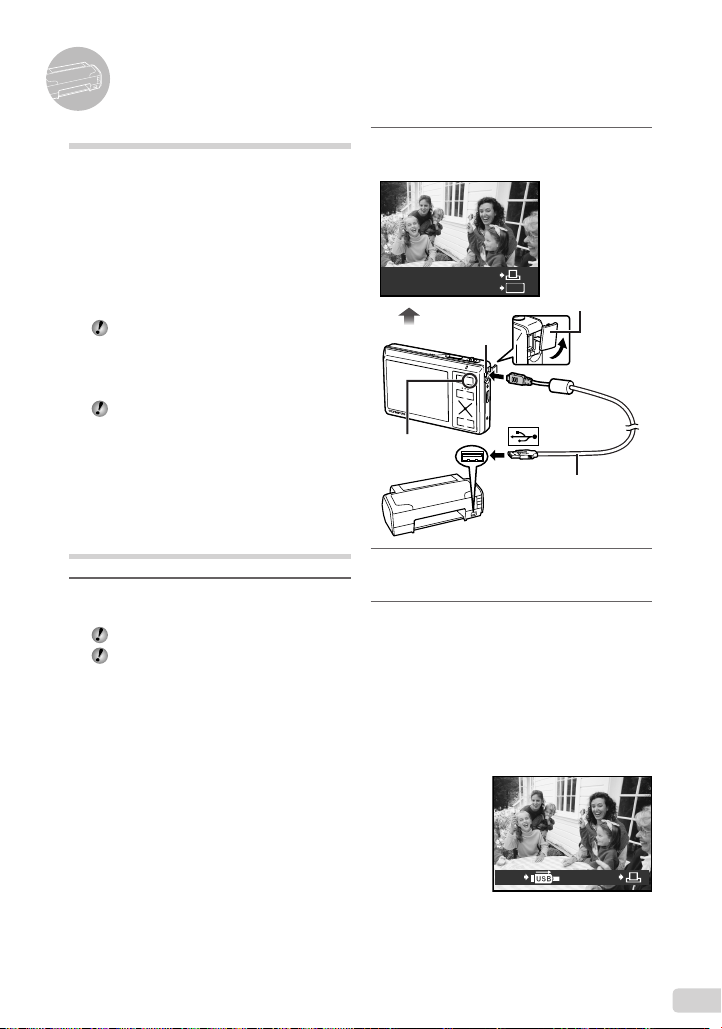

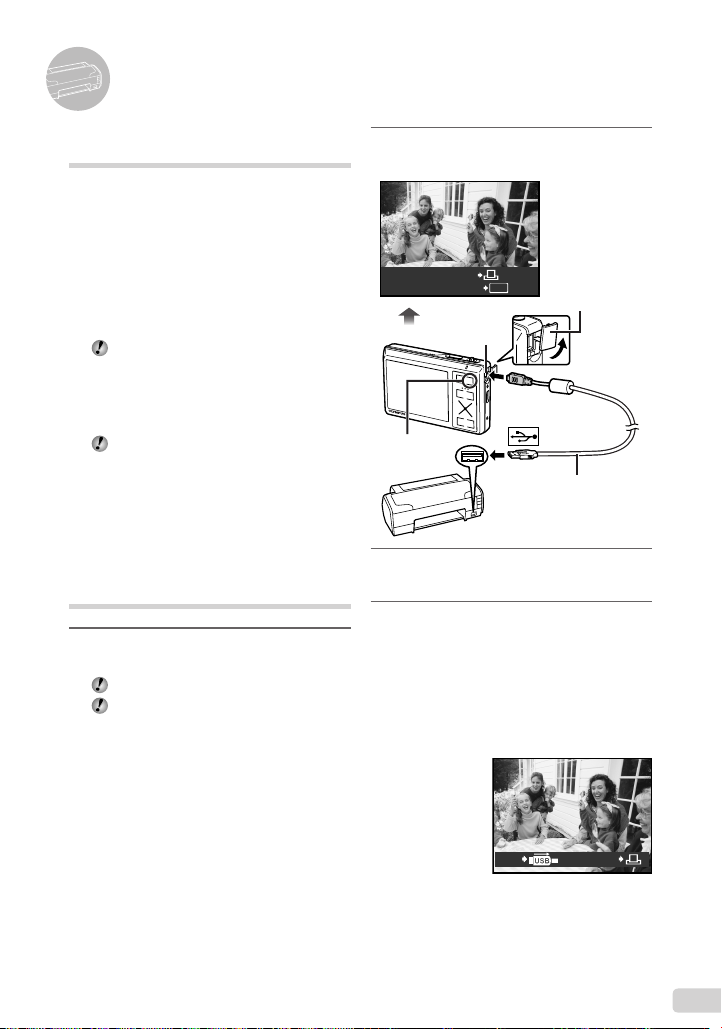

Printing .................................................15

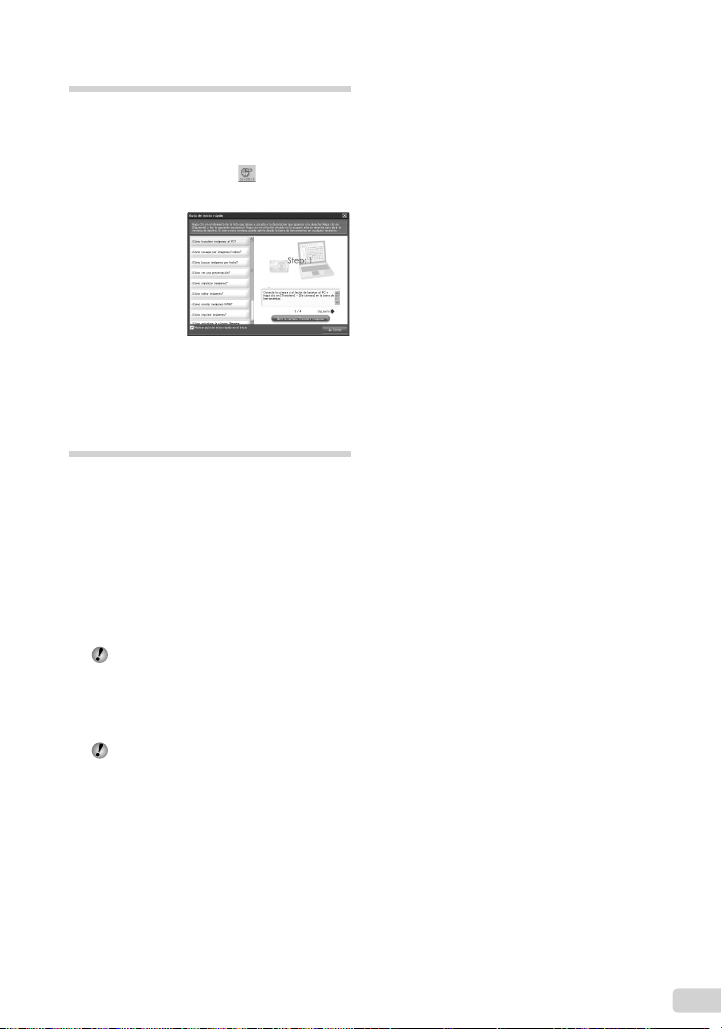

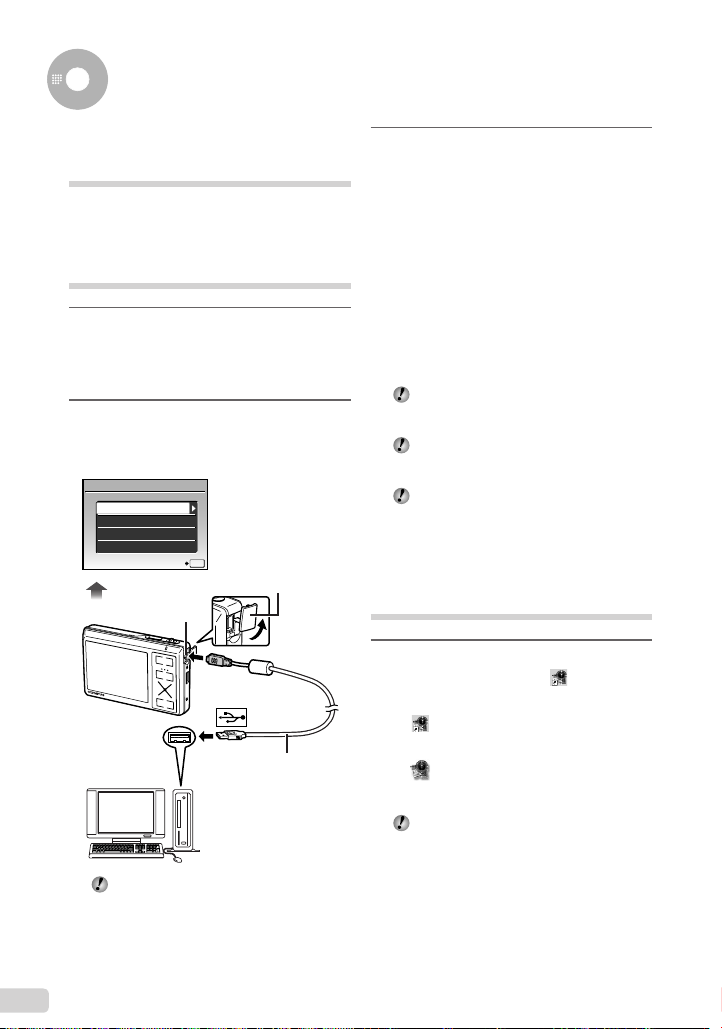

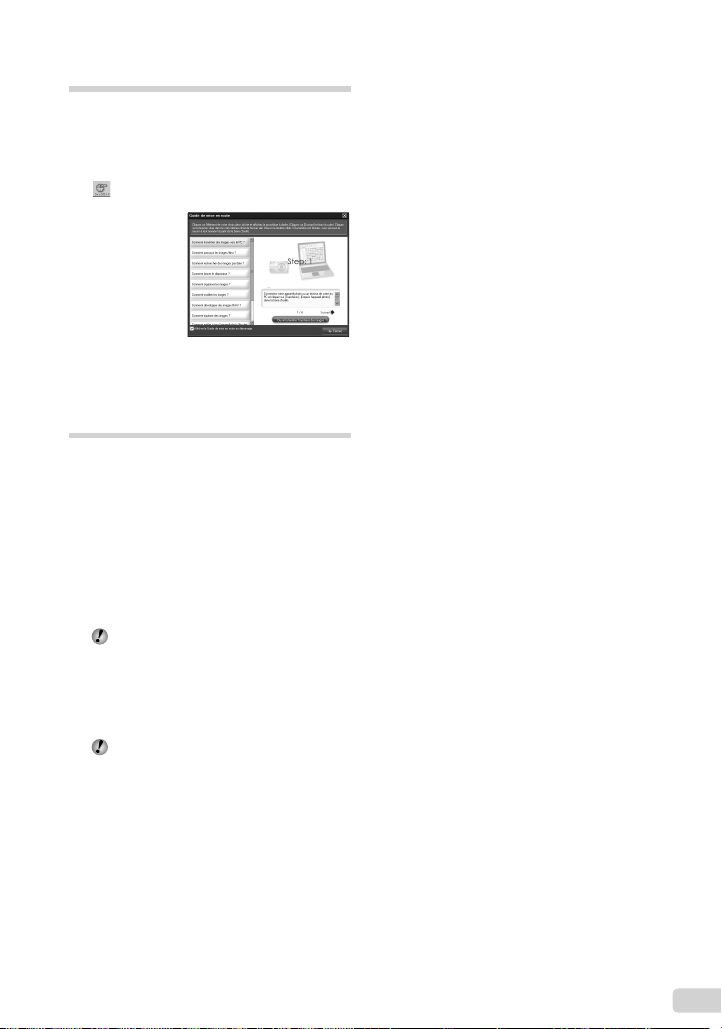

Using OLYMPUS Master 2 ...................16

Appendix ..............................................18

Using a microSD Attachment .................18

SAFETY PRECAUTIONS ......................18

SPECIFICATIONS .................................24

Thank you for purchasing an Olympus digital camera.

●

Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.

We recommend that you take test shots to get

●

accustomed to your camera before taking important photographs.

The reference pages are based on the Instruction Manual (provided CD-ROM). Please see the CD-ROM Instruction Manual for your reference.

In the interest of continually improving products,

●

Olympus reserves the right to update or modify information contained in this manual.

The screen and camera illustrations shown in this

●

manual were produced during the development stages and may differ from the actual product.

Preparing the Camera

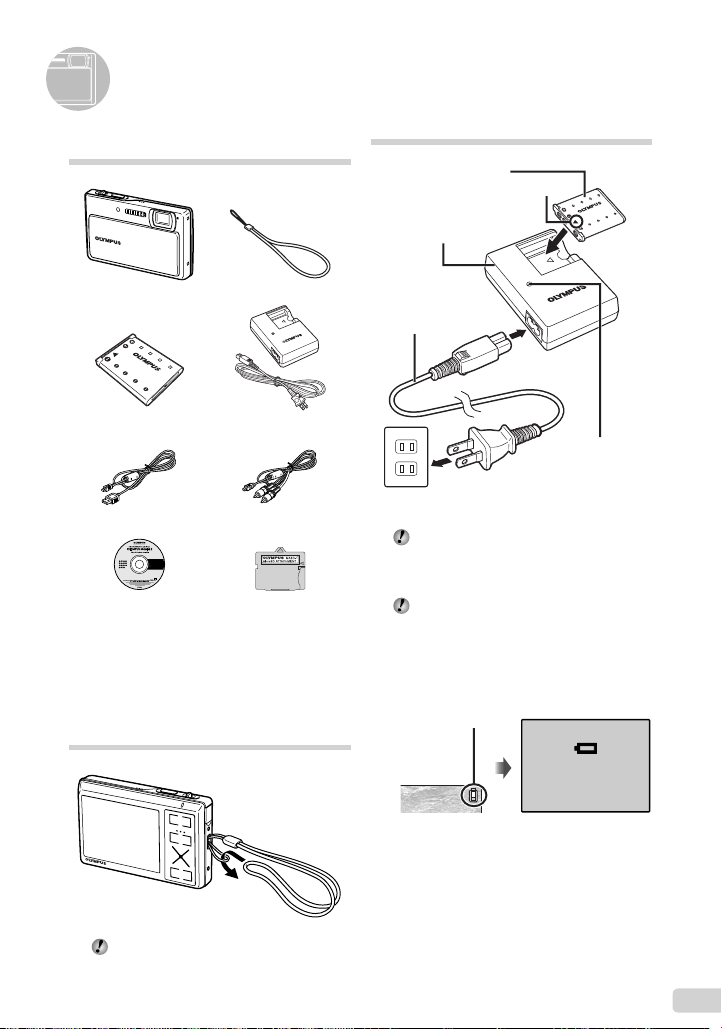

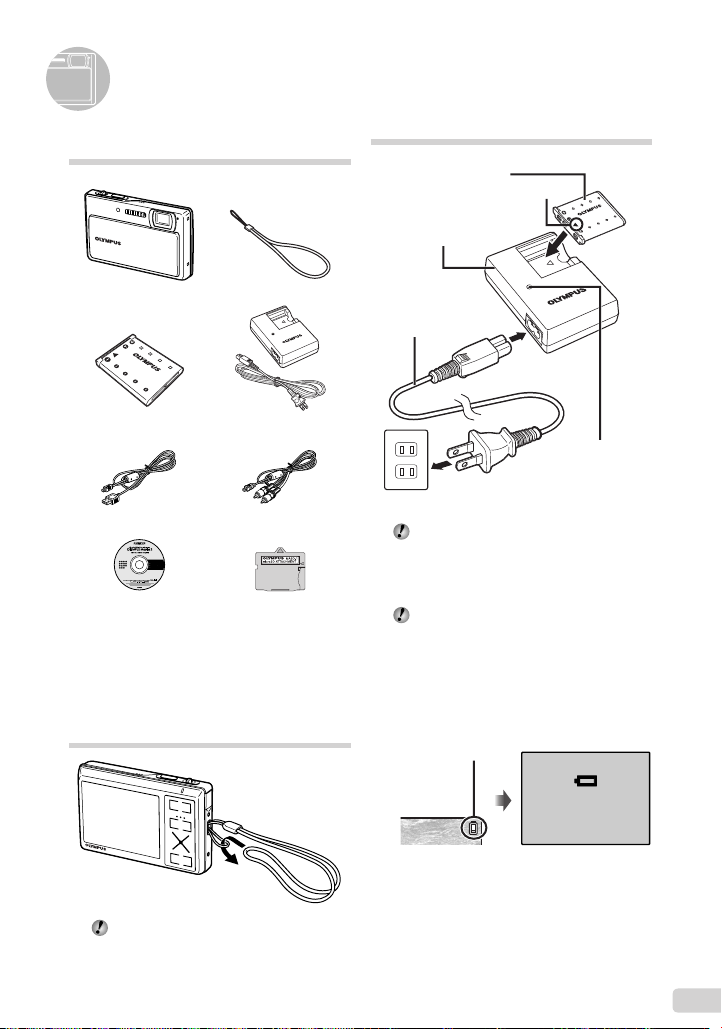

Checking the contents of the box

Digital Camera Strap

LI-42B Lithium Ion Battery LI-40C Battery Charger

USB Cable AV Cable

OLYMPUS Master 2

CD-ROM

Other accessories not shown: Instruction Manual, warranty card Contents may vary depending on purchase location.

microSD

Attachment

Attaching the camera strap

Charging the battery

Lithium ion battery

Battery charger

AC cable

AC outlet

Battery comes partially charged. Before

use, be sure to charge the battery until the charging indicator goes off (for approx. 5 hours).

For details of the battery and the charger,

see “Battery and charger” (p. 48).

When to charge the battery

Charge the battery when the error message shown below appears.

Flashes in red

Charging indicator Lights: Charging Off: Charged

Pull the strap tight so that it does not come

loose.

BATTERY EMPTY

Monitor top right Error message

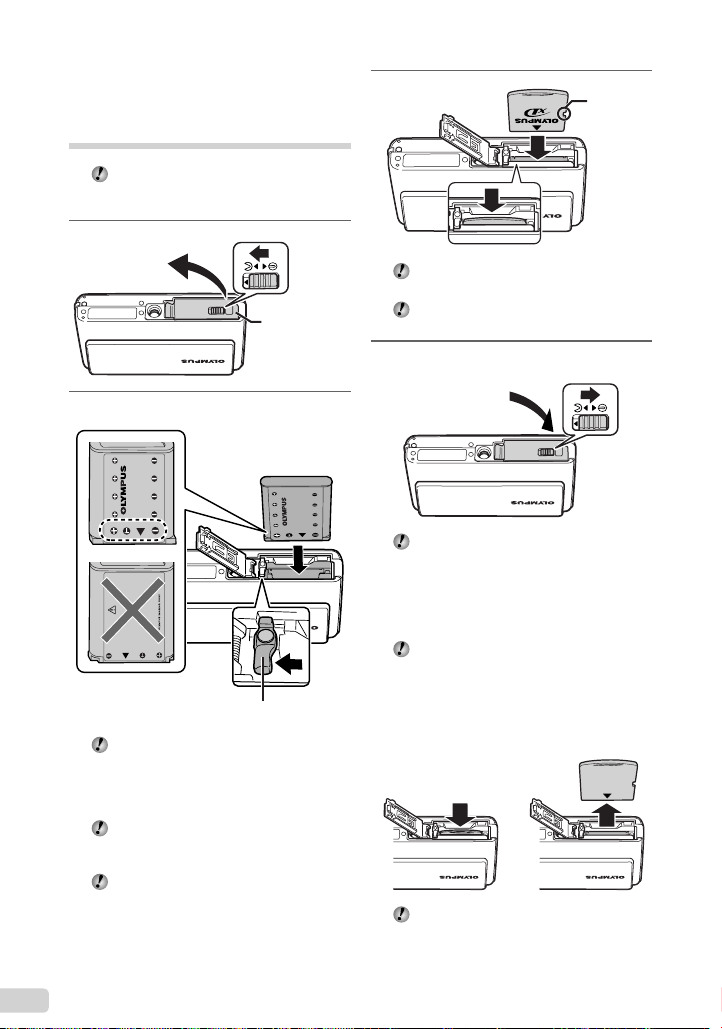

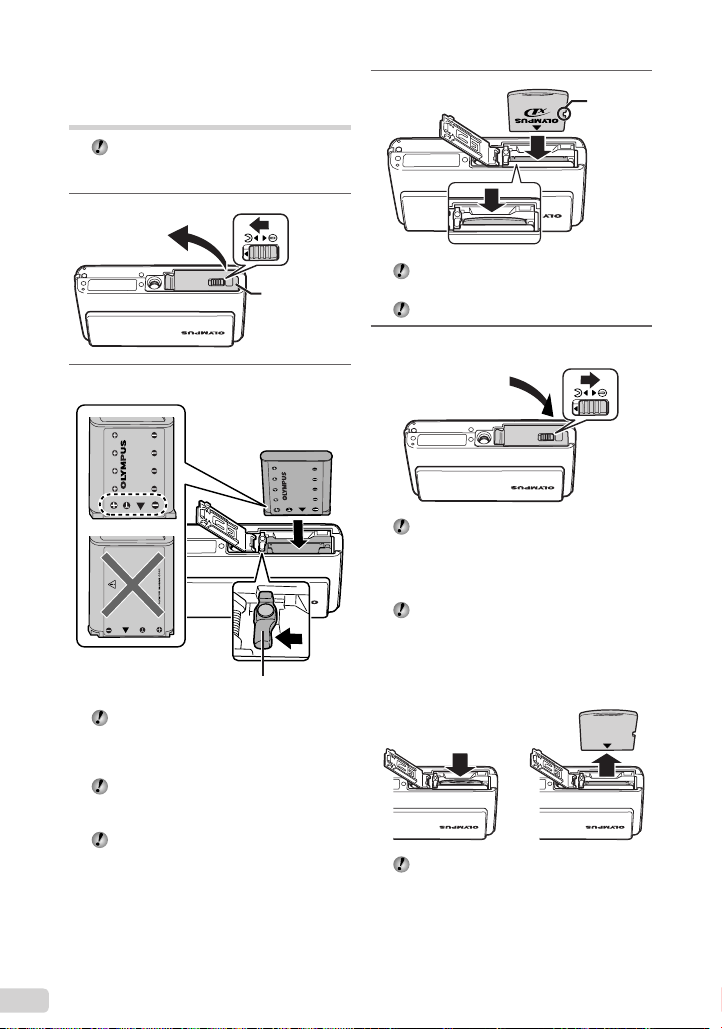

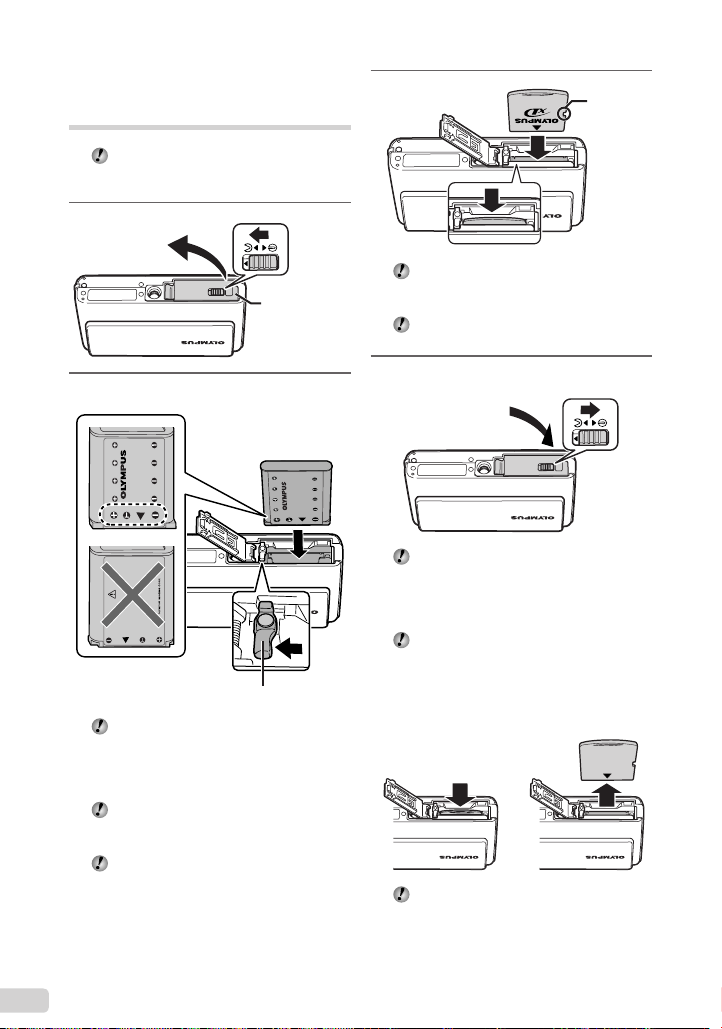

Loading the battery and the xD-Picture Card™ (sold separately) into the camera

Never insert anything other than the

xD-Picture Card or the microSD Attachment into the camera.

Battery/card compartment cover

Battery lock knob

Insert the battery from the T end, with the

B symbol facing toward the battery lock knob. If the battery is not inserted correctly, the camera does not operate.

Insert the battery while sliding the battery

lock knob in the direction of the arrow.

Sliding the battery lock knob in the direction

of the arrow to unlock, and then remove the battery.

Insert the card straight in until it clicks into

place.

Do not touch the contact area directly.

This camera allows the user to take pictures

using the internal memory even when no xD-Picture Card (sold separately) is inserted. “Using an xD-Picture Card”

(p. 49)

“Number of storable pictures (still

pictures)/recording length (movies) in the internal memory and xD-Picture Card” (p. 50)

Notch

Removing the xD-Picture Card

Press in the card until it clicks and comes

out slightly, and then grasp the card to pull it out.

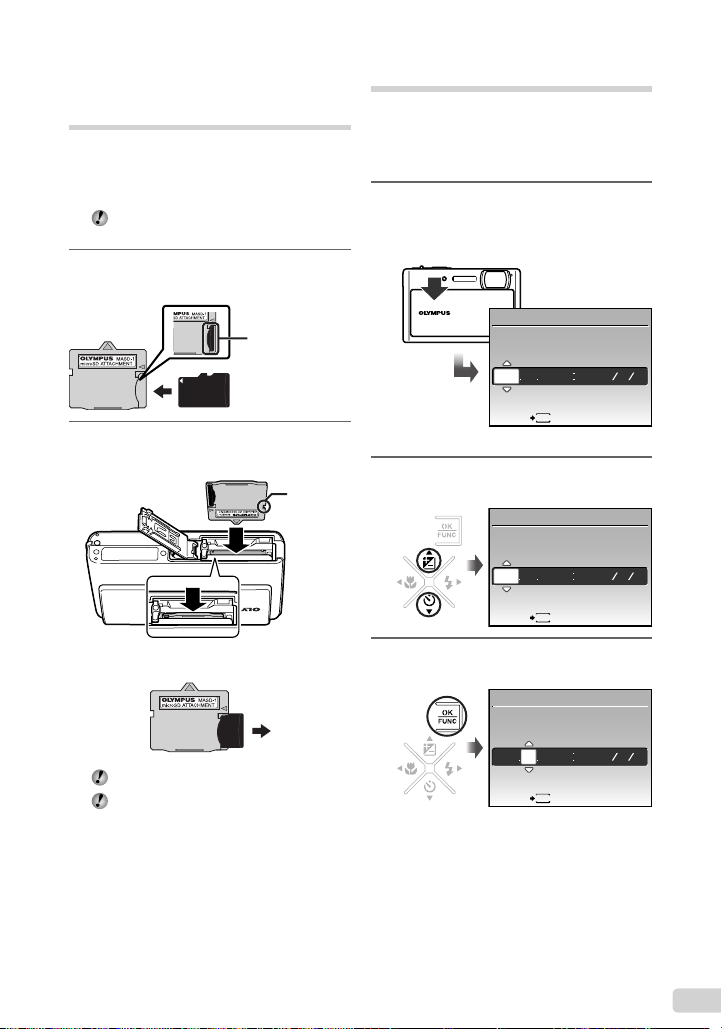

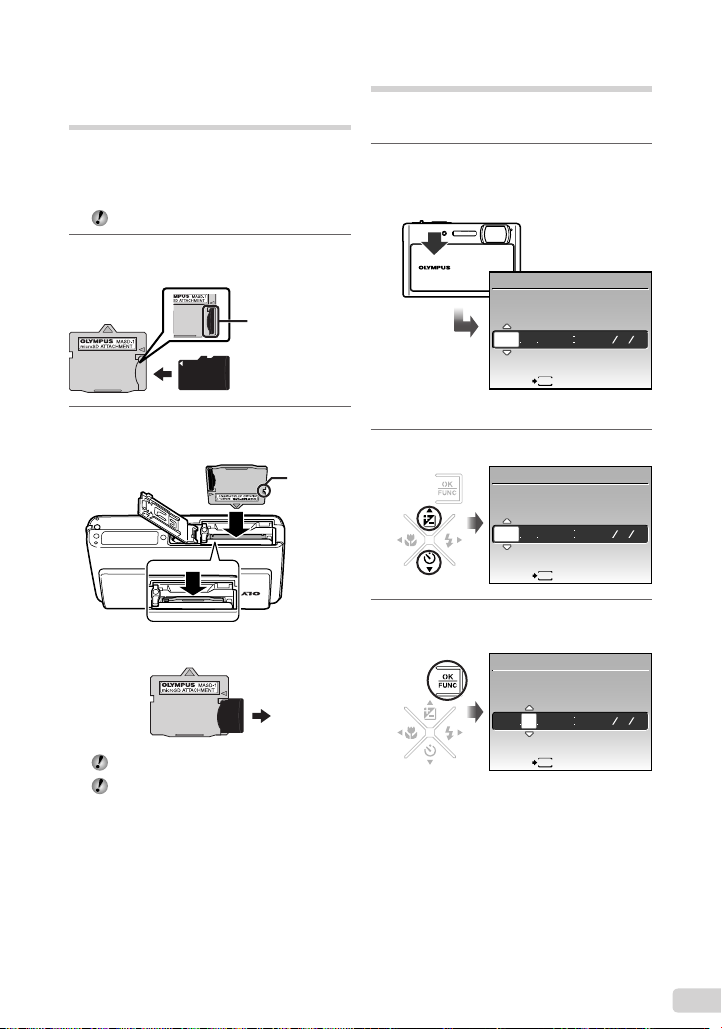

Using a microSD card/ microSDHC card (sold separately)

microSD card/microSDHC card (hereafter called microSD card) is also compatible with this camera by using the microSD Attachment.

“Using a microSD Attachment” (p. 51)

Insert the microSD card into the

Attachment.

Insert the card to the end.

Insert the microSD Attachment into

the camera.

Notch

To remove the microSD card

Setting the date and time

The date and time set here are saved to image ﬁ le names, date prints, and other data.

Slide the lens barrier down to turn

on the camera.

The date and time setting screen is displayed

●

when the date and time are not set.

DTIME

---- -- -- -- --

CANCEL

Date and time setting screen

Use CE to select the year for [Y].

DTIME

-- -- -- --

2008

CANCEL

Press the x button to save the

setting for [Y].

YMD

Pull the card out straight.

Do not touch the contact area of the

microSD Attachment or microSD card.

2008

CANCEL

DTIME

-- -- --

YMD

SCN

RESET

GUIDE

PANORAMA

CAMERA

SILENT

MODE


QUALITY

SETUP

As in Steps 2 and 3, use CEFD

and the x button to set [M (month)], [D (day)], and [TIME (hours and minutes)].

For precise time setting, press the x button

as the time signal strikes 00 seconds.

To change the date and time, make the

setting from the menu. [X (Date/time)]

(p. 35)

To check the date and time

Press the g button while the camera is turned off. The current date and time are displayed for approx. 3 seconds.

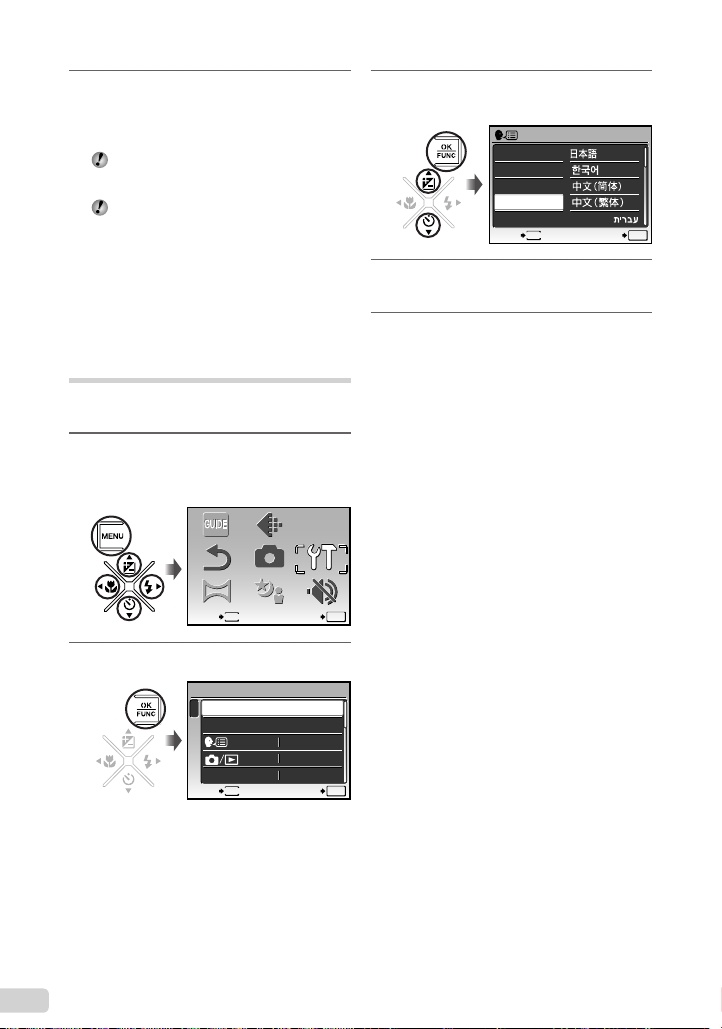

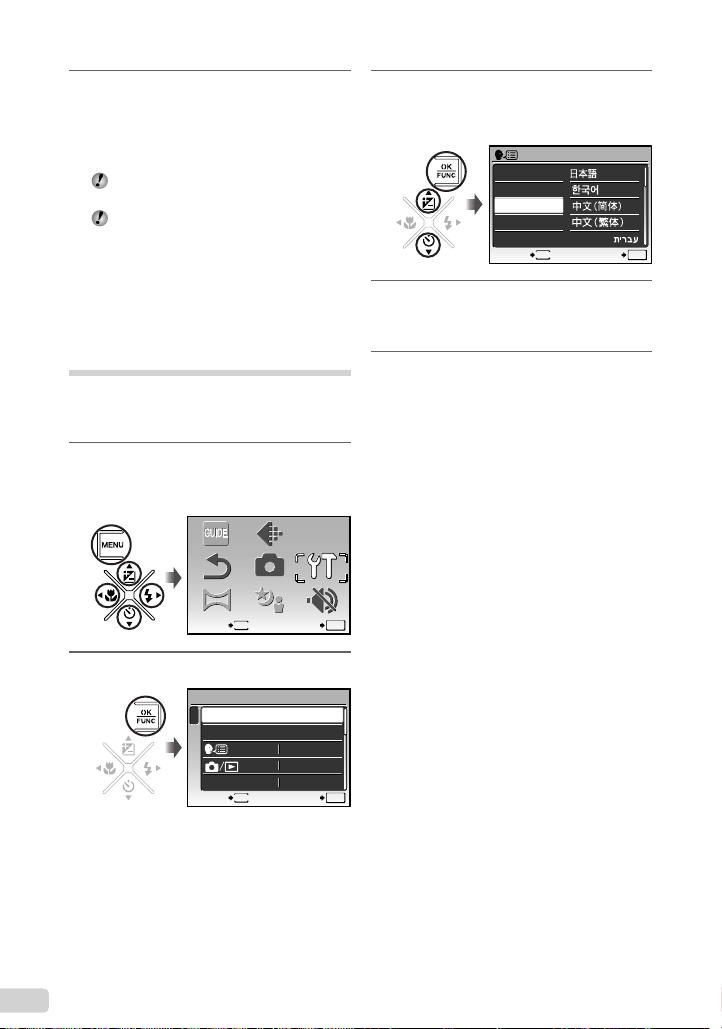

Changing the display language

The language for the menu and error messages displayed on the monitor is selectable.

Press the m button, and press

CEFD to select [S SETUP].


QUALITY

GUIDE

CAMERA

Press the x button.

RESET

PANORAMA

EXIT SET

SETUP

MEMORY FORMAT

BACKUP

SAVE SETTINGS

EXIT SET

SCN

SETUP

SILENT

MODE

ENGLISH NO NO

Use CE to select [W], and press the x button.

ENGLISH

FRANCAIS DEUTSCH ESPANOL ITALIANO

BACK SET

Use CEFD to select your

language and press the x button.

Press the m button.

Shooting, Playback, and Erasing

1/400

F3.5

1/400

F3.5

ORM

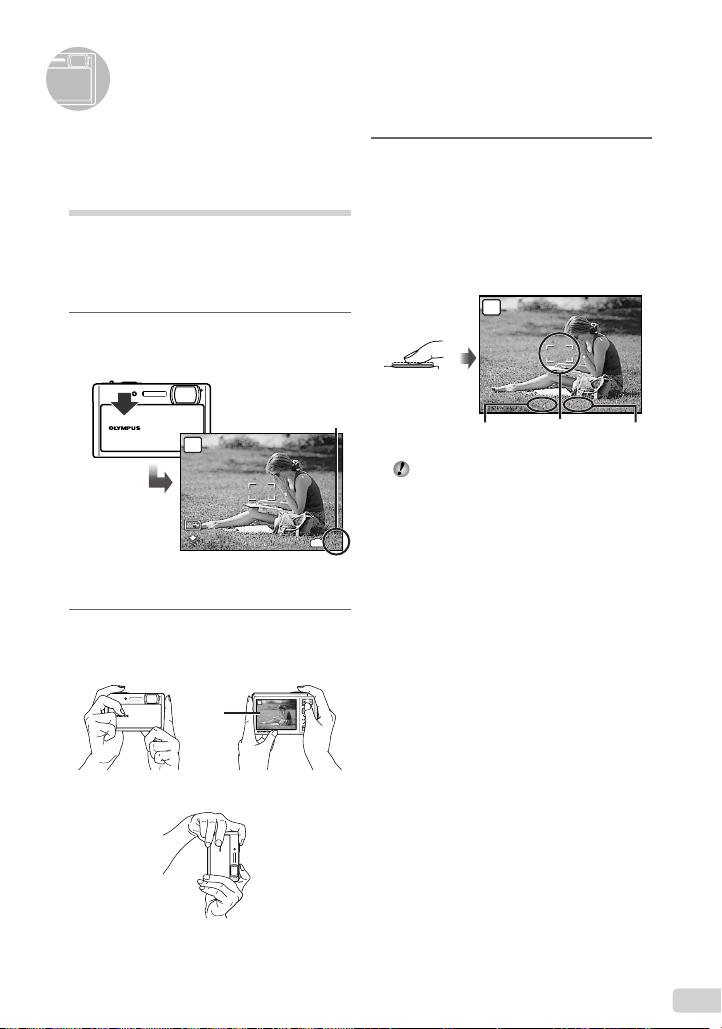

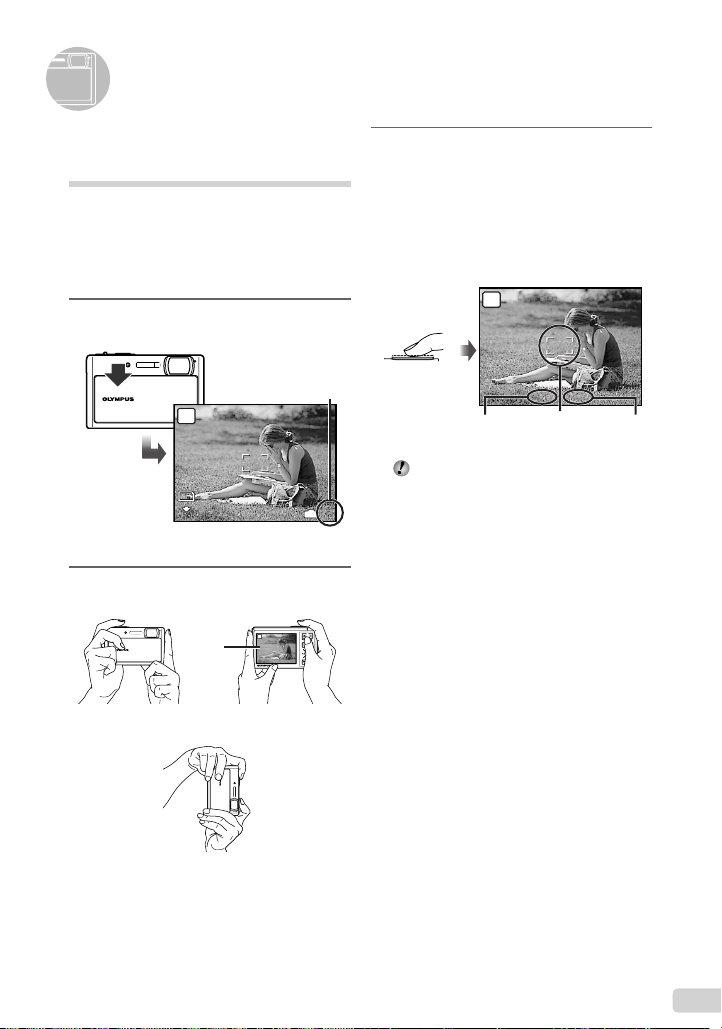

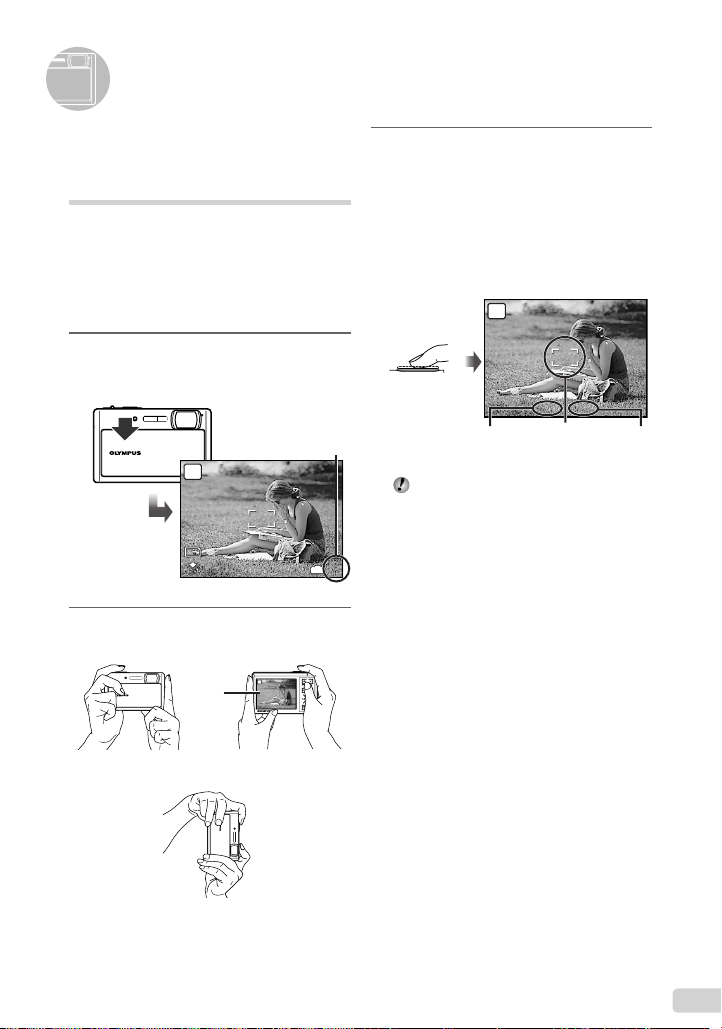

Shooting with optimum aperture value and shutter speed (P mode)

In this mode, automatic camera shooting can be used while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, and so on when needed.

Slide the lens barrier down to turn

on the camera.

Number of storable still

pictures (p. 50)

ORM

Monitor (standby mode screen)

Hold the camera, and compose the

shot.

Monitor

Horizontal grip

1/400

F3.5

Press the shutter button halfway

down to focus on the subject.

When the camera focuses on the subject, the

●

exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green.

The camera was unable to focus if the AF target

●

mark ﬂ ashes red. Try focusing again.

Press halfway

Shutter speed Aperture

“Focusing” (p. 46)

1/400

F3.5

AF target mark

value

Vertical grip

2008.10.26

12:30

100-0001

ORM

2008.10.26

12:30

100-0004

1/400

F3.5

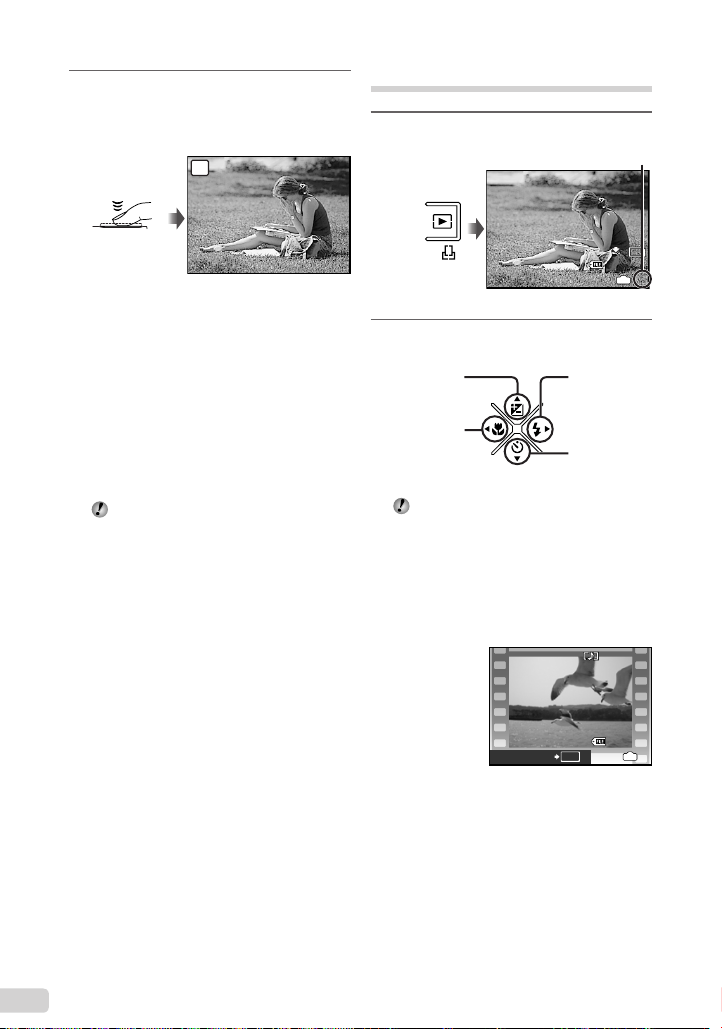

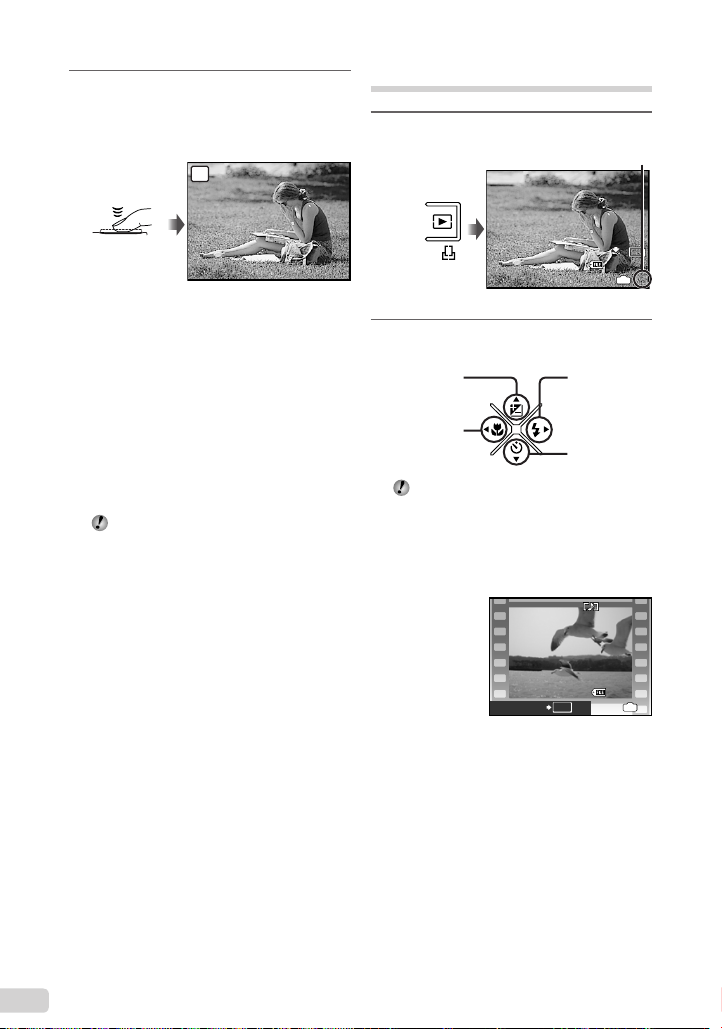

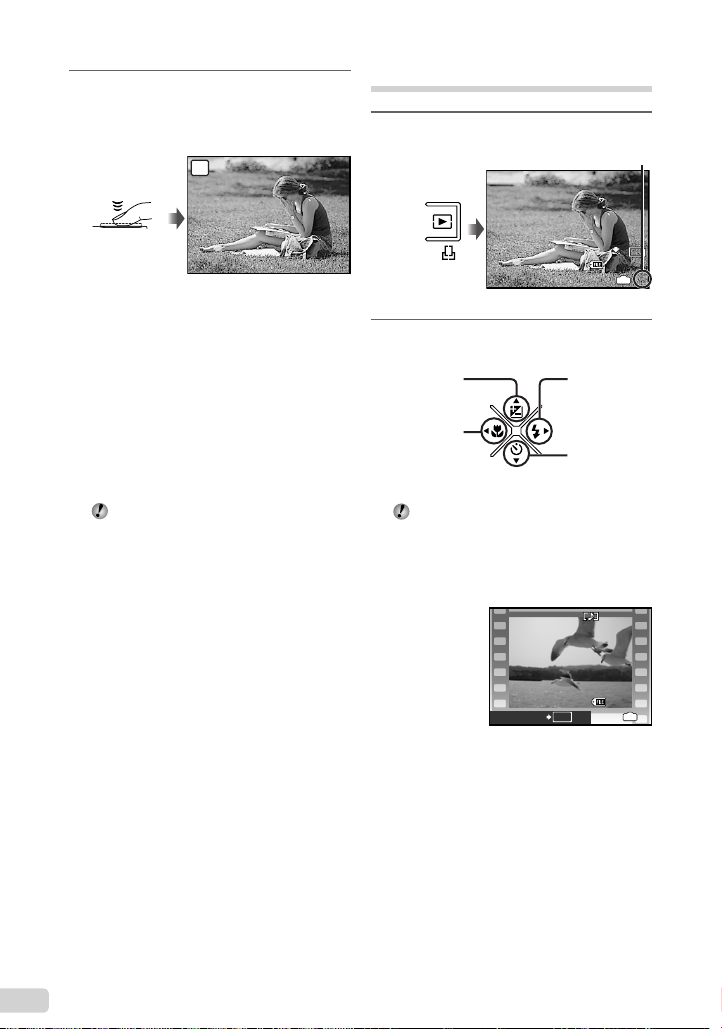

To take the picture, gently press

the shutter button all the way down while being careful not to shake the camera.

Viewing images

Press the q button.

Frame number

Press fully

1/400

F3.5

Image review screen

To view images during shooting

Pressing the q button enables playback of images. To return to shooting, either press the K button or press the shutter button halfway down.

To shoot movies

“Shooting movies (A mode)” (p. 17)

When shooting is ﬁ nished

Slide the lens barrier up to turn off the camera.

All shooting settings except P mode return

to default settings when the camera is turned off.

2008.10.26

12:30

Playback image

Use CEFD to select an image.

Displays 10

frames before the

current image

Displays previous


The display size of the images can be

changed. “Index view, calendar view, and

closeup view” (p. 21)

Displays next image

Displays 10 frames after the current image

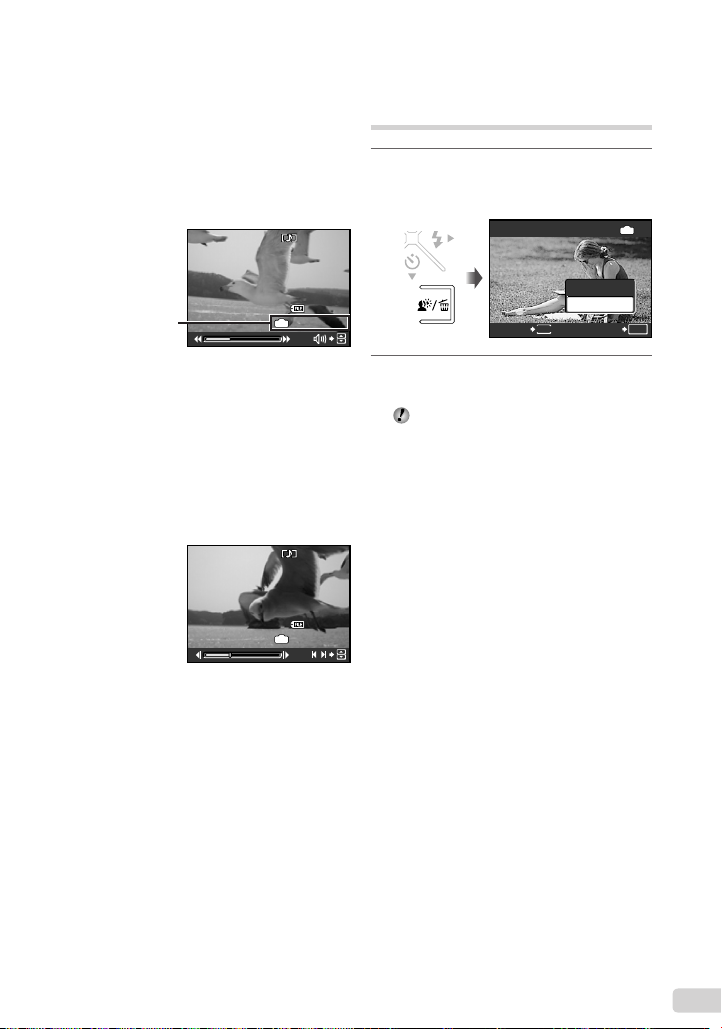

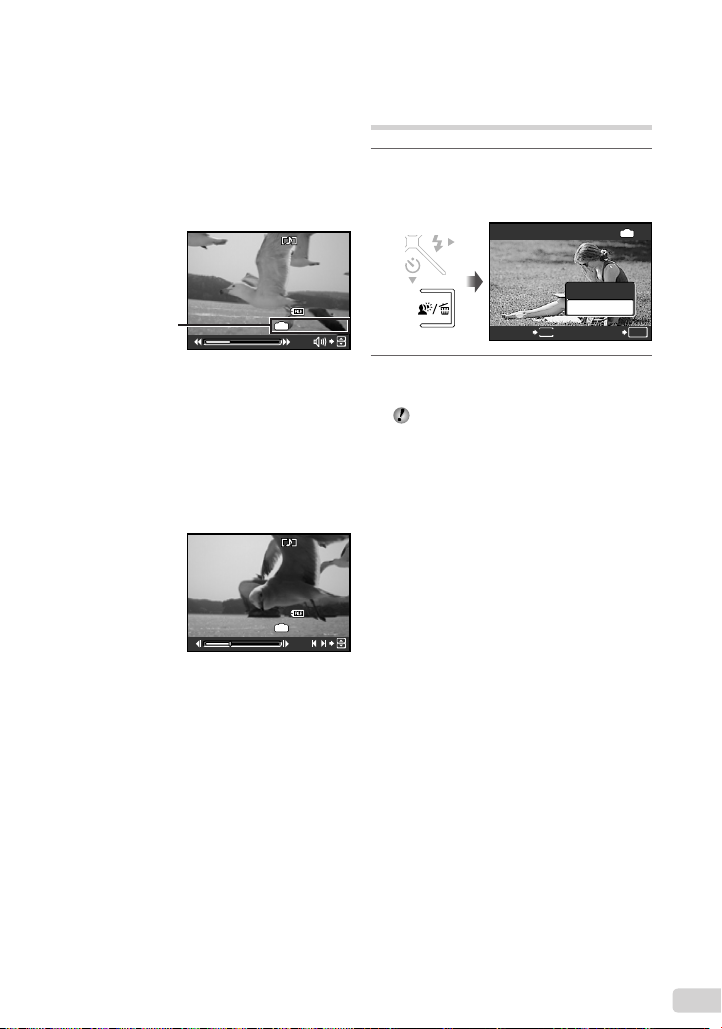

To play back movies

Select a movie, and press the x button.

2008.10.26

MOVIE PLAY

Movie

ORM

100-0001

12:30

100-0004

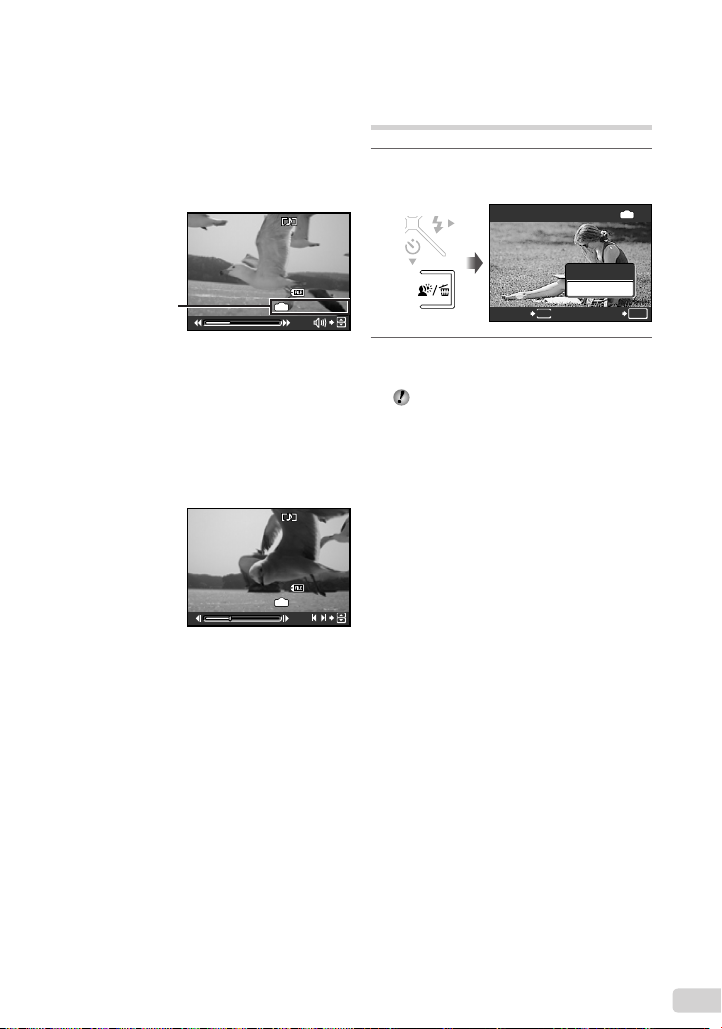

Operations during movie playback

2008.10.26

12:30

100-0004

00:12/00:34

2008.10.26

12:30

100-0004

00:14/00:34

ERASE

Volume: During playback, press CE. Fast-forward: While D is pressed, the

movie is fast-forwarded. Rewind: While F is pressed, the movie is rewound. Pause: Press the x button.

2008.10.26 100-0004

2008.10.26

During pause

00:12/00:34

100-0004

00:14/00:34

Elapsed time/

total recording time

During playback

First (last) frame/frame advance: During pause, press and press E to display the last frame. While

F is pressed, the movie is played in reverse

and while D is pressed, the movie is played normally. Press the x button to resume playback.

C to display the ﬁ rst frame,

To stop movie playback

Press the m button.

Erasing images during playback (Single image erase)

Press the J button when the

playback image to be erased is displayed.

ERASE

12:30

Use C to select [YES], and press the x button.

[JERASE] (p. 31)

12:30

YES

SETCANCEL

Using Shooting Modes

ORM

ISO

AUTO

ESP

ORM

PROGRAM AUTO

The shooting mode changes in the order

of P (or G) h s each time the K button is pressed. By switching to another shooting mode, most settings in G, h and s modes will be changed to the default settings of the respective shooting mode.

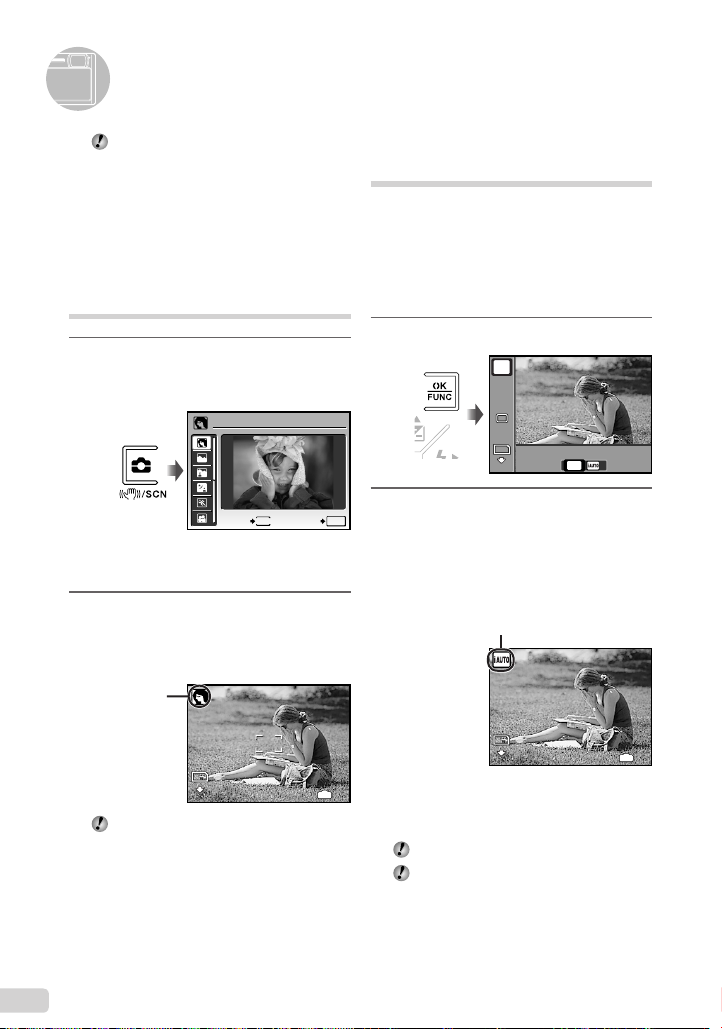

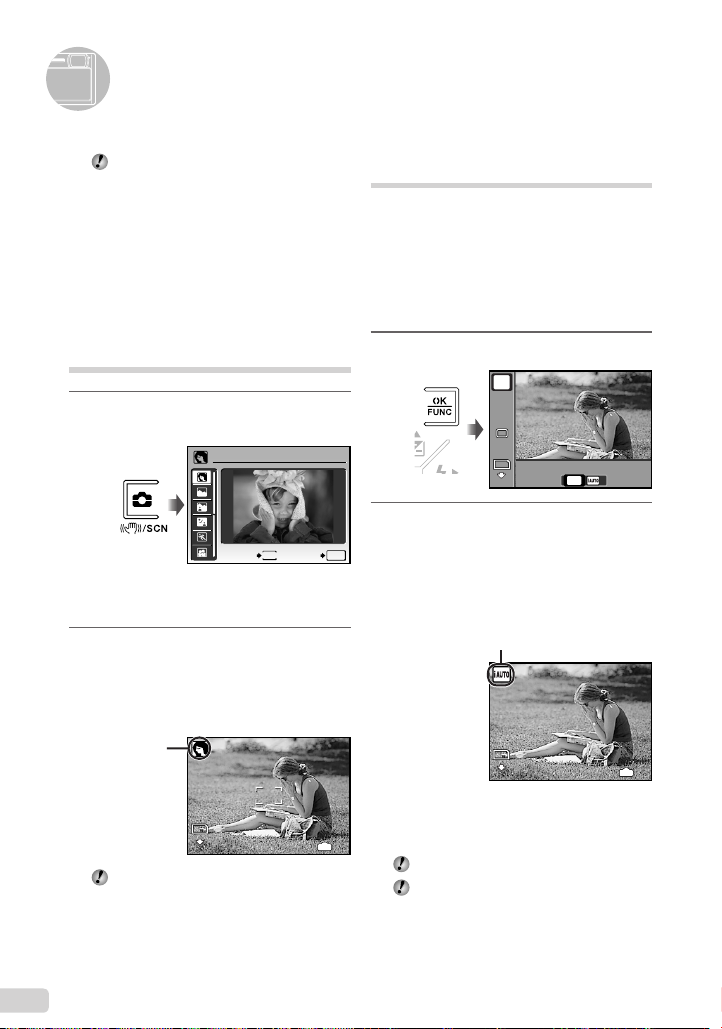

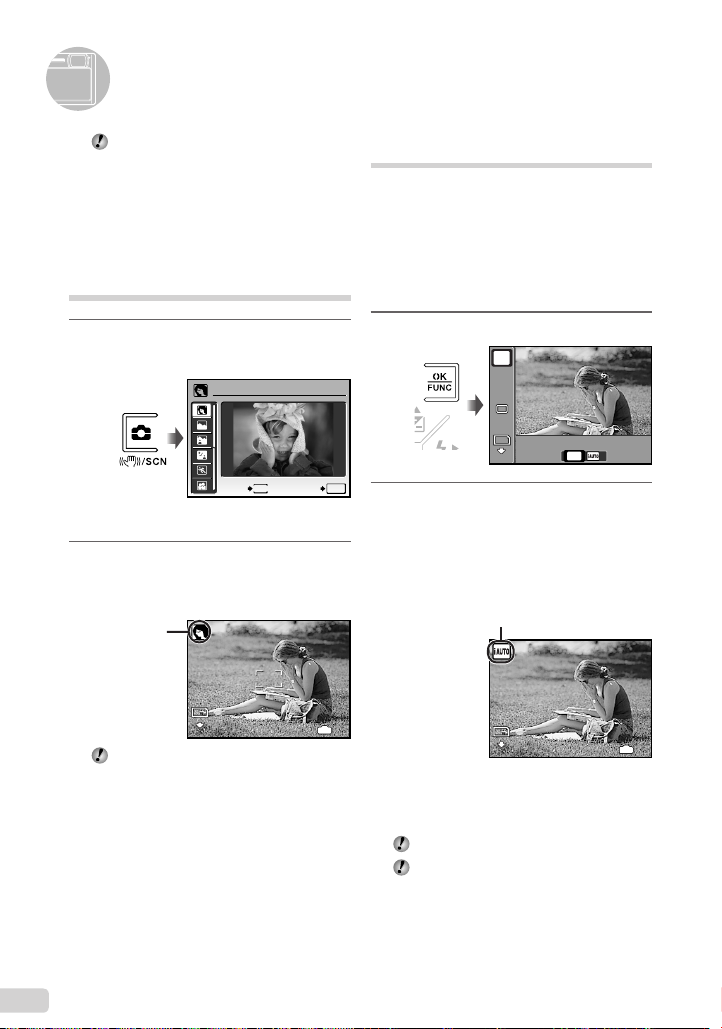

Using the best mode for the shooting scene (s mode)

Press the K button a few times to

set s.

PORTRAIT

EXIT

An explanation of the selected mode is displayed

●

while the E button is pressed and held.

Use CE to select the best shooting mode for the scene, and press the x button.

Icon indicating

the scene mode

that is set

ORM

To change to another scene mode, use the

menu. [/s] (p. 26)

SET

Shooting with automatic settings (G mode)

The camera automatically selects the best shooting mode for the scene. This is a fully automatic mode that allows the user to take pictures using the best mode for the shooting scene simply by pressing the shutter button. Shooting-related settings are not available in G mode.

Press the x button.

AUTO

ISO

AUTO

ESP

ORM

Use CE to select P or FD to select [H (iAUTO)], and press the x button to set.

G mode indicator The indicator changes to the icon for the shooting mode selected by the camera.

To check which shooting mode the camera has

●

automatically selected, press the shutter button halfway or press the g button.

“Using the FUNC menu” (p. 20)

To shoot in P mode, use the FUNC menu to

switch to P.

ORM

PROGRAM AUTO

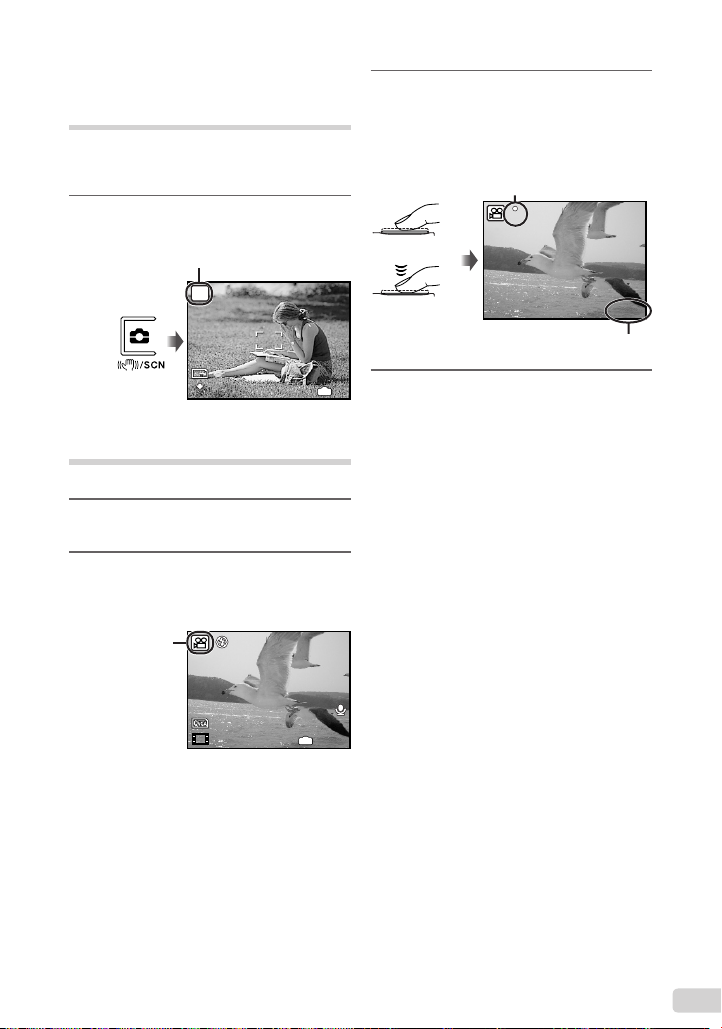

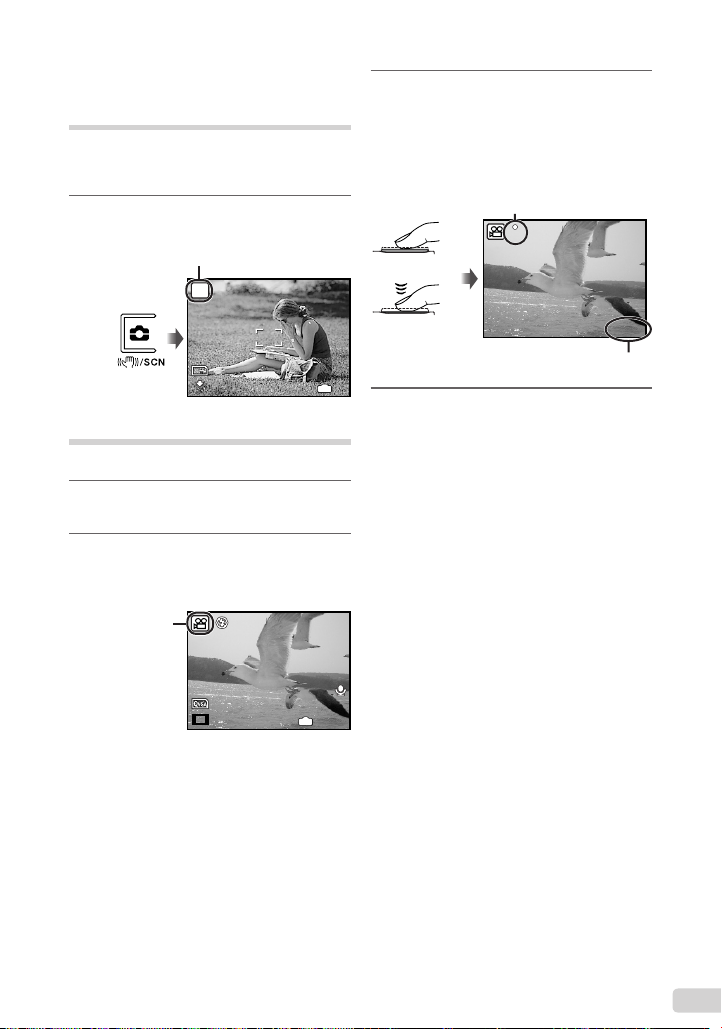

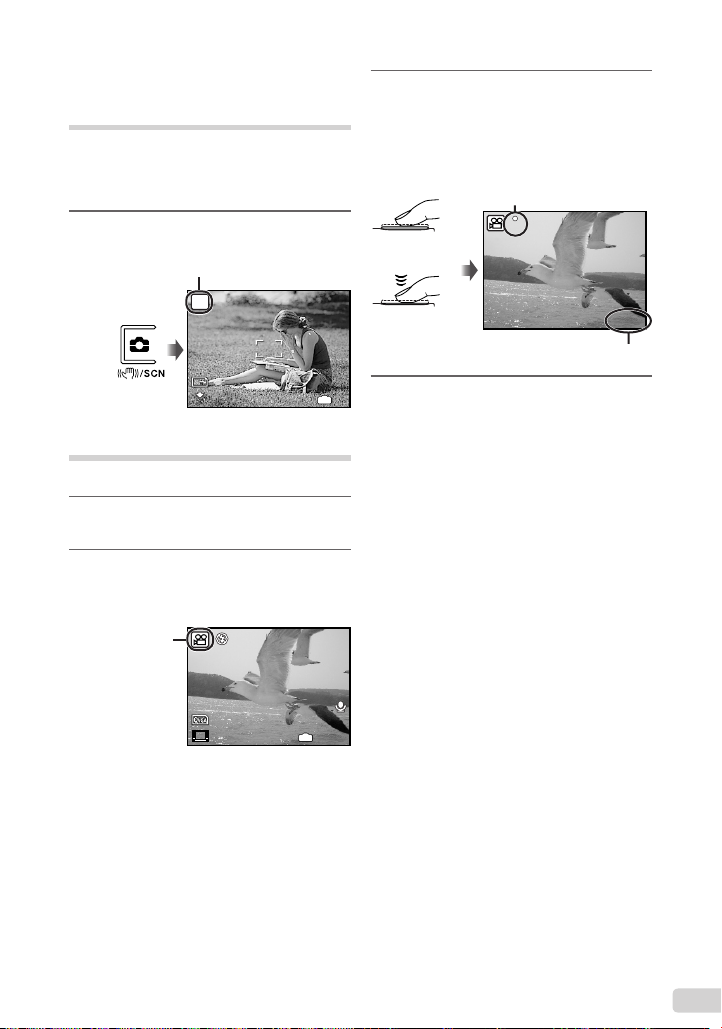

Using the digital image

ORM

00:34

REC

stabilization mode (h mode)

This mode enables the user to reduce blurring that is caused by a camera shake and subject movement.

Press the K button a few times to set h.

h mode indicator

ORM

Shooting movies (A mode)

Sound is recorded at the same time.

Press the K button a few times to

set s.

Use CE to select [A MOVIE], and press the x button to set.

A mode indicator

Press the shutter button halfway

down to focus on the subject, and gently press the button all the way down to start recording.

Lights red during shooting

REC

Press halfway

Press fully

Remaining recording time (p. 51)

Gently press the shutter button all

the way down to stop recording.

00:34

To use the zoom

The optical zoom is not available during movie recording. Use [DIGITAL ZOOM] (p. 25).

Using Shooting Functions

ORM

WWT

ORM

WWT

SET

SHADOW ADJ

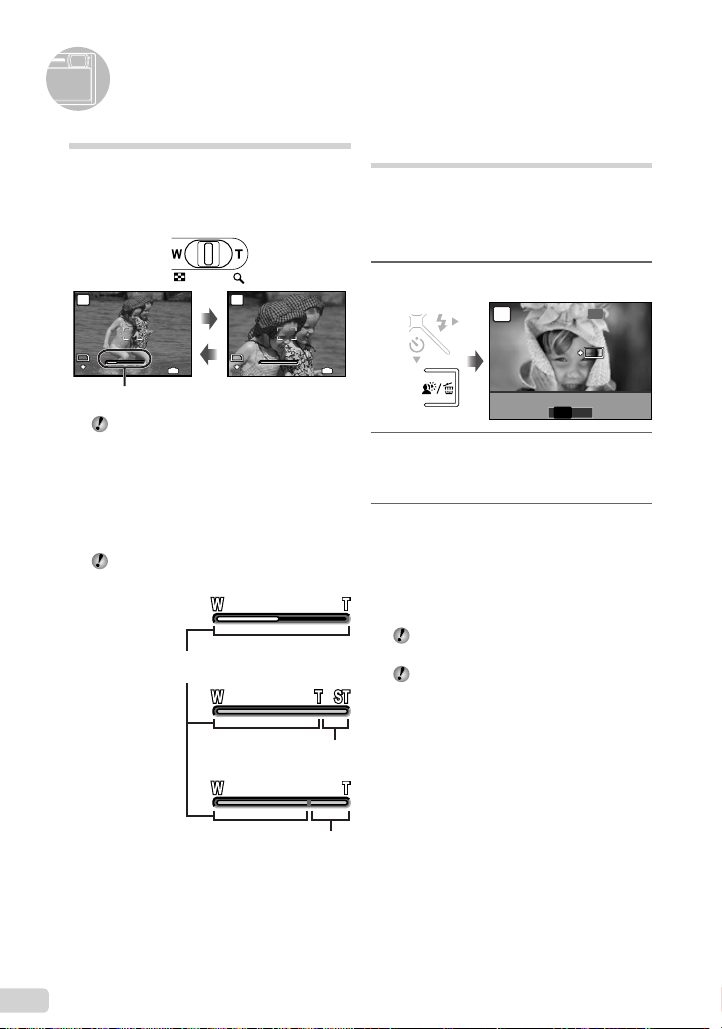

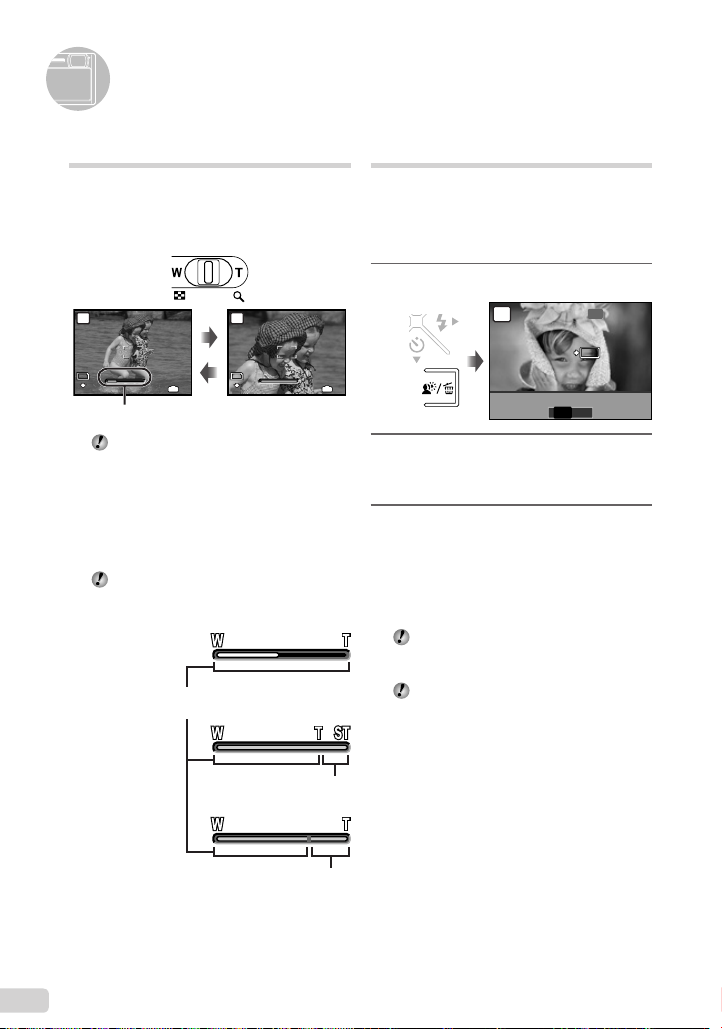

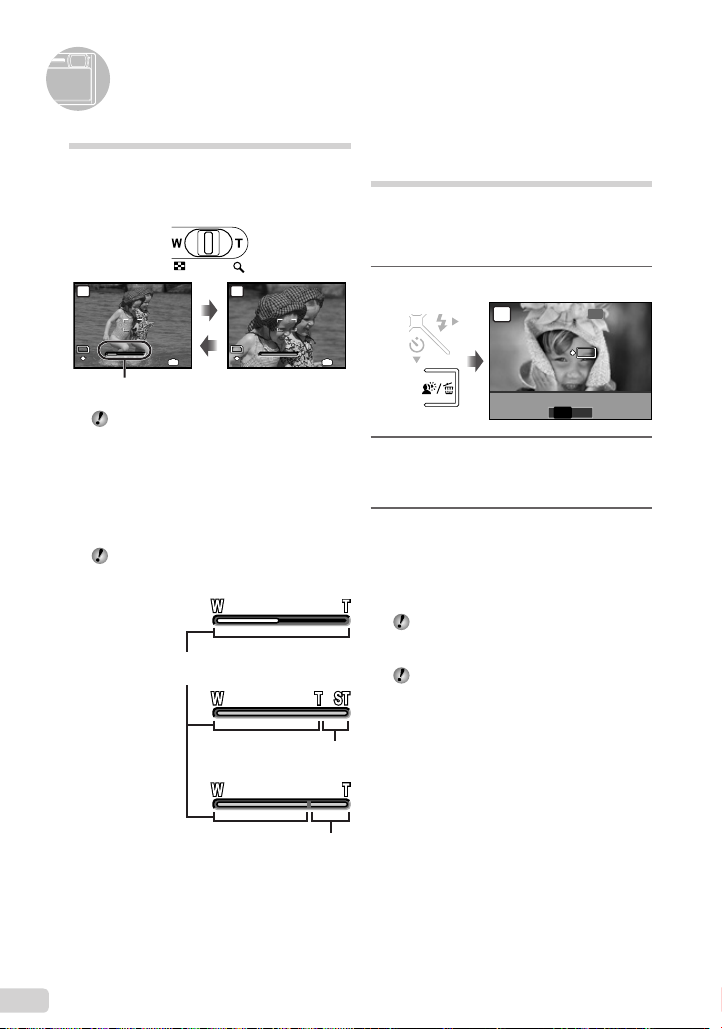

Using the optical zoom

Pressing the zoom lever adjusts the shooting range.

Press toward W (Wide)

ORM

Zoom bar

Optical zoom: 3×, digital zoom: 5×

To take larger images without reducing image quality

[FINE ZOOM] (p. 24)

To take larger images

[DIGITAL ZOOM] (p. 25)

The zoom bar appearance identiﬁ es the

status of the ﬁ ne zoom/digital zoom.

When using optical zoom

When using ﬁ ne zoom

Press toward T (Telephoto)

ORM

Optical zoom range

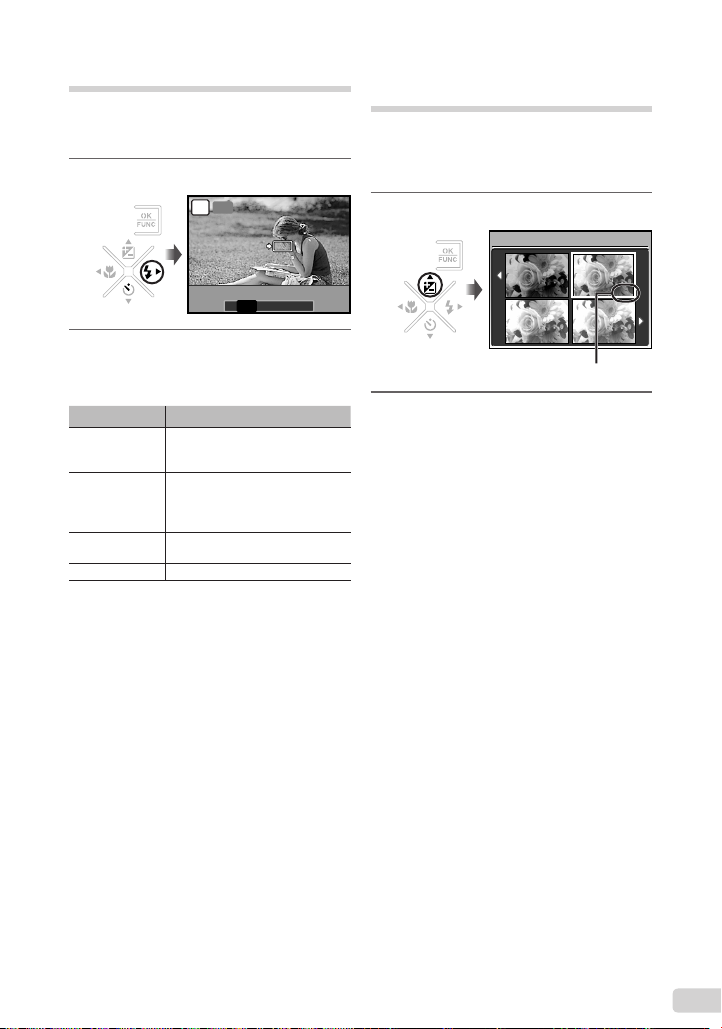

Brightening the subject against backlight (SHADOW ADJ*1)

The camera ﬁ nds a person’s face that has been darkened by backlight and makes it appear brighter for taking the picture.

Shadow adjustment technology

Press the f button.

SHADOW ADJ

Use FD to select [ON], and press

the x button to set.

Point the camera toward the

subject. Check the frame appearing around the face detected by the camera, and then press the shutter button to take the picture.

For some subjects, the frame may not

appear or may take some time to appear.

When set to [ON], [METERING] (p. 25)

is automatically ﬁ xed to [ESP], and [AF MODE] (p. 25) is automatically ﬁ xed to [FACE DETECT].

SET

OFF ON

OFF

When using digital zoom

Fine zoom

range

Digital zoom

range

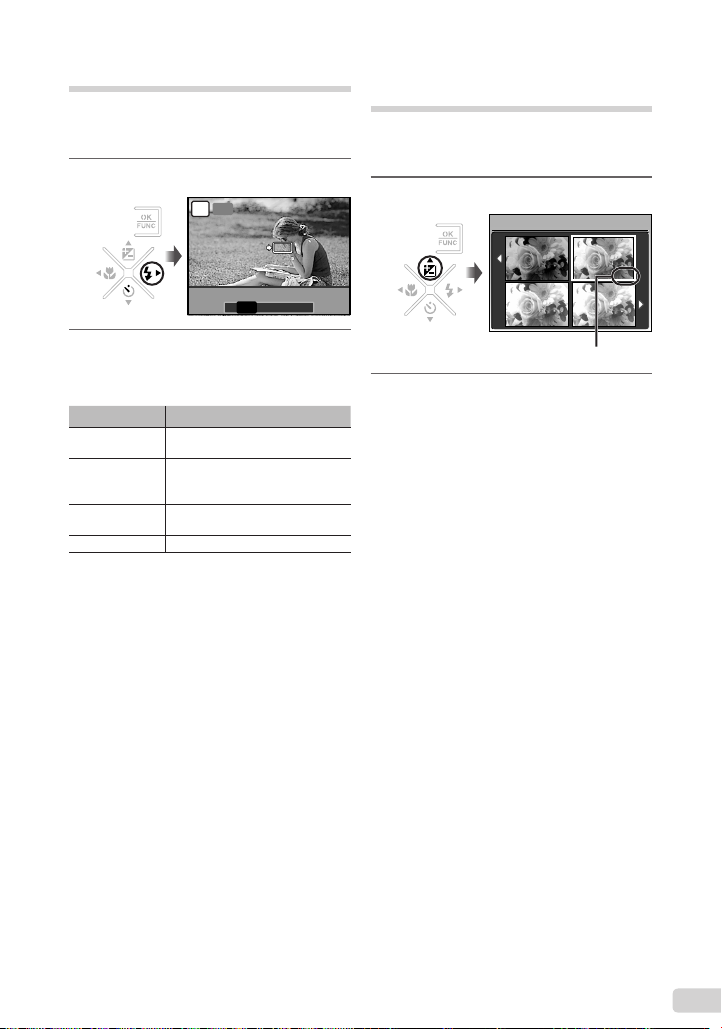

Using the ﬂ ash

SET

FLASH AUTO

0.0

+0.3

+0.7

+1.0

The ﬂ ash functions can be selected to best match the shooting conditions and render the desired image.

Press the # button.

AUTO

SET

FLASH AUTO

! # $

AUTO

Use FD to select the setting

option, and press the x button to set.

Item Description

FLASH AUTO

REDEYE

FILL IN

FLASH OFF The ﬂ ash does not ﬁ re.

The ﬂ ash ﬁ res automatically in low-light or backlight conditions.

This emits pre-ﬂ ashes to reduce the occurrence of red eye in your photos.

The ﬂ ash ﬁ res regardless of the available light.

Adjusting the brightness (Exposure compensation)

The standard brightness (appropriate exposure) set by the camera can be adjusted brighter or darker to obtain the desired shot.

Press the F button.

EXPOSURE COMP.

0.0

+0.7

Exposure compensation value

Use CEFD to select the desired

brightness image, and press the x button.

+0.3

+1.0

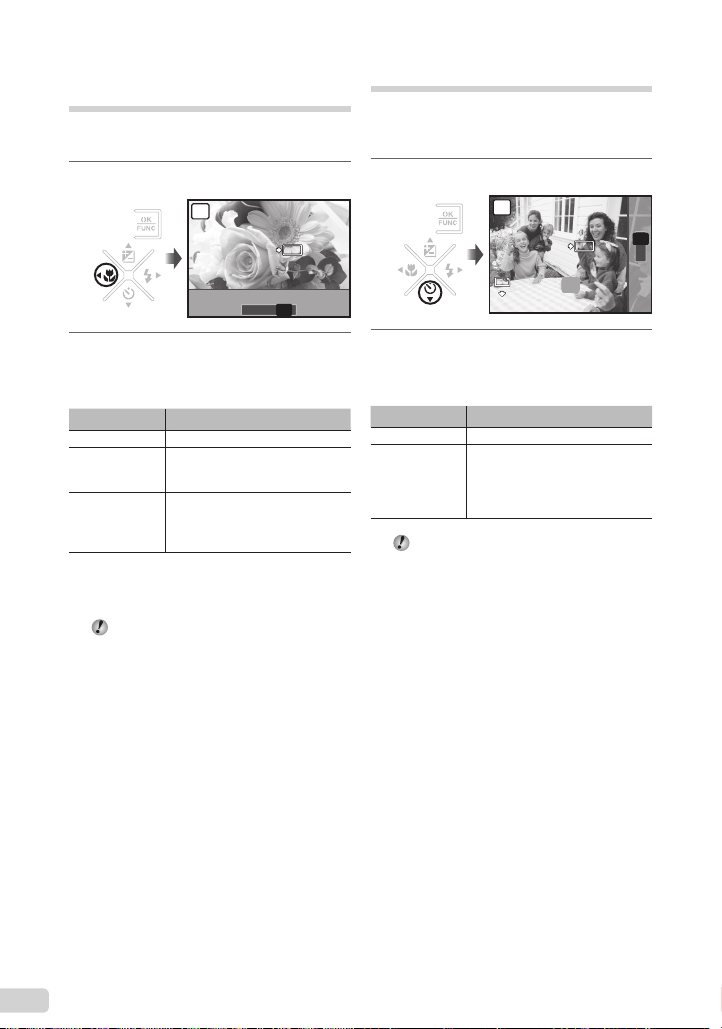

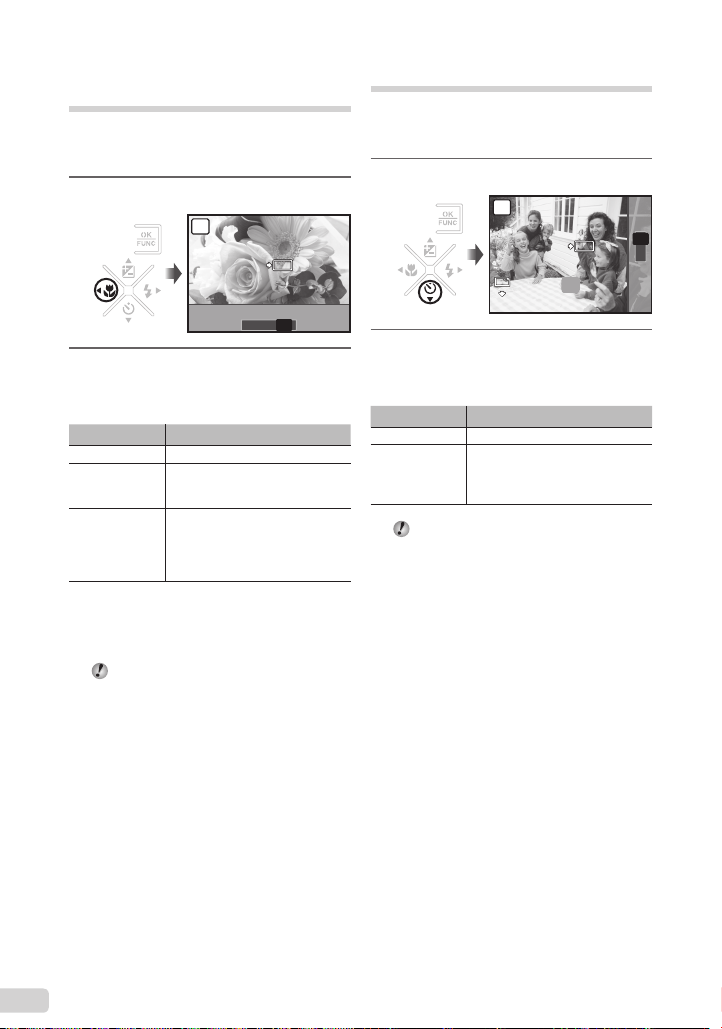

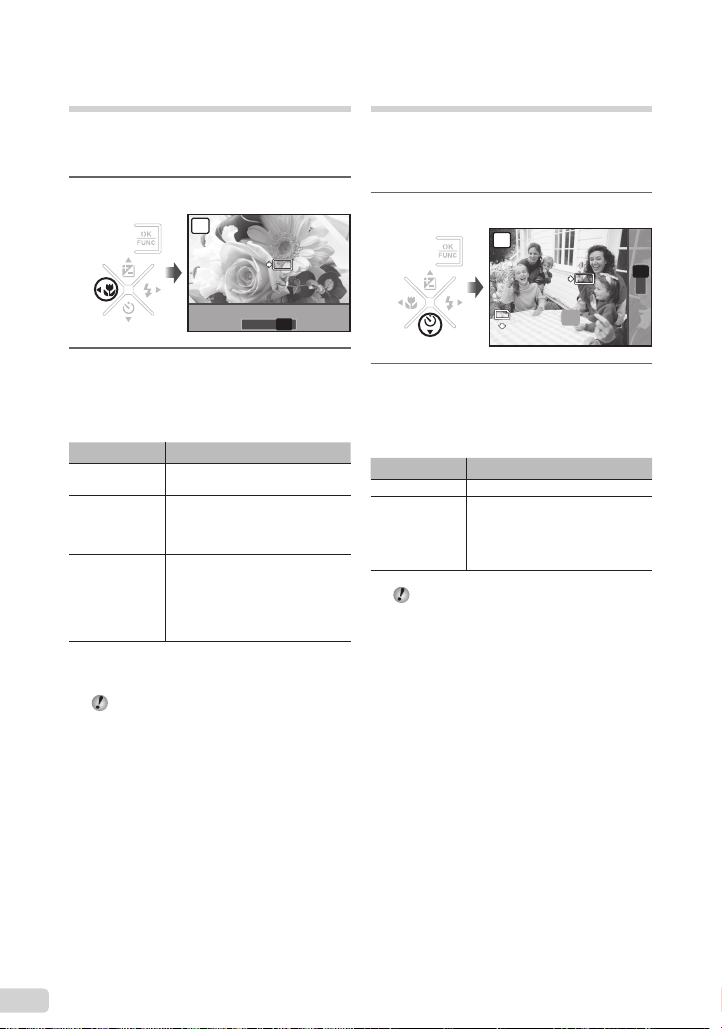

Shooting closeups

OFF

ORM

SET

SELFTIMER

OFF

SET

OFF

(Macro shooting)

This function enables the camera to focus and shoot subjects at close distances.

Press the & button.

Use FD to select the setting

option, and press the x button to set.

Item Description

OFF Macro mode is deactivated.

MACRO

SUPER MACRO

When the zoom is at the widest (W) position.

When the zoom is at the most telephoto (T) position.

The zoom is automatically ﬁ xed.

The ﬂ ash (p. 19) and zoom (p. 18) cannot

This enables shooting as close as 20 cm/7.9 in. the subject.

This enables shooting as close as 7 cm/2.8 in to the subject. Subjects

at 50 cm/19.7 in. or farther cannot be brought into focus.

be set during super macro shooting.

OFF

SET

OFF

% &

OFF

(30 cm/11.8 in.*2) to

Using the self-timer

After the shutter button is pressed all the way down, the picture is taken after a time delay.

Press the Y button.

SET

SELFTIMER

ORM

Use CE to select the setting

option, and press the x button to set.

Item Description

OFF This cancels the self-timer.

The self-timer lamp turns on for

Self-timer shooting is automatically canceled

approx. 10 seconds, and then blinks for approx. 2 seconds, and then the picture is taken.

after one shot.

To cancel the self-timer after it starts

Press the Y button again.

OFF

Printing

Direct printing (PictBridge*1)

By connecting the camera to a PictBridgecompatible printer, you can print images directly without using a computer. To ﬁ nd out if your printer supports PictBridge, refer to the printer’s instruction manual.

PictBridge is a standard for connecting digital

cameras and printers of different makers and printing out pictures directly.

The printing modes, paper sizes, and other

parameters that can be set with the camera vary depending on the printer that is used. For details, refer to the printer’s instruction manual.

For details on the available paper types,

loading paper, and installing ink cassettes, refer to the printer’s instruction manual.

Printing images at the printer’s standard settings [EASY PRINT]

Display the image to be printed on

the monitor.

“Viewing images” (p. 15) Printing can also be started when the

camera is turned off. After performing Step 2, use CE to select [EASY PRINT], and press the x button. Use FD to select an image, and proceed to Step 3.

Turn on the printer, and then

connect the printer and camera.

Connector cover Open the

EASY PRINT START PC /CUSTOM PRINT

< button

Press the < button to start printing.

To print another image, use FD

Multi-connector

connector cover in the direction of the arrow.

USB cable (supplied)

to select an image, and press the < button.

To exit printing

After a selected image is displayed on the screen, disconnect the USB cable from the camera and printer.

PRINTEXIT

Using OLYMPUS Master 2

System requirements and installation of OLYMPUS Master 2

Install the OLYMPUS Master 2 software by referring to the included installation guide.

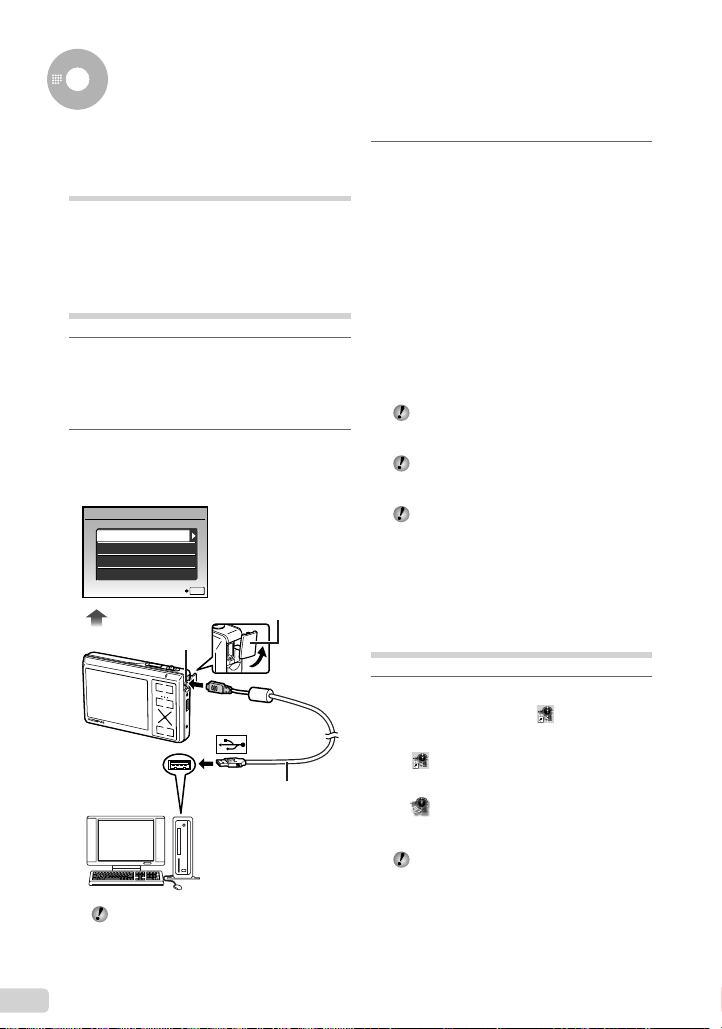

Connecting the camera to a computer

Make sure the camera is turned off.

The monitor is off.

●

The lens barrier is closed.

Connect the camera to a computer.

●

The camera automatically turns on.

USB

EASY PRINT CUSTOM PRINT EXIT

Multi-connector

SET

Connector cover Open the connector

cover in the direction of the arrow.

USB cable (supplied)

Use CE to select [PC], and press

the x button.

The computer automatically detects the camera as

●

a new device on the ﬁ rst connection.

Windows

After the computer detects the camera, a message indicating the completion of the setting appears. Conﬁ rm the message and click “OK”. The camera is recognized as a removable disk.

Macintosh

When iPhoto started, exit iPhoto and start OLYMPUS Master 2.

While the camera is connected to the

computer, shooting functions are disabled.

Connecting the camera to a computer via a

USB hub may cause unstable operation.

When [MTP] is set for the submenu that

appears by pressing D after selecting [PC] in Step 3, images cannot be transferred to a computer using OLYMPUS Master 2.

Starting OLYMPUS Master 2

Double-click the OLYMPUS Master 2

icon .

Windows

appears on the desktop.

Macintosh

appears in the OLYMPUS Master 2 folder.

Browse window appears after starting the

●

software.

When you start OLYMPUS Master 2 for the

ﬁ rst time after installation, “Default Settings” and “Registration” screens appear. Follow the instructions on the screen.

Locate the position of the USB port by

referring to your computer’s instructions manual.

Operating OLYMPUS Master 2

When OLYMPUS Master 2 is started, Quick Start Guide appears on the screen that helps you to handle the camera without any question. When the Quick Start Guide is not displayed, click in the toolbar to show the Guide.

For details on the operation, refer to the help guide of the software.

Transferring and saving images without using OLYMPUS Master 2

This camera is compatible with the USB Mass Storage Class. You can transfer and save the image data on your computer while the camera and the computer are connected.

System requirements

Windows : Windows 2000 Professional/

Macintosh : Mac OS X v10.3 or later

On a computer running Windows Vista, if

Even if a computer has USB ports, proper

XP Home Edition/ XP Professional/Vista

[MTP] is set for the submenu that appears by pressing D after selecting [PC] in Step 3 of “Connecting the camera to a computer” (p. 42), Windows Photo Gallery will become available.

operation is not guaranteed in the following cases.

Computers with USB ports installed using an

●

expansion card, etc. Computers without a factory-installed OS and

●

home-built computers

Appendix

Using a microSD Attachment

Do not use the Attachment with Olympus

digital cameras that do not support this microSD Attachment, as well as with other brands of digital cameras, computers, printers, and other devices that support xD-Picture Card. Doing so not only may damage the pictures taken, but may also result in the malfunction of the device.

If the microSD card cannot be removed,

do not use force. Contact authorized distributors/service centers.

Cards compatible with this camera

microSD card/microSDHC card

For a list of tested microSD cards, please

visit our website (http://www.olympus.com/).

Sending images

You can send images to a computer or printer by using the USB cable provided with the camera. To send data to other devices, remove the Attachment from the camera and use a commercially available microSD card adapter.

Handling precautions

Do not touch the contact area of the Attachment or microSD card. Doing so may cause failure in reading the images. When ﬁ ngerprints or stains are found on the contact area, wipe the area with a soft dry cloth.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED OLYMPUS

SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the

DANGER If the product is used without observing

WARNING If the product is used without observing the

CAUTION If the product is used without observing the

WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the

product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the

wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid

damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on

products with weatherproof designs, read the weatherprooﬁ ng sections.

Location — To avoid damage to the product, mount

the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the

power source described on the product label.

Lightning — If a lightning storm occurs while using

an AC adapter, remove it from the wall outlet immediately.

documentation provided with the product.

the information given under this symbol, serious injury or death may result.

information given under this symbol, injury or death may result.

information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

Foreign Objects — To avoid personal injury, never

insert a metal object into the product.

Heat — Never use or store this product near any

heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo ampliﬁ ers.

Handling the Camera

WARNING

Do not use the camera near ﬂ ammable or

• explosive gases. Do not use the ﬂ ash and LED on people

• (infants, small children, etc.) at close range.

You must be at least 1 m (3 ft.) away from the

•

faces of your subjects. Firing the ﬂ ash too close to the subject’s eyes could cause a momentary loss of vision.

Keep young children and infants away from

• the camera.

Always use and store the camera out of the

•

reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

Becoming entangled in the camera strap,

•

causing strangulation. Accidentally swallowing the battery, cards or

•

other small parts. Accidentally ﬁ ring the ﬂ ash into their own eyes

•

or those of another child. Accidentally being injured by the moving parts

•

of the camera.

Do not look at the sun or strong lights with the

• camera. Do not use or store the camera in dusty or

• humid places. Do not cover the ﬂ ash with a hand while ﬁ ring.

• Do not insert anything into the microSD

• Attachment other than the microSD card.

This Attachment is exclusive for use of microSD cards only. Other types of cards cannot be installed.

Do not insert anything other than an xD-Picture

• Card or the microSD Attachment into the camera.

If you insert a card by mistake, such as a microSD card, do not use force. Contact authorized distributors/service centers. Damages such as scratches on the Attachment or card could result in the camera overheating and/or malfunctioning.

CAUTION

Stop using the camera immediately if you

• notice any unusual odors, noise, or smoke around it.

Never remove the batteries with bare hands,

•

which may cause a ﬁ re or burn your hands.

Never hold or operate the camera with wet

• hands. Do not leave the camera in places where it may

• be subject to extremely high temperatures.

Doing so may cause parts to deteriorate and, in

•

some circumstances, cause the camera to catch ﬁ re. Do not use the charger or AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in ﬁ re.

Handle the camera with care to avoid getting a

• low-temperature burn.

When the camera contains metal parts,

•

overheating can result in a low-temperature burn. Pay attention to the following:

When used for a long period, the camera will

•

get hot. If you hold on to the camera in this state, a low-temperature burn may be caused. In places subject to extremely cold

•

temperatures, the temperature of the camera’s body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

Be careful with the strap.

•

Be careful with the strap when you carry the

•

camera. It could easily catch on stray objects and cause serious damage.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

The camera uses a lithium ion battery speciﬁ ed

•

by Olympus. Charge the battery with the speciﬁ ed charger. Do not use any other chargers. Never heat or incinerate batteries.

•

Take precautions when carrying or storing

•

batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc. Never store batteries where they will be

•

exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc. To prevent causing battery leaks or damaging their

•

terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc. If battery ﬂ uid gets into your eyes, ﬂ ush your eyes

•

immediately with clear, cold running water and seek medical attention immediately. Always store batteries out of the reach of small

•

children. If a child accidentally swallows a battery, seek medical attention immediately.

WARNING

Keep batteries dry at all times.

•

To prevent batteries from leaking, overheating,

•

or causing a ﬁ re or explosion, use only batteries recommended for use with this product. Insert the battery carefully as described in the

•

operating instructions. If rechargeable batteries have not been recharged

•

within the speciﬁ ed time, stop charging them and do not use them. Do not use a battery if it is cracked or broken.

•

If a battery leaks, becomes discolored or

•

deformed, or becomes abnormal in any other way during operation, stop using the camera. If a battery leaks ﬂ uid onto your clothing or skin,

•

remove the clothing and ﬂ ush the affected area with clean, running cold water immediately. If the ﬂ uid burns your skin, seek medical attention immediately. Never subject batteries to strong shocks or

•

continuous vibration.

•

CAUTION

•

Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.

•

The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.

•

Always unload the battery from the camera before storing the camera for a long period.

Caution for Usage Environment

To protect the high-precision technology contained

•

in this product, never leave the camera in the places listed below, no matter if in use or storage:

Places where temperatures and/or humidity

•

are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidiﬁ ers. In sandy or dusty environments.

•

Near ﬂ ammable items or explosives.

•

In wet places, such as bathrooms or in the rain.

•

When using products with weatherproof designs, read their manuals as well. In places prone to strong vibrations.

•

Do not get water or sand on the camera when

•

using it at the beach or in sandy places as this may lead to damage or malfunction. Never drop the camera or subject it to severe

•

shocks or vibrations. When mounted on a tripod, adjust the position of

•

the camera with the tripod head. Do not twist the camera. Do not touch electric contacts on cameras.

•

Do not leave the camera pointed directly at the

•

sun. This may cause lens or shutter curtain damage, color failure, ghosting on the CCD, or may possibly cause ﬁ res. Do not push or pull severely on the lens.

•

Before storing the camera for a long period,

•

remove the batteries. Select a cool, dry location for storage to prevent condensation or mold from forming inside the camera. After storage, test the camera by turning it on and pressing the shutter button to make sure that it is operating normally. Always observe the operating environment

•

restrictions described in the camera’s manual.

Battery Handling Precautions

This camera uses a lithium ion battery speciﬁ ed by

•

Olympus. Do not use any other type of battery. If the battery’s terminals get wet or greasy, camera

•

contact failure may result. Wipe the battery well with a dry cloth before use. Always charge a battery when using it for the ﬁ rst

•

time, or if it has not been used for a long period. When operating the camera with battery power

•

at low temperatures, try to keep the camera and spare battery as warm as possible. A battery that has run down at low temperatures may be restored after it is warmed at room temperature. The number of pictures you can take may vary

•

depending on the shooting conditions or battery. Before going on a long trip, and especially before

•

traveling abroad, purchase extra batteries. A recommended battery may be difﬁ cult to obtain while traveling. Please recycle batteries to help save our planet’s

•

resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

LCD Monitor

Do not push the monitor forcibly; otherwise the

•

image may become vague, resulting in a playback mode failure or damage to the monitor. A strip of light may appear on the top/bottom of the

•

monitor, but this is not a malfunction. When a subject is viewed diagonally in the

•

camera, the edges may appear zigzagged on the monitor. This is not a malfunction; it will be less noticeable in playback mode. In places subject to low temperatures, the LCD

•

monitor may take a long time to turn on or its color may change temporarily. When using the camera in extremely cold places, it is a good idea to occasionally place it in a warm place. An LCD monitor exhibiting poor performance due to low temperatures will recover in normal temperatures. The LCD used for the monitor is made with

•

high-precision technology. However, black spots or bright spots of light may appear constantly on the LCD monitor. Due to its characteristics or the angle at which you are viewing the monitor, the spot may not be uniform in color and brightness. This is not a malfunction.

Legal and Other Notices

Olympus makes no representations or warranties

•

regarding any damages, or beneﬁ t expected by using this unit lawfully, or any request from a third person, which are caused by the inappropriate use of this product. Olympus makes no representations or warranties

•

regarding any damages or any beneﬁ t expected by using this unit lawfully which are caused by erasing picture data.

Disclaimer of Warranty

Olympus makes no representations or warranties,

•

either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or ﬁ tness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business proﬁ ts, business interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment. Some countries do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you. Olympus reserves all rights to this manual.

•

Warning

Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners.

Copyright Notice

All rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex II] indicates separate collection of waste batteries in the EU countries. Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries.

Use Only Dedicated Rechargeable Battery and Battery Charger

We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery and battery charger with this camera. Using a non-genuine rechargeable battery and/or battery charger may result in ﬁ re or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability for accidents or damage that may result from the use of a battery and/or battery charger that are not genuine Olympus accessories.

Provisions of warranty

1 If this product proves to be defective, although

it has been used properly (in accordance with the written Safety Precautions and Operating instructions supplied with it), during a period of two years from the date of purchase from an authorized Olympus distributor within the business area of Olympus Imaging Europa GmbH as stipulated on the website: http://www.olympus. com this product will be repaired, or at Olympus’s option replaced, free of charge. To claim under this warranty the customer must take the product and this Warranty Certiﬁ cate before the end of the two year warranty period to the dealer where the product was purchased or any other Olympus service station within the business area of Olympus Imaging Europa GmbH as stipulated on the website: http://www.olympus.com. During the one year period of the World Wide Warranty the customer may turn the product in at any Olympus service station. Please notice that not in all countries such Olympus service station exists.

2 The customer shall transport the product to the

dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.

3 This warranty does not cover the following

and the customer will be required to pay repair charge, even for defects occurring within the warranty period referred to above.

Any defect that occurs due to mishandling

(such as an operation performed that is not mentioned in the Safety Precautions or other sections of the instructions, etc.) Any defect that occurs due to repair,

modiﬁ cation, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station. Any defect or damage that occurs due to

transport, a fall, shock, etc. after purchase of the product. Any defect or damage that occurs due to ﬁ re,

earthquake, ﬂ ood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources. Any defect that occurs due to careless or

improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc. Any defect that occurs due to exhausted

batteries, etc. Any defect that occurs due to sand, mud, etc.

entering the inside of the product casing. When this Warranty Certiﬁ cate is not returned

with the product. When any alterations whatsoever are made

to the Warranty Certiﬁ cate regarding the year, month and date of purchase, the customer’s name, the dealer’s name, and the serial number. When proof of purchase is not presented with

this Warranty Certiﬁ cate.

4 This Warranty applies to the product only; the

Warranty does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.

5 Olympus’s sole liability under this warranty shall

be limited to repairing or replacing the product. Any liability for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect of the product, and in particular any loss or damage caused to any lenses, ﬁ lms, other equipment or accessories used with the product or for any loss resulting from a delay in repair or loss of data, is excluded. Compelling regulations by law remain unaffected by this.

Notes regarding warranty maintenance

1 This warranty will only be valid if the Warranty

Certiﬁ cate is duly completed by Olympus or an authorized dealer or other documents contain sufﬁ cient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed or the original invoice or the sales receipt (indicating the dealer’s name, the date of purchase and product type) is attached to this Warranty Certiﬁ cate. Olympus reserves the right to refuse free-ofcharge service if neither Warranty Certiﬁ cate is completed nor the above document is attached or if the information contained in it is incomplete or illegible.

2 Since this Warranty Certiﬁ cate will not be re-

issued, keep it in a safe place.

* Please refer to the list on the website: http://www.

olympus.com for the authorized international Olympus service network.

Trademarks

IBM is a registered trademark of International

•

Business Machines Corporation. Microsoft and Windows are registered trademarks

•

of Microsoft Corporation. Macintosh is a trademark of Apple Inc.

•

xD-Picture Card™ is a trademark.

•

microSD is a trademark of the SD Association.

•

All other company and product names are

•

registered trademarks and/or trademarks of their respective owners. The standards for camera ﬁ le systems referred to

•

in this manual are the “Design rule for Camera File system/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

SPECIFICATIONS

Camera

Product type : Digital camera (for shooting and displaying) Recording system

Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File

Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III,

Sound with still pictures : Wave format Movie : AVI Motion JPEG

Memory : Internal memory

No. of effective pixels : 10,000,000 pixels Image pickup device : 1/2.3" CCD (primary color ﬁ lter), 10,340,000 pixels (gross) Lens : Olympus lens 6.7 to 20.1 mm, f3.5 to 5.0

Photometric system : Digital ESP metering, spot metering system Shutter speed : 1/2 to 1/1000 sec. Shooting range :

Monitor : 2.7" TFT color LCD display, 230,000 dots Connector : Multi-connector (DC-IN jack, USB connector, A/V OUT jack) Automatic calendar system : 2000 up to 2099 Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation)/

Humidity : 30% to 90% (operation)/10% to 90% (storage) Power supply : One Olympus lithium ion battery (LI-42B/LI-40B) or Olympus AC adapter Dimensions : 89.0 mm (W) × 55.5 mm (H) × 20.3 mm (D) (3.5 × 2.2 × 0.8 in.)

Weight : 108 g (3.8 oz) (excluding battery and card)

system (DCF))

PictBridge

xD-Picture Card (16 MB to 2 GB) (TypeH/M/M+, Standard) microSD card/microSDHC card (when using the supplied microSD Attachment)

(equivalent to 38 to 114 mm on a 35 mm camera)

0.5 m (1.6 ft.) to ) (W/T) (normal)

0.2 m (0.7 ft.) to ) (W), 0.3 m (1.0 ft.) to ) (T) (macro mode)

0.07 m (2.8 in.) to 0.5 m (1.6 ft.) (W only) (super macro mode)

-20°C to 60°C (-4°F to 140°F) (storage)

(excluding protrusions)

Lithium ion battery (LI-42B)

Product type : Lithium ion rechargeable battery Standard voltage : DC 3.7 V Standard capacity : 740 mAh Battery life : Approx. 300 full charges (varies on usage) Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (charging)/

Dimensions : 31.5 × 39.5 × 6 mm (1.2 × 1.6 × 0.2 in.) Weight : Approx. 15 g (0.5 oz)

-10°C to 60°C (14°F to 140°F) (operation)/

-20°C to 35°C (-4°F to 95°F) (storage)

Battery charger (LI-40C)

Power requirements : AC 100 to 240 V (50 to 60 Hz)

Output : DC 4.2 V, 200 mA Charging time : Approx. 5 hours Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation)/

Dimensions : 62 × 23 × 90 mm (2.4 × 0.9 × 3.5 in.) Weight : Approx. 65 g (2.3 oz)

3.2 VA (100 V) to 5.0 VA (240 V)

-20°C to 60°C (-4°F to 140°F) (storage)

microSD Attachment

Product type : Attachment for microSD Operating Environment

Temperature : -10°C to 40°C (14°F to 104°F) (operation) /-20°C to 65°C (-4°F to

Humidity : 95% and below (operation) / 85% and below (storage) Dimensions : 25.0 mm (W) × 20.3 mm (H) × 1.7 mm (D) (1.0 × 0.8 × 0.07 in.)

Weight : Approx. 0.9 g (0.03 oz)

Design and speciﬁ cations subject to change without notice.

149°F) (storage)

(Handle: 2.2 mm (0.09 in.))

Table des matièresTable des matières

Préparer l’appareil photo ....................27

Vériﬁ er le contenu de la boîte ................27

Fixer la courroie .....................................27

Charger la batterie .................................27

Insérer la batterie et la carte xD-Picture Card™ (vendue séparément) dans

l’appareil photo ......................................28

Utiliser une carte microSD/carte

microSDHC (vendue séparément) .........29

Régler la date et l’heure ........................29

Changer la langue d’afﬁ chage ...............30

Prise de vue, lecture et effacement ...31

Prendre des photos avec une valeur d’ouverture et une vitesse d’obturation

optimales (mode P) ...............................31

Afﬁ cher les photos .................................32

Effacer des photos pendant la lecture

(effacement d’une seule photo) .............33

Utiliser les modes prise de vue ..........34

Utiliser le mode le plus approprié pour la

scène de prise de vue (mode s) .....34

Prendre des photos avec les réglages

automatiques (mode G) ....................34

Utiliser le mode de stabilisation des

images numériques (mode h) ............35

Enregistrer des vidéos (mode A) .........35

Utiliser les fonctions de prise

de vue ...................................................36

Utiliser le zoom optique .........................36

Rendre le sujet plus lumineux à

contre-jour (OMBRE AJUS) ...................36

Utiliser le ﬂ ash .......................................37

Ajuster la luminosité

(compensation d’exposition) ..................37

Prise de vue en gros plan (gros plan) ....38

Utiliser le retardateur .............................38

Imprimer ...............................................39

Utiliser OLYMPUS Master 2 ................40

Appendice ............................................42

Utiliser un Connecteur microSD ............42

PRÉCAUTIONS DE SÉCURITÉ ...........42

CARACTÉRISTIQUES ..........................48

Nous vous remercions d’avoir acheté un appareil

●

photo numérique Olympus. Avant de commencer à utiliser votre nouvel appareil photo, veuillez lire attentivement ces instructions aﬁ n d’optimiser ses performances et sa durée de vie. Conservez ce manuel dans un endroit sûr pour pouvoir vous y référer ultérieurement.

Nous vous recommandons de prendre des photos-

●

test pour vous habituer à votre appareil avant de commencer à prendre de vraies photos.

Les pages de référence sont celles du Manuel d’instructions (CD-ROM fourni). Veuillez vous reporter au Manuel d’instructions du CD-ROM.

En vue de l’amélioration constante de nos produits,

●

Olympus se réserve le droit d’actualiser ou de modiﬁ er les informations contenues dans ce manuel.

Les captures d’écran et les illustrations de l’appareil

●

photo présentées dans ce manuel ont été réalisées au cours des phases de développement et peuvent ne pas correspondre au produit réel.

Préparer l’appareil photo

Vériﬁ er le contenu de la boîte

Appareil photo numérique Courroie

Batterie au lithium-ion

LI-42B

Câble USB Câble AV

OLYMPUS Master 2

CD-ROM

Autres accessoires non illustrés : Manuel d’instructions, carte de garantie Le contenu est susceptible de varier en fonction du lieu d’achat.

Chargeur de batterie

LI-40C

Connecteur microSD

Fixer la courroie

Charger la batterie

Batterie au lithium-ion

Chargeur de batterie

Câble d’alimentation

Prise de courant

La batterie est livrée en partie chargée.

Avant l’utilisation, vous devez charger la batterie jusqu’à ce que l’indicateur de charge s’éteigne (au bout d’environ 5 heures).

Pour plus de détails sur la batterie et le

chargeur, voir “Batterie et chargeur” (p. 48).

Quand faut-il charger la batterie ?

Chargez la batterie quand le message d’erreur ci-dessous apparaît.

Clignote en rouge

Indicateur de charge Allumé : chargement en

Éteint : chargement

cours

terminé

Tendez la courroie aﬁ n qu’elle ne soit pas

relâchée.

Coin supérieur droit de l’écran

BATTERIE VIDE

Message d’erreur

Insérer la batterie et la carte xD-Picture Card™ (vendue séparément) dans l’appareil photo

N’insérez aucun accessoire autre que la

carte xD-Picture Card ou le Connecteur microSD dans l’appareil photo.

Couvercle de la carte/du compartiment de la batterie

Touche de verrouillage de la batterie

Insérez la batterie par l’extrémité T, le

symbole B orienté vers la touche de verrouillage de la batterie. L’appareil photo ne fonctionne pas si la batterie n’est pas insérée correctement.

Insérez la batterie tout en faisant glisser la

touche de verrouillage de la batterie dans le sens de la ﬂ èche.

Faites glisser la touche de verrouillage de

la batterie dans le sens de la ﬂ èche pour déverrouiller, puis retirez la batterie.

Insérez la carte bien droit jusqu’à ce qu’elle

se mette en place avec un léger bruit sec.

Ne touchez pas directement la zone de

contact.

Cet appareil photo permet à l’utilisateur de

prendre des photos à l’aide de la mémoire interne même lorsqu’aucune carte xDPicture Card (vendue séparément) n’est insérée. “Utiliser une carte xD-Picture

Card” (p. 49)

“Capacité de la mémoire interne et de

la carte xD-Picture Card en termes de nombre de photos (images ﬁ xes) et de durée d’enregistrement (vidéos)” (p. 50)

Encoche

Retirer la carte xD-Picture Card

Enfoncez la carte jusqu’à ce qu’elle émette

un léger bruit sec et sorte légèrement, puis saisissez-la pour l’enlever.

Utiliser une carte microSD/ carte microSDHC (vendue séparément)

La carte microSD/carte microSDHC (ci-après désignée carte microSD) est aussi compatible avec cet appareil si le Connecteur microSD est utilisé.

“Utiliser un Connecteur microSD” (p. 51)

Insérez la carte microSD dans le

Connecteur microSD.

Régler la date et l’heure

La date et l’heure que vous réglez ici sont sauvegardées pour les noms de ﬁ chier d’image, les impressions de date et autres données.

Faites glisser le volet de l’objectif

vers le bas pour allumer l’appareil photo.

L’écran de réglage de la date et de l’heure

●

s’afﬁ che si ces dernières ne sont pas réglées.

Insérez la carte à fond.

Insérez le Connecteur microSD

dans l’appareil photo.

Pour retirer la carte microSD

Retirer la carte bien droite.

Ne pas toucher la zone de contact du

Connecteur ou de la carte microSD.

Encoche

JHEURE

---- -- -- -- --

ANNULE

Écran de réglage de la date et de l’heure

Utilisez CE pour sélectionner

l’année sous [A].

J HEURE

-- -- -- --

2008

ANNULE

Appuyez sur la touche x pour

sauvegarder le réglage de [A].

J HEURE

-- -- -- --

2008

ANNULE

AMJ

SCN

RE-

INITIALI.

PANORAMA

APPAREIL

SILENCE

QUALITE D'IMAGE

REGLAGE

GUIDE

Tout comme aux étapes 2 et 3,

utilisez CEFD et la touche x pour régler [M (mois)], [J (jour)] et [HEURE (heures et minutes)].

Pour régler l’heure avec précision, appuyez

sur la touche x lorsque le signal de temps atteint 00 seconde.

Pour changer la date et l’heure, effectuez le

réglage depuis le menu. [X (Date/heure)]

(p. 35)

Pour vériﬁ er la date et l’heure

Appuyez sur la touche g alors que l’appareil photo est éteint. La date et l’heure actuelles s’afﬁ chent environ 3 secondes.

Changer la langue d’afﬁ chage

Vous pouvez sélectionner la langue pour le menu et les messages d’erreur qui s’afﬁ chent sur l’écran.

Appuyez sur la touche m,

puis appuyez sur CEFD pour sélectionner [S REGLAGE].

QUALITE D'IMAGE

GUIDE

RE-

INITIALI.

APPAREIL

REGLAGE

PANORAMA

QUITTE CONF

Appuyez sur la touche x.

REGLAGE

FORMATER

SAUVEGARDER

SAUVEGARDE

QUITTE CONF

SCN

SILENCE

FRANCAIS NON NON

Utilisez CE pour sélectionner [W],

puis appuyez sur la touche

Utilisez CEFD pour

sélectionner votre langue, puis appuyez sur la touche x.

Appuyez sur la touche m.

ENGLISH

FRANCAIS

DEUTSCH ESPANOL ITALIANO

QUITTE CONF

+ 94 hidden pages

Olympus Stylus 1040 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ContentsContents

Preparing the Camera

Checking the contents of the box

Attaching the camera strap

Charging the battery

Loading the battery and the xD-Picture Card™ (sold separately) into the camera

Using a microSD card/ microSDHC card (sold separately)

Setting the date and time

Changing the display language

Shooting, Playback, and Erasing

Viewing images

Erasing images during playback (Single image erase)

Using Shooting Modes

Using Shooting Functions

Using the optical zoom

Adjusting the brightness (Exposure compensation)

Using the self-timer

Printing

Printing images at the printer’s standard settings [EASY PRINT]

System requirements and installation of OLYMPUS Master 2

Connecting the camera to a computer

Starting OLYMPUS Master 2

Operating OLYMPUS Master 2

Transferring and saving images without using OLYMPUS Master 2

Appendix

Using a microSD Attachment

SAFETY PRECAUTIONS

General Precautions

Handling the Camera

Battery Handling Precautions

Caution for Usage Environment

Battery Handling Precautions

LCD Monitor

Legal and Other Notices

Disclaimer of Warranty

Warning

Copyright Notice

For customers in Europe

Notes regarding warranty maintenance

Trademarks

SPECIFICATIONS
