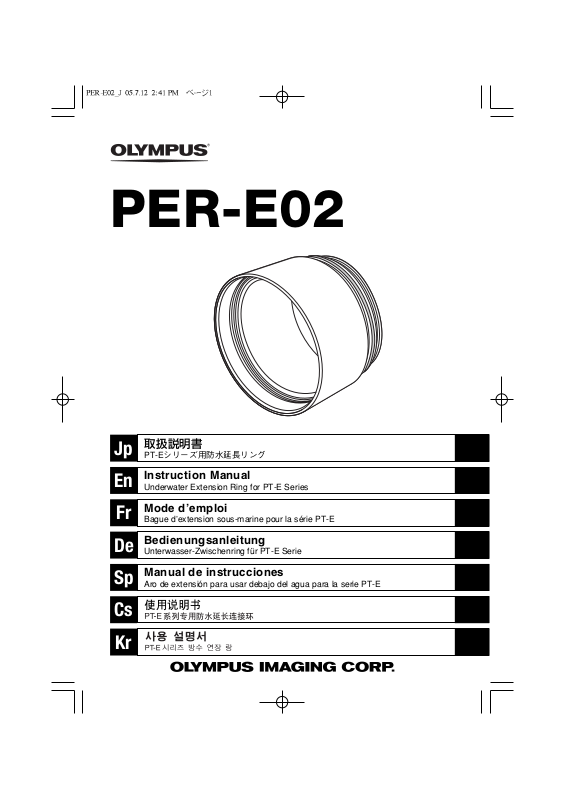

Page 1
PER-E02
Jp
En
Fr
De
Sp
Cs
Kr
取扱説明書
PT-Eシリーズ用防水延長リング
Instruction Manual
Underwater Extension Ring for PT-E Series
Mode d’emploi
Bague d’extension sous-marine pour la série PT-E
Bedienungsanleitung
Unterwasser-Zwischenring für PT-E Serie
Manual de instrucciones
Aro de extensión para usar debajo del agua para la serie PT-E
Page 2
■ Thank you for buying this product. To assure safe and correct use of this product, please read this instruction manual carefully. After reading, store the manual together with the warranty card in a safe, easily
accessible place.
■ This product (PER-E02) is an underwater extension ring for use with the PT-E series Underwater Case. It
is designed to be used in combination with the “ZUIKO DIGITAL ED 7-14mm F4.0” lens and the PPO-E04
Underwater Lens Port.
■ Underwater zooming is possible when the zoom gear, provided with this product, is attached to the lens.
Disclaimer
■ Unauthorized copying of this manual in part or in full, except for personal use, is prohibited. Unauthorized
reproduction is strictly prohibited.
■ Olympus shall not be responsible for damages, loss of profit or any claims by third parties in case of any
damage occurring from incorrect use of this product.
IMPORTANT - Please read the following before using the product
■ This product has been designed to be used underwater at depths up to 60 meters (200 ft). Handle this
product with care.
■ This product must always be used in combination with the separately available PPO-E04 Underwater
Lens Port.
■ To ensure correct and safe use of this product, always use it as described in this instruction manual.
For safe use
This instruction manual uses pictographs to show how to use the product correctly and how to prevent danger to the
user and other persons as well as damage to property. These pictographs and their meanings are shown below.
WARNING
CAUTION
Please pay particular attention to this information. If ignored when using
the product, there is a risk of serious injury and even death.
Ignoring this information when using the product could lead to injury or
material damage.
WARNING
●
This product should be kept out of reach of infants and children to prevent accidents such as the following:
•
Injury caused by the product falling from a height and striking the body from a height.
•
Injury caused by the swallowing of small parts. Please consult a doctor immediately if this happens.
●
This product is partly made of glass. If it is broken or smashed by being dropped or hit against a hard
object, glass splinters could cause injury. Please handle this product carefully.
●
If water gets into this product during underwater use, immediately stop using it, remove the moisture from
the product and detach it from the camera and lens.
●
Do not disassemble or modify this product. This may result in injury.
●
The silicone O-ring grease is not edible.
CAUTION
●
Do not leave this product where it may be exposed to high temperatures. This may lead to deterioration of
parts and components.
●
This product is mounted between the PT-E series underwater case and the PPO-E04 Underwater Lens
Port. When mounting, be sure to follow the instructions in this manual.
●
Before removing this product from the PT-E series case and PPO-E04 lens port, make sure that the case
and lens port are completely dry and free of moisture.
●
Never attach or detach this product in locations where there is a lot of sand, dust or dirt. If any foreign matter gets on the O-ring sections, the waterproof sealing will be compromised and water leakage may result.
●
This product has been designed and manufactured for use in a water pressure equivalent to a depth of 60
meters (200 ft). Please note that diving in depths over 60 meters may cause irreparable damage and/or
may result in water leaking into this product and the camera and lens.
●
When sealing this product, make sure that no foreign matter is caught on the O-rings or O-ring contact surfaces.
●
Before storing this product, always remove it from the camera and lens.
●
Underwater zooming is possible when the zoom gear, provided with this product, is attached to the lens. However,
only AF (auto focus) focusing is available.
E-1
Page 3

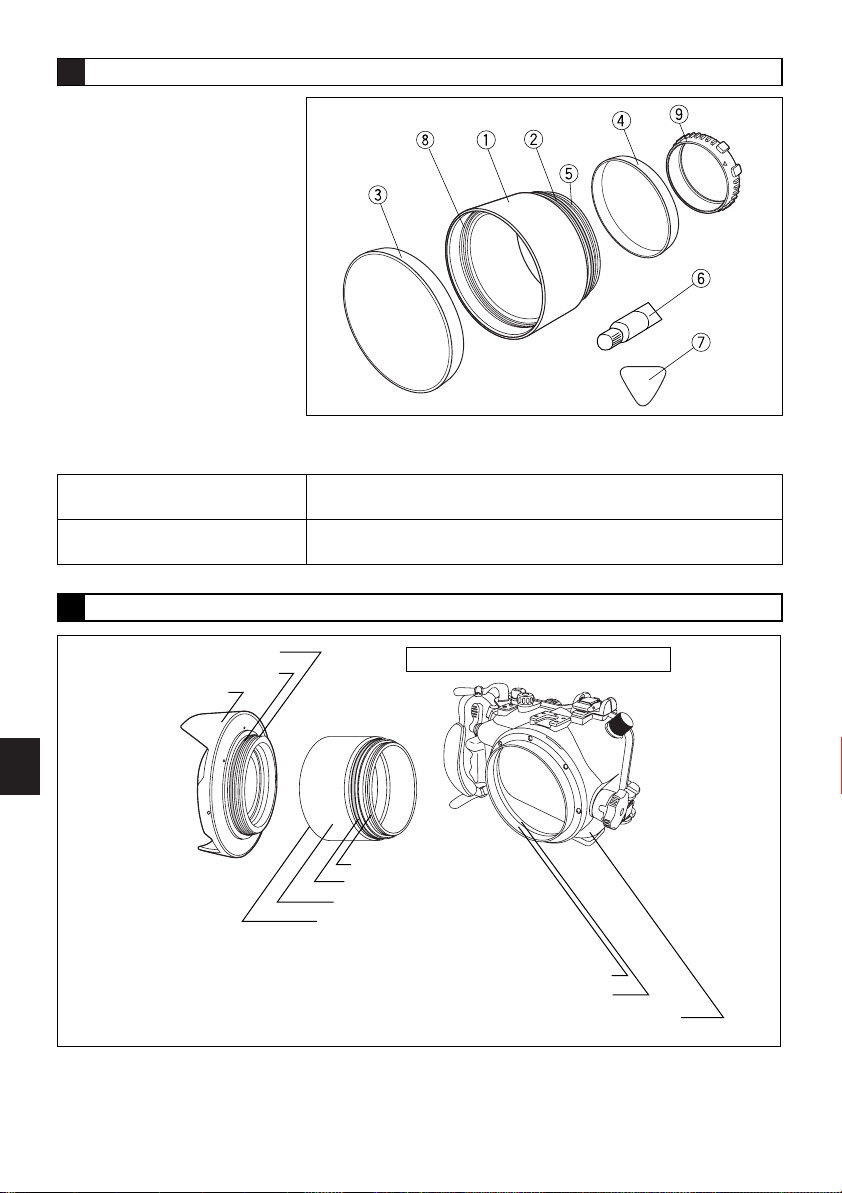

1 Name of Parts
PER-E02 main body
Silicon O-ring (POL-E101)
Front cap
Rear cap
PT-E series waterproof case mount
Grease for silicone O-ring
Pick for O-ring removal
Waterproof lens port mount
Zoom gear
* This product has been designed for exclusive use with the following ZUIKO DIGITAL lens. This product
should also be used in combination with the separately available PPO-E04 Underwater Lens Port.
Applicable lens
Applicable underwater lens port
2
Mounting the PER-E02 between the Waterproof Case and the Waterproof Lens Port
Threaded section
O-ring
ZUIKO DIGITAL ED 7-14 mm F4.0
PPO-E04
Silicone grease application surfaces
PPO-E04
Threaded section
O-ring
PER-E02
Surface coming in contact
with the lens port’s O-ring/
Port mount thread
O-ring contact surfaces
Port mount thread
PT-E series
waterproof case
This product is designed to be mounted between the PT-E series underwater case and the PPO-E04
Underwater Lens Port.
Before mounting, make sure that no foreign matter is attached to the O-rings, O-ring contact surfaces, port
mount threads or threaded sections of the three modules. Apply a thin layer of the provided silicone O-ring
grease to each of these parts.
E-2
Page 4

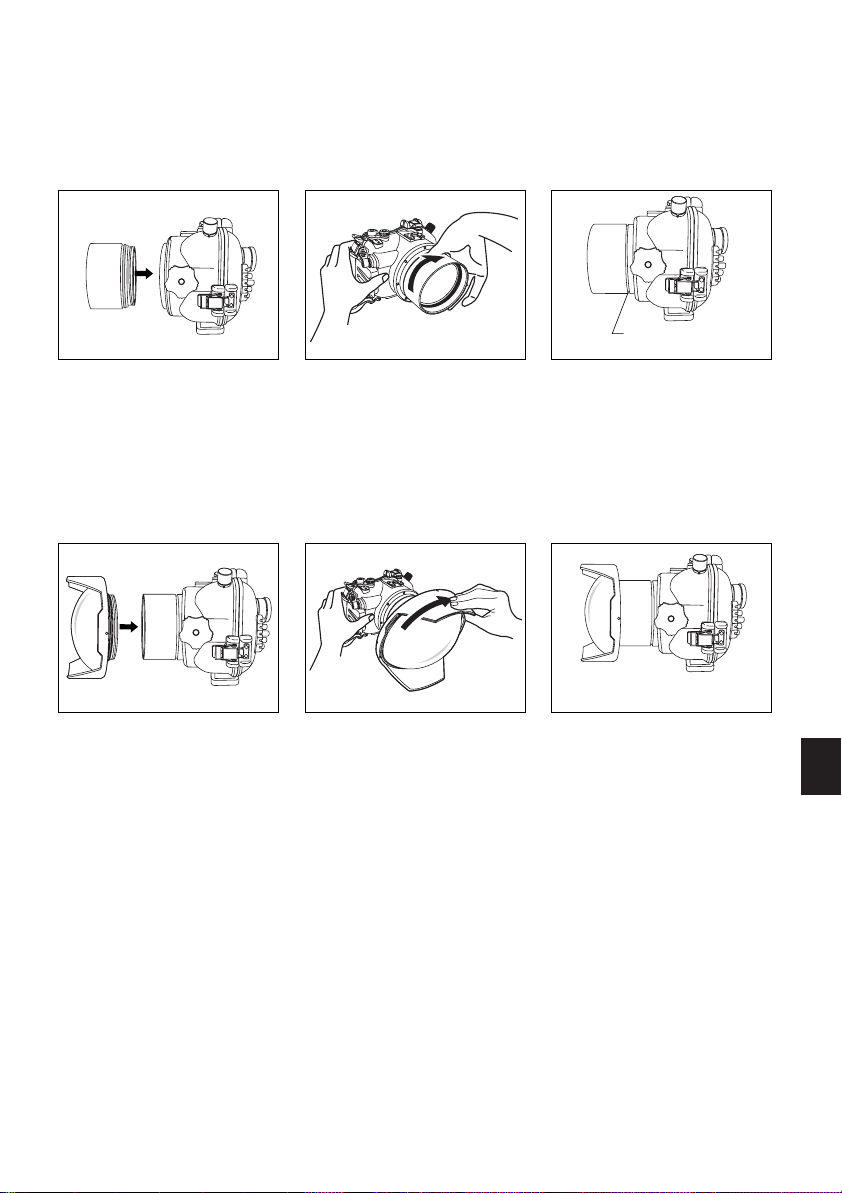

Align the threaded section of the PER-E02 with the port mount thread on the PT-E series case.
Hold the PT-E series case firmly with one hand, hold the main body of the PER-E02 with your other hand
and screw it into the PT-E series by turning the PER-E02 clockwise.
Resistance increases as the PER-E02 is screwed in more deeply. However, be sure to screw it in all the
way until there is no gap visible between the case’s port mount thread and the PER-E02’s threaded section. If the resistance is extremely high, apply some more silicone O-ring grease again to surfaces listed
above.
Screw in until
there is no gap.
Align the lens port mount thread of the PER-E02 with the threaded section on the PPO-E04 lens port.
Hold the PT-E series case and PER-E02 firmly with one hand, hold the main body of the PPO-E04 lens
port with your other hand and turn it clockwise to screw it into the PER-E02.
Resistance will increase as the PPO-E04 lens port is screwed in However, be sure to screw it in all the way
until there is no gap visible between the PPO-E04 lens port’s thread section and the PER-E02’s port mount
thread. If the resistance is extremely high, apply some more silicone O-ring grease again to surfaces listed
above.
E-3
Screw in until
there is no gap.
Page 5

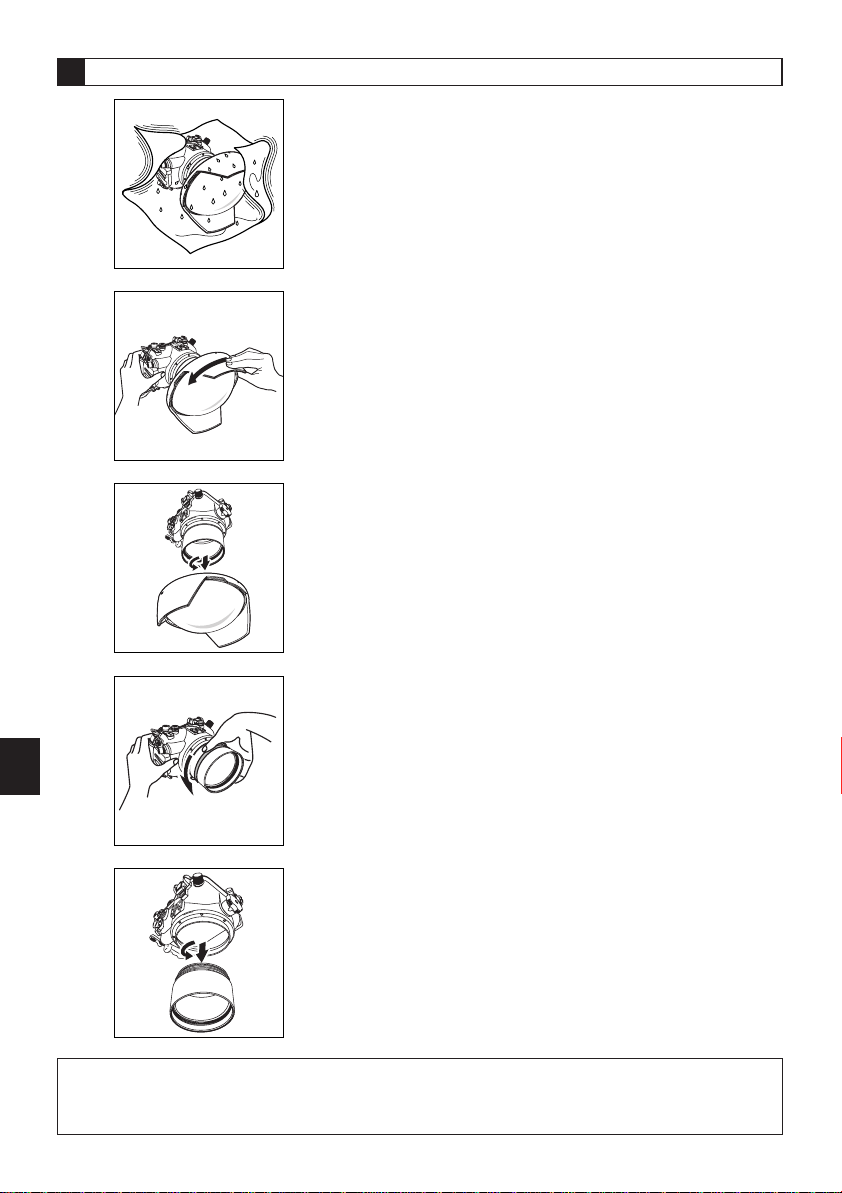

3 Dismounting the PER-E02
If any water is on the product, wipe it completely away and
make sure that the product is dry.
Holding the PT-E series case firmly with one hand, loosen the
PPO-E04 lens port that is attached to the PER-E02 by turning
the lens port about 90 degrees counterclockwise. If the PPOE04 is screwed in too tight, wrap it with a piece of rubber or
other slip-resistant material.
After loosening the PPO-E04 lens port, position it so that its
lens points down and turn it further counterclockwise until it
separates from the PER-E02. Be careful not to drop the
PPO-E04 lens port, PER-E02 or PT-E series case.
Holding the PT-E series case firmly with one hand, loosen the
PER-E02 by turning it about 90 degrees counterclockwise. If the
PER-E02 is screwed in too tight, wrap it with a piece of rubber or
other slip-resistant material.
After loosening the PER-E02, point its lens down and turn it
further counterclockwise until it is separated from the PT-E
series case. Be careful not to drop the PER-E02 or PT-E.
CAUTION:･WhenremovingthePPO-E04lensportandPER-E02fromthePT-Eseriescase,waterdrops
ontheO-ringsmaysplashonthelensorcamera.Ifthishappens,wipethewaterdropsaway
fromthelensandcamerawithadrycloth.
･Makesurethatallofthecombinedmodulesarecompletelydrybeforedismounting.
E-4
Page 6

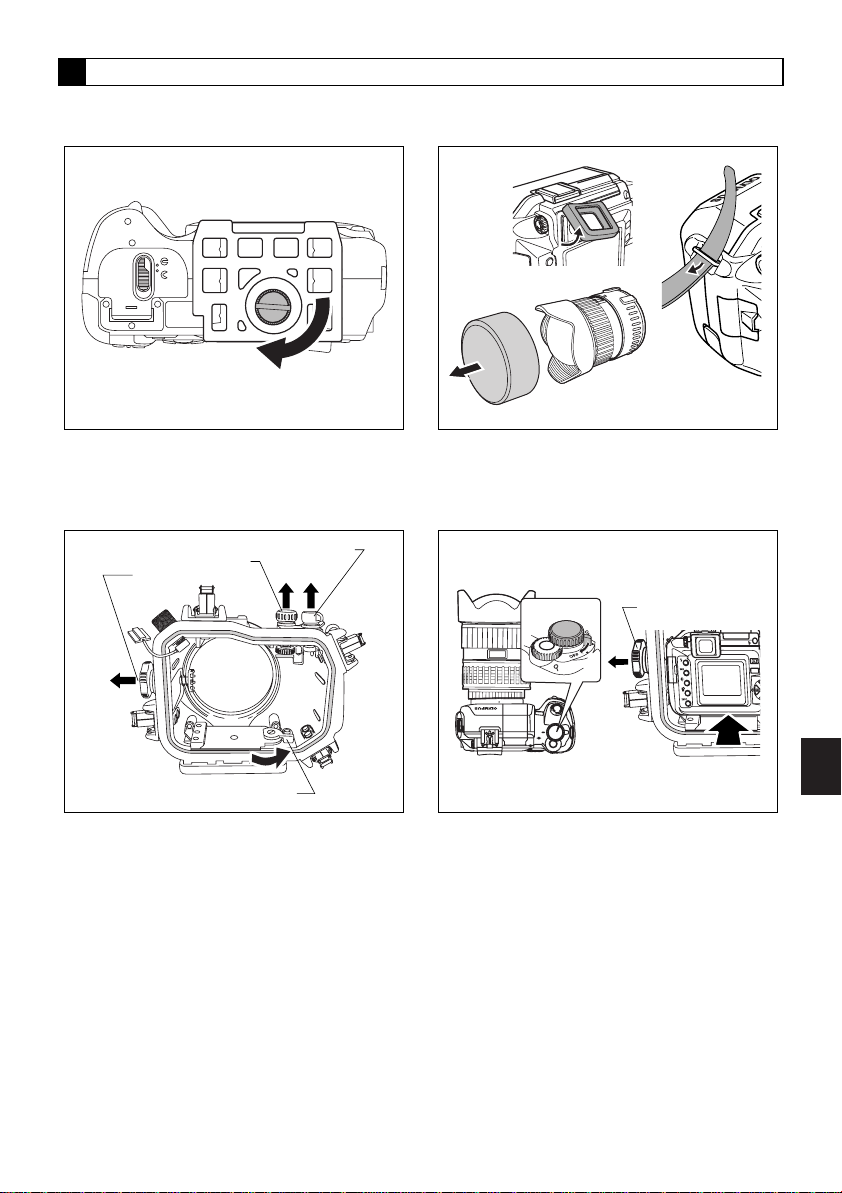

4 Loading the Camera and Lens
After installing the lens on the camera, insert these into the PT-E series case on which the PER-E02 and
the PPO-E04 lens port are mounted.
Screw the camera table provided with the PT-E
series case firmly into the bottom of the camera.
Mode dial knob
Zoom dial
Camera table lock lever
Lift the PT- E series case’s power switch dial,
Power switch dial
mode dial knob and zoom dial, and turn the
case’s camera table lock lever counterclockwise to release the lock. Refer to the PT-E
series case’s instruction manual for instructions
of how to attach the hot shoe cable for the
flash.
Remove the eyecup from the camera’s viewfinder. If a lens cap or filter is attached to the lens or
the strap is attached to the camera, remove them
as well.
Pull out the zoom
dial further.
Confirm that the camera’s power switch is OFF.
While pulling out the zoom dial on the PT-E
series case, slide the camera table with camera
attached as far as it will go into the camera
table mount on the inner side of the case’s front
lid.
MENU
E-5
Page 7

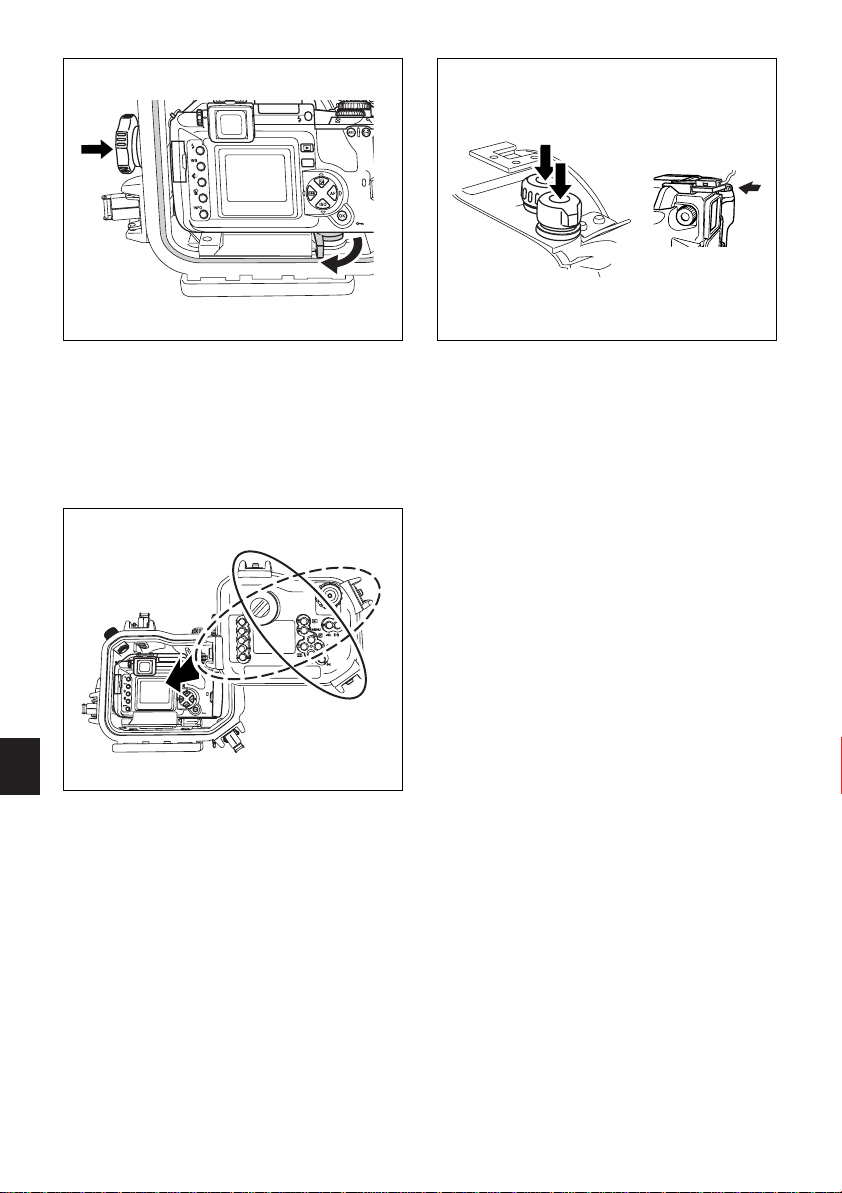

MENU
After inserting the camera, turn the camera table
lock lever of the PT- E series case all the way
clockwise to lock the camera table, and then
push in the zoom dial on the PT-E series case.
Attach the rear lid of the PT- E series case and
lock the four buckles (two diagonally located
buckles first, and then the other two diagonally
located buckles). Underwater shooting is now
possible.
Push in the PT- E series case’s power switch
dial and mode dial knob. Turn the power switch
dial and mode dial knob and confirm that they
can control the camera power ON-OFF and
mode switching. Connect the hot shoe mount
section of the hot shoe cable that has been
connected to the PT-E series case to the hot
shoe of the camera.
E-6
Page 8

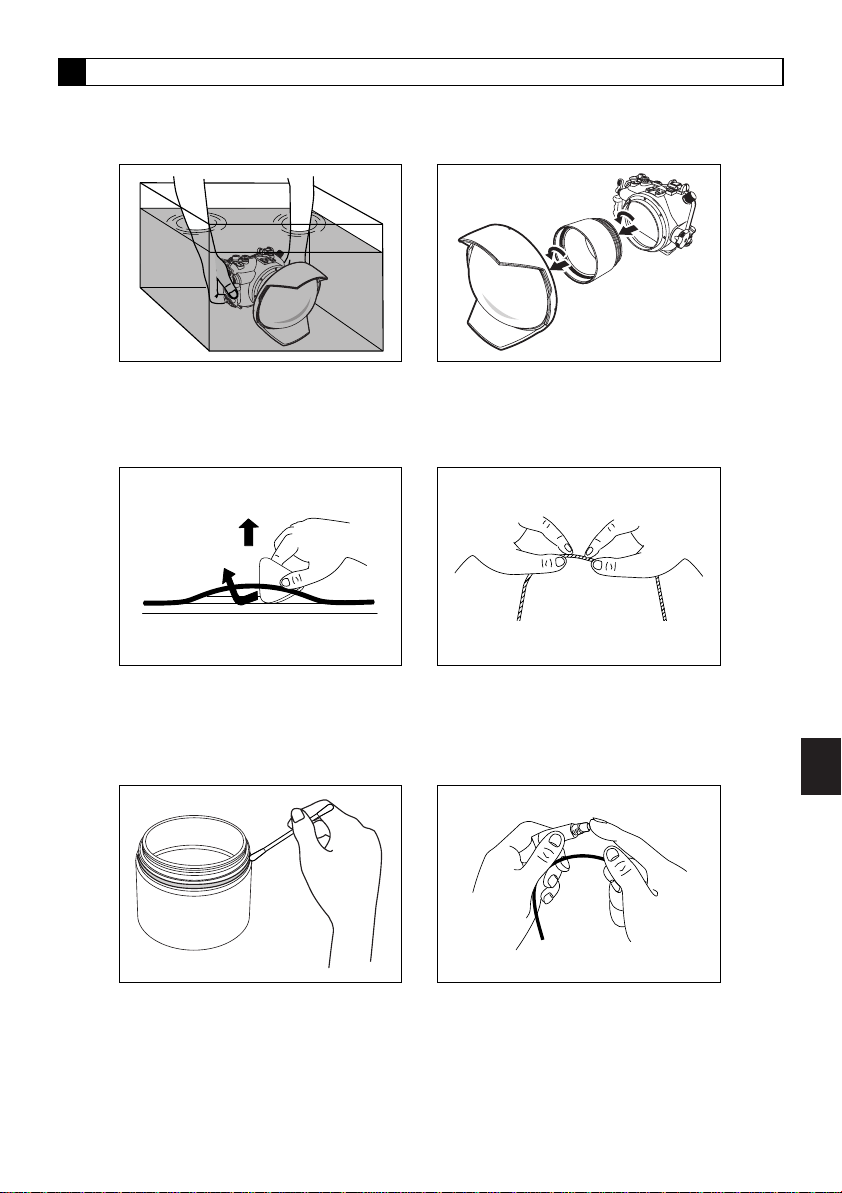

5 Maintenance
For safe use of this product, always perform maintenance after each diving session.
For details, refer to “Handling After Shooting” and “Maintaining the Waterproof Function” in the PT-E series
case instruction manual. Apply the same procedures to this product.
After shooting, remove the inserted camera and lens, then re-seal the empty
case and immerse it in tap water to
remove any salt as soon as possible.
Remove the O-rings from this product
using the provided pick for removing
O-rings. Take care not to damage the
O-rings.
After making sure that the PT-E series
case is completely dry, remove the
PPO-E04 lens port and the PER-E02
from the case.
Remove sand and dust from the O-rings.
Pinch each O-ring between your fingers
and lightly rub the entire circumference
to check for foreign matter, scratches
and cracks.
Remove any foreign matter attached to
the O-ring grooves with a clean, lint-free
cloth or cotton swab. Also remove any
foreign matter from the O-ring contact
surfaces, the PT-E series case’s port
mount thread and the PPO-E04 lens
port’s O-ring groove.
After removing foreign matter, apply the
provided grease to the O-rings and fit
them into the O-ring grooves.
To apply grease to each O-ring, squeeze
a drop of grease about the size of a
grain onto your finger and lightly rub the
entire circumference of the O-ring to
spread the grease thinly and evenly.
E-7
Page 9
6 Specifications
Applicable case : PT- E series
Corresponding lens port : PPO-E04
Applicable lens : ZUIKO DIGITAL ED 7-14mm F4.0
Main materials
Main body : Aluminum.
O-rings : Silicon rubber.
Front cap : ABS resin.
Rear cap : Polyethylene resin.
Withstanding pressure : Water depth of 60 m (200 ft)
Dimensions : Max. diameter 108 mm x Depth 75.6 mm
Weight : Approx. 370 g
Note) We reserve the right to change the external appearance and specifications without notice.
7 Consumable Items
This product uses the following consumable items.
■ Silicon O-rings
Product Model
POL-E101
O-ring for use with the PT-E series case.
Description
■ Grease for silicone O-ring
Product Model
PSOLG- 1
Shinjuku Monolith, 3-1 Nishi Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan
Two Corporate Center Drive, Po Box 9058, Melville, NY 11747-9058, U.S.A.
Tel. 631-844-5000
Technical Support (USA)
24/7 online automated help: http://www.olympusamerica.com/support
Phone customer support: Tel. 1-888-553-4448 (Toll-free)
Our phone customer support is available from 8 am to 10 pm
(Monday to Friday) ET
E-Mail: [email protected]
Olympus software updates can be obtained at:
http://www.olympus.com/digital/
© 2005 OLYMPUS IMAGING CORP.
Description
Grease for O-rings
Premises : Wendenstrasse 14-18, 20097 Hamburg, Germany
Goods delivery : Bredowstrasse 20, 22113 Hamburg, Germany
Letters : Postfach 10 49 08, 20034 Hamburg, Germany
European Technical Customer Support:
Please visit our homepage http://www.olympus-europa.com
or call our TOLL FREE NUMBER* : 00800 - 67 10 83 00
for Austria, Belgium, Denmark, Finland, France, Germany,
Italy, Luxemburg, Netherlands, Norway, Portugal, Spain,
Sweden, Switzerland, United Kingdom
*Please note that some (mobile) phone services/ provider do
not permit access or request an additional prefix to +800
numbers.
For all not listed European Countries and in case that you
can’t get connected to the above mentioned number please
make use of the following
CHARGED NUMBERS:
+49 180 5 - 67 10 83 or +49 40 - 237 73 899
Our Technical Customer Support is available from 9am to 6pm MET
(Monday to Friday)
Tel: +49 40-23 77 3-0 Fax: +49 40-23 07 61
E-8
Page 10
© 2005 OLYMPUS IMAGING CORP.
PER-E02_01Printed in Japan
Loading...
