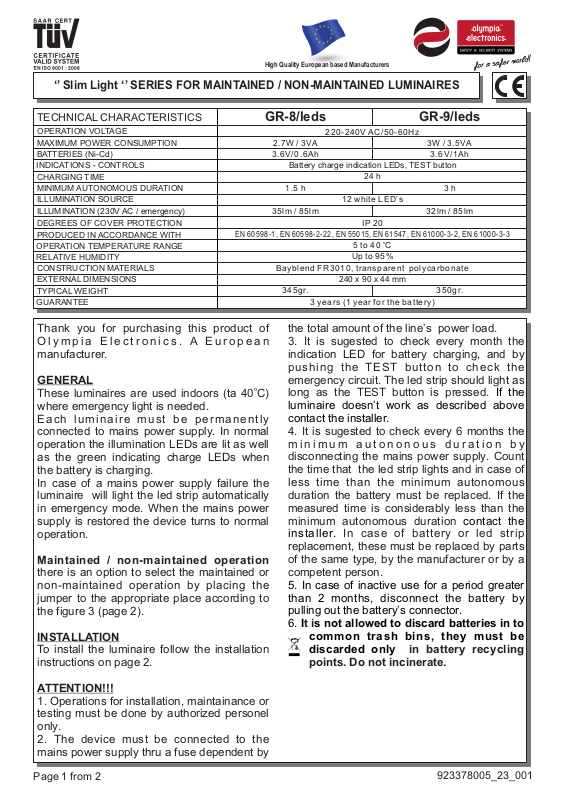

‘’ Slim Light ‘’ SERIES FOR MAINTAINED / NON-MAINTAINED LUMINAIRES
TECHNICAL CHARACTERISTICS
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
BATTERIES (Ni-Cd)
INDICATIONS - CONTROLS
CHARGING TIME
MINIMUM AUTONOMOUS DURATION
ILLUMINATION SOURCE
ILLUMINATION (230V AC / emergency)
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
CONSTRUCTION MATERIALS
EXTERNAL DIMENSIONS
TYPICAL WEIGHT
GUARANTEE
GR-8/leds GR-9/leds
EN 6 05 98 -1 , EN 6 05 98 -2 -2 2, Ε Ν 55 01 5, Ε Ν 61 54 7, Ε Ν 61 00 0- 3- 2, Ε Ν 61 00 0- 3- 3
Thank you for purchasing this product of
O l y m p i a E l e c t r o n i c s . A E u r o p e a n
manufacturer.
GENERAL
These luminaires are used indoors (ta 40 C)
o
where emergency light is needed.
Eac h l u min a i r e mu s t b e per m a n ent l y
connected to mains power supply. In normal
operation the illumination LEDs are lit as well
as the green indicating charge LEDs when
the battery is charging.
In case of a mains power supply failure the
luminaire will light the led strip automatically
in emergency mode. When the mains power
supply is restored the device turns to normal
operation.
Maintained / non-maintained operation
there is an option to select the maintained or
non-maintained operation by placing the
jumper to the appropriate place according to
the figure 3 (page 2).
INSTALLATION
To install the luminaire follow the installation
instructions on page 2.
2. 7W / 3 VA 3 W / 3. 5 VA
3. 6V / 0. 6A h 3. 6V / 1A h
35 lm / 8 5 lm 32 lm / 8 5 lm
Ba yb l en d FR 3 01 0, tr an spa re n t po ly c ar bon at e
34 5g r.
22 0- 2 40 V AC/5 0- 6 0H z
Battery charge indication LEDs, TEST button
1. 5 h 3 h
3 ye ar s ( 1 ye ar f o r th e bat te ry)
24 h
12 w hi t e LE D’ s
IP 2 0
o
5 to 4 0 C
Up t o 95 %
240 x 90 x 44 mm
35 0g r.
the total amount of the line’s power load.
3. It is sugested to check every month the
indication LED for battery charging, and by
pu s h i n g the TE S T b u tton to ch e c k t h e
emergency circuit. The led strip should light as
long as the TEST button is pressed.
luminaire doesn’t work as described above
contact the installer.
4. It is sugested to check every 6 months the
m i n i m u m a u t o n o n o u s d u r a t i o n b y
disconnecting the mains power supply. Count
the time that the led strip lights and in case of
less tim e than the minimum autonomous
duration the battery must be replaced. If the
measured time is considerably less than the
minimum autonomous duration
in stal ler.
In case of b atte ry or led s trip
contact the
replacement, these must be replaced by parts
of the same type, by the manufacturer or by a
competent person.
5. In case of inactive use for a period greater
than 2 months, disconnect the battery by
pulling out the battery’s connector.
6. I s not allowed to discard batteries in to
t i
commo n tr ash bins , th ey m ust be
discarded only
in battery recycling
points. Do not incinerate.
If the
ΑΤΤΕΝΤΙΟΝ!!!
1. Operations for installation, maintainance or
testing must be done by authorized personel
only.
2. The device must be connected to the
mains power supply thru a fuse dependent by
Page 1 from 2
923378005_23_001
Page 2
Figure 1
Diffusor
Installation instructions
41 2
Figure 3
Reflector
For fuse ratings
see text
Plastic base
3
Figure 2
Non-maintained
operation
Maintained
operation
Figure 4
1. To instal the device you have to dismantle carefully the device with a flat screwdriver as shown in
figure 1.
2. Pass the mains cables thru the hole (point 1 in figure 2). The luminaire must be connected to a
permanent electrical installation to ensure the immobilization of the cable.
3. Mount the base plastic on the wall by using the included mounting accessories in points 2 and 3 in
figure 2.
4. Connect the battery`s cable with the appropriate terminal (figure 3).
5. Connect the mains cables to the terminal block as shown in figure 4.
6. Refit with care the removed plastic parts and power on the luminaire.
NOTE!!
After finishing the installation you must power the luminaire at least for 24 hours for battery
charging to perform the named autonomy.
NOTE: LED= Light Emitting Diode
LABELING EXPLANATION:
X: Self contained
1: Maintained (*)
A: Including test device
90: 1.5 hour duration
(*) Maintained operation: The luminaire lights its
illumination source, when it is powered by the
mains power supply or not.
Non-Maintained operation: The luminaire lights its
illumination source, only in power supply’s
failure.
180: 3 hour duration
Battery replacement.
It can be done only by a competent person and after the mains interruption.
1. Dismantle the device (step 1 of the installation instructions).
2. Disconnect the connector and remove the old battery.
3. Connect the new battery with the same type (step 4 of the installation instructions) and place it in
the position of the old one.
4. Follow the step 6 of the installation procedure and power the device.
Page 2 from 2
