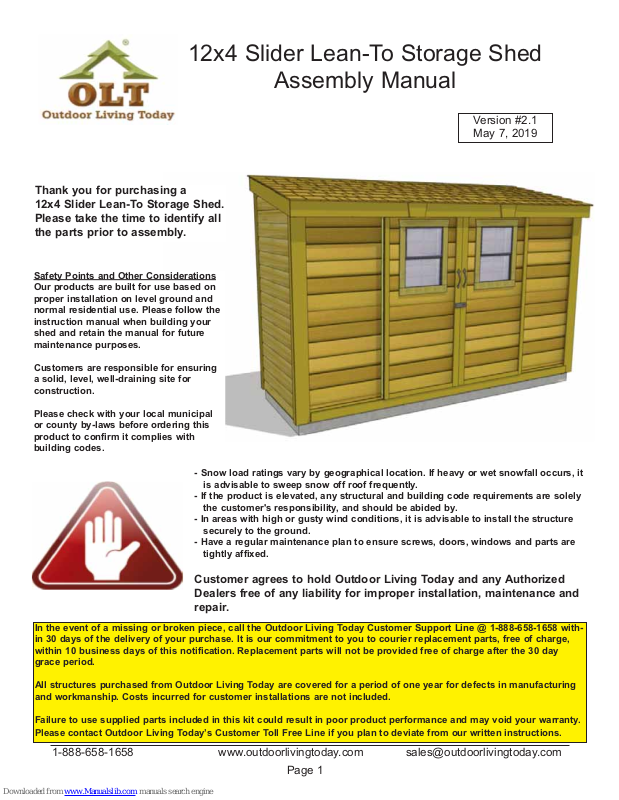

OLT S124D Assembly Manual

12x4 Slider Lean-To Storage Shed

Assembly Manual

Version #2.1
May 7, 2019

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 1

In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with­in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.

All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.

Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.

Thank you for purchasing a
12x4 Slider Lean-To Storage Shed.
Please take the time to identify all
the parts prior to assembly.

Safety Points and Other Considerations
Our products are built for use based on
proper installation on level ground and
normal residential use. Please follow the
instruction manual when building your
shed and retain the manual for future
maintenance purposes.

Customers are responsible for ensuring
a solid, level, well-draining site for
construction.

Please check with your local municipal
or county by-laws before ordering this
product to confirm it complies with
building codes.

- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it
is advisable to sweep snow off roof frequently.

- If the product is elevated, any structural and building code requirements are solely
the customer's responsibility, and should be abided by.

- In areas with high or gusty wind conditions, it is advisable to install the structure
securely to the ground.

- Have a regular maintenance plan to ensure screws, doors, windows and parts are
tightly affixed.

Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 2

Thank you for purchasing our 12x4 Slider Lean-To Storage Shed.
Please take the time to identify all the parts prior to assembly.

1. Floor Section

Floors

1A: 2 - 45 ½” x 70 ¾” - Floor Frames
1B: 4 - 1 ½” x 3 ½” x 67 3/4” - Floor Joists
1C: 7 - 1 ½” x 3 ½” x 45 ½” - Floor Runners
1D: 2 - 5/8” x 45 3/8” x 70 5/8” - Plywood Floor

2. Wall Section

Main Wall Panels

2A: 5 - 45 ½” x 75” - Side/Rear Wall Panels
2B: 5 - 1 5/8” x 2 ½” x 45 ½” - Bottom Wall Plates - Side/Rear Walls
2BB: 2 - 1 5/8” x 2 ½” x 35” - Bottom Wall Plates - Front Walls
2C: 2 - 35” x 73” - Front Wall Panels

Door Headers

2D: 2 - 2” x 3 ½” x 26 ¼” - Door Headers - Short
2E: 1 - 2” x 3 ½” x 84” - Door Header - Long (88” Aluminum Strip Attached)

Extender Walls

2F: 2 - Top Triangular Siding Pc for Angle Wall Extenders
2G: 2 - 45 ¼” - Angle Wall Extenders - Left/Right
2H: 3 - 9” x 45 ½” - Wall Extenders

Wall Cleats

2I: 1 - ¾” x 3 ½” x 84” - Horizontal Wall Cleat - Long
2J: 2 - ¾” x 3 ½” x 26 ¼” - Horizontal Wall Cleats - Short

3. Rafter and Roof Section

Rafters

3A: 9 - 1 ½” x 2 ½” x 54” - Rafters
3B: 2 - 1” x 3 ½” x 48” - Front Soffits - Left/Right
3C: 1 - 1” x 3 ½” x 45 ½” - Front Soffit - Center
3D: 2 - ½” x 3” x 48” - Rear Soffits - Left/Right
3E: 1 - ½” x 3” x 45 ½” - Rear Soffit - Center

Roofs

3F: 2 - ¾” x ¾” x 48” - Facia Nailing Strips
3G: 2 - Roof Panels - 51” w x 56” d (1 - Left 1- Right)
3H: 1 - Roof Panel - 45 ½” w x 56” d (Center)
3I: 8 - 5 ½” Wide x 16” to 18” long - Filler Shingles

4. Trim & Miscellaneous Section

Bottom Skirting

4A: 5 - ¾” x 4 ½” x 45 ¼” - Side/Rear Bottom Skirting (Bevel Siding)
4B: 3 - ½” x 4 ½” x 45 ¼” - Front Bottom Skirting

Filler Trim

4C: 4 - ½” x 2 ½” x 38” - Front Corner Filler Trims
4D: 4 - 7/8” x 2 ½” x 42” - Rear Corner Filler Trims

Door System

4E: 2 - Aluminum Door Tracks
4F: 2 - 36” x 73” - Sliding Doors
4G: 1 - ¾” x 3 ½” x 71 ¾” - Interior Door Flange
4H: 2 - 1 ½” x 2 ½” x 66 ½” - Lower Door Track
4I: 2 - ¾” x 3 ½” x 30 ½” - Lower Door Track Cover - Left/Right
4J: 1 - ¾” x 3 ½” x 72” - Lower Door Track Cover - Center
4K: 2 - ¾” x 1 ½” x 3” - Sliding Door Track Stops - Left/Right
4L: 1 - ¾” x 1 ½” x 4” - Sliding Door Track Stop - Center

Outer Wall Trim

4M: 2 - ½” x 5 ½” x 78 ½” - Front Corner Trims
4N: 2 - ½ x 2 ½” x 80” - Side Front Corner Trims
4O: 2 - ½” x 5 ½” x 88 ¾” - Rear Corner Trims
4P: 4 - ½” x 2 ½” x 88 ¾” - Side Rear Corner & Middle Trims

14-15

Steps

Steps

16-21

22

Steps

30-39

42-44

45-46

47-52

Steps

7-13

1-6

24-29

53-55

Parts List - Pages 2 and 3

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 3

4. Trim & Miscellaneous Section Cont.

Facia

4Q: 2 - ½” x 5 ½” x 54 1/8” - Side Facia (Angle Cut Ends)
4R: 4 - ½” x 5 ½” x 50 ½” - Front and Rear Facia - Left/Right
4S: 2 - ½” x 5 ½” x 45 ½” - Front and Rear Facia - Center
4T: 4 - Facia Detail Plates (5 ½” high)

Ridge Boards

4U: 3 - ½” x 4 ½” x 49 ¼” - Roof Ridge Boards

Windows

4V: 2 - Window Inserts 18 1/4”w x 23”h
4W: 2 - Window Trim Kits

1 - Top pc - 24 1/16” Length - Angle Cut Ends
3 - Side/Bottom pcs - 23” Length

Miscellaneous

4X: 1 - 45 ¼” - Extra Piece of Bevel Wall Siding

- Use if side/rear wall panel siding is damaged or to shim floor or door.

4Y: 1 - 36” - Extra Piece of Lap Siding

- Use if front wall panel siding is damaged

Steps

61

62-63

56-60

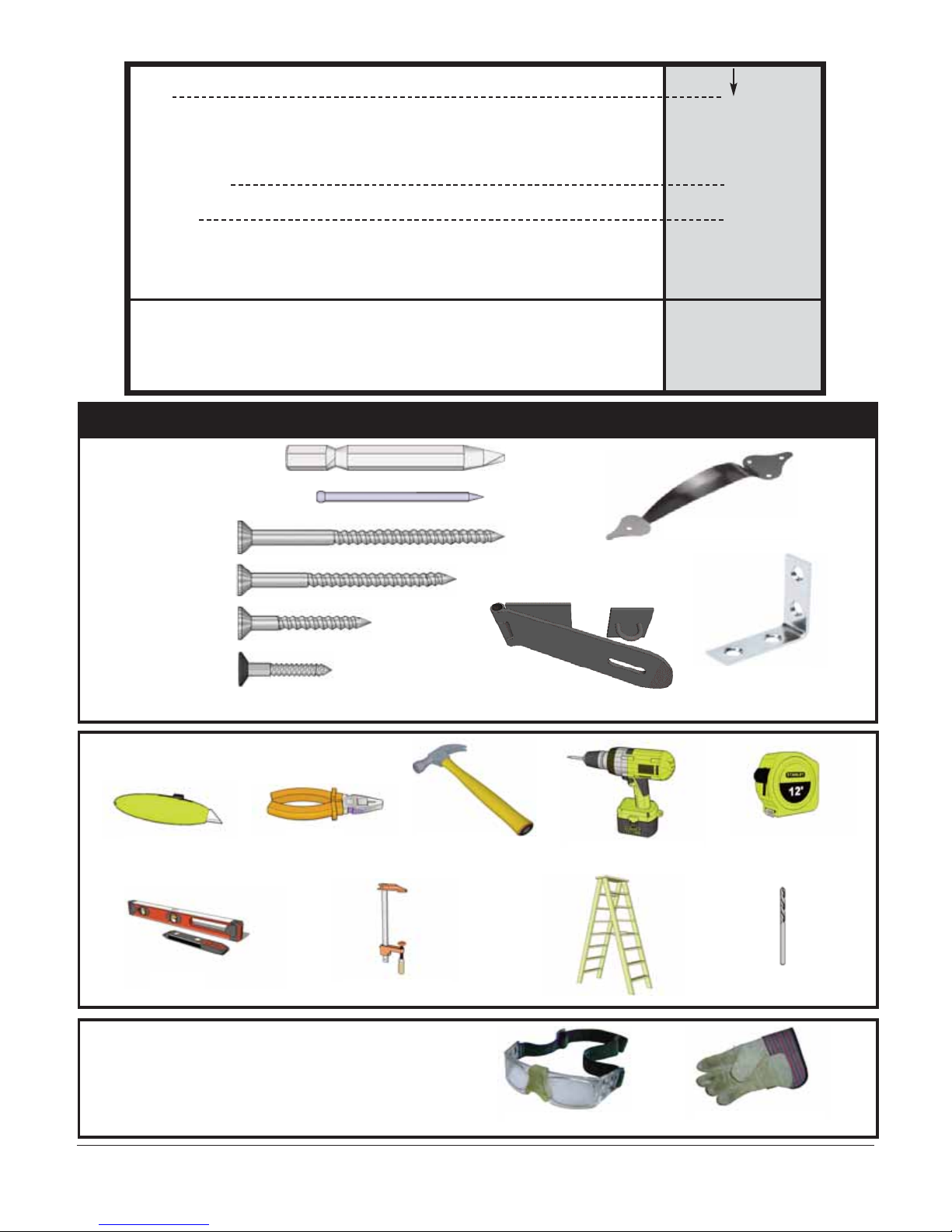

S1 - 2 1/2” Screws

S4 - 3” Screws

Y2 - 90° Metal
Bracket (Roof)

x 8

x 246

x 28

x 156

x 305

S2 - 1 1/4” Screws

N1 - 1 1/2” Finishing Nails

BR1 - Square Drive Bit

x 2

Y3 - Black Handle

x 2

Y11 - Black Hasp

x 1

x 20

SB1 - 3/4” Screws

Black Headed

Ladder

Screw Gun/Drill

Tape Measure

Hammer

Level

Pliers

Tools Required (Not Provided)

1/8” Drill Bit

Safety Glasses

Work Gloves

Safety Equipment Required

(Not Provided)

Wood Clamp

Utility Knife

12X4 Slider Storage Shed HARDWARE PACKAGE

Before starting your project become familiar with this assembly manual and determine if you can
complete the project yourself or will require a professional contractor. Please note that certain
counties and municipalities require building permits prior to installation. We recommend to all
consumers that they check with their local county/municipality for these specifics prior to purchasing
any of our products since this is your sole responsibility.

Prior to the product arriving, clear the construction area. Remove all debris; roots, grass, rocks, etc.
Make sure the ground slopes away from the site at least 10 feet in all directions. If necessary, build
up the soil in the center of the site and slope away for the high point to provide drainage. Fill in any
low spots within the perimeter of the site. A slope of 1/8 inch per foot is enough to prevent water
accumulation. We recommend excavating the site 4-6 inches deep and laying gravel or crushed
rock where drainage may be a concern.

What type of foundation should I use?

Patio Stone Foundation : If the ground is stable and has sufficient drainage, you can set patio

stones directly on firm compacted soil. If not, consider laying down sand and then gravel or crushed
rock. Excavate the site making it about 12” wider and longer than the floor footprint. Excavate down
approximately 4-6 inches deep. Lay 1-2 inches of sand first and then fill with 3-4 inches of gravel or
rock for good drainage and support. Most of our sheds and playhouses include floors with support
runners. Support each runner with 4-5 patio stones (less for smaller sheds). Patio stones can be
anything from a mid size brick to a round our square 12” long by 1 1/2” thick stone. Place stones
directly under the floor runners, check for level and adjust height as necessary. Having a solid and
level foundation is the most critical piece of work you can do to make the project go smoothly. Most
of this work can be done prior to your shed arriving!

4x4 Pressure Treated Beam Foundation : You can build directly on pressure-treated beams or
railroad ties laid on a properly prepared construction site as mentioned above. Run beams
perpendicular to floor runners. Use a 2x4 straight piece of lumber on edge and a carpenter's level
to position correctly. To prevent the beams from shifting, secure them with ½ inch rebar inserted
through holes drilled in the beams and driven 3 to 4 feet into the ground. Leave each side or end of
the foundation open to promote drainage and air circulation beneath the floor. Consider using a wire
mesh or equivalent to prevent pesky critters from gaining access on ends.

Concrete - Slab Foundation : Typically a slab 3-4 inches thick laid over a sub-base of 4 inches of
gravel or crushed rock is sufficient but may vary depending on your geographic location. Using
either mix your own concrete or having it delivered by truck, ready to pour, depends on how much
time and effort you have to dedicate to the project. In any event, make sure you excavate the slab
area to a depth 6 inches. This would put the finished slab surface approximately 2 inches above
ground (remember you will be using 4 inches of gravel as your subbase). For example, a slab for
our 8’x12’ SpaceMaker Shed will require approximately 1 cubic yard of premixed concrete.

For more detailed information on how to pour your concrete-slab foundation or any other questions
regarding specifications, foundations and permits, please visit our website at

www.outdoorlivingtoday.com

or call our Customer Support Line at 1-888-658-1658 to speak with

a Product Representative.

* Please note that all measurements in our Detailed Assembly Manuals may be subject to change without notice. Please
confirm exact foundation size with Outdoor Living Today if you have any concerns or questions.

What Can I Do Before My Shed Arrives?

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 4

You can find BR1 - Square
Drive Bit for the screws in
with the Hardware Kit Bag.

1. Floor Section

Flush with
framing

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 5

Plywood Floor - 2pcs.
(Part 1D)

Floor Frames - 2pcs.
(Part 1A)

Floor Runners - 7pcs.
(Part 1C)

Concrete Pad
(optional foundation method)

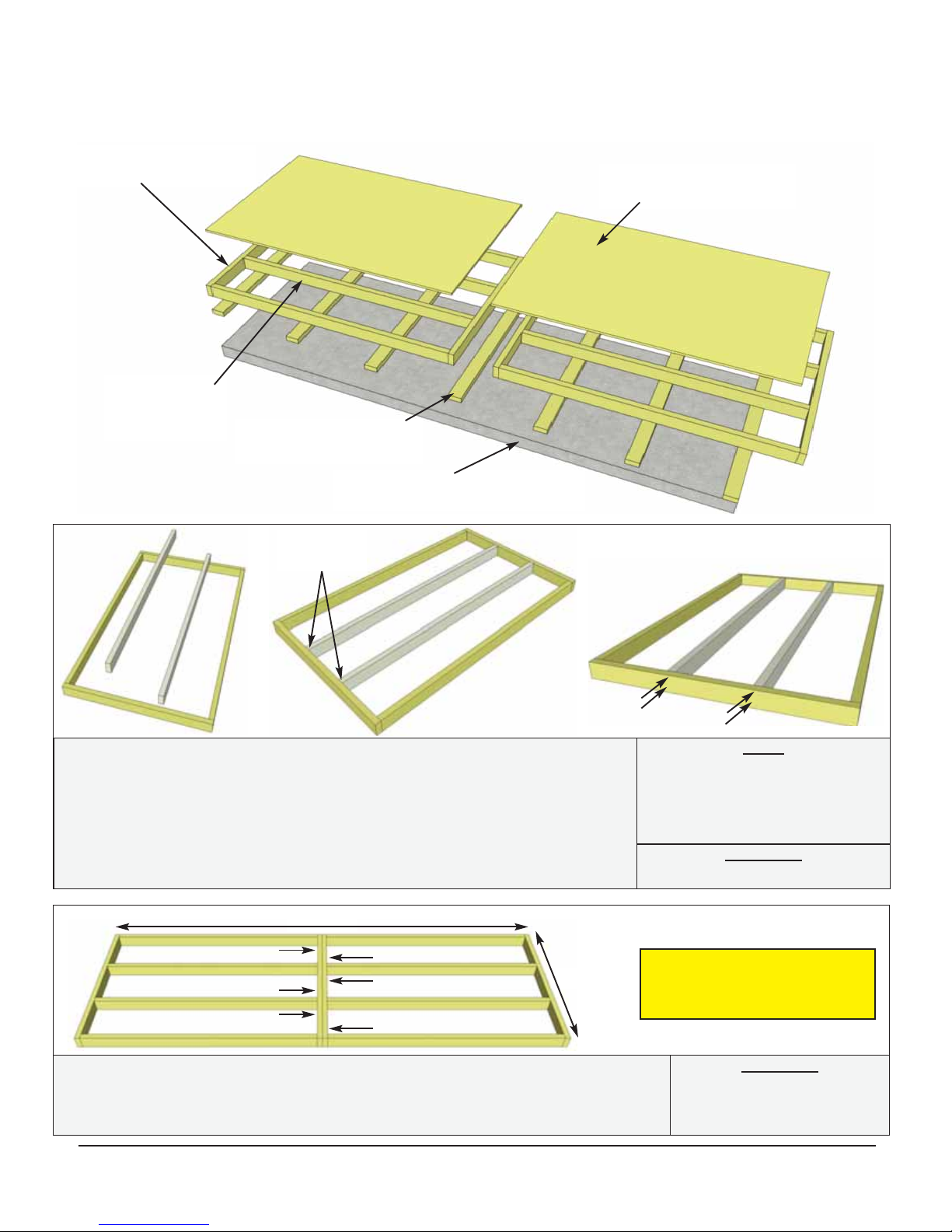

Exploded view of all parts necessary to complete
Floor Section. Identify all parts prior to starting.
Note: Floor Footprint is 141 1/2” wide x 45 1/2” deep.

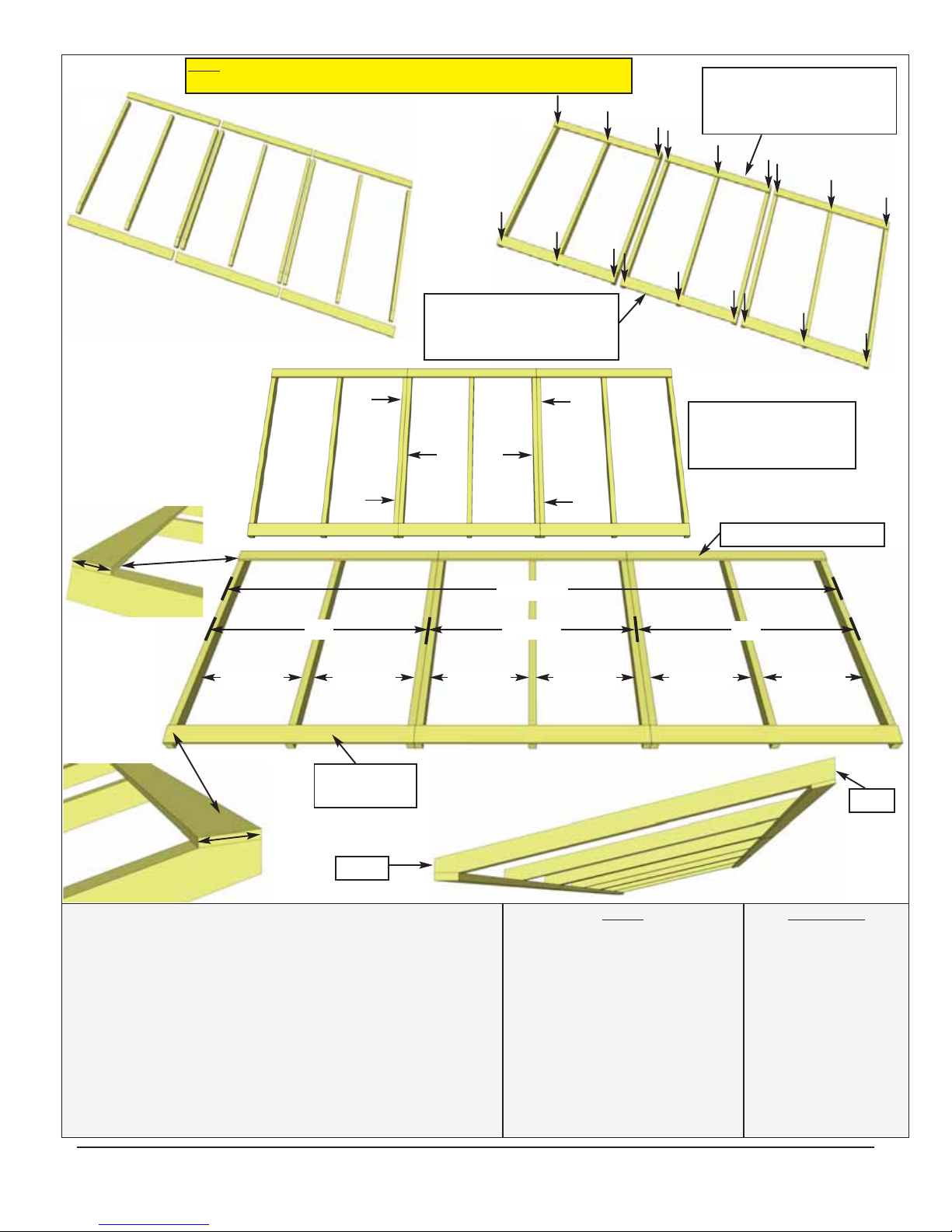

2. Lay out both complete floor joist frames as illustrated. The footprint for the

floor when attached together will be 141 1/2” wide x 45 1/2” deep. Attach
frames together with 6 - 2 1/2” Screws.

Hardware

S1 - 2 1/2” Screws x 16 total

1. Lay out 1A - Floor Frame and two 1B - Floor Joists as illustrated

above. Position Joists so they are spaced equally in Floor Frame and
flush with framing. When correctly positioned, attach each Joist with

4 - 2 1/2” Screws (2 per end). You can find the Square Drive Screw
Bit in the Hardware Kit Bag. Complete remaining Floor Frame the

same.

Parts

1A - Floor Joist Frames

(45 1/2” x 70 3/4”) x 2

1B - Floor Joists

(1 1/2” x 3 1/2” x 67 3/4”) x 4

Center Floor
Joists - 4pcs.
(Part 1B)

Hardware

S1 - 2 1/2” Screws

x 6 total

141 1/2”

45 1/2”

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 6

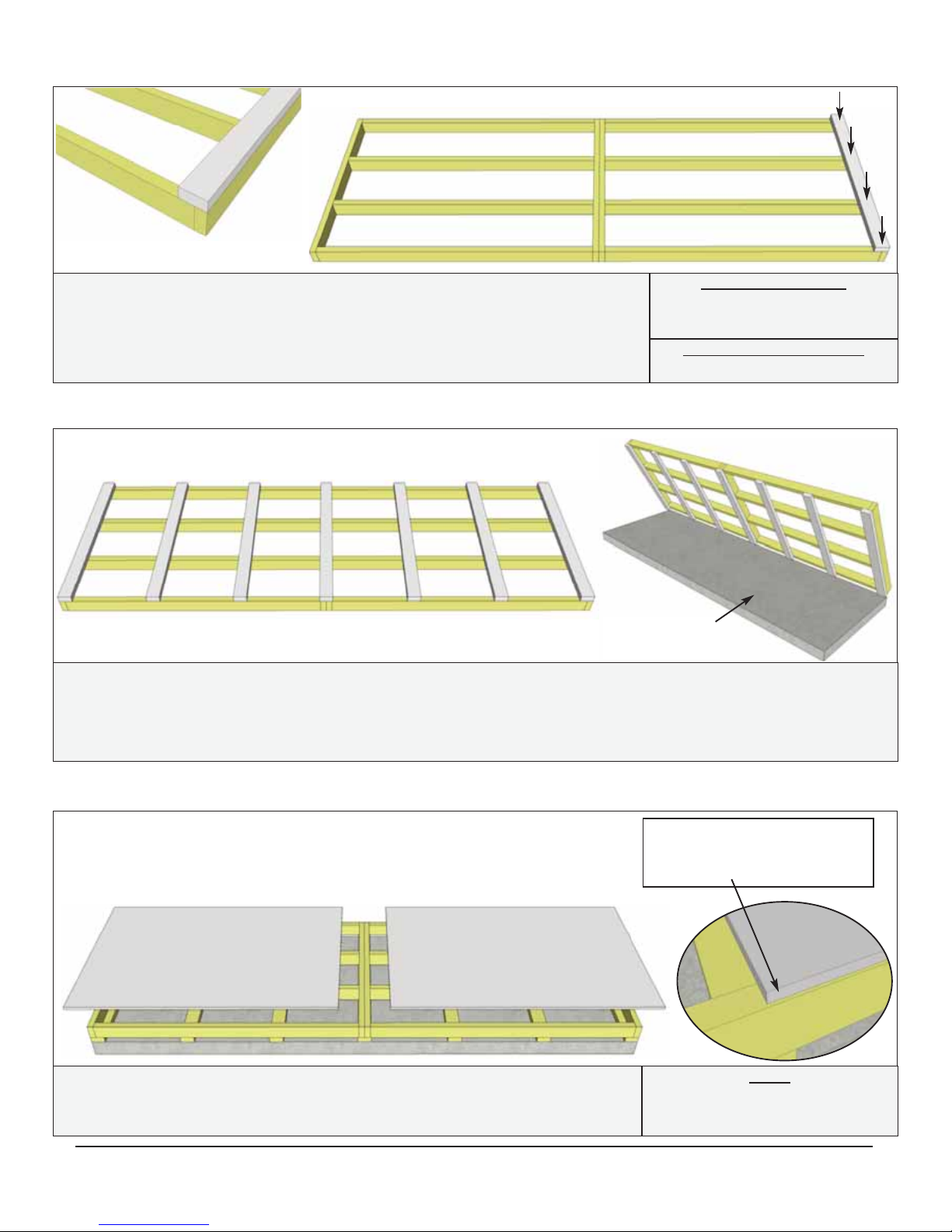

3. Position 1C - Floor Runners on completed floor frame so runners are

flush but not overhanging. Attach with 4 - 2 1/2” Screws per runner. There
are 7 floor runners in total.

Parts (Steps 3 - 4)

1C - Floor Runners

(1 1/2” x 3 1/2” x 45 1/2”) x 7

Hardware (Steps 3 - 4)

S1 - 2 1/2” Screws x 28 total

4. Complete remaining floor runners as shown above. With Floor Runners attached, carefully flip the floor

over and place on your foundation. Caution - Be careful when laying floor down not to bend or twist floor.
Note: Having a level foundation is critical. Choosing a foundation will vary between regions. Typical

foundations can be concrete pads or patio stones positioned underneath the floor runners.

Concrete Slab
Foundation

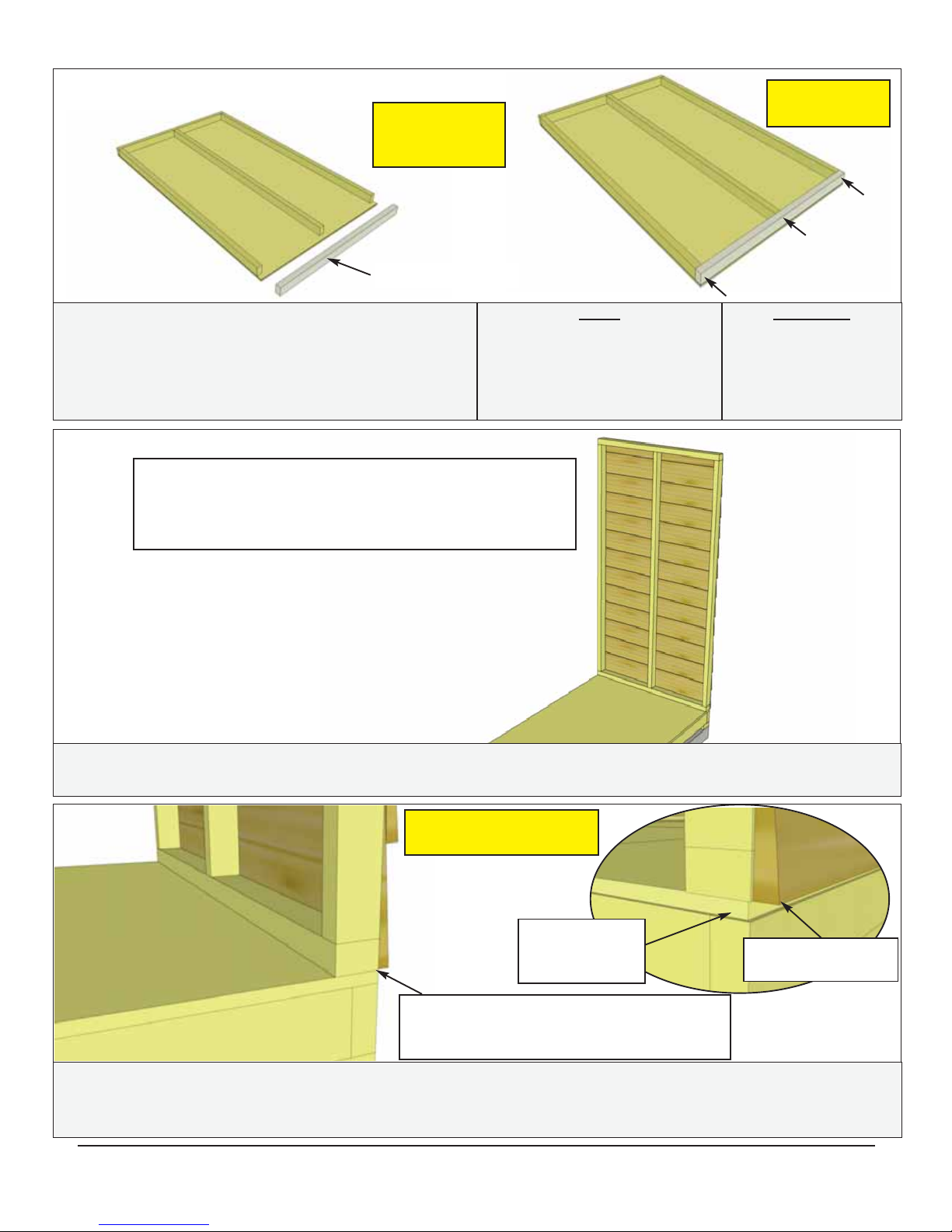

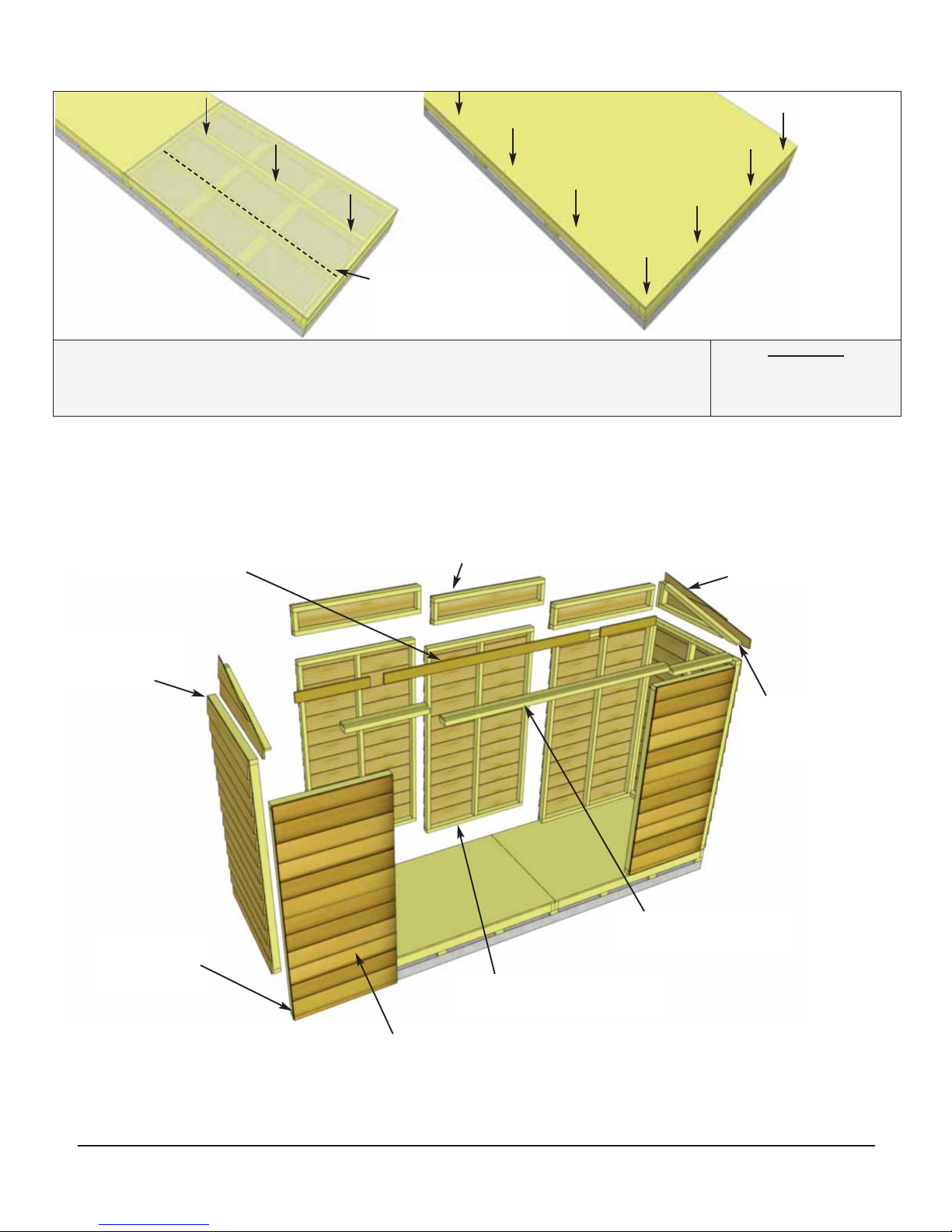

5. Position 1D - Plywood Floor on top of completed floor frames.

Plywood will sit slightly inset from outside of floor frame.

Parts

1D - Plywood Floor

(5/8” x 45 3/8” x 70 5/8”) x 2

Note: Plywood is cut slightly

smaller than floor framing.
Keep plywood seams tight.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 7

6. With Plywood positioned correctly on floor framing, attach with 1 1/4” Screws.

Use screws every 16” around perimeter of each floor section and 3 screws
through each mid joists.

Hardware

S2 - 1 1/4” Screws

x 40 total (approx.)

Advice: Use chalk line to
mark location of mid
joists for interior screws.

2. Wall Section

Exploded view of all parts necessary to
complete the Wall Section. Identify all
parts prior to starting.

Angled Wall
Extenders - 2pcs.
(Part 2G)

Side/Rear Wall
Panels - 5pcs.
(Part 2A)

Bottom Wall Plates - 5pcs.
(Part 2B)

Front Wall Panels - 2pcs.
(Part 2C)

Horizontal Wall Cleats ­3pcs. (Parts 2I & 2J)

Wall Extenders ­3pcs. (Part 2H)

Door Headers - 3pcs.
(Parts 2D & 2E)

Top Triangular
Siding Piece - 2pcs.
(Part 2F)

Bottom Wall
Plates - 2pcs.
(Part 2BB)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 8

Bottom Wall Plate

You can find BR1 ­Square Drive Bit for
the screws in with the
Hardware Kit Bag.

7. Carefully lay 2A - Side/Rear Wall Panels face

down. Position and attach 2B - Bottom Wall Plates
to bottom of wall studs of each wall panel with
3 - 2 1/2” Screws. Position so plates are flush with
framing. Complete 4 remaining solid walls.

Parts

2A - Side/Rear Wall Panels
(45 1/2” wide x 75” high) x 5

2B - Bottom Wall Plates

(1 5/8” x 2 1/2” x 45 1/2”) x 5

Hardware

S1 - 2 1/2” Screws

x 15 total

Ensure bottom plate
is flush side-to-side
with wall studs

Important: Make sure all walls are aligned in their

upright position. If not, water may leak into your shed.
Unsure if panel is facing up or down?
Recently attached Bottom Plate is on bottom of panel.

Outside 2x3 framing of wall panel should
be positioned flush with the outside of
floor framing when properly aligned.

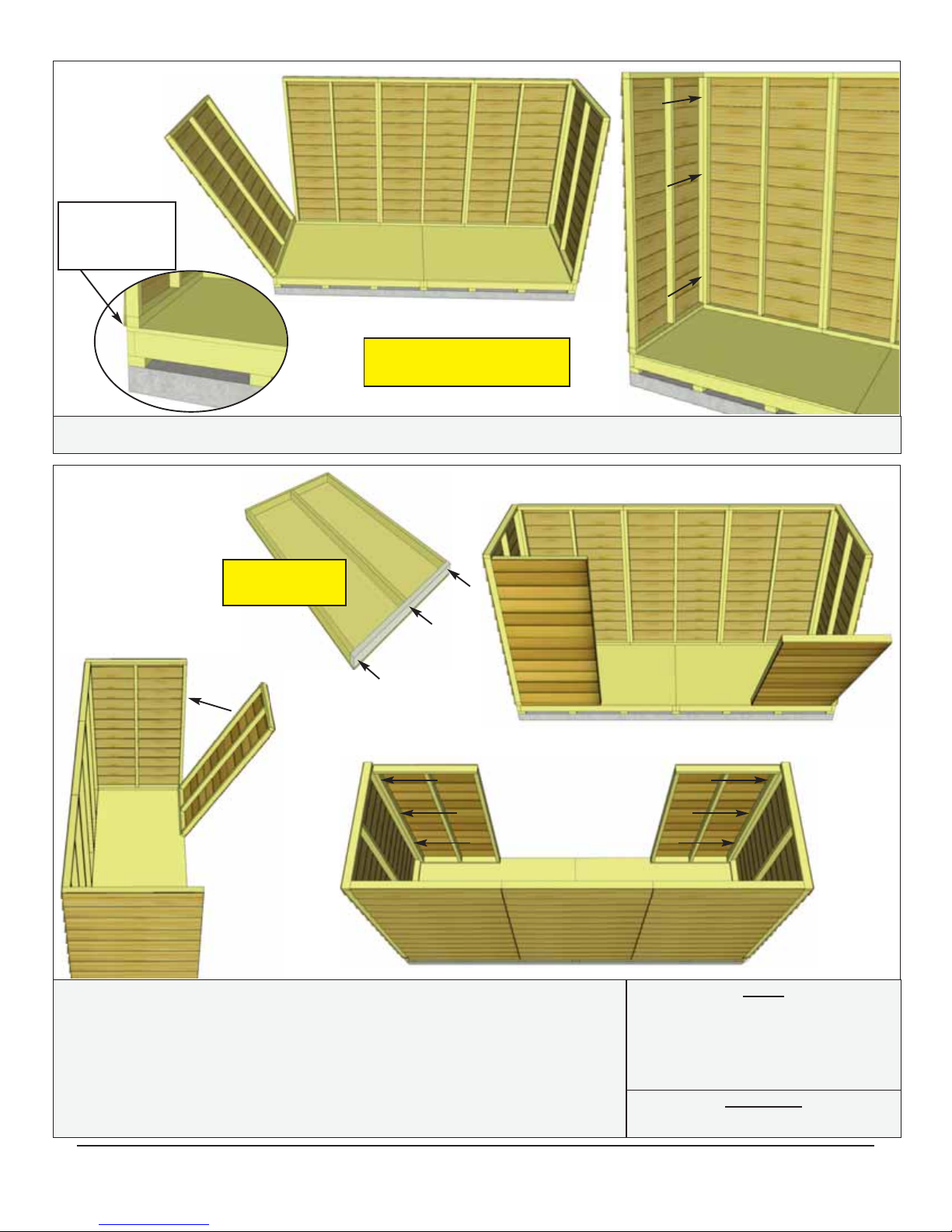

9. The rear wall panels will sit even with the floor frame and the sidewall panels will be sandwiched

between the front and rear wall panels. The floor plywood may be slightly recessed.

Note: Siding will overhang the floor frame by approximately 3/4”.

8. Starting on one side, position a Solid Wall Panel on top of plywood floor. The Wall Panel bottom framing

will sit flush with the outside of the floor frame. Wall siding will overhang the floor.

Siding overhangs
floor frame by 3/4”

Floor plywood
may be slightly
recessed

Do Not Attach Walls
To Floor until Step 23.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 9

Side Solid Wall

Rear Solid Wall

Be sure that the rear
wall panels fit
between the side wall
panels (sandwiched).

Optional - Caulking
seams will help prevent
moisture from entering
at seam. Caulking not

included in kit.

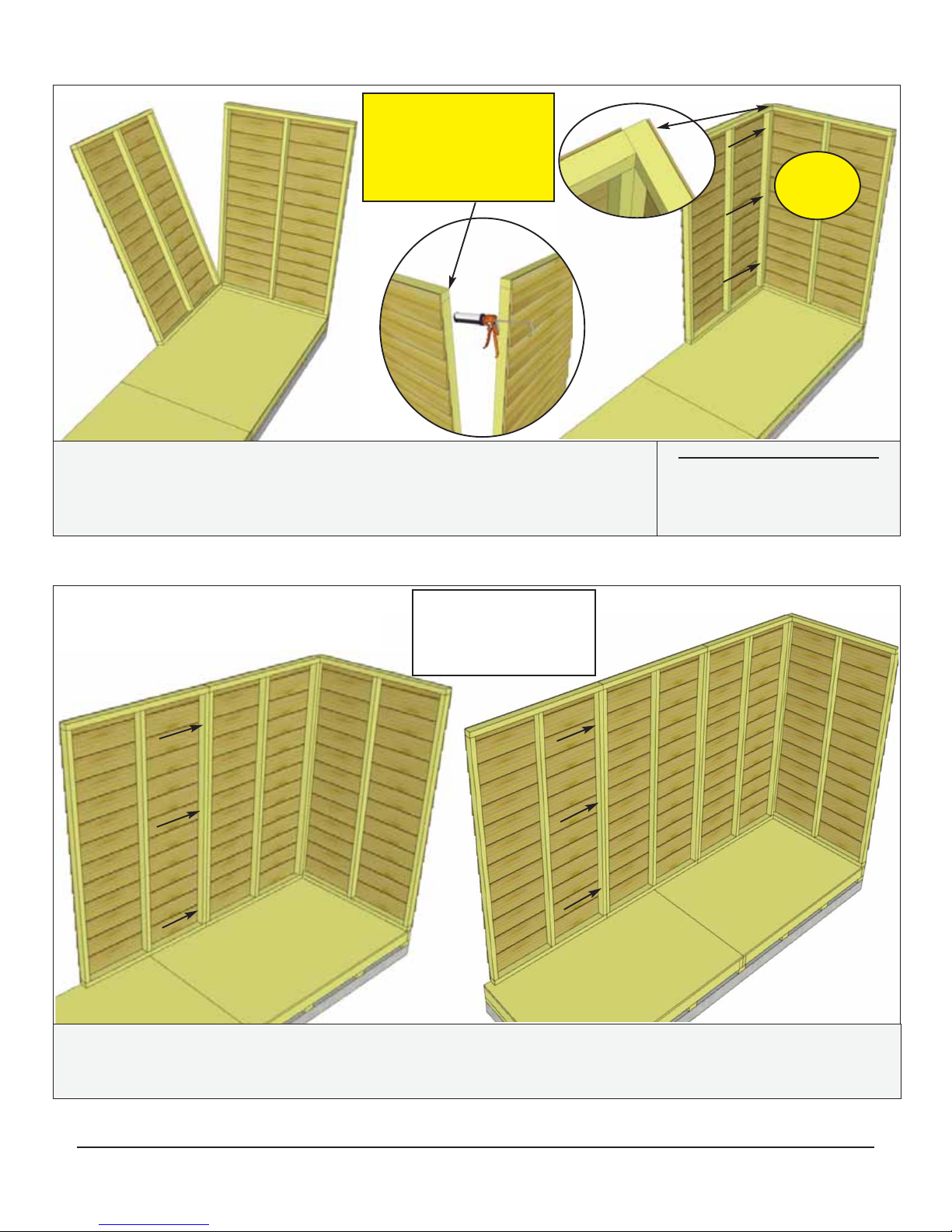

11. With the corner wall attachment complete, position a second rear wall panel in place so bottom

2x3 wall framing is sitting flush with outside floor joists. Wall siding should overhang floor by
approximately 3/4”. When positioned correctly, attach both side wall panel studs together as per Step 10.

10. Position rear solid wall into place on plywood floor. Butt both vertical wall

studs of side and rear walls together and attach with 3 - 2 1/2” Screws.
Screw at the bottom, middle and top of stud to secure properly.
Note: Drill pilot holes in studs to prevent splitting.

Hardware (Steps 10 - 12)

S1 - 2 1/2” Screws

x 12 total

Pilot Hole

first.

Side Wall

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 10

Wall panel will
sit flush with
floor framing.

Do Not Attach Walls To
Floor Until Step 23

13. Carefully lay 2C - Front Wall Panels face down. Position and

attach 2BB - Bottom Wall Plates to bottom of wall studs of each wall
panel with 3 - 2 1/2” Screws as per Step 7. Complete other remaining
Front Wall.
Place Front Walls in front and attach with 3 - 2 1/2” Screws per panel
as per Steps 10 - 12.

12. Complete remaining side wall attachment as per Steps 10 - 11.

Front of Shed

Parts

2C - Front Wall Panels

(35” wide x 73” high) x 2

2BB - Bottom Wall Plates

(1 5/8” x 2 1/2” x 35”) x 2

Hardware

S1 - 2 1/2” Screws x 12 total

Ensure bottom plate
is flush side-to-side
with wall studs

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 11

14. Position 2D - Door Header - Short on top

of wall stud so it is flush on the inside with 2x3
wall stud. Attach by screwing down into top wall
framing with 3 - 3” Screws.

Parts (Step 14 - 15)

2D - Door Headers - Short

(2” x 3 1/2” x 26 1/4”) x 2

2E - Door Header - Long

(2” x 3 1/2” x 84”) x 1

Hardware (Step 14 - 15)

S4 - 3” Screws

x 10 total

S2 - 1 1/4” Screws

x 2 total

Step to front
and top.

Align flush
outside with
wall siding.

15. Attach 2D - Door Header - Short to other side. Position and attach 2E - Door Header - Long

between short door headers. The Long Door Header has an aluminum strip attached to the back for added
support. Attach by screwing down into wall framing with 2 - 3” Screws per side. Fasten aluminum strip to
short headers with 1 - 1 1/4” Screw per side.

Aluminum strip on back
of Long Door Header

Door Header
overhangs
inside wall
framing by 1/2”

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 12

5 1/2”

5 1/2”

Top Siding Pc.

Top Siding Pc. for Angle Wall
can also be installed after Roof
is attached after Step 41.

Side Wall Panel

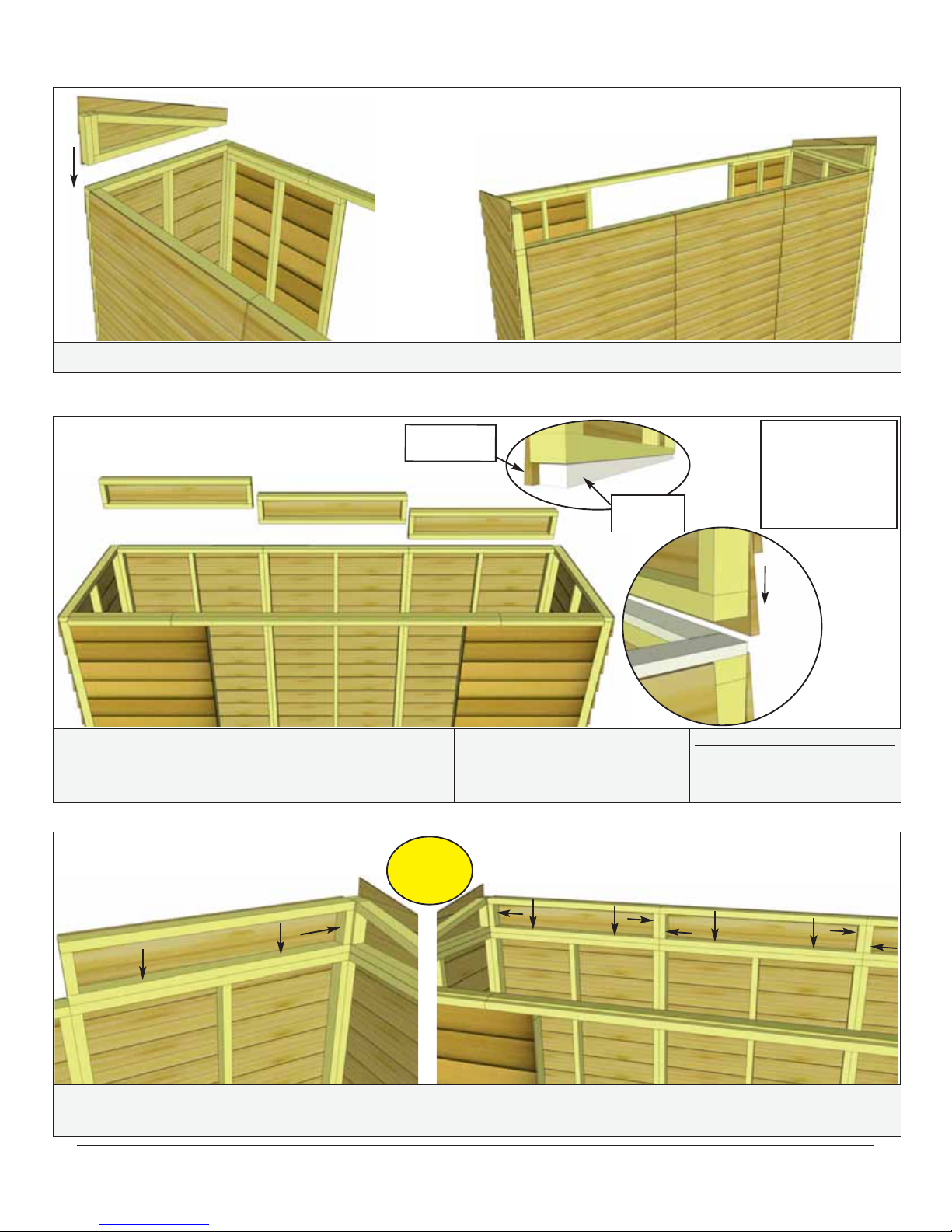

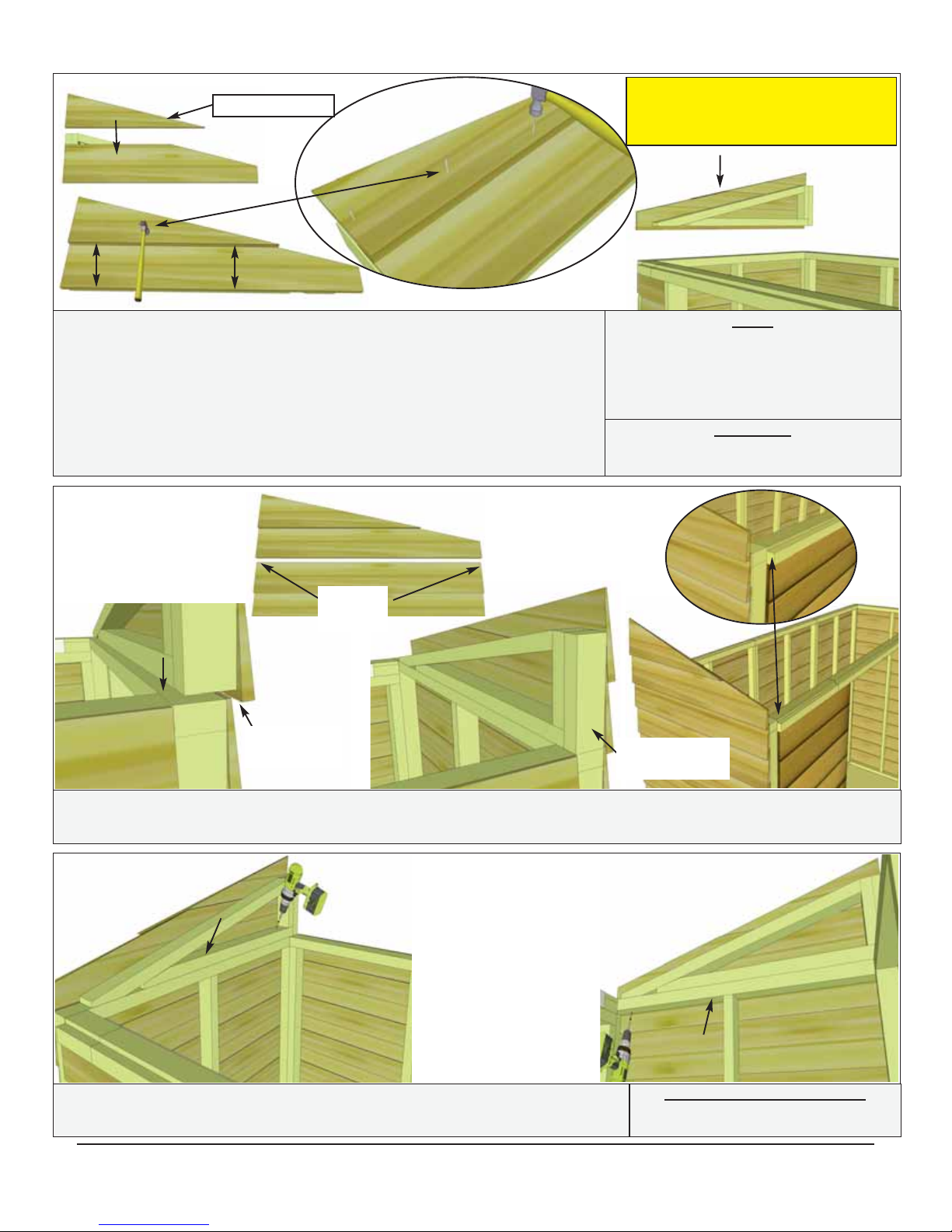

16. Position 2F - Top Triangular Siding Piece onto

2G - Angle Wall Extender and align as shown above. Attach with
3 - 1 1/2” Finishing Nails to top frame of extender wall. There are

left/right top siding pieces. Use rough surface side out. Place finished
wall extender on side wall panel frame. Complete both sides now.
Note: Bottom siding of wall extender will overhang and cover siding
of side wall.

Parts

2G - Angle Wall Extenders - L/R

(2G - 45 1/2” wide) x 2

2F - Top Triangular Siding Piece

(2F - Left/Right) x 2

Hardware

N1 - 1 1/2” Finishing Nails x 6 total

17. Align wall framing of Angled Wall Extendor and Side Wall so they are flush at the back. The siding for

both walls should also align evenly from front to back.

Wall framings
flush.

Siding
lines up.

Sidings will
overlap.

18. With Angled Wall Extendor and Side Wall aligned correctly, secure

together from the inside with 4 - 2 1/2” Screws.

Hardware (Steps 18 - 19)

S1 - 2 1/2” Screws x 8 total

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 13

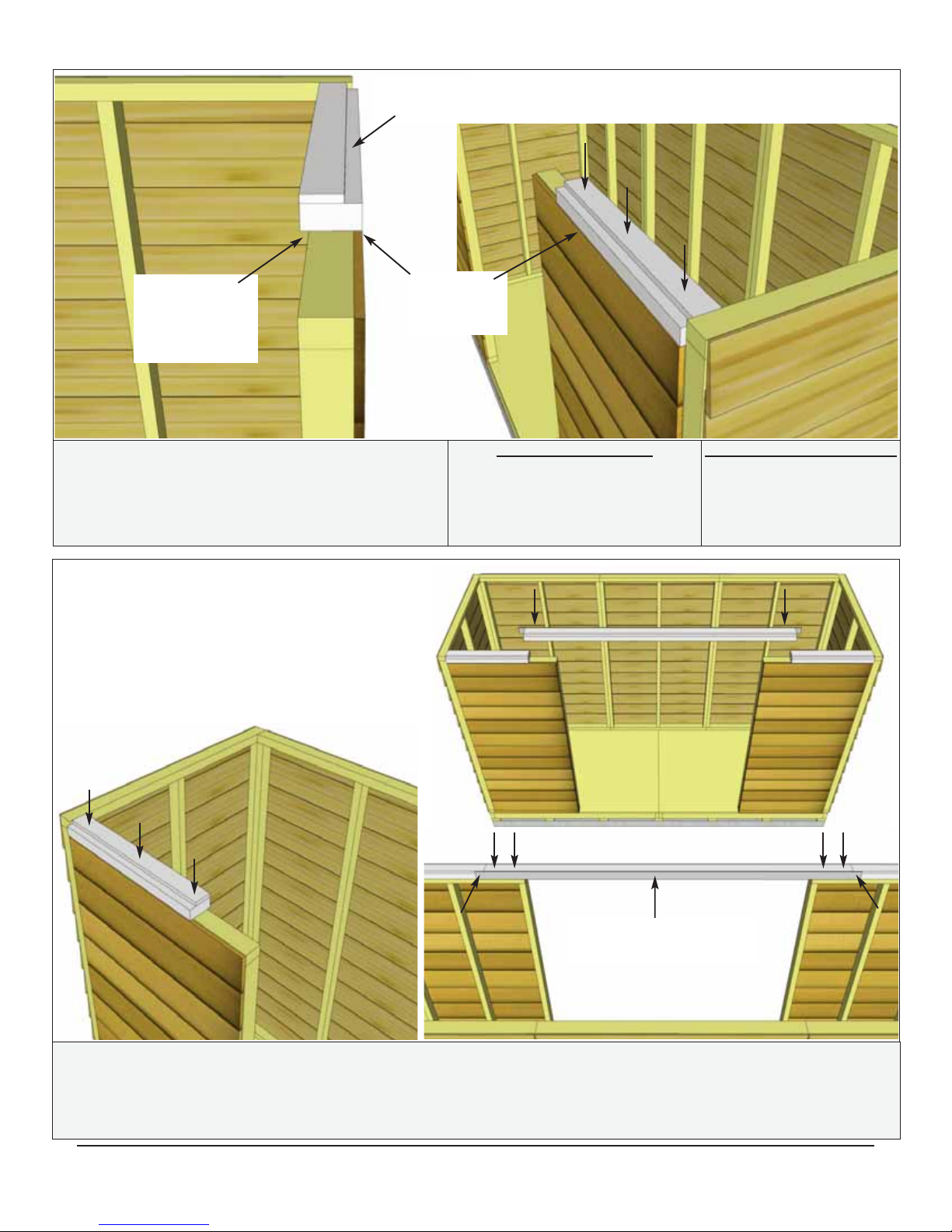

20. Place 2H - Rear Extender Walls top framing

of rear wall with bottom siding overlapping that of
the rear wall.

Parts (Steps 20 - 21)

2H - Rear Extender Walls

(2H - 45 1/2” wide) x 3

Hardware (Steps 20 - 21)

S1 - 2 1/2” Screws

x 12 total

Cleat protects
overhanging siding
on upper walls from
damage. Please
remove before
installing.

Overhanging
siding.

Protective
cleat

19. Complete opposite Angled Wall Extendor positioning and attachment as per Step 18.

21. With 2x3 wall framing aligned, attach extender walls to rear wall top plate with 4 - 2 1/2” Screws per

wall.

Pilot Hole

first.

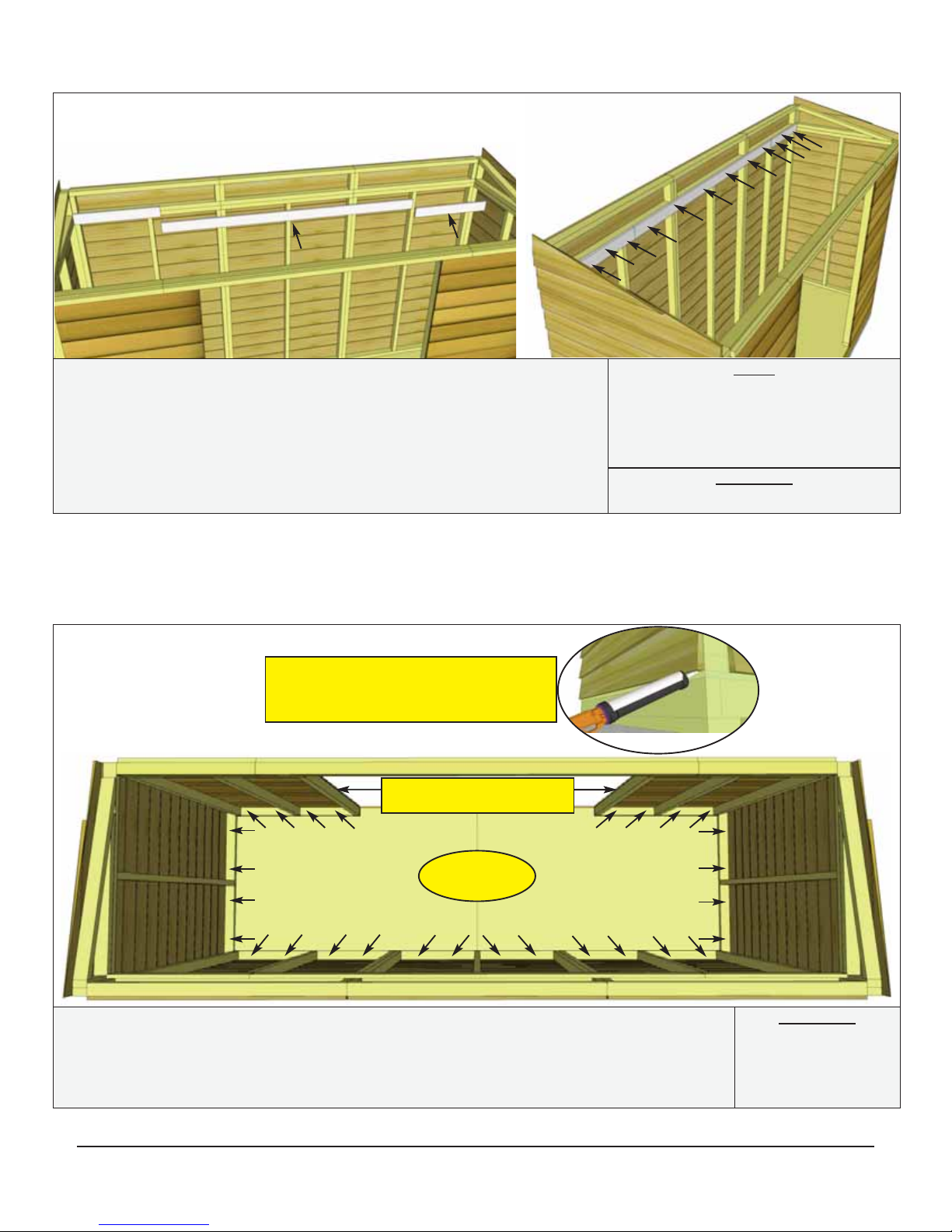

22. Attach 2I & 2J - Horizontal Wall Cleats to Wall Extender bot-

tom framing and Rear Wall top framing so that cleat is flush with
extender framing. There are two short cleats and one long cleat.
Alternate alignment of screws, so half screw into Wall Extender
Framing and half into Rear Wall Top Framing. Use 3 - 1 1/4” Screws
per short cleat and 6 - 1 1/4” Screws on the long cleat.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 14

Parts

2I - Horizontal Wall Cleat - Long

(3/4” x 3 1/2” x 84”) x 1

2J - Horizontal Wall Cleats - Short

(3/4” x 3 1/2” x 26 1/4”) x 2

Hardware

S2 - 1 1/4” Screws x 12 total

23. To complete Wall Section, attach bottom 2x3 wall plates to plywood floor with

2 - 2 1/2” Screws per wall section. Confirm Doorway opening is 66 1/2” wide. Prior to

securing, make sure wall panels are aligned correctly on the floor. Refer to Step 9. Wall
siding should overhang floor while 2x3 wall plates should sit flush with floor.

Hardware

S1 - 2 1/2” Screws

x 28 total

Bottom Wall

Optional - Caulking seams will help
prevent moisture from entering at
seam. Caulking not included in kit.

Pilot

Hole first.

Confirm Doorway opening is
66 1/2” wide at top and bottom.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 15

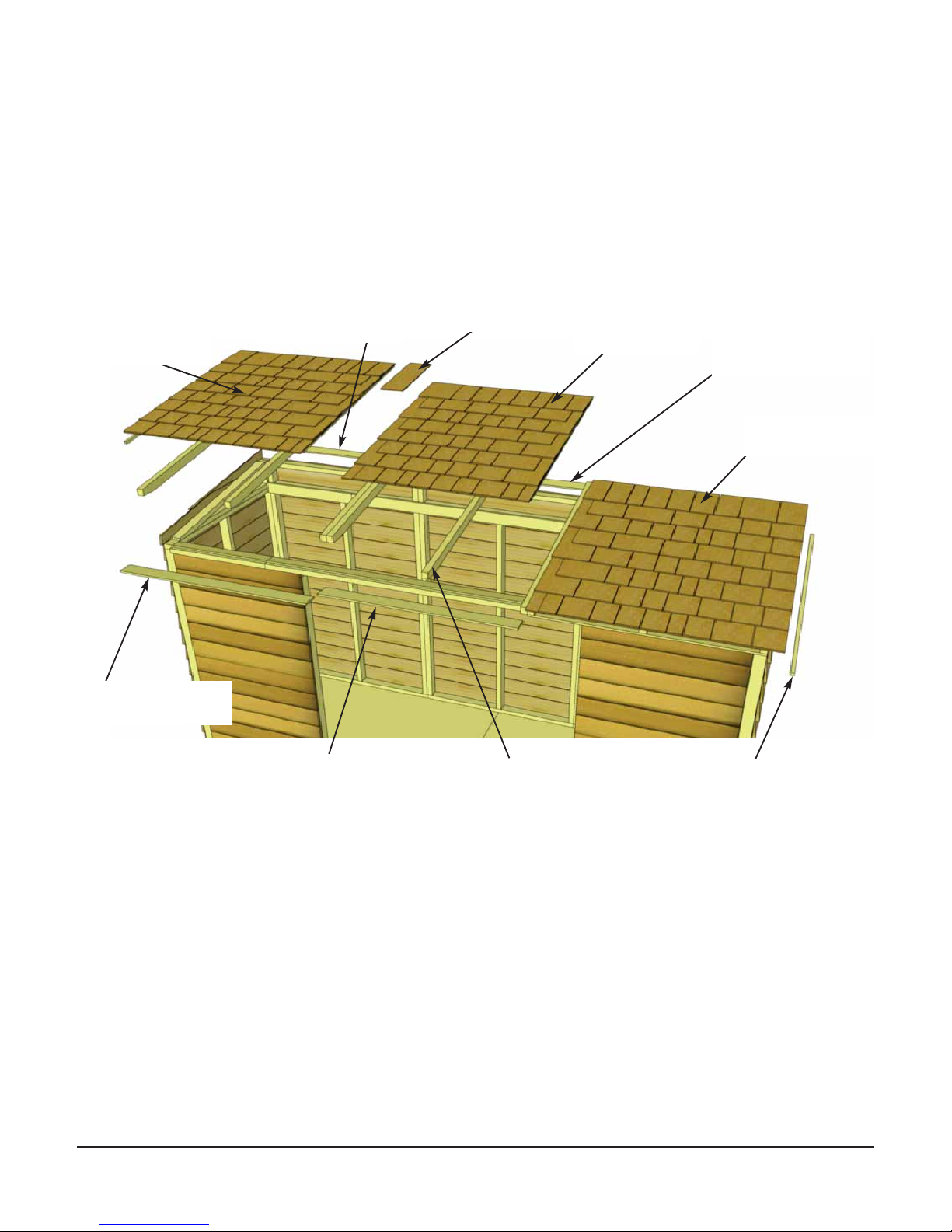

3. Rafter and Roof Section

Exploded view of all parts necessary to complete the Rafter and Roof Section. Identify all parts
prior to starting.

Left Roof Panel
(Part 3G)

Right Roof
Panel (Part 3G)

Rear Soffits - L/R

- 2pcs (Part 3D)

Rafters - 9pcs
(Part 3A)

Filler Shingles ­8pcs. (Part 3I)

Facia Nailing Strips

- 2pcs (Part 3F)

Center Roof
Panel (Part 3H)

Rear Soffit - Center

- 1pc (Part 3E)

Front Soffits - L/R

- 2pcs (Part 3B)

Front Soffit - Center

- 1pcs (Part 3C)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 16

24. Locate 3A - Rafters, 3B & 3C - Front Soffits and

3D & 3E - Rear Soffits. Lay out on level ground and

assemble as shown above in Illustrations A through C
below. Attach Soffit Boards flush to end of outside
rafters. Attach Front Soffits with 2 - 2 1/2” Screws per
rafter end. Attach Rear Soffits with 2 - 1 1/4” Screws
per rafter end.
Important: Drill pilot holes in Soffit ends to prevent
splitting. Attach double rafters as illustrated above with
3 - 2 1/2” Screws per rafter/rafter connection.

3 1/2” wide

3” wide

3 1/2” wide
Front Soffits

21 3/4”

48”

45 1/2”

48”

3” wide Rear Soffits

20 1/2”21 3/4” 20 1/2” 21 3/4”

21 3/4”

Front

Rear

141 1/2”

Parts

3A - Rafters

(1 1/2” x 2 1/2” x 54”) x 9

3B - Front Soffits - Sides

(1” x 3 1/2” x 48”) x 2

3C - Front Soffit - Center

(1” x 3 1/2” x 45 1/2”) x 1

3D - Rear Soffits - Sides

(1/2” x 3” x 48”) x 2

3E - Rear Soffit - Center

(1/2” x 3” x 45 1/2”) x 1

Hardware

S1 - 2 1/2” Screws

x 24 total

S2 - 1 1/4” Screws

x 18 total

A.

B.

Front Soffit

C.

Screw double
rafters together with
3 - 2 1/2” Screws.

Screw Front Soffits to
Rafters with 2 - 2 1/2”
Screws per rafter end.

Note: We recommend you drill a 1/8” pilot hole for each screw, to avoid
splitting wood. The hole depth should be equal to 3/4 the length of screw.

Rear Soffit

Front Soffit

Screw Rear Soffits to
Rafters with 2 - 1 1/4”
Screws per rafter end.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 17

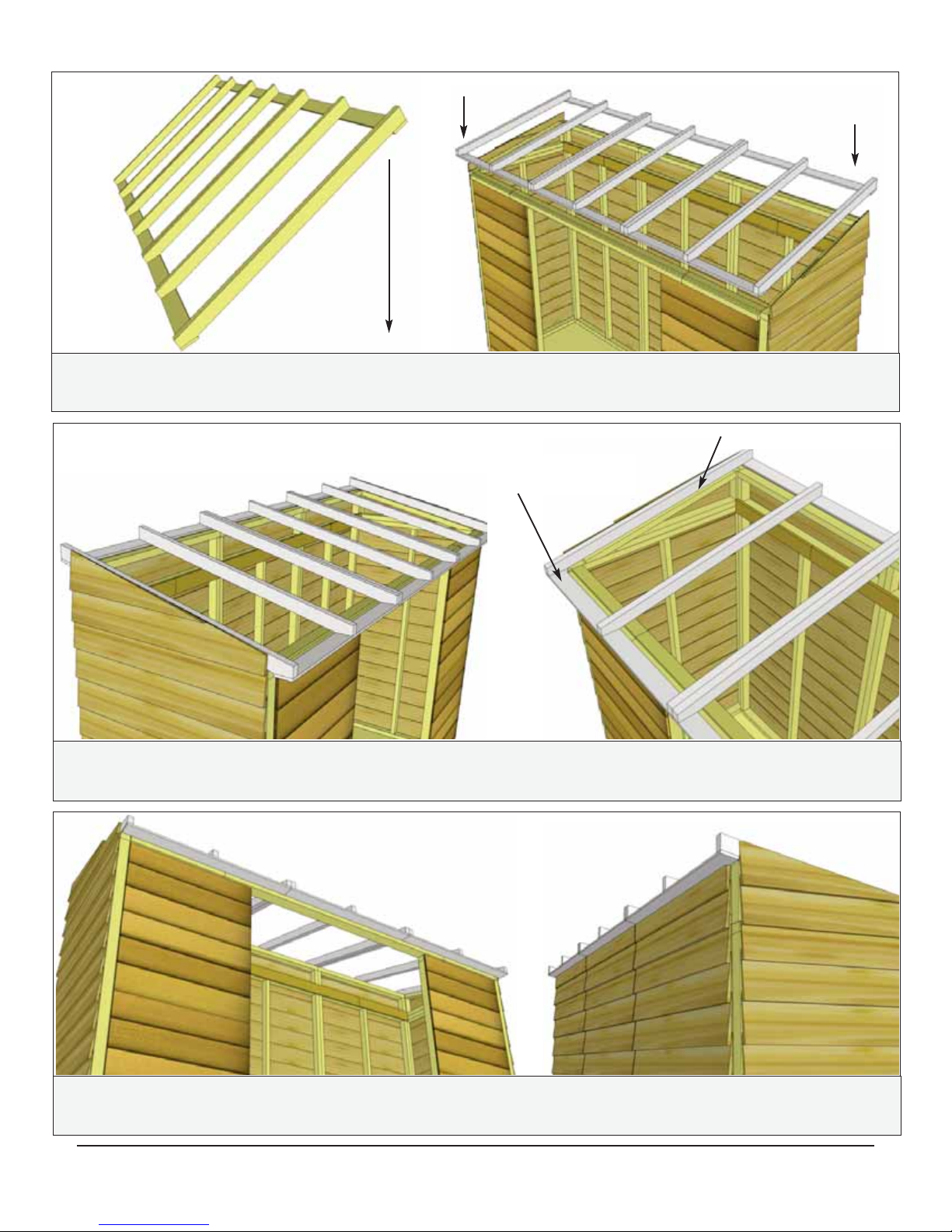

25. Carefully flip completed Rafter Section over so the 3 1/2” wide Soffit is facing the front and place onto

walls. Note: once again, make sure 3 1/2” wide Soffit is positioned to the front of the shed.

26. Position completed Rafter Section on top of walls. Outside Rafters will sit on Extension Wall framing

and be positioned equally from side to side.

3 1/2” Wide Soffit
to the front.

Rafter sits on framing

27. When Rafter Section is positioned correctly, both Front and Rear Soffits will sit approximately 1/8”

away from wall siding. This can vary slightly.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 18

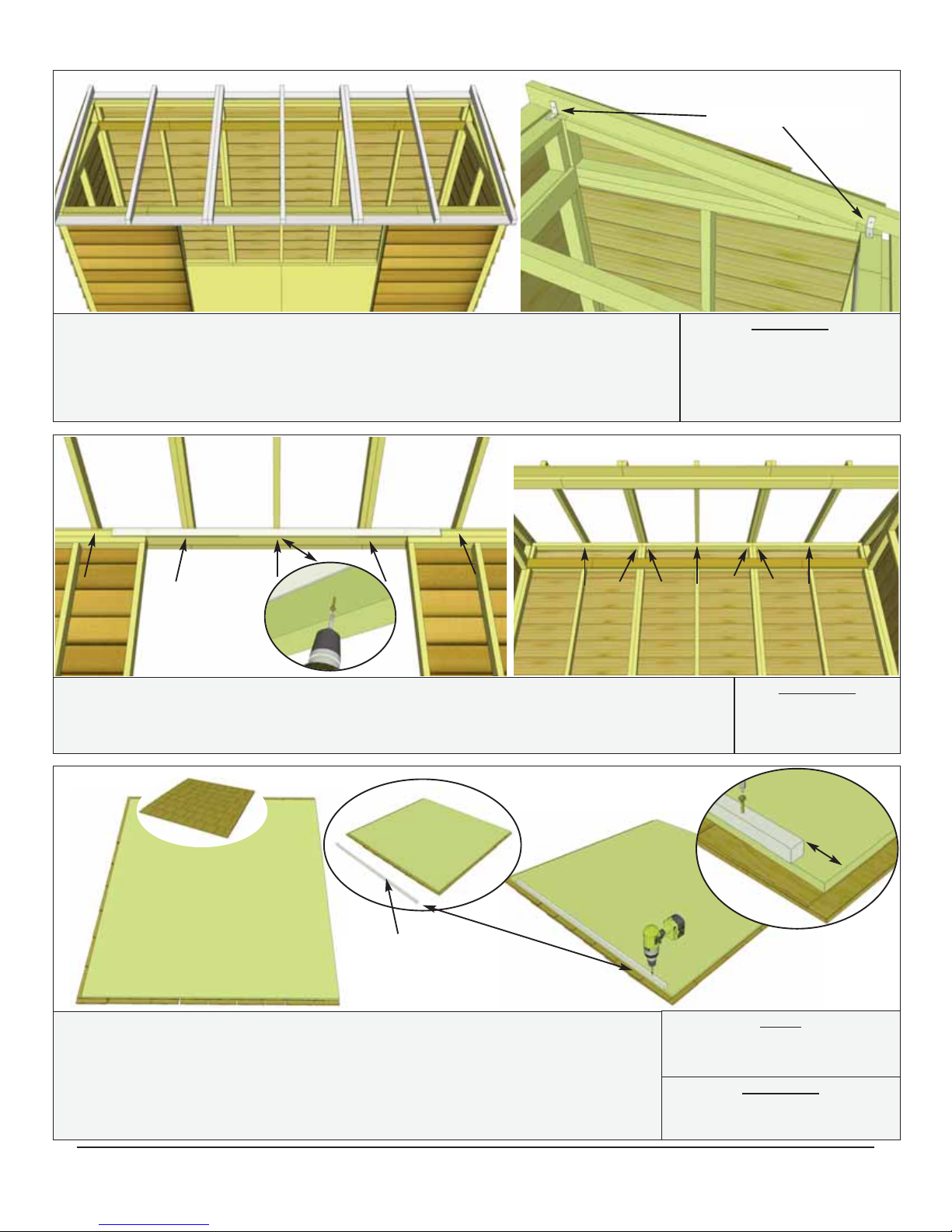

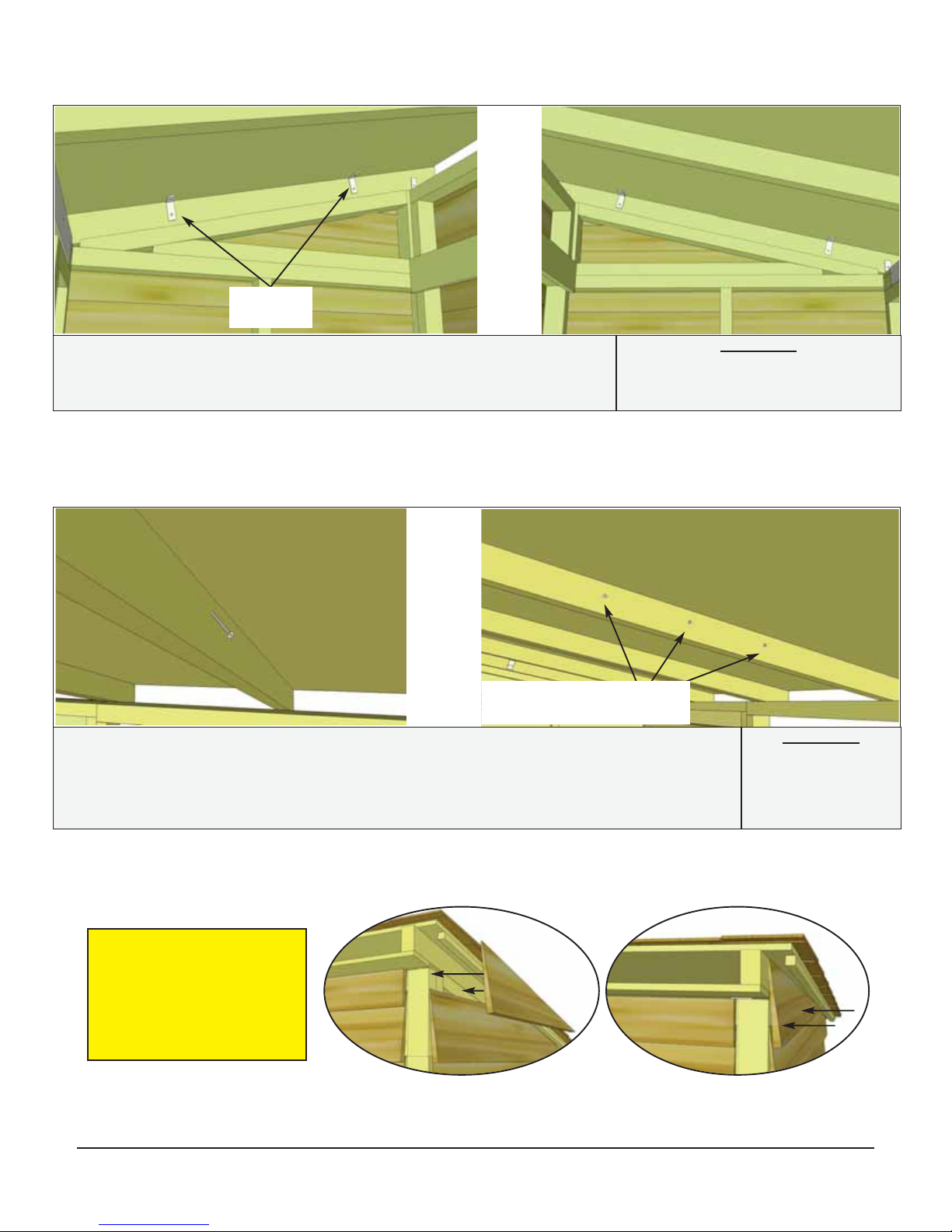

28. With Rafter Section correctly aligned, secure rafters to walls using

2 - 90° Metal Brackets per side. Attach each brackets with 4 - 1 1/4” Screws.

Screw into Wall Extension Framing at the rear and Wall Panel top framing at
the front. Complete both sides.

Hardware

Y2 - 90° Metal Bracket

x 4 total

S2 - 1 1/4” Screws

x 16 total

90° Metal Brackets

29. With outside rafters properly secured, attach remaining interior rafters using

1 - 2 1/2” Screw per rafter end. Screw into rafters from inside of Header on an angle

at front of shed, and from inside of Extender Wall Framing at rear of shed.

Hardware

S1 - 2 1/2” Screws

x 12 total

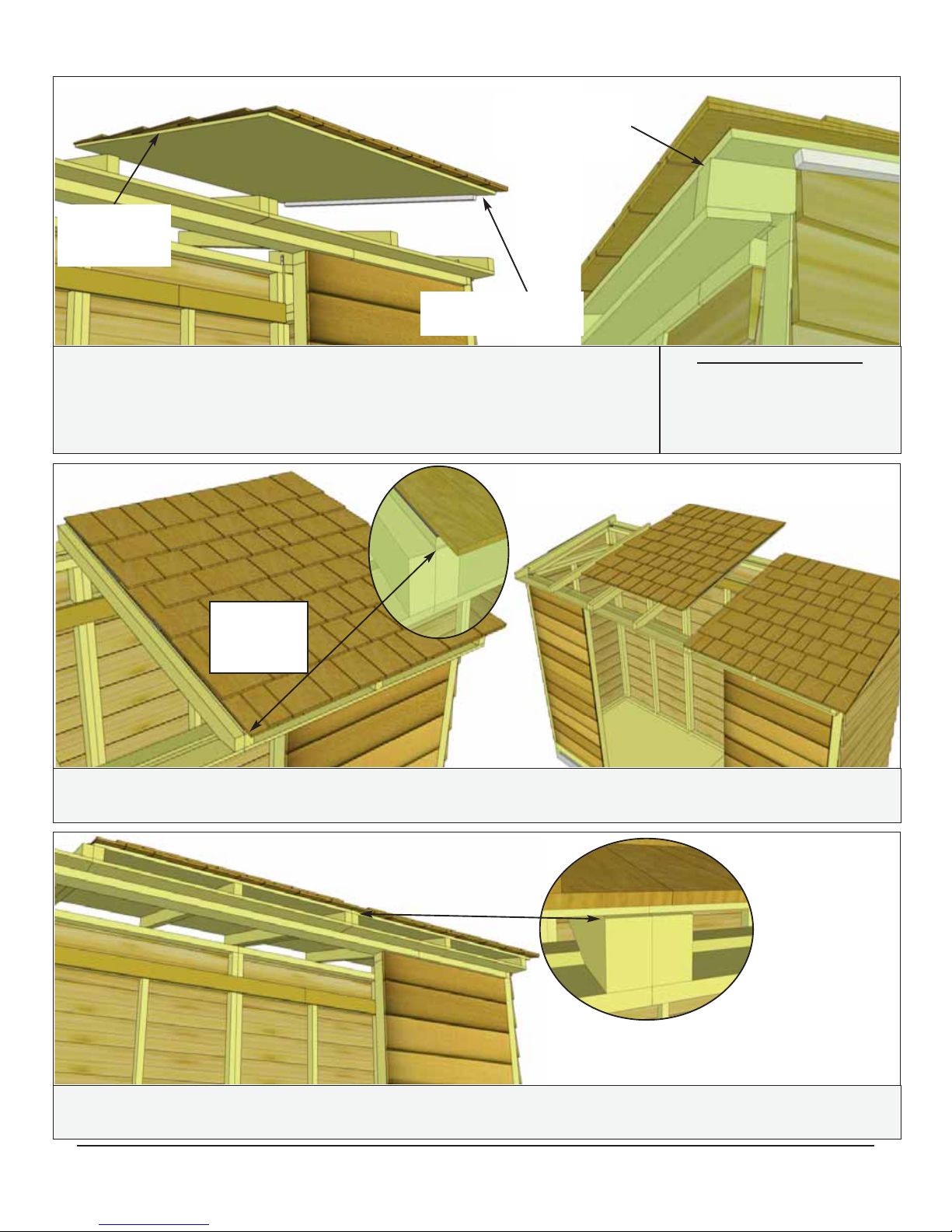

30. Carefully flip Roof Panels over so plywood sheathing is facing up.

Center 3F - Facia Nailing Strips onto outside of each panel flush with
plywood. Attach with 4 - 1 1/4” Screws evenly spaced. The Facia Nailing
Strip provides for a greater nailing surface later when you attach side facia.

Parts

3F - Facia Nailing Strips

(3/4” x 3/4” x 48”) x 2

Front - Shingle overhang

Inside - Shingles flush

Outside Side

Facia Nailing
Strip.

Outside - Shingle overhang

Hardware

S2 - 1 1/4” Screws

x 8 total

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 19

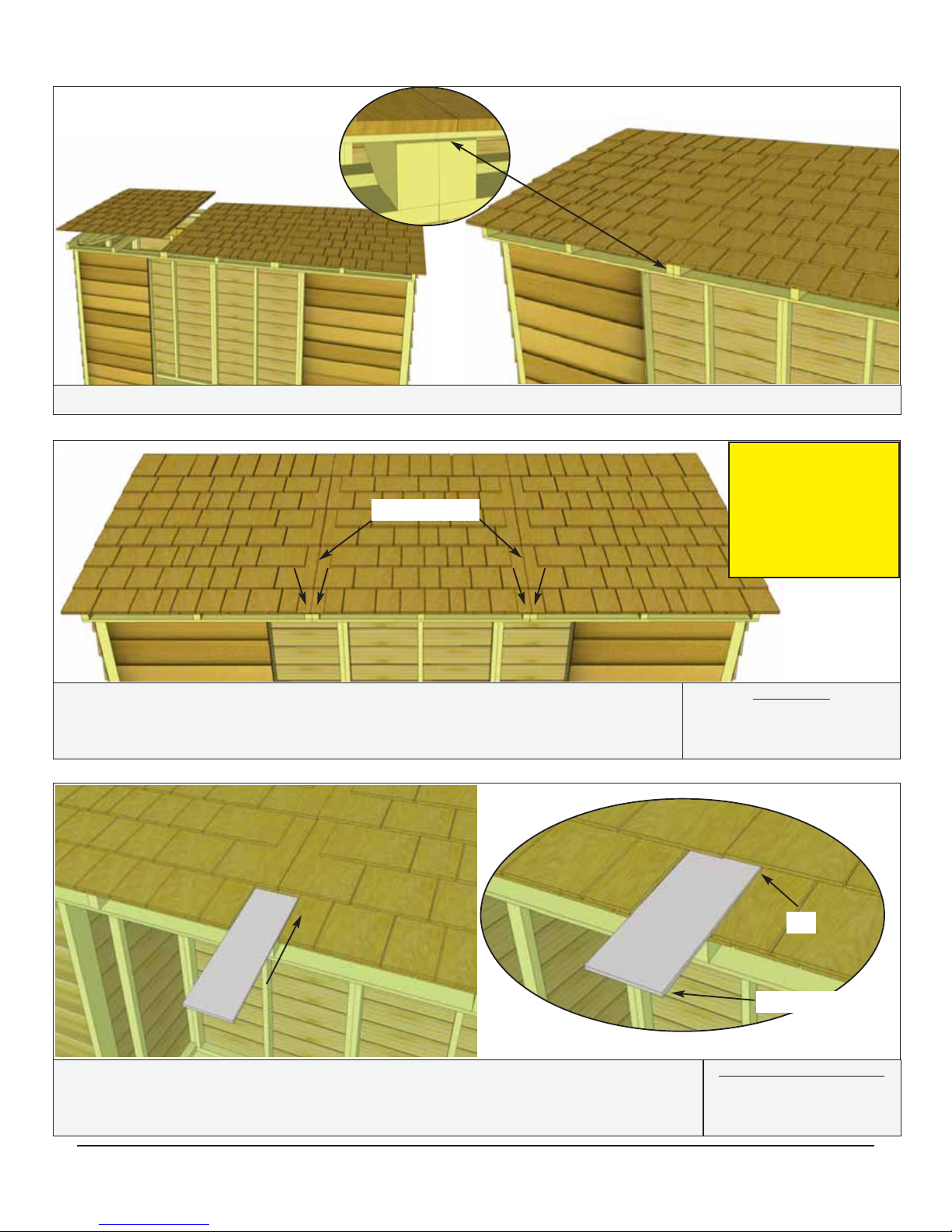

31. Correctly orientate 3G - Side Roof Panel, with shingles overhanging

plywood on the side of the shed and flush with plywood toward the center of
the shed. Place on rafters with front of plywood just about flush with rafter
ends but just slightly recessed. Doing so allows front facia to sit better.

32. For correct Roof Panel position, align panel so plywood sits evenly on Center Rafters. Next, position

3H - Center Roof Panel onto center rafters.

Shingles overhang
plywood on outside.

Front of plywood
1/8” recessed
with rafter end.

Plywood flush
with shingles
on inside.

Parts (Steps 31 - 34)

3G - Left/Right Roof Panels

(51” x 56”) x 2

3H - Center Roof Panel

(45 1/2” x 56”) x 1

Roof Panel
centered on
rafter.

33. Align plywood of center roof panel so it is tight against the plywood of the side roof panel. Spacing

should be even front and back.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 20

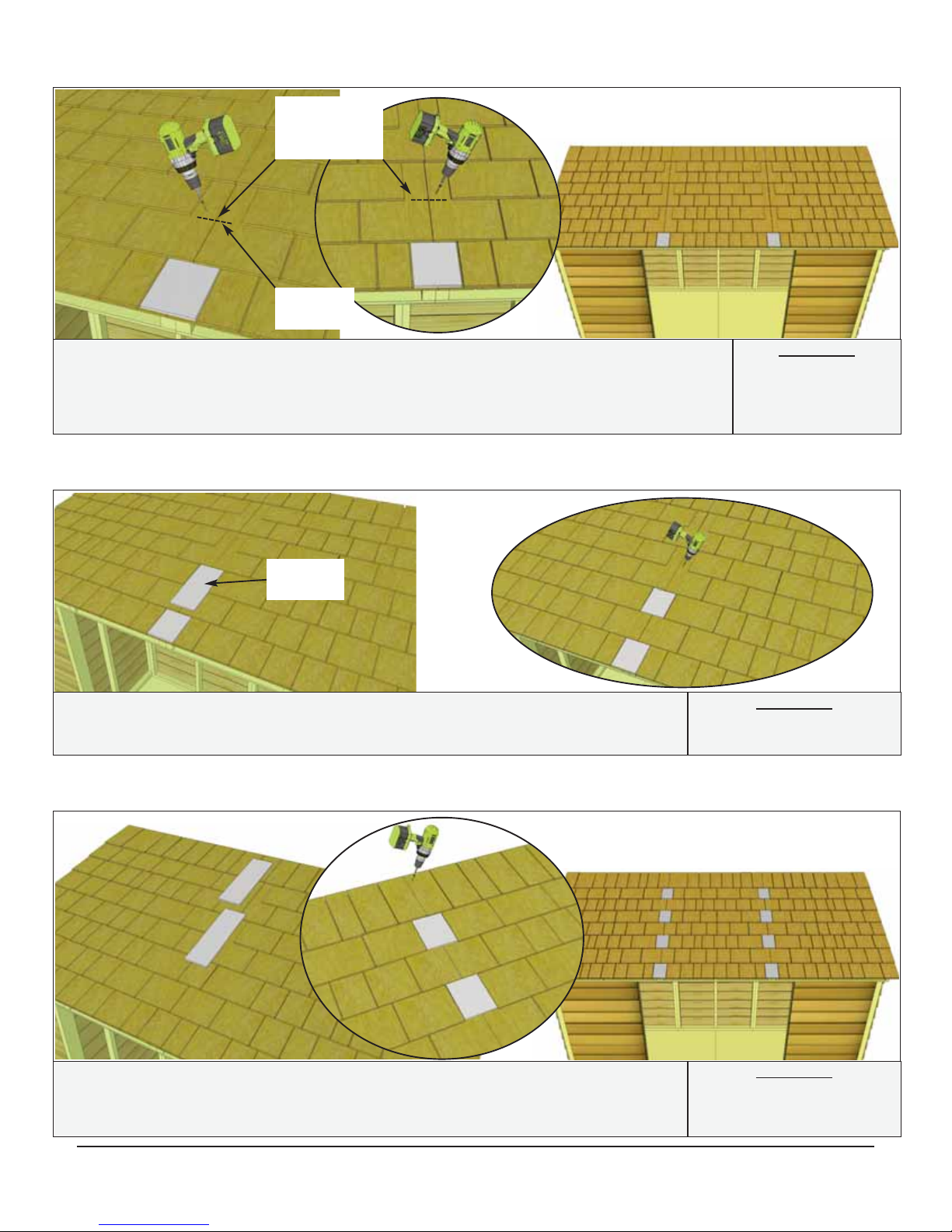

36. To cover roof seams, slide a 3L - Filler Shingle up and underneath second

shingle row. Push or bang filler carefully with a hammer until evenly spaced and
butt is even with other 1st row of shingles. Do first filler shingle on both seams.

Parts (Steps 36 - 39)

3L - Filler Shingles

(16” - 18” Long) x 8

34. Position other side roof panel onto rafters as per Steps 31 - 33.

35. With Roof Panels aligned, screw panels down to center rafters with

2 - 2 1/2” Screws in Bottom Row of Shingles Only (1 screw per panel).

Hardware

S1 - 2 1/2” Screws

x 4 total

Screw Bottom Row
of Shingles ONLY for
now. Screw on angle
away from shingle
edge to prevent it
from cracking.

Tip

Butt - thicker.

1st Shingle Row

2nd Shingle Row

Roof Seams.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 21

37. Screw first filler shingle down to rafters using 1 - 2 1/2” Screw per panel (2 in

total). Screw on slight angle and make sure to screw into rafter. Screw slightly above
3rd row of shingles (exposure line). This way, the screw will get covered up when you
install your 2nd Filler Shingle and will prevent leaking. Do both roof seams the same.

Hardware

S1 - 2 1/2” Screws

x 4 total

3rd Shingle Row

2nd Filler
Shingle.

4th Shingle Row

38. Slide 2nd Filler Shingle up and underneath fourth shingle row. Follow

Steps 36 - 37 to align and attach. Repeat for other roof seam.

Hardware

S1 - 2 1/2” Screws

x 4 total

39. Slide 3rd and 4th Filler Shingles up and underneath appropriate shingle

rows and follow Steps 36 - 38 to align and attach. On last filler, screws will get
covered by Roof Ridge Board (4 1/2” wide).

Hardware

S1 - 2 1/2” Screws

x 8 total

Attach above
the exposure
line.

Exposure
Line.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 22

90° Metal
Brackets.

40. Secure roof panels to walls at both ends by positioning

2 - 90° Metal Brackets on plywood and outside rafters and securing

with 4 - 1 1/4” Screws per Bracket. Complete both sides.

Hardware

S2 - 1 1/4” Screws x 16 total

Y2 - 90° Metal Brackets x 4 total

Mid Rafter

Plywood

3 - 2 1/2” Screws Toe
Nailed in each Mid Rafter.

Note: If Top Siding Pc.
for Angle Wall was not
installed in Step 22 it
can be done now. Attach
with 3 - 1 1/2” Finishing
Nails per piece.

41. To further secure roof panels from the inside, drill pilot holes on an angle in each

panel’s Mid Rafter (3 per Rafter). Using 3 - 2 1/2” Screws, secure rafters to plywood.
Note: from outside if possible, have a helper push roof panel down so plywood sits

flush against rafter while securing.

Hardware

S1 - 2 1/2” Screws

x 9 total

42. Attach 4A - Bottom Skirting around the base of the shed.

Skirting will hide floor framing. Start with side skirting pieces
first and attach with 4 - 1 1/2” Finishing Nails per piece.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 23

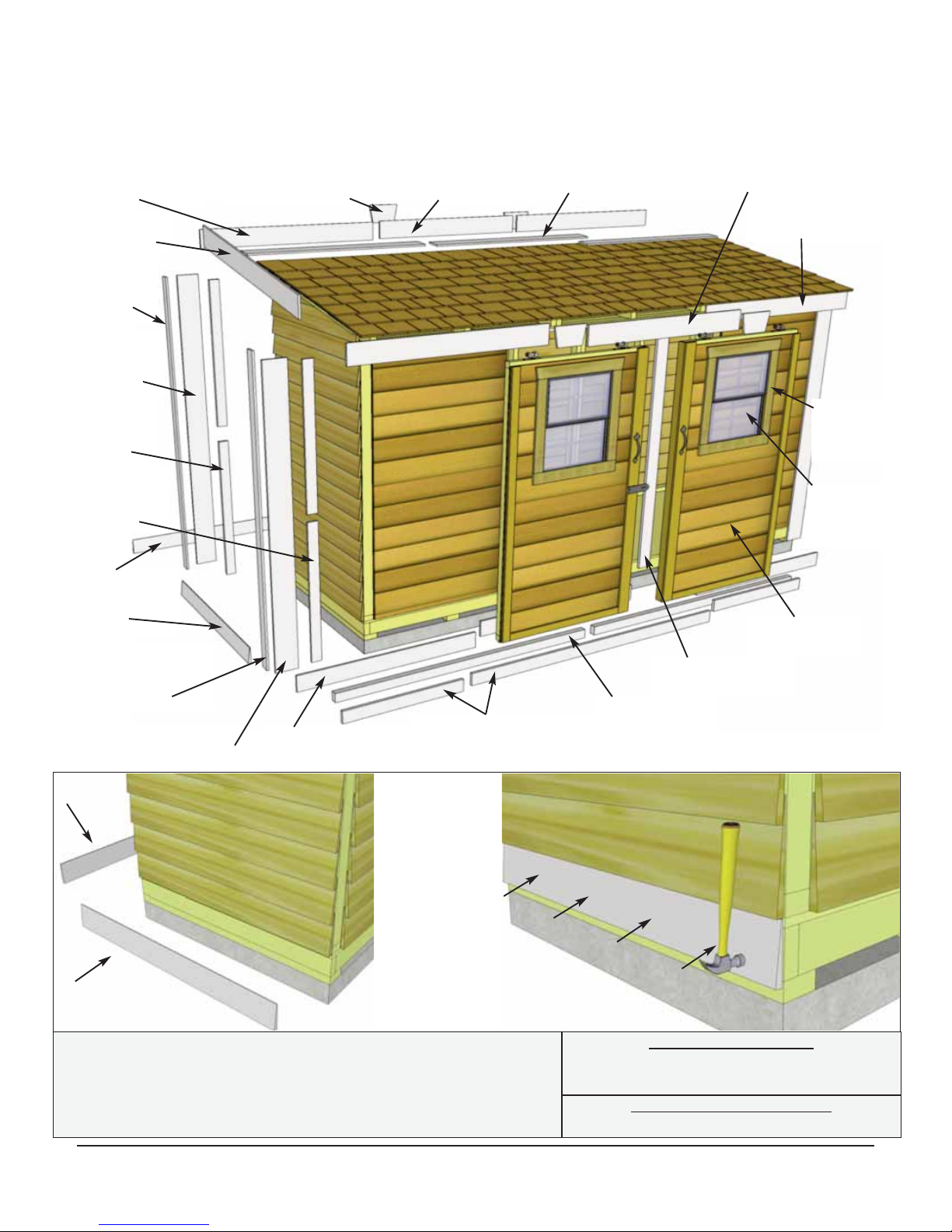

4. Trim & Miscellaneous Section

Exploded view of all parts necessary to complete the Skirting, Trim, Facia and Miscellaneous
Pieces. Identify all parts prior to starting.

Rear Facia - L/R
(Part 4R)

Rear Facia
(Part 4S)

Facia Detail
Plates (Part 4T)

Roof Ridge Boards
(Part 4U)

Side Rear
Corner Trim
(Part 4P)

Rear
Corner Trim
(Part 4O)

Side/Rear
Bottom Skirting
(Part 4A)

Side Facia
(Part 4Q)

Side Front
Corner Trim
(Part 4N)

Front Corner
Trim (Part 4M)

Front Bottom
Skirting (Part 4B)

Front Facia - L/R
(Part 4R)

Front Facia
(Part 4S)

Interior Door
Flange (Part 4G)

Front Corner
Filler Trim
(Part 4C)

Rear Corner
Filler Trim
(Part 4D)

Lower Door Track
Cover (Parts 4I & 4J)

Lower Door
Track (Part 4H)

Sliding Doors
(Part 4F)

Parts (Steps 42 - 43)

4A - Side/Rear Bottom Skirting - Bevel

(3/4” x 4 1/2” x 45 1/4”) x 5

Hardware (Steps 42 - 43)

N1 - 1 1/2” Finishing Nails x 20 total

Window
Inserts
(Part 4V)

Window
Trim
(Part 4W)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 24

Rear Skirting

Gap

Side Skirting

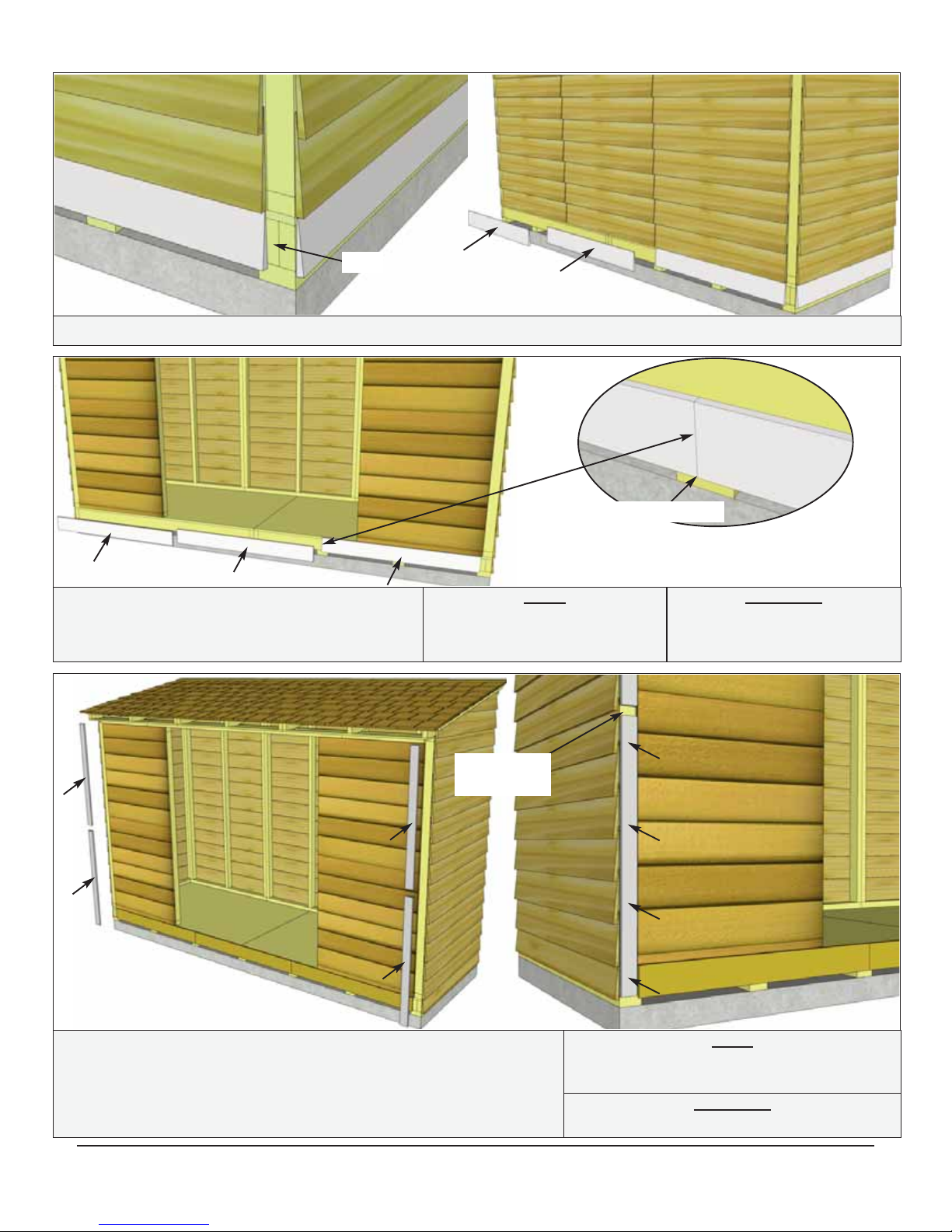

43. Gaps on outside will be covered by Corner Trim later. Complete side and rear skirting attachments.

44. Attach 4B - Front Bottom Skirting with

4 - 1 1/2” Finishing Nails per piece as per
Steps 42 - 43.

Parts

4B - Front Bottom Skirting

(1/2” x 4 1/2” x 45 1/4”) x 3

Hardware

N1 - 1 1/2” Finishing Nails

x 12 total

Skirting meets flush.

45. Position and attach 4C - Front Corner Filler Trim with

4 - 1 1/2” Finishing Nails per piece. Filler trims won’t be visible

because they serve as nailing strips for the Corner Trims which
will be attached later.

Parts

4C - Front Corner Filler Trim

(1/2” x 2 1/2” x 38”) x 4

Hardware

N1 - 1 1/2” Finishing Nails x 16 total

Gap will be
covered.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 25

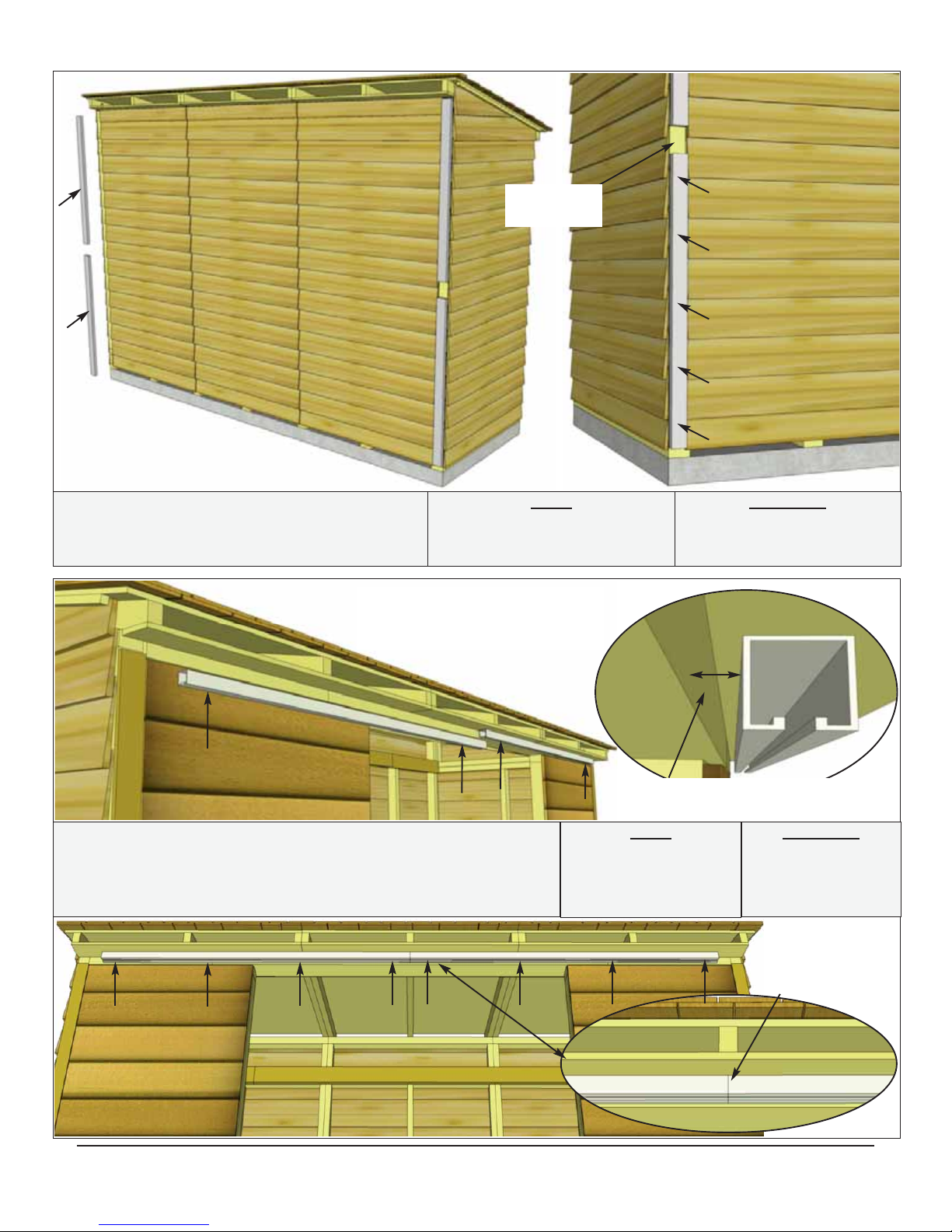

46. Position and attach 4D - Rear Corner

Filler Trim with 5 - 1 1/2” Finishing Nails per

piece as per Step 45.

Parts

4D - Rear Corner Filler Trim

(7/8” x 2 1/2” x 42”) x 4

Hardware

N1 - 1 1/2” Finishing Nails

x 20 total

Gap will be
covered.

47. Position 4E - Aluminum Door Tracks onto the bottom of

the Front Soffits, spaced 3/8” from the Door Header. Tracks
should meet at the center of the door opening below middle
rafter. Attach with 4 - 1 1/4” Screws per track.

Parts

4E - Aluminum Door

Track

x 2

Hardware

S2 - 1 1/4” Screws

x 8 total

3/8” Gap between Track
and Door Header

3/8”

Door
Header

Front Soffit

Tracks meet
in the middle

A wood clamp may be helfpful
to hold the track in place while
attaching to Soffit.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 26

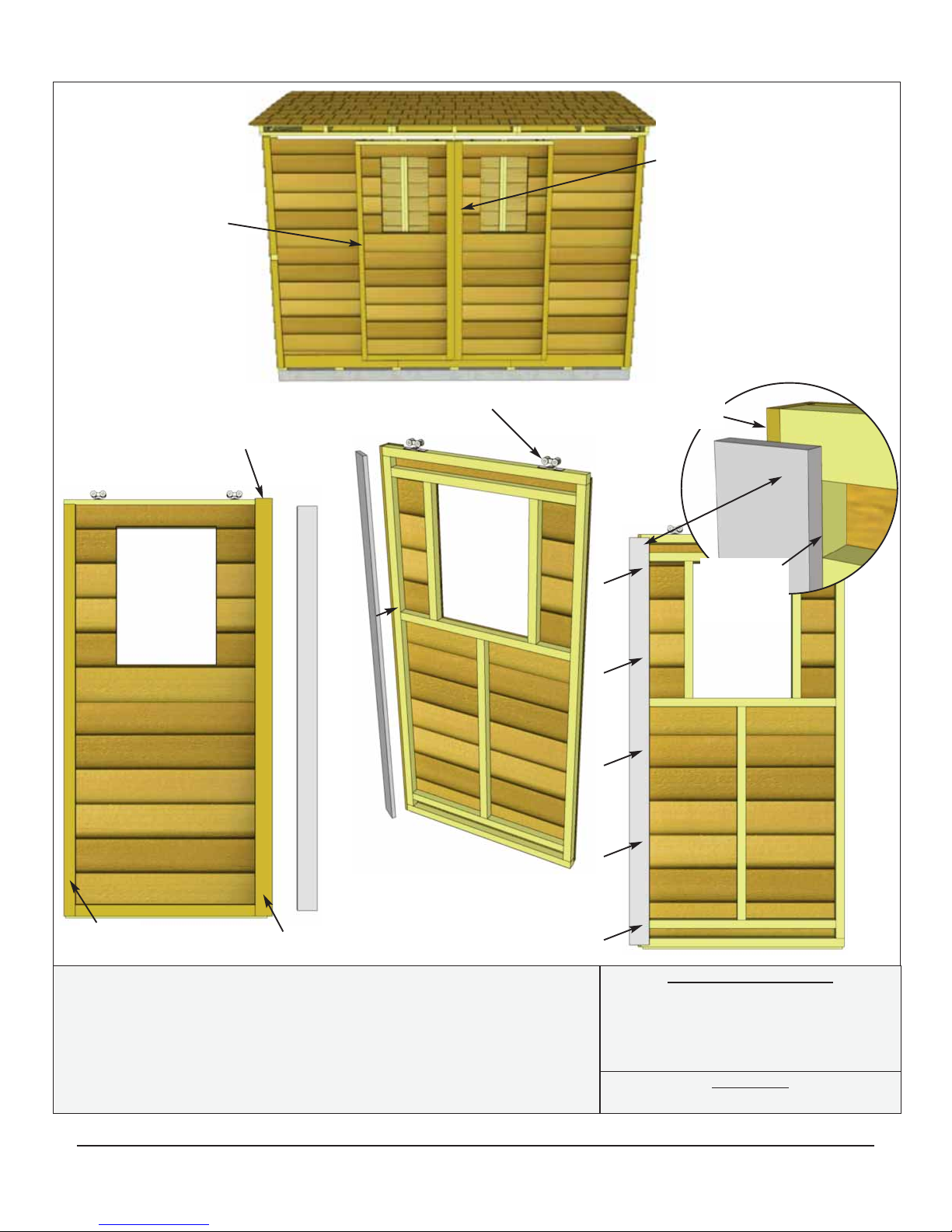

48. Before installing the doors onto the shed, Locate 4F - Sliding

Doors and 4G - Interior Door Flange. Position door flange on the

rear of the left side door (when viewed from the front of the shed).
Attach flange with 5 - 2 1/2” Screws so it is flush with the inside of
the wall frame and 3/4” below the top of the door.

Parts (Steps 48 - 49)

4F - Sliding Doors

(36” x 73”) x 2

4G - Interior Door Flange

(3/4” x 3 1/2” x 71 3/4”) x 1

Hardware

S1 - 2 1/2” Screws x 5 total

Connect Door Flange
on same side as wide
door trim.

3/4” from
top of door.

Flush with
inside wall
frame.

Wide Trim

Narrow
Trim

Left Side Door

Rollers pre-installed
on top of door

Left Side
Door

Right Side
Door

Door Flange attaches
to Left Side Door.

Wide trim on both
doors meets at center

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 27

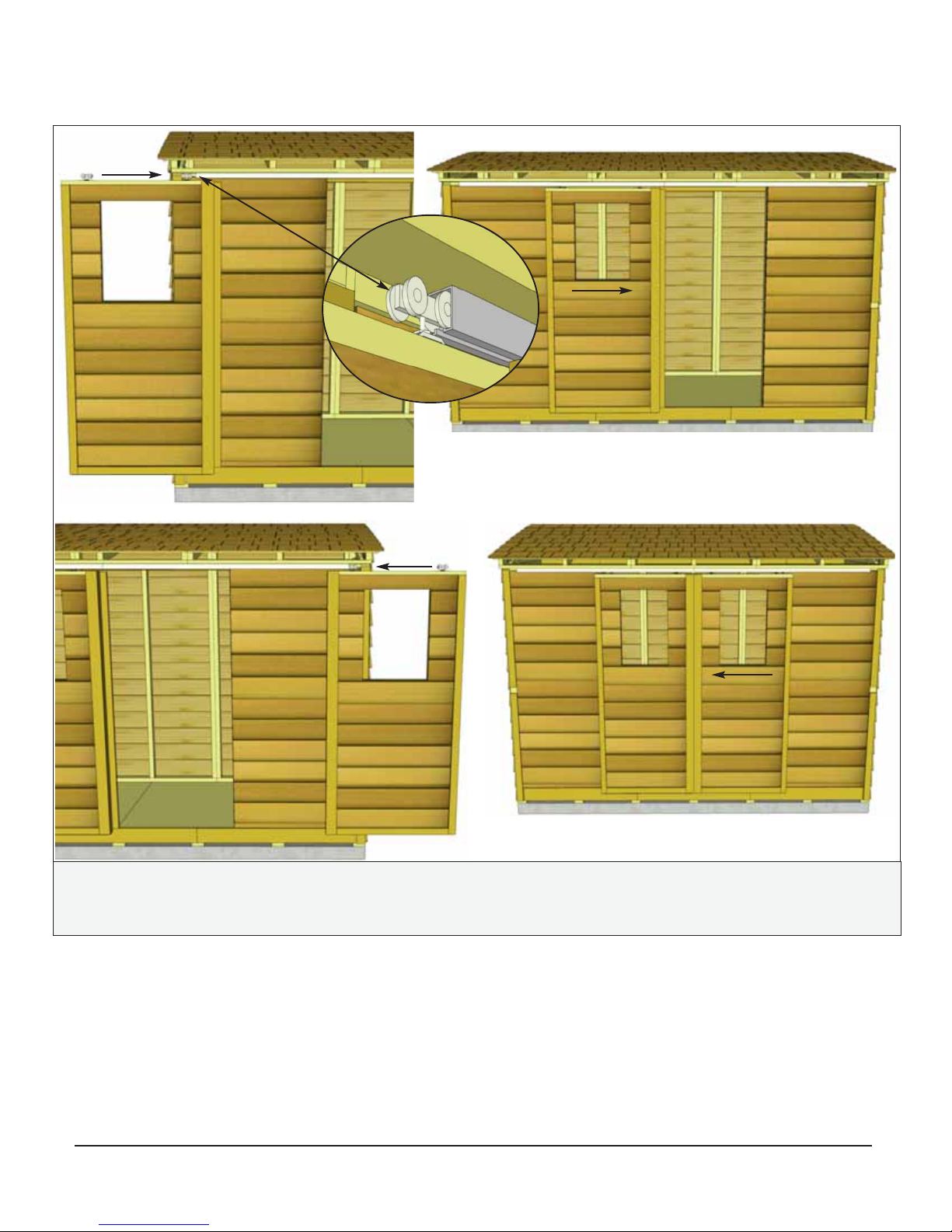

49. With Door Flange attached, take Left Side Door and slide rollers into the Aluminum Door Track as

shown above. With first door fully inserted into track, repeat with Right Side Door and slide until both doors
meet in the middle.

Left Side Door

Right Side Door

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 28

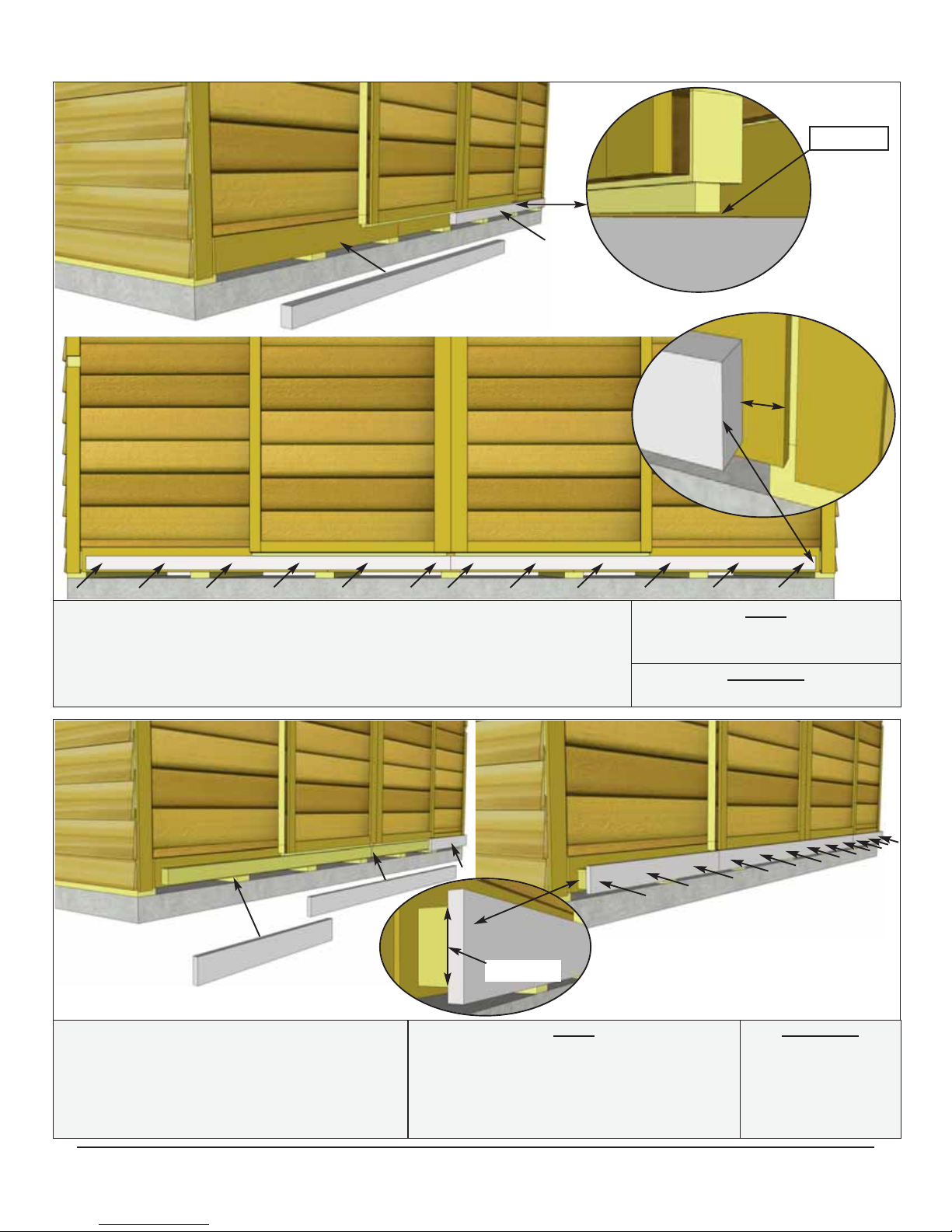

50. With Doors suspended from the upper track, locate and position

4H - Lower Door Track sections 1/4” below the bottom door cleat and

centered on the Front Bottom Skirting. Attach with 6 - 3” Screws per
Lower Track section.

Parts

4H - Lower Door Track

(1 1/2” x 2 1/2” x 66 1/2”) x 2

Hardware

S4 - 3” Screws x 12 total

Bottom Door Cleat

Lower Door Track

1/4” Gap

1 3/8”

51. Position 4I & 4J - Lower Door Track

Covers so they are centered vertically onto

the lower door track sections. Attach with

3 - 2 1/2” Screws per short piece, and
6 - 2 1/2” Screws in the center piece.

Parts

4I - Lower Door Track Cover - L/R

(3/4” x 3 1/2” x 30 1/2”) x 2

4J - Lower Door Track Cover - Center

(3/4” x 3 1/2” x 72”) x 1

Hardware

S1 - 2 1/2” Screws

x 12 total

Centered

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 29

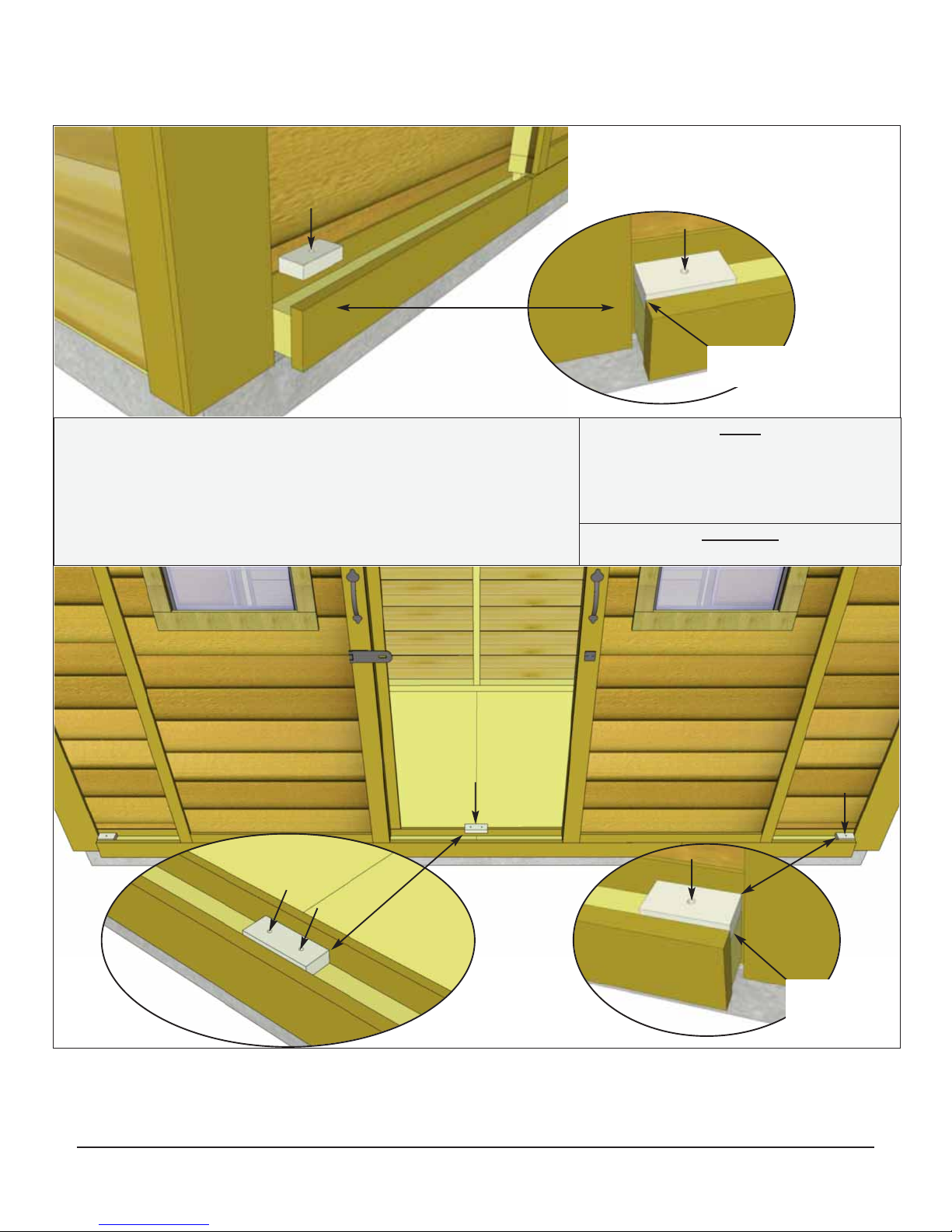

52. Locate and install 4K & 4L - Sliding Door Track Stops.

Fasten one 4K - Left/Right Stop to each end of the track with

1 - 2 1/2” Screw through the pre-drilled hole. Attach the
4L - Center Stop in the center of the track between the two doors

with 2 - 2 1/2” Screws.

Parts

4K - Sliding Door Track Stops - L/R

(3/4” x 1 1/2” x 3”) x 2

4L - Sliding Door Track Stop - Center

(3/4” x 1 1/2” x 4”) x 1

Hardware

S1 - 2 1/2” Screws x 4 total

Flush with end
of track.

Flush with
end of track.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 30

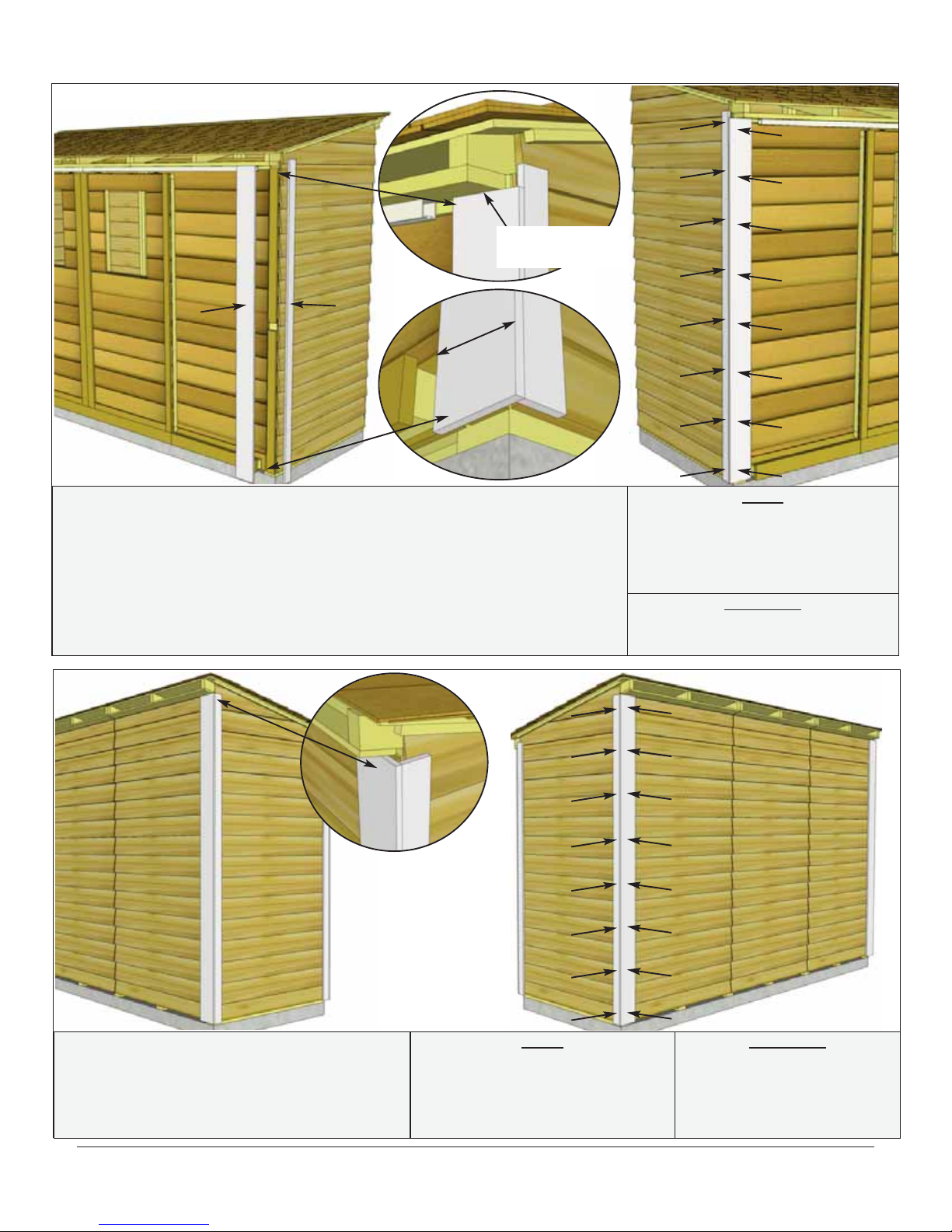

53. Place 4M & 4N - Front Corner Trims in front corner and align as

illustrated above. Do a dry run prior to attaching to achieve best fit. Start
with 5 1/2” wide Front Corner Trim and align tight underneath soffit to
determine vertical height. Attach with 8 - 1 1/2” Finishing Nails per
piece. Position and attach Side Front Corner Trim (2 1/2” wide) using
8 - 1 1/2” Finishing Nails, aligning at bottom with wide trim.

Parts

4M - Front Corner Trims

(1/2” x 5 1/2” x 78 1/2”) x 2

4N - Side Front Corner Trims

(1/2” x 2 1/2” x 80”) x 2

Hardware

N1 - 1 1/2” Finishing Nails

x 32 total

5 1/2”

tight underneath
soffit.

54. To complete trimming out rear corners,

locate 4O & 4P - Rear Corner Trims. Align
and attach as per Step 53.

Parts

4O - Rear Corner Trims

(1/2” x 5 1/2” x 88 3/4”) x 2

4P - Side Rear Corner Trims

(1/2” x 2 1/2” x 88 3/4”) x 2

Hardware

N1 - 1 1/2” Finishing Nails

x 32 total

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 31

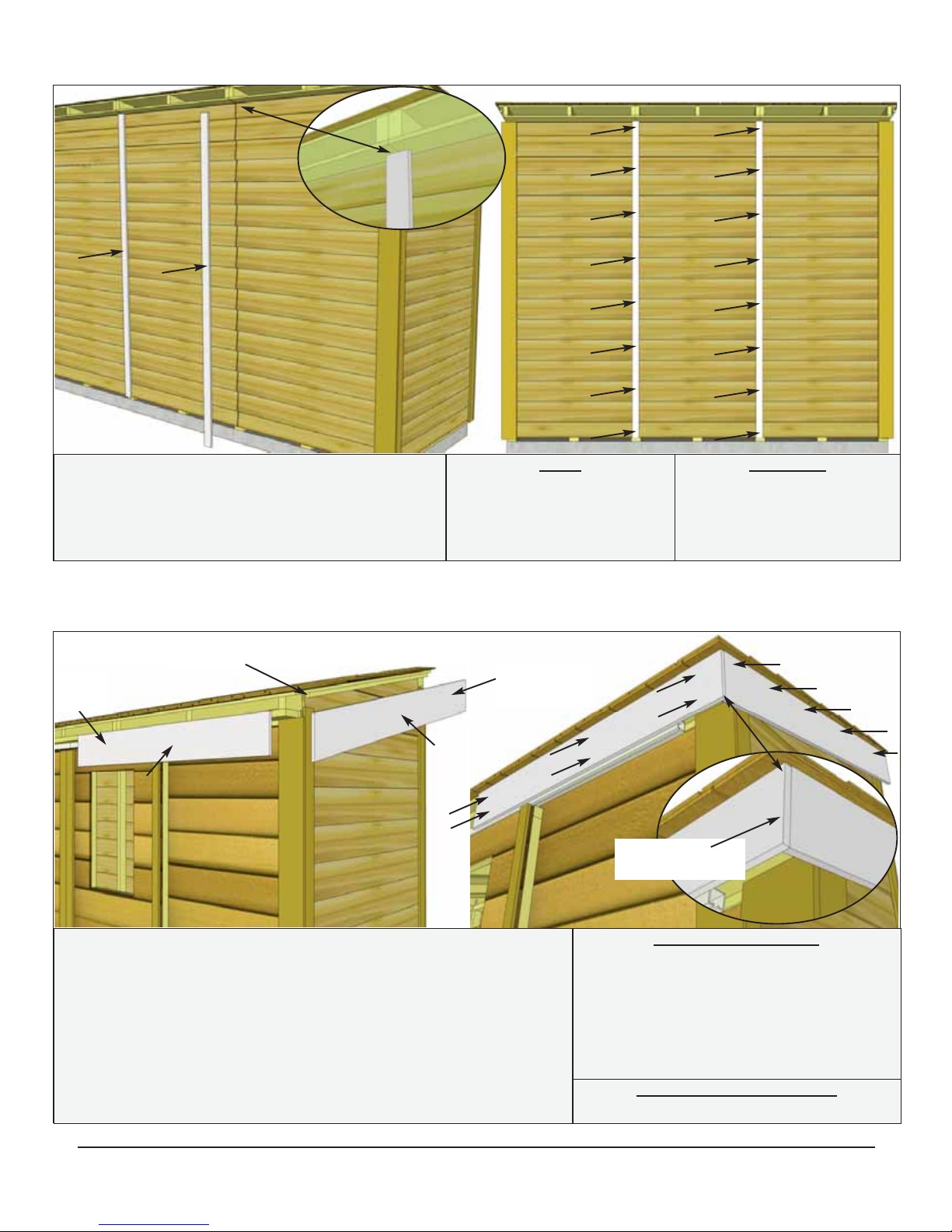

55. Attach 4P - Rear Middle Trims where wall

panels come together at rear seam. Attach with
8 - 1 1/2” Finishing Nails aligning tight
underneath soffit and center on seam.

Parts

4P - Rear Middle Trim

(1/2” x 2 1/2” x 88 3/4”) x 2

Hardware

N1 - 1 1/2” Finishing Nails

x 16 total

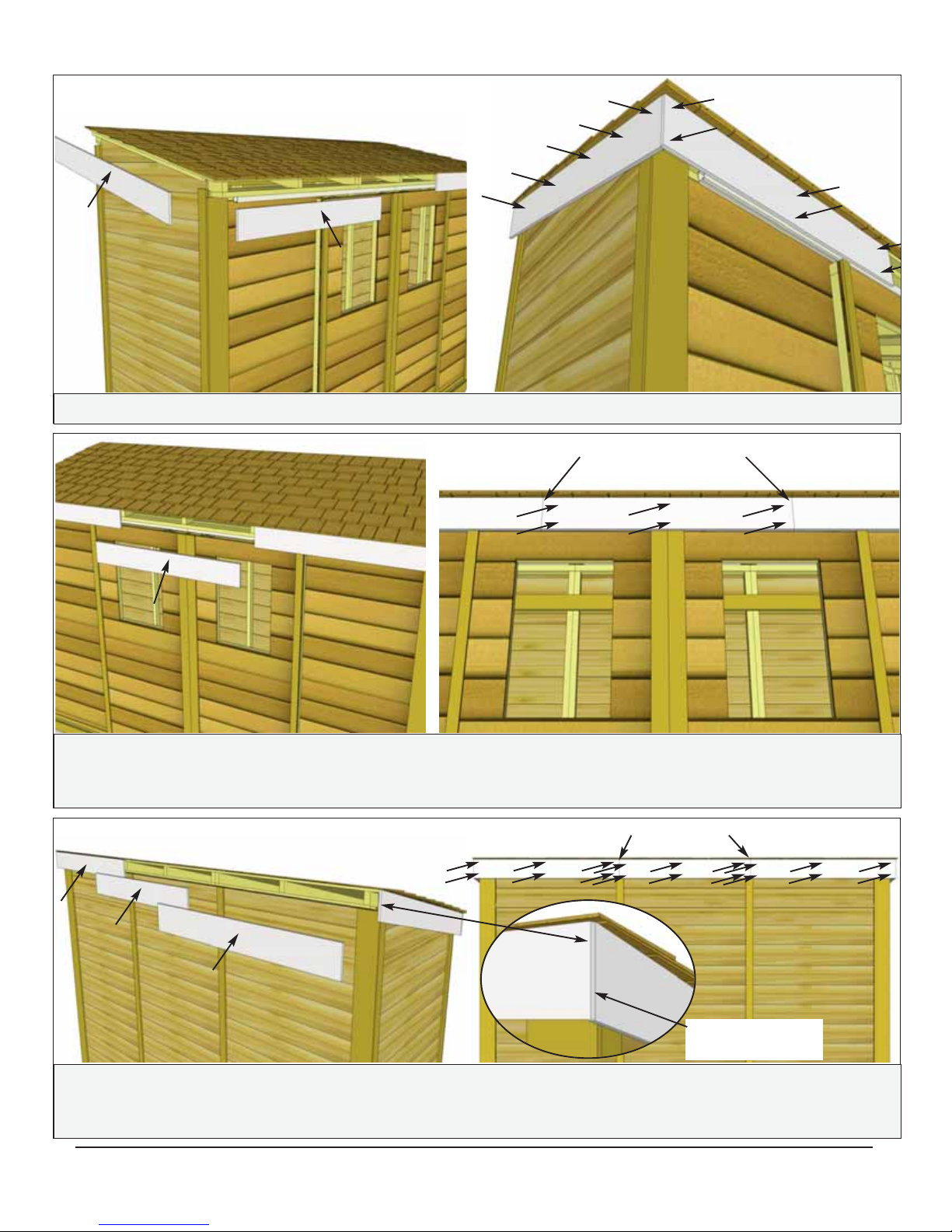

56. Locate one 4Q - Side Facia and one 4R - Front Facia and

align in front corner. Position facias underneath roof panel, doing
a dry run first before securing. Front Facia goes against rafter
ends and Side Facia goes against Facia Nailing Strip. Align so
the Front Facia caps the Side Facia. Attach Front Facia with
2 - 1 1/2” Finishing Nails per rafter end. Attach Side Facia to
the Facia Nailing Strip with 5 - 1 1/2” Finishing Nails.

Parts (Steps 56 - 59)

4Q - Side Facia - Angle Cut Ends

(1/2” x 5 1/2” x 54 1/8”) x 2

4R - Front & Rear Facia - L/R

(1/2” x 5 1/2” x 50 1/2”) x 4

4S - Front & Rear Facia - Center

(1/2” x 5 1/2” x 45 1/2”) x 2

Hardware (Steps 56 - 59)

N1 - 1 1/2” Finishing Nails x 46 total

Facia Nailing Strip

Side Facia

- Angle Cut

Front
Facia

Front Facia
caps Side Facia

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 32

57. Attach other Front and Side Facia to opposite corner as per Step 56.

58. Attach 4S - Front Facia - Center to rafter ends as shown above. Small gaps may occur between the

Center and Left/Right Facia, but these will be covered by Facia Detail Plates in Step 60. Attach with
2 - 1 1/2” Finishing Nails per rafter end.

59. Attach 4R & 4S - Rear Facia onto rafter ends as per Steps 56 - 58. Small gaps may occur between

the Center and Left/Right Facia, these will be covered by Facia Detail Plates in Step 60. Rear Facia will
cap the side Facia. Attach Rear Facia to rafter ends with 2 - 1 1/2” Finishing Nails per rafter end.

Small gaps may occur.

Side Facia

Rear Facia

Rear Facia caps
Side Facia.

Small gaps may occur.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 33

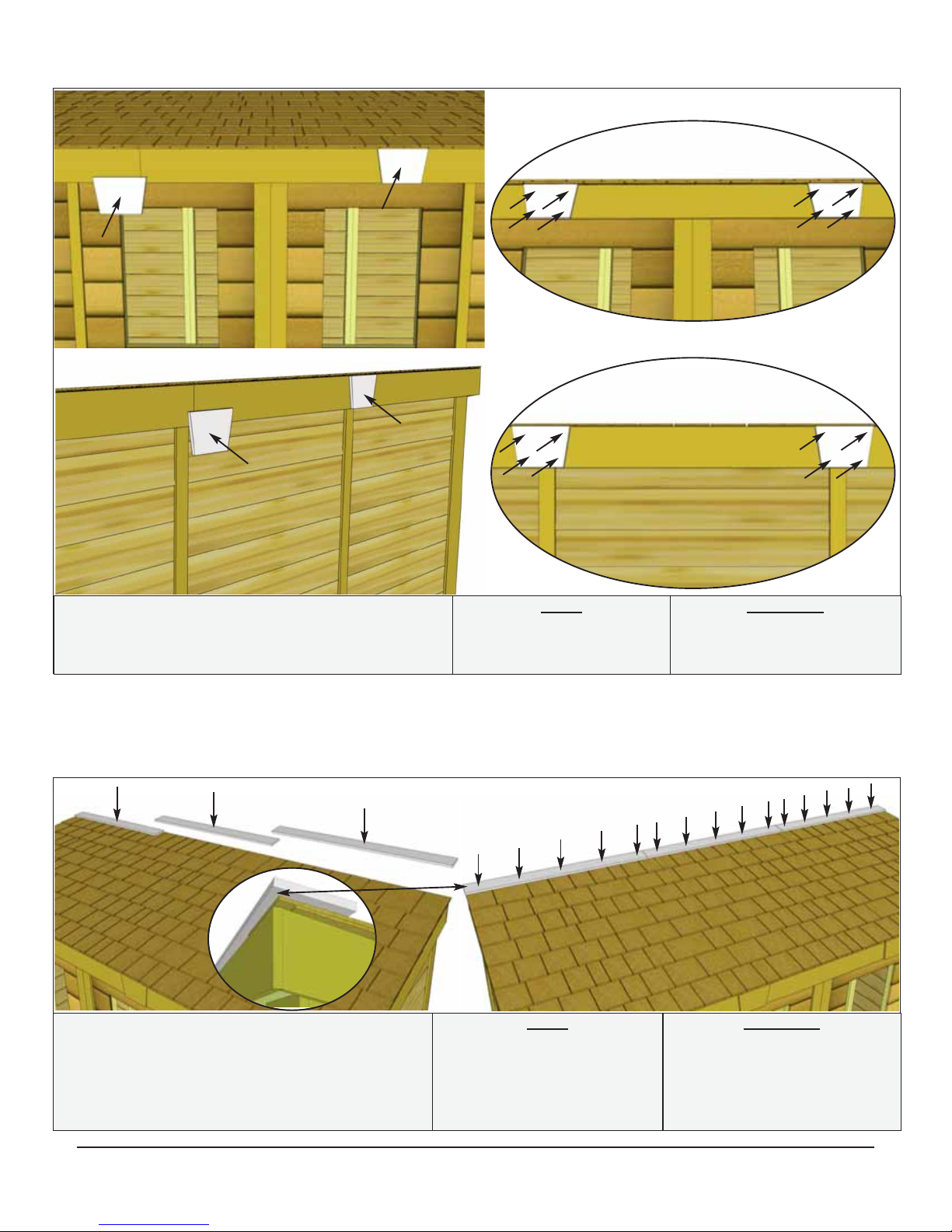

60. Attach 4T - Facia Detail Plates to cover

seams where Front and Rear Facia pieces meet.
Secure with 4 - 1 1/2” Finishing Nails per piece.

Parts

4T - Facia Detail Plates

(5 1/2” high) x 4

Hardware

N1 - 1 1/2” Finishing Nails

x 16 total

61. Position 4U - Roof Ridge Board at the

rear of roof to cap off shingles and facia. Ridge
Boards should meet on seam of roof panels.
When aligned correctly, attach with
5 - 1 1/2” Finishing Nails per piece.

Parts

4U - Roof Ridge Boards

(1/2” x 4 1/2” x 49 1/4”) x 3

Hardware

N1 - 1 1/2” Finishing Nails

x 15 total

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]

Page 34

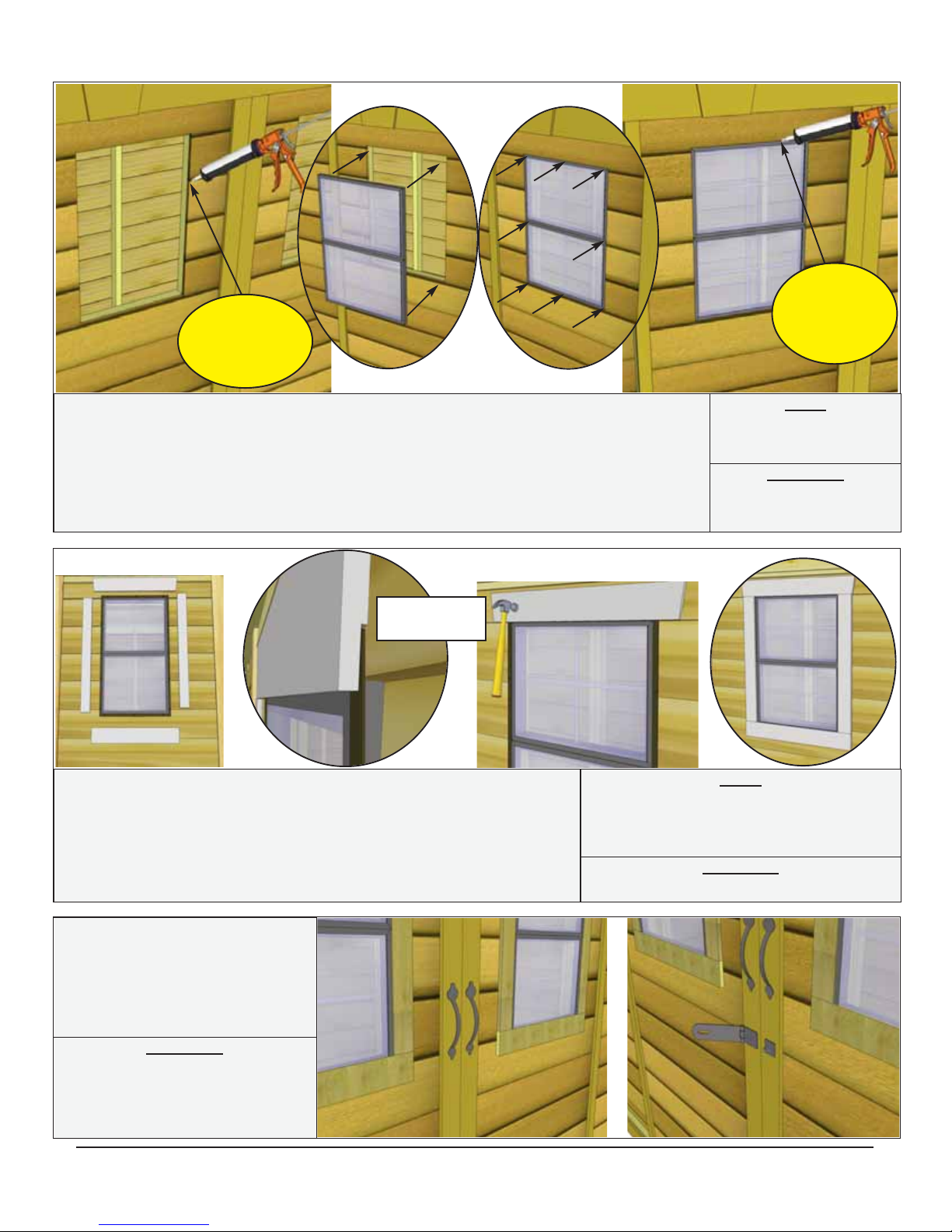

62. Locate 4V - Window Inserts. Before installing, dab caulk in siding channel

on both sides of window opening. This will prevent water from getting in behind
window. Position window in cavity and secure with 8 - 1 1/4” Screws. Caulk gap
between siding and window at top. This requires a large amount of caulking but is
important to fill. Later, Window Trims will be installed to hide caulking. Complete
second Window Insert the same.

Parts

4V - Window Inserts

(18 1/4” x 23”) x 2

Hardware

S2 - 1 1/4” Screws

x 16 total

Dab

caulk in siding

channel on both

sides of window.

Run

caulk in siding

gap at top.

Requires a large

amount.

Trim dado
sits in flange.

63. Position 4W - Window Trim around window doing a dry run

first and attach with 4 - 1 1/2” Finishing Nails per piece. Window
trim has a small dado on reverse face. Outside flange of window
will roughly sit in the dado to give a better fit. Complete both
windows the same.

Parts

4W - Window Trim Kit x 2

(Top pc - 24 1/16”) x 1- Angle Ends

(Side/Bottom pcs - 23”) x 3

Hardware

N1 - 1 1/2” Finishing Nails x 32 total

64. Attach Y3 - Door Handles

and Y11 - Black Hasp. Handles
and Hasp are positioned on
wide door trim and mounted with
3/4” Black Screws.

Hardware

Y3 - Door Handles x 2 total

Y11 - Black Hasp x 1 total

SB1 - 3/4” Screws x 16 total

Congratulations on assembling your
12x4 Slider Lean-To Storage Shed!

Note: Our Sheds are shipped as unfinished products. If exposed to the elements, the western red

cedar lumber will weather to a silvery-gray color. If you prefer to keep the cedar lumber looking
closer to the original color, we suggest that you treat the wood with a good oil base wood stain. You
may also wish to paint your new shed rather than stain it. In both cases we recommend that you
consult with a paint and stain dealer in your area for their recommendations.

We value your feedback and
would like to hear back from you
on how well we are doing in the
following areas:

1. Customer Service

2. On Time Shipping

3. Motor Freight Delivery

4. Quality of Materials

5. Assembly Manual

6. Overall Satisfaction.

Toll Line: 1.888.658.1658 | Fax: [phone] | [e-mail]

The materials contained in this
Assembly Manual may be downloaded
or copied provided that ALL copies
retain the copyright and any other
proprietary notices contained on the
materials. No material may be
modified, edited or taken out of context
such that its use creates a false or
misleading statement or impression as
to the positions, statements or actions.

Canadian Address
9393 287th Street
Maple Ridge, British Columbia
Canada V2W 1L1

United States Address
P.O. Box 96
Sumas, Washington
USA 98295

Outdoor Living Today

Please call, write or email us at:

We hope your experience
assembling your 12x4 Slider
Lean-To Storage Shed has
been both positive and
rewarding.

Page 35
