USER’S MANUAL 1.0

O

l

s

son

LEVEL DRIVE GAIN

TONE HIGH CUT LOW CUT

OUTPUT

INPUT

9-18V DC

MADE IN SWEDEN BY

O

lsson

AMPS

-

+

Important Safety Instructions

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not install near heat sources such as radiators, heat registers, stoves, or

other apparatus (including ampliers) that produce heat.
8 Refer all servicing to qualied service personnel.

Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Warning!

• To reduce the risk of re or electrical shock, do not expose this equipment

to dripping or splashing and ensure that no objects lled with liquids, such

as vases, are placed on the equipment.

• Do not install in a conned space.
Service

• All service must be performed by qualied personnel.
Caution:

You are cautioned that any change or modications not expressly approved in

this manual could void your authority to operate this equipment.
When replacing the battery follow the instructions on battery handling in this
manual carefully.

Congratulations

on your purchase of ”The Wizard Overdrive”, a versatile overdrive pedal
producing low to medium-high drive tones.

The Wizard Overdrive has a very ecient Tone control and together with its

High Cut and Low Cut control you have full control over its tonal charac-

teristics. Due to its design with input and output buers it can be used
anywhere in your pedal chain without aecting the tone and you can also

add boosters/overdrives in front of it with tremendous result.
The Wizard Overdrive has two gain stages, with separate level controls
for each, making it easy to get the exact type of overdrive you like.

5

6

8

9

10

1

2

7

43

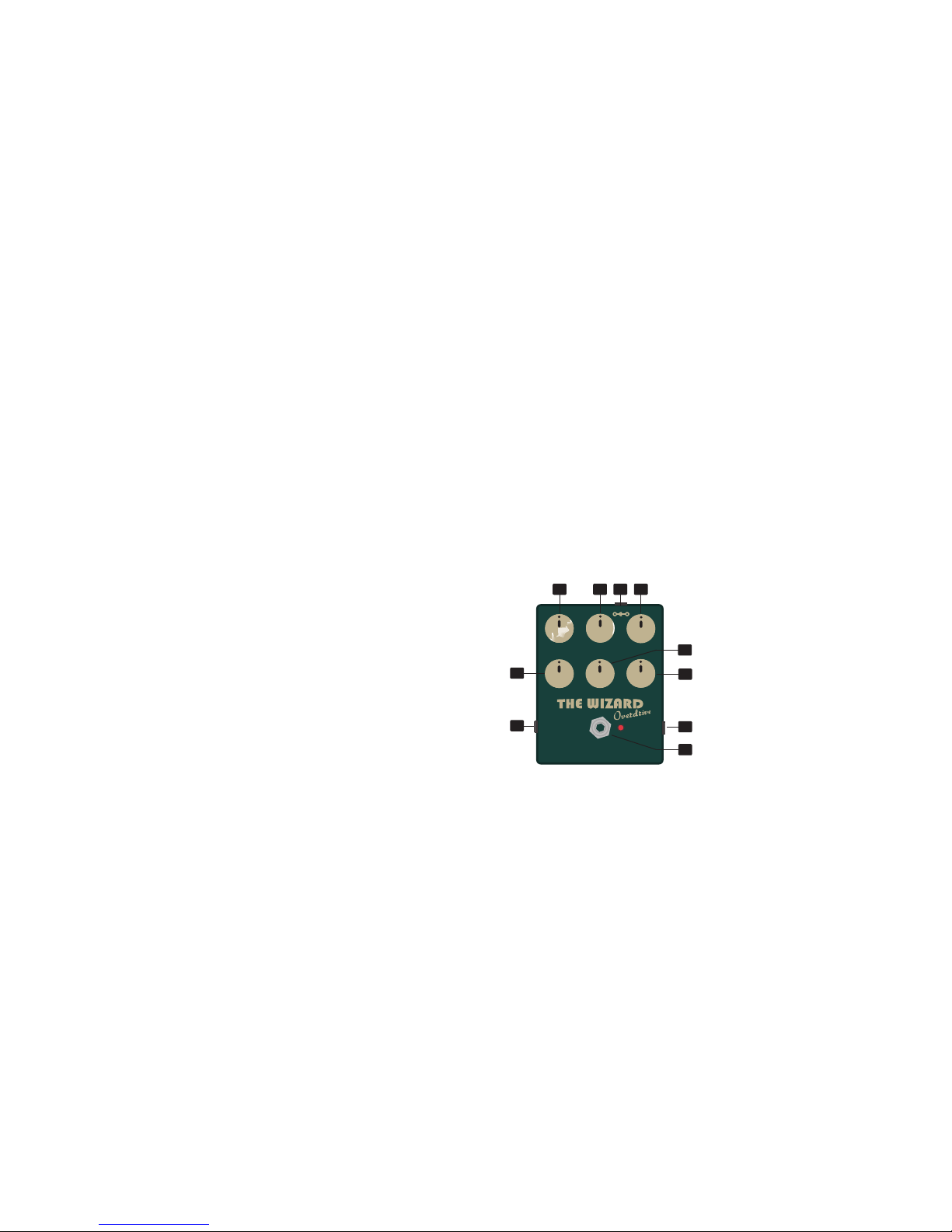

1 - Output jack
2 - Tone control
3 - Level control
4 - Drive control

5 - Power in (9-18VDC)

6 - Gain control
7 - High Cut control
8 - Low Cut control
9 - Input jack

10 - Eect On/O (true bypass)

The controls

Your The Wizard overdrive has six controls: Gain, Drive, Level, Low Cut, High Cut
and Tone.

The Gain knob adjust the input sensitivity of the pedal and controls the signal

strength to the input of the rst gain stage.

The Drive knob controls the amount of drive and distortion you like to have and

is placed between the rst and second gain stage.

Use the Level knob to set the overall volume from the pedal.

The Low Cut knob lets you adjust the pedals bottom end response. When using

a lot of gain it’s most of the time necessary to increase (clockwise) the low cut to

get a nice overdrive tone.

The High Cut knob adjusts the high frequency response. This is useful specially
when you have a very bright amp. Increase it and you get rid of harsh overtones.
Note, that in amps with a controlled high frequency response it’s not always

possible to hear so much dierence when turning this knob all the way up (clock­wise).

The Tone knob lets you control the tone characteristics. In the middle position (

around 12 o’clock) it has a rather at frequency response.

Connecting

Input jack - 1/4 inch mono jack input. If you run the pedal on battery, we recom­mend removing the input jack to preserve battery power when you don’t play.

Output jack - 1/4 inch mono jack output for connecting to another pedal or
directly into an amp or mixer.

Power in - use a 9-18 VDC power supply with the following symbol:

Installing or changing battery

Unscrew the four screws on the back of the pedal and detach the back-plate.
Demount the old battery and attach the new making sure the polarity is correct.
Then remount the back-plate. To save battery life, remove the input jack when
you don’t play.

Batteries must never be heated, taken apart or thrown into re or

water. Only rechargeable batteries can be recharged. Remove the
battery when the pedal is not being used for a longer period of time.
Dispose batteries according to local laws and regulations.

!

Specications

Input impedance @1kHz

1MΩ

Output impedance @1kHz

1kΩ

Power supply 9-18V

Max current @9V 10mA

Battery type 9V 6F22

Controls Gain, Drive, Level, Tone, Low Cut

and High Cut

External connectors Input jack, Output jack and DC jack

Pedal size incl. knobs (W x H x D) 103mm x 51mm x 122mm /

4.05” x 2.01” x 4.80”

Weight excl. battery and
packaging

350g / 12.35 lbs

Due to continuous development, these specications are subject to change without notice.

EU regulations

Olsson Amps follows the regulations and directives issued by EU.

Warrenty conditions

Olsson Amps oers a 3-year warranty on all our pedal products. In the unlikely

event of a malfunction, please contact our technical support at
[e-mail] before sending us the product for repair. After sending
us the product at senders cost, we will repair the product and return it back to
you as soon as possible. The return shipment is free of charge.

The product needs to be accompanied by a copy of your receipt, return address,
phone number, e-mail address and a brief explanation of the problem.

The warranty is not valid if the product has been damaged by alteration, misuse,
accident, or neglect; or if the product has been repaired or serviced by persons
not authorized by Olsson Amps.

LEVEL DRIVE GAIN

TONE HIGH CUT LOW CUT

OUTPUT

INPUT

9-18V DC

MADE IN SWEDEN BY

O

lsson

AMPS

-

+

LEVEL DRIVE GAIN

TONE HIGH CUT LOW CUT

OUTPUT

INPUT

9-18V DC

MADE IN SWEDEN BY

O

lsson

AMPS

-

+

3. Overdrive

Increase both Gain and Drive for
overdrive tones. Also increase the
High Cut a bit.

When distortion increases the sound
can be a bit harsh in some amps.
This can be tamed with the High Cut
control. Just increase it and you will
get rid of it.

LEVEL DRIVE GAIN

TONE HIGH CUT LOW CUT

OUTPUT

INPUT

9-18V DC

MADE IN SWEDEN BY

O

lsson

AMPS

-

+

LEVEL DRIVE GAIN

TONE HIGH CUT LOW CUT

OUTPUT

INPUT

9-18V DC

MADE IN SWEDEN BY

O

lsson

AMPS

-

+

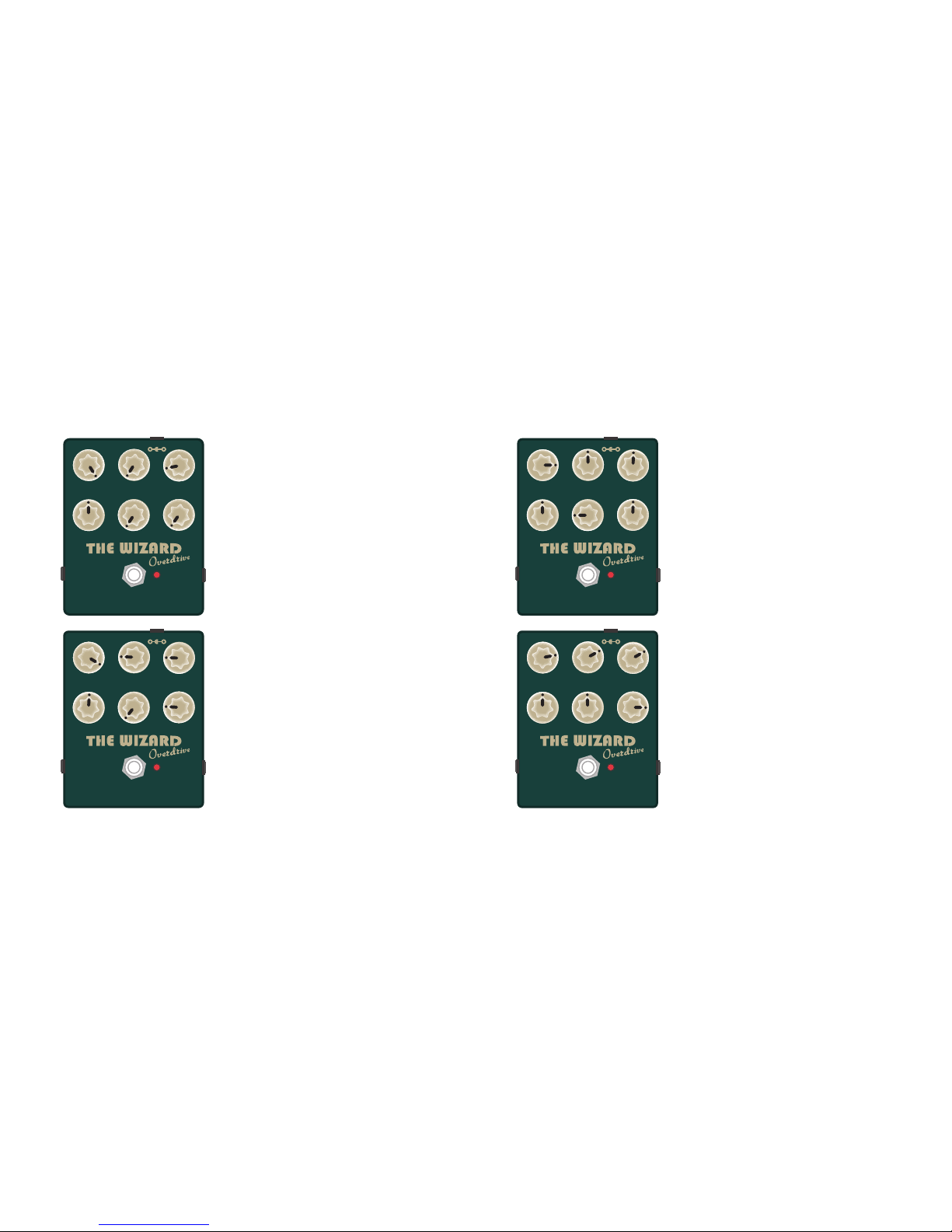

1. Unity gain

With this setting you will have unity

gain and a clean tone.

2. Crunch

Increase the drive and gain to get
some crunch. Also increase the Low
Cut a bit.

When increasing the distortion it’s
almost always a good idea to cut the
lower frequencies as well.

4. Distortion

Here is a setting to get some great
distortion sound. Note that we have
increased both High Cut and Low Cut
compared to previous example.

E X A M P L E

E X A M P L E

LEVEL DRIVE GAIN

TONE HIGH CUT LOW CUT

OUTPUT

INPUT

9-18V DC

MADE IN SWEDEN BY

O

lsson

AMPS

-

+

LEVEL DRIVE GAIN

TONE HIGH CUT LOW CUT

OUTPUT

INPUT

9-18V DC

MADE IN SWEDEN BY

O

lsson

AMPS

-

+

LEVEL DRIVE GAIN

TONE HIGH CUT LOW CUT

OUTPUT

INPUT

9-18V DC

MADE IN SWEDEN BY

O

lsson

AMPS

-

+

LEVEL DRIVE GAIN

TONE HIGH CUT LOW CUT

OUTPUT

INPUT

9-18V DC

MADE IN SWEDEN BY

O

lsson

AMPS

-

+

6. 70’s distortion

Doing opposite than example 5 and use
low Drive setting and high Gain setting
will result in a less compressed tone.

7. More 70’s distortion

This is a setting to get even more of 70’s
distorted tones.

Crunch with mid boost

In this example we show you how to get
some midrange boost by using the Tone
control in conjunction with the High Cut
and Low cut controls.

E X A M P L E

E X A M P L E

5. Compressed distortion

If you use a high Drive setting and a
low Gain setting the result will be a
more compressed tone. Compare it
with example 6.

Olsson Amps Sweden 2015 www.olssonamps.com

About Olsson Amps

Based in Stockholm, Sweden, Olsson Amps makes guitar tube ampliers and

eect pedals with highest quality and killer tone.

All products are hand made in Sweden.
