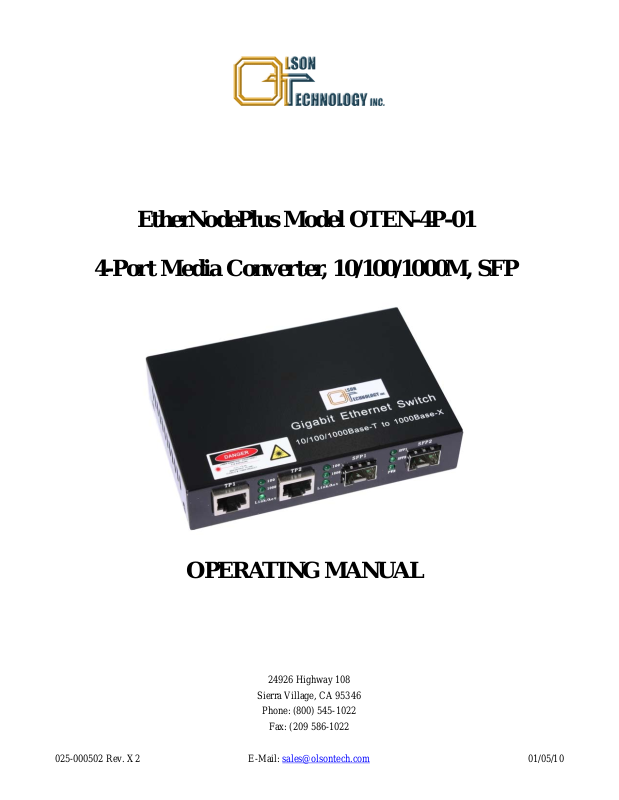

EtherNodePlus Model OTEN-4P-01
4-Port Media Converter, 10/100/1000M, SFP
OPERATING MANUAL
24926 Highway 108
Sierra Village, CA 95346
Phone: (800) 545-1022
Fax: (209 586-1022
025-000502 Rev. X2 E-Mail: [email protected]
01/05/10
Page 2
TABLE OF CONTENTS
SAFETY......................................................................................................................................................................3
Safety Precautions..................................................................................................................................................3
Laser Safety Procedure..........................................................................................................................................3
INTRODUCTION........................................................................................................................................................4
PANEL LAYOUTS .....................................................................................................................................................4
Figure 1 - Converter Front Panel........................................................................................................................4
ETHERNET SPECIFICATIONS.................................................................................................................................4
TYPICAL PERFORMANCE WITH DIFFERENT SFP MODULES ............................................................................5
ELECTRICAL CHARACTERISTICS .........................................................................................................................5
ENVIRONMENTAL CHARACTERISTICS.................................................................................................................5
PHYSICAL CHARACTERISTICS..............................................................................................................................5
INSTALLATION .........................................................................................................................................................5
Figure 2 - OTEN-4P-01 Internal Configuration
Typical Mating SFP Module
Typical AC Power Supply (Ships with Unit)
025-000502 Rev. X2 www.olsontech.com 2
Page 3
SAFETY
Safety Precautions
The optical emissions from the units are laser-based and may present eye hazards if improperly
used. NEVER USE ANY KIND OF OPTICAL INSTRUMENT TO VIEW THE OPTICAL
OUTPUT OF THE UNIT. Be careful when working with optical fibers. Fibers can cause painful
injury if they penetrate the skin.
Laser Safety Procedure
ALWA YS read the product data sheet and the laser safety label before powering the product. Note
the operation wavelength, optical output power and safety classifications.
If safety goggles or other eye protection are used, be certain that the protection is effective at the
wavelength emitted by the device under test BEFORE applying power.
ALWA YS connect a fiber to the output of the device BEFORE power is applied. Power should
never be applied without an attached fiber. If the device has a connector output, a connector
should be attached that is connected to a fiber. This will ensure that all light is confined within the
fiber waveguide, virtually eliminating all potential hazard.
NEVER look at the end of the fiber to see if light is coming out. NEVER! Most fiber optic laser
wavelengths (1310nm and1550nm) are totally invisible to the unaided eye and will cause permanent damage. Shorter wavelengths lasers (e.g., 780nm) are visible and are very damaging. Always
use instruments, such as an optical power meter, to verify light output.
NEVER, NEVER, NEVER look into the end of a fiber on a powered device with ANY sort of
magnifying device. This includes microscopes, eye loupes and magnifying glasses. This WILL
cause a permanent and irreversible burn on your retina. Always double check that power is disconnected before using such devices. If possible, completely disconnect the unit from any power
source.
If you have questions about laser safety procedures, please call Olson Technology before power-
ing your product.
025-000502 Rev. X2 www.olsontech.com 2
Page 4
INTRODUCTION
The OLSON TECHNOLOGY, INC. Model OTEN-4P-01 EtherNodePlus 4-Port Media Converter
supports two 10/100/1000Mb/s UTP ports and two 1000Mb/s SFP sockets to convert between
1000Base-T, 1000Base-SX, 1000Base-LX, etc. This allows network operators to convert signals
between an electrical Ethernet 10/100/1000Mb/s UTP interface and an optical interface. The traditional 10/100/1000Mb/s gigabit Ethernet signal can be extended to distances of 80+km through an
optical fiber.
The OTEN-4P-01 incorporates the latest gigabit IC technology. Indicator LED’s on the front panel
allow the unit’s status to be fully monitored, simplifying installation and maintaining network
performance.
PANEL LAYOUT

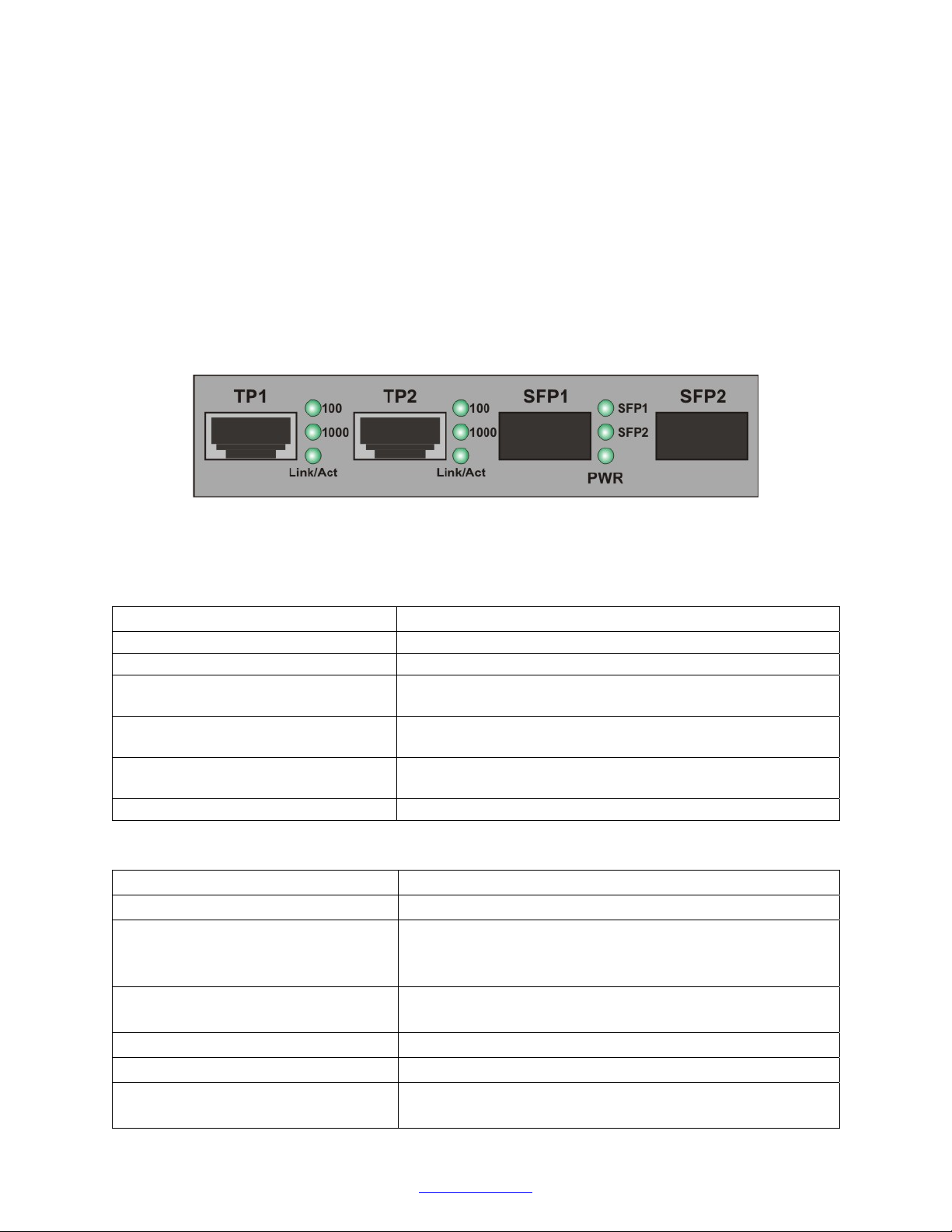

Figure 1 — Converter Front Panel
LED INDICATOR FUNCTIONS
Designation Meaning
100 Lit when TP1 or TP2 speed is 100Mb/s.
1000 Lit when TP1 or TP2 speed is 1000Mb/s.
Link/Act
SFP1
SFP2
PWR Lit when the unit is powered.
ETHERNET SPECIFICATIONS
Parameter Specification
Standards IEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX/HX
Cables UTP Category 5e or Category 6 (100m max. distance)
50/125µm Multimode Fiber (500m max. distance at 1000Mb/s)
9/125µm Single-mode Fiber (80+km max. distance)
Connectors UTP: RJ-45, 10/100/1000Mb/s
Optical: SFP Module
Mac Add. Table 1K
Data Buffer 512K
Flow Control Full-duplex IEEE802.3x
Half-duplex Back Pressure
Lit when the TP1 or TP2 connection is good.
Blinks when TP1 or TP2 data is transmit t i ng.
Lit when SFP1 connection is good.
Blinks with SFP1 data is transmitting.
Lit when SFP2 connection is good.
Blinks with SFP2 data is transmitting.
025-000502 Rev. X2 www.olsontech.com 2
Page 5
TYPICAL PERFORMANCE WITH DIFFERENT SFP MODULES
Fiber Type Max. Distance Wavelength Tx Power Sensitivity Link Budget
50µm Multimode
Single-mode
Single-mode
550m 850nm -11 to -6dBm <-18dBm
30km 1310nm -8 to 0dBm <-25dBm
80+km 1550nm, CWDM -5 to 0dBm <-25dBm
7dB
17dB
20dB
ELECTRICAL CHARACTERISTICS
Min. Typ. Max. Units
Converter Power Requirements (See Note 1)
Power Supply Voltage
Note 1) Using Model OTOLS-1312-30 SFP module.
5 Volts DC
140 mA
100 240 Volts AC
50 60 Hz
ENVIRONMENTAL CHARACTERISTICS
Min. Typ. Max. Units
Operating Temperature Range
Storage Temperature Range
Humidity, RH, non-condensing
0 +50 °C
-20 +70 °C
5 90 %
PHYSICAL CHARACTERISTICS
Min. Typ. Max. Units
Weight
Weight with 2 SFP Modules
Dimensions
9.8 oz.
280 g
11 oz.
310 g
4.92 x 3.35 x 1.06 in.
125 x 85 x 27 mm
INSTALLATION
1) Insert the SFP modules into the SFP cages on the converter.
2) Attach a fiber cable from the SFP on the converter to the fiber network. The fiber connections must
match: transmit socket to receive socket.
3) Attach UTP cables from the TP network device to the RJ45 ports on the converter.
4) Connect the power supply to the converter and check that the Power LED lights up. The TP Act and
FX Act LED’s will light when all the cable connections are satisfactory.
025-000502 Rev. X2 www.olsontech.com 2
Page 6

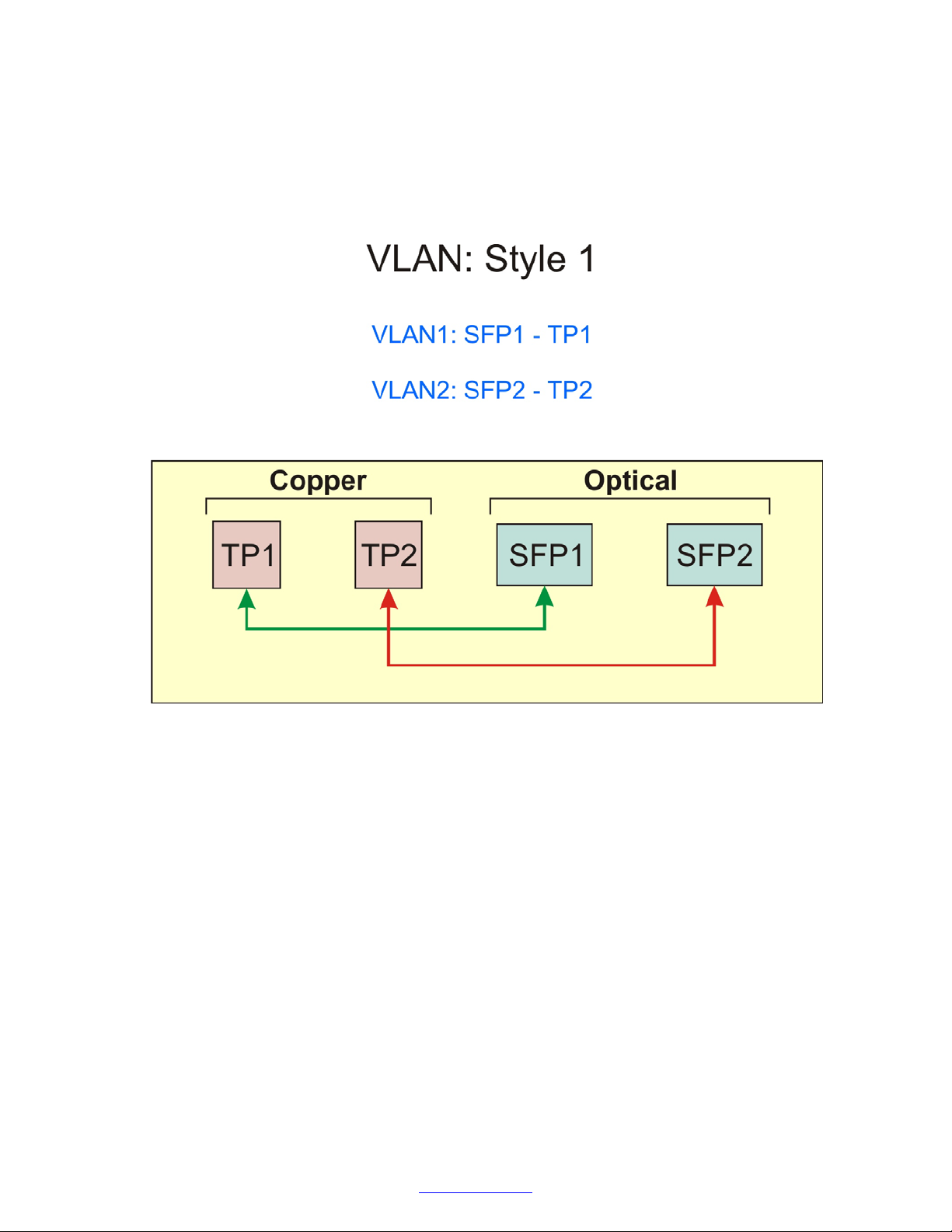

Figure 2 - OTEN-4P-01 Internal Configuration
