Olson Technology OTDV-1250 User Manual

Model OTDV-1250

Broadcast Transport Links

OPERATING MANUAL

24926 Highway 108
Sierra Village, CA 95346
Phone: [phone]
Fax: [phone]

Rev. X5 E-Mail: [email protected]

02/23/10

Table of Contents

Table of Contents...............................................................................................................................................2

SAFETY...............................................................................................................................................................3

Safety Precautions ................................................................................................................................................................3

Laser Safety Procedure.........................................................................................................................................................3

GENERAL FEATURES....................................................................................................................................... 4

TRANSMIT SIDE.................................................................................................................................................4

POWER, DATA, ETHERNET , AND OPTICS SIDE............................................................................................. 4

Alarm Output Specifications: ...............................................................................................................................................5

VIDEO SPECIFICA TI ONS...................................................................................................................................5

AUDIO SPECIFICA TIONS..................................................................................................................................5

DA TA SPECIFICATIONS .................................................................................................................................... 5

ETHERNET SPECIFICATIONS ..........................................................................................................................6

ELECTRICAL, PHYSICAL, ENVIRONMENTAL SPECIFICATIONS .................................................................6

NOTES:................................................................................................................................................................................6

LED FUNCTIONS:..............................................................................................................................................................6

Figure 1 - OTDV-1250-B Block Diagram ...................................................................................................................7

Figure 2 - OTDV-1250-TA/RA Block Diagram...........................................................................................................7

Figure 3 - OTDV-1250-TAA/RAA Block Diagram .....................................................................................................8

SFP MODULES...................................................................................................................................................8

Figure 4 - MM 850nm SFP Module with Dual LC Connectors...................................................................................8

Figure 5 - SM CWDM SFP Module with Dual LC Connectors...................................................................................8

Figure 6 - SM Bidirectional SFP Module with Single SC Connector..........................................................................9

INSTALLATION................................................................................................................................................... 9

Optical Connectors ...............................................................................................................................................................9

Cleaning Optical Connectors................................................................................................................................................9

ORDERING INFORMA TION.............................................................................................................................10

Model OTDV-1250, 025-000571 Rev. X5 2 www.olsontech.com

SAFETY

Safety Precautions

The optical emissions from the units are laser-based and may present eye hazards if improperly used. NEVER USE ANY
KIND OF OPTICAL INSTRUMENT TO VIEW THE OPTICAL OUTPUT OF THE UNIT. Be careful when

working with optical fibers. Fibers can cause painful injury if they penetrate the skin.

Laser Safety Procedure

ALWAYS

length, optical output power and safety classifi cat i ons.
If safety goggles or other eye protection are used, be certain that the protection is effective at the wavelength emitted by

the device under test BEFORE

ALWAYS

an attached fiber. If the device has a connector output, a connector should be attached that is connected to a fiber. This
will ensure that all light is confined within the fiber waveguide, virtually eliminating all potential hazard.

NEVER

and 1550 nm) are totally invisible to the unaided eye and will cause permanent damage. Shorter wavelengths lasers (e.g.,
780 nm) are visible and are very damaging. Always use instruments, such as an optical power meter, to verify light out­put.

NEVER, NEVER, NEVER

includes microscopes, eye loupes and magnifying glasses. This WILL
retina. Always double check that power is disconnected before using such devices. If possible, completely disconnect the
unit from any power source.

If you have questions about laser safety procedures, please call Olson Technology before powering your product.

read the product data sheet and the laser safety label before powering the product. Note the operation wave-

applying power.

connect a fiber to the output of the device BEFORE power is applied. Power should never be applied without

look at the end of the fiber to see if light is coming out. NEVER! Most fiber optic laser wavelengths (1310 nm

look into the end of a fiber on a powered device with ANY sort of magnifying device. This

cause a permanent and irreversible burn on your

Model OTDV-1250, 025-000571 Rev. X5 3 www.olsontech.com

GENERAL FEATURES

The Olson OTDV-1250 Video/Stereo Audio, Data and Ethernet Fiber Optic Link provides a very high-quality system for
transporting baseband NTSC RS-250 or PAL B, D, G, H and I video signals, stereo audio signals and bidirectional data
with complete EMI immunity via multimode or single-mode optical fiber. The combination of video, stereo quality audio,
data for touch screens, pan, tilt & zoom or pure data transport for communications and the addition of au to-negotiating
10/100Mb/s Ethernet make these links ideal for broadcast, contribution and distribution quality V/A/A transport, tele­conferencing, distance learning, and surveillance applications. Each unit is built in a rugged, shielded enclosure. Units
are available with four channels of audio and unidirectional transport options.

The defining feature of the OTDV-1250 is versatility. While there are numerous fiber optic broadcast transport links
available, the addition of user/field-swappable SFP modules allows the unit to be rapidly reconfigured for any conceiv­able fiber requirement

All signals are handled using state-of-the-art digital techniques resulting in no degradation in performance regardless of
the fiber type and distance. All signals are digitized to a single serial data stream that easily fits into Gb/s data stream.
Extensive use of overhead messaging allows the two units to be aware of problems at the far end.

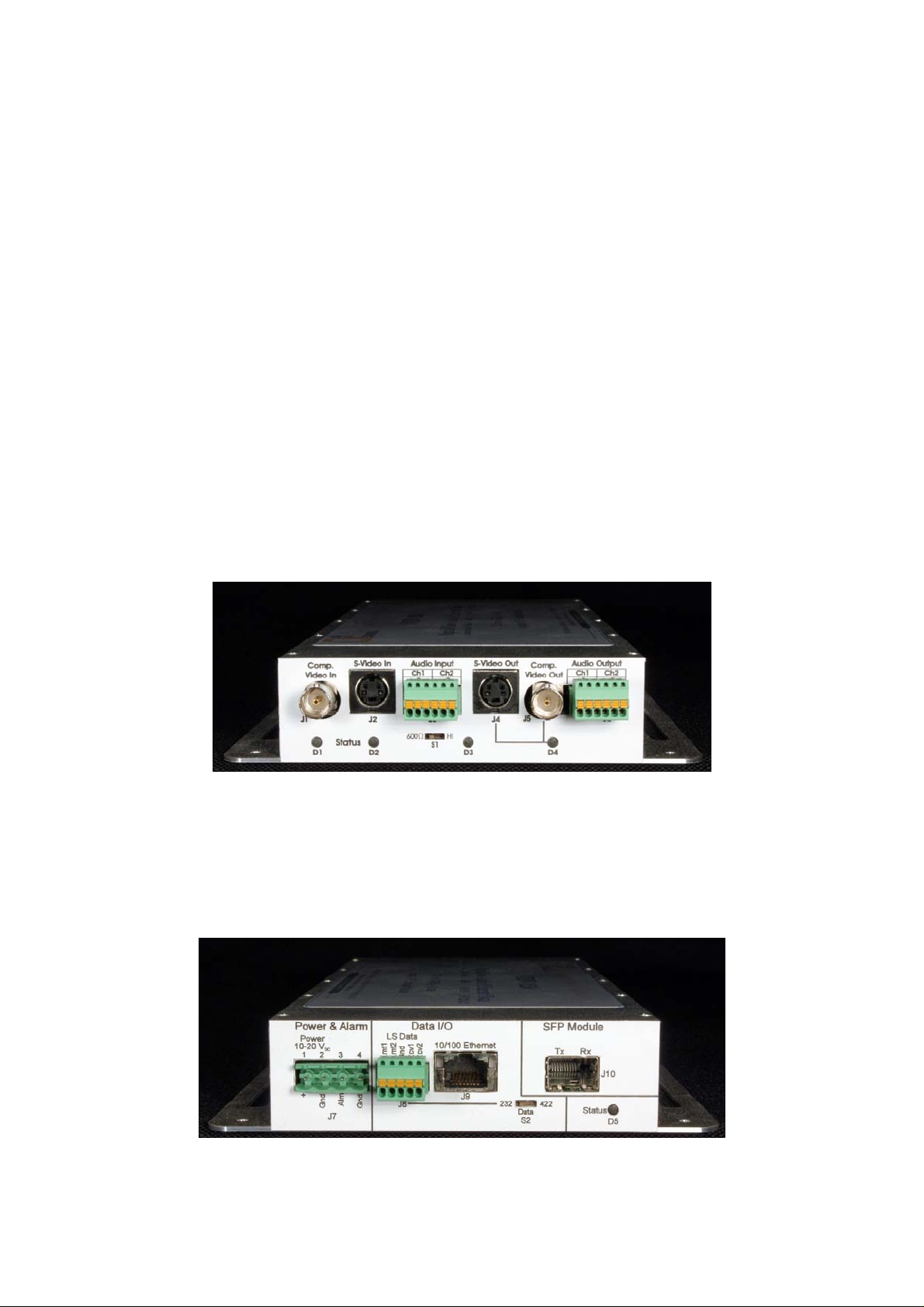

TRANSMIT SIDE

The left side is the transmit side. J1 is the composite video transmit. J2 is the S-video transmit. J3 is the stereo audio
transmit. The right side is the receive side. J4 is the composite video receive. J5 is the S-video receive. J6 is the stereo
audio receive. D1, D2, D3 & D4 give the status of the unit. Switch S1 selects whether the audio input is configured to be
high impedance or 600 Ohms.

POWER, DATA, ETHERNET, AND OPTICS SIDE

The left side is the power and alarm section. Pins 1 & 2 of J7 are the DC power input. Pins 3 and 4 are the alarm output.
The center section is the data interface. J8 is the low-speed data interface. Switch S2 is used to select RS-232 or RS-422.
J9 is the bidirectional 10/100Mb/s Ethernet data port. The right side con tains the SFP module interface (J10) and the unit
status LED (D5).

Model OTDV-1250, 025-000571 Rev. X5 4 www.olsontech.com

Alarm Output Specifications:

The alarm output is driven by a normally closed MOSFET. It should be pulled to an external voltage (50V max) through
a resistor. The MOSFET has a typical “on” resistance of 330 ohms. The external resistor should be chosen such that the
maximum current is less than 25mA.

The alarm output is at high impedance when the unit is functioning properly, and at low impedance when there is no
power or no optical signal is present at the receiver, or the SFP is missing.

VIDEO SPECIFICATIONS

Min. Typ. Max. Units

Input Signal
Output Signals
I/O Impedance
Input Level
Output Level
Bandwidth
SNR (NTC7 Lum-Weighted)
SNR (Unified Lum-Weighted)
Differential Gain
Differential Phase
Line Time Distortion
Chrom-Lum Delay
Chrom-Lum Gain
Conversion

Composite or S-Video (See Note 1)

Composite and S-Video

75 Ohms

0.6 1.0 1.4 V

1.0 V

p-p

(See Note 2)

p-p

6 MHz
67 72.5 dB
67 73.0 dB

1.3 %

0.7 °

0 0.25 0.50 %

-20 0 +20 ns
98 100 103 %

10-bit 4:2:2 per ITU-R-BT.601

AUDIO SPECIFICATIONS

Min. Typ. Max. Units

Number of Channels
Frequency Response
THD+N

Input Impedance
Input Level (600 Ohm Bal.)

Gain
Input Level (High Impedance,

Single Ended)

2 4 (See Note 3)

20 20,000 Hz

-85 -78 dB

600 10,000

Ohms (See Note

4)

16 16.5 17 dBu

-1 0 dB

0.9 V

p-p

DATA SPECIFICATIONS

Min. Typ. Max. Units

Number of Channels
Protocol
Data Rate (RS-232)
Data Rate (RS-422)

Model OTDV-1250, 025-000571 Rev. X5 5 www.olsontech.com

1

RS-232 or RS-422 (See Note 5)
155 kb/s
1 Mb/s

ETHERNET SPECIFICATIONS

Min. Typ. Max. Units

Number of Channels
Auto Negotiating

1

10Mb/s or 100Mb/s

ELECTRICAL, PHYSICAL, ENVIRONMENTAL SPECIFICATIONS

Min. Typ. Max. Units

DC Input Voltage
DC Current
Power
Module Weight
Module Dimensions
Operating Temp. Range
Storage Temp. Range
Humidity

NOTES:

1) The transmitter accepts either composite or S-Video input. If both are present, the S-Video signal will be used.

The receiver always presents both composite and S-Video outputs.

10 20 V

0.30 0.53 A (See Note 6)
6 W (See Note 6)

25.4 oz.

11.5 x 6 (with base plate) x 1.25 inch

0 +50 °C

-10 +60 °C
5 90 %

(See Note 6)

DC

2) The output level will track the input level.

3) The standard transceiver model offers either two or four audio channels.

4) Input impedance is switch selectable by the user. The high impedance setting is single end input.

5) The data protocol is switch selectable by the user.

6) The OTDV-1250 utilizes high-efficiency switching power supplies internally. The power dissipation is nearly

constant as the input voltage changes. The highest curr ent draw will occur at the lowest input voltage and vice
versa. Note that excessive noise and ripple on the power supply may degrade some of the performance parame­ters.

7) All test results are at +25°C with a +15Volt DC power supply.

LED FUNCTIONS:

LED ID Description Green Red Orange Off

Solid green when compos-

No Com­posite
video pre­sent

No S-video
present

No power

No video at
transmitter

D1

D2

D3

D4

ite video present and no
Composite video
input present

S-video input pre­sent

Unit status Unit functioning properly

Received video
present

S-video present. Slow

flashing green when com-

posite video present and

S-video present

S-video present N/A N/A

Transmitter has valid video N/A N/A

N/A N/A

No opti­cal signal
In or
missing
SFP

No optical
signal into far
end unit

Model OTDV-1250, 025-000571 Rev. X5 6 www.olsontech.com

LED ID Description Green Red Orange Off

No opti-

No optical
signal into far
end unit

No power

D5

Unit status Unit functioning properly

cal signal
In or
missing
SFP

Left

Ethernet

LED

Right

Ethernet

LED

Connection Speed 10 Mb/s N/A 100 Mb/s

Receiving

Rx Data N/A N/A

data from
RJ-45 jack

No Con­nection

Not re­ceiving
data

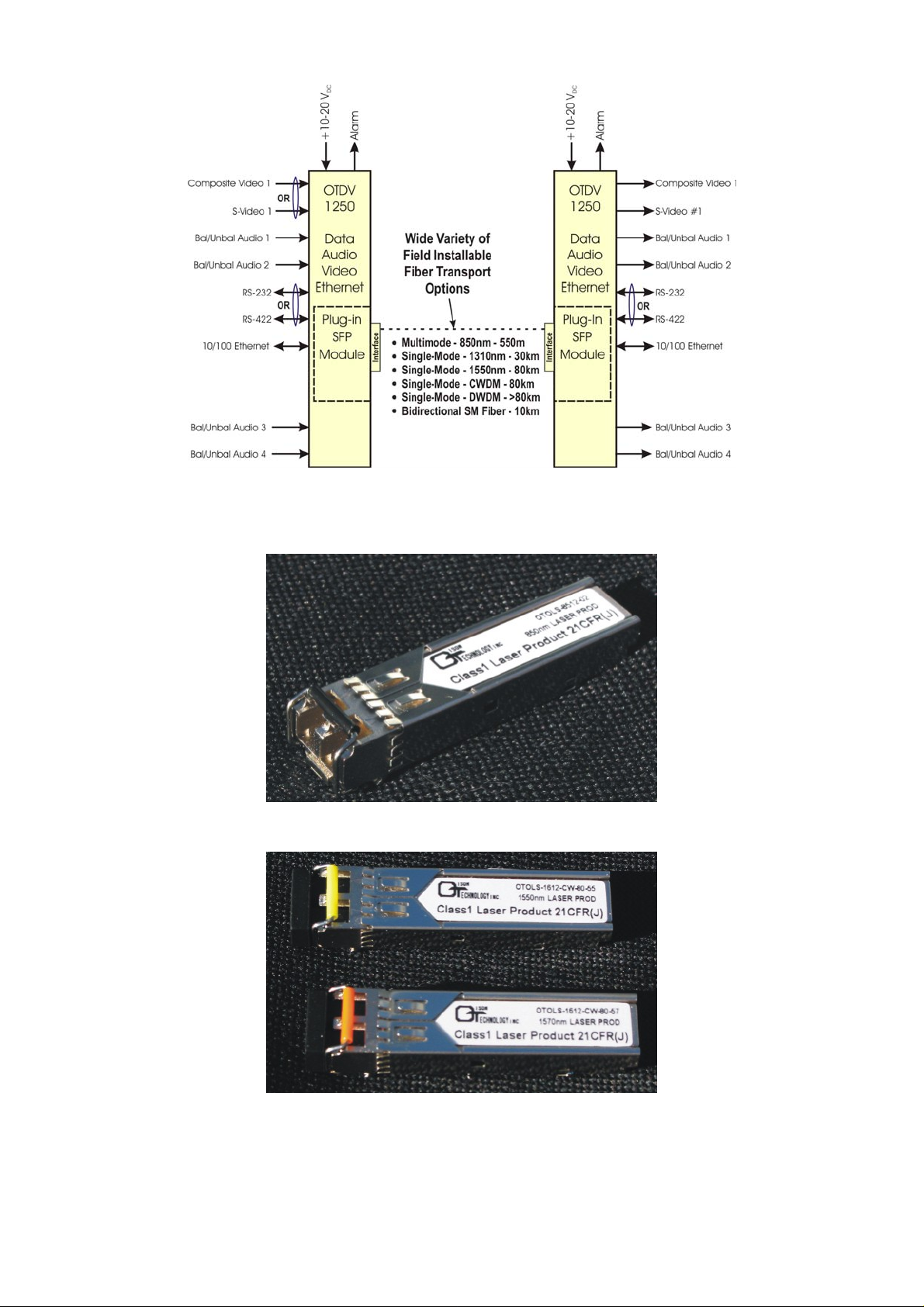

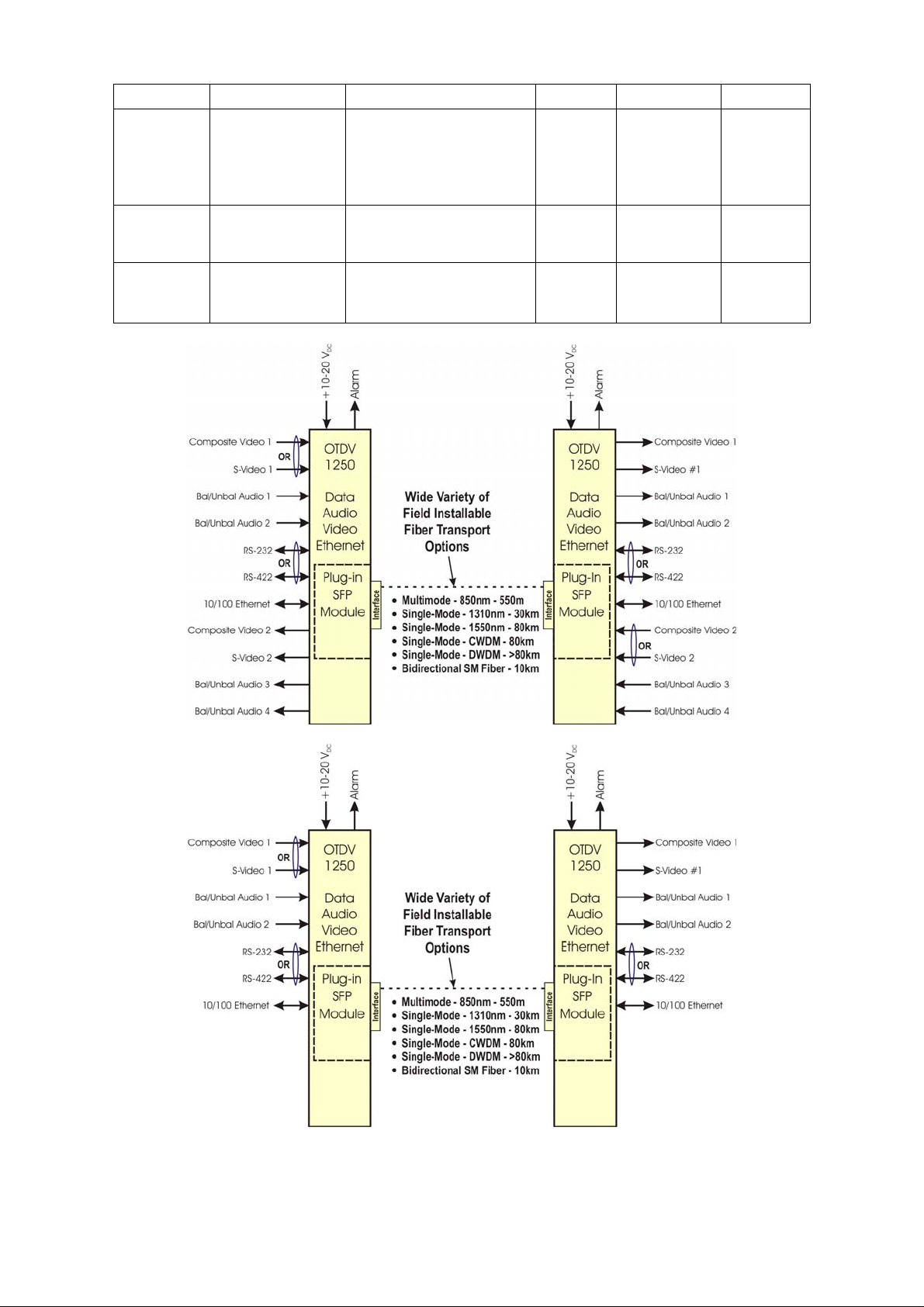

Figure 1 - OTDV-1250-B Block Diagram

Figure 2 - OTDV-1250-TA/RA Block Diagram

Model OTDV-1250, 025-000571 Rev. X5 7 www.olsontech.com

Figure 3 - OTDV-1250-TAA/RAA Block Diagram

SFP MODULES

Figure 4 - MM 850nm SFP Module with Dual LC Connectors

Figure 5 - SM CWDM SFP Module with Dual LC Connectors

Model OTDV-1250, 025-000571 Rev. X5 8 www.olsontech.com

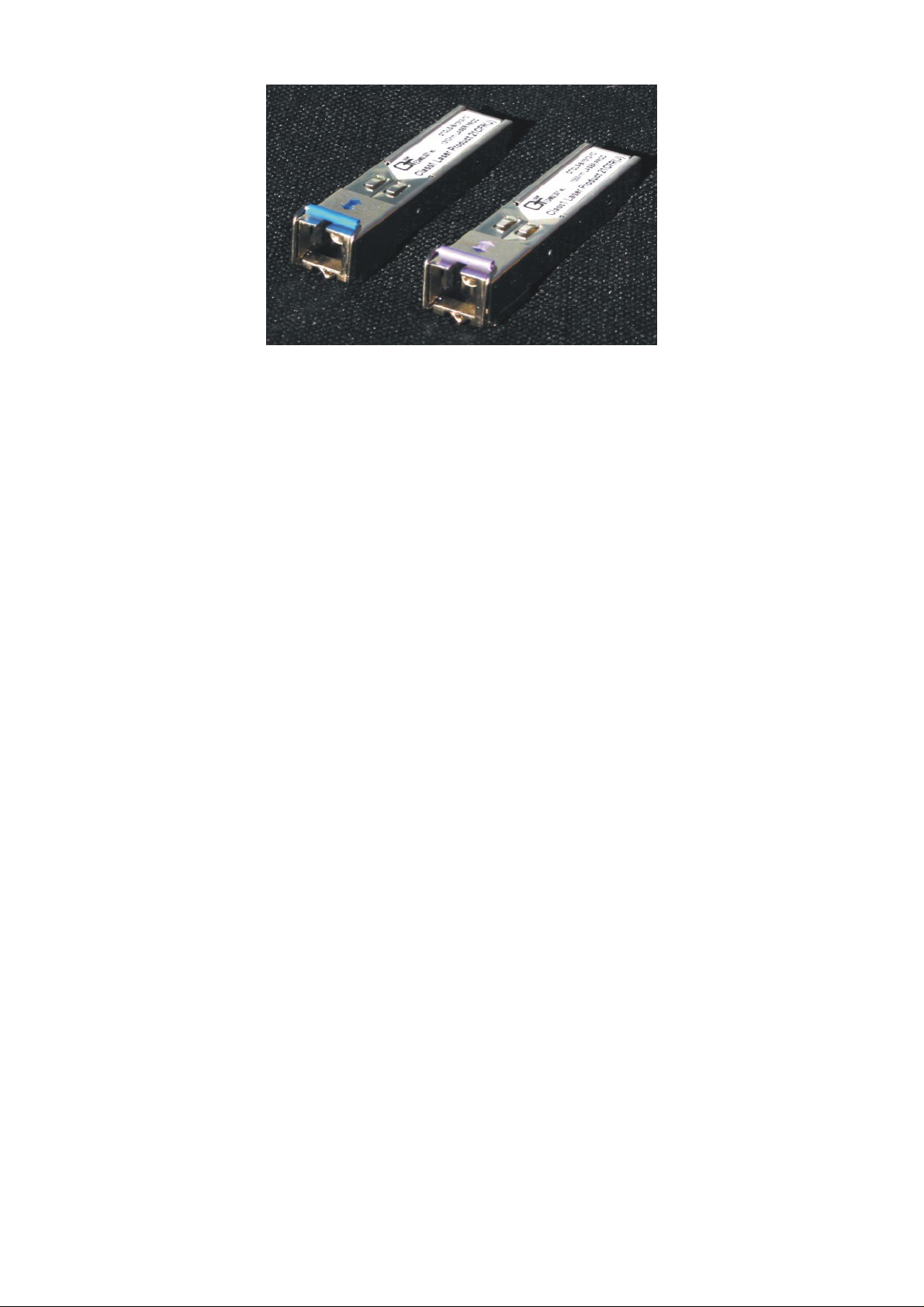

Figure 6 - SM Bidirectional SFP Module with Single SC Connector

INSTALLATION

Optical Connectors

There are many optical connectors on the market. The OTDV-1250 offers LC and SC/UPC types of connectors. One of
the most common errors encountered in the field is the use of th e wrong type of connectors. The most common is using
SC/PC (Flat) with SC/APC(angled). The connectors will fit together but the optical loss will be high and performance is
unpredictable and both connectors may be permanently damaged.

Cleaning Optical Connectors

Fiber optic connectors should be clean and capped, so one can usually remove the cap and make the connection without
cleaning the connector but if there is any doubt, clean the optical conn ectors b efore making the connectio n. After making
the connection, there is no need clean the connector while the connector remains connected. Use caution when handling
the connectors. Any grease from your finger, scratches or small pieces of dust can strongly affect performance. To clean,
use a lint-free wipe such as Kimwipes or cotton swab, moisten with alcohol and gently wipe the tip of the connector. Let
the connector air dry completely or use dry compressed air to dry. When making the connection, be sure the key aligns
with the bulkhead connector. With LC connectors, gently press in until the connector “clicks” in to place.

Model OTDV-1250, 025-000571 Rev. X5 9 www.olsontech.com

ORDERING INFORMATION

OTDV-1250 Platform Description

OTDV-1250-B NTSC Only - Bidirectional Digital Video, Dual Audio, Data Transport Link.
OTDV-1250-TA NTSC Only - Transmit Only, Digital Video, Dual Audio, Data Transport Link.
OTDV-1250-RA NTSC Only - Receive Only, Digital Video, Dual Audio, Data Transport Link.
OTDV-1250-TAA NTSC Only - Transmit Only, Digital Video, Quad Audio, Data Transport Link.
OTDV-1250-RAA NTSC Only - Receive Only, Digital Video, Quad Audio, Data Transport Link.
OTDV-1250P-B PAL B, D, G, H and I Only - Bidirectional Digital Video, Dual Audio, Data Transport Link.
OTDV-1250P-TA PAL B, D, G, H and I Only - Transmit Only, Digital Video, Dual Audio, Data Transport Link.
OTDV-1250P-RA PAL B, D, G, H and I Only - Receive Only, Digital Video, Dual Audio, Data Transport Link.
OTDV-1250P-TAA PAL B, D, G, H and I Only - Transmit Only, Digital Video, Quad Audio, Data Transport Link.
OTDV-1250P-RAA PAL B, D, G, H and I Only - Receive Only, Digital Video, Quad Audio, Data Transport Link.

SFP Modules Description

OTOLS-8512-02 SFP Optic Module, Dual MM Fiber , 850nm, 550 meter max, LC Connector
OTOLS-1312-30 SFP Optic Module, Dual SM Fiber 1310nm, 30km max, LC Connector
OTOLS-1512-80 SFP Optic Module, Dual SM Fiber 1550nm, 80km max, LC Connector
OTOLS-1612-CW-80-27 SFP Optic Module, Dual SM Fiber, CWDM, 1270nm, 80km max, LC Connector
OTOLS-1612-CW-80-29 SFP Optic Module, Dual SM Fiber, CWDM, 1290nm, 80km max, LC Connector
OTOLS-1612-CW-80-31 SFP Optic Module, Dual SM Fiber, CWDM, 1310nm, 80km max, LC Connector
OTOLS-1612-CW-80-33 SFP Optic Module, Dual SM Fiber, CWDM, 1330nm, 80km max, LC Connector
OTOLS-1612-CW-80-35 SFP Optic Module, Dual SM Fiber, CWDM, 1350nm, 80km max, LC Connector
OTOLS-1612-CW-80-37 SFP Optic Module, Dual SM Fiber, CWDM, 1370nm, 80km max, LC Connector
OTOLS-1612-CW-80-39 SFP Optic Module, Dual SM Fiber, CWDM, 1390nm, 80km max, LC Connector
OTOLS-1612-CW-80-41 SFP Optic Module, Dual SM Fiber, CWDM, 1410nm, 80km max, LC Connector
OTOLS-1612-CW-80-43 SFP Optic Module, Dual SM Fiber, CWDM, 1430nm, 80km max, LC Connector
OTOLS-1612-CW-80-45 SFP Optic Module, Dual SM Fiber, CWDM, 1450nm, 80km max, LC Connector
OTOLS-1612-CW-80-47 SFP Optic Module, Dual SM Fiber, CWDM, 1470nm, 80km max, LC Connector
OTOLS-1612-CW-80-49 SFP Optic Module, Dual SM Fiber, CWDM, 1490nm, 80km max, LC Connector
OTOLS-1612-CW-80-51 SFP Optic Module, Dual SM Fiber, CWDM, 1510nm, 80km max, LC Connector
OTOLS-1612-CW-80-53 SFP Optic Module, Dual SM Fiber, CWDM, 1530nm, 80km max, LC Connector
OTOLS-1612-CW-80-55 SFP Optic Module, Dual SM Fiber, CWDM, 1550nm, 80km max, LC Connector
OTOLS-1612-CW-80-57 SFP Optic Module for Dual SM Fiber, CWDM, 1570nm, 80km max, LC Connector
OTOLS-1612-CW-80-59 SFP Optic Module for Dual SM Fiber, CWDM, 1590nm, 80km max, LC Connector
OTOLS-1612-CW-80-61 SFP Optic Module for Dual SM Fiber, CWDM, 1610nm, 80km max, LC Connector
OTOLS-BI1312-10 SFP BiDi Optic Module for One SM Fiber, 1310nm Tx, 10km max, SC Connector
OTOLS-BI1512-10 SFP BiDi Optic Module for One SM Fiber, 1550nm Tx, 10km max, SC Connector

Power Supply Part Numbers

OTPS-12A-4P Universal AC Power Supply, +12 Volts, 1.5 Amps

Model OTDV-1250, 025-000571 Rev. X5 10 www.olsontech.com
