Page 1
Installation, Operation and
Maintenance Manual
Oil Fired Warm Air Furnaces
HML-C (Up-Flow Model)
HMLV-C (Up-Flow Model with ECM)
ALL INSTALLATIONS MUST MEET ALL
LOCAL, PROVINCIAL/STATE, AND
FEDERAL CODES WHICH MAY
DIFFER FROM THIS MANUAL
ECR International Limited
Read this complete manual before
beginning installation. These instructions
must be kept with the furnace for future
reference
30173 Rev B 4/29/2008
Page 2
TABLE OF CONTENTS
1. INTRODUCTION .................................................................................................................................3
2. HEAT LOSS........................................................................................................................................3
3. LOCATION OF UNIT..........................................................................................................................3
4. AIR CONDITIONING APPLICATIONS ...............................................................................................3
5. COMBUSTION AIR.............................................................................................................................4
6. CHIMNEY VENTING ...........................................................................................................................4
7. BAROMETRIC DAMPER CONTROL.................................................................................................4
8. OPTIONAL SIDE WALL VENTING.....................................................................................................5
9a, 9b. FAN TIMER BOARD AND LIMIT CONTROL (FIGURE 4 AND 5) .............................................5
10. ELECTRICAL CONNECTIONS.........................................................................................................5
11. HUMIDIFIER......................................................................................................................................6
12. PIPING INSTALLATION ...................................................................................................................6
13. OIL FILTER.......................................................................................................................................6
14. OIL BURNER NOZZLES...................................................................................................................6
15. OIL BURNER ADJUSTMENT...........................................................................................................6
16. BURNER ELECTRODES..................................................................................................................6
17. BURNER PRIMARY (SAFETY) CONTROL......................................................................................7
18. COMBUSTION CHAMBER...............................................................................................................7
19a, 19b. CIRCULATING AIR BLOWER................................................................................................7
20. MAINTENANCE AND SERVICE.......................................................................................................7
21. OPERATING INSTRUCTIONS..........................................................................................................8
22. ECM BLOWER MOTOR OPERATION
….………………………………………………………………………..9
APPENDIX A- HML-C AND HMLV-C ....................................................................................................10
A.1 OIL BURNER AIR ADJUSTMENT..................................................................................................11
A.2 BURNER ELECTRODES ................................................................................................................12
A.3 START UP.......................................................................................................................................12
A.4 SPECIAL INSTRUCTIONS FOR UNITS EQUIPPED WITH RIELLO BURNERS...........................12
APPENDIX B: WIRING DIAGRAMS......................................................................................................16
OPERATION OF OIL BURNER.............................................................................................................18
APPENDIX C OIL PRIMARY CONTROL DETAILED SEQUENCE OF OPERATION .........................19
OIL PRIMARY CONTROL LED DIAGNOSTIC LIGHT..........................................................................23
FINAL CHECK OUT...............................................................................................................................29
HOMEOWNER’S REFERENCE TABLE................................................................................................30
PARTS LISTING: HIGHBOY MODEL: HML – 80C AND HMLV-80C ...................................................31
NOTES: ..................................................................................................................................................................34
2
30173 Rev B 4/29/2008
Page 3
IMPORTANT:
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
1. INTRODUCTION
Please read these instructions completely and carefully
before installing and operating the furnace.
should be centralized with respect to the supply and
return air ductwork. A central location minimizes the
trunk duct sizing. All models may be installed on
combustible floors.
MODELS HML-C AND HMLV-C
Models HML-C and HMLV-C are oil fired forced air upflow furnaces with an output capacity range of 56,000
BTU/Hr. to 95,000 BTU/Hr.
DO NOT USE GASOLINE, CRANK CASE OIL, OR
ANY OIL CONTAINING GASOLINE.
All models are CSA listed, (NRTL/C) for use with No. 1
(Stove) and No. 2 (Furnace) Oil. Please refer to the
tables in Appendix A for performance and dimensional
data.
In Canada, the installation of the furnace and related
equipment shall be installed in accordance with the
regulations of CAN/CSA - B139, Installation Code for Oil-
Burning Equipment, as well as in accordance with local
codes.
In the United States of America, the installation of the
furnace and related equipment shall be installed in
accordance with the regulations of NFPA No. 31,
Standard for the Installation of Oil-Burning Equipment
well as in accordance with local codes.
, as
The minimum installation clearances are listed in
Table 1.
Table 1: Clearances – (Inches)
Clearance to Combustibles
Location
HML-C and HMLV-C
Up flow
Top 1
Bottom 0
S/A Plenum 1
Rear 1
Sides 1
Front 1**
Flue Pipe 9*
Enclosure Closet
*18 in. in USA
** 24 in. required for service clearance
Regulations prescribed in the National Codes and Local
regulations take precedence over the general
instructions provided on this installation manual. When in
doubt, please consult your local authorities.
All models are shipped assembled and pre-wired. The
furnace should be carefully inspected for damage when
being unpacked.
2. HEAT LOSS
The maximum hourly heat loss for each heated space
shall be calculated in accordance with the procedures
described in the manuals of the Heating, Refrigeration
and Air Conditioning Institute of Canada (HRAI), or by
other means prescribed, or approved by the local
authority having jurisdiction.
In the United States, Manual J. titled, "Load Calculation"
published by the Air Conditioning Contractors of
America, describes a suitable procedure for calculating
the maximum hourly heat loss.
3. LOCATION OF UNIT
The furnace should be located such that the flue
connection to the chimney is short, direct and consists of
as few elbows as possible. When possible, the unit
HEAT EXCHANGER SUPPORT SCREWS
Before final placement of the furnace, the heat
exchanger support screws shown in the picture may
be removed. This may be preferable if the furnace
rear panel will be inaccessible after installation. The
screws must be removed if the heat exchanger must
be removed from the cabinet.
4. AIR CONDITIONING APPLICATIONS
If the furnace is used in conjunction with air
conditioning, the furnace shall be installed in parallel
with or upstream from the evaporator coil to avoid
condensation in the heat exchanger. In a parallel
3
30173 Rev B 4/29/2008
Page 4
installation, the dampers or air controlling means must
prevent chilled air from entering the furnace. If the
dampers are manually operated, there must be a means
of control to prevent the operation of either system
unless the dampers are in the full heat or full cool
position. The air heated by the furnace shall not pass
through a refrigeration unit unless the unit is specifically
approved for such service.
The blower speed must be checked and adjusted to
compensate for the pressure drop caused by the
evaporator coil. Refer to Appendix B for recommended
wiring and electrical connections of the air conditioning
controls.
5. COMBUSTION AIR
If the furnace is installed in a closet or utility room, two
openings must be provided connecting to a wellventilated space (full basement, living room or other
room opening thereto, but not a bedroom or bathroom).
One opening shall be located above the level of the
upper vent opening and one opening below the
combustion air inlet opening in the front of the furnace.
Each opening shall have a minimum free area of 1½
square inches per 1,000 Btu/h of total input rating of all
appliances installed in the room.
CHIMNEY VENTED VERSIONS OF THE
FURNACE MUST BE CONNECTED TO A
FLUE HAVING SUFFICIENT DRAFT AT ALL
TIMES TO ENSURE SAFE AND PROPER
OPERATION OF THE APPLIANCE.
NOTE: THE RECOMMENDED FLUE DRAFT
PRESSURE IS -0.02 IN. W.C. (SEE FIG 2.)
The flue pipe must not pass through any floor or
ceiling, but may pass through a wall where suitable
fire protection provisions have been installed. Refer
to the latest edition of CAN/CSA B-139 for rules
governing the installation of oil burning equipment.
In the United States, refer to the latest edition of
NFPA 31 for regulations governing the installation of
oil burning equipment.
See appendix A for burner set-up.

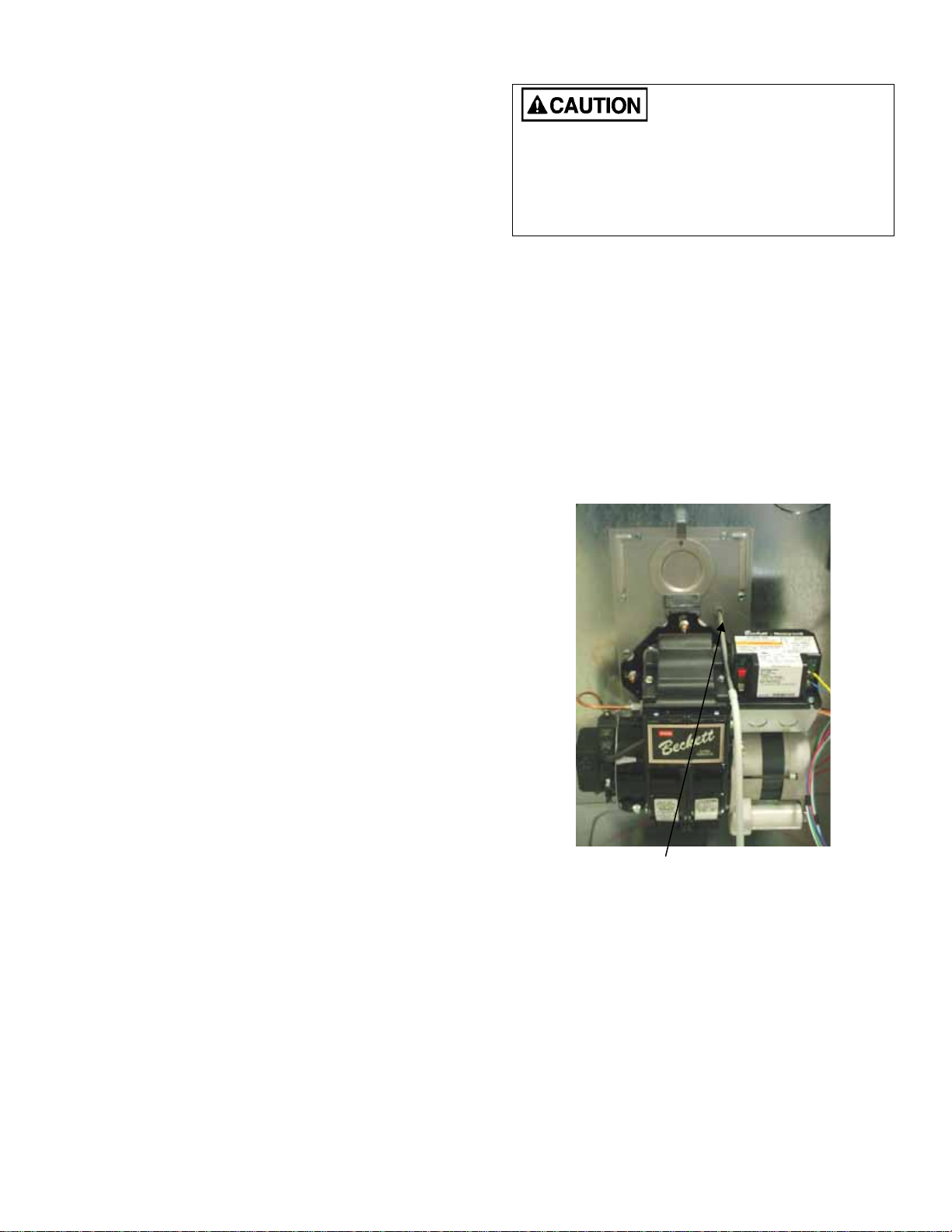

Fig. 2: Checking Over-Fire Draft.
For furnaces located in buildings of unusually tight
construction, such as those with high quality weather
stripping, caulking, windows and doors, or storm sashed
windows, or where basement windows are well sealed, a
permanent opening communicating with a well ventilated
attic or with the outdoors shall be provided, using a duct
if necessary. The duct opening shall have a free area of
1½ square inches per 1,000 Btu/h of total input rating of
all appliances to be installed. When a furnace is installed
in a full basement, infiltration is normally adequate to
provide air for combustion and draft operation. Furnace
rooms under 65m³ (700 ft³) should automatically be
treated as confined space.
6. CHIMNEY VENTING
The flue pipe should be as short as possible with
horizontal pipes sloping upward toward the chimney at a
rate of one-quarter inch to the foot. The flue pipe should
not be smaller in cross sectional area than the flue collar
on the furnace. The flue pipe should connect to the
chimney such that the flue pipe extends into, and
terminates flush with the inside surface of the chimney
liner. Seal the joint between the pipe and the lining. The
chimney outlet should be at least two feet above the
highest point of a peaked roof. All unused chimney
openings should be closed. Chimneys must conform to
local, provincial or state codes, or in the absence of local
regulations, to the requirements of the National Building
Code.
NOTE: THE FURNACE IS APPROVED FOR USE
WITH TYPE L VENT OR EQUIVALENT.
Over-fire draft access port.
7. BAROMETRIC DAMPER CONTROL.
The barometric damper control, also known as a
draft regulator, is used on conventional chimney
venting only. This control automatically maintains a
constant negative pressure in the furnace to obtain
maximum efficiency. It ensures that proper
pressures are not exceeded. If the chimney does not
develop sufficient draft, the draft control cannot
function properly. The draft regulator, when installed
should be in the same room or enclosure as the
furnace and should not interfere with the combustion
air supplied to the burner. The control should also be
located near the furnace flue outlet and installed
according to the instructions supplied with the
4
30173 Rev B 4/29/2008
Page 5
regulator. The flue outlet pressure (measured between
the furnace and draft regulator, or the oil burner
mounting plate over-fired draft access port. fig. 2) should
be set to -0.02 in. w.c.
8. OPTIONAL SIDE WALL VENTING
Certain HML-C and HMLV-C furnace models are
manufactured to be installed as sidewall vented units.
Please refer to Direct Venting Instructions, P/N
240006979 included with the Vent Kit for details. Sidewall
Venting (Direct Venting) requires the use of specific oil
burners; the Beckett AFII, or the Riello 40BF. Please
refer to Appendix A, Tables A2, and A4.
Note: Sidewall venting requires special attention to
combustion air supply. There is no natural draft in the
venting system between furnace cycles; therefore, if the
indoor pressure is negative relative to the outdoors, the
vent terminal becomes a point of infiltration. This could
lead to oil odour control problems. This problem is
rectified by the use of ducted outdoor air for combustion
(semi-sealed combustion), using the Beckett AFII or
Riello 40BF oil burner. See Direct Vent Instructions
supplied with the Vent Kits.
9a. FAN TIMER BOARD AND LIMIT CONTROL
(FIG. 4) (page 22)
The Electronic Fan Timer integrates control of all burner
and circulator fan operations. This control is the central
wiring point for most of the electrical components in the
furnace. The United Technologies 1158-120 (HML-C)
has an adjustable fan on time that is set by selecting the
dipswitch combination displayed in Chart 1. This fan on
delay can be set at 1, 2, 4 or 6 minutes. This provides a
delay between the burner ignition and blower start-up to
eliminate excessive flow of cold air when the blower
comes on. The United Technologies 1158-120 (HML-
C) has an adjustable fan off time of 30, 60, 90 or 120
seconds displayed in Chart 1. The fan off delay time
starts when the burner motor is de-energized at the end
of a call for heat. Blower shutdown is delayed to remove
any residual heat from the heat exchanger and improve
the annual efficiency of the furnace.
The electronic fan timer board works in conjunction with
snap disc limit controls, which perform a safety function,
and breaks power to the oil burner primary control, which
shuts off the burner if the furnace over-heats. The limit
control is thermally operated and automatically resets.
The limit control is factory installed, pre-set and is not
adjustable.
If the limit control opens with the United Technologies
1158-120 (HML-C) electronic fan control, the circulating
fan will be energized as well. When the limit closes, the
fan off timer will begin. At the end of the fan off time cycle
the burner will be energized, initiating a normal burner
cycle.
CHART 1
United Technologies 1158-120 (HML-C)
Dip Switch Position Blower Delay Times
1 2 3 4 On
Seconds
Off
Minutes
Off Off 30
On Off 60
Off On 90
On On 120
Off Off 1
On Off 2
Off On 4
On On 6
9b. FAN TIMER BOARD AND LIMIT
CONTROL (FIG. 5) (page 22)
The United Technologies 1168-1 ECM (HMLV-C)
tap board has an adjustable fan on/off delay that
must be adjusted in accordance with the furnace
input rating (nozzle size). Refer to Table A-10 (pg
15) for ECM blower set-up.
10. ELECTRICAL CONNECTIONS
The furnace is listed by the Canadian Standards
Association under the NRTL (North American)
Standard. It is factory wired and requires minimal
field wiring. All field wiring should conform to
CAN/CSA C22.1 Canadian Electrical Code, Part 1,
and by local codes, where they prevail. In the United
States, the wiring must be in accordance with the
National Fire Protection Association NFPA-70,
National Electrical Code, and with local codes and
regulations.
The furnace should be wired to a separate and
dedicated circuit in the main electrical panel;
however, accessory equipment such as electronic
air cleaners and humidifiers may be included on the
furnace circuit. Although a suitably located circuit
breaker can be used as a service switch, a separate
service switch is advisable. The service switch is
necessary if reaching the circuit breaker involves
becoming close to the furnace, or if the furnace is
located between the circuit breaker and the means
of entry to the furnace room. The furnace switch
(service switch) should be clearly marked, installed
in an easily accessible area between the furnace
and furnace room entry, and be located in such a
manner to reduce the likelihood that it would be
mistaken as a light switch or similar device.
The power requirement for the HML-C and HMLV-C
models is: 120 VAC, 1 Ø, 60 Hz., 12A.
Accessories requiring 120 VAC power sources such
as electronic air cleaners and humidifier
5
30173 Rev B 4/29/2008
Page 6
transformers may be powered from the electronic fan
timer board where provisions have been made for
connections, but should have their own controls. Do not
use the direct drive motor connections as a power
source, since there is a high risk of damaging the
accessories by exposure to high voltage from the autogenerating windings of the direct drive motor.
Thermostat wiring connections and air conditioning
contactor low voltage connections are shown in the
wiring diagrams in Appendix B. Some micro-electronic
thermostats require additional controls and wiring. Refer
to the thermostat manufacturer's instructions.
The thermostat should be located approximately 5 feet
above the floor, on an inside wall where there is good
natural air circulation, and where the thermostat will be
exposed to average room temperatures. Avoid locations
where the thermostat will be exposed to cold drafts, heat
from nearby lamps and appliances, exposure to sunlight,
heat from inside wall stacks, etc.
The thermostat heat anticipator should be adjusted to the
amperage draw of the heating control circuit as
measured at the "R" and "W" terminals of the thermostat.
To reduce the risk of damaging the heat anticipator, do
not measure this current with the thermostat connected
to the circuit. Measure the amperage by connecting an
ammeter between the two wires that will connect to the
thermostat "R" and "W" terminals.
11. HUMIDIFIER
A humidifier is an optional accessory available through
most heating supplies outlets. Installation should be
carried out in accordance with the humidifier
manufacturer's installation instructions. Water or water
droplets from the humidifier should not be allowed to
come into contact with the furnace heat exchanger. Do
not use direct drive motor connections as a source of
power for 120 VAC humidifiers and humidifier
transformers.
12. PIPING INSTALLATION
burner nozzle smaller than 0.65 U.S. Gallons Per
Hour, install an additional 7 to 10 micron filter as
close as possible to the oil burner.
14. OIL BURNER NOZZLES
The HML-C and HMLV-C are certified for multiple
firing rates, ranging from 56,000 to 95,000 Btu/h. By
manipulating the oil burner nozzle, flame retention
head, static plate and temperature rise; the furnace
may be fired at an ideal rate for a wide range of
structures. Refer to Table A-1, and the furnace
rating plate to determine the proper combinations.
15. OIL BURNER ADJUSTMENT
The burner air supply is adjusted to maintain the fuel
to air ratio to obtain ideal combustion conditions. A
lack of air causes "soft" and "sooty" flames, resulting
in soot build-up throughout the heat exchanger
passages. Excess combustion air causes a bright
roaring fire and high stack temperatures resulting in
poor fuel efficiency. The HML-C and HMLV-C
furnaces operate most efficiently with a No. 1 smoke
spot on the Bacharach Scale. This is not necessarily
the optimum setting; however, because dust will
inevitably build up on the air moving components of
the oil burner assembly. This will result in decreased
air supply with the potential result of soot building up
in the flue gas passageways of the heat exchanger.
Soot behaves as an insulator and impairs good heat
transfer. Stack temperature will increase, and the
overall efficiency will decrease. As a means of
avoiding this problem, it is advisable to adjust the air
supply to provide no more than a trace smoke spot
on the Bacharach Scale.
See the Venting Instructions included in the Vent
Kits for set-up details for sidewall vented furnaces.
NOTE: SIDEWALL VENTED MODELS
SHOULD BE SET UP TO DELIVER ZERO
(0)
SMOKE.
The entire fuel system should be installed in accordance
with the requirement of CAN/CSA B-139, and local
regulations. Use only an approved fuel oil tanks piping,
fittings and oil filter.
In the United States the installation must be in
accordance with NFPA No. 31 and local codes and
authorities.
Install the oil filter as close to the burner as possible. For
further details of the oil supply tank and piping
requirements, please refer to the instructions and
illustrations in the oil burner and oil pump instructions
shipped with the furnace.
13. OIL FILTER
All fuel systems should include an oil filter between the
fuel oil storage tank and the oil burner. When using an oil
BEFORE OPERATING THE FURNACE
CHECK BURNER ALIGNMENT WITH
COMBUSTION CHAMBER. THE END CONE
OF THE AIR TUBE MUST BE CENTRED TO
THE ACCOMODATING RING PROVIDED IN
THE DESIGN OF THE COMBUSTION
CHAMBER. ADJUST AS NECESSARY.
16. BURNER ELECTRODES
Correct positioning of the electrode tips with respect
to each other, to the fuel oil nozzle, and to the rest of
the burners is essential for smooth light ups and
proper operation. Refer to the oil burner instructions
shipped with the furnace for electrode specifications.
6
30173 Rev B 4/29/2008
Page 7
NOTE: Beckett AF Series Burner electrode specifications
have been revised. They should be adjusted to be 5/16”
above the nozzle centerline.
17. BURNER PRIMARY (SAFETY) CONTROL
The furnace is equipped with a primary combustion
control, sometimes referred to as the burner relay or
burner protector relay, which uses a light sensing device
(cad cell) located in the burner housing, to monitor and
control combustion. Over time, dust or combustion
residuals can build up on the lens of the cad cell
impairing its response to the flame. The cad cell should
be checked for cleanliness and proper alignment if the
primary control frequently shuts down combustion.
ALL FURNACE CONTROLS ARE SENSITIVE
AND SHOULD NOT BE SUBJECTED TO
TAMPERING. IF PROBLEMS PERSIST, CALL
YOUR SERVICE CONTRACTOR.
18. COMBUSTION CHAMBER
lack block ends on the trunk ducts. These systems
may require modification to provide some resistance
to the airflow to prevent over-amping of the direct
drive blower motor. Selecting a lower blower speed
may correct this problem. Direct drive blower speeds
are adjusted by changing the "hot" wires to the
motor winding connections. Please refer to wiring
diagrams in Appendix B or the wiring diagram label
affixed to the furnace. THE NEUTRAL WIRE
(normally the white wire) IS NEVER MOVED TO
ADJUST THE BLOWER SPEED.
It is possible and acceptable to use a single blower
speed for both heating and cooling modes. The
simplest method to connect the wiring from both
modes is to use a "piggy-back connector"
accommodating both wires on a single motor tap. It
is also acceptable to connect the selected motor
speed with a pigtail joined to both heating and
cooling speed wires with a wire nut. As a safety
precaution against accidental disconnection of the
wires by vibration, it is advisable to secure the wire
nut and wires with a few wraps of electricians tape.
This furnace is equipped with a high quality cerafelt
combustion chamber. It is held in place by a retaining
bracket.
CHECK THE ALIGNMENT OF THE COMBUSTION
CHAMBER AND OIL BURNER BEFORE FIRING.
IT IS POSSIBLE FOR THE COMBUSTION
CHAMBER TO SHIFT IF SUBJECTED TO ROUGH
HANDLING DURING TRANSIT.
chamber should be inspected for damage or carbon build
up whenever the oil burner is removed for repairs or
routine maintenance.
The combustion
DO NOT START THE BURNER UNLESS THE
BLOWER ACCESS DOOR IS SECURED IN
PLACE.
19a. CIRCULATING AIR BLOWER (HML-C)
The HML-C and HMLV-C furnace models are equipped
with direct drive blower systems. HML-C models are
equipped with PSC motors; HMLV-C models are
equipped with electronically commutated motors (ECM).
Direct drive blower speed adjustments are not normally
required in properly sized extended plenum duct
systems. The motor RPM and air CFM delivery will vary
automatically to accommodate conditions within the
usual range of external static pressures typical of
residential duct systems. Under-sized duct systems may
require a higher blower speed to obtain a reasonable
system temperature rise. Some older duct systems were
not designed to provide static pressure. They typically
feature special reducing fittings at each branch run and
DO NOT CONNECT POWER LEADS
BETWEEN MOTOR SPEEDS. THE NEUTRAL
WIRE MUST ALWAYS BE CONNECTED TO
THE MOTOR'S DESIGNATED NEUTRAL
TERMINAL.
If the joining of the blower speed wiring is done in
the furnace junction box, tape off both ends of the
unused wire.
Do not use the blower speed wires as a source
of power to accessories as electronic air
cleaners and humidifier transformers. The
unused motor taps auto-generate sufficiently high
voltages to damage accessory equipment.
DISCONNECT THE POWER SUPPLY TO THE
FURNACE BEFORE OPENING THE BLOWER
ACCESS DOOR TO SERVICE THE AIR
FILTER, FAN AND MOTOR. FAILURE TO
SHUT OFF POWER COULD ALLOW THE
BLOWER TO START UNEXPECTEDLY,
CREATING A RISK OF DEATH OR
PERSONAL INJURY.
19b. CIRCULATING AIR BLOWER (HMLV-C)
(See Section 22 Page 9)
7
30173 Rev B 4/29/2008
Loading...
