Ref T102P-VERSION 6.00

TOCSIN 102, 103

&

TOC-30 SERIES

PELLISTOR

OPERATION MANUAL

REFERS TO MODELS 5131401ATEX, 5137001, TOC-30A-PHC and TOC-31A-PHC

Page 2 of 9

The Tocsin 102 and 103 series Pellistors are flammable gas detectors based on well proven catalytic
principles. The units can be used either as conventional 3 wire 4-20mA transmitters or as 4 wire
addressable modules capable of integration onto an IGD data highway. Either option allows integration with
Tocsin 625, 700 and 920 series control panels.

Pellistors are capable of detecting all flammable gases but are usually made sensitive to the particular
target gas during calibration. It is therefore important that detectors are correctly installed and calibrated for
correct operation.

Siting of the detector should also be carefully considered to take into account air flows, site geometry and
the characteristics of the target gas. This instruction manual is intended fo ruse by competent persons who
can either demonstrate previous experience and training with gas detection systems or have completed
training courses at Oliver IGD Limited. Performance of the system will be a function of how well the system
is installed and calibrated.

Oliver IGD Limited can help advise on the correct siting and calibration of gas detectors.

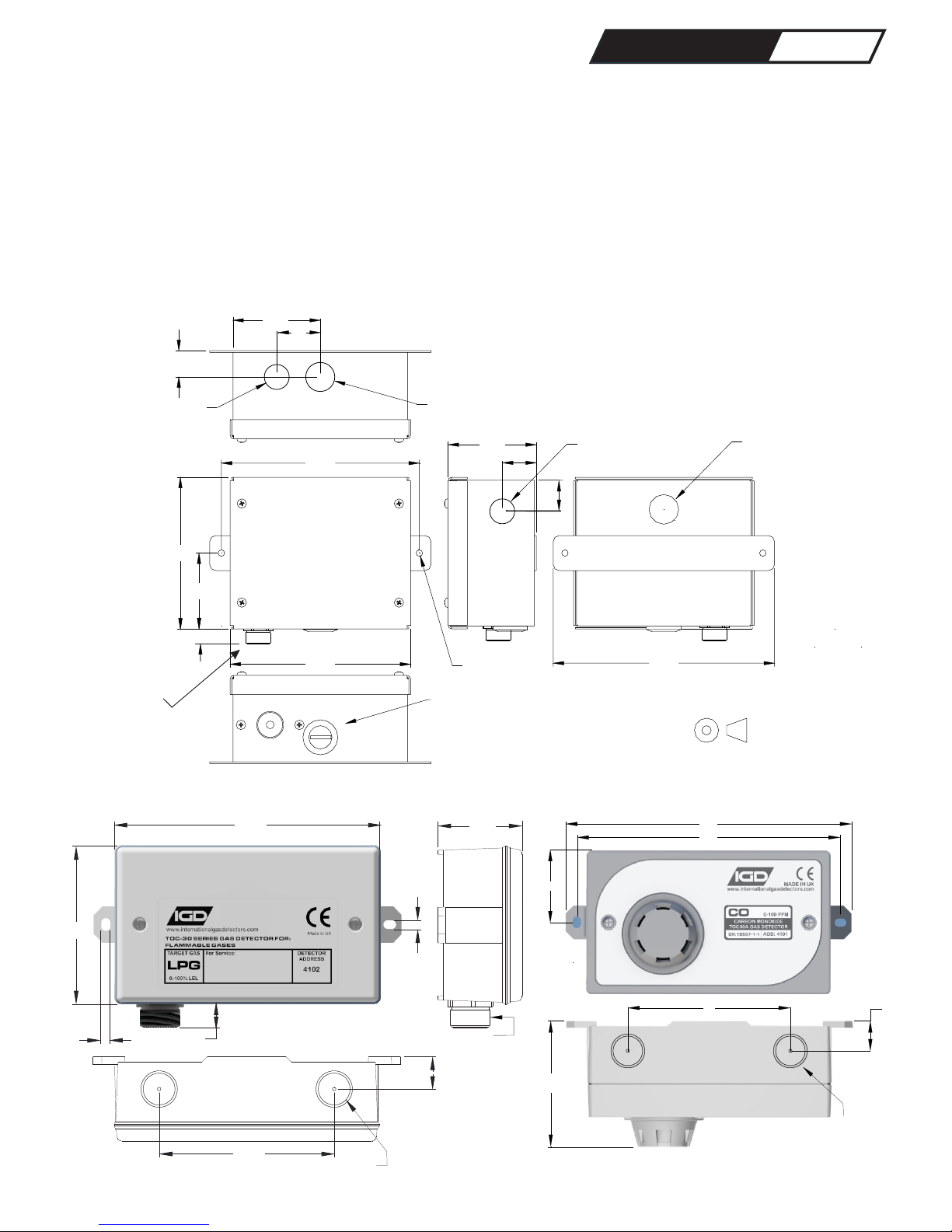

Mounting And Cable Information

145.0

126.0

128.5

COVER SECURING SCREW

M20 x 1.5

40.0

25.0

Ø7.0

EXTERNAL EARTH

MKIII FLAMMABLE
GAS DETECTOR
SHOWN

40.0

Ø110

128.0

OLIVER

IG D

TOCSIN 102

A N A LO G U E O R AD D R E S S A B L E PE L L I S TO R F L A M M A B L E G A S D E T E C T O R

ATEX CERTIFIED MODELS

L

E

B

A

A

T

M

M

O

M

S

A

P

L

F

H

E

A

R

F

E

O

E

C

N

E

S

E

R

P

E

H

T

N

I

N

E

P

O

T

O

N

O

D

G

N

I

N

R

A

W

Serial

Gas

Date

Model

OLIVER

IGD

xxxx

Oliver IGD Ltd Stockport England

Tel: [phone]

Web: internationalgasdetectors.com

JB3

II 2 D G

IECExEXV160002X
ExVeritas 16ATEX0140X
Ex tb III Db, M20 Entries

Ex db IIC T6

The following information is provided to enable safe
installation and operation of the Tocsin 102 Pellistor.

It is vitally important for correct and safe operation that
appropriate cable types and sizes are used and all earth
bonding points observed. It is also important to observe
all instructions for entry terminations. Failure to follow these
instructions may result in a system which may be dangerous
or fail to operate correctly.

CUSTOMER SEALING AND EARTHING RESPONSABILITIES

The Tocsin 102 Pellistor model 5131401ATEX is designed for use in Zone 1 and Zone 2 hazardous areas
and is ATEX certified. To maintain compliance it is imperative the installer of the equipment observes the
following installation guidelines. Failure to do so could compromise the protection concept of the
equipment.

EXTERNAL EARTH TERMINAL

On final assembly the cover screw
must be locked in place.
Use 2mm Allen Key

Parallel glands and blanking
plugs should have O Ring seals
or sealing washers to maintain
IP66 rating use Atex rated glands
and blanking plugs

Taper glands and blanking plugs
should use suitable thread
sealant to maintain IP66 rating,
typical LOCTITE 577 use Atex
rated glands and blanking plugs

Gas detectors are supplied
with sealing washers. These
must be fitted to meet
approval requirements

EXTERNAL EARTH STRANDED CABLE USE 4.0mmSQ CSA SOLID CORE CABLE USE 6.0mmSQ CSA

INTERNAL EARTH STRANDED CABLE USE 1.5mmSQ CSA SOLID CORE CABLE USE 2.5mmSQ CSA

WARNING

Glands and cable must be of a suitable type to match the zone of application of the equipment

OLIVER

IG D
