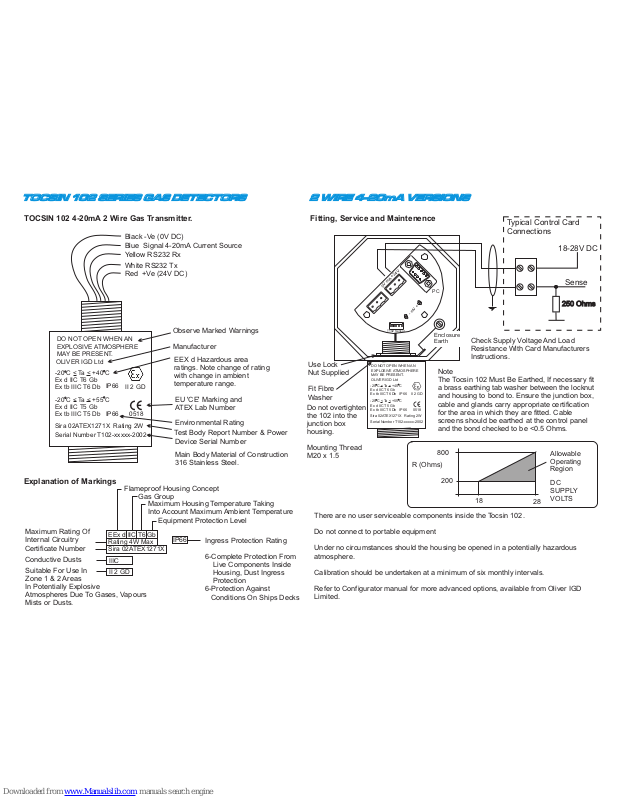

Oliver IGD Tocsin 102 User Manual

EEx d IIC T6 Gb
Rating 4W Max
Sira 02ATEX1271X

II 2 GD

IIIC

TOCSIN 102 4-20mA 2 Wire Gas Transmitter.

Fitting, Service and Maintenence

Explanation of Markings

Flameproof Housing Concept

Equipment Protection Level

Gas Group

Maximum Housing Temperature Taking
Into Account Maximum Ambient Temperature

Ingress Protection Rating

6-Complete Protection From
Live Components Inside
Housing, Dust Ingress
Protection
6-Protection Against
Conditions On Ships Decks

Certificate Number

Maximum Rating Of
Internal Circuitry

Suitable For Use In
Zone 1 & 2 Areas
In Potentially Explosive
Atmospheres Due To Gases, Vapours
Mists or Dusts.

250 Ohms

Sense

18-28V DC

Typical Control Card
Connections

Use Lock
Nut Supplied

Fit Fibre
Washer

Check Supply Voltage And Load
Resistance With Card Manufacturers
Instructions.

Note
The Tocsin 102 Must Be Earthed, If necessary fit
a brass earthing tab washer between the locknut
and housing to bond to. Ensure the junction box,
cable and glands carry appropriate certification
for the area in which they are fitted. Cable
screens should be earthed at the control panel
and the bond checked to be <0.5 Ohms.

18

28

DC
SUPPLY
VOLTS

R (Ohms)

200

800

Allowable
Operating
Region

There are no user serviceable components inside the Tocsin 102.

Do not connect to portable equipment

Under no circumstances should the housing be opened in a potentially hazardous
atmosphere.

Calibration should be undertaken at a minimum of six monthly intervals.

Refer to Configurator manual for more advanced options, available from Oliver IGD
Limited.

Do not overtighten
the 102 into the
junction box
housing.

Mounting Thread
M20 x 1.5

Black -Ve (0V DC)

Yellow RS232 Rx
White RS232 Tx

Red +Ve (24V DC)

Blue Signal 4-20mA Current Source

Observe Marked Warnings

Manufacturer

Environmental Rating

Test Body Report Number & Power

EEX d Hazardous area
ratings. Note change of rating
with change in ambient
temperature range.

Device Serial Number

EU 'CE' Marking and
ATEX Lab Number

IP66

DO NOT OPEN WHEN AN
EXPLOSIVE ATMOSPHERE
MAY BE PRESENT.

0518

II 2 GD

-20 C < Ta < +40 C

-20 C < Ta < +55 C

IP66

IP66

Serial Number T102-xxxxx-2002

Sira 02ATEX1271X Rating 2W

Ex d IIC T6 Gb
Ex tb IIIC T6 Db

Ex d IIC T5 Gb
Ex tb IIIC T5 Db

OLIVER IGD Ltd

DO NOT OPEN WHEN AN
EXPLOSIVE ATMOSPHERE
MAY BE PRESENT.

0518

II 2 GD

-20 C < Ta < +40 C

-20 C < Ta < +55 C

IP66

IP66

Serial Number T102-xxxxx-2002

Sira 02ATEX1271X Rating 2W

Ex d IIC T6 Gb
Ex tb IIIC T6 Db

Ex d IIC T5 Gb
Ex tb IIIC T5 Db

OLIVER IGD Ltd

Main Body Material of Construction
316 Stainless Steel.

Conductive Dusts

TOCSIN 102 SERIES GAS DETECTORS 2 WIRE 4-20mA VERSIONS

0V mA +24V

T102 Sensor

PC

- mV +

Enclosure
Earth

5107901
5107101
5106801
5106301
5107201
5106601
5106201
5106501
5107001
5106701
5106401
5106101

Flammable Gases Infra Red
Carbon Monoxide
Nitric Oxide
Nitrogen Dioxide Infra Red
Hydrogen Cyanide
Chlorine
Ozone
Hydrogen Sulphide
Ammonia
Oxygen
Sulphur Dioxide
Hydrogen Chloride

Tocsin 102 Part Numbers:

(Add suffix ‘A’ for addressable versions)

Collector Cone 401061

Weather Protection Assembly
And Test Gas Applicator 401451

Standard Junction
Box EEXd

Stainless Steel Junction
Box EEXd

Polyester Junction
Box EXE

L

E

A

T

A

B

M

M

M

O

A

S

L

P

F

H

E

A

R

F

E

O

E

C

N

E

S

E

R

P

E

H

T

N

I

N

E

P

O

T

O

N

O

D

G

N

I

N

R

A

W

Serial

Gas

Date

Model

OLI VER

IG D

0518

Oliver IGD Ltd Stockport England

Tel: [phone]
Web: www.oliver-igd.co.uk

D

E

S

D

I

O

G

R

N

E

O

N

T

E

O

P

E

E

N

N

W

H

II 2 D G
Epsilon07ATEX2287X
Ex tD A21 IP68 T85 C

Ex d IIC T6

o

JB3

DO NOT OPEN WHEN AN
EXPLOSIVE ATMOSPHERE
MAY BE PRESENT.

0518

II 2 GD

-20 C < Ta < +40 C

-20 C < Ta < +55 C

IP66

IP66

Serial Number T102-xxxxx-2002

Sira 02ATEX1271X Rating 2W

Ex d IIC T6 Gb
Ex tb IIIC T6 Db

Ex d IIC T5 Gb
Ex tb IIIC T5 Db

OLIVER IGD Ltd

ppm and %
Ranges
Available

ppm and %
Ranges
Available

ppb and ppm
Ranges
Available

Infra-Red Most Flammable Gases, Vapours

And Carbon Dioxide, Typically:

Electrochemical Most Common Toxic Gases And Oxygen

Typically:

PID Low Level Monitoring of a wide Range

of Toxic and Flammable Gas Hazards
Typically:

Technology Used to Monitor

Available
Ranges

Methanol
Carbon Monoxide

SF6

CO2
Freons

Ethanol
Iso Propyl Alchohol
Acetone
Methyl Ethyl Ketone
Benzene
Toluene

Methane
Propane
n-Butane
n-Pentane
n-Hexane

Carbon Monoxide
Nitric Oxide
Nitrogen Dioxide
Hydrogen Sulphide
Sulphur Dioxide

Oxygen
Hydrogen Sulphide
VOC's

VOC's (Volatile Organic Compounds)
TIC's (Toxic Industrial Chemicals)
CWA (Chemical Warfare Agents)
Hydrocarbons
Fumigants

5045801

5045802

5045803

A
A
A
A
A
A
A
A
A
A
A
A

OLIVER IGD LIMITED

TOCSIN 102 SERIES GAS DETECTORS

4a Pepper Road, Hazel Grove
Stockport, SK7 5BW, England

Tel [phone]
Fax [phone]
Email [e-mail]

Oliver IGD Limited Reserve the right
to amend specifications without prior notice

Ref INFO215

Test Gas Applicator/
Flow Cell 401101A

Test Gas Applicator
Clamp Ring 401101E

Modular Sampler EMS1 5799101

For the full range of available adaptors
see data sheet IGD-DA-003

The Tocsin 102 series of gas detectors are ATEX approved sensors
which incorporate micro processor technology to give a stable 4-20mA
process signal output. The addressable option allows extensive
reductions in cost of installation through material and labour savings.
The in built processor can be used to pre-calibrate the sensor prior to
installation. A range of sensing technologies can be incorporated into
the housing to provide the most appropriate detection method. Available
sensor types include Infra red and Electrochemical and PID devices.

Oliver IGD offer a
comprehensive range of
control panel options
for both safe area
and ATEX operation.
Please refer to Oliver
IGD limited for further
details.

www.oliver-igd.co.uk
