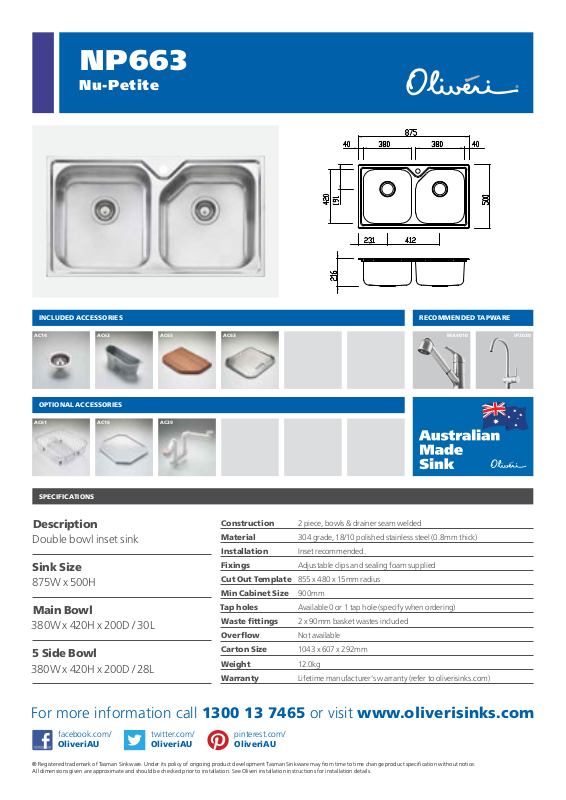

Oliveri WA663PACK, NP663NTH Specifications Sheet

NP663

Nu-Petite

INCLUDED ACCESSORIES RECOMMENDED TAPWARE

AC14

OPTIONAL ACCESSORIES

AC61

SPECIFICATIONS

AC62

AC16

Description

Double bowl inset sink

Sink Size
875W x 500H

Main Bowl

380W x 420H x 200D / 30L

5 Side Bowl

380W x 420H x 200D / 28L

AC65

AC29

AC63 MA4010 IP2030

Construction 2 piece, bowls & drainer seam welded

Material 304 grade, 18/10 polished stainless steel (0.8mm thick)

Installation Inset recommended.

Fixings Adjustable clips and sealing foam supplied

Cut Out Template 855 x 480 x 15mm radius

Min Cabinet Size 900mm

Tap holes Available 0 or 1 tap hole (specify when ordering)

Waste fittings 2 x 90mm basket wastes included

Overflow Not available

Carton Size 1043 x 607 x 292mm

Weight 12.0 kg

Warranty Lifetime manufacturer’s warranty (refer to oliverisinks.com)

For more information call 1300 13 7465 or visit www.oliverisinks.com

facebook.com/

OliveriAU

® Registe red trademark of Tasman Si nkware. Under it s policy of ongoi ng product devel opment Tasman Sinkwa re may from time to time cha nge product spe cification wit hout notice.
All dimen sions given are appr oximate and should b e checked prior to ins tallation. See O liveri installat ion instructi ons for installati on details.
