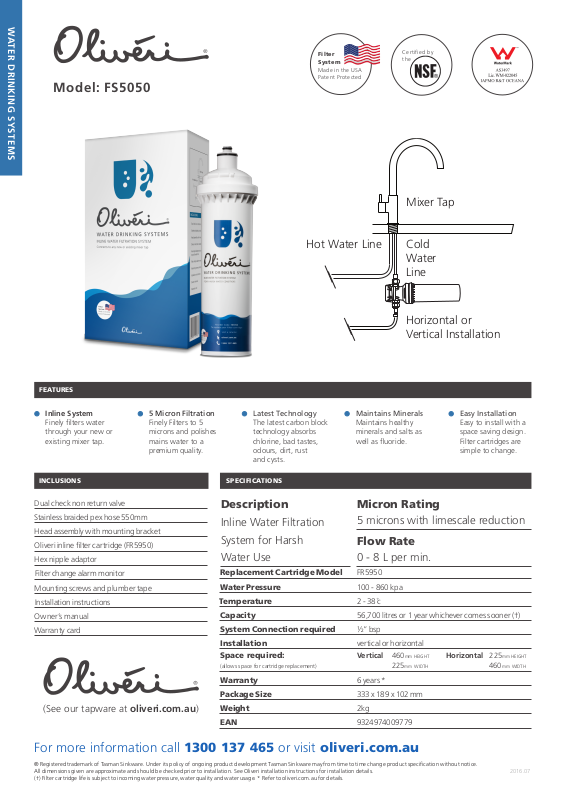

Oliveri FS5050 Specifications Sheet

WATER DRINKING SYSTEMS

Model: FS5050

Filter
System

Made in the USA
Patent Protected

Hot Water Line

Certified by
the

Mixer Tap

Cold
Water
Line

Horizontal or
Vertical Installation

FEATU RES

Inline System
Finely filters water
through your new or
existing mixer tap.

INCLUSIONS

Dual check non return valve

Stainless braided pex hose 550mm

Head assembly with mounting bracket

Oliveri inline filter cartridge (FR5950)

Hex nipple adaptor

Filter change alarm monitor

Mounting screws and plumber tape

Installation instructions

Owner’s manual

Warranty card

5 Micron Filtration

Finely Filters to 5
microns and polishes
mains water to a
premium quality.

(See our tapware at oliveri.com.au)

Latest Technology

The latest carbon block
technology absorbs
chlorine, bad tastes,
odours, dirt, rust
and cysts.

SPECIFICATIONS

Description

Inline Water Filtration

System for Harsh

Water Use

Replacement Cartridge Model FR5950

Water Pressure 100 - 860 kpa

Temperature 2 - 38˚c

Capacity 56,700 litres or 1 year whichever comes sooner (†)

System Connection required ½” bsp

Installation vertical or horizontal

Space required: Vertical 460mm HEIGHT Horizontal 225mm HEIGHT

(allows space for cartridge replacement) 225mm WIDTH 460mm WIDTH

Warranty 6 years *

Package Size 333 x 189 x 102 mm

Weight 2kg

EAN 9324974009779

Maintains Minerals

Maintains healthy
minerals and salts as
well as fluoride.

Micron Rating

5 microns with limescale reduction

Flow Rate

0 - 8 L per min.

Easy Installation

Easy to install with a
space saving design.
Filter cartridges are
simple to change.

For more information call 1300 137 465 or visit oliveri.com.au

® Registe red trademark of Tasman Si nkware. Under it s policy of ongoi ng product devel opment Tasman Sinkwa re may from time to time cha nge product spe cification wit hout notice.
All dimen sions given are appr oximate and should b e checked prior to ins tallation. See O liveri installat ion instructi ons for installati on details.
(†) Filter car tridge life is subje ct to incoming wate r pressure, water qual ity and water usag e. * Refer to oliveri.com .au for details.

2016.07
