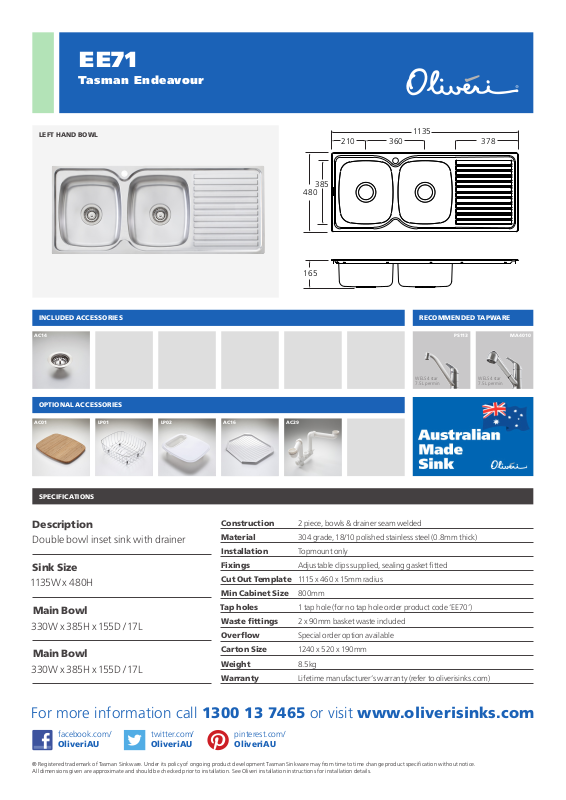

Oliveri EE711TH Specifications Sheet

EE71

Tasman Endeavour

LEFT HAND BOWL

480

165

INCLUDED ACCESSORIES RECOMMENDED TAPWARE

AC14

OPTIONAL ACCESSORIES

210 360

385

1135

WELS 4 st ar

7.5 L per min

378

PS113 MA4010

WELS 4 st ar

7.5 L per min

AC01 LP02 AC16 AC29LP01

SPECIFICATIONS

Description

Double bowl inset sink with drainer

Sink Size

1135W x 480H

Main Bowl

330W x 385H x 155D / 17L

Main Bowl

330W x 385H x 155D / 17L

Construction 2 piece, bowls & drainer seam welded

Material 304 grade, 18/10 polished stainless steel (0.8mm thick)

Installation Topmount only

Fixings Adjustable clips supplied, sealing gasket fitted

Cut Out Template 1115 x 460 x 15mm radius

Min Cabinet Size 800mm

Tap holes 1 tap hole (for no tap hole order product code ‘EE70’)

Waste fittings 2 x 90mm basket waste included

Overflow Special order option available

Carton Size 1240 x 520 x 190mm

Weight 8.5kg

Warranty Lifetime manufacturer’s warranty (refer to oliverisinks.com)

For more information call 1300 13 7465 or visit www.oliverisinks.com

facebook.com/

OliveriAU

® Registe red trademark of Tasman Si nkware. Under it s policy of ongoi ng product devel opment Tasman Sinkwa re may from time to time cha nge product spe cification wit hout notice.
All dimen sions given are appr oximate and should b e checked prior to ins tallation. See O liveri installat ion instructi ons for installati on details.
